5A-FE Restoration

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:06:27 +0500 #21

you may need 0.9 cap & a 82C thermostat valve

Salmaanawan (Salman Awan) 2022-01-22 18:10:34 +0500 #22

Thank you, 0.9 and 82c tstat confirm?
Also right now the fan is direct and I have no idea if the car even has a tstat valve installed. The temperature guage still stays in the middle despite all of this roadside karigari, shouldn't the needle be lower than half? I aim to put it back to factory specs, but I am a little afraid of overheating.

Hassan1991 (Electrical Engineer ) 2022-01-22 18:16:22 +0500 #23

Part number of thermostat 90916-03046
Part number of radiator cap 16401-20353
Came in many other engines.

Hassan1991 (Electrical Engineer ) 2022-01-22 18:17:42 +0500 #24

You need to flush the cooling system.
If needle stays in middle even with direct fan it means system is clogged.

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:19:47 +0500 #25

ok before any other change, correct the engine fan wiring to run on automatic.
temp gauge constant at middle means engine may have thermostat in system. Fan running on automatic will confirm.

if thermostat is absent and needle rise & drop when fan is on auto it transcribe for need of thermostat in system.
ORDER NEW

Salmaanawan (Salman Awan) 2022-01-22 18:21:17 +0500 #26

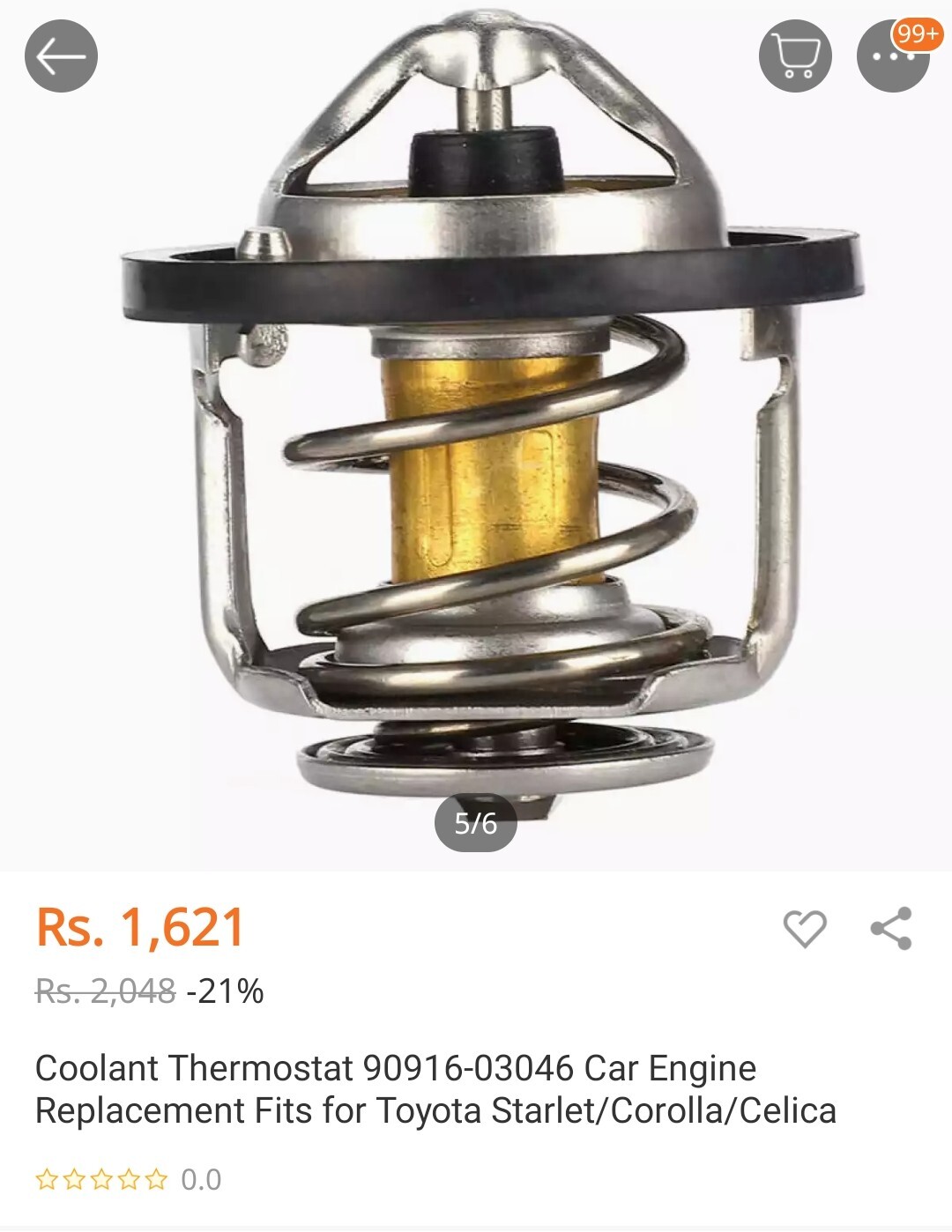

Wah kia baat hai, this is the tstat right?

Should I use flush with this radiator, or purchase new radiator and then flush the whole system?

Hassan1991 (Electrical Engineer ) 2022-01-22 18:23:21 +0500 #27

Yes it's the correct one.
Check the condition of radiator. If it can work after flush then no need to replacement.

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:23:24 +0500 #28

please read this thread to do the DIY flush. change radiator only if needed.

Salmaanawan (Salman Awan) 2022-01-22 18:23:40 +0500 #29

Will do sir, thank you. Should I flush with the current radiator installed or a get a new radiator first. It's not in good nick, the upper tank has a lot of silicone along the edges. Will check the t-stat before flushing as well.

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:24:49 +0500 #30

you can swap the upper tank from radiator cleaning guys. New radiator is last option, you may need in summer if coolant expansion tank malfunction, try to save some monies for now

Salmaanawan (Salman Awan) 2022-01-22 18:25:08 +0500 #31

Radiator brand is "Shams" so I am not so hopeful, but still I'll see. Hopefully it works out, otherwise will have to go for ND.

Salmaanawan (Salman Awan) 2022-01-22 18:27:15 +0500 #32

Ok, this will be my next fix. Will update as soon as I have some time on my hands. Thanks for all the help fellows.

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:27:47 +0500 #33

plenty of new chinese brand aluminum radiators are available in market at reasonable price, please do match the hose positions and resting slots and lower holding feet. If replacement is necessary.

capsat (ومن شر حاسد إذا حسد) 2022-01-22 18:29:23 +0500 #34

it is all about sharing & helping, stay connected to PW

Thank you @HanifBhatti saheb
