Baleno discussion and self maintenance

[mohsinmahar]

Yes its standard and clips lock

[mohsinmahar]

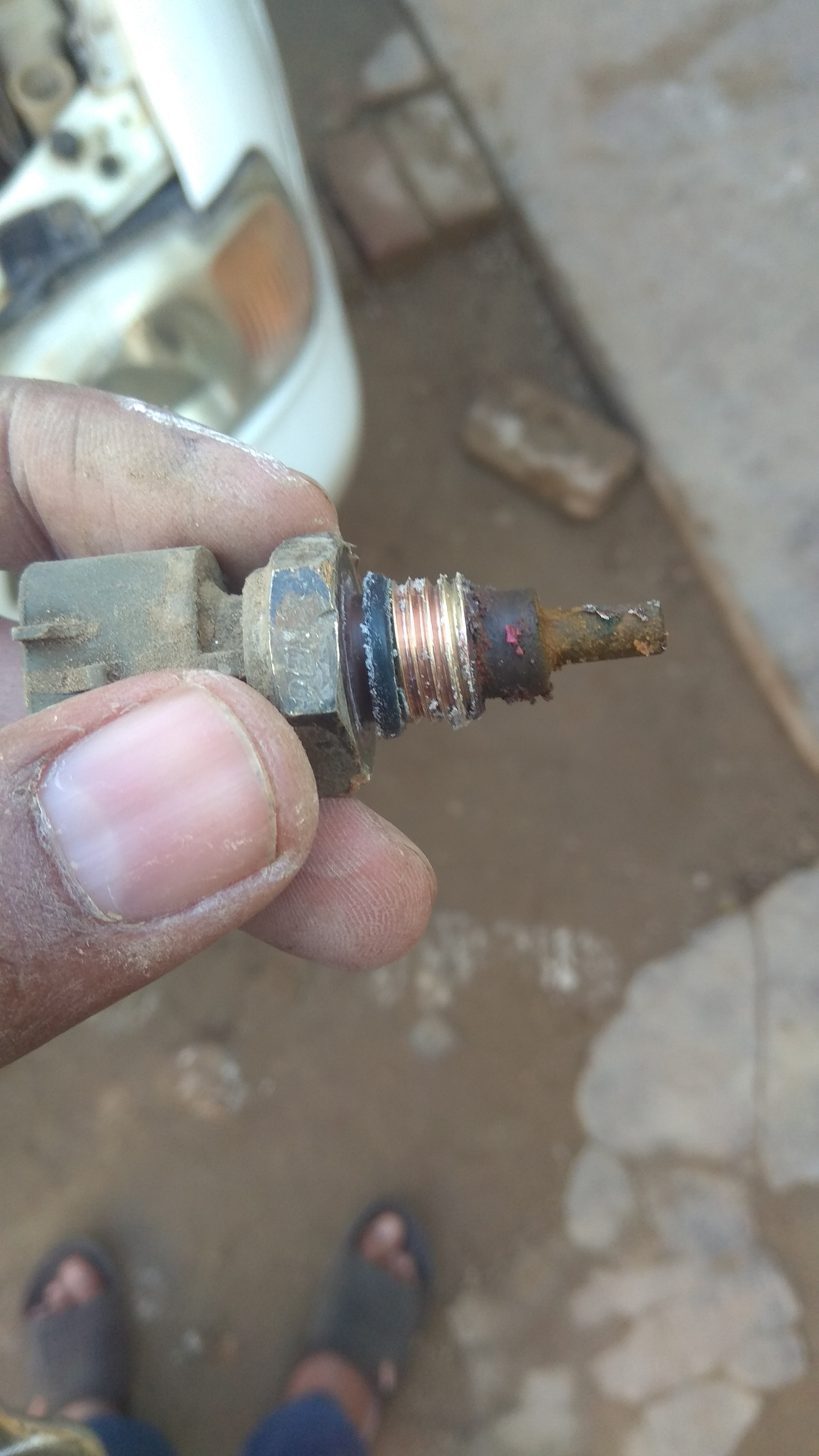

Temperature sensor condition.is it also used for temperature or only radiator fan start switch

[RehanBhatti]

Replace it with new one. Its very important part of your engine. It sends signal to your ecu.

[mohsinmahar]

I have cleaned it and it recame new golden.no need to change

[Horse_rider]

How many terminals it have?

[mohsinmahar]

3

[mohsinmahar]

I m planning to clean or replace fuel filter.did anyone do.if yes what u recommend change it with plastic one whats the price of metal body genuine from where i get

[safeerabbas]

I changed it about an year ago. Price was around 400 Rs. as i remember. Got it from PK autos in sultan ka khoo rwp. N it was same metal type. I would suggest go for new one.
Did u check filter condition in fuel tank? Its better to check and replace that as well if needed.

[mohsinmahar]

Fuel tank I don't know about that will u please guide more.share pictures if u have

[mohsinmahar]

Ignition coils open and they are full of corrosion i think everyone have to check them.

After cleaning satisfied.

[safeerabbas]

Unfortunately i dont have pictures for it. But you have to remove fuel tank for this. Then take out fuel pump and a smal filter is attached with it. New filter will cost u around 200 rs. Plus u can check the condition of fuel tank and clean it as well. Mostly fuel tanks have rust due to poor petrol quality in pakistan.

[mohsinmahar]

My little master is at my back so i have support at my back​

[mohsinmahar]

My next plan is to clean fuel tank,filter and pump cleaning etc

[mohsinmahar]

Fuel filter cleaned very fine dust came with petrol.

After that use WD 40 more cleaning

[mohsinmahar]

Today adjusted valve clearance inlet .15 mm exhaust .25 mm

[mohsinmahar]

During valve clearance adjustment found that cover seal is damage.will replace in morning.so everyone be careful

[mohsinmahar]

This is a link where u get complete baleno manual including section 6.it has more the 5600 bages
https://www.manualslib.com/manual/1587519/Suzuki-Sy413.html

[mohsinmahar]

Brake service done today.and luckily on time as right brake caliper one side is stuck because rust etc

And disk is also uneven wear

So grinding of disk done and cleaned all stuff

[mohsinmahar]

During cleaning crank sensor there is a cut mark on it what was the reason

[mohsinmahar]

Inlet manifold cleaning done .simply with petrol and tooth brush.satisfied
