Corolla SE Saloon 2002 1NZ-FE Swapped

[Xulfiqar]

Theres your problem.

Your ecu is going mad trying to understand the speed signal. You will need to find its original speed sensor for this transmission and will also need to change the speedometer too to japanese 180 kmh one.

To confirm speed. Check speed reading on obd tool, gps and speedometer at the same time.

All three should be same or have error of 5kmh at max

[hasankhurshid29]

To confirm speed. Check speed reading on obd tool, gps and speedometer at the same time.

I have already tested that and I am seeing almost 40 kmph difference between gps and obd at higher speeds and around 25 to 30 at speed of 50kmph

[hasankhurshid29]

Your ecu is going mad trying to understand the speed signal. You will need to find its original speed sensor for this transmission and will also need to change the speedometer too to japanese 180 kmh one.

Problem is my car is non abs and maybe after 2000 all cars in japan have abs so the trans has place to hook VSS by removing a cover on that place but don't came with VSS. So mechanic have put VSS from previous transmission most probably.

Also no CEL for speed sensor but yes error is too much

[hasankhurshid29]

-

-

-

-

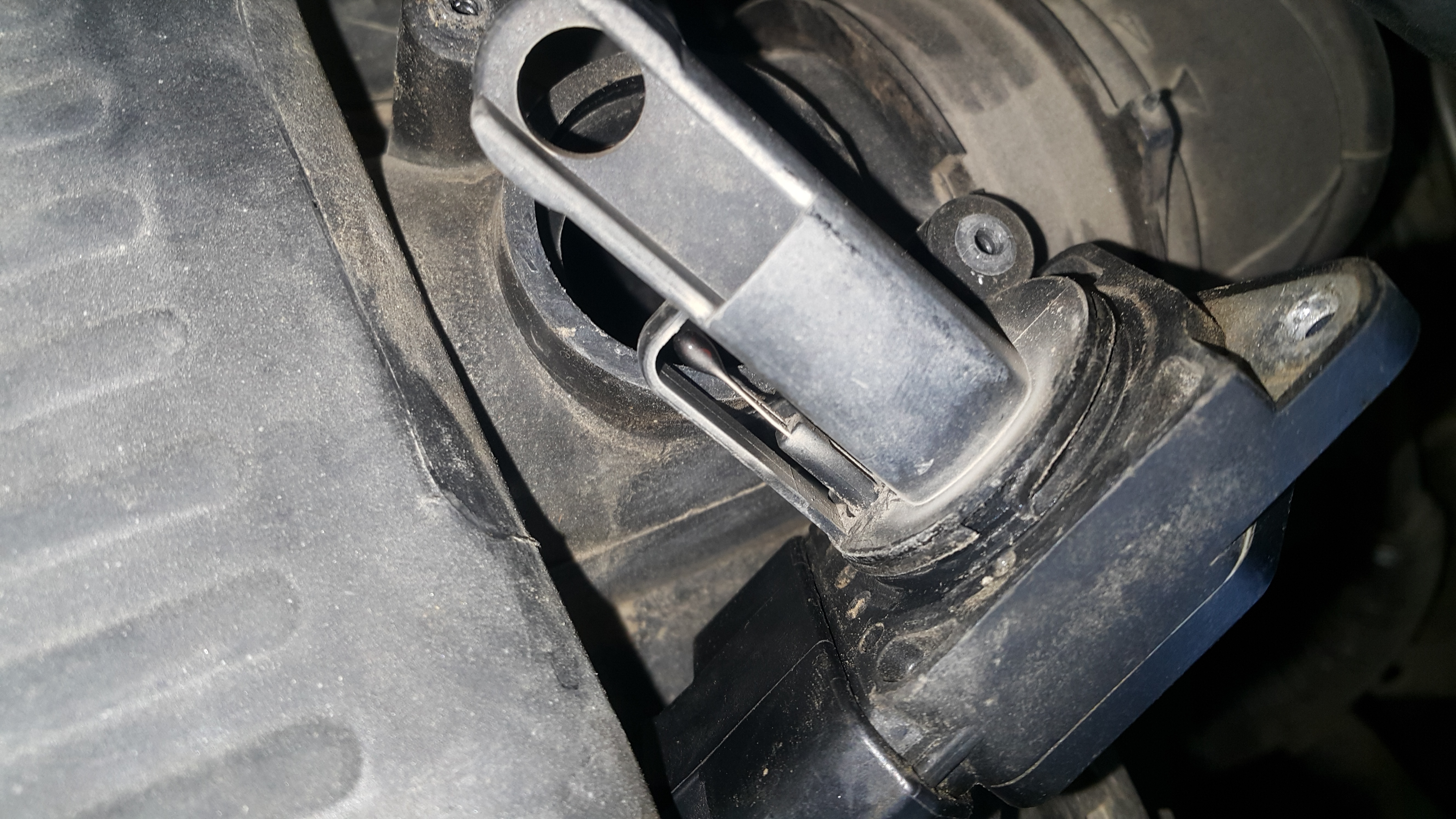

Does this maf sensor looks dirty? While opening it I also dropped one screw
Mechanic already done so called tuning and cleaned O2 sensor but still no effect on fuel average and pick. Only thing remain is speed sensor replacement

@Xulfiqar
@capsat
@Hassan1991

[xenerking]

dusty...use electrical contact cleaner having no residue left behind...

[Hassan1991]

Be careful cleaning it. Dropped screw where?

[hasankhurshid29]

Dropped screw where?

Somewhere in the engine bay. Couldn't find

[hasankhurshid29]

dusty...use electrical contact cleaner having no residue left behind...

I think I will get it cleaned by mechanic

[xenerking]

plz dont let him use petrol, diesel, carb cleaner, mitti ka tail...

the cleaning agent shud leave no residue behind, shud evaporate quickly n to be safe for electrical application...thanks

[Xulfiqar]

yes its dirty - clean it very gently.

btw - your problem is that your transmission is reporting wrong output speed. You may have to replace the gauge cluster along with the speed sensor too.

[hasankhurshid29]

btw - your problem is that your transmission is reporting wrong output speed. You may have to replace the gauge cluster along with the speed sensor too.

I have checked using obd2, it confirms that speed sensor is giving wrong output and speedometer is only displaying that so don't think speedometer is bad and mechanic is waiting for the replacement speed sensor to come

[Xulfiqar]

the ECUs for japan domestic versions read a different tone wheel in the transmission - they also have a 180 kph speedo.

[def3nder]

Ya i think he should get 180 speedometer.

[hasankhurshid29]

Ya i think he should get 180 speedometer.

Bro I don't have any issues if only speedo is showing wrong data
But my problem is ecu is also receiving wrong data
That's the real problem not the speedo

[dayrider]

speedo is probably part of the circuit, it will malfunction without it

[dms664]

speedo should not be a problem because usually people install speedo of RS Vitz/yaris which comes with RPM and is marked till 240. ppl install it in normal jdm vitz plug and play and it works without any hiccups. in the default meter there is no RPM meter

[dayrider]

its not the speed reading that is different, but the fact that the jdm meter will help complete the loop along with the vss, i am not sure that his current meter would be able to do that

[abdkhan2]

That Revere jerk problem solved or not?

[hasankhurshid29]

Yes
Doesn't felt any jerk when shifted to reverse

[pwuser15793837071]

i have changed my engine from 2. 0 d diesel manual to 1.5 (1nz fe/) engine with automatic transmission kia ma na sahi kia ya is sa behtar kuch ho sakta tha ager kisi or na bhe swap kia ha to pic send ker do or gari ki speed bhe bata do 0 to 100. Fuel average
