Corolla SE Saloon 2002 1NZ-FE Swapped

[mohsin-212]

If china has installed 1zrfe in this dumba shape Corolla then its mean that it is possible to swap 1zrfe in our local SE Saloon and Altis

[hasankhurshid29]

This is the same china model of which I shared the link above. You can see the engine bay radiator everything is different in this car. Its a corolla between 9th and 10th gen. So we can't be too sure that it will fit without any issue.

[mohsin-212]

Outside say tu same hai engine bay different ho tu main kuch nahi keh sakta mainay note nahi kiya

[xenerking]

maybe the engine mounting has different configuration, though its unlikely

[hasankhurshid29]

[xenerking]

mirror hay

[mohsin-212]

Engine bay tu same lag rahi hai

[hasankhurshid29]

Problem solved by my friend's brother who works at AC shop. He came to my home
I am in Dengue, I wasn't able to check what the issue is. But this time compressor was not engaging. He first check if the system has some gas or not and then wired the clutch directly to battery and its started working perfectly. Perfect cooling. Then he connected the wire from engine harness to compressor clutch back and it doesn't engage. He said you should go to electrician. I then told him why we shouldn't look in the fuse box. I replaced the horn relay with mgct relay and the compressor starts working fine. I put the mgct relay which looks a little bad into the horn and horn does work for now.
Now after recovering from dengue, I will wire the pressure switch myself. I have found out some wiring diagrams which will help me.

[aziz.rehan]

May Allah bless u with a speedy recovery

[dms664]

get well soon!

[capsat]

both are LHD vehicles what you are implying ??

[hasankhurshid29]

I wasn't implying anything

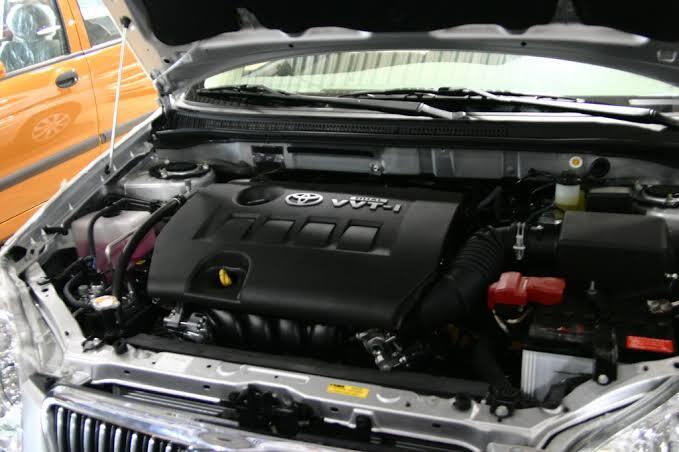

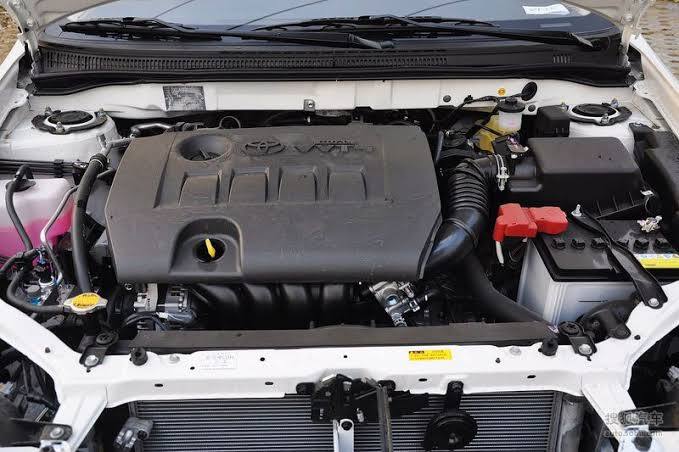

Just posted 2 sample pictures of Chinese 9th Gen Corolla EX with 1ZR engine.

[hasankhurshid29]

Thanks
@aziz.rehan @dms664

[hasankhurshid29]

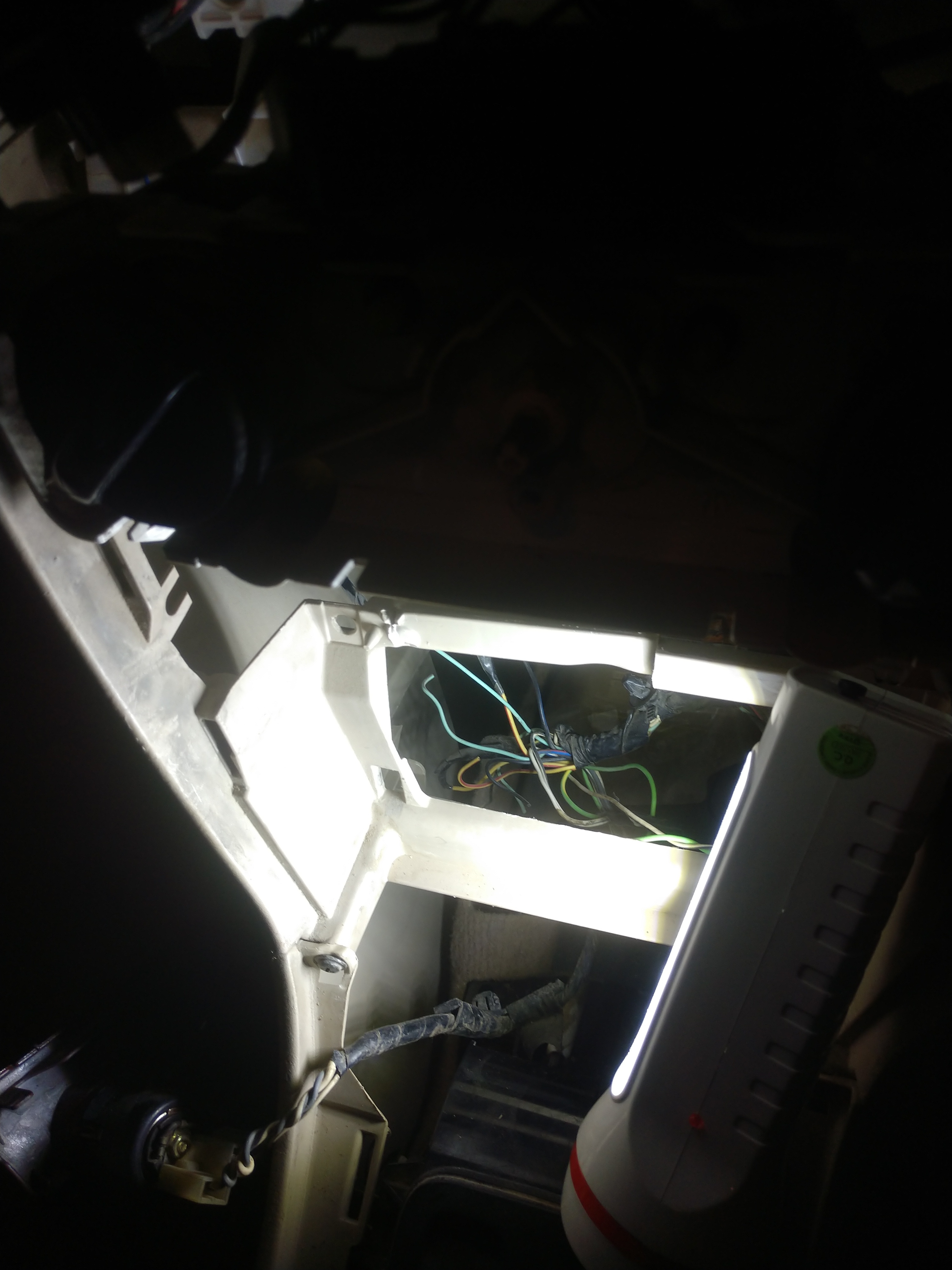

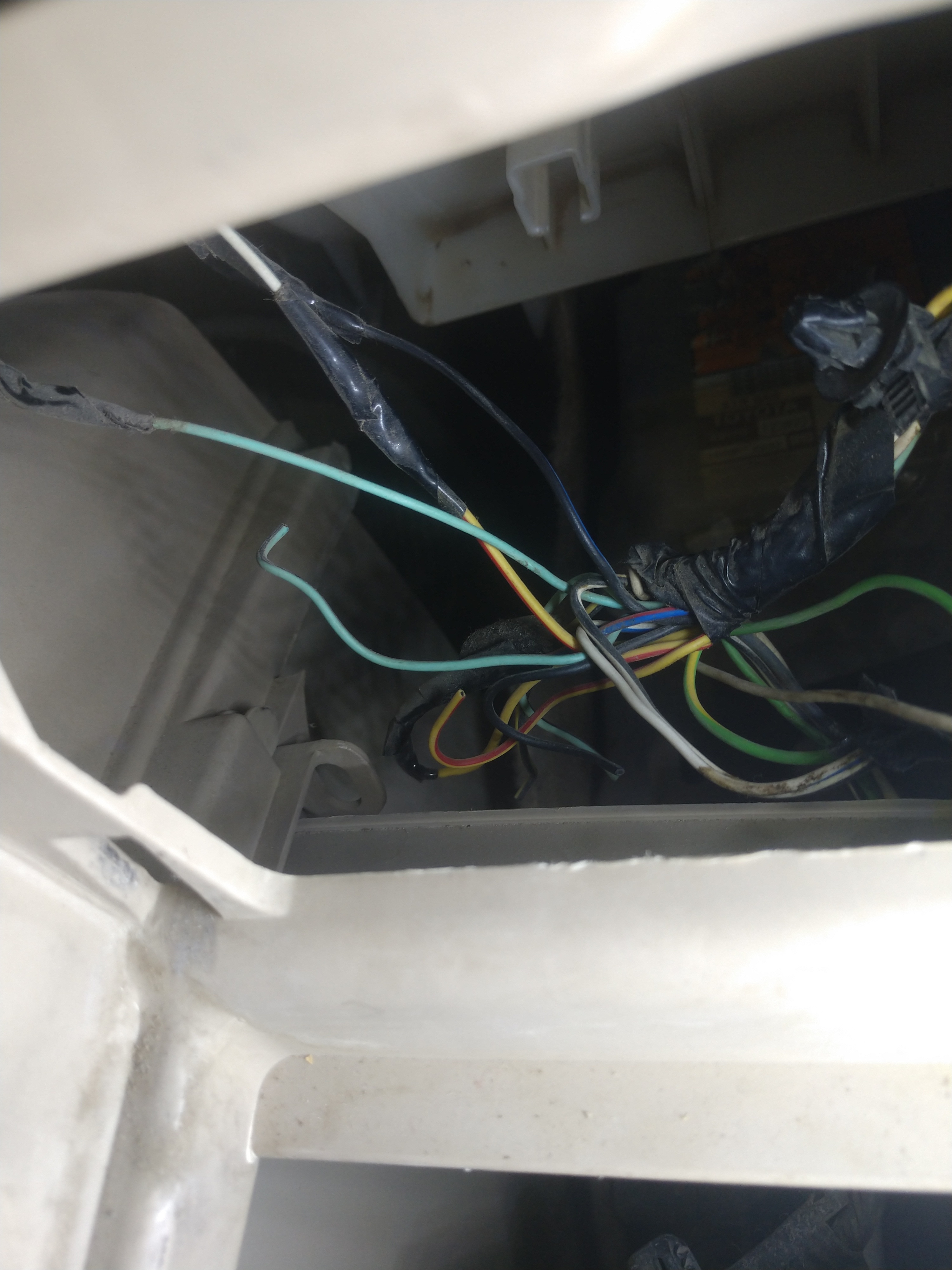

I just open the panel and it looks like AC amplifier has been removed

[hasankhurshid29]

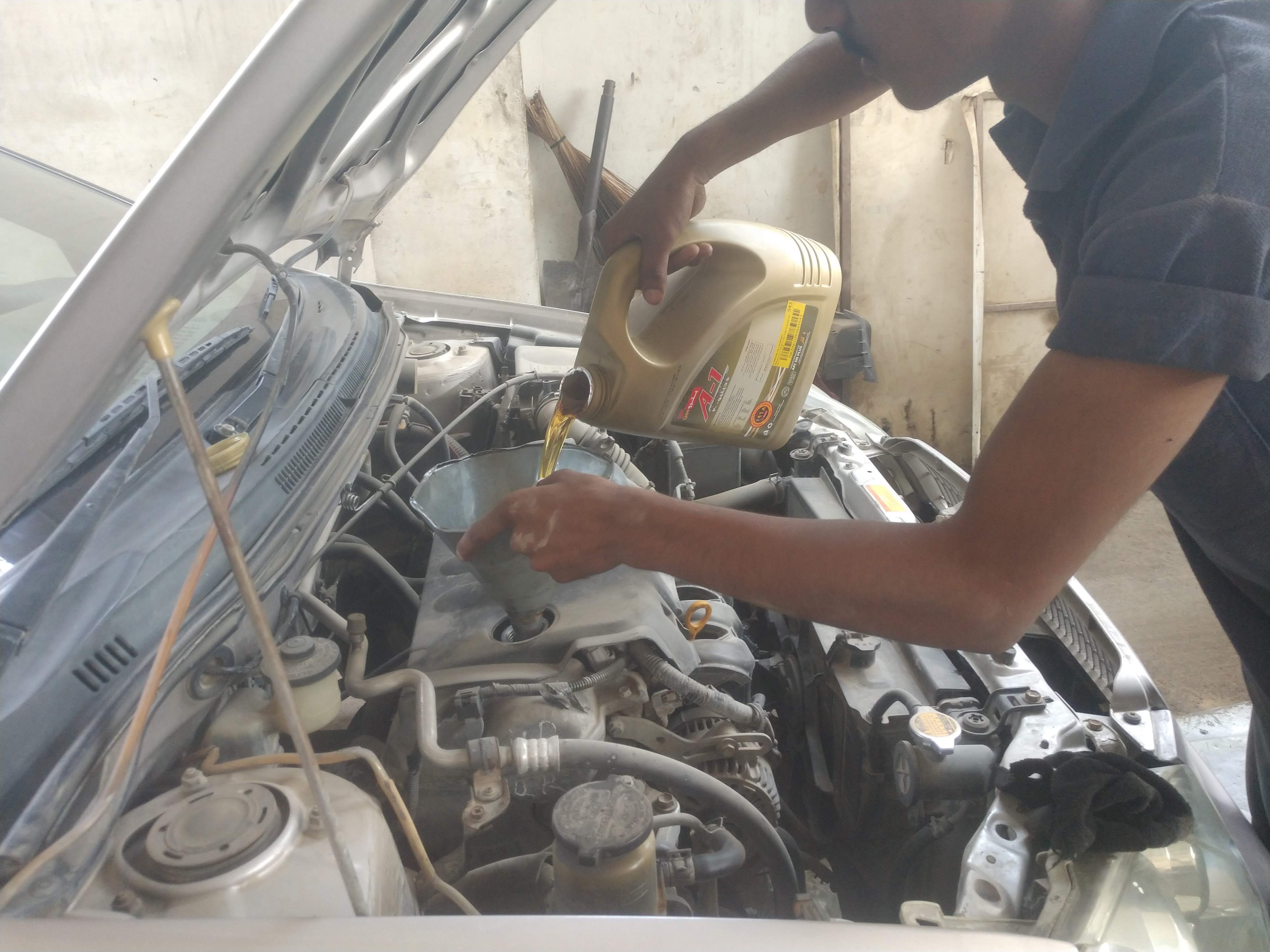

Yesterday got my oil change at 4707 kms. The oil level was near to the lower dot. I even have poured the remaining 300 ml from the last oil change already at 3000 kms.
This time I used Geniune Toyota Oil Filter bought from Parts Central costed me Rs.1100 but for Karachi shipping was 300. Toyota Dealership has it at Rs.1250. I am planning to use this oil filter for 2 oil changes or almost 9k kms. Is it ok to use for this much kms? @Xulfiqar

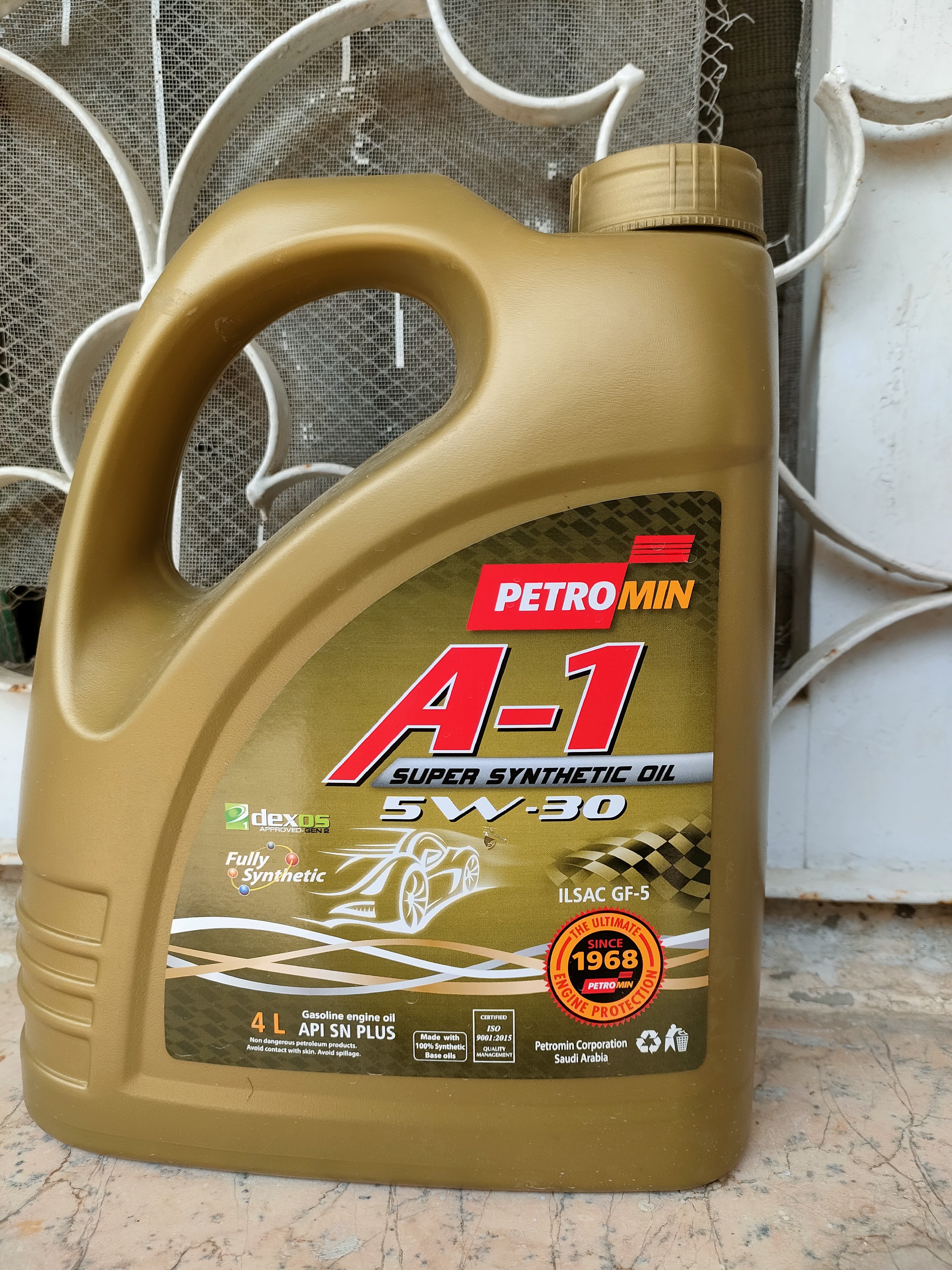

This time I am using fully synthetic Petromin 5w30 bought from Daraz. Hope it will give better result than previous oil (Mobil Super 5w30 Synthetic Technology)

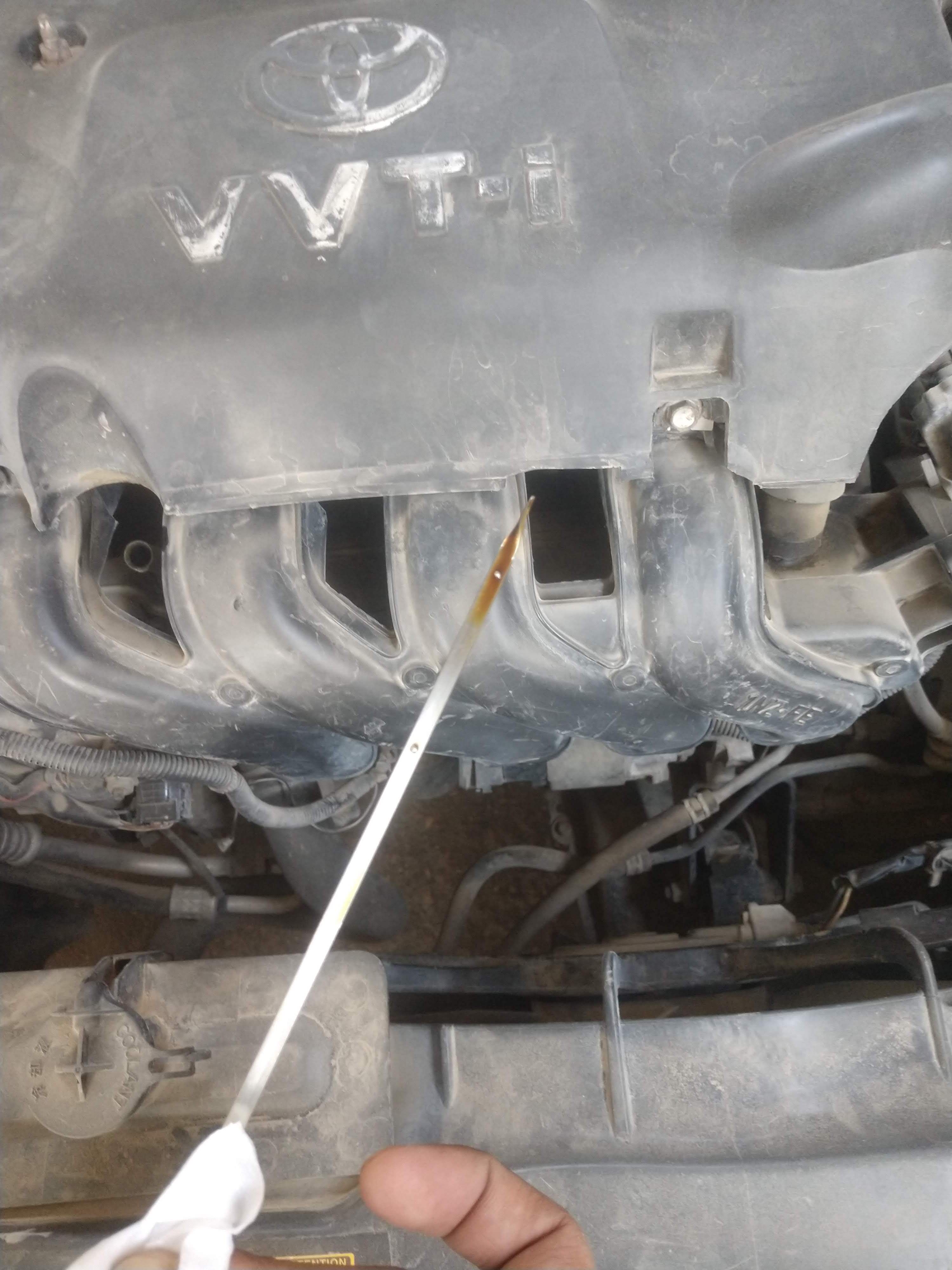

Oil Level before the oil change:

[dayrider]

Your used engine isn't responding too well to thin oil, the brand isn't the issue.

[hasankhurshid29]

No smoke at all and consumption look within specs. It can consume upto 1 lier per 1000 kms
I will not move to thick oil

[dayrider]

Have you checked the seals? If it isn't burning, where is it going? No engine just eats oil, manufactures write this as a safety, for instance, prius consumes oil, but in actual it doesn't, it gets collected in the throttle body. So if the compression is on point, the oil can't vanish

[hasankhurshid29]

No oil leakage even no oil seepage anywhere around the block. Alhamdullilah
Don't know the exact reason
Maybe @Xulfiqar can guide

[mohsin-212]

Same is the case with me , but if you rev it to 3000-4000 then it will throw smoke
