Fj40 1976 complete restoration along with 1uzfe swap

[dani_kk]

Floor board migration from 1976 to 1984 model so we can fit a big 95L tank to it.

[dani_kk]

Old floor board with top tank under the seat

[dani_kk]

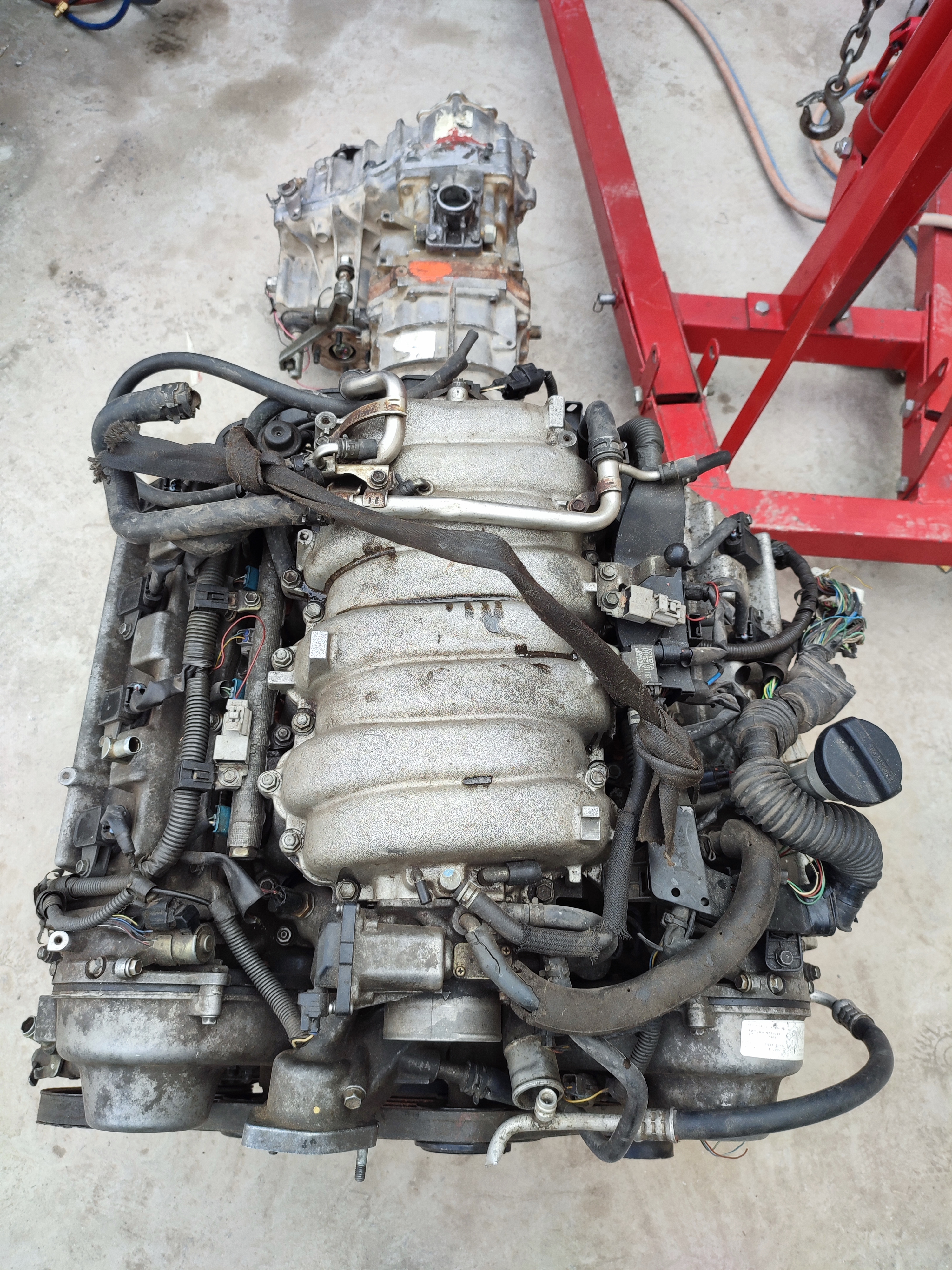

3uzfe mated with a manual transmission out from a 1hdte. Normally people also call it jmr transmission
Ready to go inside

[dani_kk]

[dani_kk]

Mount's bracket being made which were tig welded to the frame.

[dani_kk]

So after the mounts made, finishing was done & then frame was repainted

[dani_kk]

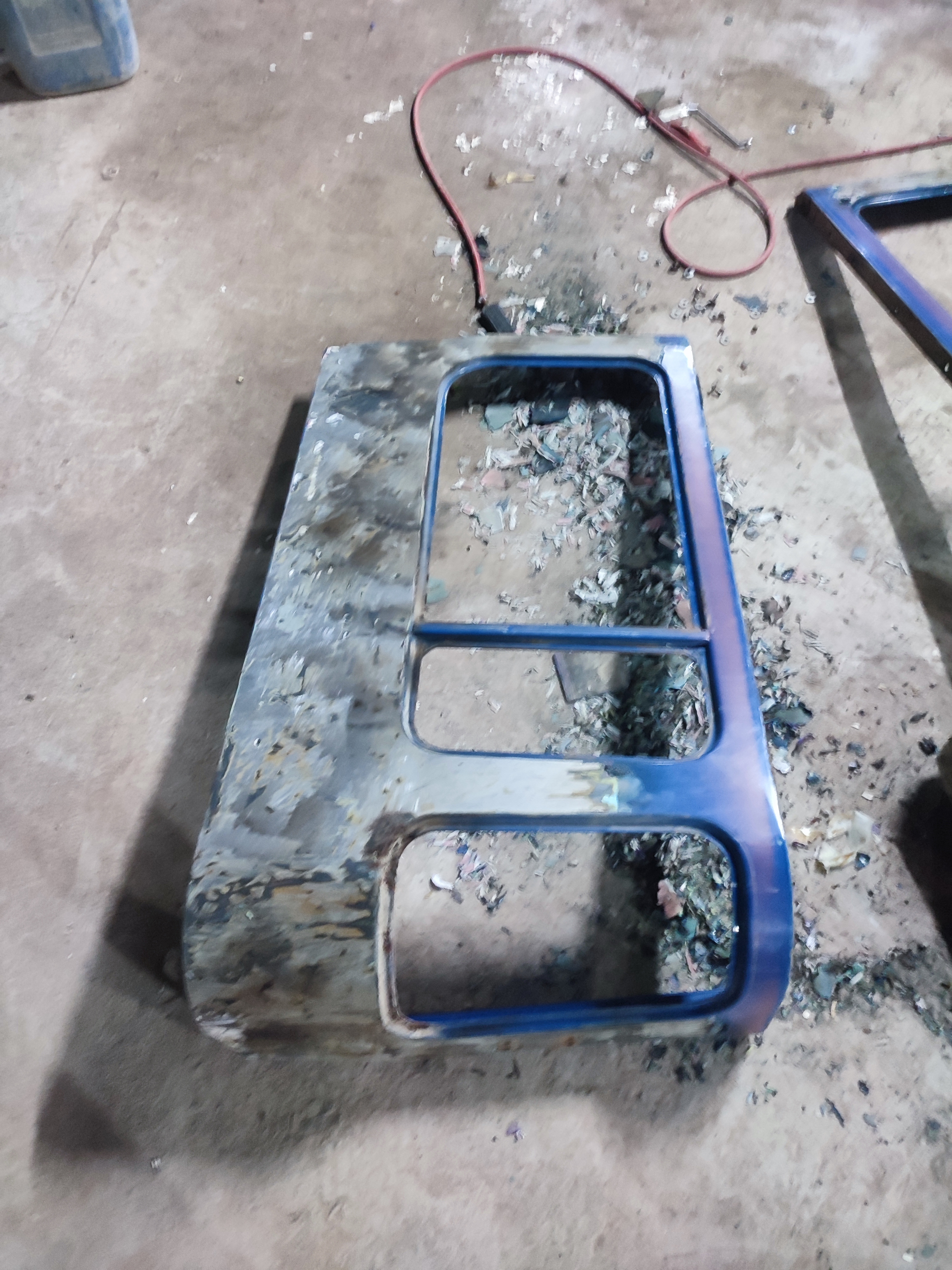

roof top is fully opened in to pieces to make it clean from old paint and to see if any pieces are rusted and then the denting was done.

[dani_kk]

[dani_kk]

1uzfe sitting inside & ironman suspension installed, picture was taken when flex was being observed.

[dani_kk]

p

[dani_kk]

[Moderator]

[dani_kk]

Snorkel was added from a 70series.
And top was ordered from eBay.

This look and extra filler on Fender was later on removed and fenders were replaced as old were warped.

[dani_kk]

When Roof was getting prepared on ground.

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

Interior work and once rubber was installed inside
