GRAND PROJECT QG18de being turbocharged

[dani_kk]

https://vimeo.com/192180876
Some fun with emanage.
Launch control switched on.
Loud backfiring and patakhas
Along with massive flames.

Sent from my SM-G360H using PW Forums mobile app

[dani_kk]

Finally 160 lph fuel pump installed
Firstly installed Toyota housing
Did calculations for fuel gauge and pump bottom point.
and then installed pump.
So mashallah car is accelerating like crazy.

Did Tapet adjustment. They were very noisy.

Fuel pump connected using ecu.

And on idle no one can tell if the engine is running, its mashallah silent.

Next job is 8heat grade spark plugs.
And installing a pipe type intake manifold with porting it.

Proud owner of the fast B11.

[star2]

videos to nai chal rai bhai

[Hassan1991]

Run videos please.

[dani_kk]

Bro yeh application upgrade se pehle
Ki thien, it was working then.
I'll update on YouTube soon.

And share the links.
Wese Instagram pe
Danyalnasir007 search karen they're are so much pictures of the project

[dani_kk]

That is something worth watching .

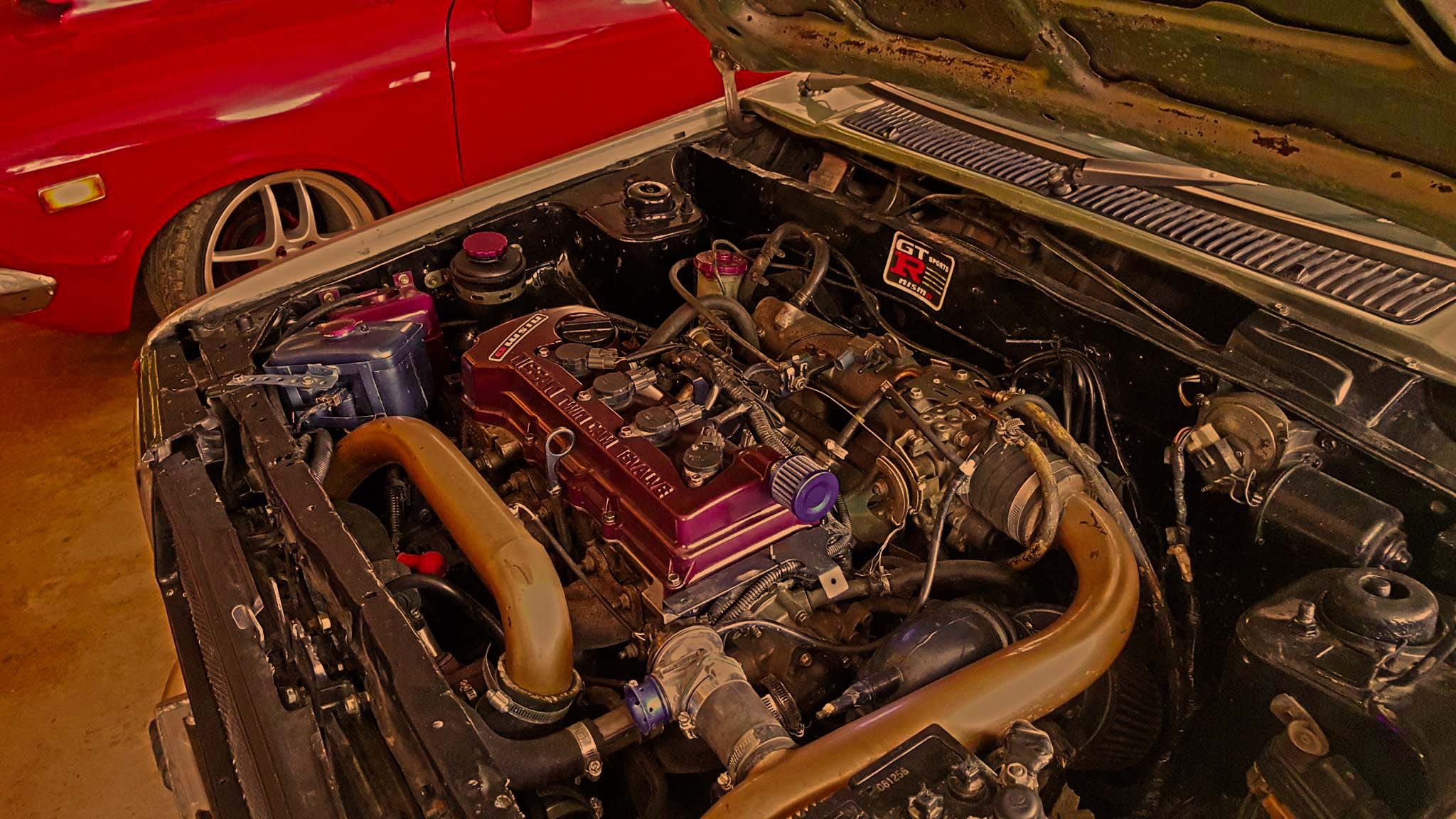

My engine bay

[Hassan1991]

Black colour kills the details you shouldn't had chosen that colour for bay until you want to hide something. Estimated 200hp or whp?

[dani_kk]

No it doesn't kills.
It acts as a dark background.
Engine cover, other details are very much visible which i wanted to show.
Everything's in contrast.
If you're from isb or rawalpindi. I'll show you the engine bay.

[dani_kk]

Did
Dyno jet
It was 218.5whp and 193.4 bhp
On 7psi of boost
And 264nm of torque.

This setup costs me 2.5lacs.

[Hassan1991]

Bhai apne ulta likh diya shyid...whp(wheel horse power) is always 15 percent less then bhp(brake horse power).
Still 200whp is pretty awesome needs skills to handle.
Nae bhai i'm from lahore.
Bhai "shook ka koe mull nae"

[bucherzinn]

Where did you buy turbo charger?

[star2]

can you please elaborate what is included in 2.5 lakhs?

[dani_kk]

Fmix
Bov greddy
Wide band aem
225lph aem pump
Hks boost gauge
Fmic piping
Fitting
Downpiping
Turbo charger kit t3 ar 48
Turbo exhaust manifold
Heat wraps
Boost tee Turbosmart
Intake filter kn
Blow filter
Turbo dump plate modification
These things cost me around 130k

Then comes emanage ultimate by greddy
Piggy back ecu. Got it new for 78k brand new.
Then new clutch plate set. 7.5k
And after everything
Genuine mls gasket
New kabli QG18de head
New rings
Crank polishing

So around itna lag gaya.

Now pending stuff is
Semi slicks, 500cc injectors ,
Pipe type intake manifold ported tb hole.

[dani_kk]

Hahah
True bro ulta likhdea.
You're right.

Abhi boost kholnay ki himmat nai hai =p
Wese kaha jata hai 11psi stock internals pe bardasht karleta hai

[dani_kk]

Aik banda hai modifications wala us say.

[Hassan1991]

I had seen your videos on your id at instagram. Those backfires
Han gii even 11psi is more then enough. Or 11psi pe engine daily driven nae rehta if it can handle 11 psi on stock internals then 8~9 psi is good for daily. Or bhai share suspension upgrades.

[dani_kk]

Thanks bro
Yes exactly. That's the only reason i haven't connected boost tee. So it's running on 7psi the stock actuator of turbo. On this boost its safe and economical too.

Suspension rear shocks are of Mercedes e series, they give me perfect launch the car doesn't sinks in Ground while launching. They're stiff. Cat eyes are the only enemy
Baki front shock fill huay we hain.
Swing arms etc everything is genuine of b11. It's good enough to handle the power. Stable suspension hai buhat b11 ka. And it's lighter too. Curb weight 600kg.

[Hassan1991]

Great
bss 600kg man mien ae80 is 900kg curb weight surely your cars tries to take-off . But you have one disadvantaged you can't stripe it.
Hahaha right keep it within 7~8 psi until your upto something

[dani_kk]

If i
Strip it and attach wings it'll fly for sure
In hilly areas my driving is kinda sharp cornering kinda so this car hasn't lost traction at all mashallah.
Whereas once was on a time attack coming back from muree on express way it power slid. I controlled it by over steering it. It's this chasis is something nice to be modified. People in malay Philippines etc they use this chasis alot even for sr20ve and turbo supercharger for anything.

[dani_kk]

I am soon
Installing a intake manifold of
QG18det American version the one with pipe type intake manifold.
The reason why i am doing is it has a free flow design plus the bores of intake ports are fit by fit to engine head. Whereas the one jdm QG18de comes with has very narrow ports almost 1/2 of this pipe type intake manifold. So after doing that will be getting some performance increase definitely. More air molecules will be boosted in to the engine on same 7psi boost.
