Help tomasetto lovato cip 5 emulator

[irfan44]

^ its written on it. 4 basic doesnt hav lambda emulator (oxygen sensor emulator). u dont need lambda emulator if ur car dont hav o2 sensor.

[sgandapur]

AOA

I just installed CNG in 2013 Cultus Euro II. After that my car is showing the light of "Check Engine". Went to a CNG mechanic and he told me that its because of the advancer. so he removed the advancer and tuned up the car by retiring the distributer. can any one help me in this regard and guide me to a good CNG mechnic in peshawar who can over come this problem because the car is not running very well on CNG.

Regards,

[tecat]

AOA sir plz tell me the both is number on engrfaizanahmad@gmail.com thanks

[mag88]

can you pls take a snap of coonected wire(need to see colors) and the wiring diagram on the box /paper...need to confirm the terminals of lamda sendor and step motor control (AO)

[mag88]

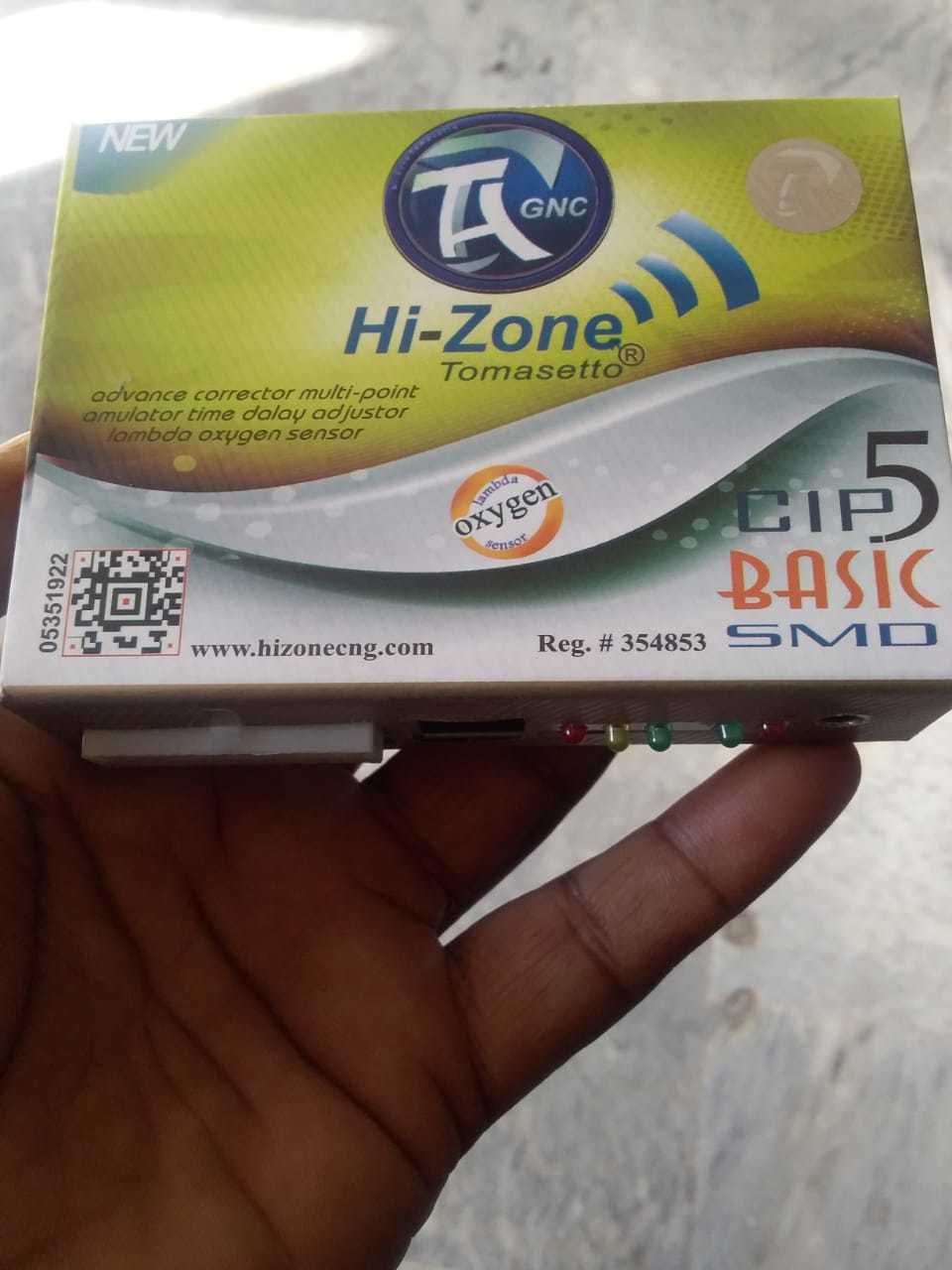

btw the hizone cng one is china import as per venfor...but tge color code of wiring and actuall is not matching. Also it has only 2 pair of wires(1 for map, 1 for tps) apart from 1 pair power supply(total 3 pair + 4 pair of injector emulator. this lead to 8+6=14 1 core wires in the 16 point terminal grip...lamda wiring missing...the label says so
the advancer red/green pair is woring with accelerator...want to explore of i can connect atleast oxygen sensor for the 3 leds to show tuning status ;red, yellow& green, only green is on permenantly (need to confirm but i think it green)
