Injecting some new life into an aging car - 2010 city

[roony]

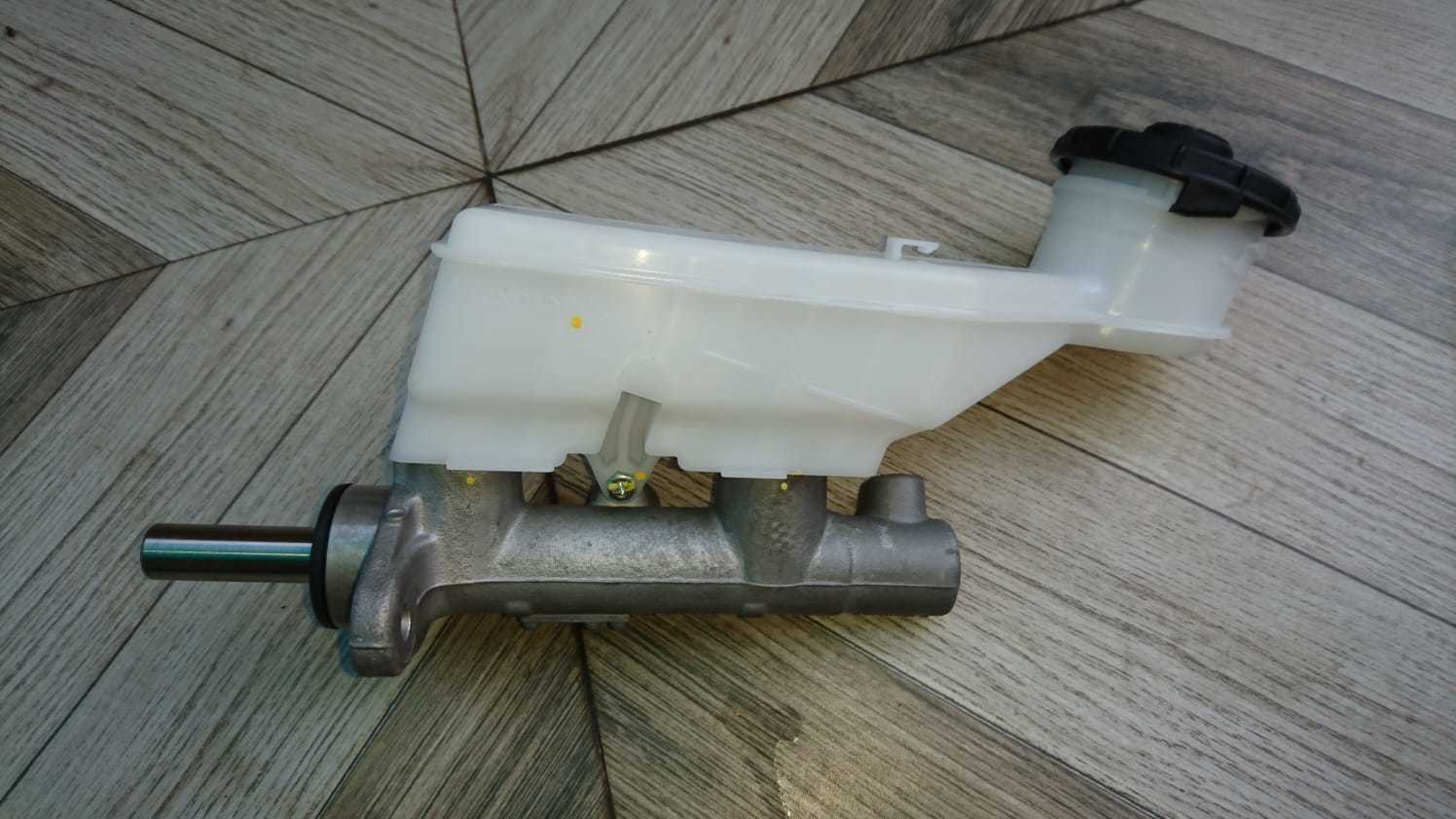

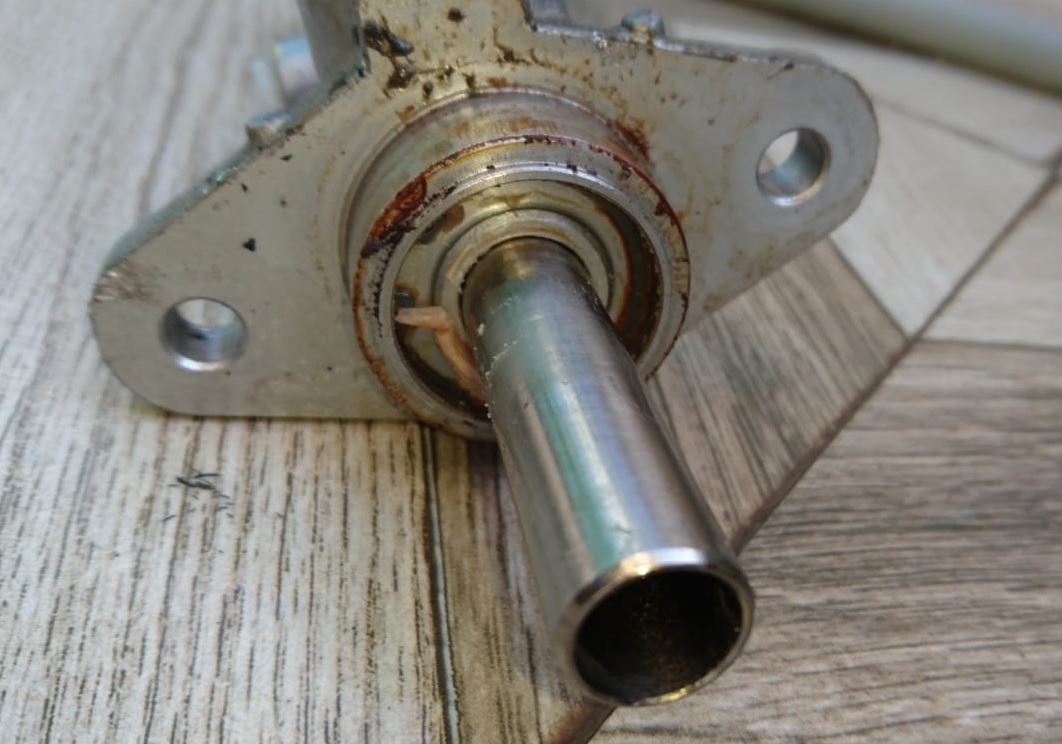

Brake master cylinder replaced. I opted for the whole unit rather than a rebuild kit.

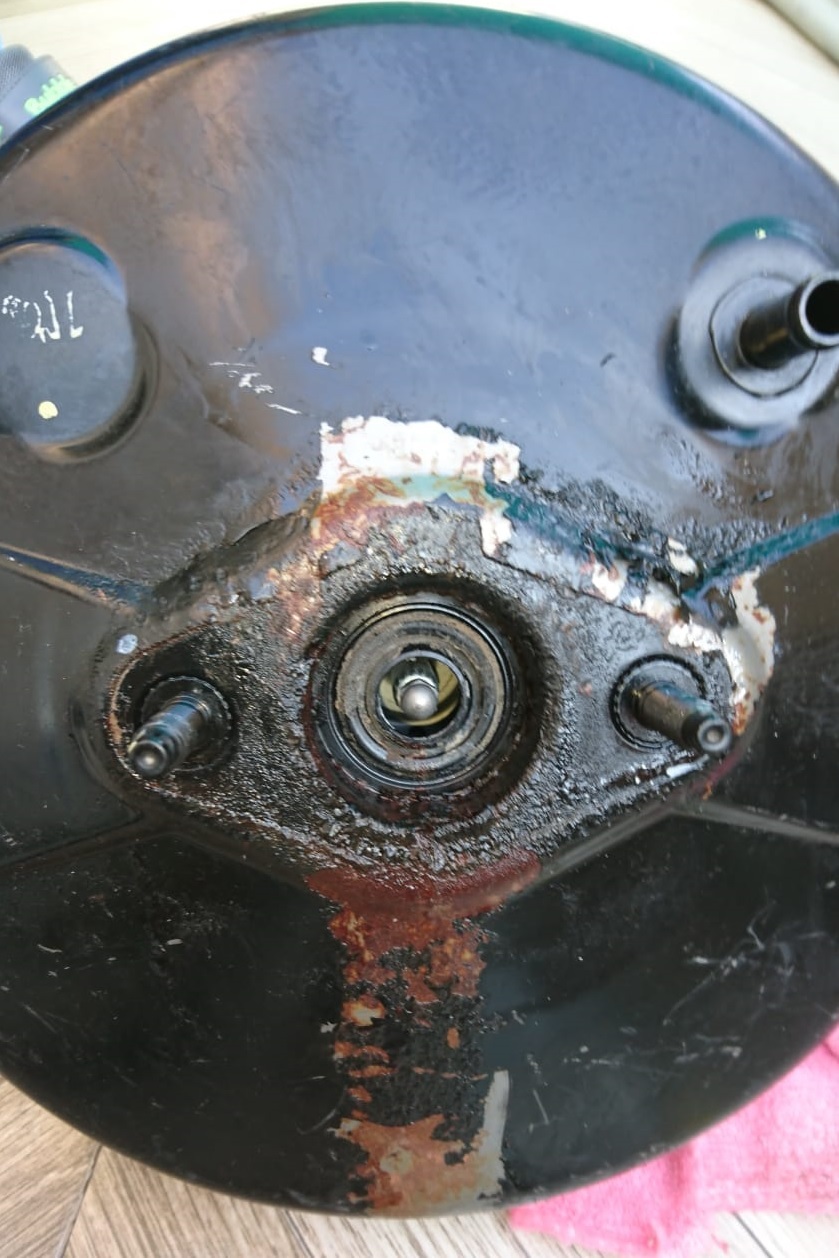

Thankfully no fluid was in the brake booster.

---

46100-TM0-T01 Brake master cylinder assembly Rs17k (th)

[ameerhamza]

Guys, Do you know where I can get the arm rest in Karachi. I also have a City '10.

[automakerz]

Plaza - opposite x-suzuki polad motors. Rimpa plaza - besides Gul plaza. Good luck

[margallar]

really pathetic that it failed this early, master cylinders are usually good for 20+ years,

can you please provide me, the scrapped one, i want to see if i can redo it

[pwuser155091178738]

Hello,

I remember when I did bought my car I had to pay 1500 for each year, however it was paid from the sellers end for two unpaid years.

If you keep the same rate the for 7 years expect atleast 10,500/-

[pwuser15729400908]

and do i have pay the penalty also ?

[roony]

I myself will be tearing it apart.

[margallar]

okay.good luck , i think the bore should be fine, probably just needs new o rings

[pwuser155091178738]

no penalties, only the taxes for the year you would have to pay.

[roony]

Finally got my hands on this. Torque wrench for the low end range 1-25Nm. Bolt stripping should be a thing of the past.

[nfssaad]

that depends if the brake oil was changed regularly. otherwise even minor pitting in the bore and the cylinder becomes useless

[margallar]

I can call myself lucky, my car was neglected and didnt get new brake oil till 2015. Still all good

Perhaps build quality and the dry area where it was used, are in the favour.

anyhow, i still think this is too recent for brake oil to kill the MC.

It might be fcked by some not so well trained mechanic, trying to flush it

[roony]

i still think this is too recent for brake oil to kill the MC.

maybe just bad luck. I do not know if it was flushed the first 4-5 years. Though it was 3s maintained, I dont know if they do that as part of brake service.

[roony]

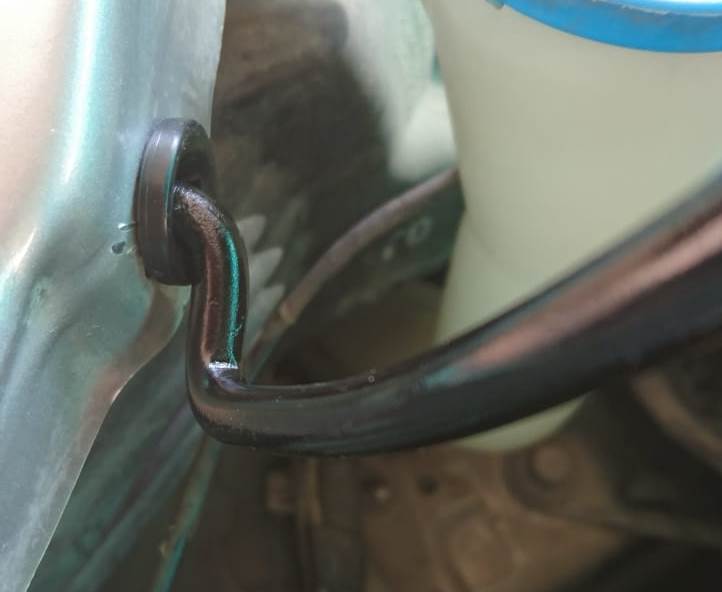

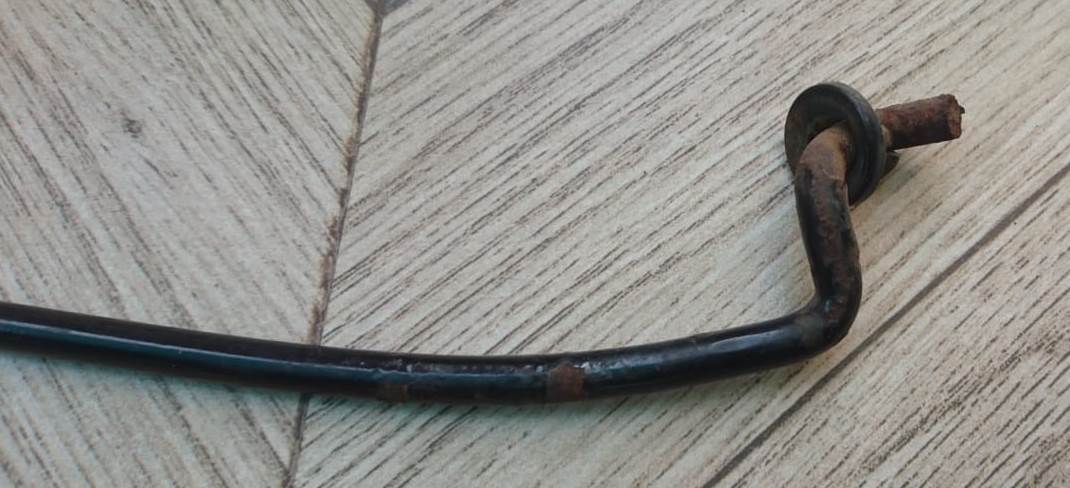

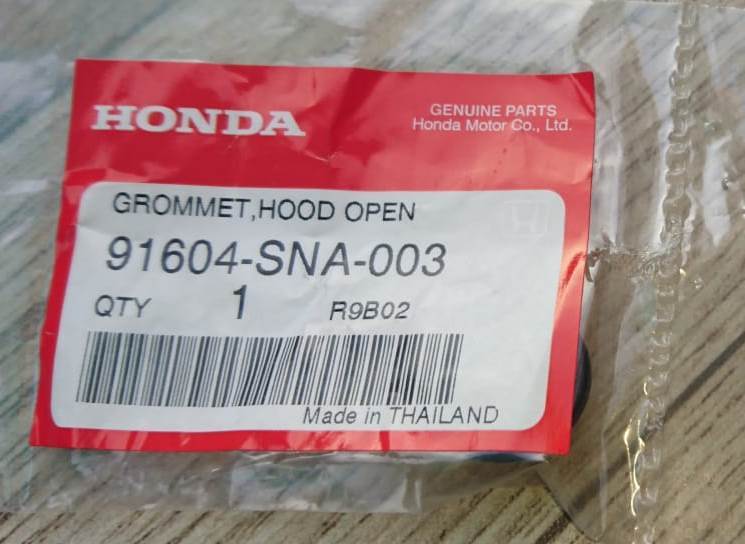

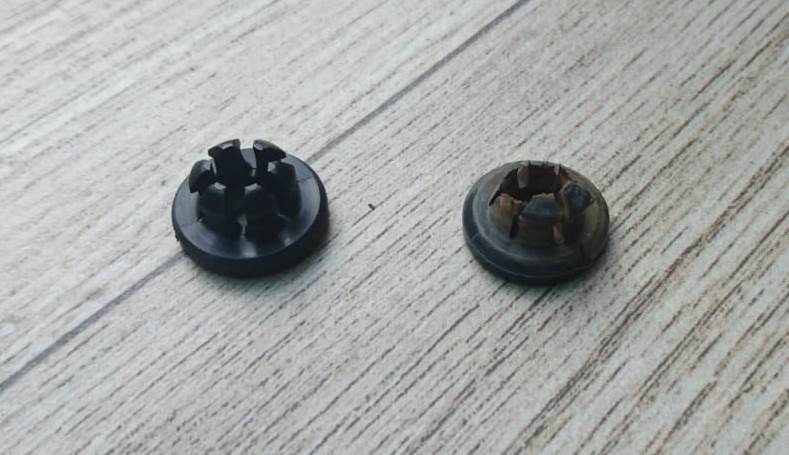

Hood stay rod grommet changed, no more wobbly rod.

Rs60

[roony]

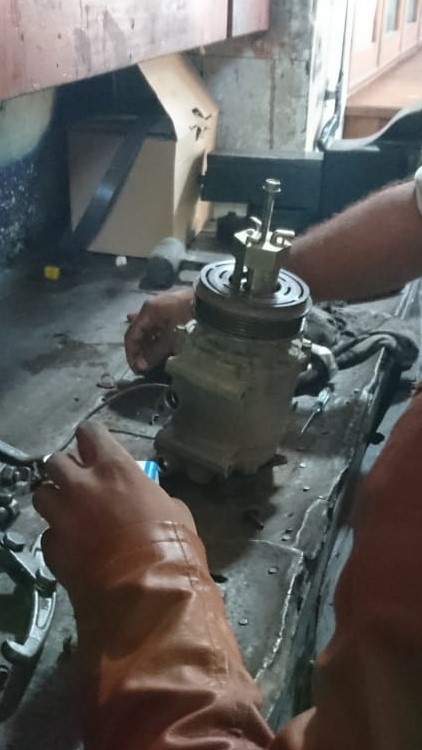

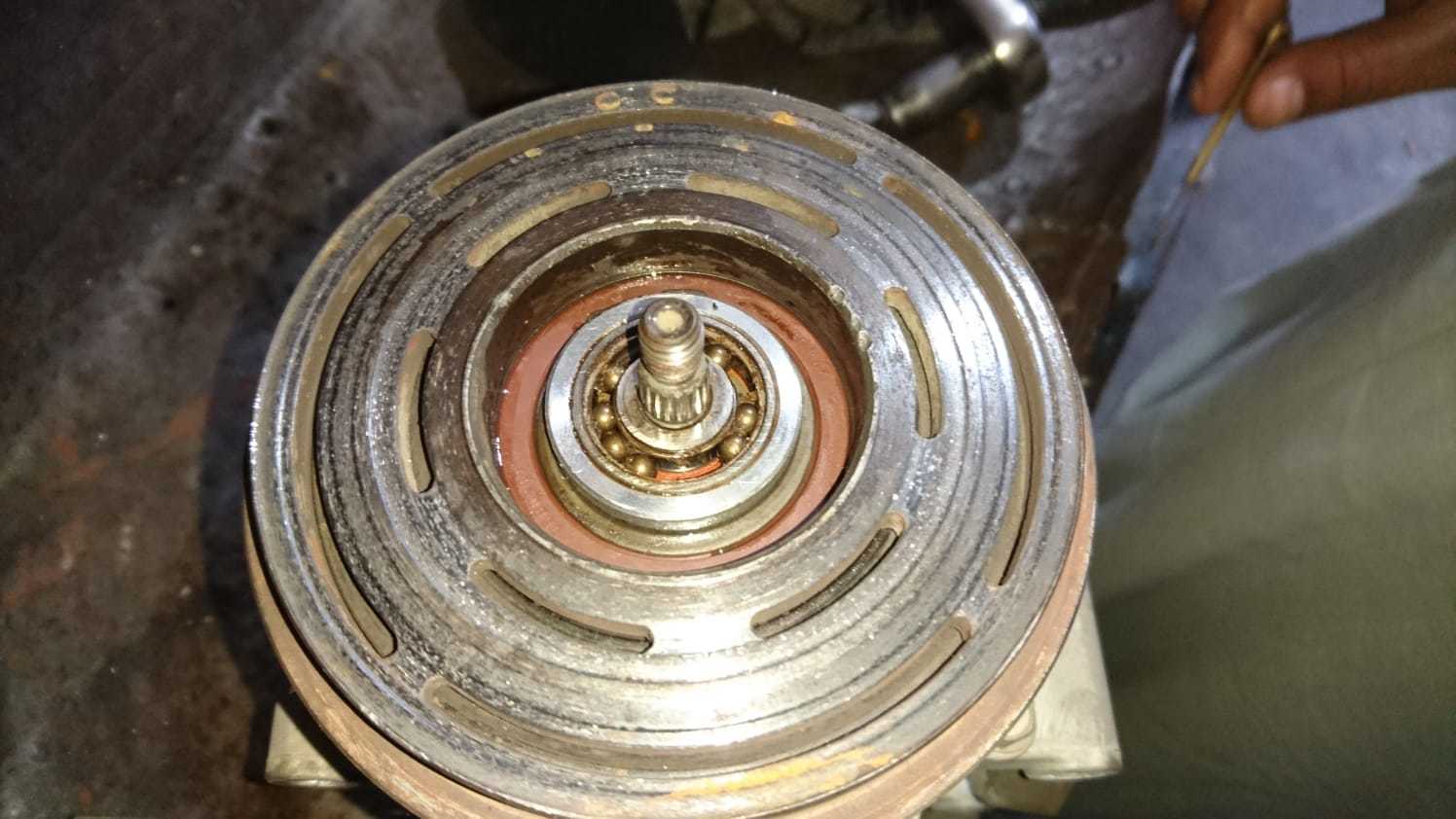

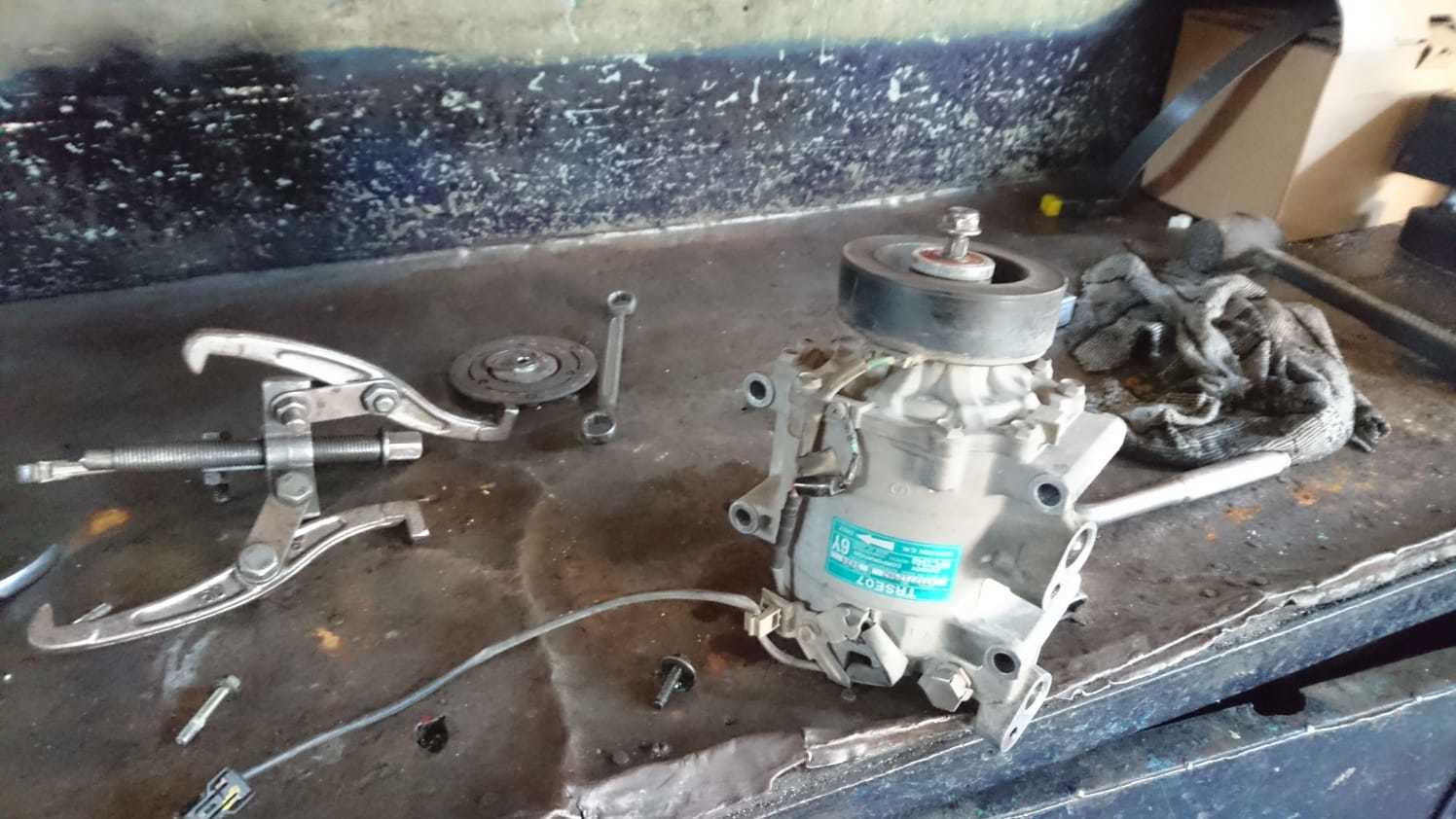

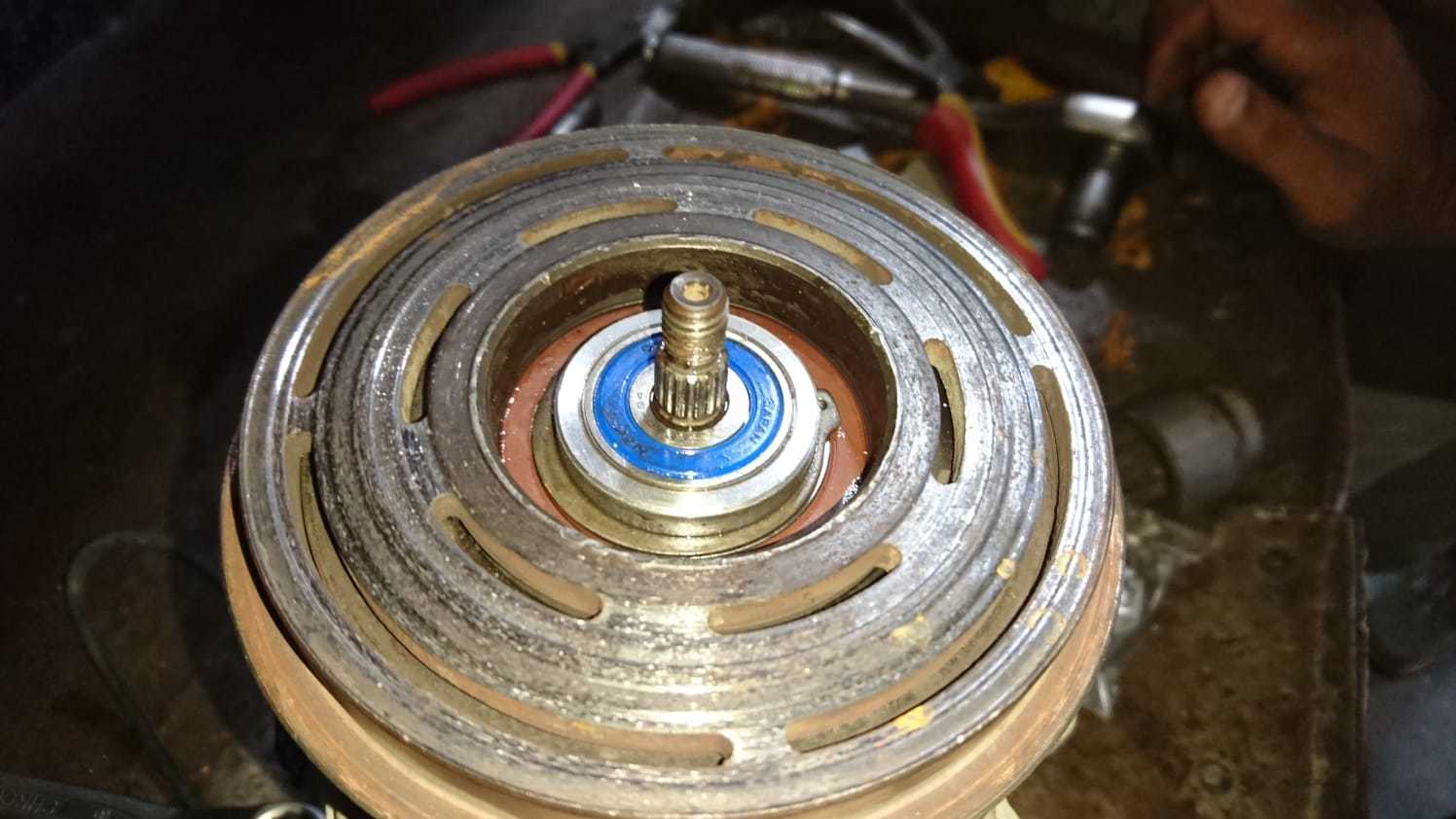

The ac pulley bearing and ac shaft bearing changed from punjac car ac, both bearings were bad. You could hear metallic grinding sound when AC was off. Total cost rs3500

---

They have the proper tools to remove and fit bearings.

---

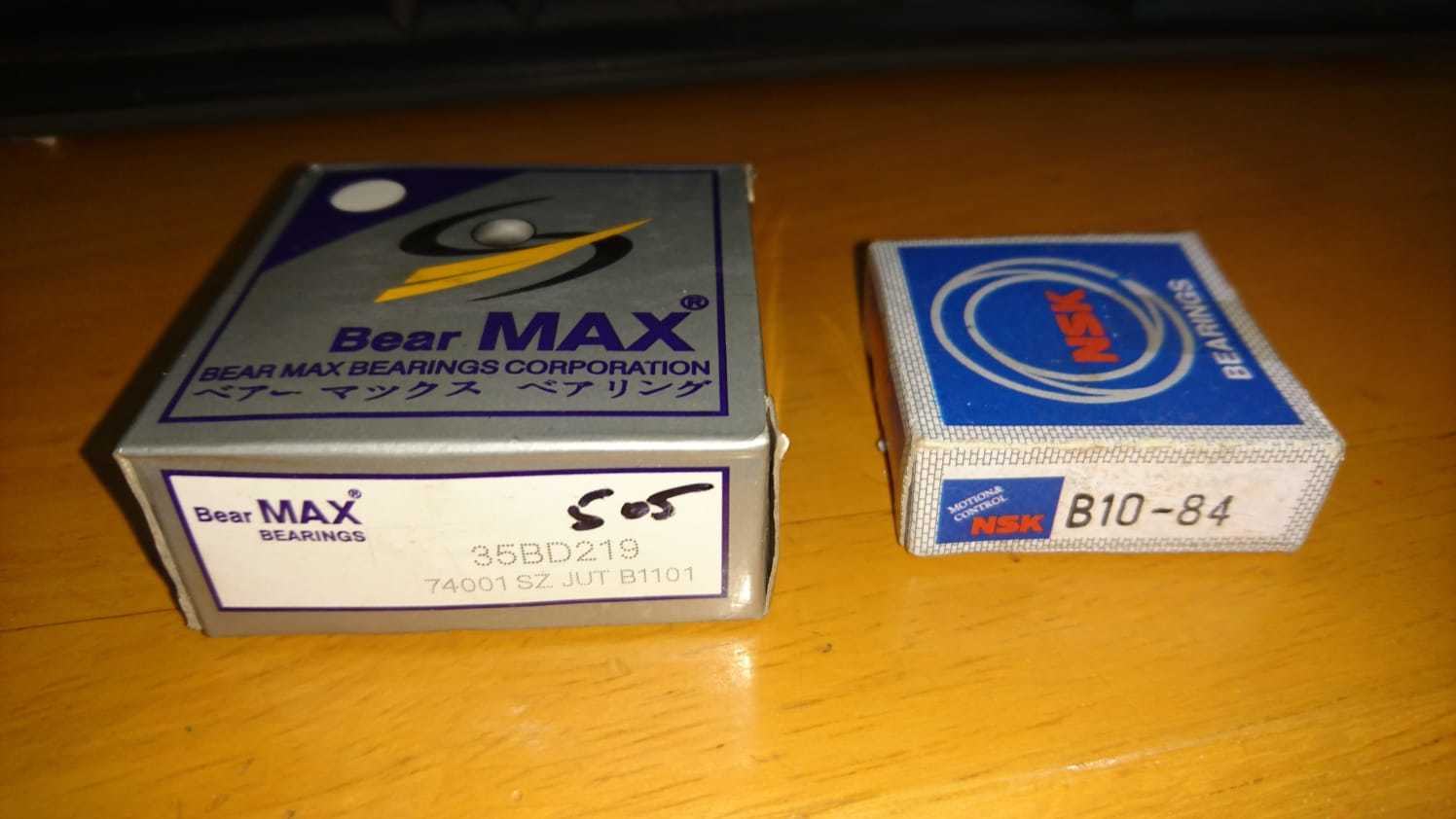

These are the bearings they used, I hope they last a while.

---

Pulley is now straight, it had a very slight wobble. Clutch plate gap is now within spec, 0.35-0.65mm. Previously it was beyond 0.65mm. No more grinding sound with AC off.

EDIT: Over a year now there was a knock sound when compressor would turn off. Sound is now gone due to change of the shaft bearing.

[margallar]

Do you have any old timing bearing? I need to know the number of that bearing, to buy from market

[waqar19]

These are the bearings they used, I hope they last a while.

----------

Bearmax Bearing...... Cheapest chinese bearing. Should have gone for quality bearings like NTN/NACHI

[roony]

Do you have any old timing bearing?

is this the auto tensioner pulley bearing?

[roony]

Bearmax Bearing...... Cheapest chinese bearing.

and now i know. How is the other nsk bearing they used?

[margallar]

Yes talking about that
