Rebirth of Khyber 1996 - Daniyal

[miqdadkanani]

Hahahha.

[miqdadkanani]

Anyways, so i went to arafat autos and Muzaffar bhai handed over a couple more switches for me to test. One of the two worked but it started giving continuity signal at 98degree, but kept giving it till i checked (last at 86 degrees).

I think 98 is a little too much for this engine.

[helper_learner]

It should be 93C

Anyways +- 5C is acceptable range.

[helper_learner]

last at 86 degrees

Did it cutoff at 86, or you stopped checking it?

[miqdadkanani]

I stopped checking it. Let me do it again.

I recall you guys mentioned thr difference btw on and off is 5 degrees. 15 degrees wiuld mean tenperature needle/guage keeps swinging

[miqdadkanani]

One more thing. How about instead of altering the radiator, i taje a piece of metal pipe and get the machinist fix mehran's switch in there? That metal pipe i join right before the inlet pipe of radiator. I saw a switch with 88degrees "on" temperature

[miqdadkanani]

Whats the temperature difference between water in flange abd water just before entering the radiator inlet?

[helper_learner]

I stopped checking it. Let me do it again.

Yes Plz, May be the fan switch is bad and keeps ON.

I recall you guys mentioned thr difference btw on and off is 5 degrees. 15 degrees wiuld mean tenperature needle/guage keeps swinging

Yes, 5 degrees, But needle won't be moving around like huge difference it would be almost be negligible, between this,

One more thing. How about instead of altering the radiator, i taje a piece of metal pipe and get the machinist fix mehran's switch in there? That metal pipe i join right before the inlet pipe of radiator. I saw a switch with 88degrees "on" temperature

Search for khyber one, you will find it. It is not a rare item.

Whats the temperature difference between water in flange abd water just before entering the radiator inlet?

Maybe around 1-3 Degrees.

[miqdadkanani]

Checked that switch again. Its bad. Opens at 98 but dossnt close until 70ish.

Where else can i look for Khyber's switch? Any leads?

[helper_learner]

Checked that switch again. Its bad. Opens at 98 but dossnt close until 70ish.

Where else can i look for Khyber's switch? Any leads?

Shershah. @capsat

[miqdadkanani]

Yar. Switches from shershah.. chalo I'll try visit. First will go to parts dealerships and check if ravi bolan ones fit

[helper_learner]

parts dealerships

Why visit them, Call them.

Yar. Switches from shershah.

Let me ask someone, Will update you

[sardarg]

ravi & bolan does not have electric fans because of engine placement.

[sardarg]

temp of water drop in radiator faster due to faster circulation and front air thunder then in open atmosphere. why not test the switch over direct flame and dump it in room temp water pot and note time taken to click off.

[miqdadkanani]

Sorry boss. I read the comment again and it said "alto vxr" switch. It is the same 95-90 range. Let mr go and restart my search

[miqdadkanani]

Otherwise, shershah it is

[miqdadkanani]

Perfectooooo

Got two kabli switches.

1) opens fan at 96 and closes at 88-89. Genuine cultus switch as per shop keeper

2) opens fan at 94-95 and closes at 90. Genuine Hands switch as per shopkeeper.

Guess I will go with no. 2

[helper_learner]

2) opens fan at 94-95 and closes at 90. Genuine Hands switch as per shopkeeper.

Guess I will go with no. 2

But make sure to switch it on and off quite a few times, to check its reliability.

[miqdadkanani]

Tested it twice. Will clean the tip and commectors with some sandpaper before placing it in the car Insh

[miqdadkanani]

Alhamdolillah. Good news guys.

Auto fan now works and so does the thermostat valve. Opted for that honda one that opens at 95 degrees and closes the fan at about 89-90 degrees.

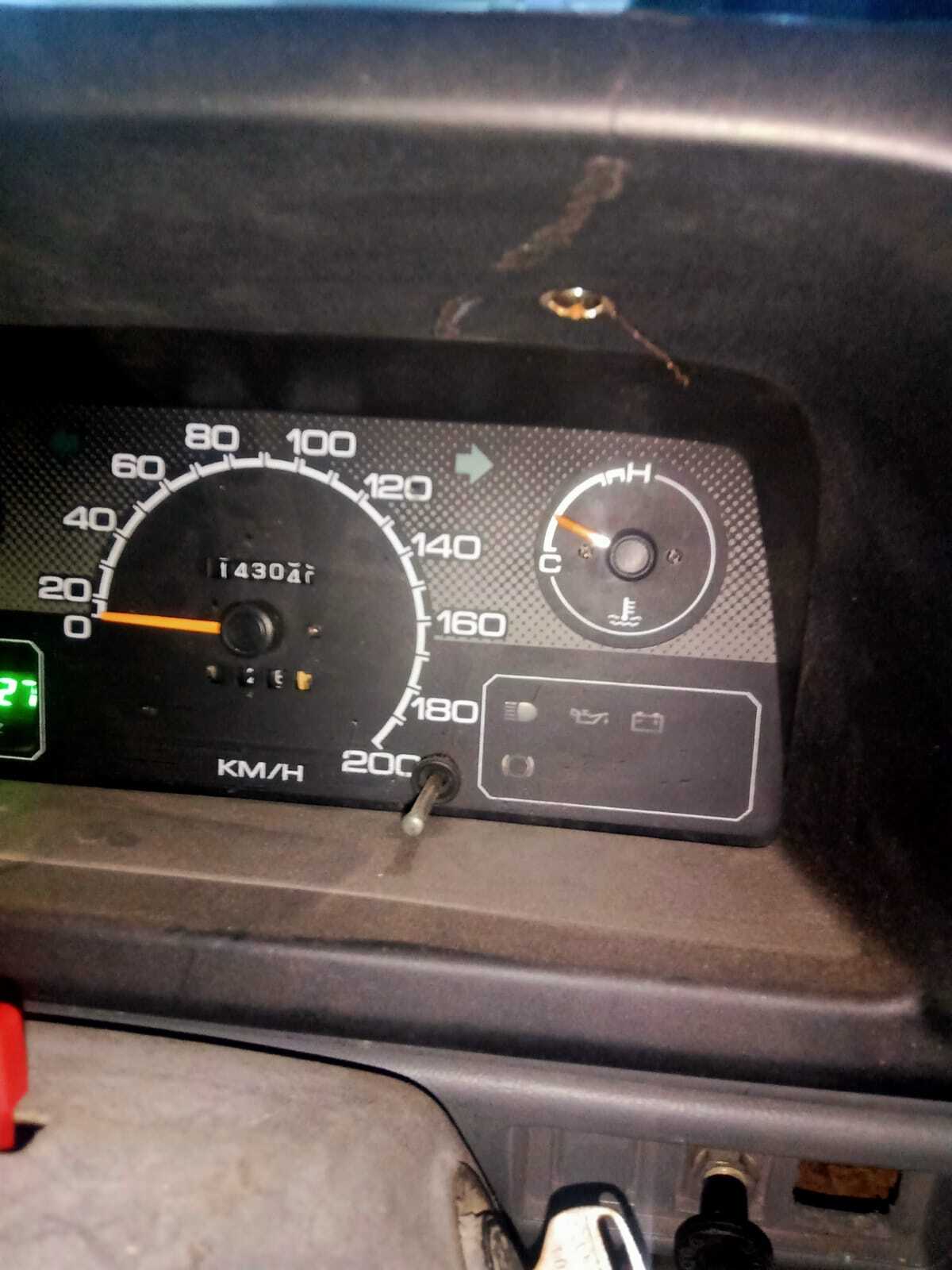

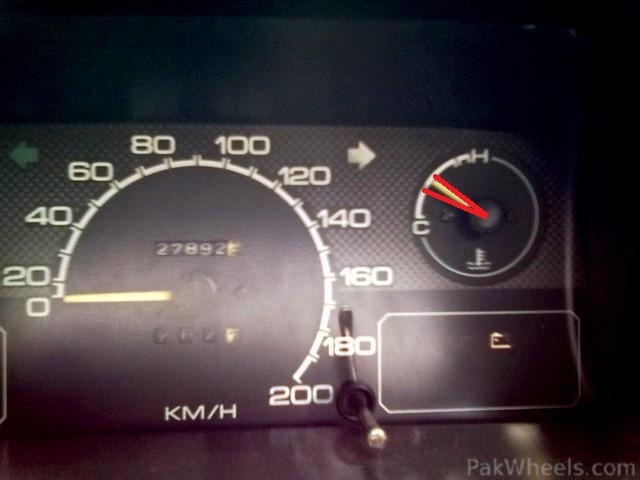

Tenperature needle stayed at this point. But it went 10% higher when we closed the hood and let 2,3 cycles of auto fan on and off.

Many many thanks to all those who helped me in this process.
