RX-30 Toyota Engine Swap 2JZ

capsat (ومن شر حاسد إذا حسد) 2020-12-03 21:19:10 +0500 #21

Owner is a wallet holder finally admitted that he is looking forward for a drifting beast. He is seriously considering to put-up a roll-cage as suggested by some of his Buddies.

capsat (ومن شر حاسد إذا حسد) 2020-12-15 21:58:47 +0500 #22

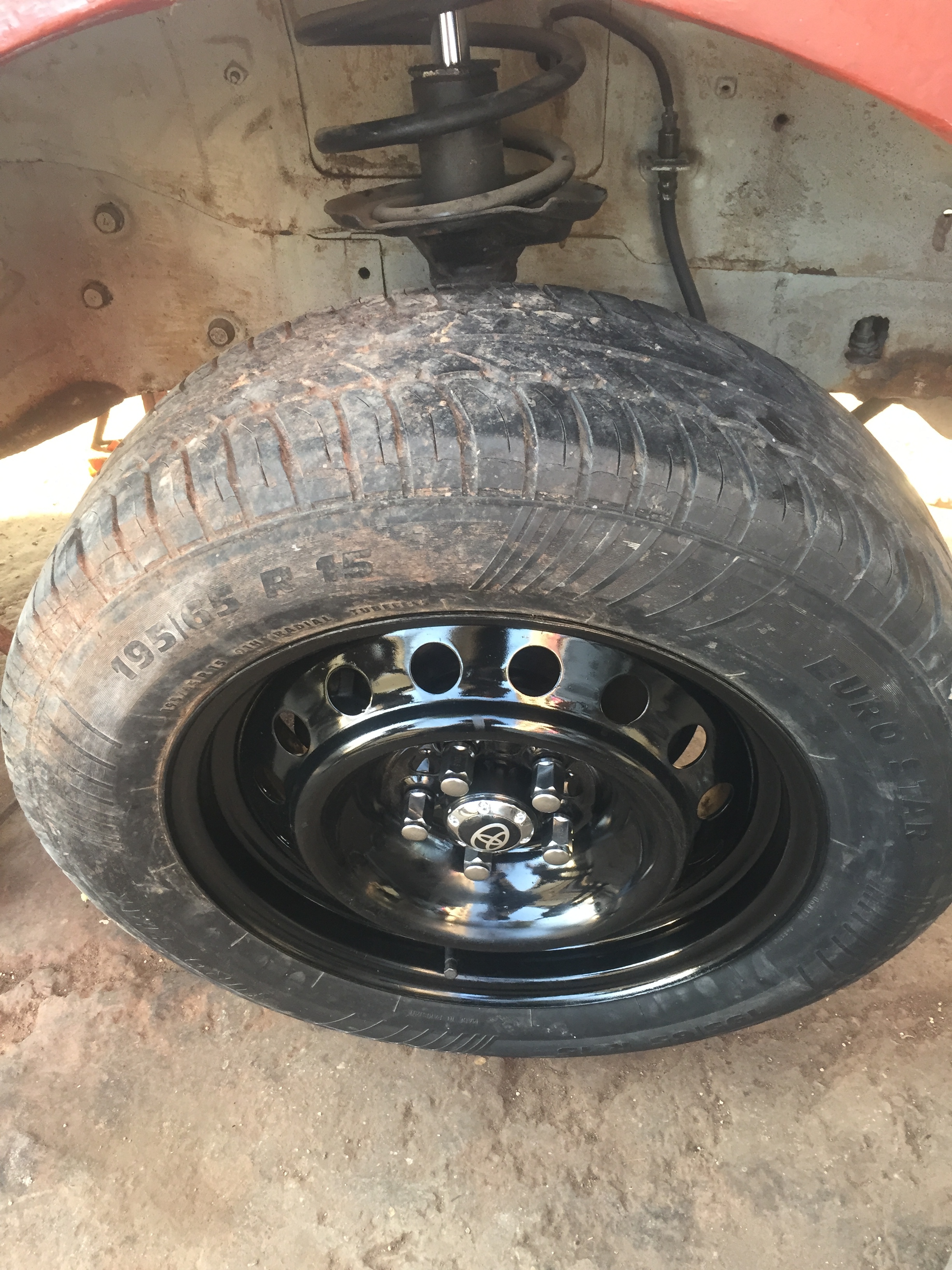

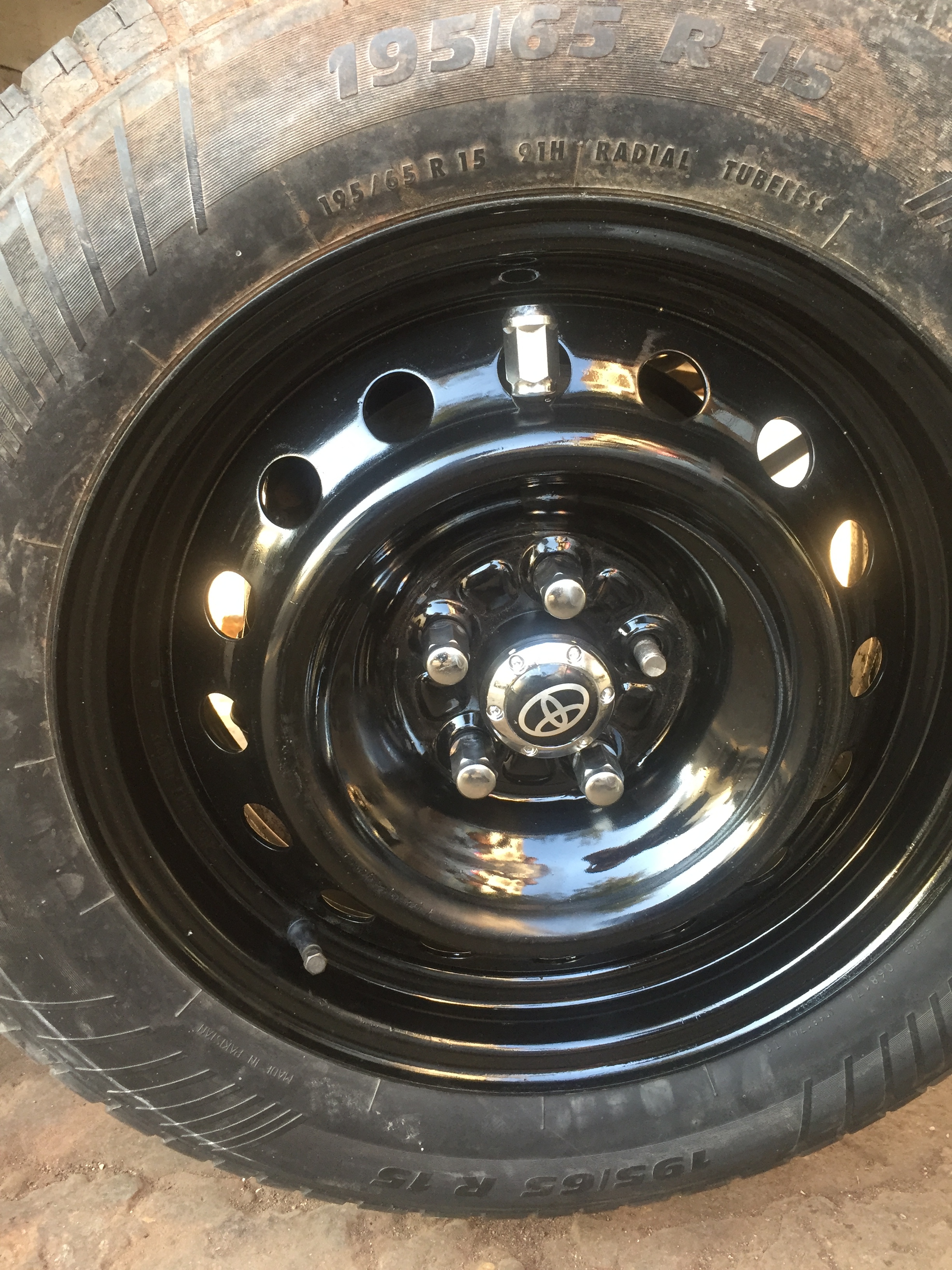

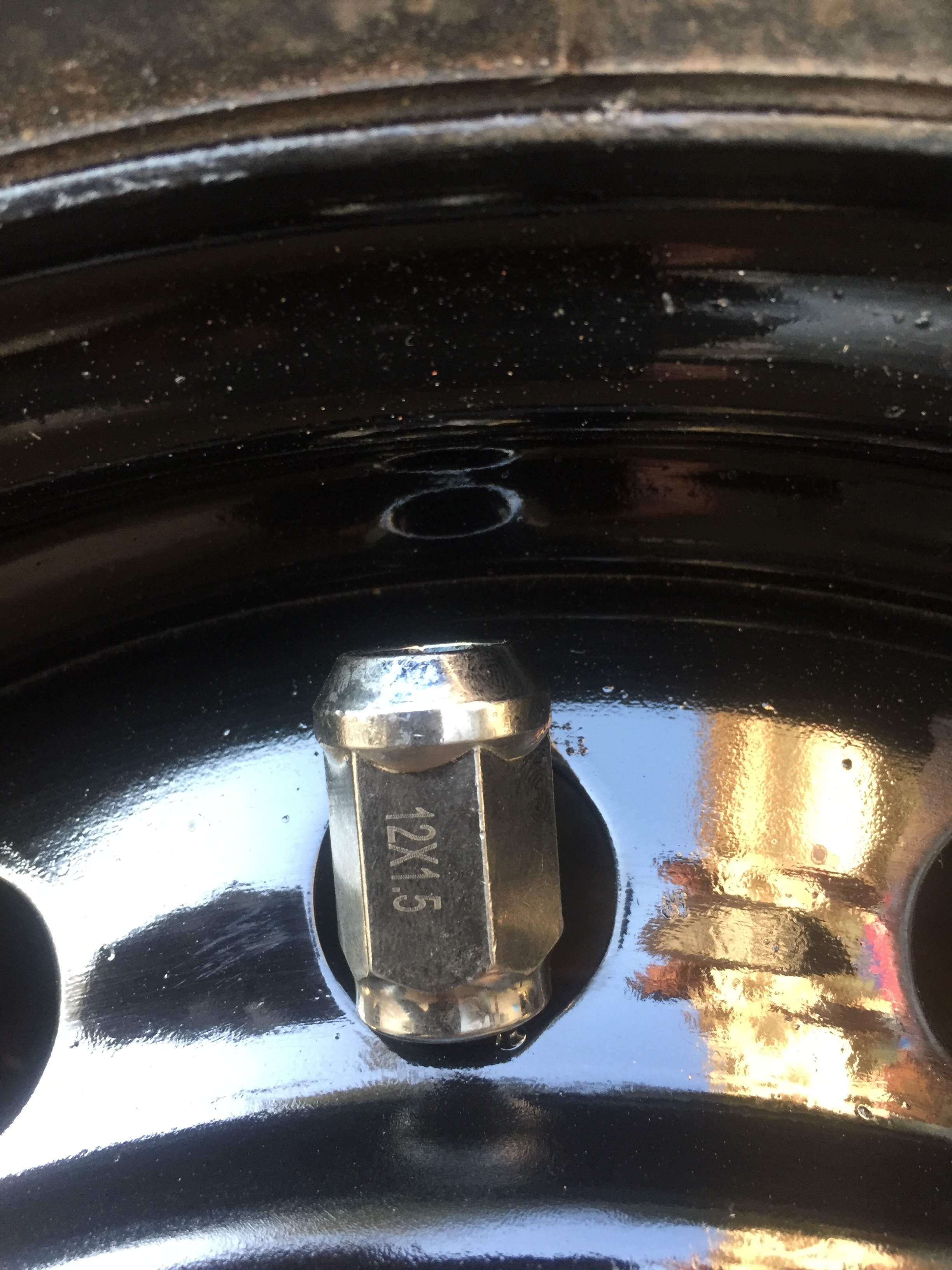

check the LUG

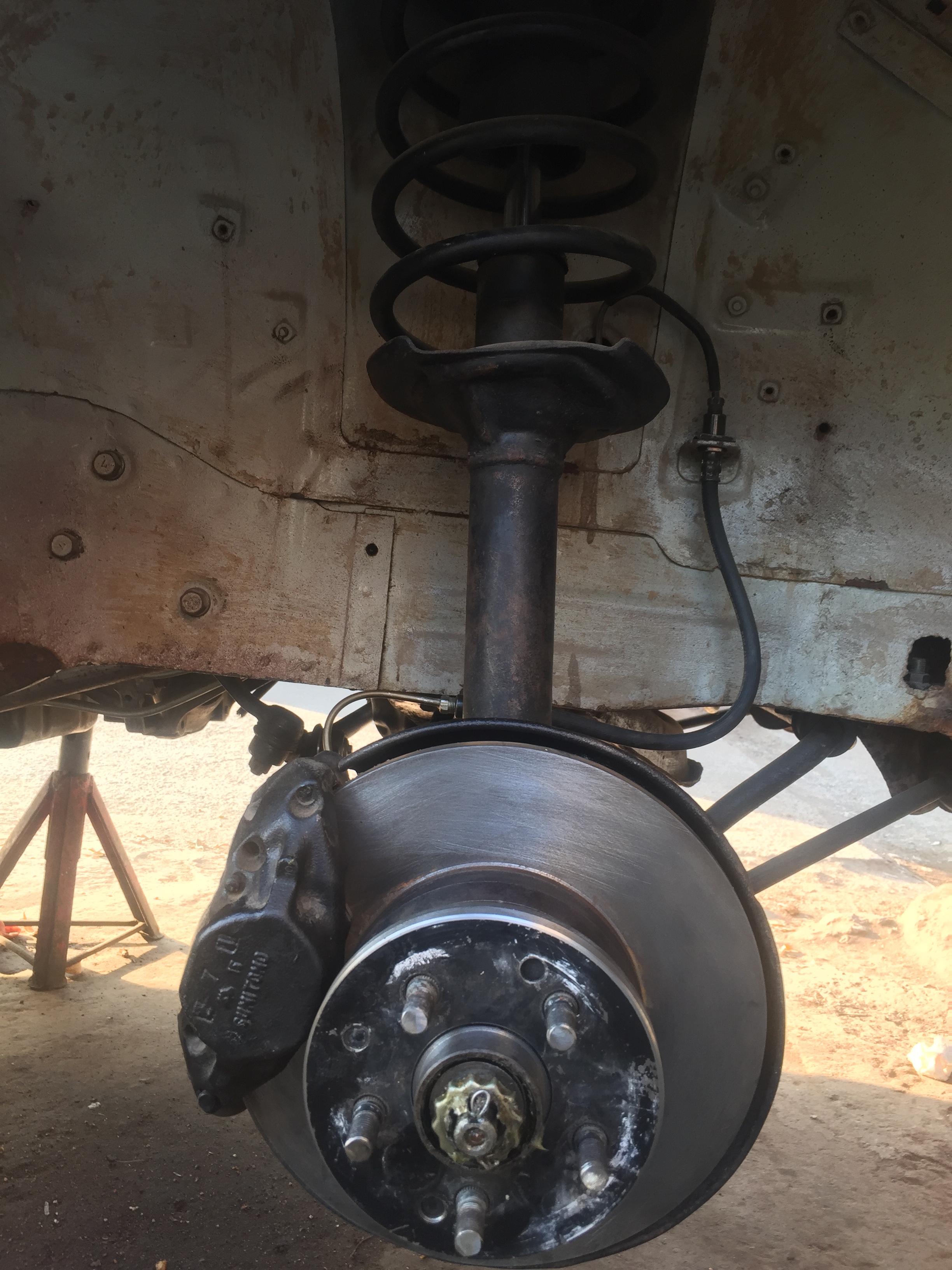

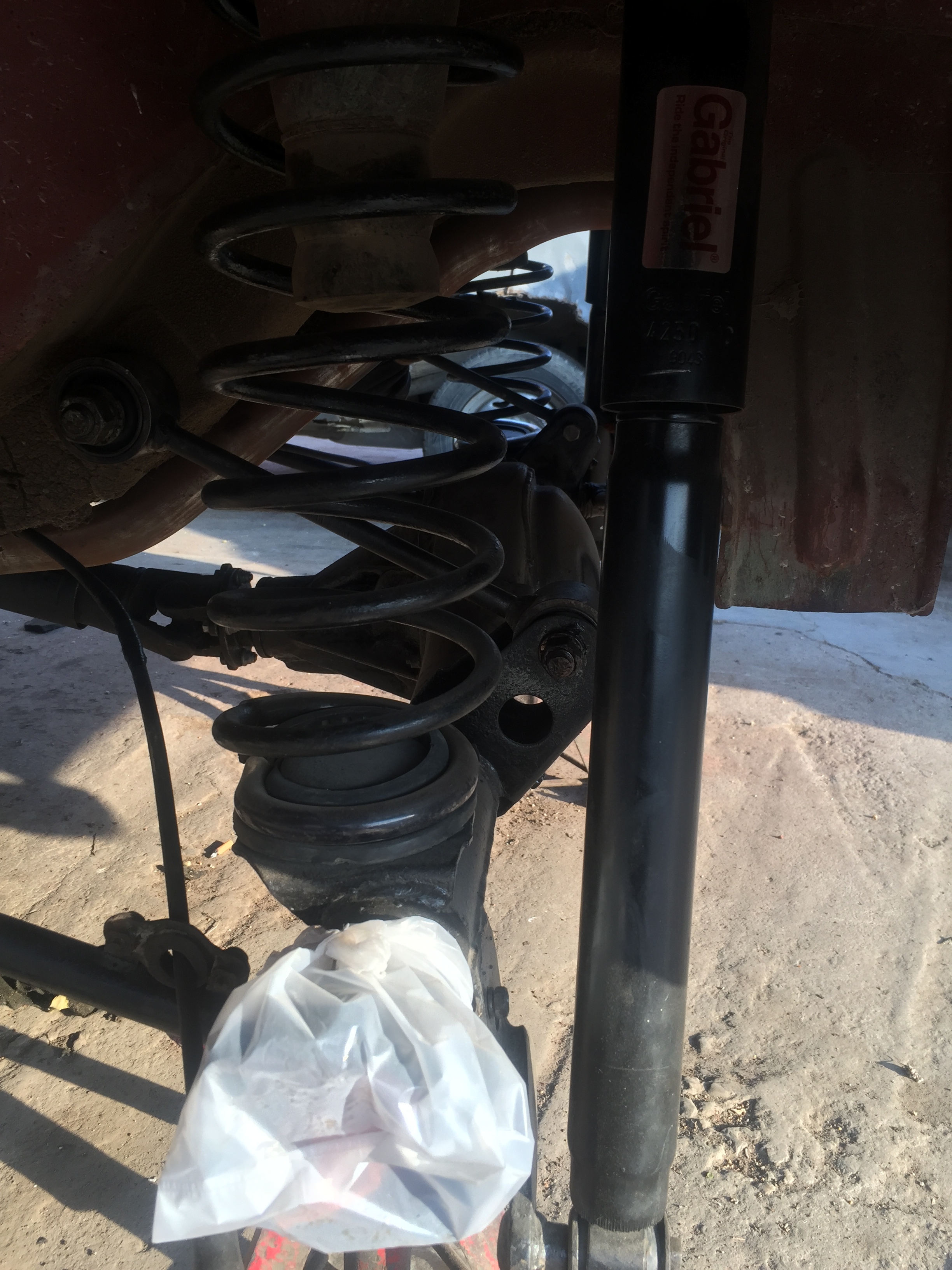

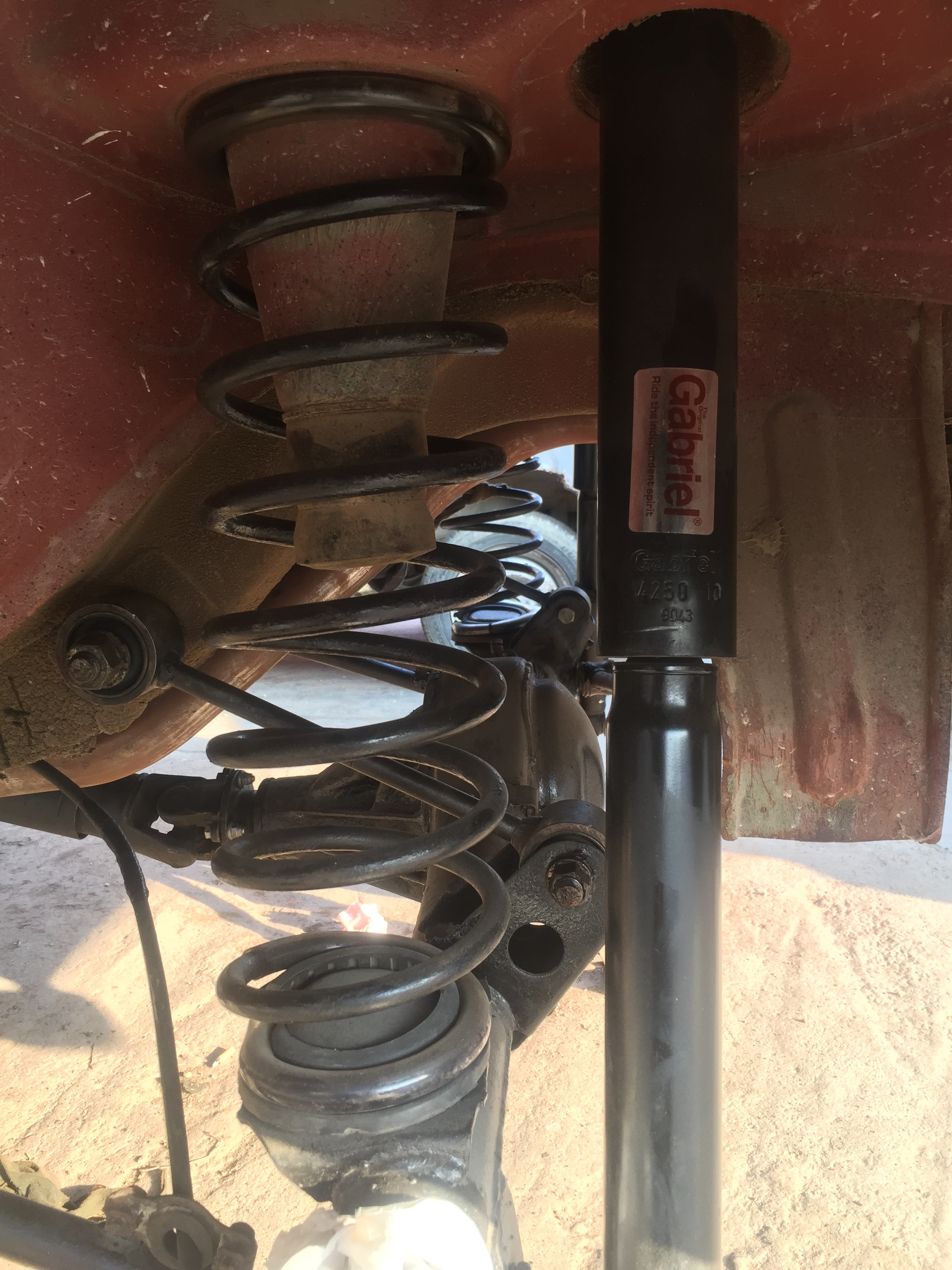

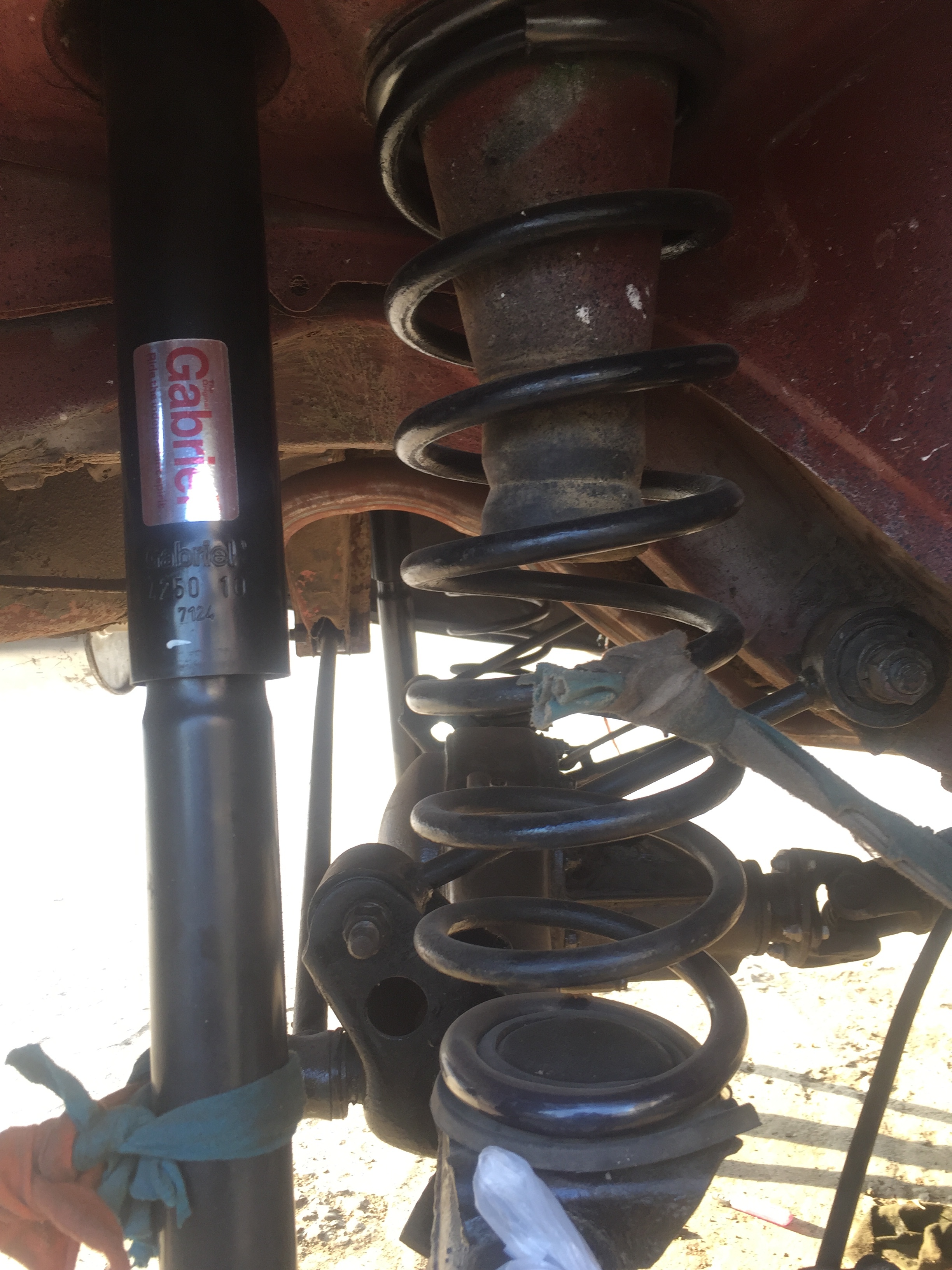

Suspension will be fined tuned by Afzaal 0300 2116069

@babarhyd @ser_gtr @syncview @rajaatta @dani_kk @drazahussain @nnabeel @omersiddiqui5482 @nomi01

@Oracles this is all triggered by you

Oracles (Oracles) 2020-12-16 11:07:05 +0500 #23

!!!!!!!!!!!!!!!! I would have the entire straight axel setup replaced by IRS and coil over upfront and get big break kits on all 4 corners followed by dropping the ride height if the owner intends to race/drift, which presents a significant challenge considering the roads of Karachi with their speed bumps and pothole to name a few.

sardarg (Singh is King) 2020-12-16 15:13:08 +0500 #24

sir would it be running over single tubular drive shaft ? which auto transmission is coupled to 2JZ and what is differential ratio for final drive.

consigliori (consigliori) 2020-12-21 17:53:28 +0500 #25

Update......

capsat (ومن شر حاسد إذا حسد) 2020-12-22 21:14:18 +0500 #26

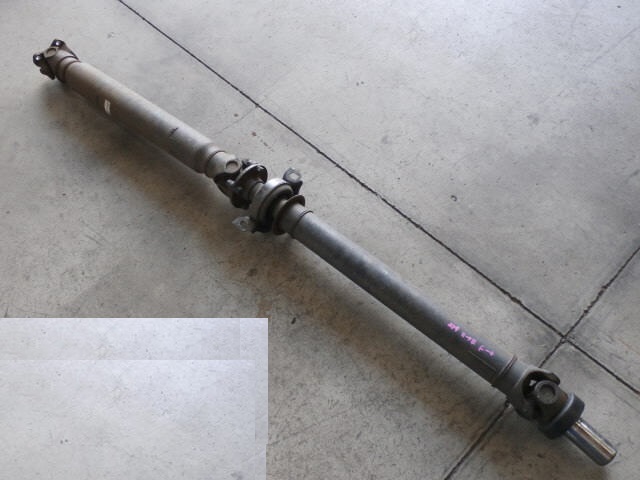

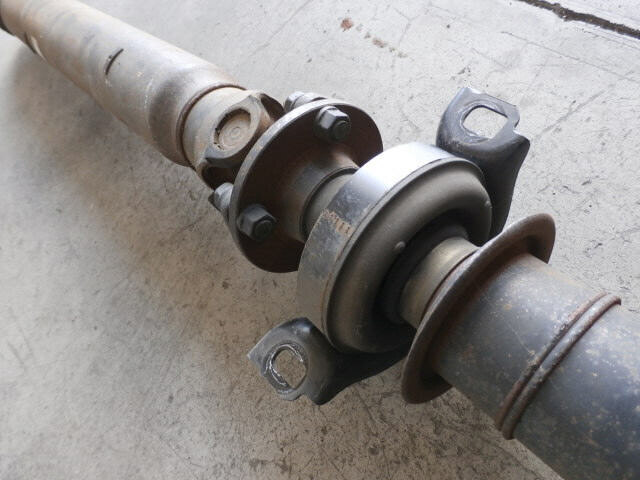

It is 2 piece shaft

capsat (ومن شر حاسد إذا حسد) 2020-12-22 21:21:34 +0500 #27

For reference only

capsat (ومن شر حاسد إذا حسد) 2020-12-22 21:40:30 +0500 #28

Transmission a42DE & Differential is from Mark 2 Grande GX-110

UAHMAD (UAHMAD) 2020-12-23 10:13:07 +0500 #29

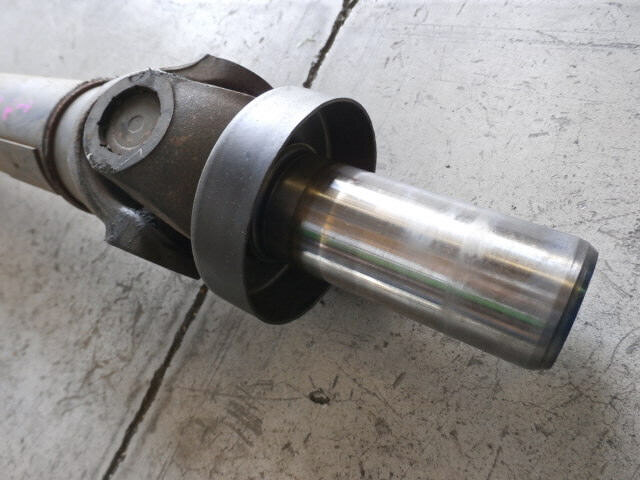

In addition to the U - joints, this long propeller shaft's Center Carrier support bearing (as seen in the second picture) should be inspected before fitting. Because in case it is worn out it shall cause vibrations and clunking sounds during acceleration.

capsat (ومن شر حاسد إذا حسد) 2020-12-23 20:31:51 +0500 #30

Thank you. All has been checked and rigged into vehicle. It has been towed away to the electrician for wiring by the owner. Complete set of wiring diagram is provided.

capsat (ومن شر حاسد إذا حسد) 2021-01-21 20:40:28 +0500 #31

RX-30 Cressida has moved to denter shop by owner.
She left on her own power after electrician put up a decent wiring to & from ECU in correct configuration

@rajaatta @nnabeel @omersiddiqui5482 @consigliori

rajaatta (Raja Atta) 2021-01-21 20:48:10 +0500 #32

Good job hope to see her on road in near future

omersiddiqui5482 (omersiddiqui5482) 2021-01-22 00:55:03 +0500 #33

I am intrigued regarding the wiring.. hoping to see the final results soon...

capsat (ومن شر حاسد إذا حسد) 2021-01-23 00:46:26 +0500 #34

The boy spent 2 days to correctly identify the ECU pin configuration , arranged nearest color wires for the color codes as per diagram, used corrugated duct tubes like oem, heat shrink tubes over required wire extensions. Will share the engine bay wiring pics upon return of vehicle from body shop. May be by Mid Feb 21

nnabeel (nnabeel) 2021-01-23 13:25:03 +0500 #35

Waiting for the final outcome of this one and the other one at Jamil autoes.

capsat (ومن شر حاسد إذا حسد) 2021-01-23 22:43:02 +0500 #36

That damn KP has 7K-E EFI into it. only GOD almighty knows how the owner is going to source the interior for it. @nnabeel
