Spano 9th Gen Civic and addons

[Spano]

for me, the Grill is classy

[irfan44]

I was talking about this grill. Thanks

i think its the same grill. They just colored the outer corner and left the upper and lower sides black. looks good in pics

[irfan44]

waiting for pictures a long with description.
a detailed one would highly be appreciated and will help a lot of friends.

20170207_170931.jpg4032x3024 3.11 MB

Very well done @rkzahmed
it is really inspirational DIY. I am looking forward to do it.
There are few things I would like to ask/comment

1. The Green Ground wire can give 12V signal, if we attach a 4 wire relay and connect it in required configuration.


2. If you share your number so that one can contact you.


3. Please share the name of Electrician, I will get his number from Porsche. @taim00r works in Porsche


4. Please shed some light on wiring laying and routing from side mirror to the i-Mid display.


5. Please share some pictures of wiring laying if you have.


6. Pictures of back of i-Mid and i-Mid connector will be useful here.

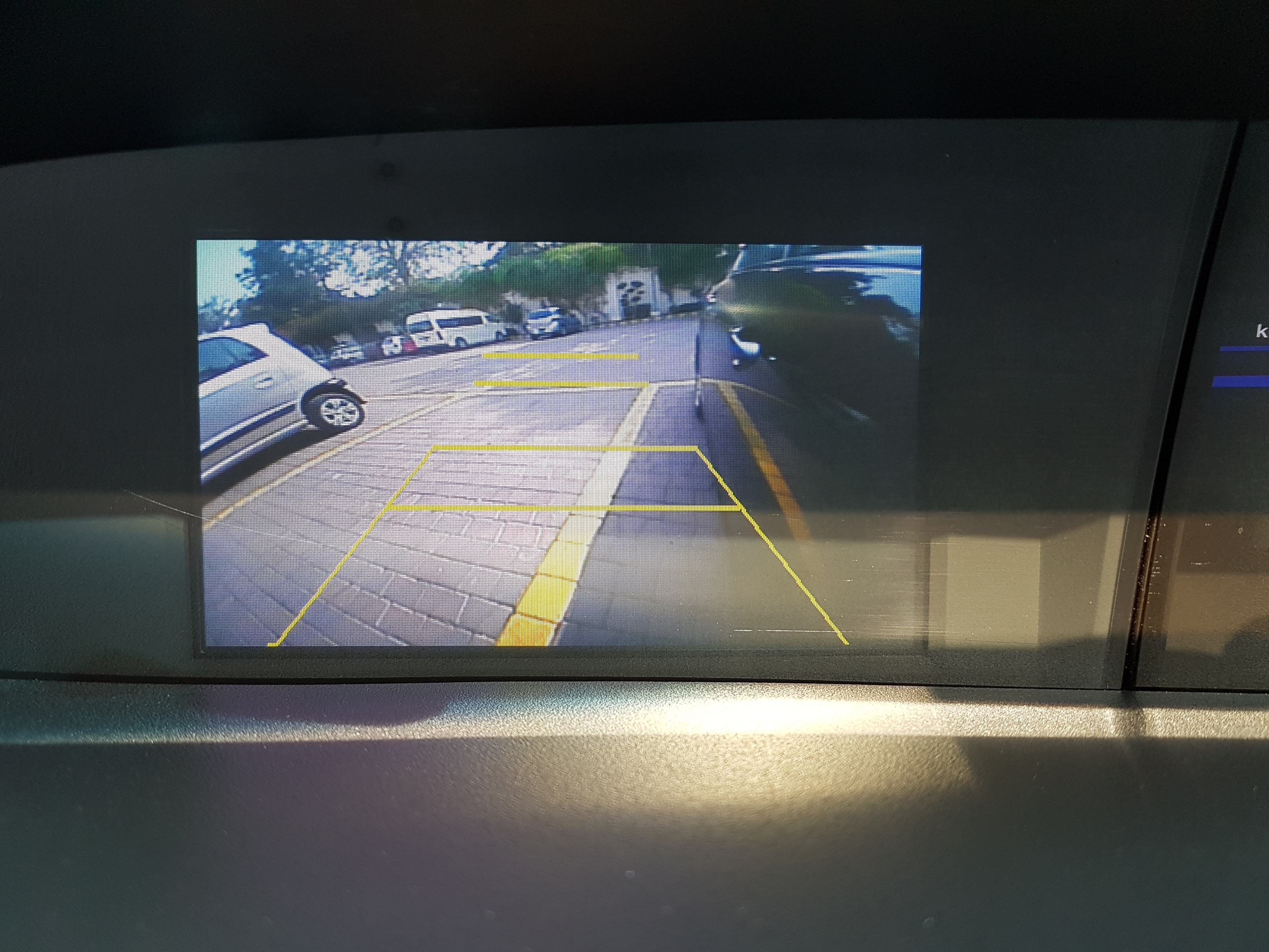

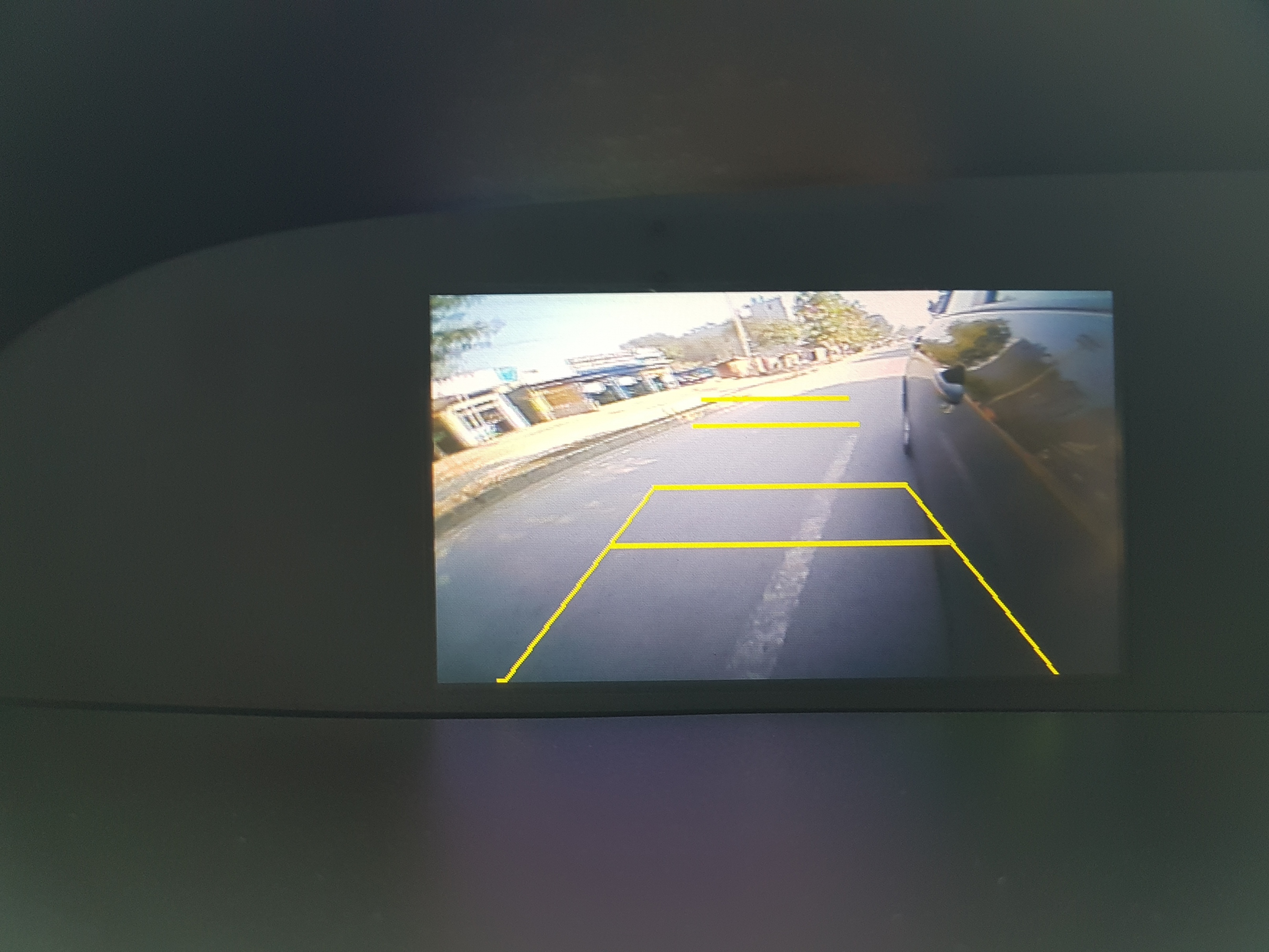

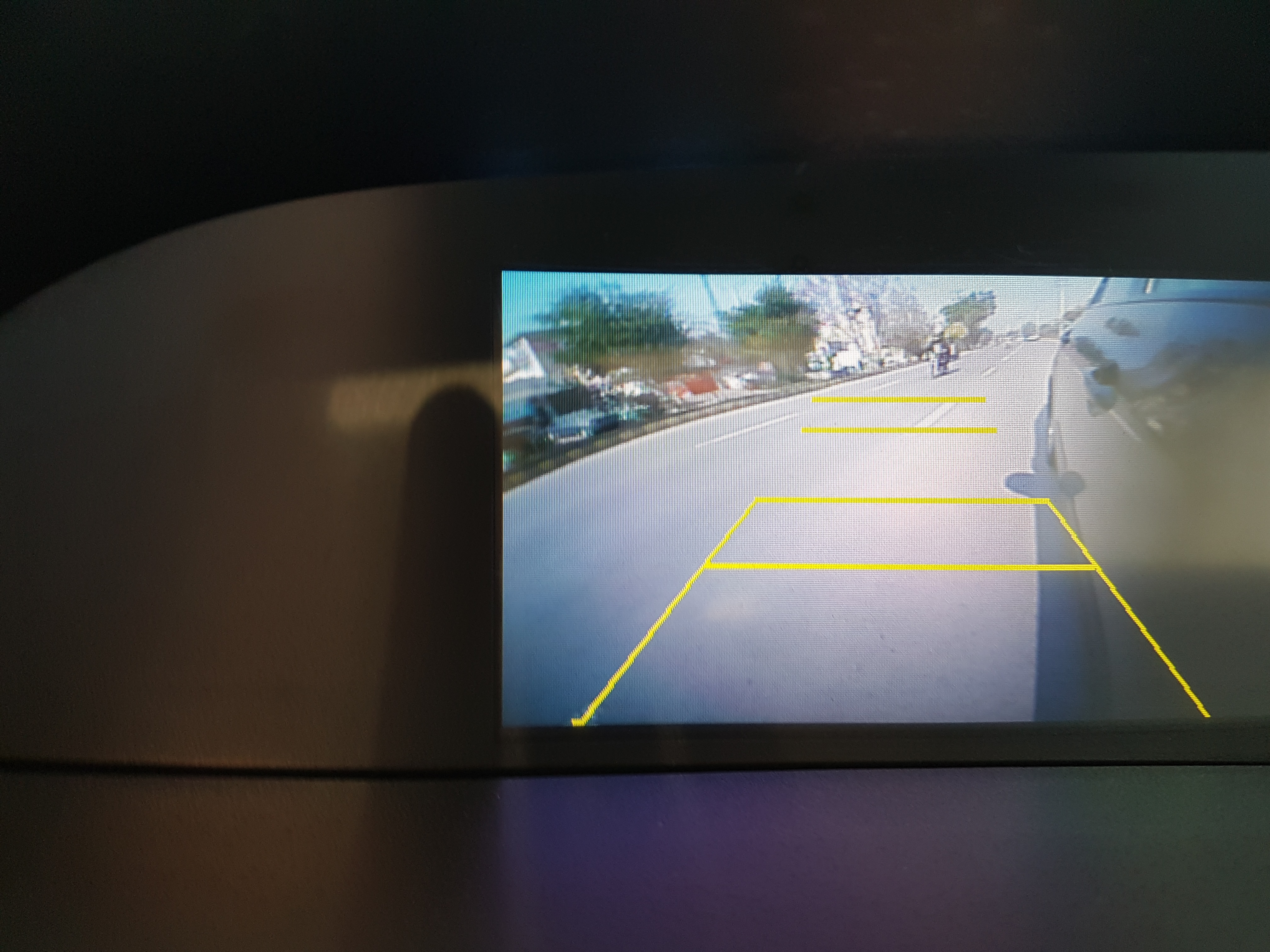

7. Also please share the picture and video (if possible) of the screen view on i-Mid display of this camera.


8. What is the viewing angle of the camera and what is the adjustment margin.


9. what is beneath the hole when you did for camera. Is there any circuitry or hardware of power mirror ?

[/quote]

Here are some pics of imid rear side i took yesterday. for more pics u can visit my thread

[rkzahmed]

[quote="irfan44, post:667, topic:261194, full:true"]

I was talking about this grill. Thanks

i think its the same grill. They just colored the outer corner and left the upper and lower sides black. looks good in pics

[/quote]

I so want this grill

[rkzahmed]

More pictures.

[Spano]

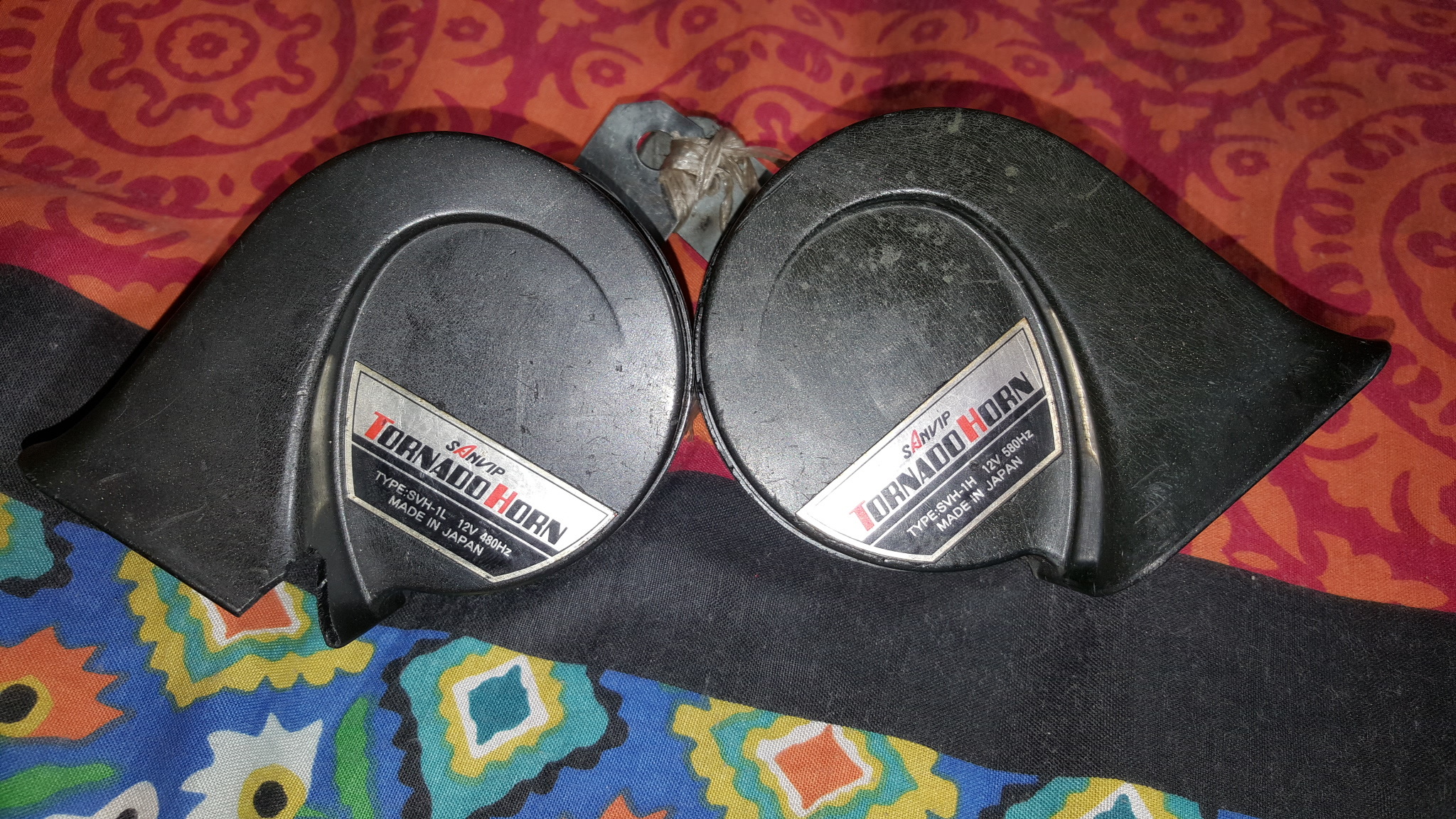

Just finished installing after market horns.
It was difficult that expected.

Eventually I had to take off the front bumper to do this job.

Things that I didn't know before and would help any one who wants to do it.

1. Bumper has to be removed else you will have to open the front under bumper Shield that has got too many clips. And if your car has factory fitted clips. Don't try to open them. You will break them.

2. One horn is quite visible where as the second horn is below the left head light. It took me 5 minutes to find it because I had half opened bumper.

3. There is only one nipple/thimble connector for 12v and for ground is used from the body earth.

4. If your after market horn has two connector. Short one with body.

5. Stock OEM nipples/thimble connectors is very small for any after market horn so be prepared to use some wire and tape.

6. It's better to buy thimble/nipples connector of your after market horn before opening the bumper.

Sorry could not take pictures.

The oem stock nipples were small

[autophile]

More pictures.

Great stuff

[Spano]

Another DIY that I completed on this weekend was the GLASS COATING of front wind screen and side mirrors.
after some research, I selected this product

It is Clear-Fusion V
Protective Glass Coating
NanoPax Pre-Portioned Towelette
by DFI

[Spano]

Here are the results

[Spano]

here is the video of the glass coating testing

Glass Coating Testing Video

https://www.youtube.com/watch?v=n8Xxx0P4TmI&feature=youtu.be

[Spano]

another video from inside

https://www.youtube.com/watch?v=0s9gJuZpCnQ

[robotics909]

NanoPax Pre-Portioned Towelette

From where you buy this product. And what is the price of this product.

[Spano]

Price is 1800/-.
and I bought it from Meguiar's dealer. also this is not Meguiar's product. but I guess they sell it.

[robotics909]

Price is 1800/-.
and I bought it from Meguiar's dealer. also this is not Meguiar's product. but I guess they sell it.

Thanks. Any technique for the applying the coat.

[Spano]

the instructions are written on the pack.
there is no special technique. simple apply like wax and then clean with with clean cloth

[MrUnknown]

@Spano bro i want to install brembo brake caliper cover available on sehgal motors on stock civic 2005. i dont wana drill holes in caliper as some one did with his reborn on pw so is their a possibility to install them without any kind of modification or drilling/cutting/welding to brakes?. M attaching the reference picture of covers for u

[mehrozniazi1]

Another DIY that I completed on this weekend was the GLASS COATING of front wind screen and side mirrors.
after some research, I selected this product

It is Clear-Fusion V
Protective Glass Coating
NanoPax Pre-Portioned Towelette
by DFI

spano from where

[Spano]

[quote="rozzzzz, post:682, topic:261194, full:true"]

Another DIY that I completed on this weekend was the GLASS COATING of front wind screen and side mirrors.
after some research, I selected this product

It is Clear-Fusion V
Protective Glass Coating
NanoPax Pre-Portioned Towelette
by DFI

spano from where

[/quote]

i will give you his number when you need.

[Spano]

@Spano bro i want to install brembo brake caliper cover available on sehgal motors on stock civic 2005. i dont wana drill holes in caliper as some one did with his reborn on pw so is their a possibility to install them without any kind of modification or drilling/cutting/welding to brakes?. M attaching the reference picture of covers for u

yes, those can be attached using silicon. it works well with silicon. I had done it with silicon and it was absolutely fine.
but since silicon is soft, you have to be careful while washing the car and while changing wheels.
try not to touch/push the caliper cover.
and check it with any loosening. if you find any. please remove that particular cover and apply fresh silicon to attach it again.

[z.u.m.a]

Applied some transparent vinyl for paint protection of door sills

What is TRANSPARENT VINYL known as in Desi language.I mean what do i say to the shopkeeper for a transparent vinyl
