I am making a part to find the dead center of trunk.I made this CAD drawing.Round holes are just to reduce the material nothing else.I just need the shape with the slit in the center.
now 3D Printing it .
I will put this part in this sectionand the slit in the center will give me the center of the trunk.
I have not done it before. but logically I think I will achieve my goal
3D Printing Pictures.
3D Printing Video.
Do your car has a trunk liner ?. I belive Honda added on so called facelift . If your car missing that, you must install it ASAP.
yes, it has trunk liner
trunk liner and hinge covers .
@Spano boht baray shauqeen hain aap
update at 3D Printing .
Ehtesham bhai is piece say hoga kiya? it's only for finding the dead center ya koi aur bhi purpose hay iska?
only to find the dead center of the trunk.so that the spoiler is not to any of the side..This part will help me to find the center by an accuracy of +/- 0.1mm
Zabardast MA, aisa na ho jo factory say RS aaye uskay spoiler thore taire ho aur aap ka bilkul dead center:P boht confusion hojayegi Atlas k liye:laughing:
hahahahanai nai ... factory mein RS ki trunk holes wali hoti hai ..so the holes are there already

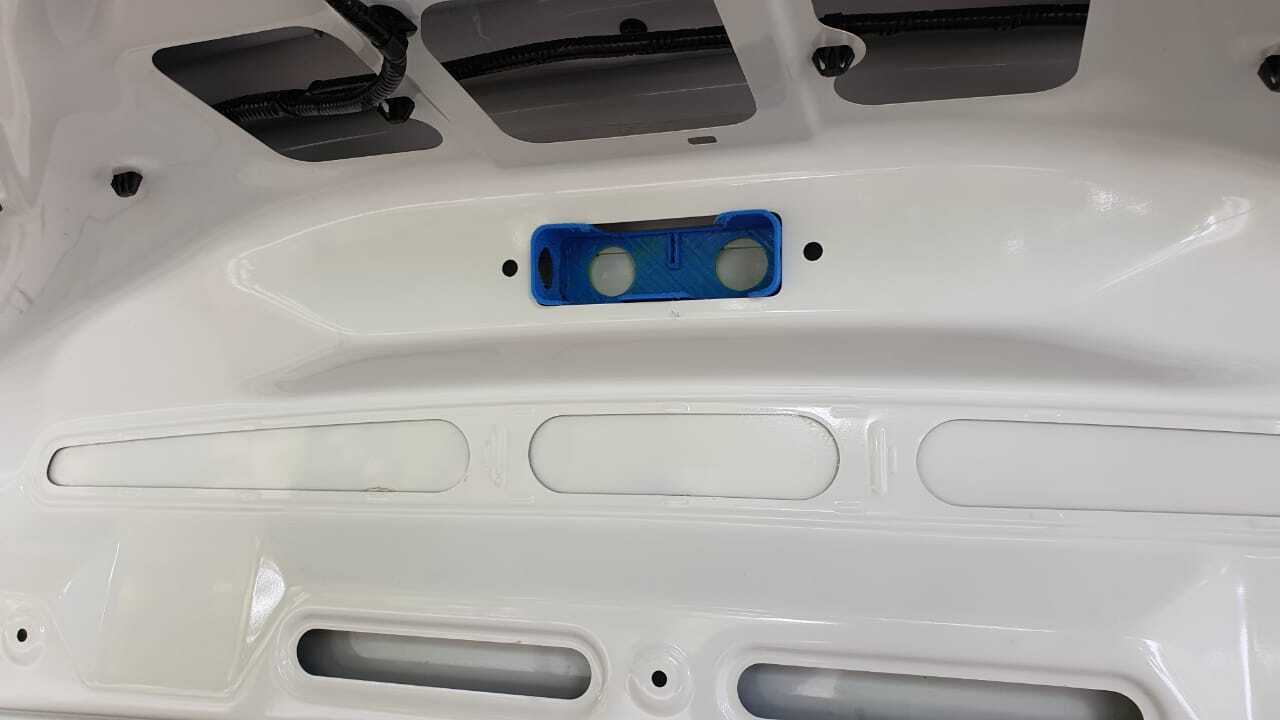

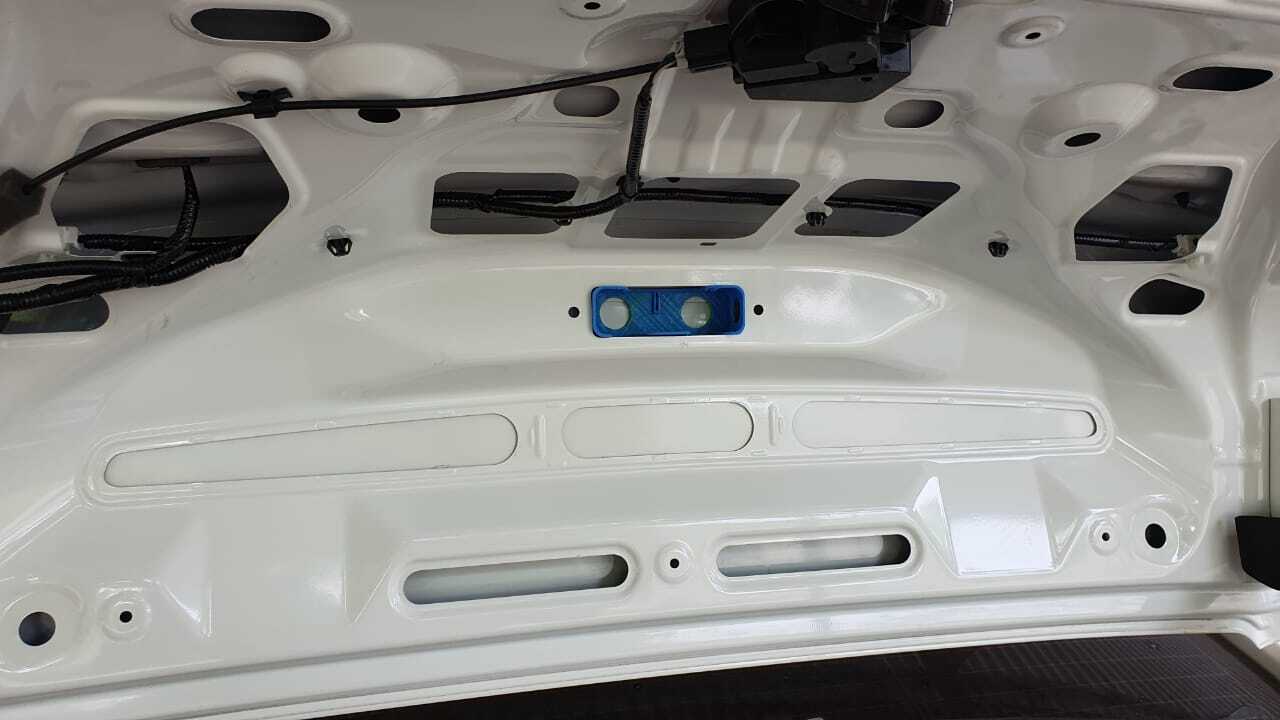

its worked perfectly.

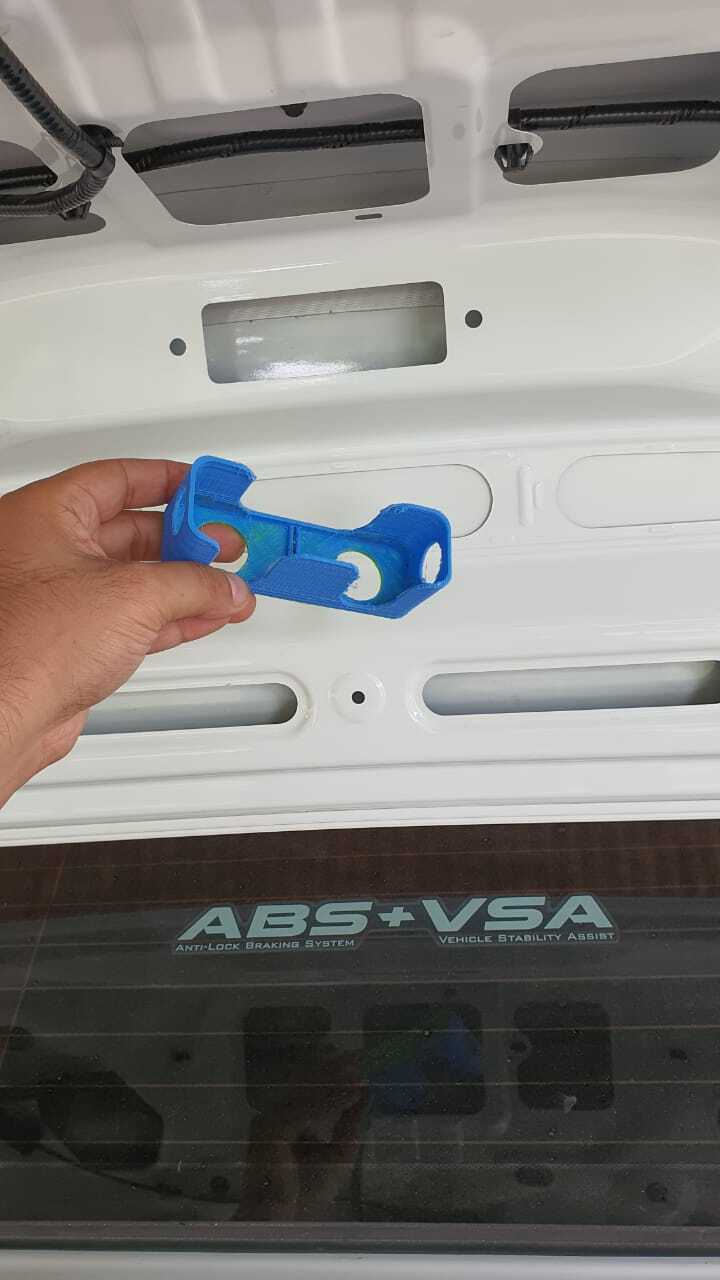

it was sized to perfect fit the slot.

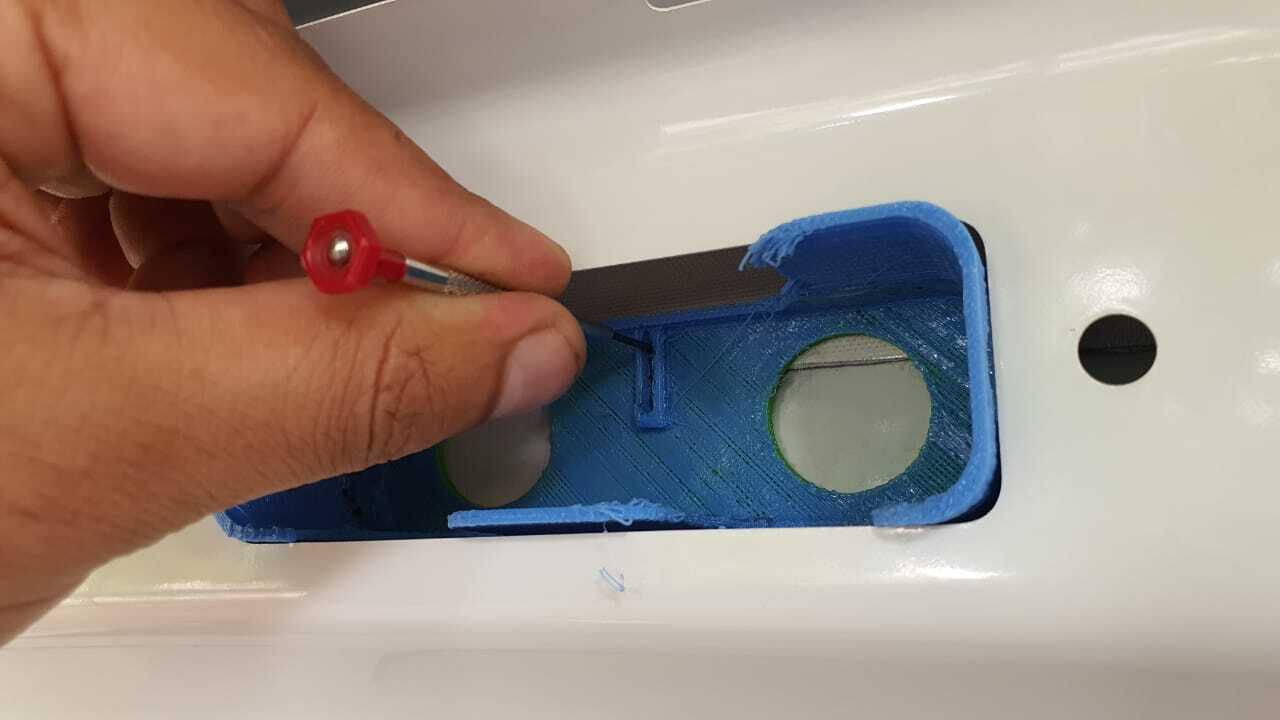

The slit on the center of the CAD designed part will give the centerThe slit is only 1mm wide, so I have to use the smallest screw driver to mark the center..
@VCheng @capsat what do you say I some how used 3D printer in my car's DIY
Next level operation @Spano . Impressed.
