Guys, what is the Transmission oil interval for swift Automatic? The manual mentions 150k, I have read at some places it should be around 70k. I just bought the car and it is 72k driven and I am confused if get it changed or not. Thanks

Uploading...

[saqibhassan95]

It's 60k kms/48 months

[woresect]

Thanks, guess I will get it changed then. Which one would be the best? Especially in liqui moly?
Suzuki recommends some atf 3309 or something but am not sure of its alternative in other brands

[saqibhassan95]

Thanks, guess I will get it changed then. Which one would be the best? Especially in liqui moly?Suzuki recommends some atf 3309 or something but am not sure of its alternative in other brands

@mohsan87

[mohsan87]

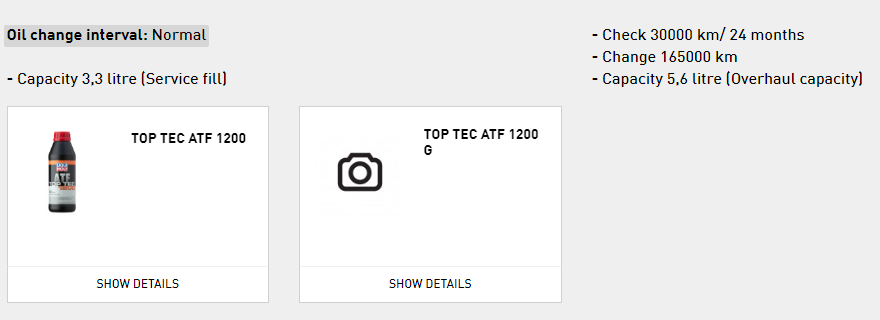

As per liqui moly oil selection guide..for Suzuki swift automatic , transmission oil is Liqui Moly ATF Top Tech 1200

https://www.liqui-moly.com/en/service/oil-guide.html#oww:/api/v1/oww/101/PAK/ENG/1/a992b4b9b79a9a4a/fa4e0ef21c1347d6/1bd3e6f73b9a4b00c7a4b22624538719/

[woresect]

Thanks, Mohsan Bhai, is It 100% confirmed that I can use ATF 1200 safely? Should I buy it or confirm first?
Secondly, two different capacities are mentioned: service fill (3.3) and overhaul fill (5.6). Manual also says 5.6.
Which one to go with?

[saqibhassan95]

service fill quantities are considered for periodic maintenance

[oklodhi]

My Swift's (automatic) mileage is now almost 40k km. I checked with Suzuki Master Motors about the change of automatic transmission oil. They say we change manual transmission oil at 40k km and automatic transmission oil at 80k km. The owner's manual only mentions manual transmission oil change at 40k but no mention of when the automatic transmission should be changed.
I find it a bit strange, as normally in Pakistan all automatic cars required automatic transmission oil change after interval of 40k km.

[Massive_One]

that's strange, i thought automatics require oil change sooner than the manual ones..: /

[oklodhi]

Can you share the manual or page reference? I have the manual in hardcopy but I have not been able to find the mileage for automatic transmission.

[woresect]

You don't need to change A/T Transmission Fluid at 40k. That's for sure. Not before 70k. Usually, ATF's lasts around 100k easily unless you are driving very harshly. Just check the transmission fluid color, if it is pinkish on white tissue, you are all good. Get it changed around 70k.

As per the manual, it says change after 150k which I don't trust. I will get my A/T Fluid changed when I get the chance. I just bought the car used so just to be on the safe side. Although the color of my fluid is still kinda pinkish.

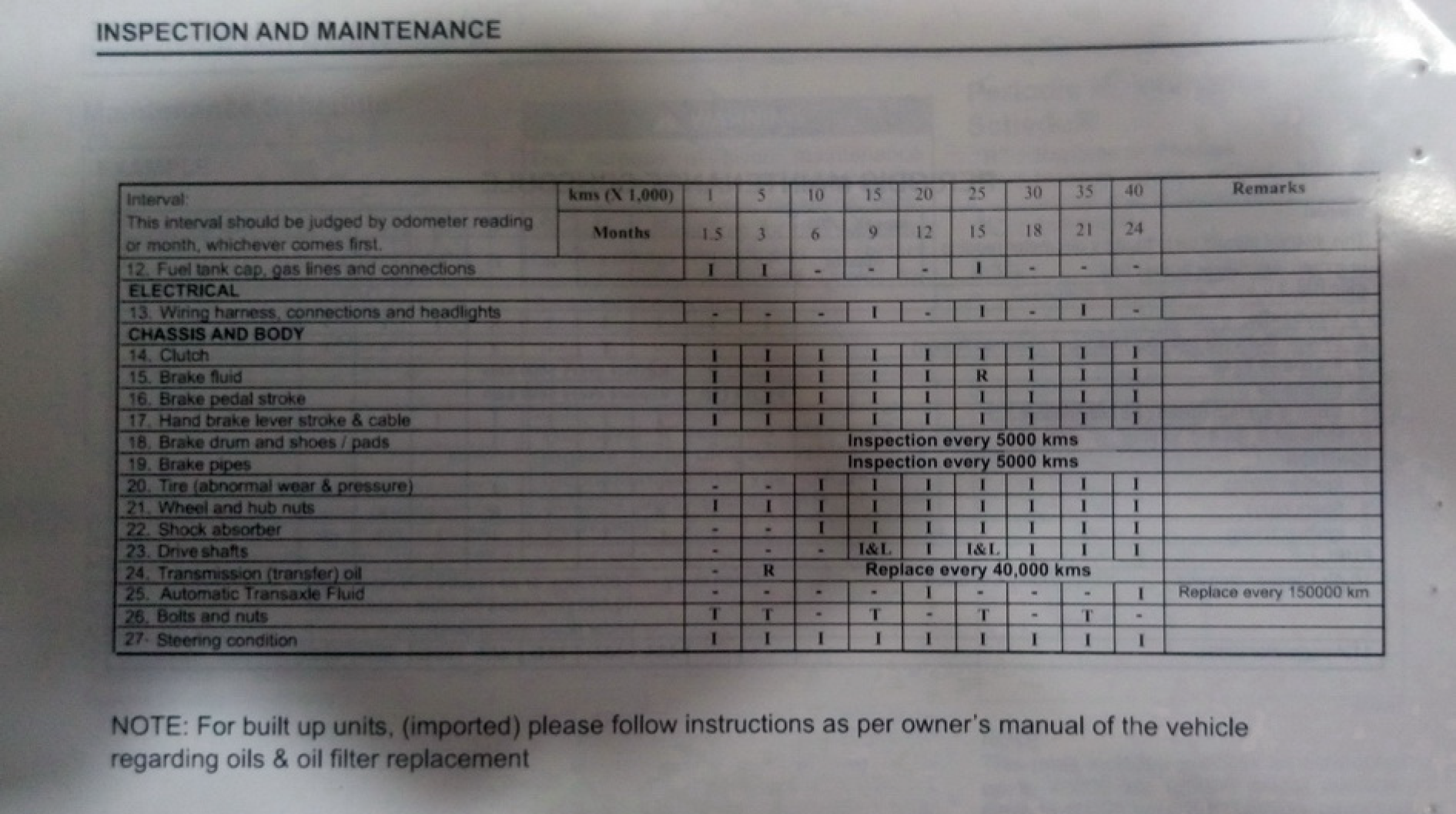

Here is the picture from manual

[saqibhassan95]

It's 60k/48 months as per latest schedule issued in 2020

[oklodhi]

I actually called Suzuki dealerships.....Sethi Motors, Raiwind Motors, Ali Jan Motors and one other dealer and they all said 60,000km or 48 months whichever is earlier.

[saqibhassan95]

I've shared schedule in post 10623
Check that

[woresect]

Thanks Saqib for sharing, is this schedule official one being used in Pakistan?

[saqibhassan95]

is this schedule official one being used in Pakistan?

yes, it was issued by paksuzuki on 28th Jan 2020, it's still applicable as there's no updated periodic maintenance schedule issued yet

[woresect]

Okay great, thanks. Do you have any idea about ATF for swift? What other good options are there other than liqui moly? and if LM ATF 1200 is the right one?

[muarif.7]

Thanks Saqib for sharing

[bmuqtadir]

You can use Mobil 3309 or Toyota t4

[pwuser154852457397]

In LiquiMoly options in my opinion are:
-Automatic Gear Box: Top Tec ATF 1200

-Manual Gear Box: Hochleistungs-Getriebeöl (GL4+) SAE 75W-90
