The Alternative Energy Thread - Generators, Solar, UPS, Wind

[noobie]

60c is within acceptable operating temps but it starts derating after 50c. Although, I haven't noticed any serious throttling due to temps. I already have a fan installed that throws air directly at the inverter and big exhaust fan for the Electrical room. I guess it's just too hot now so the fan is just throwing the hot air on the inverter.

[umans]

AC temp or DC temp? Inverter capacity? Nitrox 5KW (white) and 8KW has fan which kick in at 60C. Its normal for DC temp to reach 60C, it happens during peak production and when charge/discharge battery with high current.
Keep the fan on during summer and use exhaust to blow away hot air. No need to install AC.

[noobie]

Nitrox 12KW (White 3 Phase Hybrid). DC Temp usually peaks at around 60c and AC Temp peaks at around 59c or 59.5c. I have installed a FAN that is pointed directly at the inverter. Exhaust fan is already installed and runs 24/7.

[AkbarGr8]

My huawei hit 70C today during peak - air cooled mounted outside in shade. Has been fine MashaAllah seh with no throttling.

Love your inverex 12kw inverter!

[umans]

Thats normal. Just keep the fan and exhaust running during summer, not must but good thing to do. I do the same. Controllerd temperature prolongs electronics life.

[abart]

I have a digital temperature gauge meter which I placed near inverter, it shows around 41-42 degree centigrade ambient temperature nowadays, is it OK? or should i also install exhaust fan near it? There is a net door near it as well which allows air flow from rooftop.

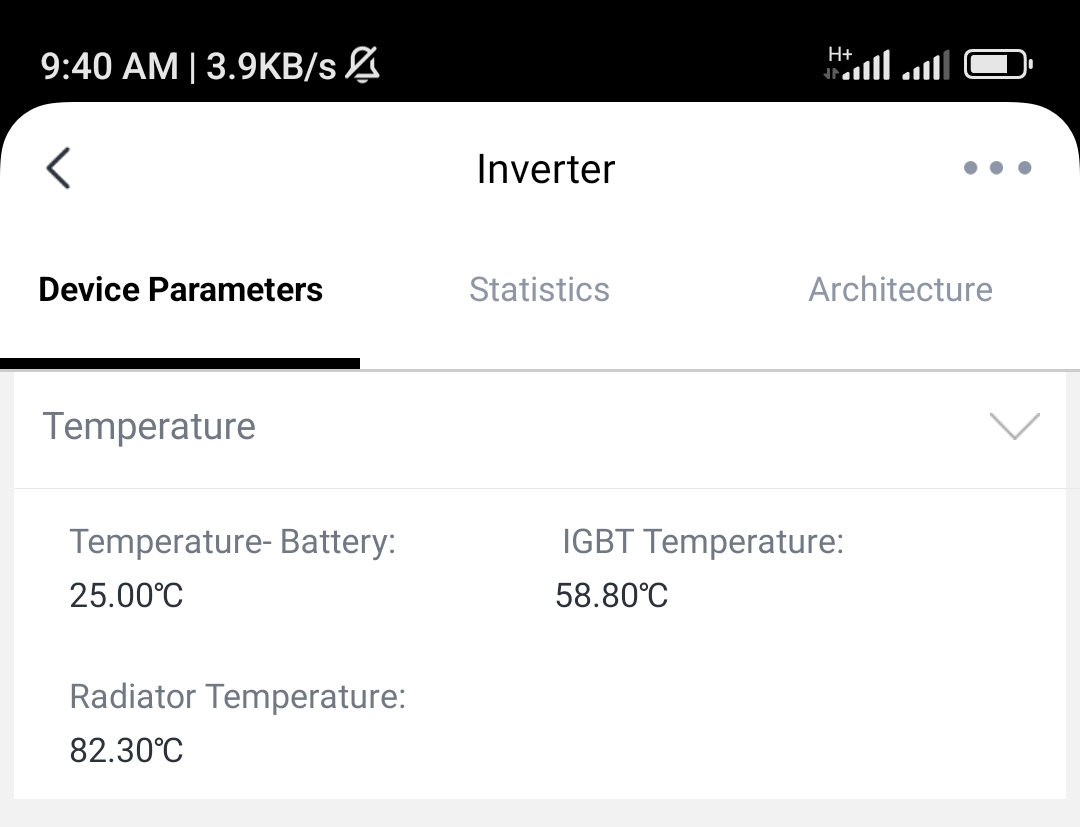

My software shows this information and it's 9:41 AM

[sardarg]

sir you may add a duct fan (like over a CPU inside a desktop pc) or a small pedastal fan inside the electrical room for air circulation. or add an exhaust fan at the door / window of that room.
these days humidity is crossing 52% level during day time. an electrical appliance constantly operating at thresh hold temperatures will degrade the equipment performance faster rate then usual.

[AkbarGr8]

[noobie]

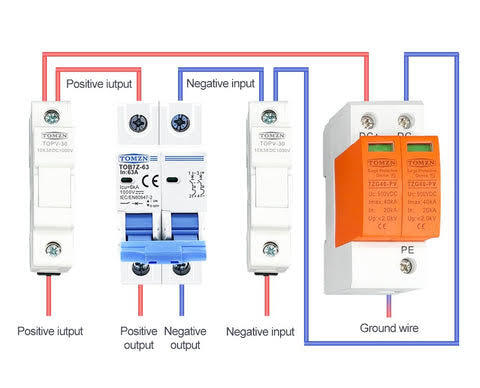

Is there a way to check if the Spd's were installed properly and working? Also, my solar vendor put them in the same plastic box as the breakers, which is obviously dangerous and fire hazard. How difficult would it be to move them to a separate metal box?Would that require a lot of changes in the wiring? @umans @AkbarGr8 @sardarg

[umans]

Just make sure spd is wired properly. Better install in metal box where their front is visible, keep the wiring as short as possible (close to main breaker). Do that for both AC and DC SPDs.

[noobie]

Thank you!!

[AkbarGr8]

My chint Spds have colour coded indicators that change say if they're blown. These colours could vary across different brands.

[AkbarGr8]

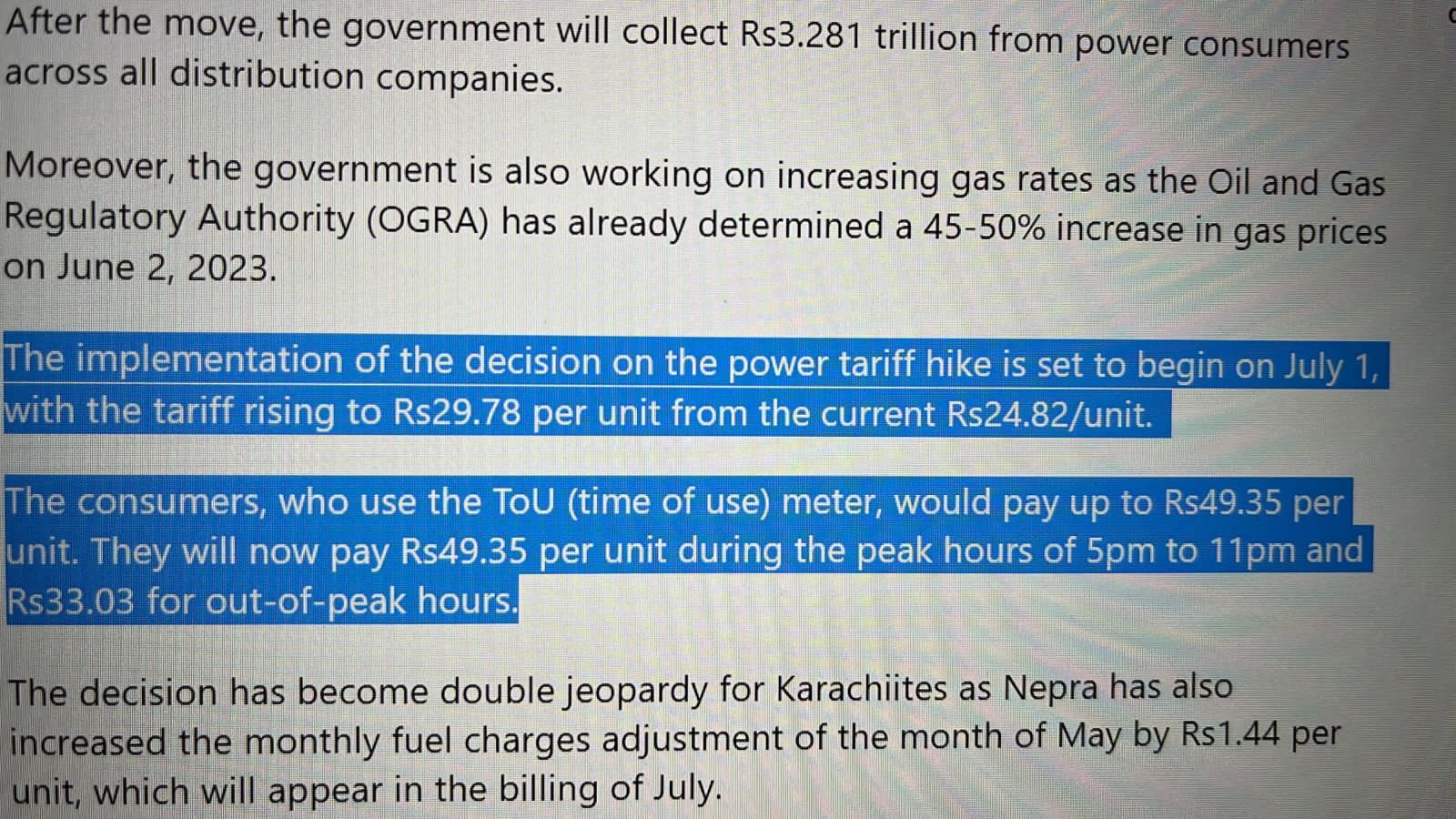

https://www.brecorder.com/news/40251799

Horrifying price hikes in the pipeline

[sardarg]

it seems that energy tariff will cross Rs. 55 per unit. threshold without taxes.
Raab Talaa (SWT) reham farmai

[saqibhassan95]

tariff increase (Lesco)

PS: different tariff increase for all discos
as for now as it is an interim tariff, so check your disco tariff, back then All discos had same tariff but now that's not the case

[AkbarGr8]

https://www.dawn.com/news/1764718/nepra-approves-rs496-per-unit-hike-in-national-average-tariff-for-current-fiscal-year

[saqibhassan95]

https://www.dawn.com/news/1764718/nepra-approves-rs496-per-unit-hike-in-national-average-tariff-for-current-fiscal-year

for end user. 4.96 rs is meaningless
because real problem is, that there's no tariff rationalization for the interim period
just for info

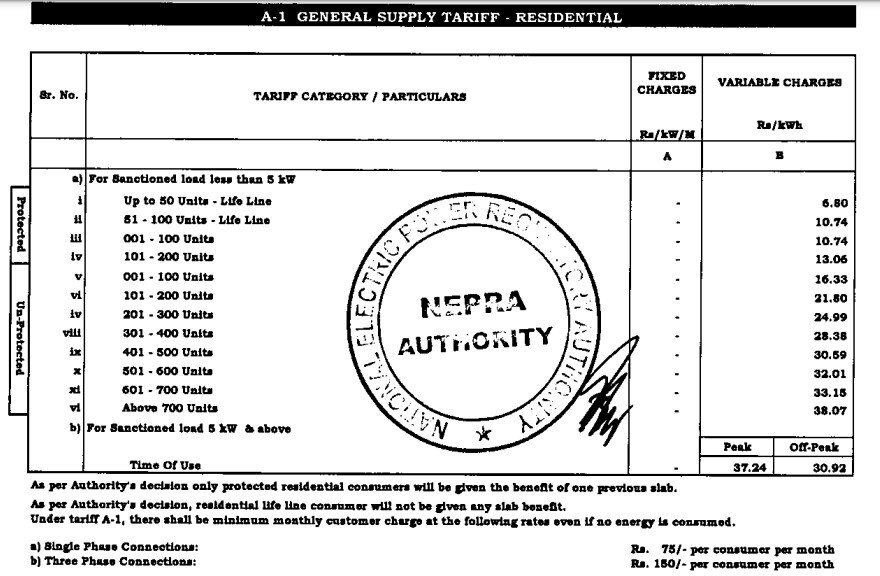

Right now
Off-peak and peak tariffs across pak
HESCO 49.47 and 55.79
IESCO 28.37 and 34.69
LESCO 30.92 and 37.24
FESCO 33.57 and 39.89
GEPCO 36.61 and 42.93
SEPCO 41.23 and 47.55
TESCO 43.04 and 49.36
PESCO 36.81 and 43.13
QESCO 43.20 and 49.52
MEPCO 38.32 and 44.65
difference between discos is mind boggling

[AkbarGr8]

Wow! Based on the article, KE will keep getting hit with FCA instead?

[AkbarGr8]

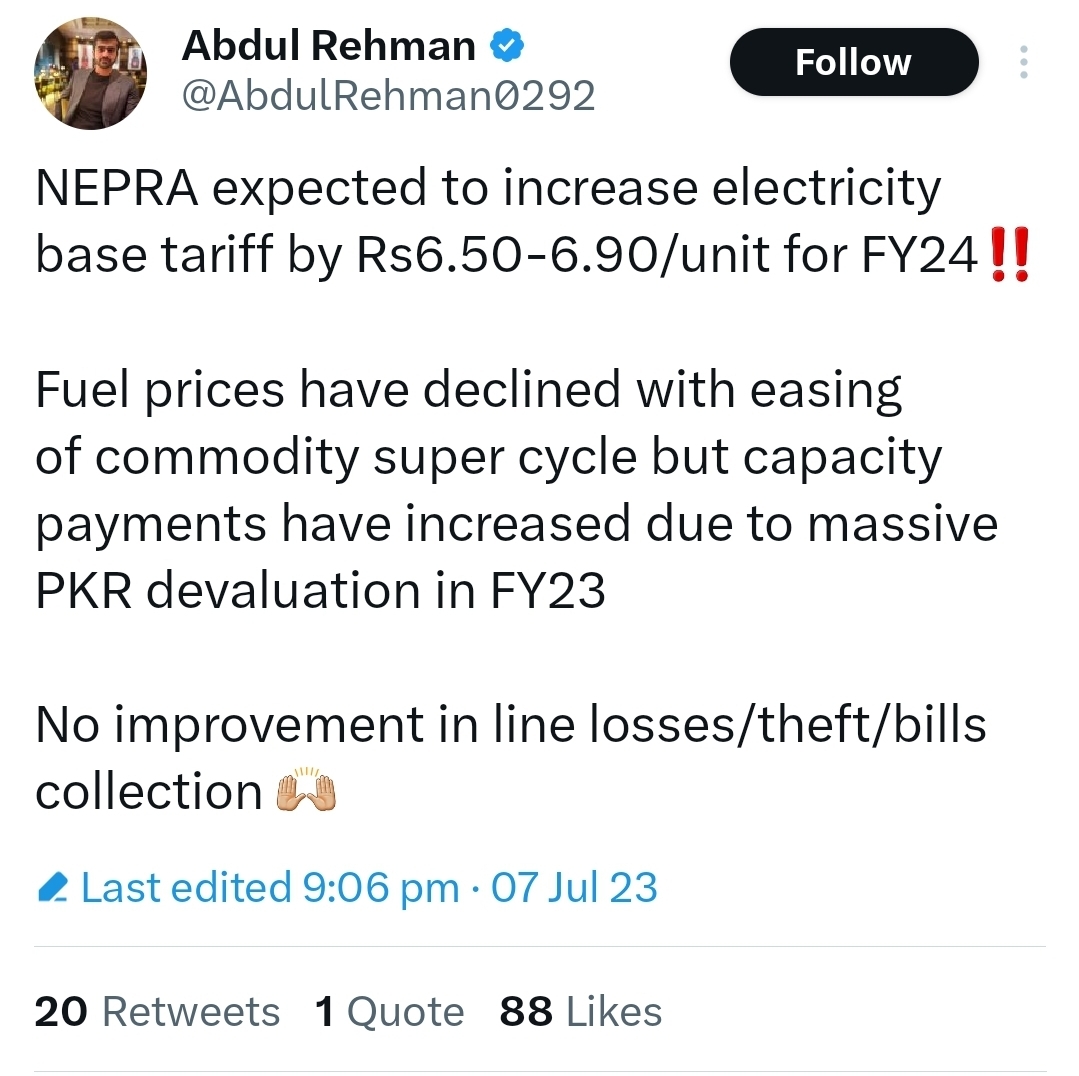

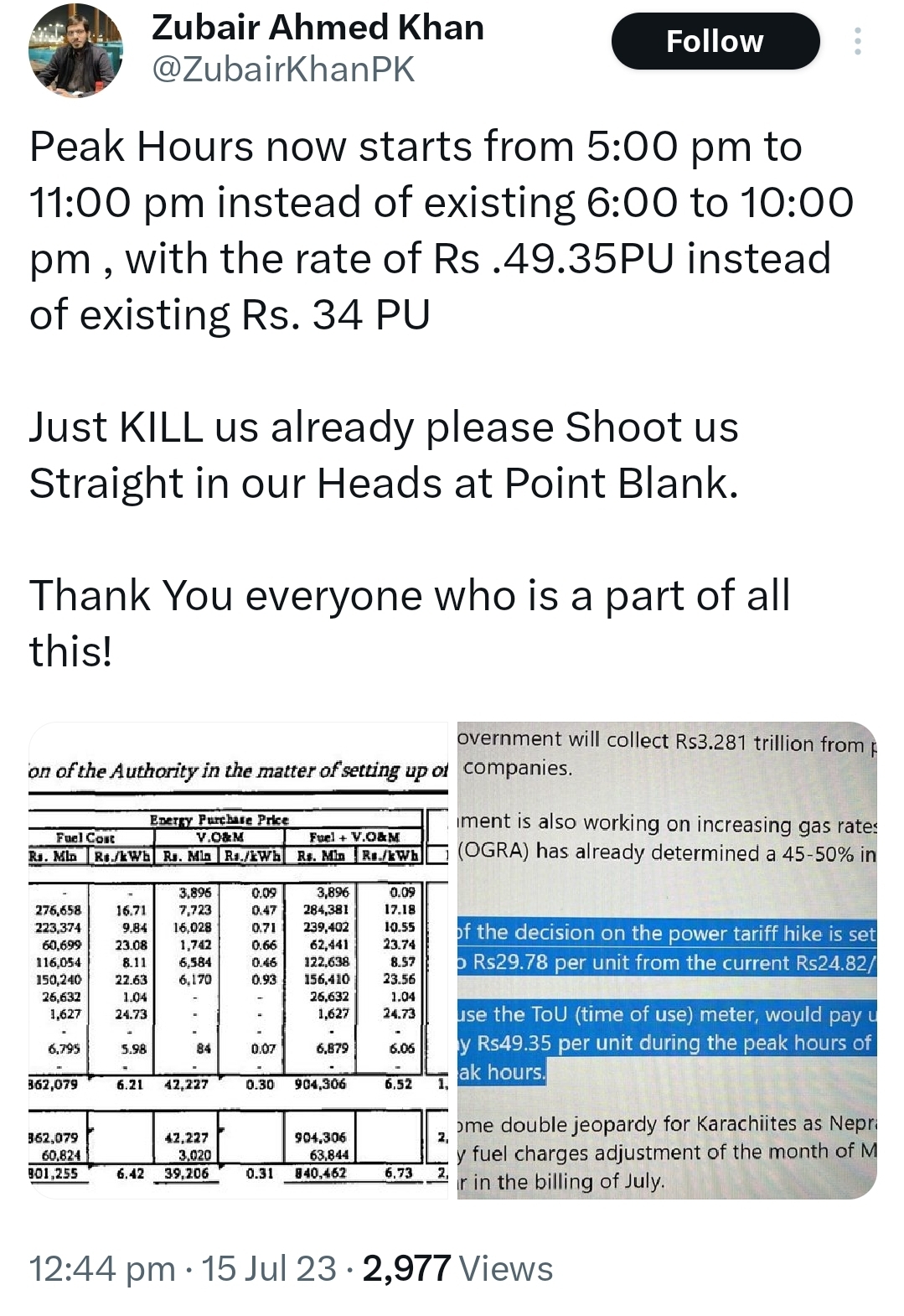

Attaching some screenshots from twitter, unknown authenticity. Will be a back breaker if peak hours will now be 5PM - 11PM.

[saqibhassan95]

KE will keep getting hit with FCA instead?

yess
tariff has nothing to do with FCA
FCA is for for all disco consumers (because generally reference fuel cost is on lower side which is included in tariff and actual cost is always on higher side, so ultimately we have to pay the difference)
and as FCA is a generation cost rather than tax, one should not worry too much regarding that
