Tips for Baleno

[atharkhan87]

you mean IDLE AIR CONTROL VALVE?

[atharkhan87]

Thanks, what if i just replace that in the first place? is it expensive?

[xenerking]

i highly doubt that you will find a new one...if found it will be quite expensive...

cleaning it is a simple task...there is a pipe attached to air intake pipe....spray lots of carburetor cleaner in it and then rev it up...it will shudder and might shut down...start again and repeat...

but if the valve is badly stuck, then open the valve when car engine is cooled down, there are coolant lines attached so u might loose a bit of coolant as well...

there is a gasket, do watever but never spray any cleaner or liquid on it else it will swell and be useless...

after opening you will see the valve...try moving and clean all junk from it...put a drop of ATF on it and you are good to go...no need to remove magnetic part from IACV, instead open the complete assembly...

hope it helps...

many years back...i got an unadulterated throttle with all sensors attached in factory position from junkyard in 1800

now i dont know the current price and value

[sameerulhaq064]

Yup, completely forgot that there is no MAF sensor in a Baleno.

[abid110]

seems like a very dirty IAC valve. engine overhaul k waqt saaf hua tha ye?

[atharkhan87]

yar iska to nahi pta but jab mene gari mechanic se receive ki thi tou yeh issue aaraah tha, mene usko kaha to usne throttle nikal k service kiya tha, but phr b masla hal nahi hua, he said electric issue hai, kher mai gari leaya phir ghar k khud thodi research kar k ksi dhang k electrician ko dikhadunga, @abid110 mukka chowk k aas pas hai koi acha electrician?

[atharkhan87]

IAC valve

secondly IAC valve ki pic to share karo hota kesa hai

[abid110]

bhai ye RPM giranay wala masla acha nahi, see a mechanic near Mukka Chowk/Biryani chowk with my reference. he will help you out. tell him whole story of overhaul as well as throttle body servicing already done. i had same issue in my Liana that rpm used to drop and car shut down even on main roads - it was a weak head of engine and the only solution i had was to install a new engine. but this is the worst case scenario and hopefully not your case - just sharing my own experience.

[atharkhan87]

ok give me his name and contact number

[atharkhan87]

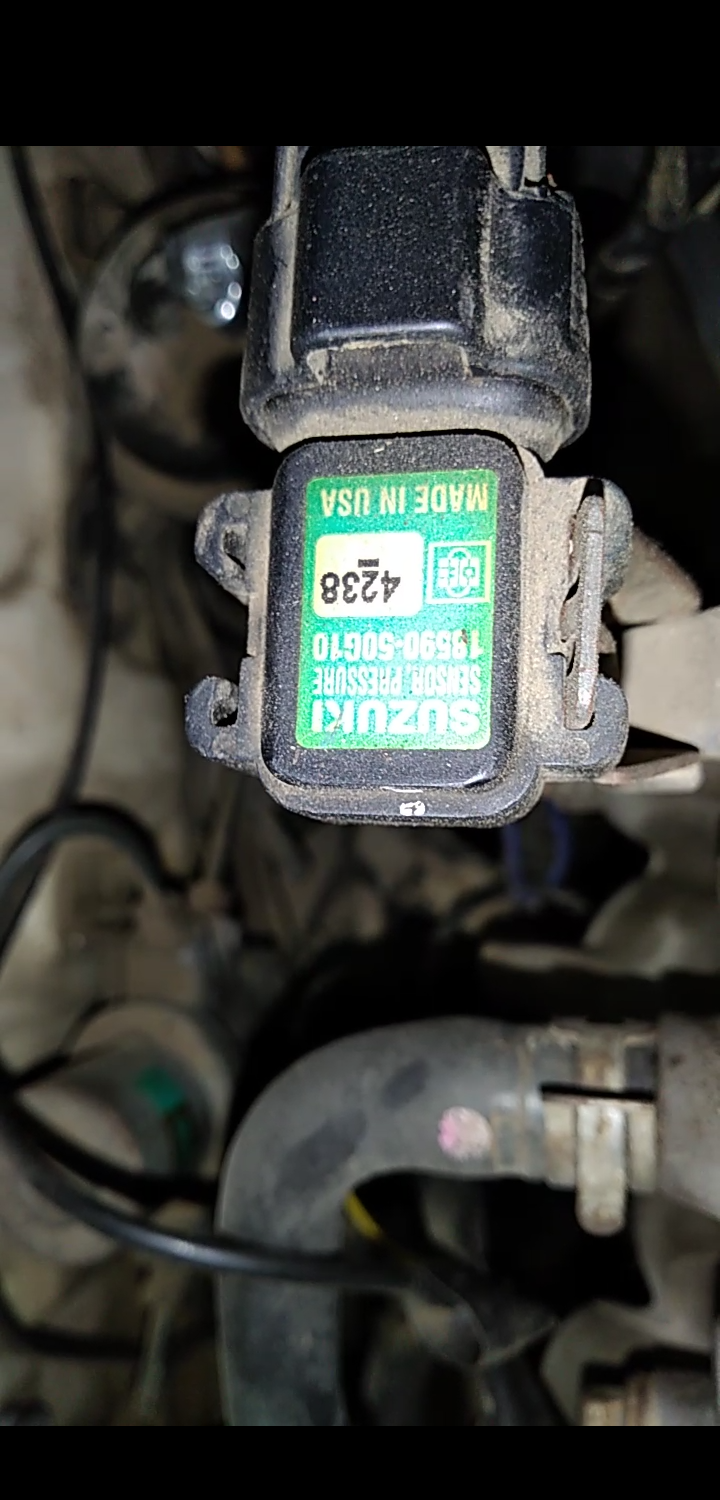

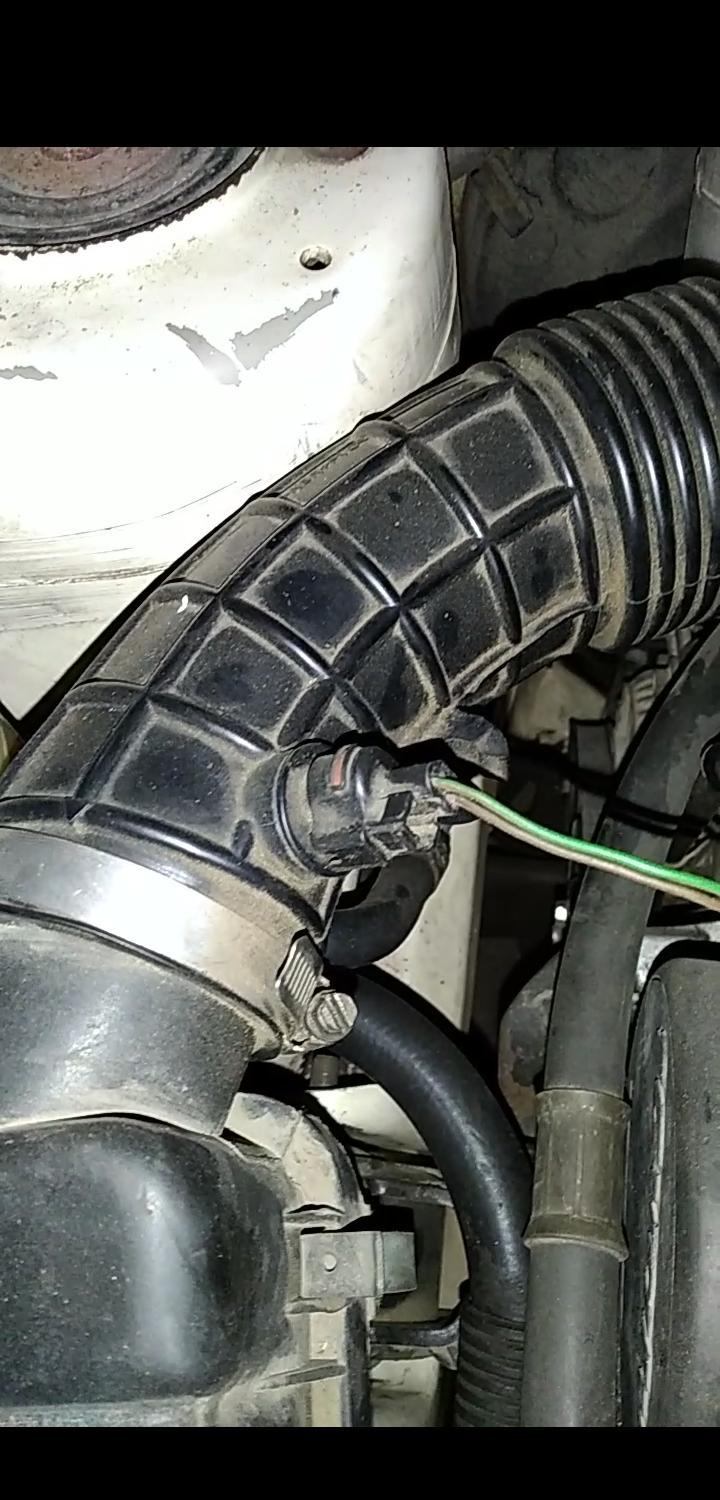

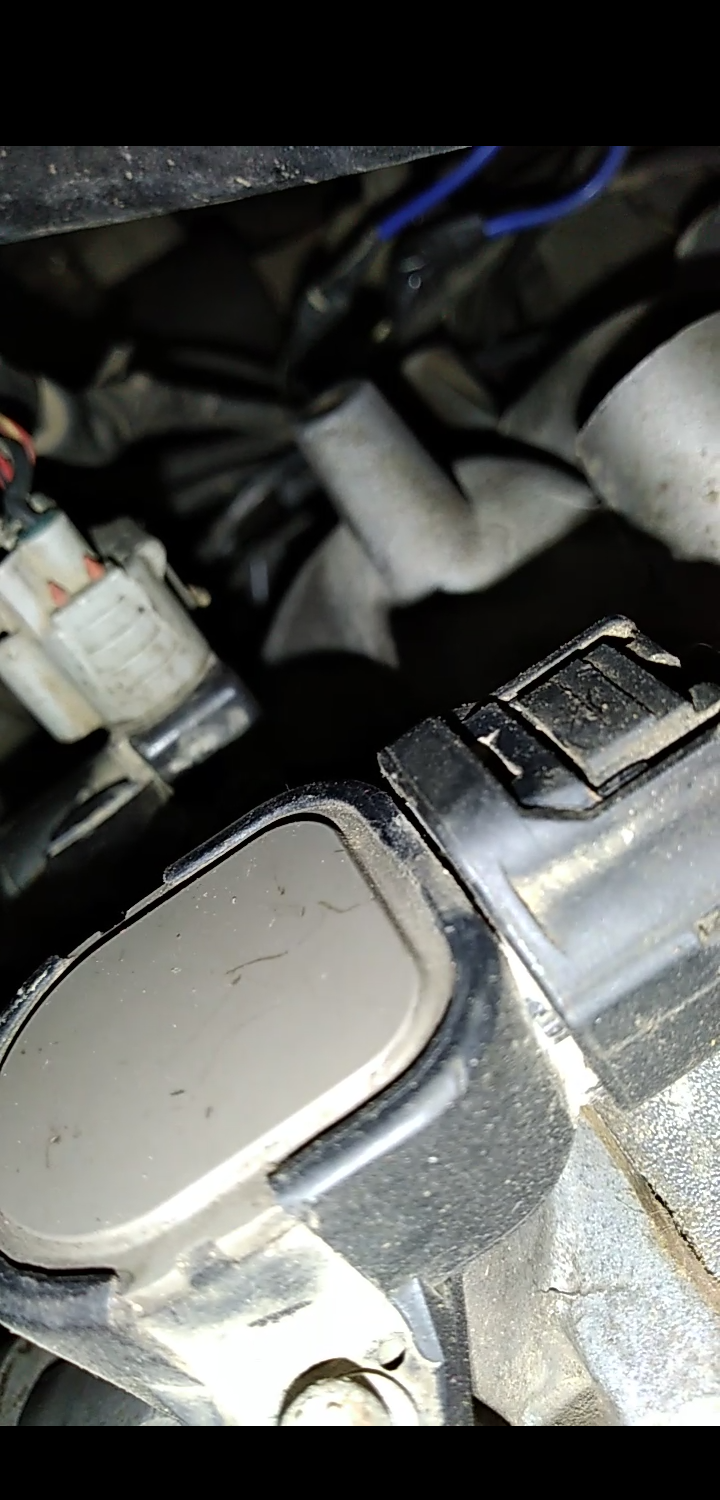

here are some pics of my car, in mai se IAC Valve kaunsa hai?

[abid110]

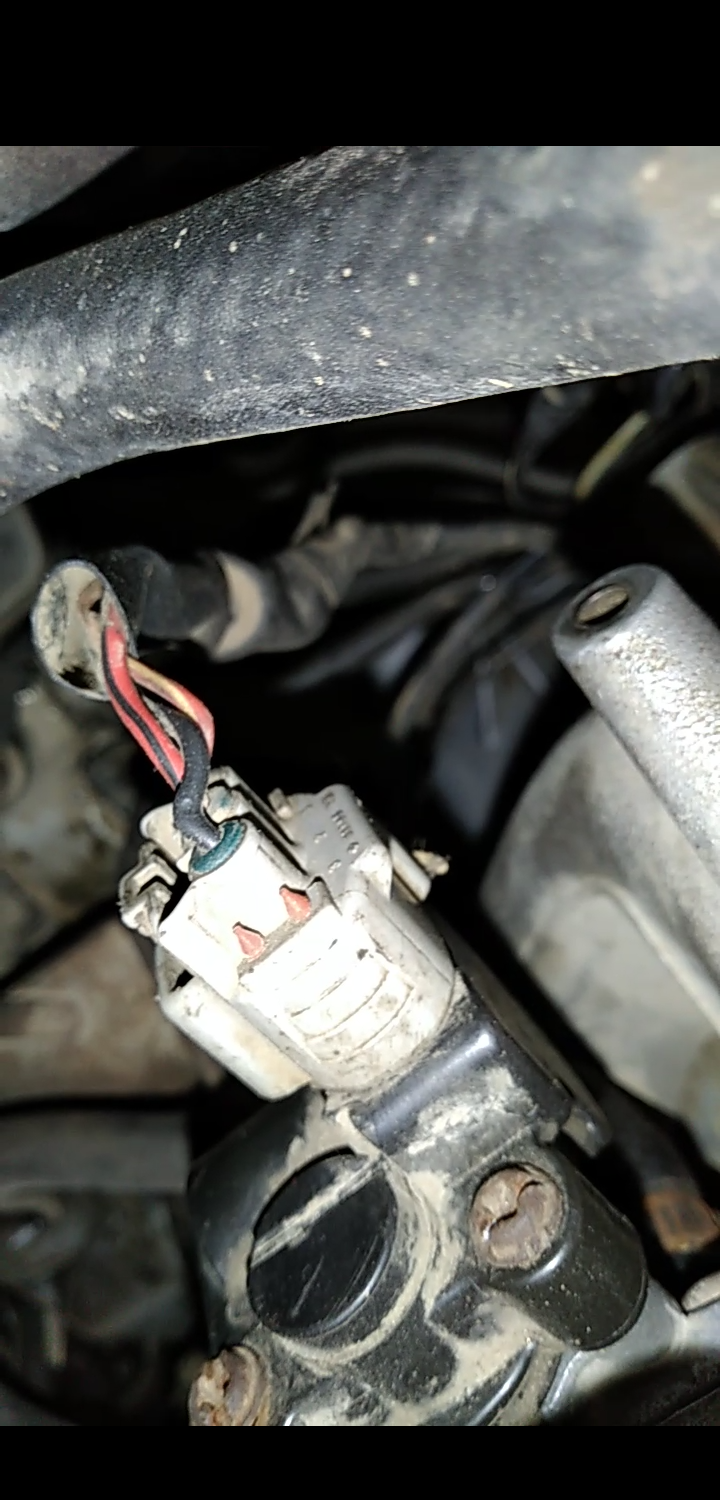

the last pic with white grip is IAC valve. call Shahid mechanic 03002334658 with my reference. and do tell me when you visiting there, will meet up.

[atharkhan87]

sure done hogya

[atharkhan87]

@xenerking @abid110
i just cleaned the IACV and Throttle position sensor, after that RPM is going very high 3000 to 3500 ??

[abid110]

Bhai, aapka IAC valve sahi betha nahi hai aur stuck ho gaya hai. Thats why rpm will be too too abnormally high. Wo set bithao jahan wo motor rotate karti hai freely.

[sameerulhaq064]

Guys, the middle Wala left vent in my Baleno is acting funny. Waise theek Hai, but as soon as you turn on the AC, it becomes loose. Agar Khali airflow ho tab bhi sahi hai. What's the problem?

[sameerulhaq064]

Aur agar suspension ko overhaul Karna ho with new genuine parts, tab total kitna kharcha ho ga?

[xenerking]

was the IACV spindle was spinning freely when u installed it?
did u open the electric part? if yes then was it installed correctly? it has an adjustment, try to install at the same setting.

what do u mean by cleaning the TPS? there is nothing to be cleaned in TPS....it calibration is very important and very difficult to replicate the factory setting...

if everything is okay then try removing battery wire foro 15 mins and then try again...

[muhammadzubair7]

Don't opt for overhaul, talking from personal experience overhaul in baleno doesnt last long, and u will be hearing same noises again. it wil be a it costly to go for replacement but its worth the time it will serve you tention free.

[sameerulhaq064]

How much will the replacement cost?

[muhammadzubair7]

depends on what needs to be replaced,
new shocks front pair is around 7500 for pair, and back is arrounf 6500 for pair good quality thailand make, front crossarms(chimta) are 4500 for pair (with bushes), z links are cheap, end links are under 2000 as well. thats what i can remember from my purchase.
