Tips for Baleno

[safeerabbas]

6.65

[abid110]

congrats on the purchase.waiting for pics.

1. remove the kit too if you do not plan to use cng at all. even if not removing the kit, make sure the air intake blockage/restriction, which is done for cng running, is removed. as CNG takes much lesser air whereas petrol require more air to be mixed with fuel to burn.

2.please explain what type of jerk exactly? could be engine mounts too or many other things.

[safeerabbas]

[safeerabbas]

Thanks Abid for replying. Yeah blockage from air inlet is already removed. It was kind of metal ring with small holes in it. My mechanic removed it while checking the car. I have recently changed the plugs with NGN. Probably changed for the first time.
The jerk is sort of small missing and it only occurs in 4th or 5th gear that too after continues drive of one hour or so. U can describe it jesay banday ko hichki lagti ha some thing like this. Since this is not continues and occured only few time so couldn’t figure out exactly. I am thinking to check the fuel pump and throttle body. May be they required service.

[abid110]

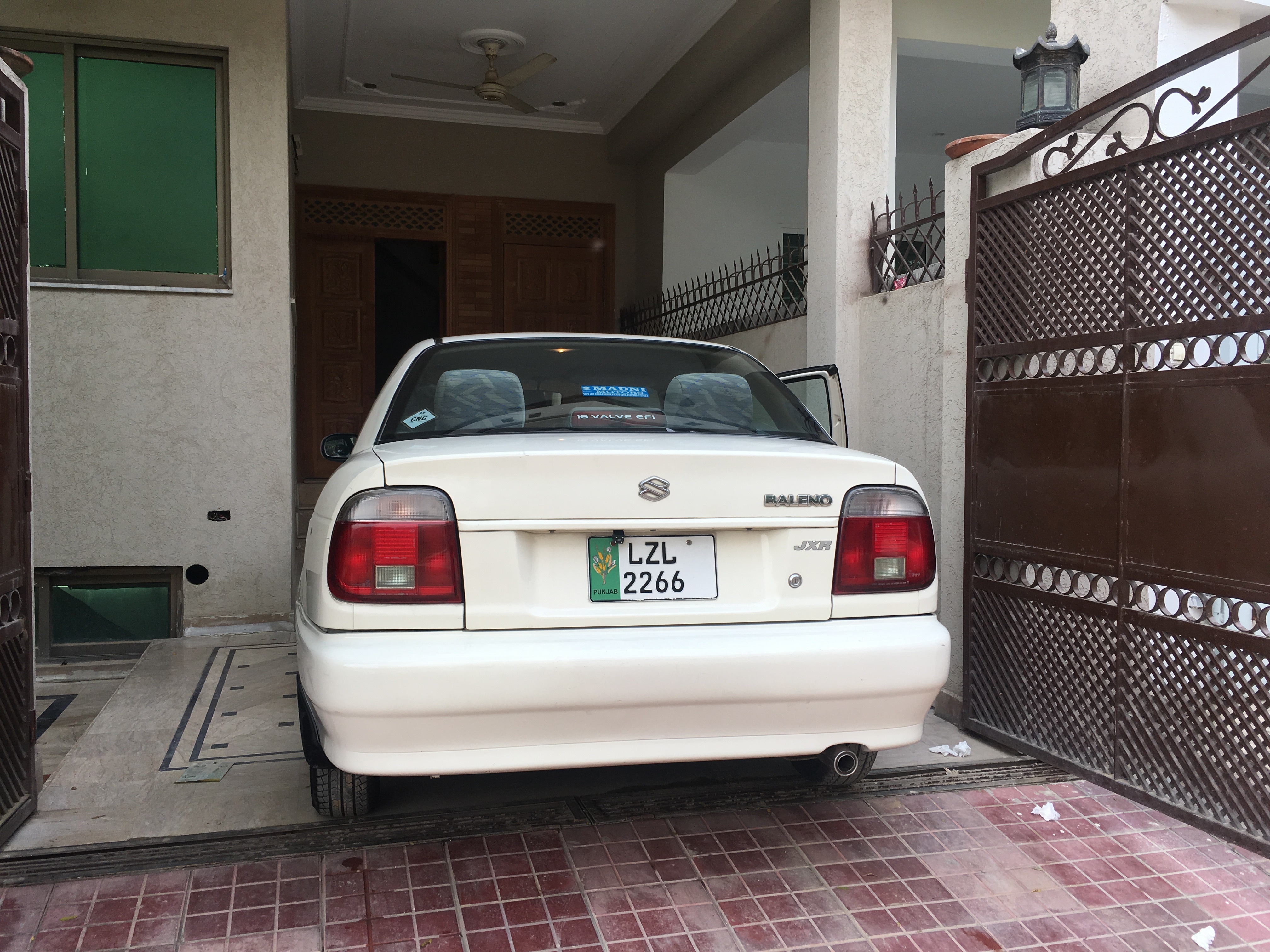

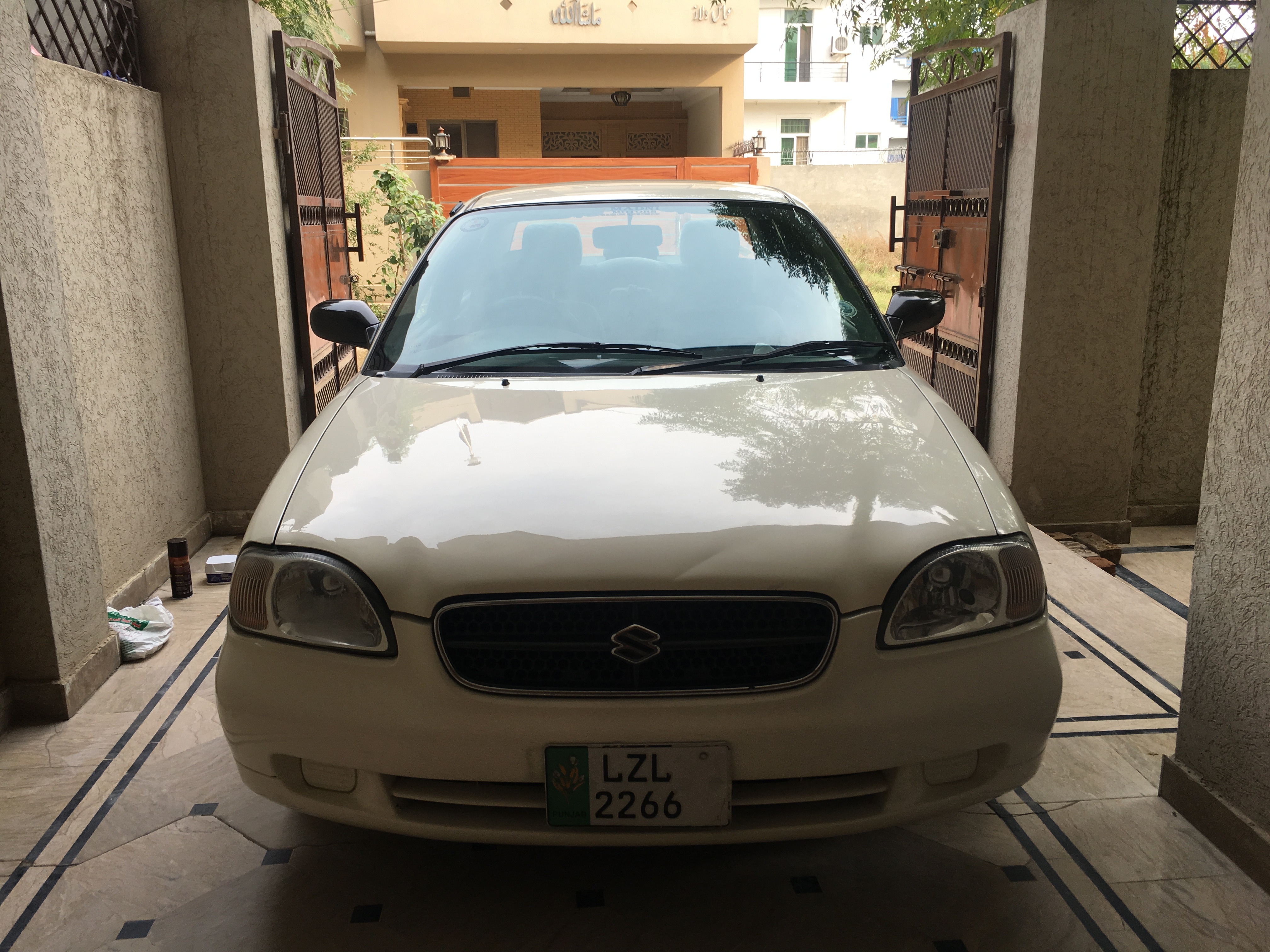

good car MashAllah. share engine pics too soon. need to confirm one thing

[abid110]

second gear me pick kaisa hai on petrol?

[safeerabbas]

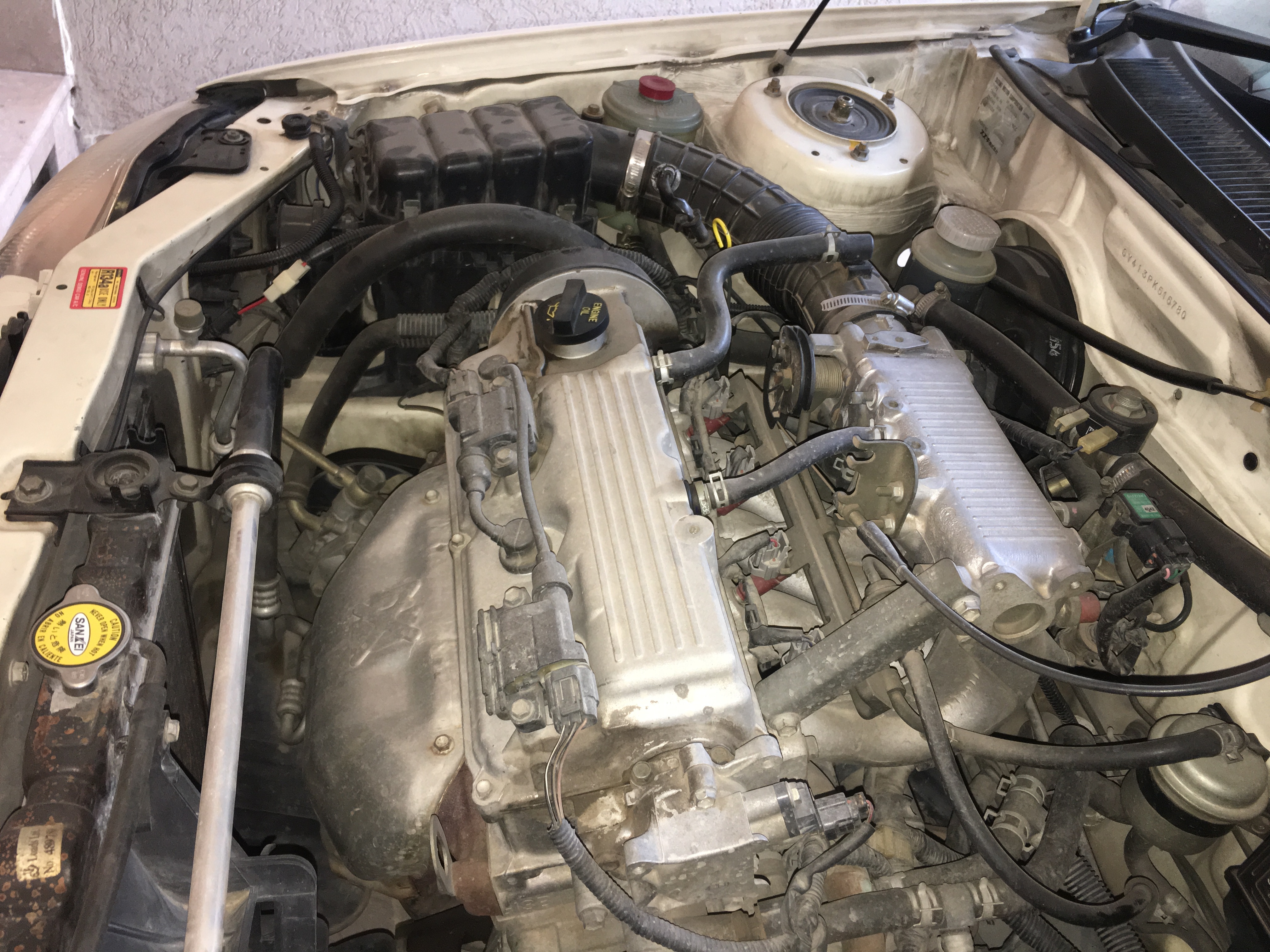

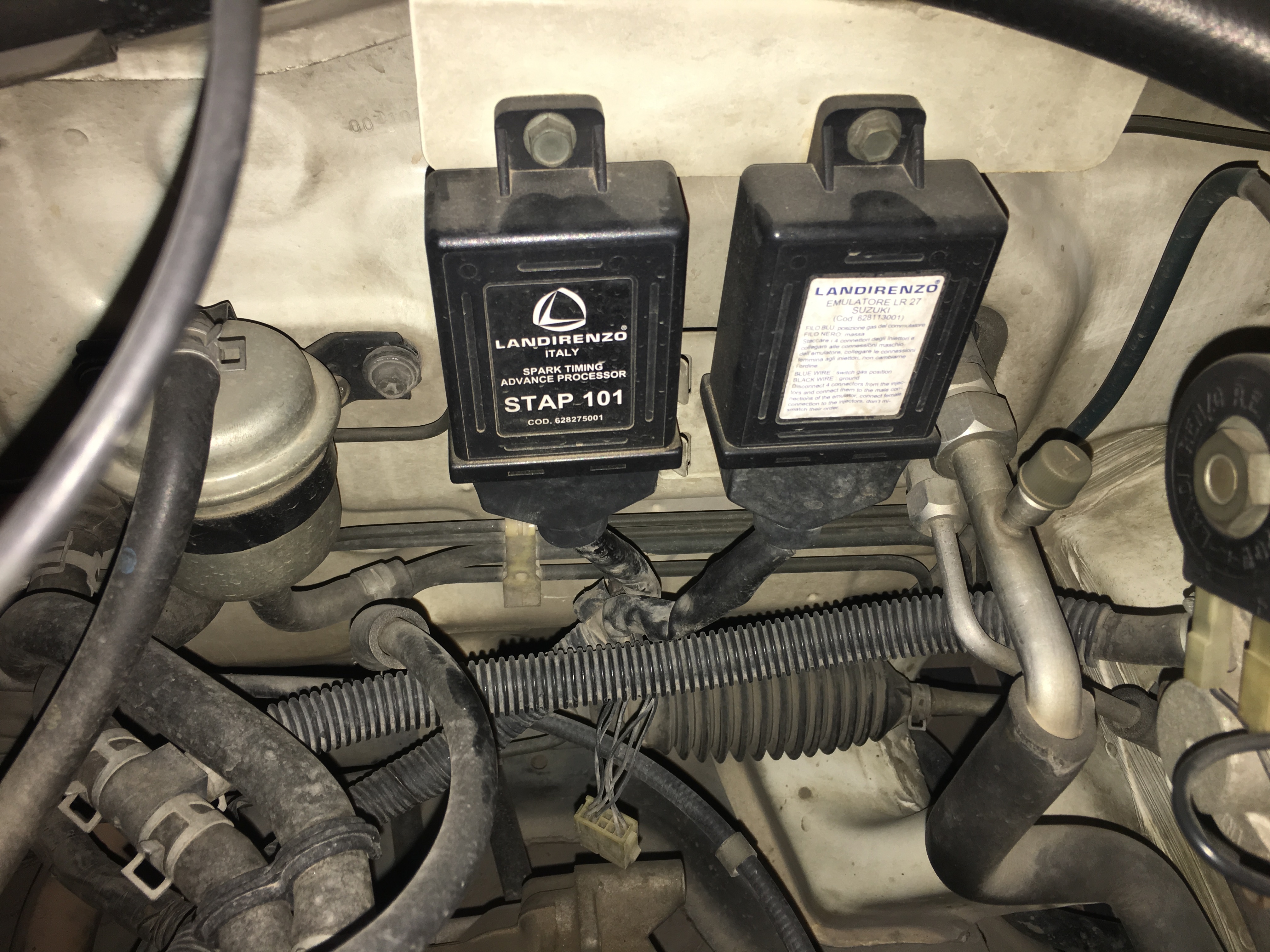

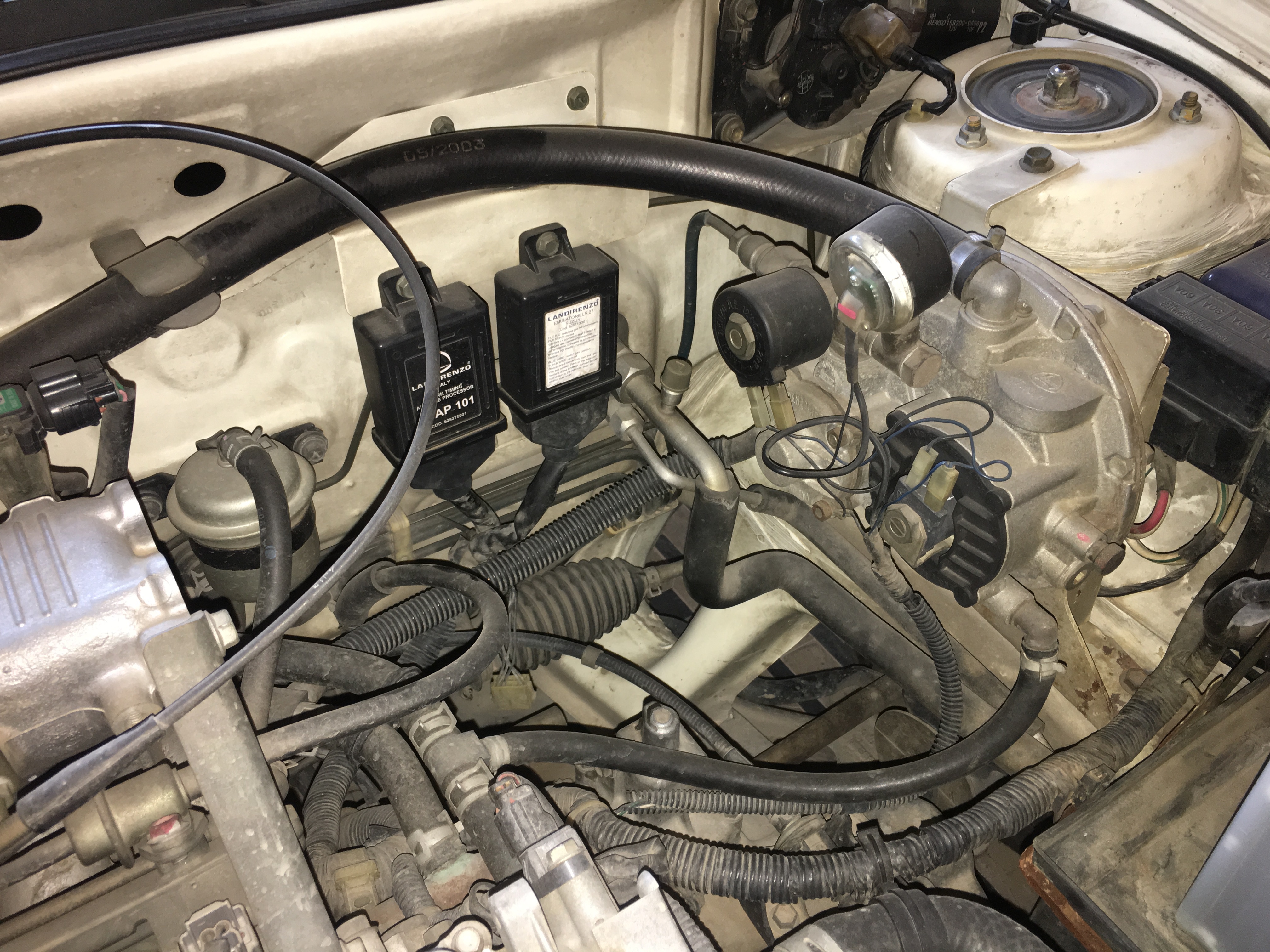

Pick to theek ha. Mein to start se he petrol per chala rha hu. Engine pics are attached.

[abid110]

good clean engine bay. coils are original ones not side walay. conditions says really car is less driven.

[sameerulhaq064]

Bhai, what are side walay coils??

[shahzaib112]

side coils are much better then these original engine mounted coils...and i didn,t feel much difference in performance too

[sameerulhaq064]

Bhaio, I've felt a sudden increase in my Baleno's fuel consumption. I have to fill petrol worth RS 1500 after every 2 days while my daily commute is a Max 30-40 KM. Engine is burning a little oil on startup but rest everything seems fine. Possible causes??

[abid110]

in this genuine setup, the coils rests over the head. side coils are placed on side of engine head and plug wires are used to fire the plugs. in all new cars,the same setup of coils on top is present. Liana and Baleno shares same coils - i.e coils on top.

[safeerabbas]

Abid bhai side walay coil kaun se hain? Can u mark on pic? And can u plz explain in detail what is their impact on fuel economy and performance? & what suzuki is offering originally in 2005 JXR?

[abid110]

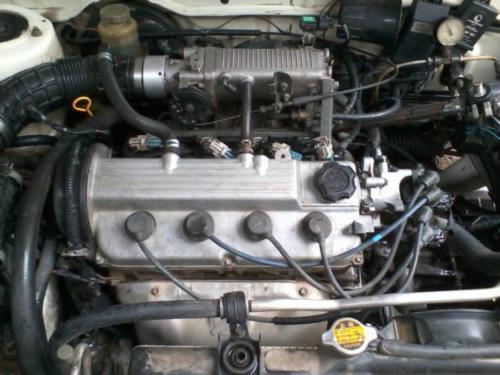

your car shows genuine Suzuki factory fitted coils. by default all later Balenos have same setup. but mechanics here believe that this is a 'failed' setup in Liana and Baleno so they LOVE installing outside coils with long plug wires going towards the plugs for firing. they believe that coils gets heated alot in coils on top of head setup and goes bad too soon. whereas if coils are put outside of engine and head, then it will not be getting hot. all newer cars have same coil on top setups actually. so its all about mentality. the pic below shows side coils fitted outside (observe fitting besides the oil cap area).

[shahzaib112]

No offense but i strongly disagree
Yes that is a fact that all new cars have engine mounted coils but they are designed so that they handle that temerature while baleno coils dont there is some design flaw in baleno coils
And yes temperature is alot more on engine head when compared with other places inside the hood
And in the end i am using baleno for more then 7 years so i know that these top mounted coils go bad very early while the side mounted one's lasts much longer
You got me wrong that i believe what mechanics says but yes i do believe what i have experienced so far

[ahmed_pak]

salam bhai log. kul raat sharae faisal per drive kerty huai gari achanak aik jerk k baad band hogai phir petrol per start kia to rpm bohat hi ziada hogai itny k 3000 4000 or below itny k 1000, automatically up and down without any accelator. pls advise

[abid110]

Throttle plus IAC sensor ka kaam karaya aap ne abhi tak?

[ahmed_pak]

is ki defination to batao yai kia hota hai

[shahzaib112]

iac(idle air control) valve nam se he pta chal jata hai kam
jb gari idle par ho tou ye air provide karta hai jb ganda hojata hai dust waggera se tou jam hona shuru hojata hai jis waja se rpm ka issue ata hai
isk elawa butterfly ring hote hai wo agar genuine lage hai tou sirf saaf karwa lo throttle body ap otherwise agar gap zada hai aur ring kharab hai tou chng hoge kharadeya new bna kar deyga but that,s not recommended par yehe sasta alternative hai kyunk pore throttle body bohat mehnge hai aur uske b koi guarante nae k jo kabli milay ge throttle body uska butterfly ring genuine hoga k nae.
isk ealawa tps(throttle position sensor) ka issue b hoskta hai agar wo faulty ho tou.
btw iac sensor throttle body men he hota hai chota sa hole hota hai jb plastic boday utaro throttle body se tou

[sameerulhaq064]

Any leads??
