Toyota vitz 2009 MAF or MAP

[daee.psc]

I have Vitz 2006 and I want to clean its MAF . Plz help me to locate its MAF . I am sending the pics for reference .

The 1kr-fe manual says it has a MAP sensor {no MAF), does any one has a pic of it's location. I can read it's absolute preasure with the obd and a custom pid but would like to clean after 40k kms.

Would also like to service other sensors if possible

Thanks

The 1kr-fe manual says it has a MAP sensor {no MAF), does any one has a pic of it's location. I can read it's absolute preasure with the obd and a custom pid but would like to clean after 40k kms.

Would also like to service other sensors if possible

Thanks

[daee.psc]

Plz help me

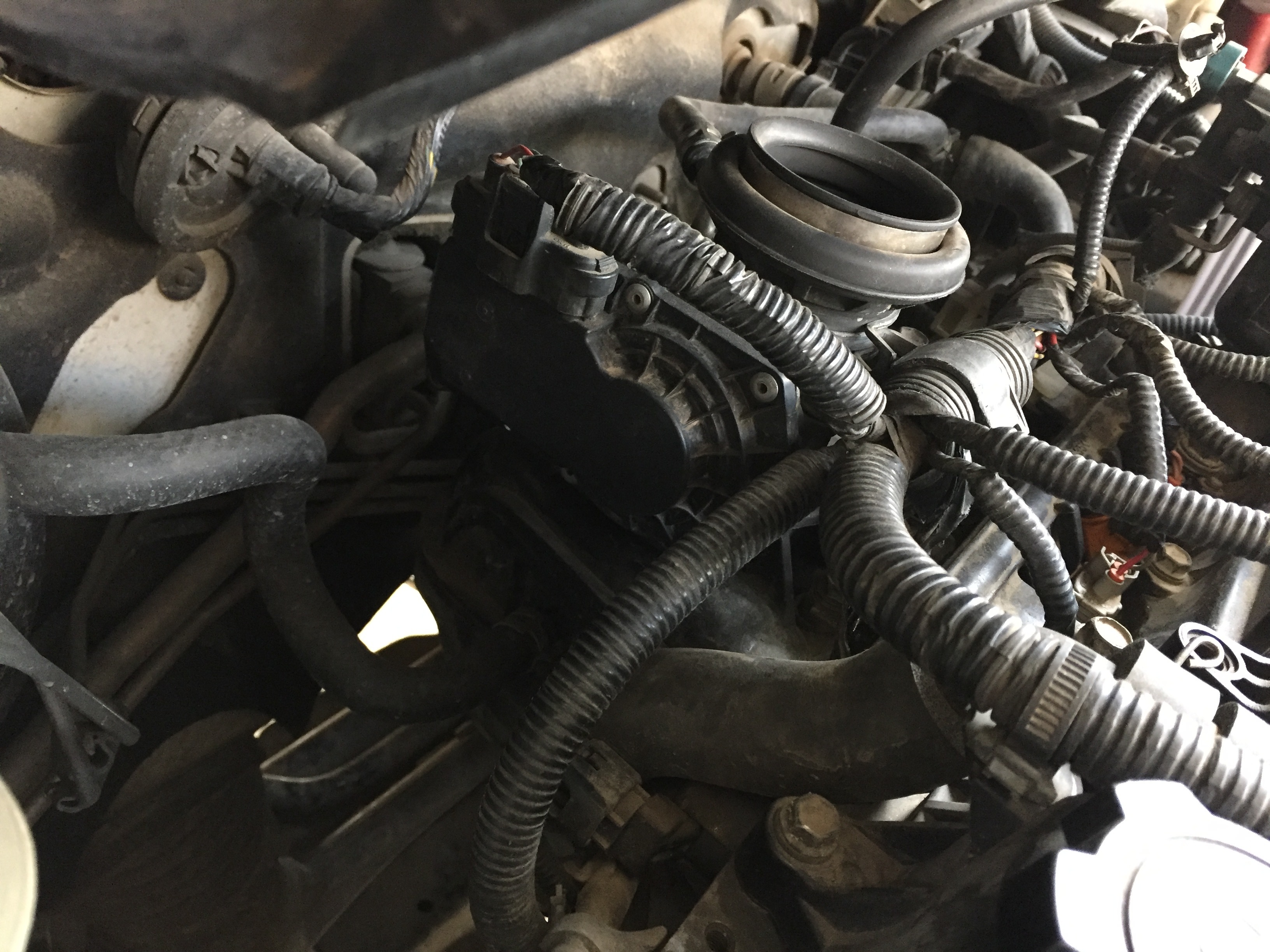

Locate the MAF of my Vitz 2006.see the pic for reference.

[mallic]

Plz help me

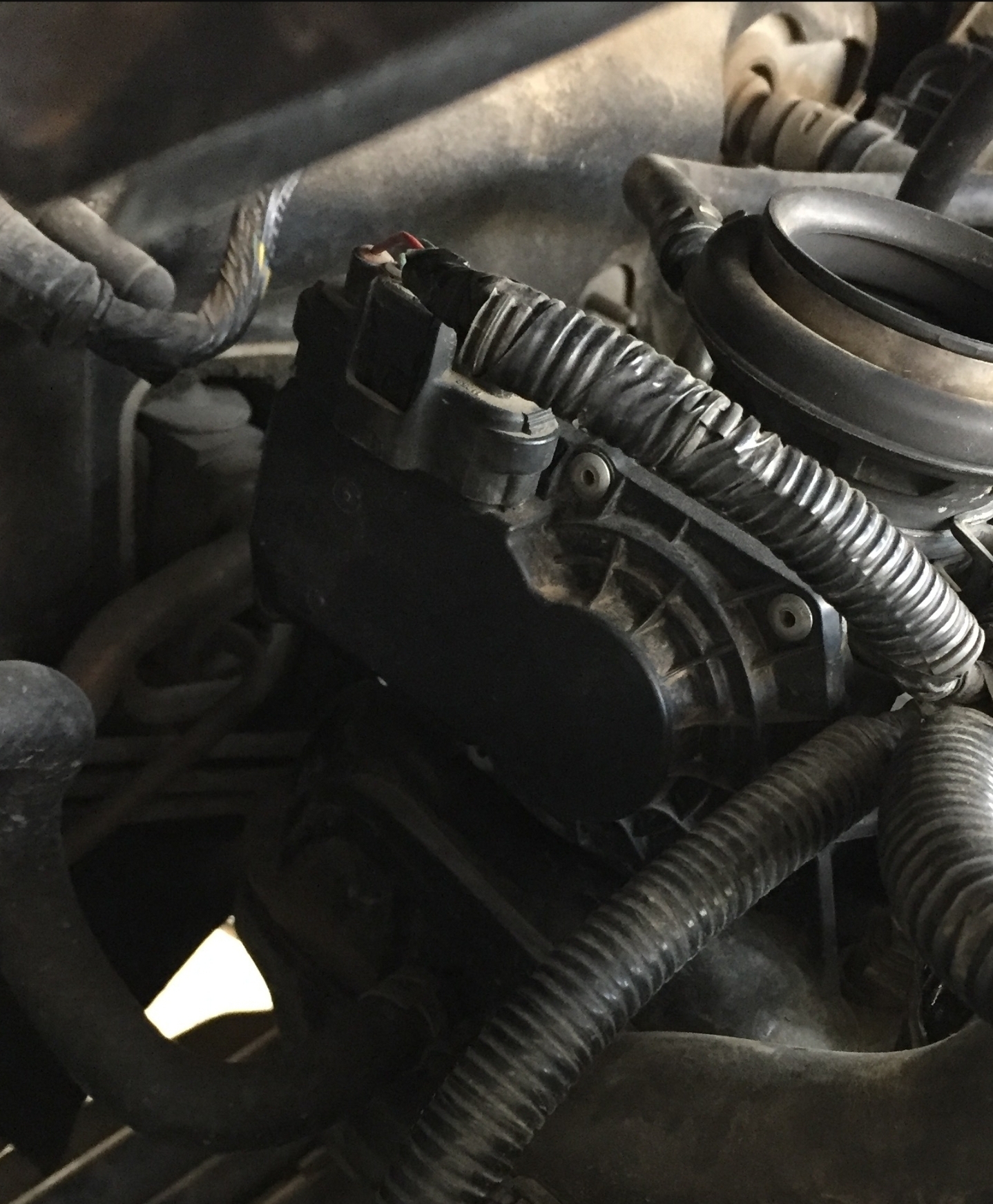

Locate the MAF of my Vitz 2006.see the pic for reference.

top cable is going to airflow sensor...untie two screws, pull it out and clean with relevant cleaner air dry throughly (very important) as it has glass inside which shud be clean...

[daee.psc]

Thank you sir.

[rkbladex]

I think Vitz 2009 has MAP sensor (Manifold Absolute Pressure) not MAF underneath airfilter box and near to throttle body.

-RKBladeX

[ahmedstudio]

How to check if CVT fluid needs replacement or not?

[pwuser14947453092]

This post was flagged by the community and is temporarily hidden.

[dms664]

You didn't share the location of map sensor and how to access it?

[dms664]

Can you share its location with a picture please

[dms664]

top cable is going to airflow sensor...untie two screws, pull it out and clean with relevant cleaner air dry throughly (very important) as it has glass inside which shud be clean...

Check this video. In this video the map sensor is below the throttle body whereas as you mentioned the top cable is going to some other sensor.

Please help
@Xulfiqar @capsat @rajaatta @ahmedstudio @hash4u

[rajaatta]

Map sensor is below the throttle body why not pay someone to dovthe job where as your own approach will be lazy and slow plus itbwill have a fear also

[dms664]

Ok i may bring the car to you on weekend in sha Allah
The car is throwing p0104 dtc if driven on very slow speeds. Cleaning the map sensor will help? It is a vitz 2012.

[rajaatta]

It can be misunderstood is there any engine missing present? Or any black smoke along with extreme rough idle ?
If not then it's possible it can be an electrical glitch

[dms664]

Thanks sir
No missing, no rough idle. It happens only when I try to coast more and drive less in order to save fuel, call it hypermiling sort of. if I clear the code and drive normally then the ECL never returns but if try to drive it slow again then it throws check engine light again not immediately but after a day or two. so I was wondering if cleaning the MAP with a contact cleaner will do the job?

few weeks ago, I cleared the DTC, made about 1500 km of long trips on motorways and city driving mix but this dtc never returned then one day on a cloudy day I was just having a stroll enjoying weather and it flashed again.

[dms664]

[hash4u]

apology for responding late
i believe the most relevant person already jumped in
please do share the fix
as we have "almost" similar cars

[rajaatta]

It seems to be some other issue because the map cannot fail at this time it's possible that at cruising light throttle loads the ecu misinterprets the incoming signals from map.
Or another possibilities is EGR malfunction it usually operates at light throttles to compensate the engine cc temperatures if the values are abrupt then it can also pop up the same dtc
