Upgrading my Toyota XLi 2009 to 1.5

[jooni411]

I have recently bought Toyota Corolla XLI in pretty mediocre condition at bargain price. Now I am planning to upgrade it both mechanically and aesthetically. My first goal is to swap the engine to 1.5L with R1NZ with CVT transmission. It also requires suspension work. I also plan to install cruise control in it. For body, my plans are to change both the bumpers, all four doors, front hood(bonnet), fender with complete repaint job. I'll try to share my experiences over here in this thread
Looking forward to your suggestion and guidance

[jooni411]

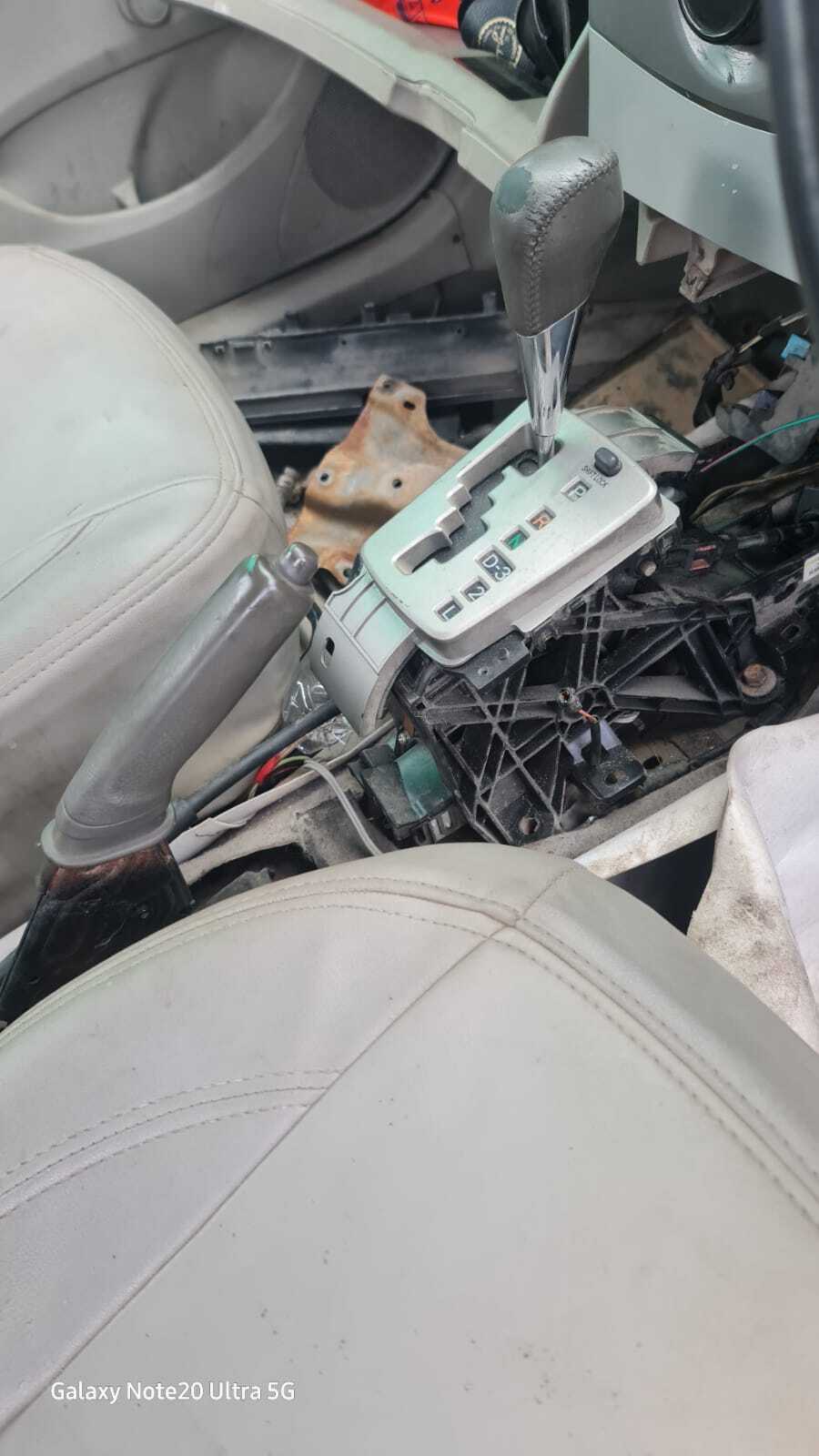

I wanted to start with Engine swap first. I visited multiple vendors in Rawalpindi/Islamabad to get the prices of both1NZ and R1NZ, as my mechanic was insisting for 1NZ and I myself am personally inclined to R1NZ due to slightly newer technology. For 1NZ I got quotes ranging 130k-140 for assembly and 100-130k for R1NZ. I decided to go with Imran autos Kacha Stop main IJP road. Final assembly swap cost given is 100K. He also suggested to go for complete engine swap with original transmission CVT and everything. I was surveying for it and was getting price between 350K-400K for complete swap, but he said he will do everything for an additional 120K which includes CVT transmission, ABS, ECU, complete wiring, Meter, pedal and labour charges for suspension work as well. I have to only provide the oils... both transmission and engine
Correction ... Due to extensive suspension work he charged me for labour

[jooni411]

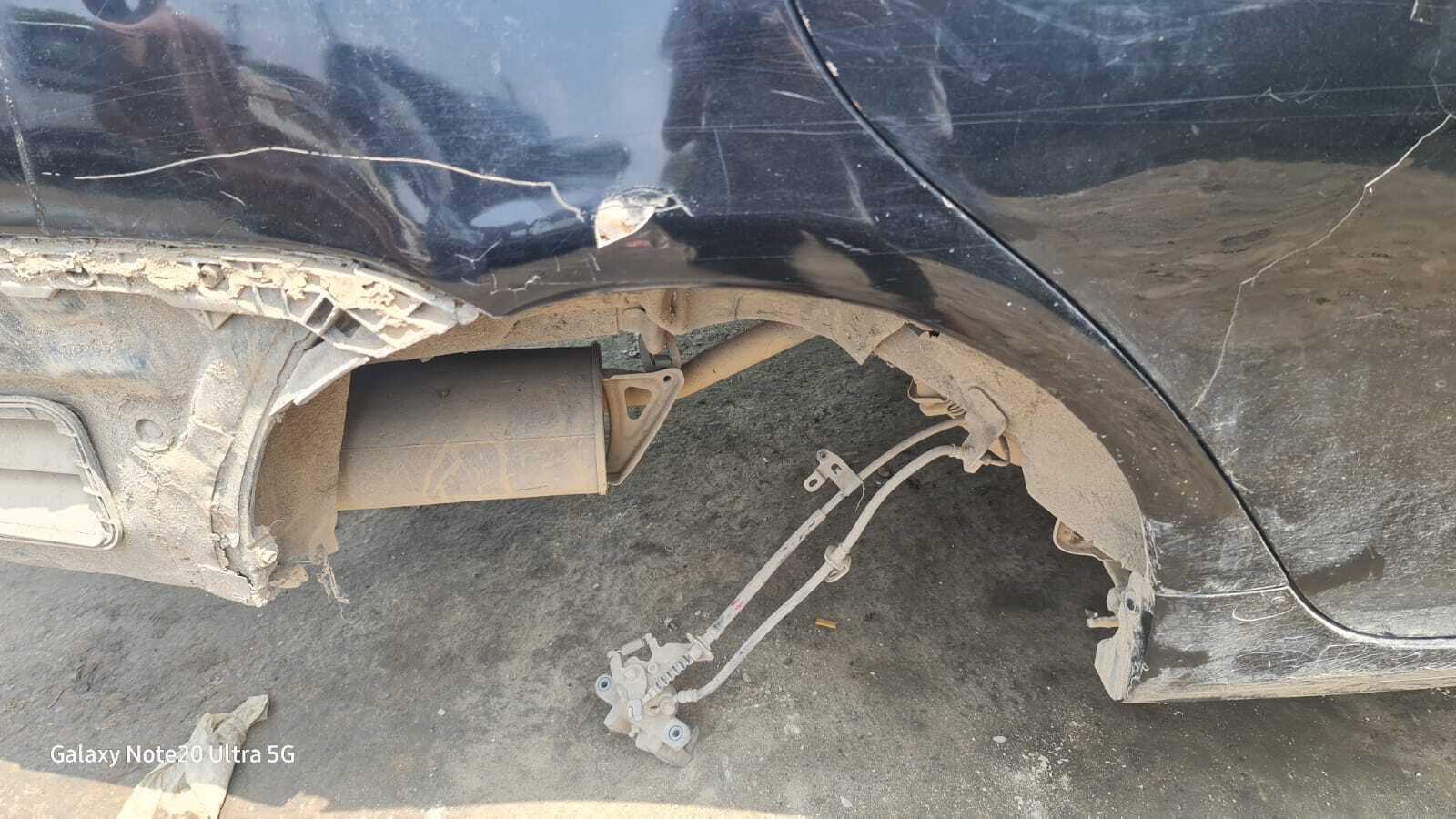

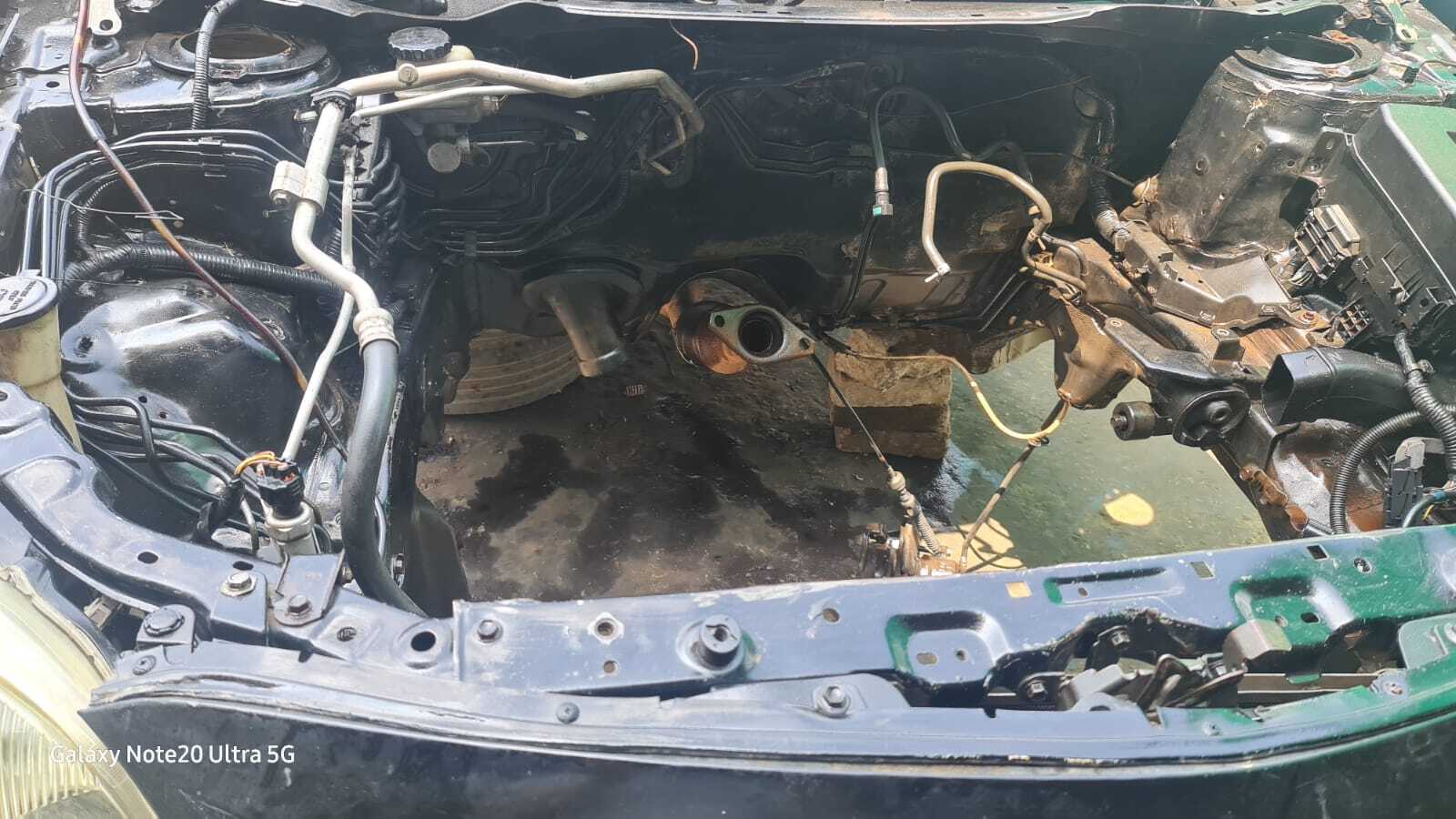

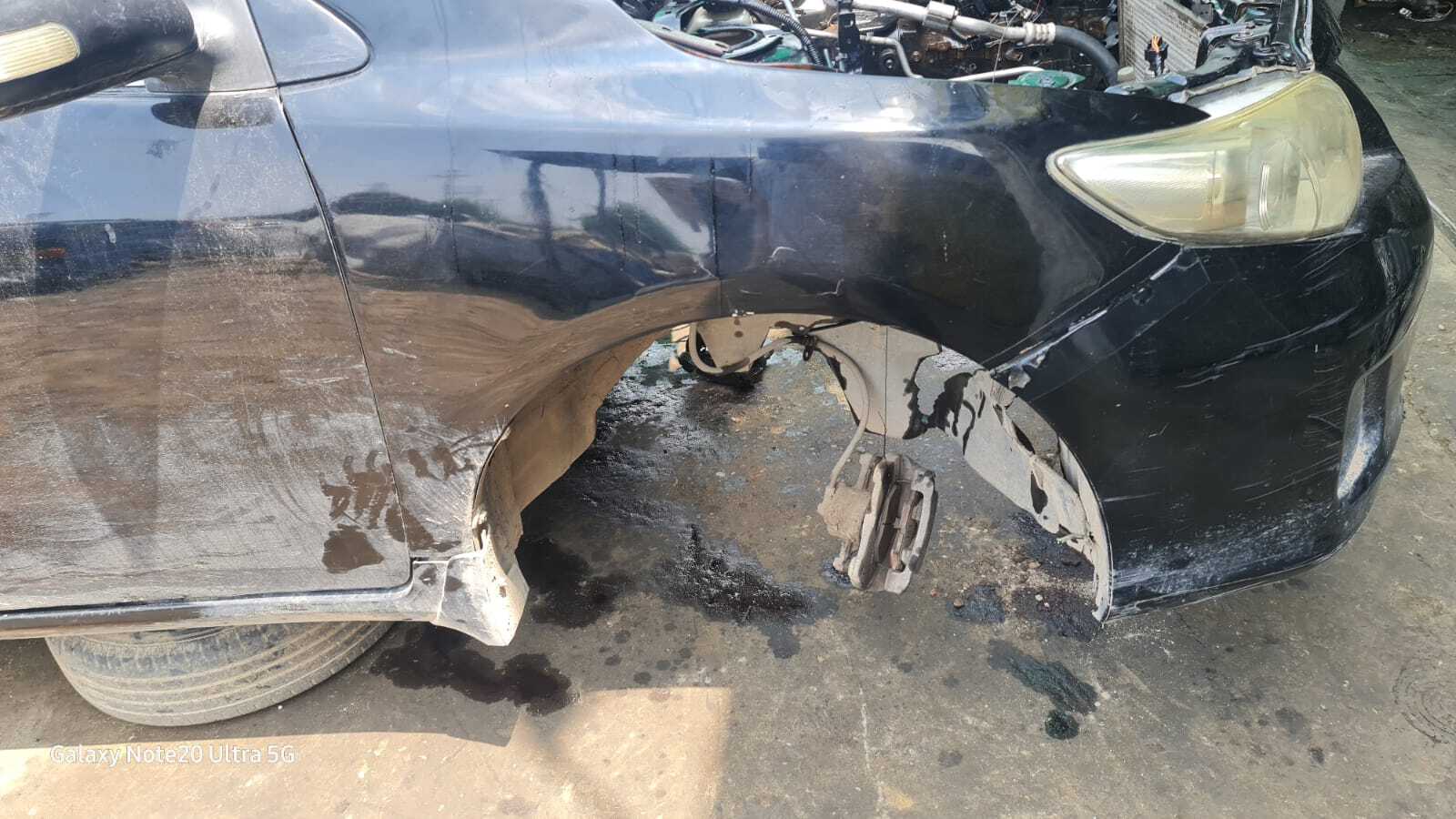

Everything got disassembled yesterday.... engine... complete front suspension, rear suspension... today they will start assembling... will keep you updated

[jooni411]

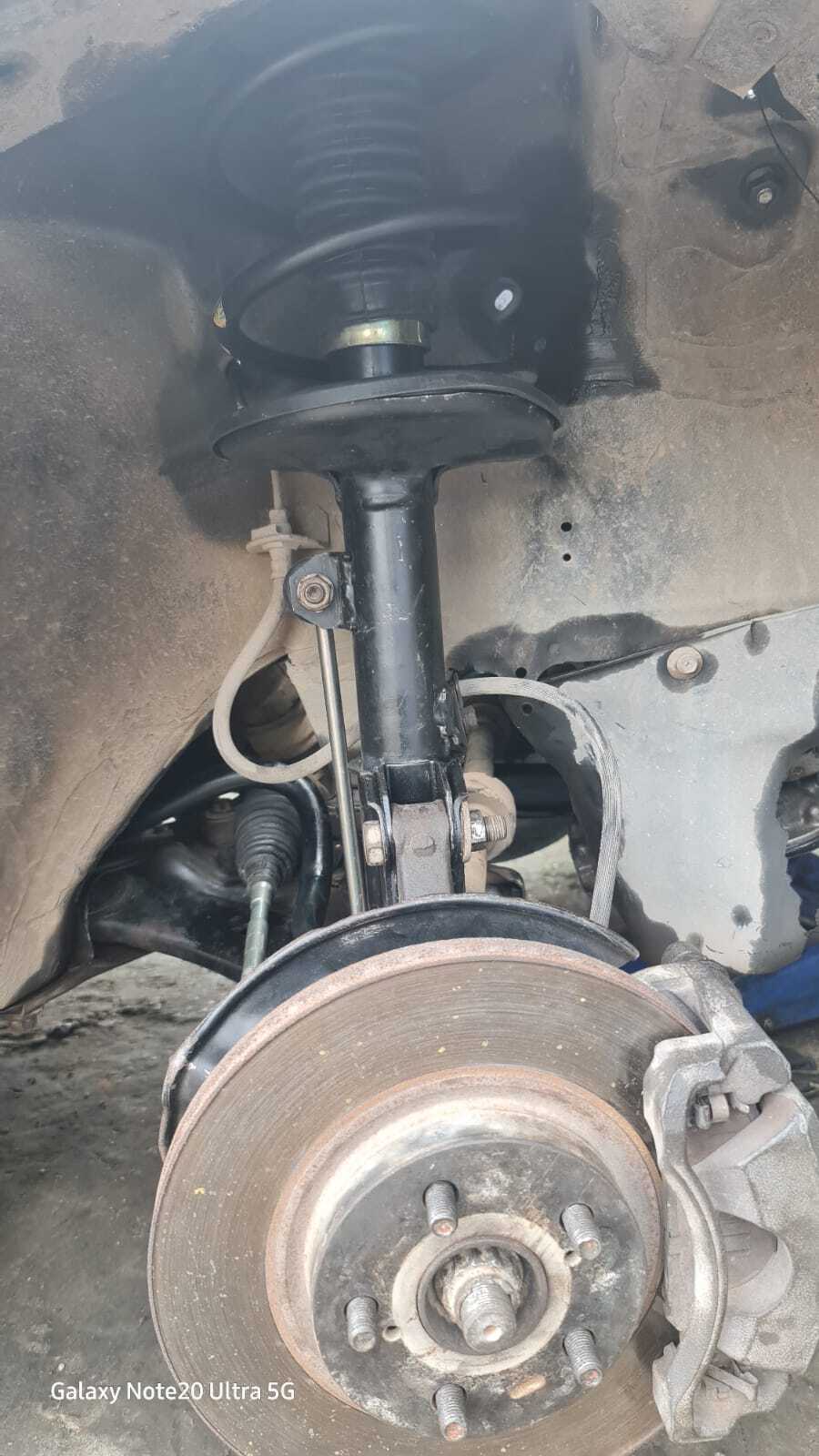

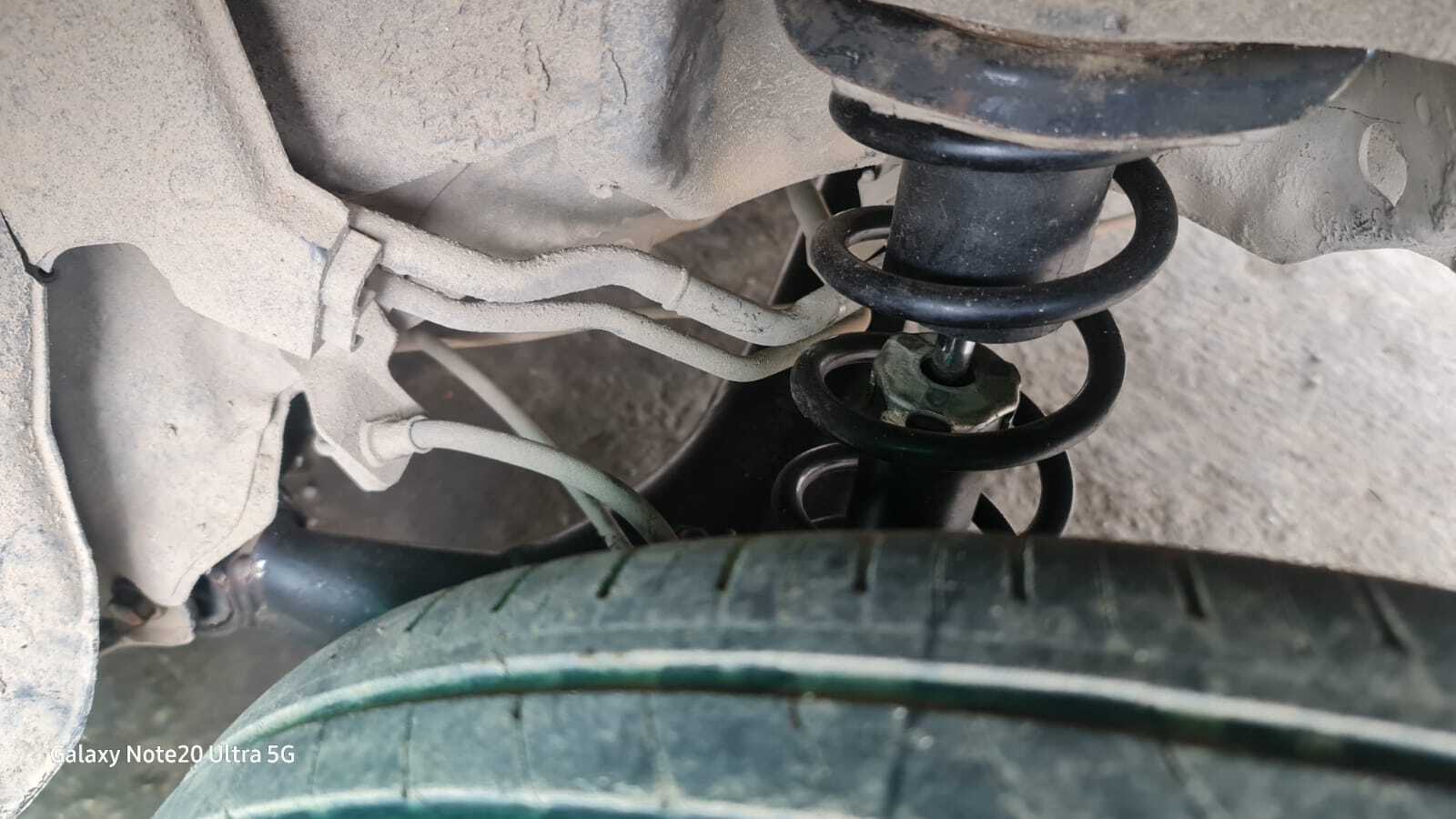

Both rear and front suspension job done. Cost breakdown on suspension jobs are
Front shocks complete set -20K
Rear shocks -14k
Steering box - 20k
Ball joints, z-links jumpers, front rear suspension bushes- 15k
Labour - 10K

Radiator was also in bad shape had to change that as well complete set costed 18k

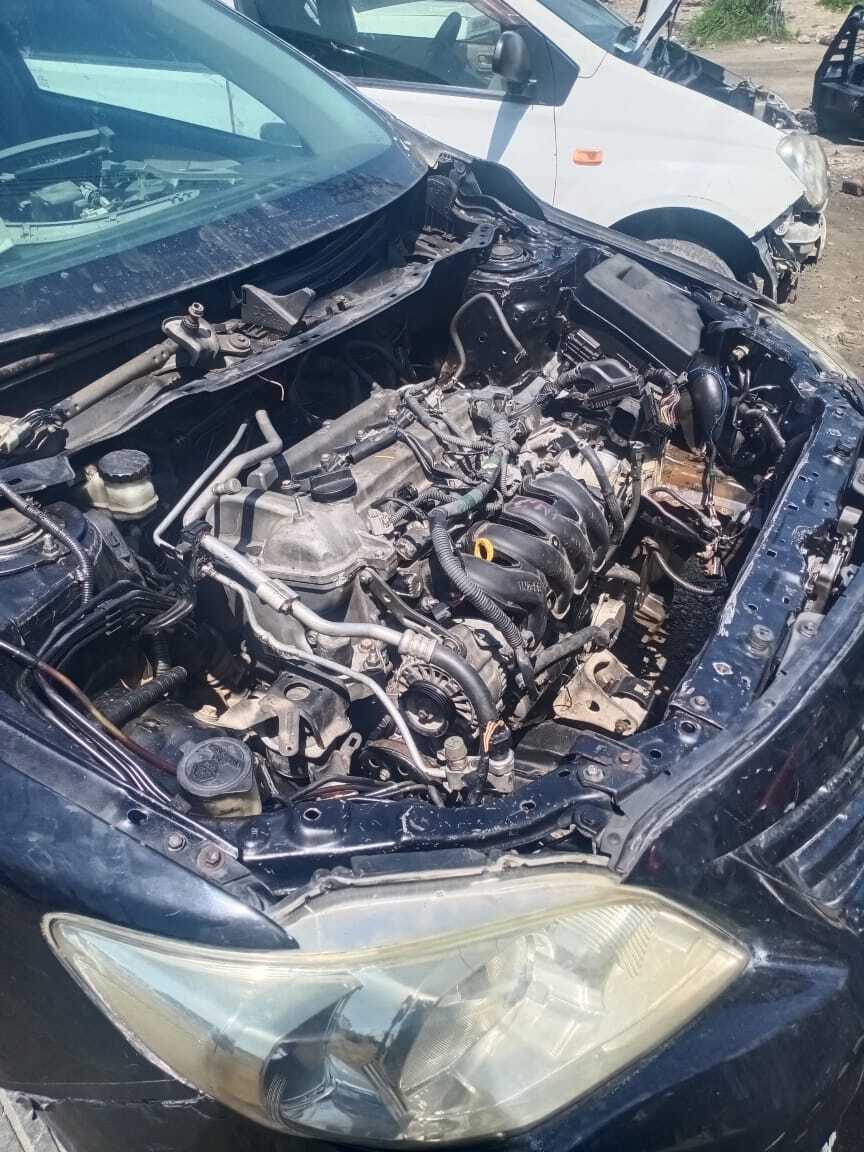

Engine is also installed. Now electrician job is left... will share expenses once car gets ready

[jooni411]

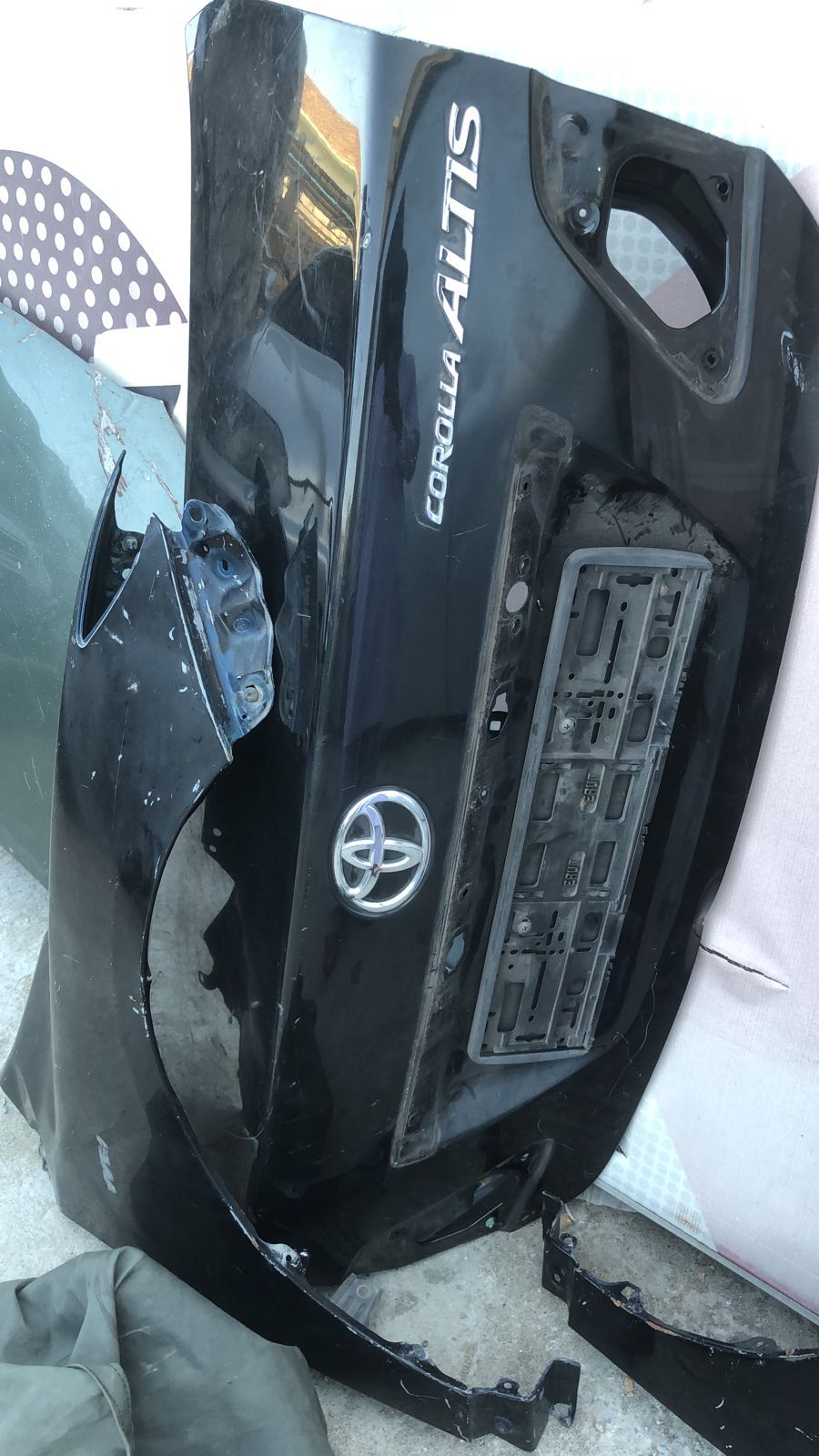

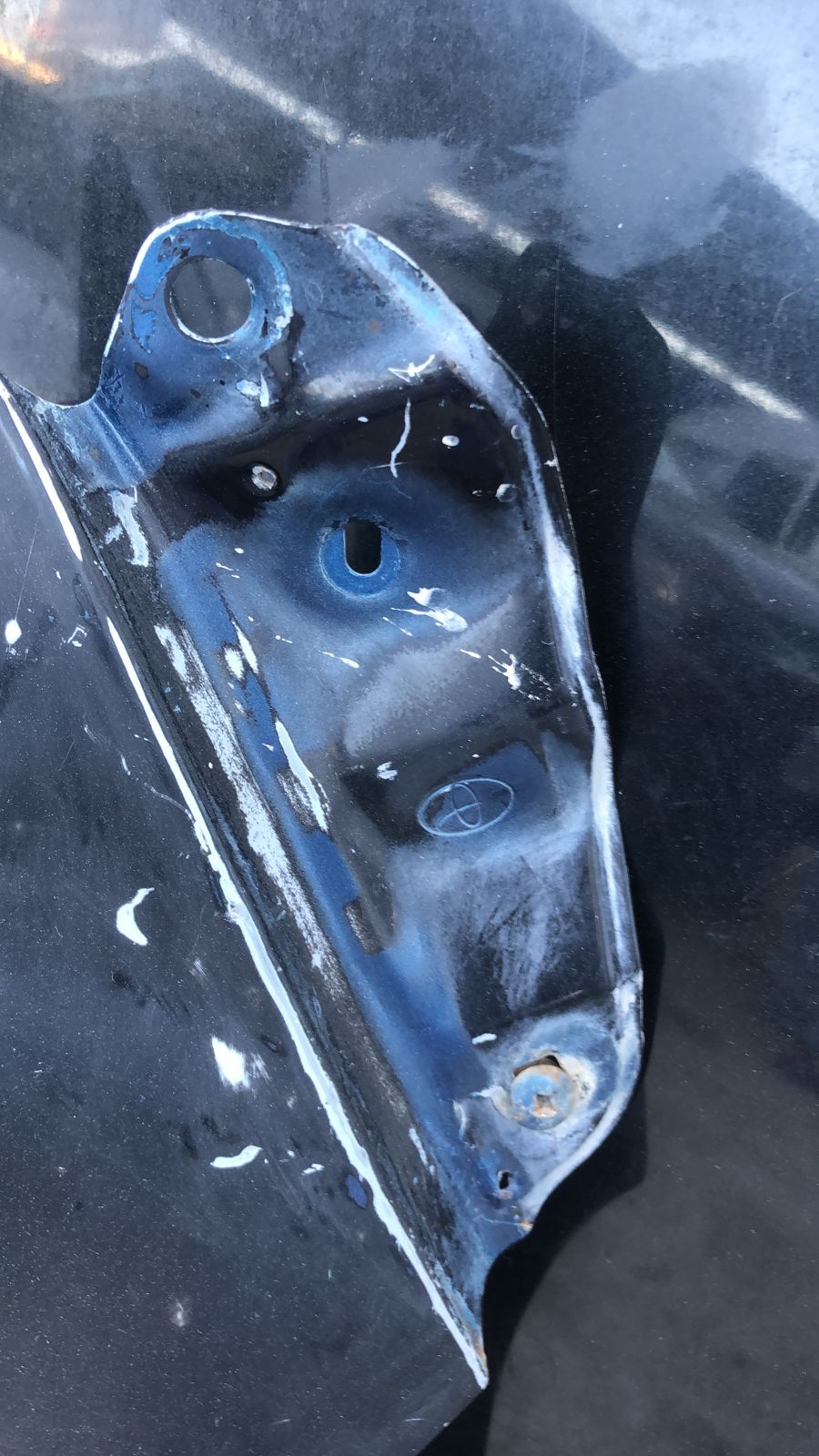

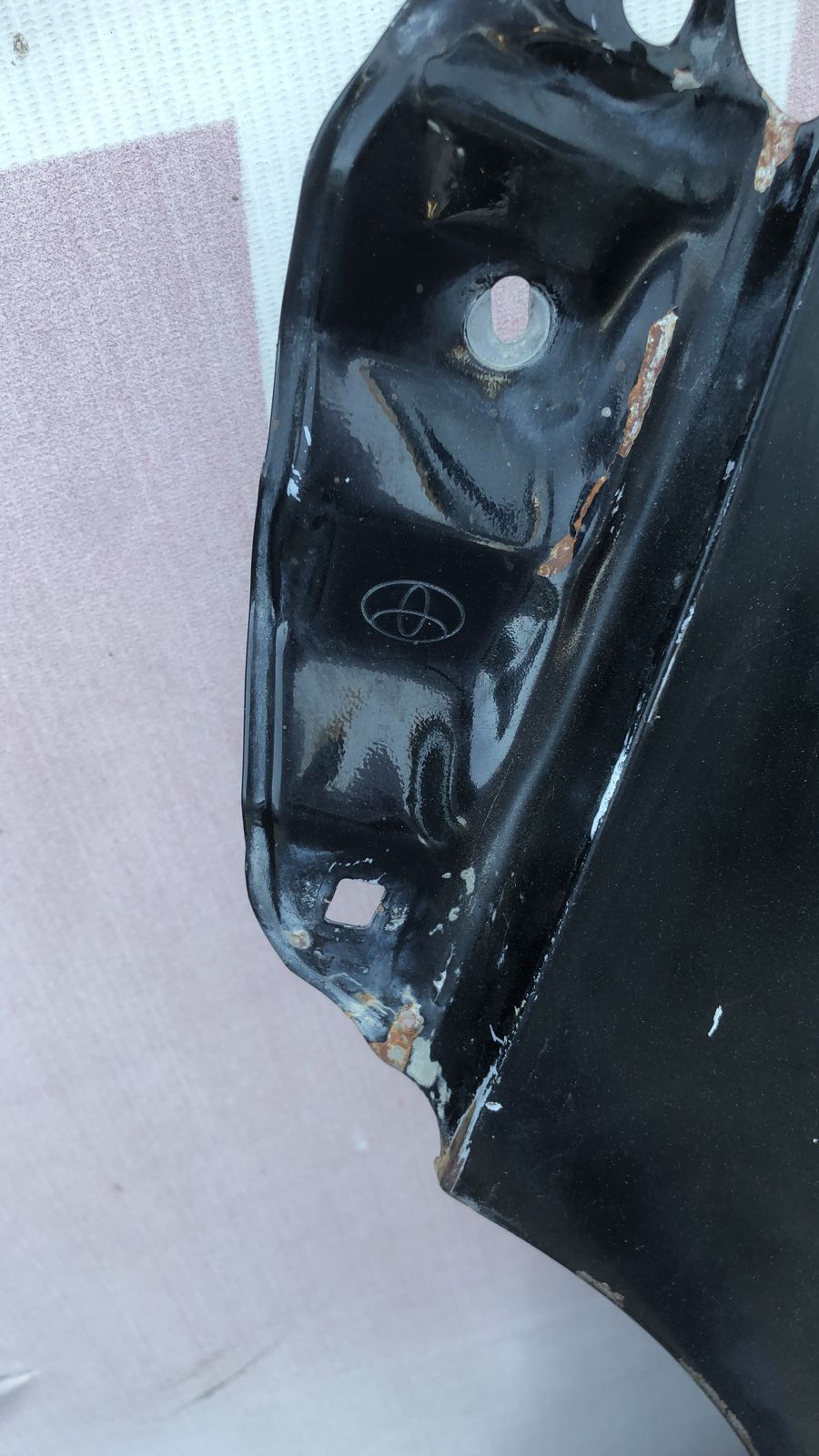

My Brother also runs a PDR workshop in Rawalpindi main Peshawar Road. As told after mechanic job is done will start body job. HE started sourcing body parts. Yesterday he bought

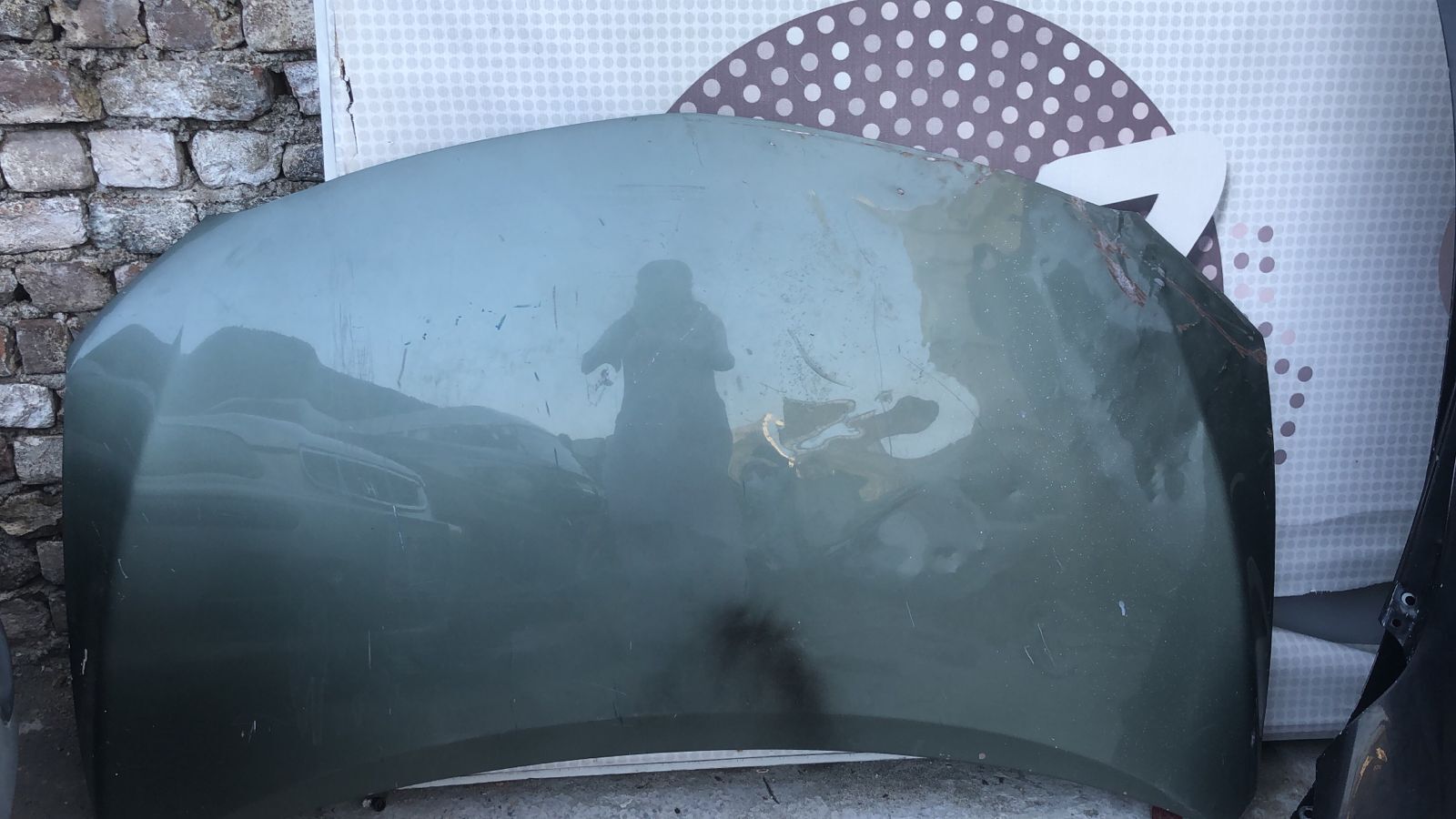

Front Hood (Bonnet)
Rear Hood (Diggi)
Both fenders
all parts together costed 65K

[jooni411]

Sorry for the long delays..... Mechanical jobs were completed in the beginning of September but couldn't update here because of busy schedule.... Here is the complete overview of all the details with their costs
Complete Engine 220k
Fort Rear suspension 75K
Radiator 18k
Fuel pump 8k
CVT oil 15k
engine oil 6k

[jooni411]

Meanwhile hunt for body parts continued as well
Bought 3 doors for 50k, Front Right door didn't need replacement
Front and rear bumpers both 8k, new ones from Ashraf Autos Gawalmandi, they had Taiwan made as well which were of 18k, but the dealer suggested for Pakistan made, so on his recommendation chosen those
front and rear spacers for bumpers 2500

[jooni411]

Last Saturday I visited the Kacha market IJP road... bought side mirrors for 12.5 K, will attach pictures soon
Inner handles 3 pieces 2k, Tail lights 19.5k
Mean while body work is on going and painter is also working to prepare ground for different pieces

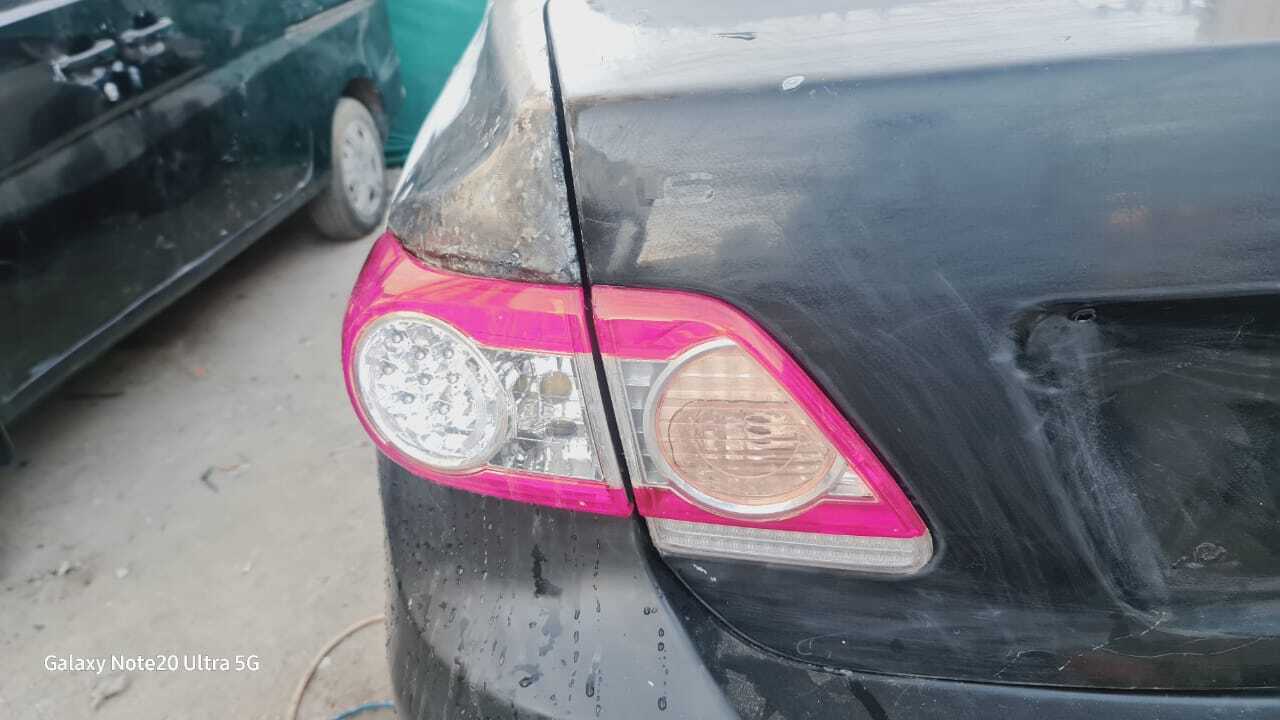

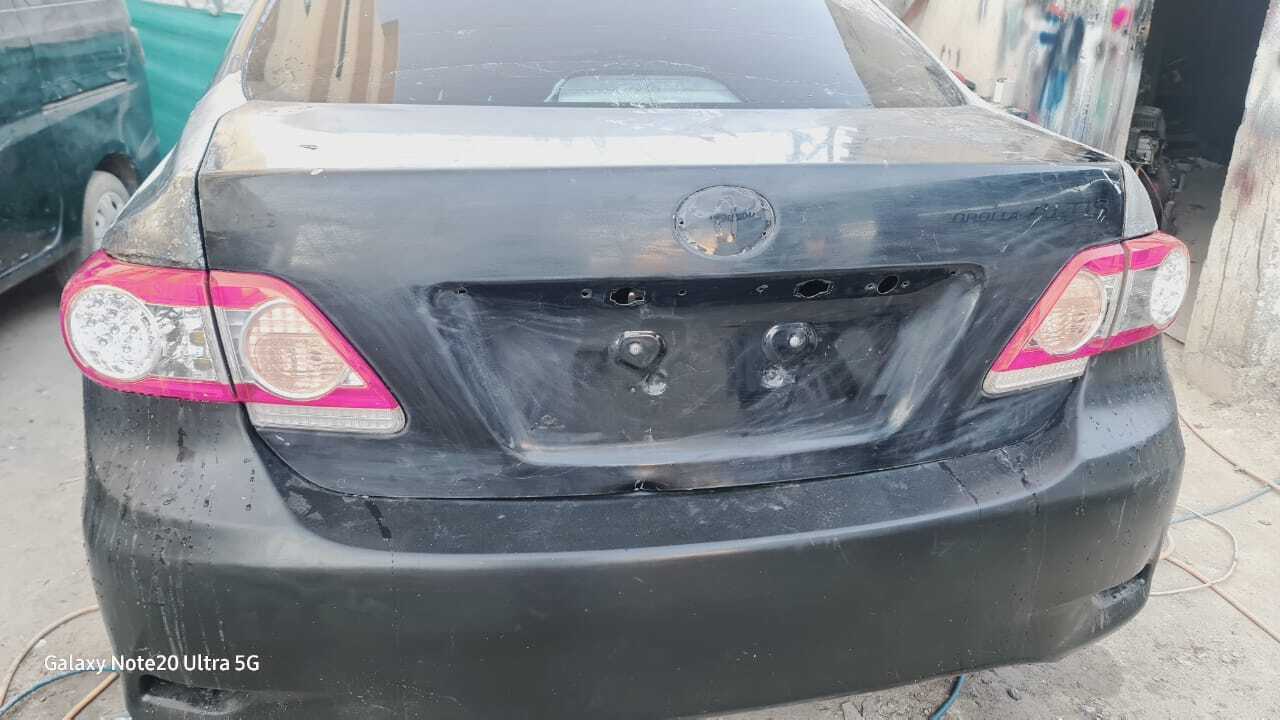

Tail Ligths pics

[chinyoti]

Looks interesting.

Following

[pwuser152534163546]

Keep posting looks interesting i am looking for your final product with efficiency details

[jooni411]

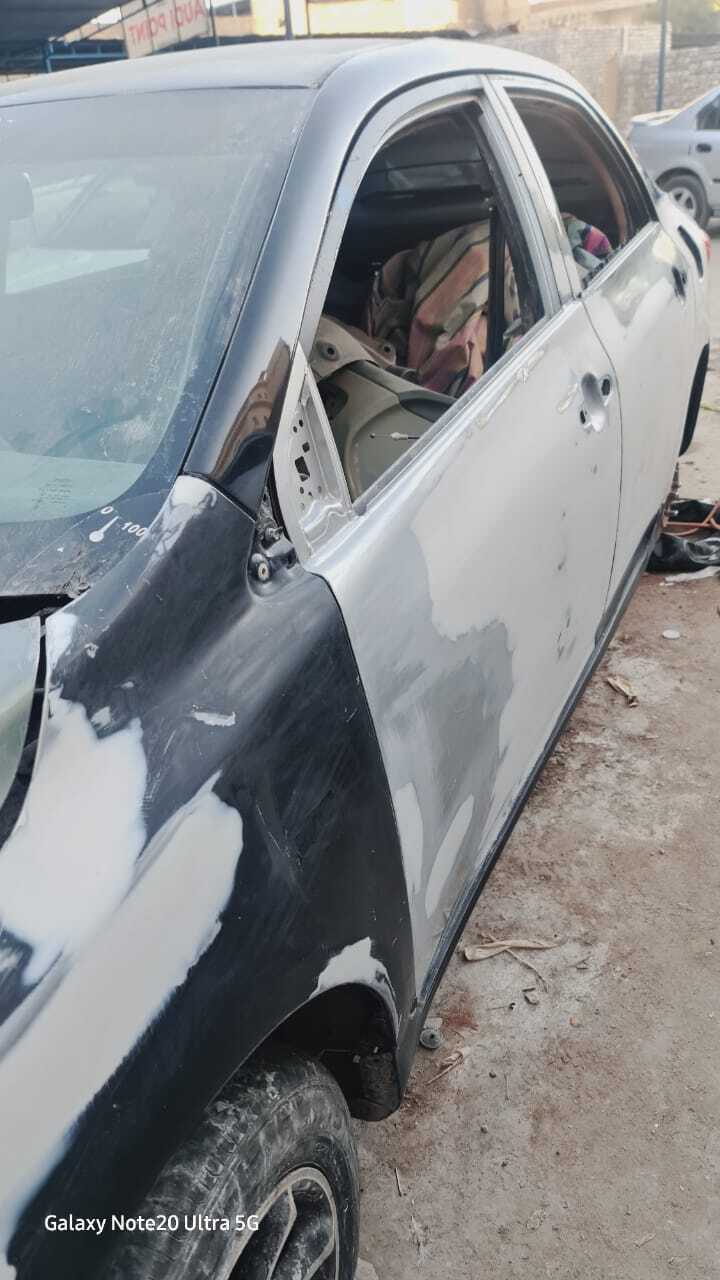

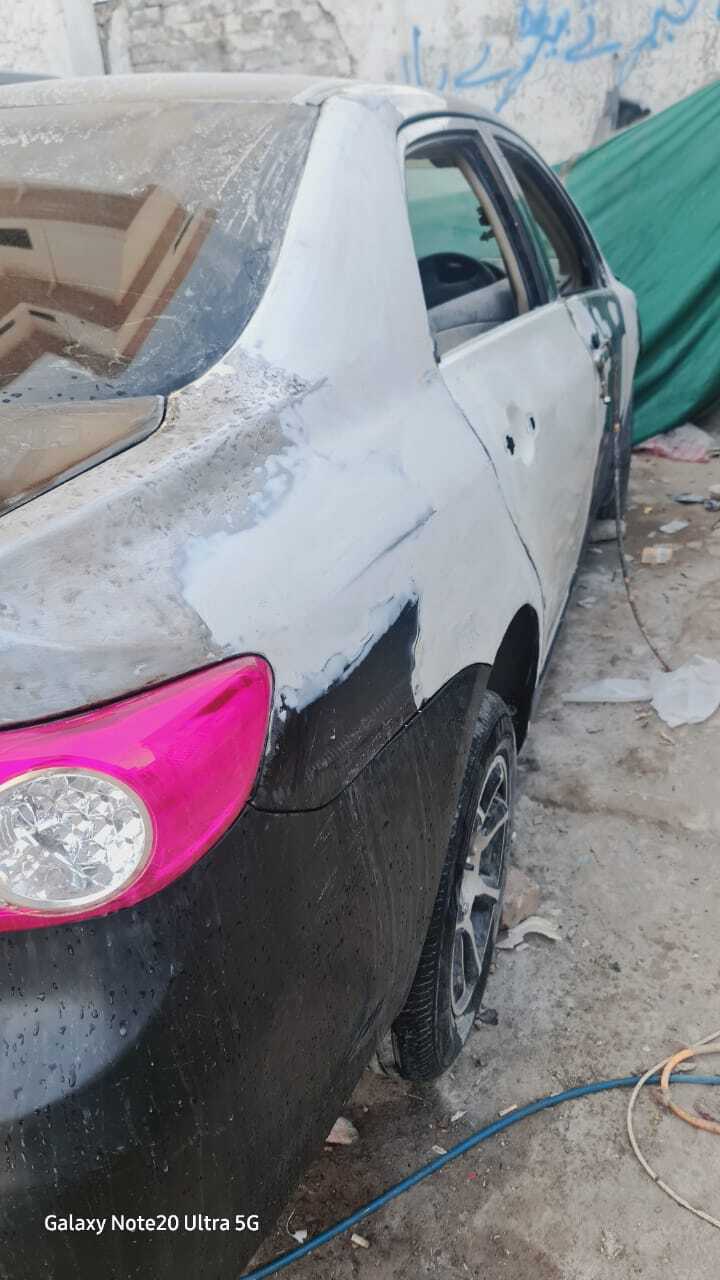

Here are few pictures of Body work and ground preparation for paint job

[jooni411]

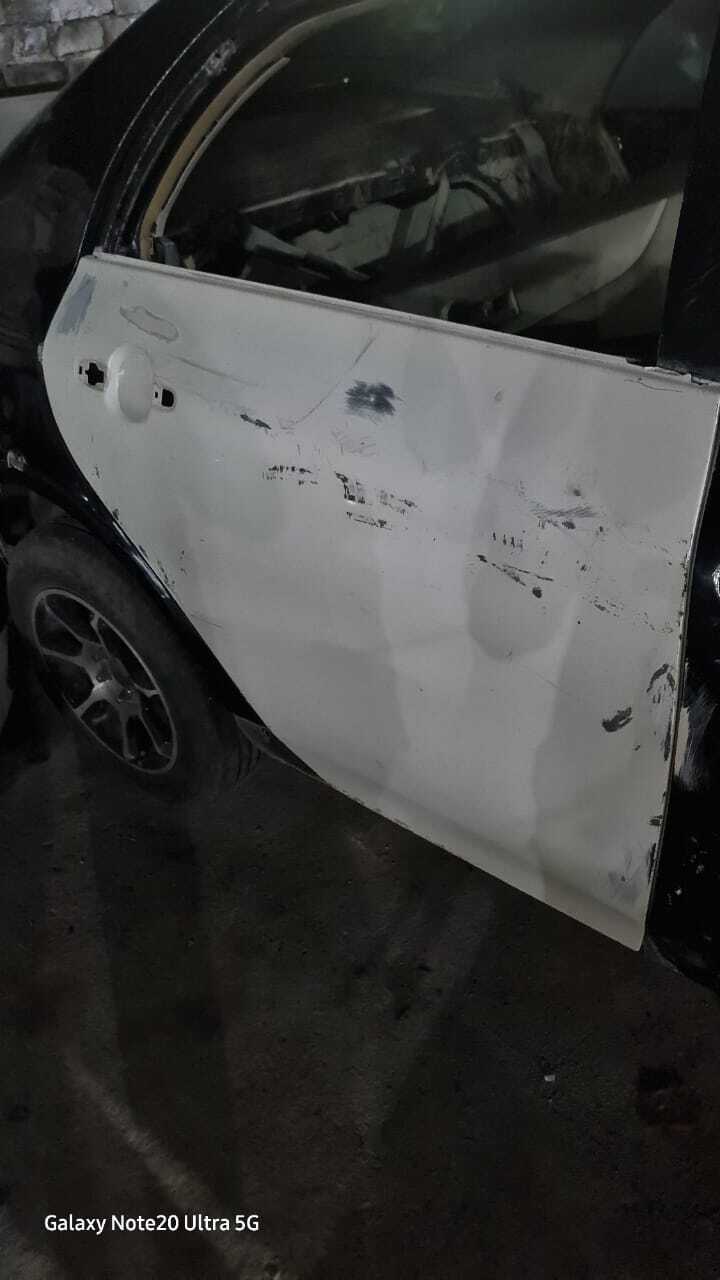

Still paint job is in progress... Painter is taking too much time... here are few pictures of grounding preparation (a week ago)
I have decided to for Standox for final coat and color chosen is 218 Attitude Black
1.5 litre Primer with hardner 12500
1.5 litre basecolor 16000
2 set hardner liqueur 22000
1 litre thinner Standox 2800
4 litre thinner 2k 3200
I will try to snap few pictures of final ground preparation tomorrow
Uploading... Uploading... Uploading...

[jooni411]

Meanwhile I bought Central locking system and Power window system from Saddar Mitho ka Ahata for 14k
and ice blue neon led lights for roof lining and door panels costing 2k
and also ordered few things from Daraz
Neon rear bumper light heartbeat 1k
shark fin antenna 500
Rear parking assistant 3000
Carbon fiber steering log0 350
and few other things

meanwhile looking for wooden color panels for doors and centre console, also steering wheel with cruise control

[pwuser153078052634]

Following

[smartdevil_striker]

Following

[dms664]

Subscribed/Watching

[nfsmostwanted]

Good going
