2011 BMW X5M (E70) Project

[Taimur92]

Brilliant discussion and an even more engaging DIY being done by @intoxicated

As said by capsat above, seriously missing @Xulfiqar's technical viewpoint on the Japanese vs German vs American discussion.

[Proverbial_Slang]

How did I ever miss this thread? This thread is so refreshing for the forums that its almost overwhelming

@HanifBhatti please join us here.

[VCheng]

I guess it only shows that, no matter the make, select a vehicle that best meets your needs, and then maintain it, is the best policy.

[intoxicated]

I guess it only shows that, no matter the make, select a vehicle that best meets your needs, and then maintain it, is the best policy.

Agreed, but majority of folks are point A to B - so Japanese vehicles are a no brainer, they last you a while if you do regular oil changes.

[intoxicated]

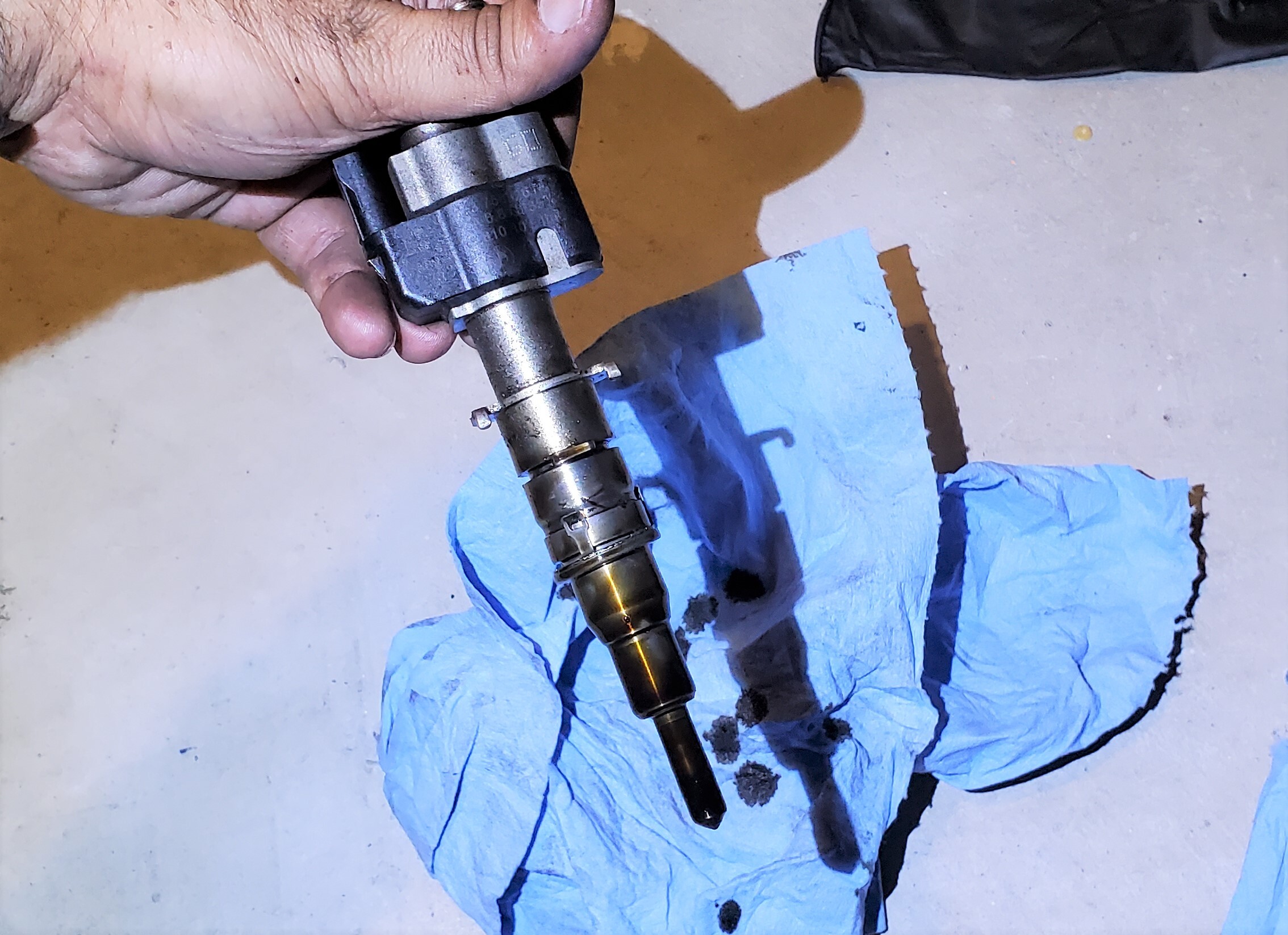

So I was able to pull all injectors with a bit of struggle and they were just as bad as the other side, completely drenched in oil.

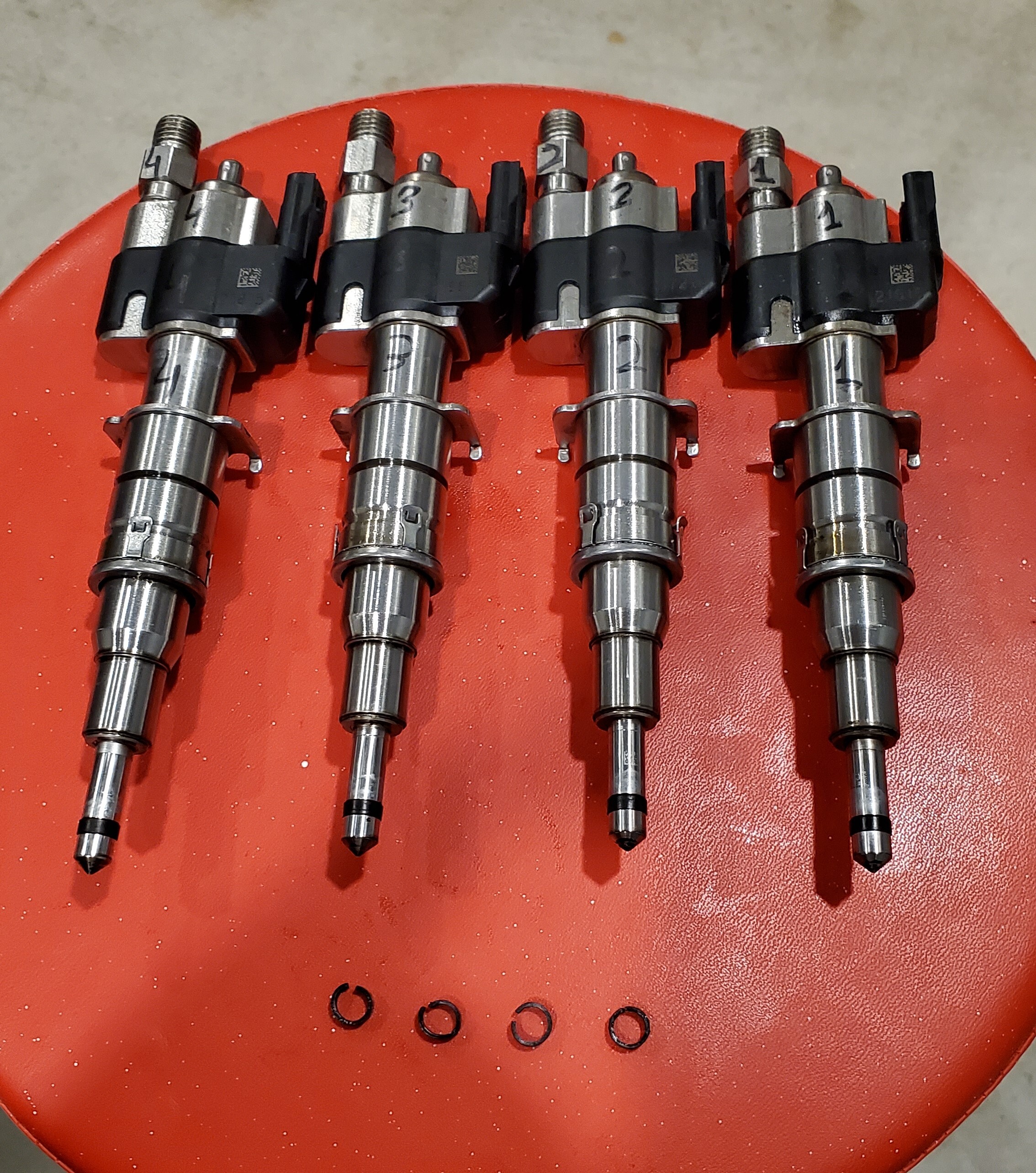

I went ahead and replaced teflon injector seals

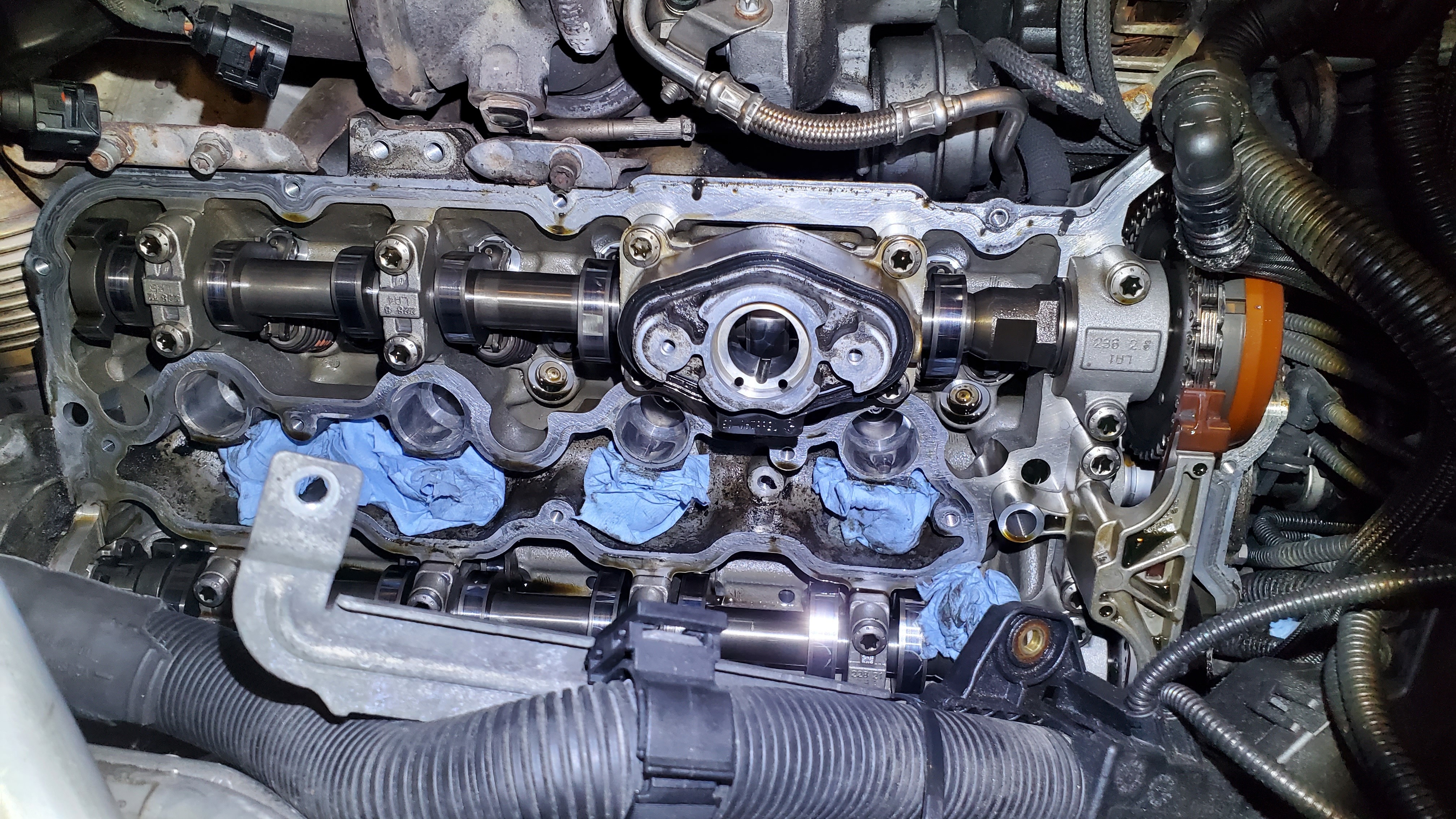

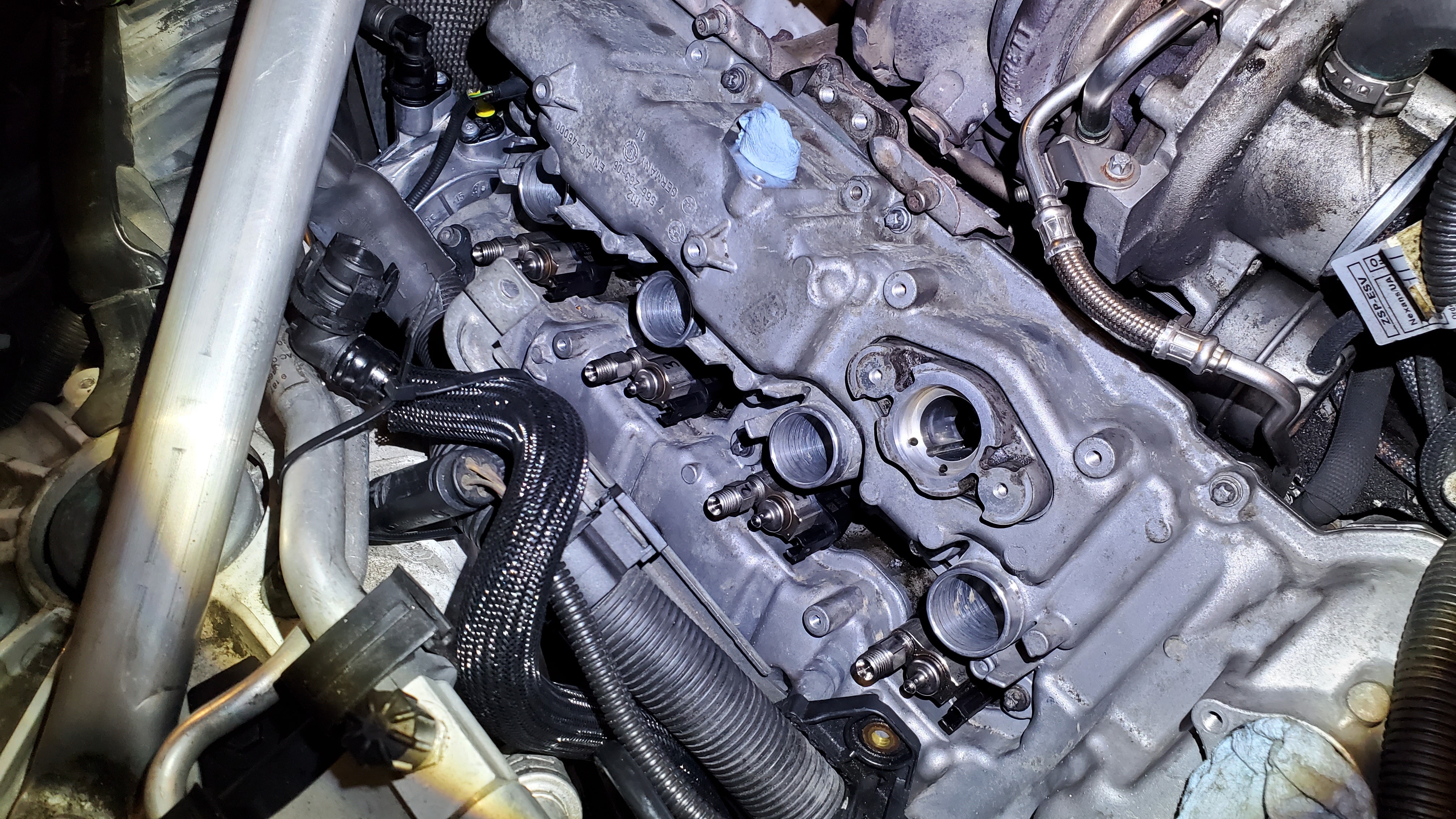

View of the valve cover without injectors

After a lot of fighting, removed the valve cover

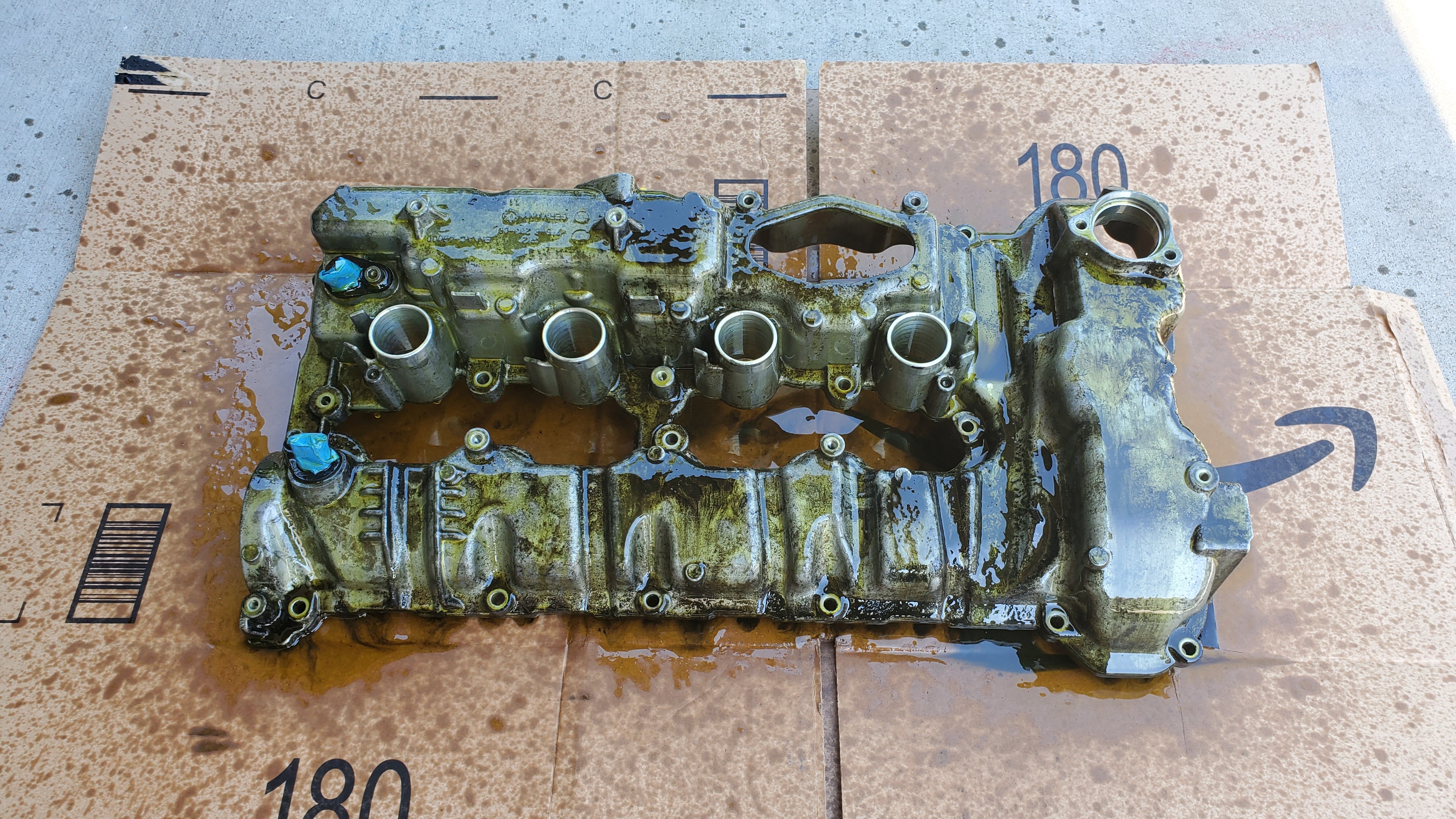

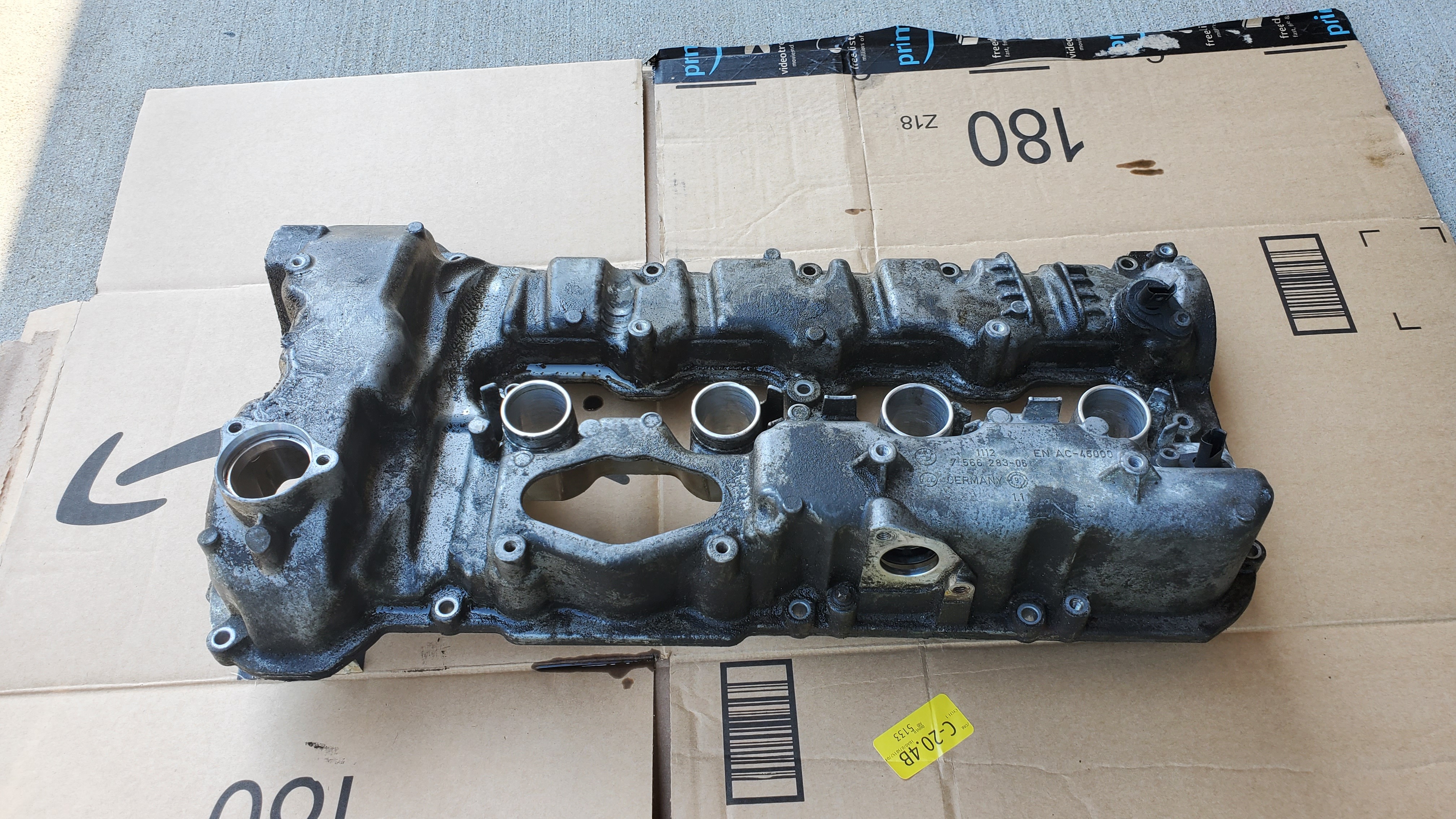

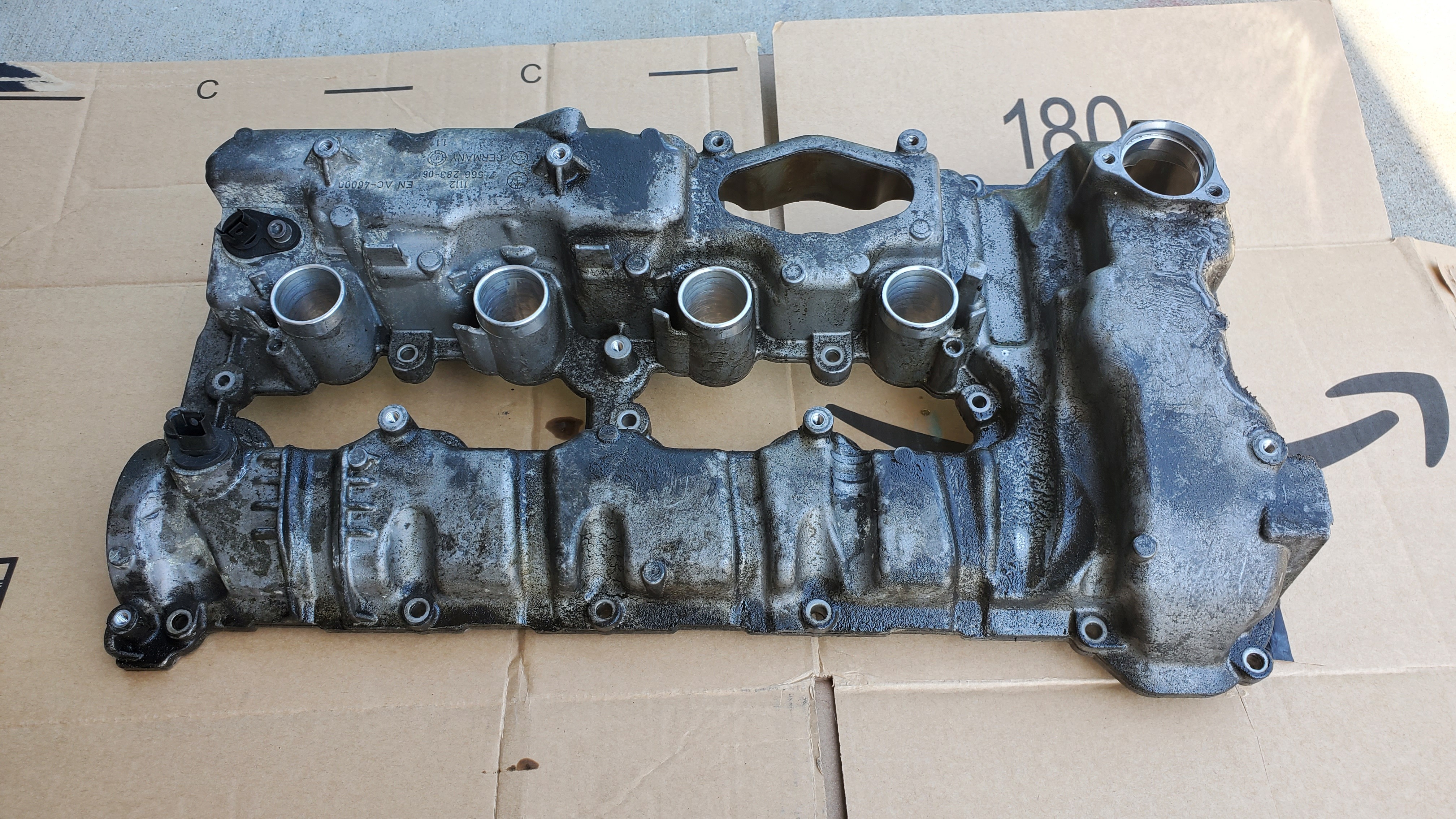

Gunky valve cover, cleaned it up with degreaser

Removed the old gasket and oil separator

Installed the gasket and new oil separator

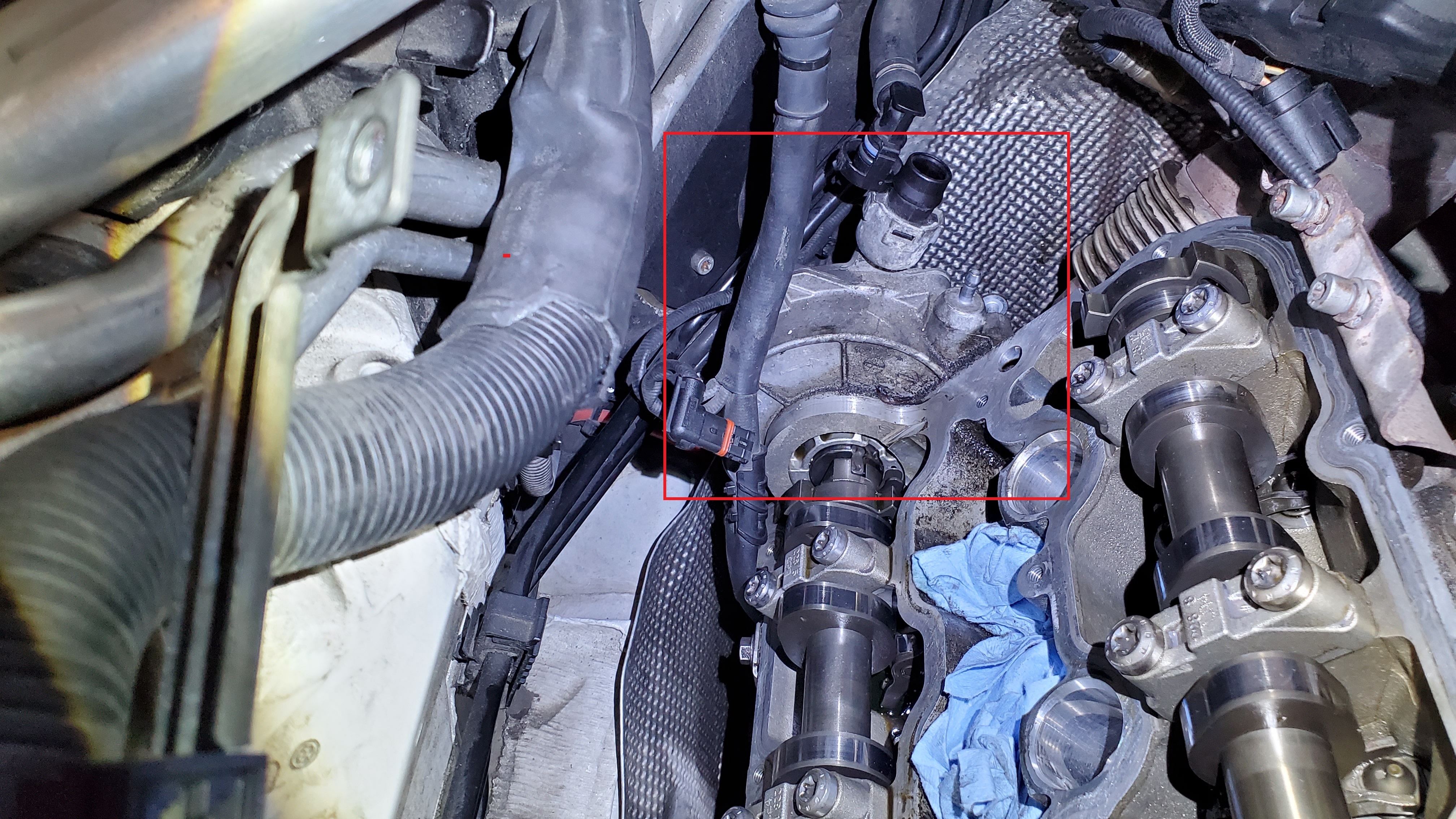

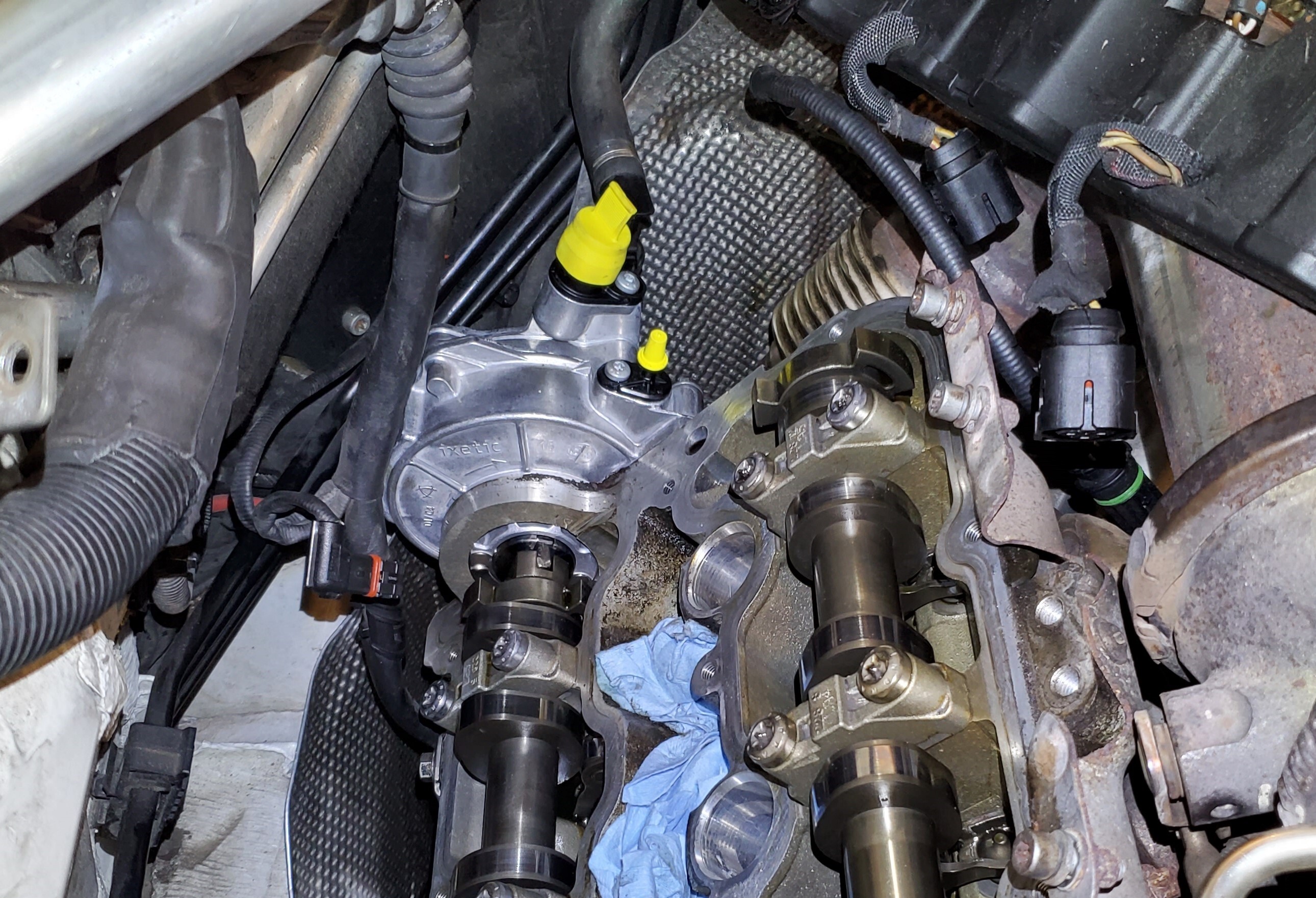

Vacuum pumps tend to fail in these engines around 70,000 miles mark, generally people suggest to replace the gasket but I went ahead and bought the whole unit.

It's held down by 3 E8 torx bolts, two were fairly easy to remove, the one at the bottom of the unit has been a pain to remove, still fighting it.

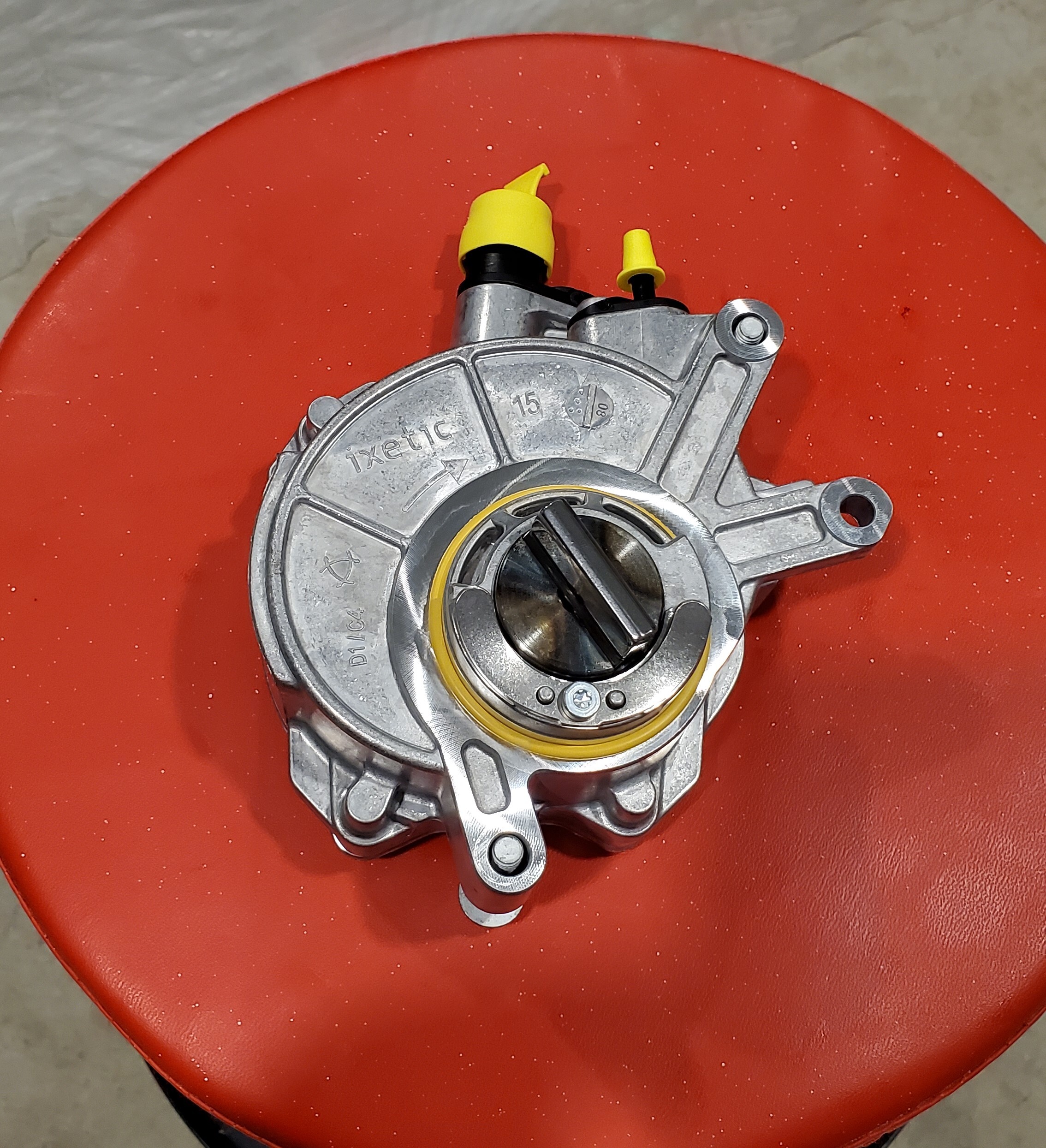

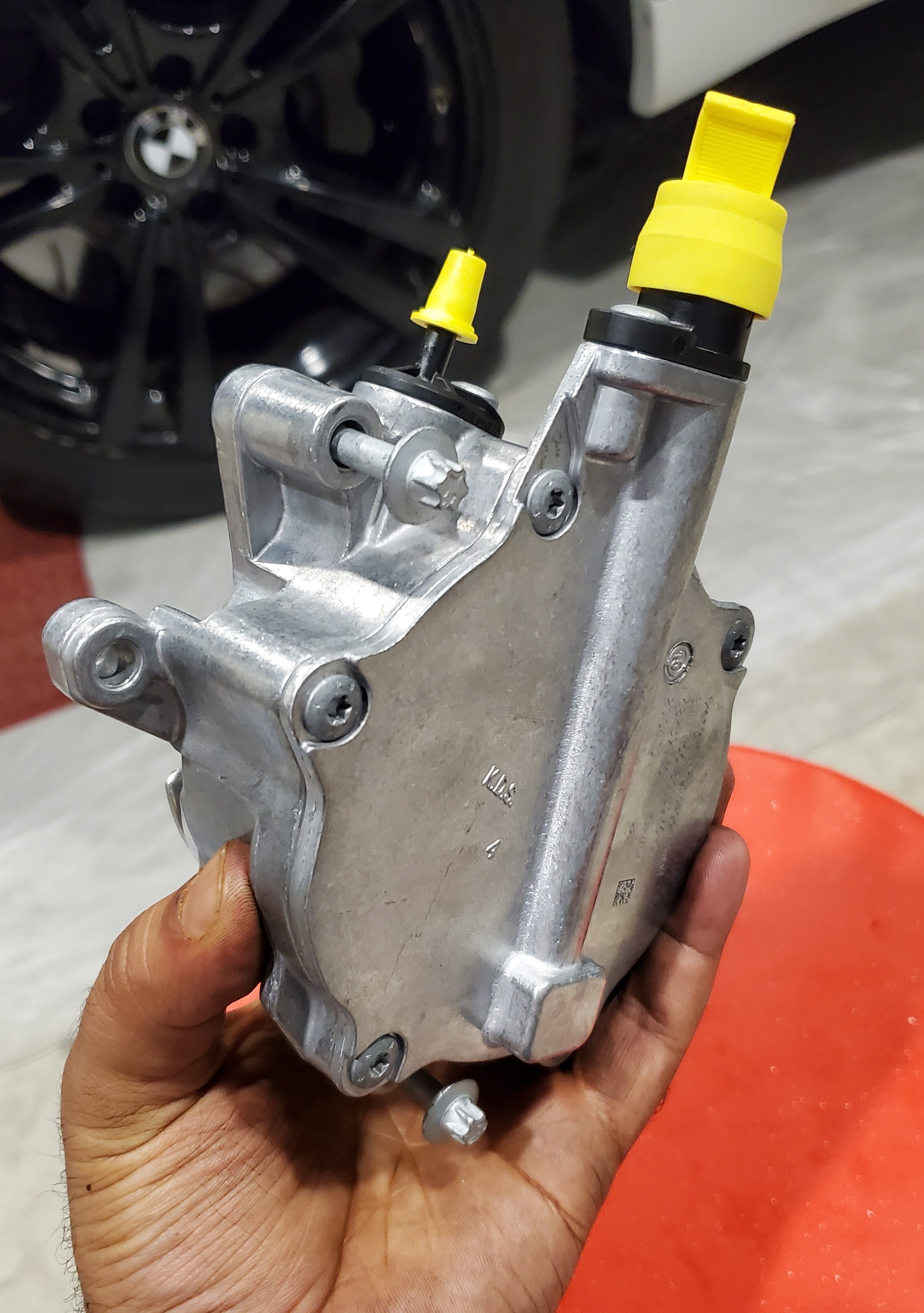

Here's the new unit

Will update later today insha'Allah as I make more progress.

[UAHMAD]

So the injectors didn't need to be replaced, rather only cleaning and seals changing.

Did you get to check the spraying pattern of nozzles? Was it fine?

[intoxicated]

So the injectors didn't need to be replaced, rather only cleaning and seals changing.

Did you get to check the spraying pattern of nozzles? Was it fine?

Truck didn't have any issues in general except oil leaks. Since I was ripping it apart, it's good to replace gaskets and seals because they might cause issues when you put everything back together and it seemed like these injectors came from factory.

By the way, each injector is $260 (about $2,000 for 8) - and they need to be coded as well.

[UAHMAD]

Fair enough. No need to change if these were not giving any trouble.

Very costly bill for the complete set of injectors, btw.

[Hassan1991]

Coded? Means you have to tell ecu about it?

[intoxicated]

Coded? Means you have to tell ecu about it?

Correct, the reason I numbered them is because each injector is coded to a specific cylinder and it has to go back to the same.

[VCheng]

Do I detect a hint of "elitiism" in berating Japanese makes as mere A to B appliances for folks who do not know any better?

There are exciting Japanese cars just as there are boring German appliances, even within any one make. One just has to choose the configuration properly, that is all.

[intoxicated]

Do I detect a hint of "elitiism" in berating Japanese makes as mere A to B appliances for folks who do not know any better?

There are exciting Japanese cars just as there are boring German appliances, even within any one make. One just has to choose the configuration properly, that is all.

Haha absolutely not!! Japanese are the best in terms of reliability and durability. What I meant to say was majority of point A to B folks trust Japanese. Don't get me wrong there are high end Japanese makes and models as well.

[intoxicated]

Old vacuum pump removed and installed the new one.

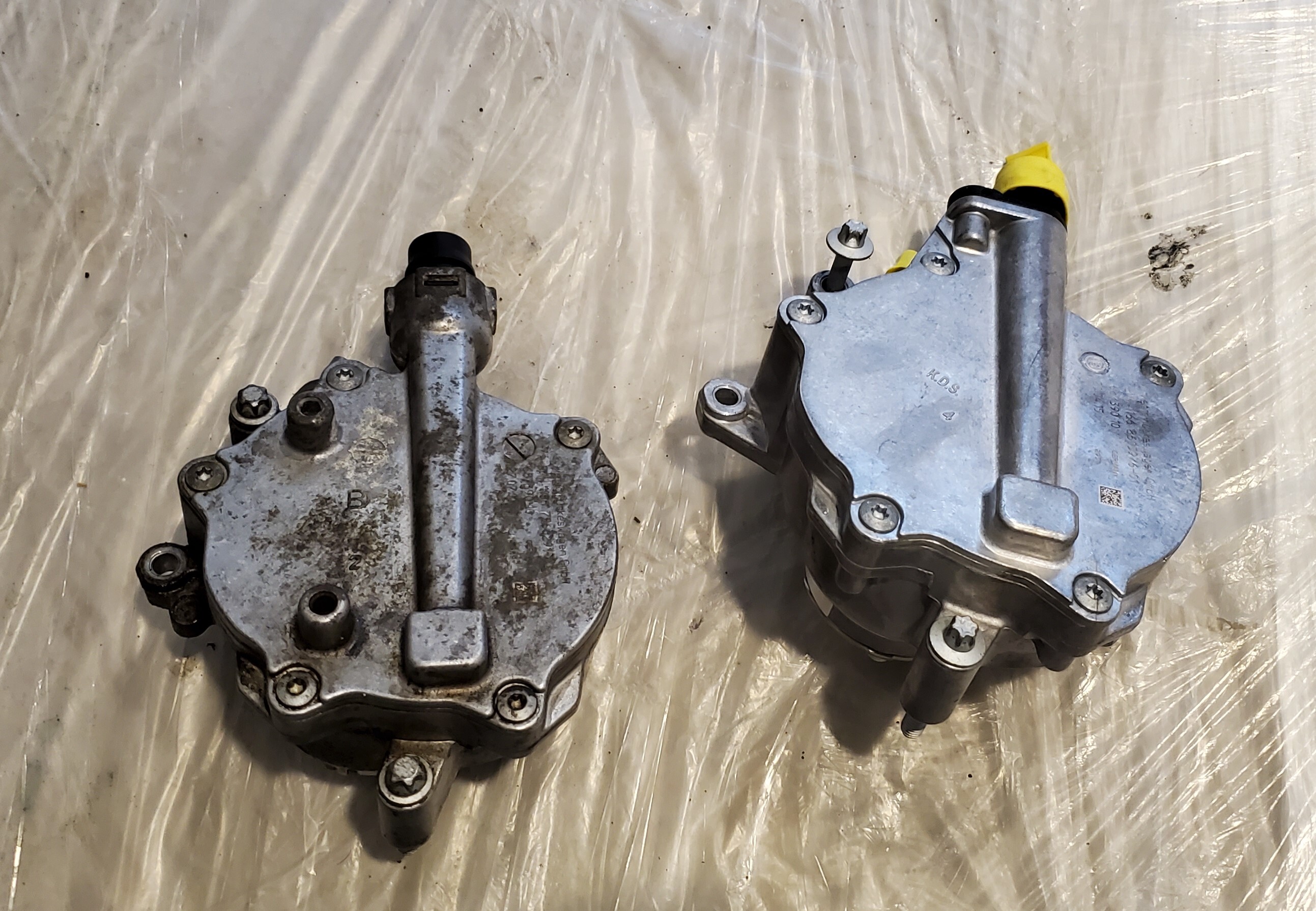

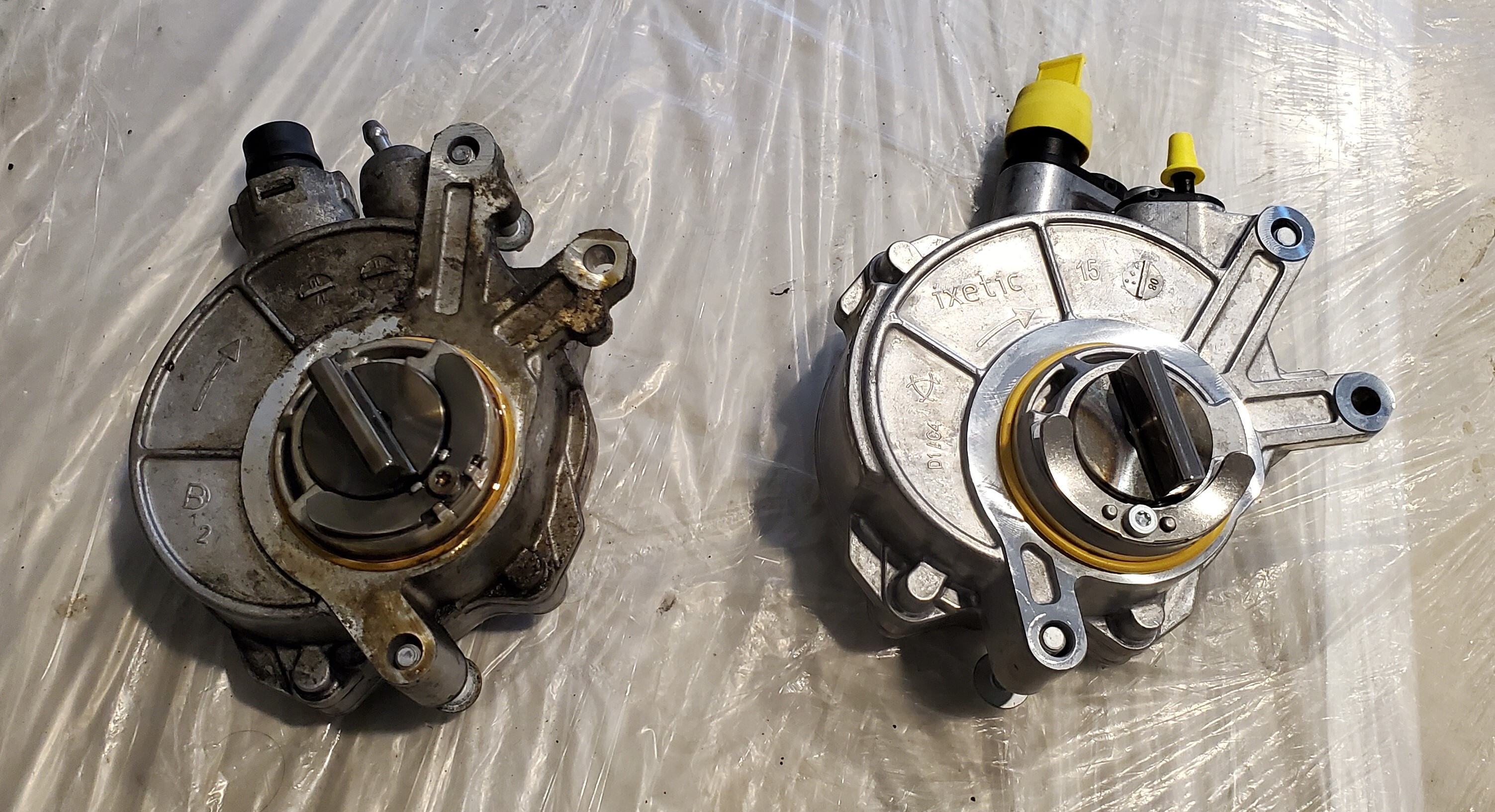

Old vs New comparison - new one appears to be slightly different design but it's the same part number.

[VCheng]

Good progress, as usual. I guess you must be glad that you are not running into electrical / CANbus problems as those require dealer level computer support to resolve, and sometimes even then are unresolvable.

[intoxicated]

Good progress, as usual. I guess you must be glad that you are not running into electrical / CANbus problems as those require dealer level computer support to resolve, and sometimes even then are unresolvable.

Yep, I'm glad too and I had no plans to touch or mess with any electricals. There are sensors that fail every now and then but Alhumdolillah nothing of that sort. I'll be opening up the transmission to pull the mechatronics unit, let's see how that goes.

[capsat]

I'll be opening up the transmission to pull the mechatronics unit, let's see how that goes.

thread is getting interested every passing day @nnabeel @ser_gtr @msabbasi @dani_kk @rajaatta

[intoxicated]

I'll be opening up the transmission to pull the mechatronics unit, let's see how that goes.

thread is getting interested every passing day @nnabeel @ser_gtr @msabbasi @dani_kk @rajaatta

Thank you!

[intoxicated]

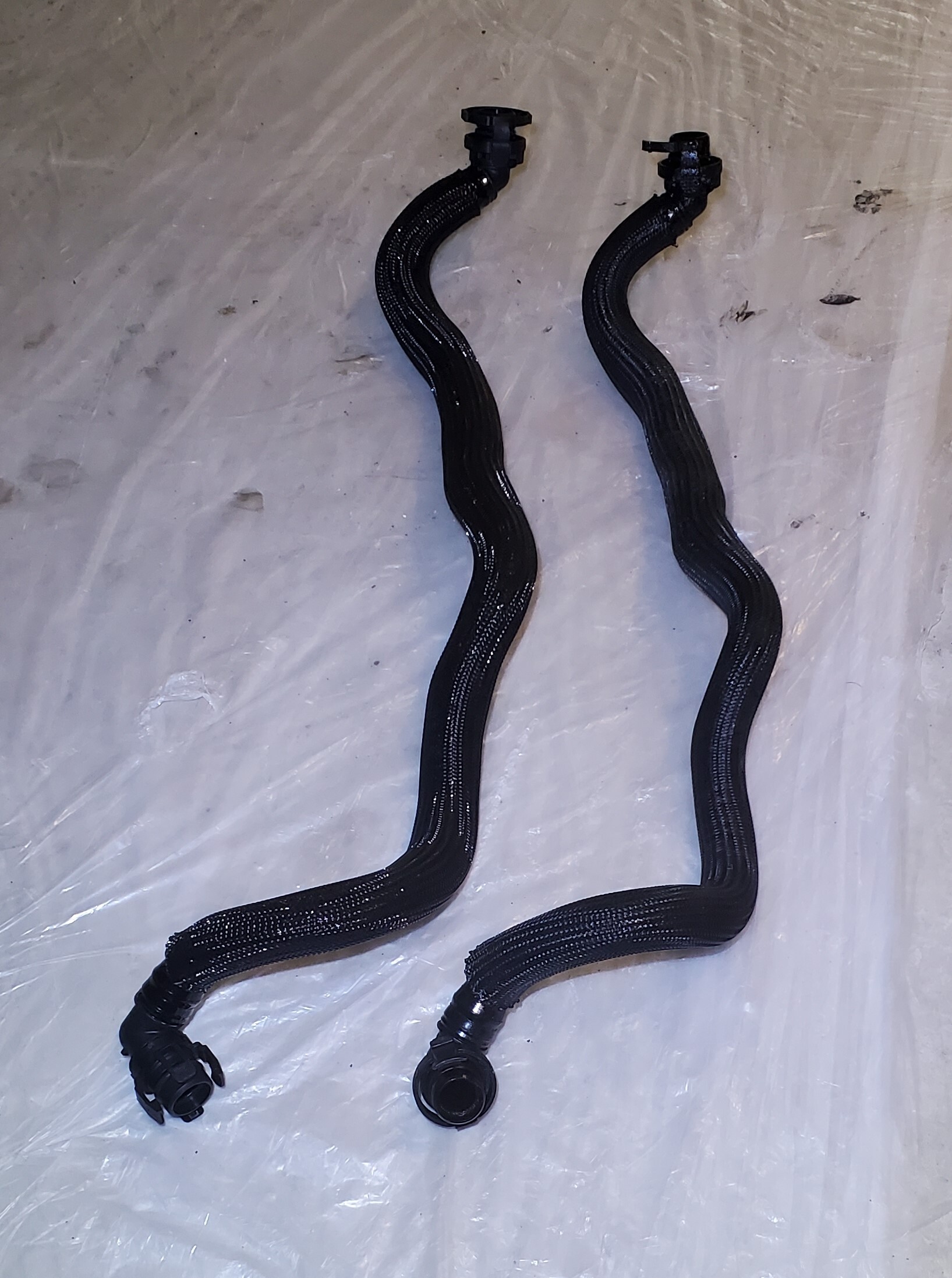

Replaced the CCV line for Cyl 1-4

New on the left and old on the right

Valve cover put back and torqued down

Installed the injectors

Replaced some of the vacuum hoses that I won't have access to once everything is put back, and also because I didn't know how much I'd need, so I ordered only 3 meters for $86.31 - expensive vacuum hoses! Lol

Will get back to the rest later today, Insha'Allah!

[capsat]

are you really doing it when "intoxicated"

dayem moi do you fix nasa shuttles when sober

[intoxicated]

are you really doing it when "intoxicated"

dayem moi do you fix nasa shuttles when sober

Hahaha - wish there was a way for me to change my name on here! Been intoxicated for a while now Lol
