5AFE oxygen sensor

Toyota

rajaatta (Raja Atta) 2020-02-19 20:34:06 +0500 #21

Your location

shahidaziz (shahidmirza) 2020-02-20 06:03:10 +0500 #22

Rawalpindi.

rajaatta (Raja Atta) 2020-02-20 11:17:17 +0500 #23

Got it

rajaatta (Raja Atta) 2020-02-20 11:18:01 +0500 #24

@Xulfiqar
Sir what is the flow rate of fuel injectors for 5afe please shed some light on it

rajaatta (Raja Atta) 2020-02-20 21:49:04 +0500 #25

You need flow rate of 155cc to 165cc flow injectors.

rajaatta (Raja Atta) 2020-02-20 21:49:32 +0500 #26

Current ones are 190cc

shahidaziz (shahidmirza) 2020-02-22 07:12:00 +0500 #27

Dear plz give me part no of required injectors....

rajaatta (Raja Atta) 2020-02-22 08:28:03 +0500 #28

Hi if you are in twin cities visit me some time for inspection and injector details

Hassan1991 (Electrical Engineer ) 2020-02-22 11:23:36 +0500 #29

5afe came with 3 different sets of injectors same as 4afe. Early ones was 155 cc violent color. And late were 176cc grey/light green color.

shahidaziz (shahidmirza) 2020-02-22 14:20:26 +0500 #30

Dear can I visit any time?

rajaatta (Raja Atta) 2020-02-23 07:52:04 +0500 #31

Yes but call me before arrival

shahidaziz (shahidmirza) 2020-06-29 19:26:21 +0500 #32

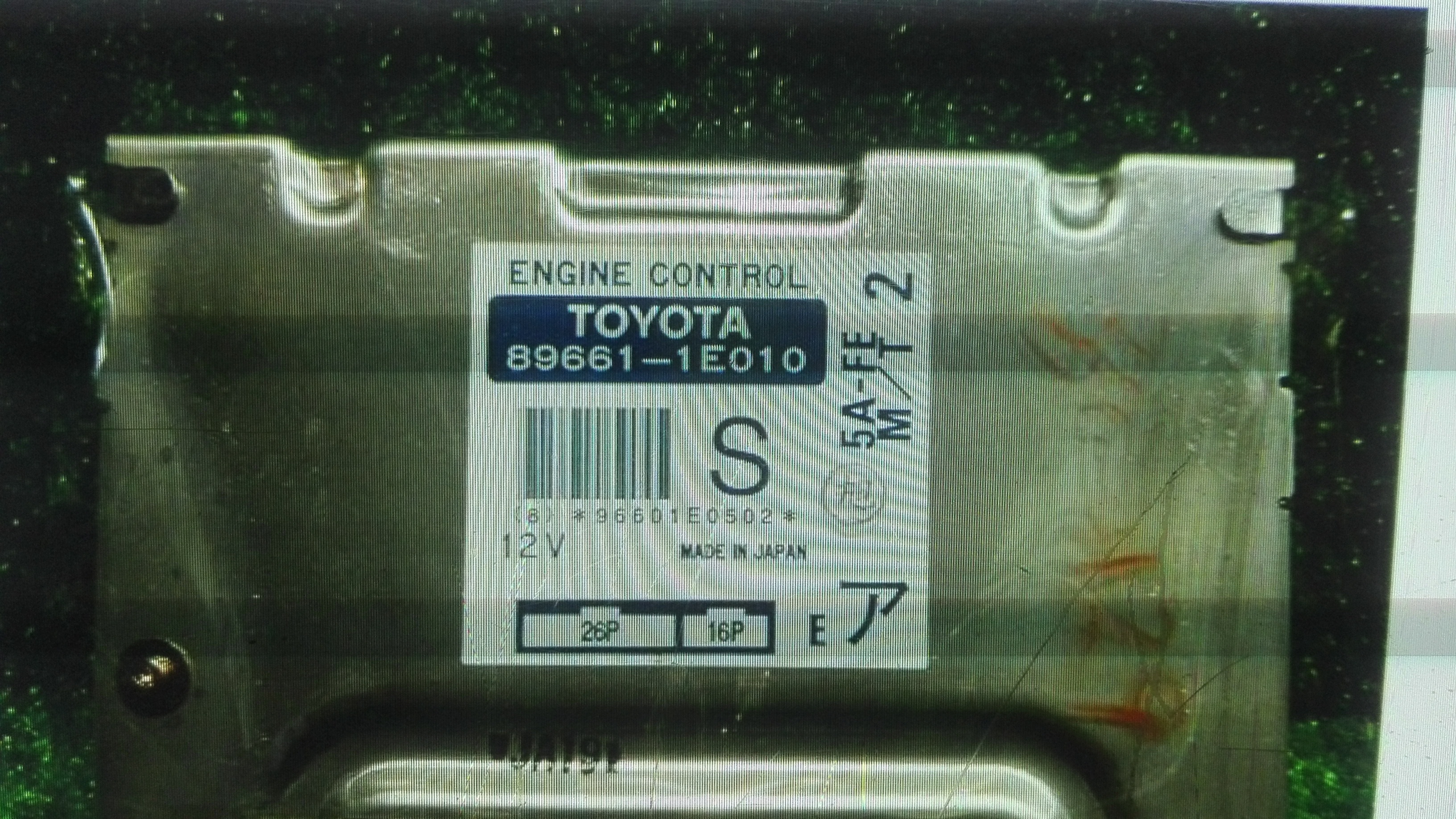

Raja dear plz help me out that one 5AFE have three grips with orange sticker...and one 5AFE have 2 grips with blue sticker...Dear which one is best for 5AFE engine....

shahidaziz (shahidmirza) 2020-06-29 19:43:12 +0500 #33

Hassan1991 (Electrical Engineer ) 2020-06-30 01:06:42 +0500 #34

both are same thing, perform same operation. and you can see one is for Auto and manual while other is only for manual that's why it has less wires.

rajaatta (Raja Atta) 2020-07-01 07:44:38 +0500 #35

Post the engine bay picture and also post the throttle body assy idle control valve oictures aka auto choke.

shahidaziz (shahidmirza) 2020-07-02 17:20:56 +0500 #36

Raja dear.....I don't have engine which attached with these ECU,s ......I was interested to buy a 5AFE engine so I have contact TO my cousin he have a 5AFE Engine with manual gearbox but when I look at the ECU so it have 89661-1E020 eco with two grips which was A/T ...but this engine was running fine very smooth....so I wants to know the auto ecu can work on manual gearbox.....he wants to replace engine with new 4AFE ......if I replace this auto ecu with manual on......so which one is best in above both ecu.....am I thinking right?

rajaatta (Raja Atta) 2020-07-03 08:05:22 +0500 #37

Continue on old setup of ecu

shahidaziz (shahidmirza) 2020-07-03 10:14:16 +0500 #38

Means orange sticker 3 grip ecu......

rajaatta (Raja Atta) 2020-07-04 20:48:58 +0500 #39

Yes it works perfect with manual transmission.
The auto transmission on this model is not Electronically controlled so this ecu only monitors the engine parameters only.

shahidaziz (shahidmirza) 2020-07-26 20:36:46 +0500 #40

Dear raja........i have monitored a fault in my car that after two to three days after reset the ECU the idle cntrol valve did not work and goes to fully closed......when this thing happen i reset the ECU then the idle control valve starts working according to temperature rpm high at low temp and goes low when gauge in approximately middle. and after 1 to 2 days its goes closed again did not work although the valve is serviced and clean.plz guide
