80 series with a difference

datpak (datpak) 2017-05-27 11:39:20 +0500 #1

hi pakwheels.

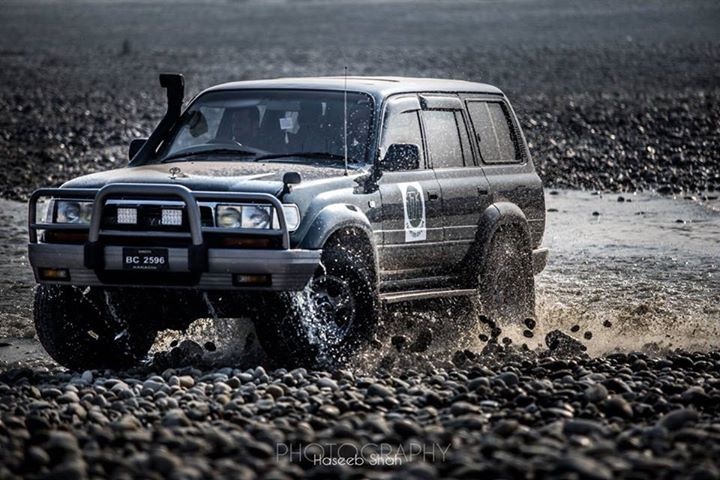

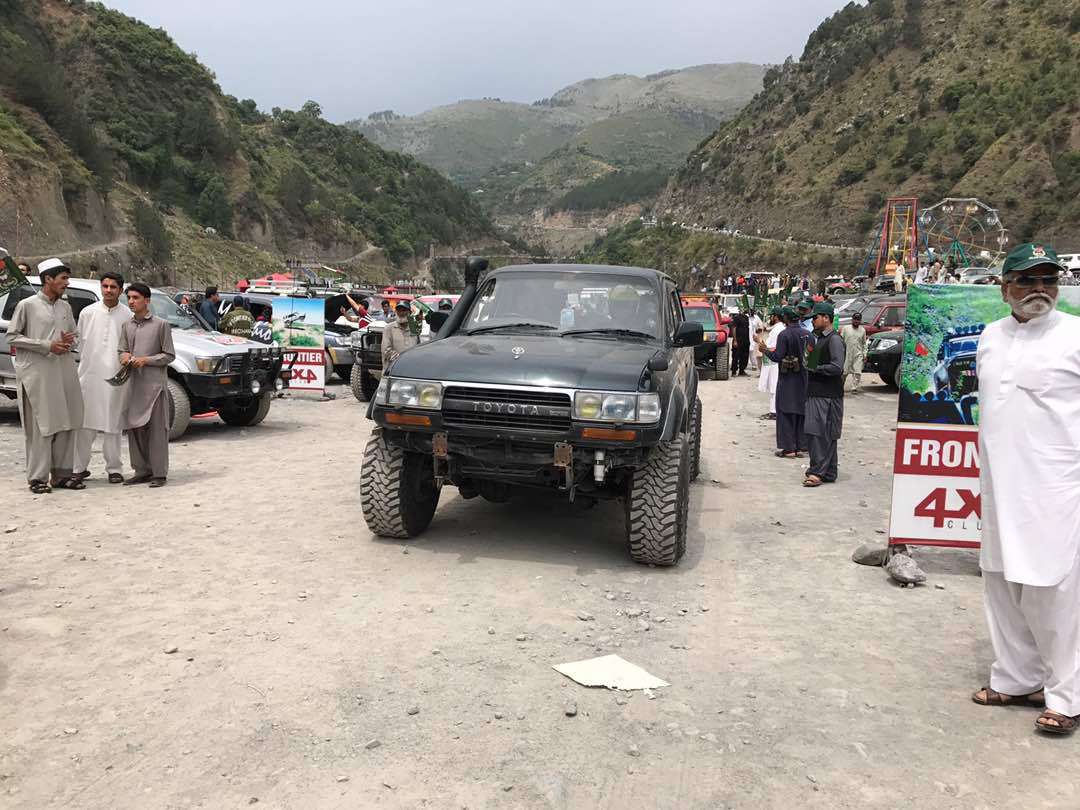

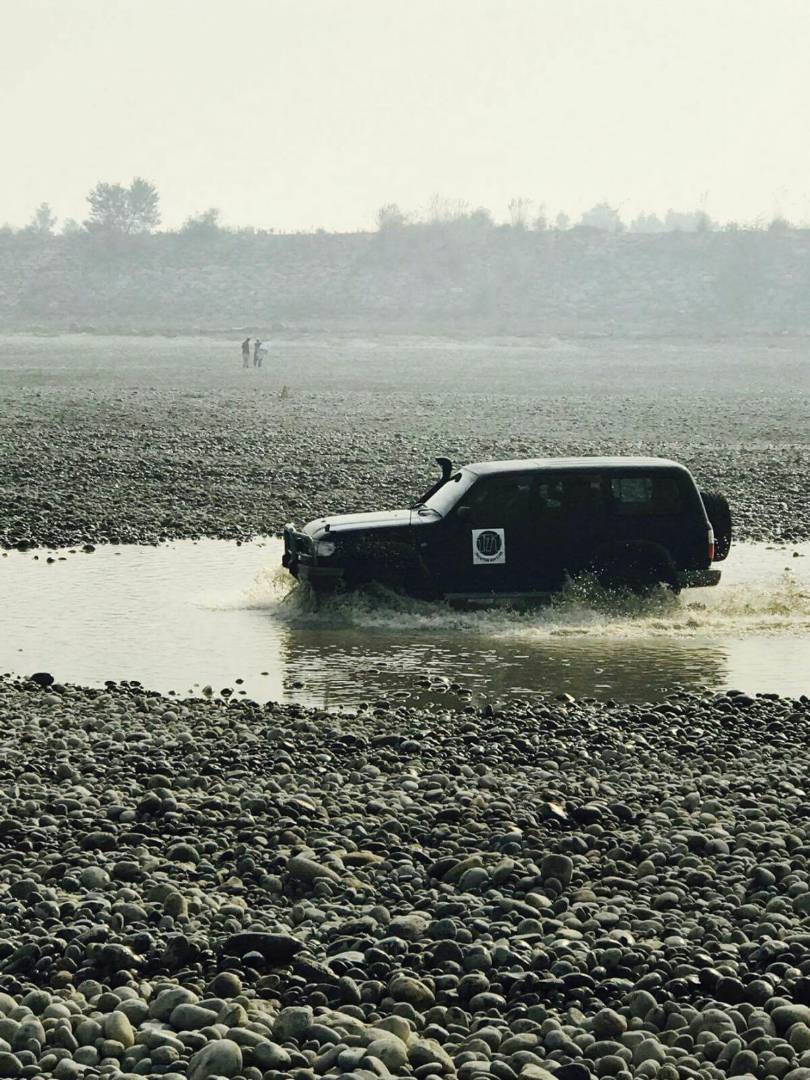

this is introduction of my 80 series lc.bought it around a year ago for off-roading and touring use.its 93 model originally 1hd but swapped to a 1fz.added a suspension lift front bullbar and few other add ons.went on a few off road events and it did good.

the performance was decent but the 1fz felt a bit slow.so searched about for swaps and found something different.so on with the phase 2.

datpak (datpak) 2017-05-27 12:32:53 +0500 #2

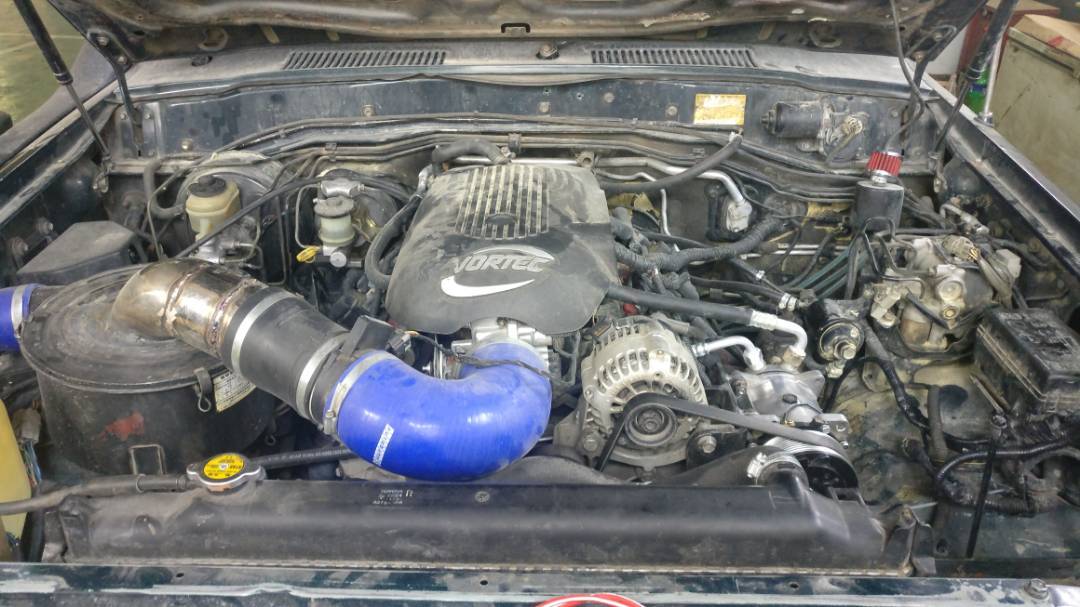

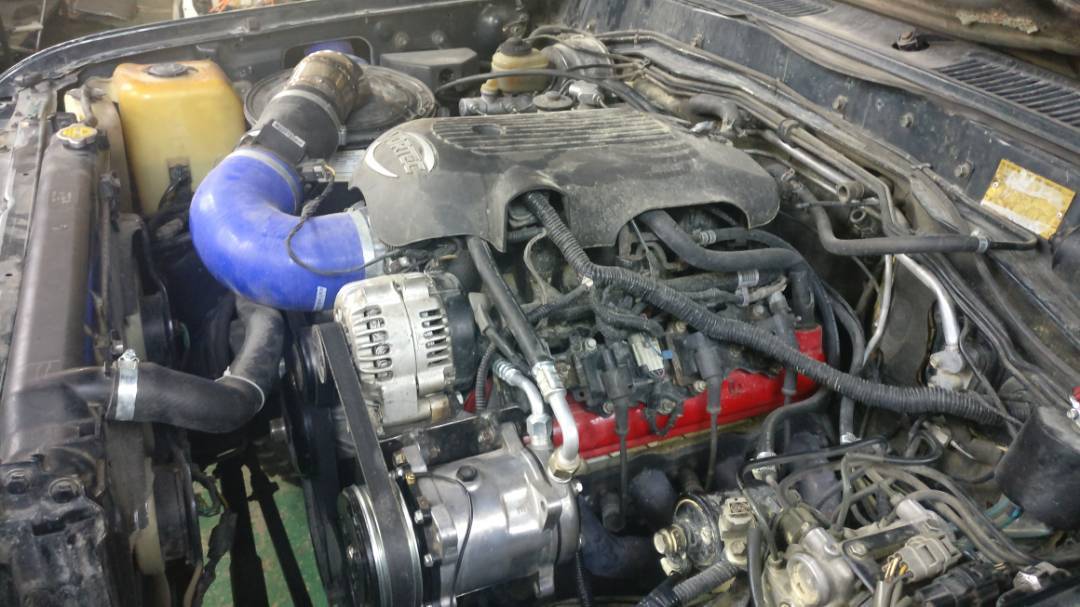

so decided to swap in a cheverolet ls family engine in the cruiser.got a 5.3 vortec engine out of a silverado 1500.got my hands on a h151 trans and than ordered a marks adapters adapter plate for mating the engine with the transmission.sorted the wiring myself and heres how it stands now.needs some engine bay work still.

unknown_one (unknown_one) 2017-05-27 14:26:25 +0500 #3

This post was flagged by the community and is temporarily hidden.

datpak (datpak) 2017-05-27 15:41:06 +0500 #4

1hd doesnt even come close to what the ls engines are capable of.and i didnt want a diesel

farazharoon (farazharoon) 2017-05-27 17:51:35 +0500 #5

@datpak Amazing that you have done this in Pakistan. I saw videos of FJ62 LC in America with a Chevy LS motor.
How much did the engine cost you?
Did you have to change the "hissa" due to all the extra power?

I have a FJ62 would love to put a V8 in it. How much does it cost to swap an engine? I was thinking of putting a 2UZ or 1UR.

Would love to have your input. Are you located in Rawalpindi area?

ENGINEERzz (ENGINEERz) 2017-05-27 18:07:12 +0500 #6

Perfect luking machine.
How much the suspension lift costed u and wht brand? Can u plz inbox me.thanks

datpak (datpak) 2017-05-27 21:40:00 +0500 #7

the 80 diffs take a lot of abuse.mines a factory locked version so stronger even than the unlocked versions.the cost was somewhere around 8+ including trans and adapter plate.mind u i did all the work myself so didnt have to pay labour which in ur case would be quite a handsome amount.
no idea about 1ur but a 2uz is a good swap for sure.even a "cheap" 1uz isnt a bad option at all.main thing is the mating of the trans and engine.thats the tricky part.if u choose a r series transmission than its easy.

datpak (datpak) 2017-05-27 21:41:59 +0500 #8

the lift was bought used so didnt cost much.shocks are EFS.front springs are OME and rear dobinsons.if i keep it for some time i wanna do radflo or fox bypass.

farazharoon (farazharoon) 2017-05-27 22:50:14 +0500 #9

@datpak thanks for sharing info.
8 lakh is a lot.
Do you know any mechanics who you would recommend for engine swap of 2UZ into a FJ62? Preferably in the Rawalpindi area.

datpak (datpak) 2017-05-27 23:50:22 +0500 #10

yes it is but u gotta do what u gotta do.
sorry dont know any mechanics there.

farazharoon (farazharoon) 2017-05-28 07:59:38 +0500 #11

@datpak What is a R transmission?

datpak (datpak) 2017-05-28 14:12:21 +0500 #12

r150/r151

farazharoon (farazharoon) 2017-05-28 14:24:21 +0500 #13

@datpak Thanks for sharing. I amm learning lots. R series transmissions are manual or automatic? Wikipedia pages on Toyota R transmission is not clear.

How can I find out what manual transmission my 1989 FJ62 has? It is a 5 speed manual and has a diesel 2H enginee.

Sheryar (Lucifer) 2017-05-29 07:15:21 +0500 #14

Welcome to 80 Series Club.

Yes Its Always The Little Difference Which Makes U Unique Among All The Fellow Hood & Here I See That Very Clear By The Effort U Have Done ...

_Learning & Teaching Yourself Is Always A Good Practice of Healthy Mind

A Smart Selection of Engine With Efficient Trany Is Near To Best Combination ... Yes This Engine Is Used For SUV's & Trucks For Better Power & Ur Machine Is More Mean By Adding Luxury of It ..

Which Generation Is Your Engine ? As Generation Matters A lot Cz of Power & fuel Management ..

Just A Little Advise - Remember This Engine Always Need A Proper Warm up ... Never Push It In A Cold Start...

Good Luck For The Enjoyment & Keep Sharing Ur On-Off Road Track Journeys In This Machine ...

datpak (datpak) 2017-05-29 09:24:21 +0500 #15

easiest way is to check what transmission code is on ur chassis plate.or go to www.toyodiy.com and search for ur vehicle there.

datpak (datpak) 2017-05-29 09:13:59 +0500 #16

thanks for the kind words bro.its a 3rd gen engine.

Sheryar (Lucifer) 2017-05-29 11:16:20 +0500 #17

noted

have a look
https://forum.ih8mud.com/threads/1992-fj80-6-0-vortec-engine-swap.758110/page-11

farazharoon (farazharoon) 2017-05-29 17:31:28 +0500 #18

@datpak Thanks will check it out

datpak (datpak) 2017-07-22 13:21:01 +0500 #19

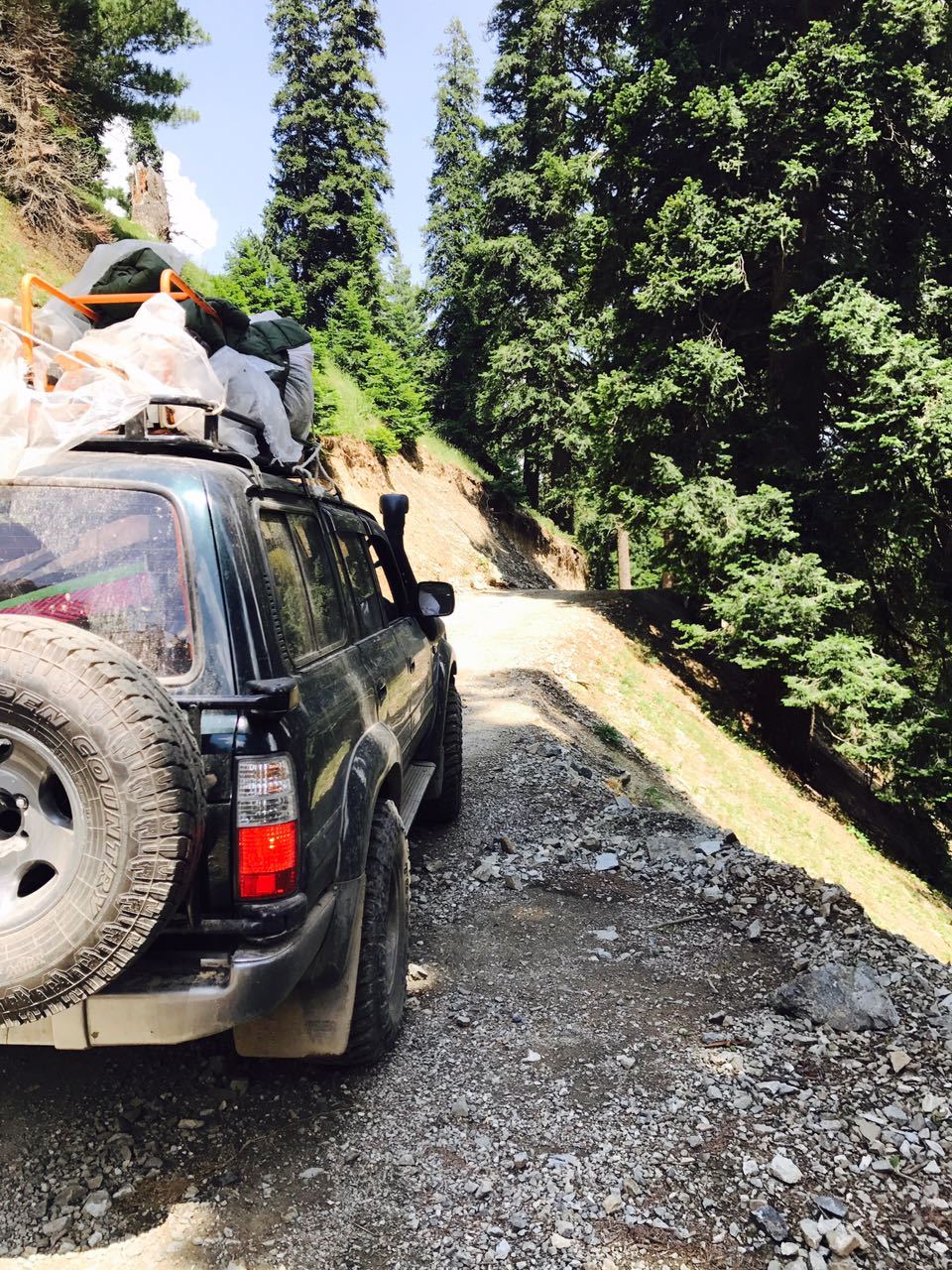

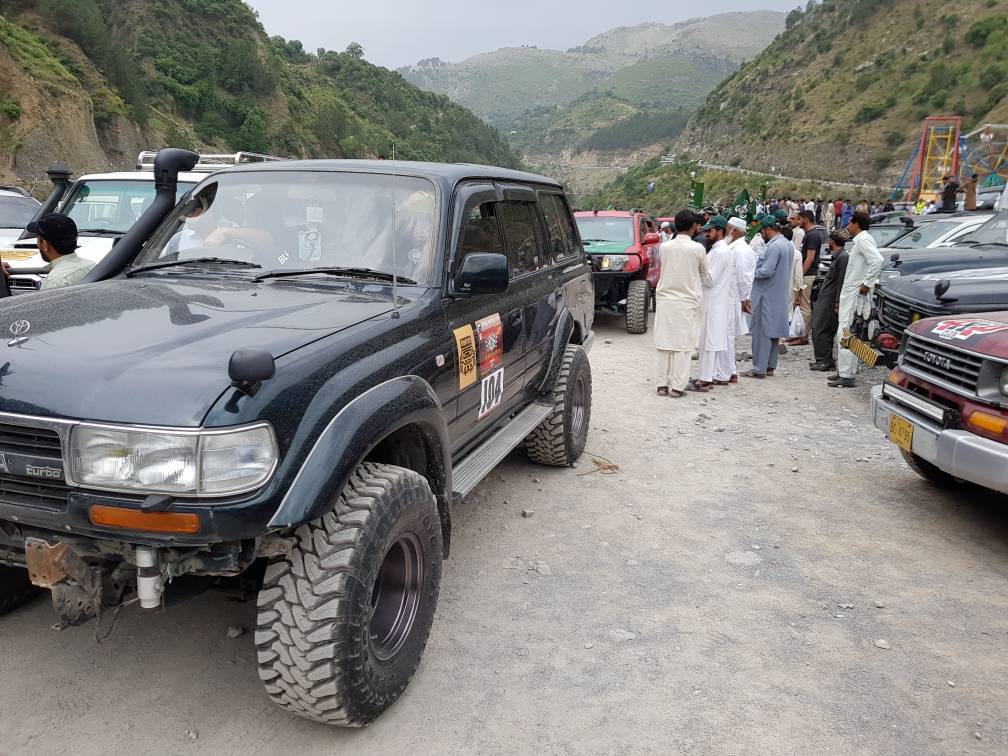

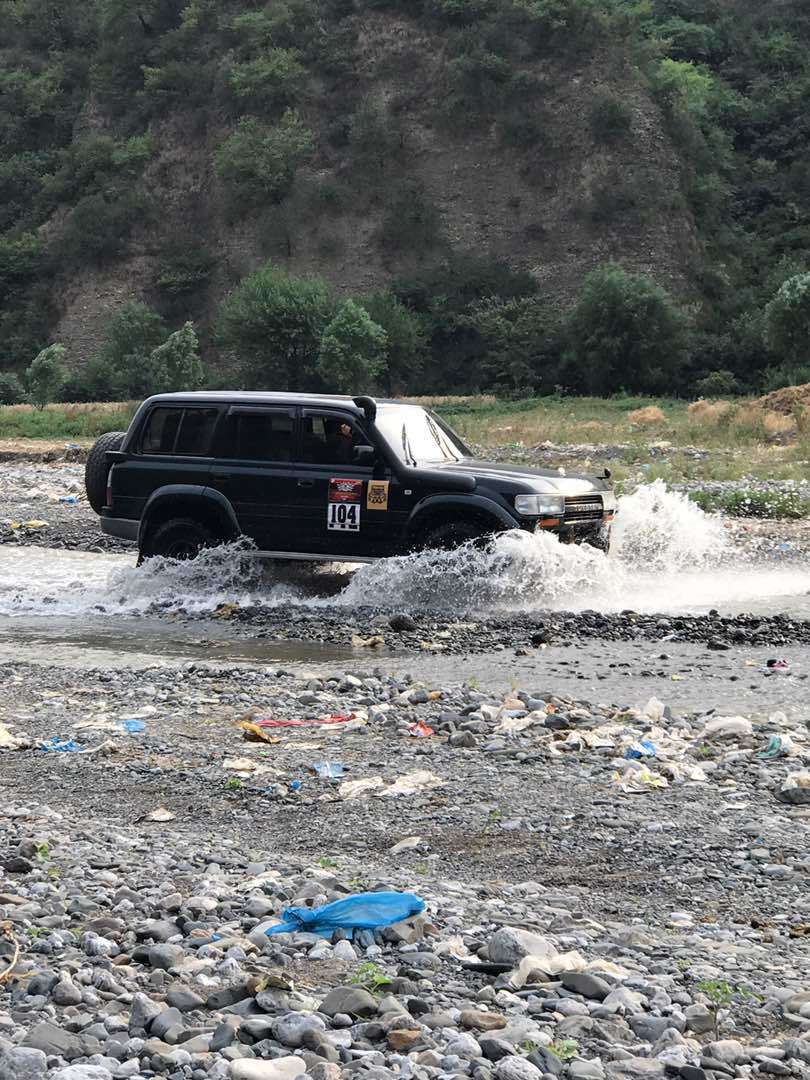

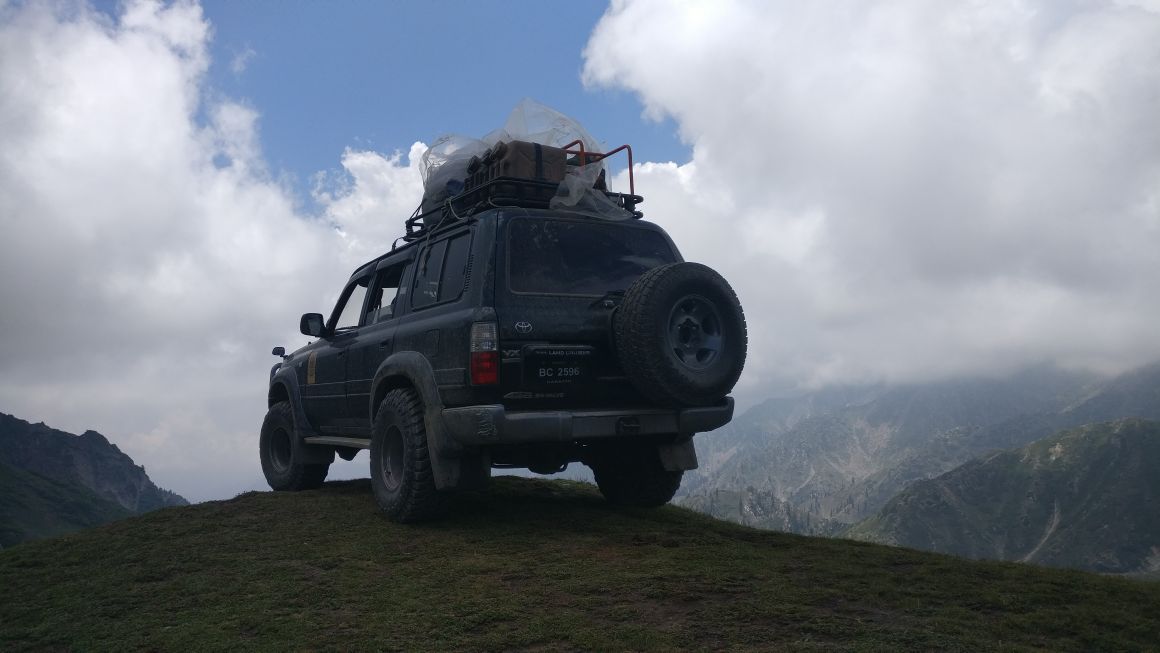

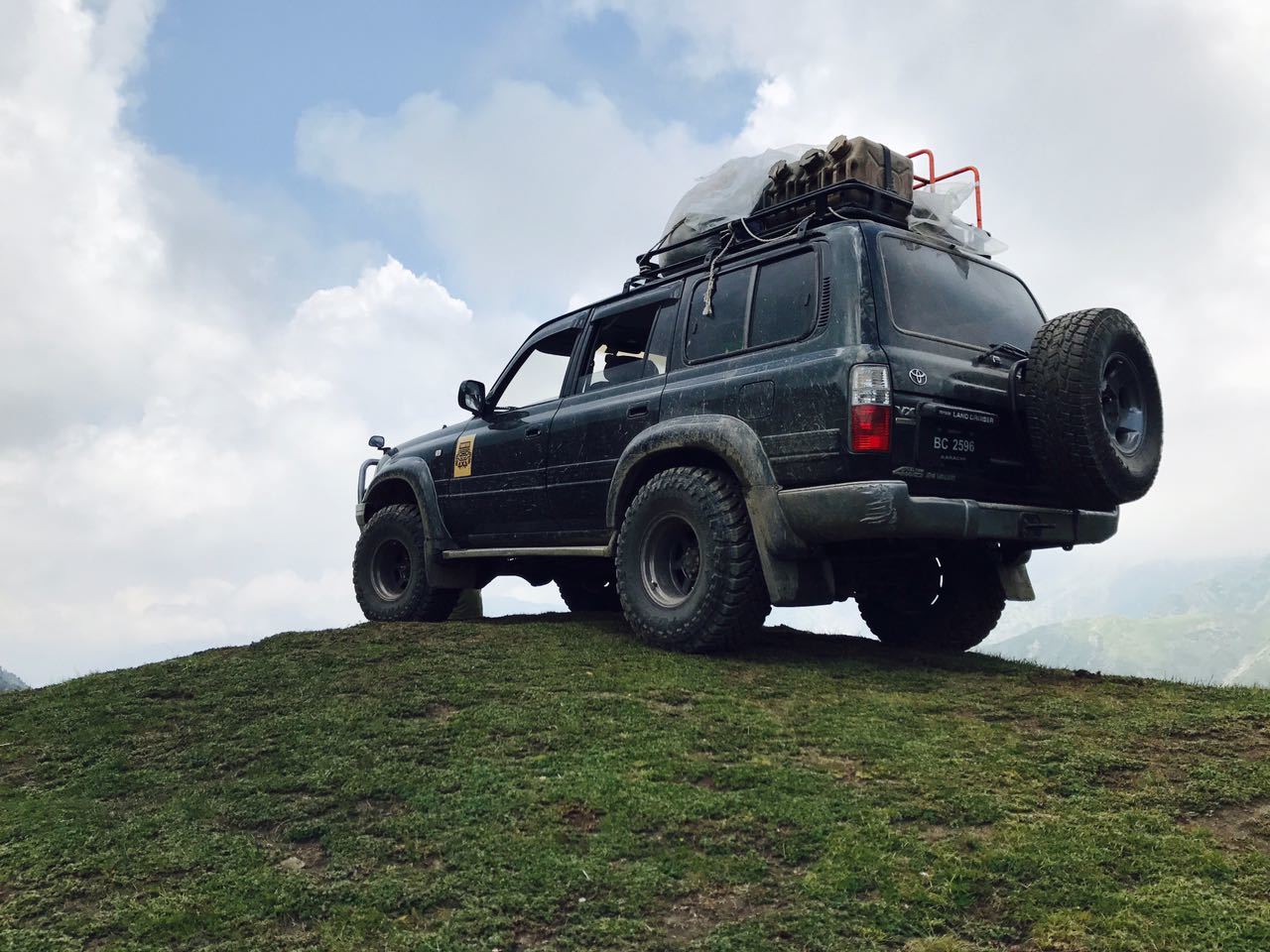

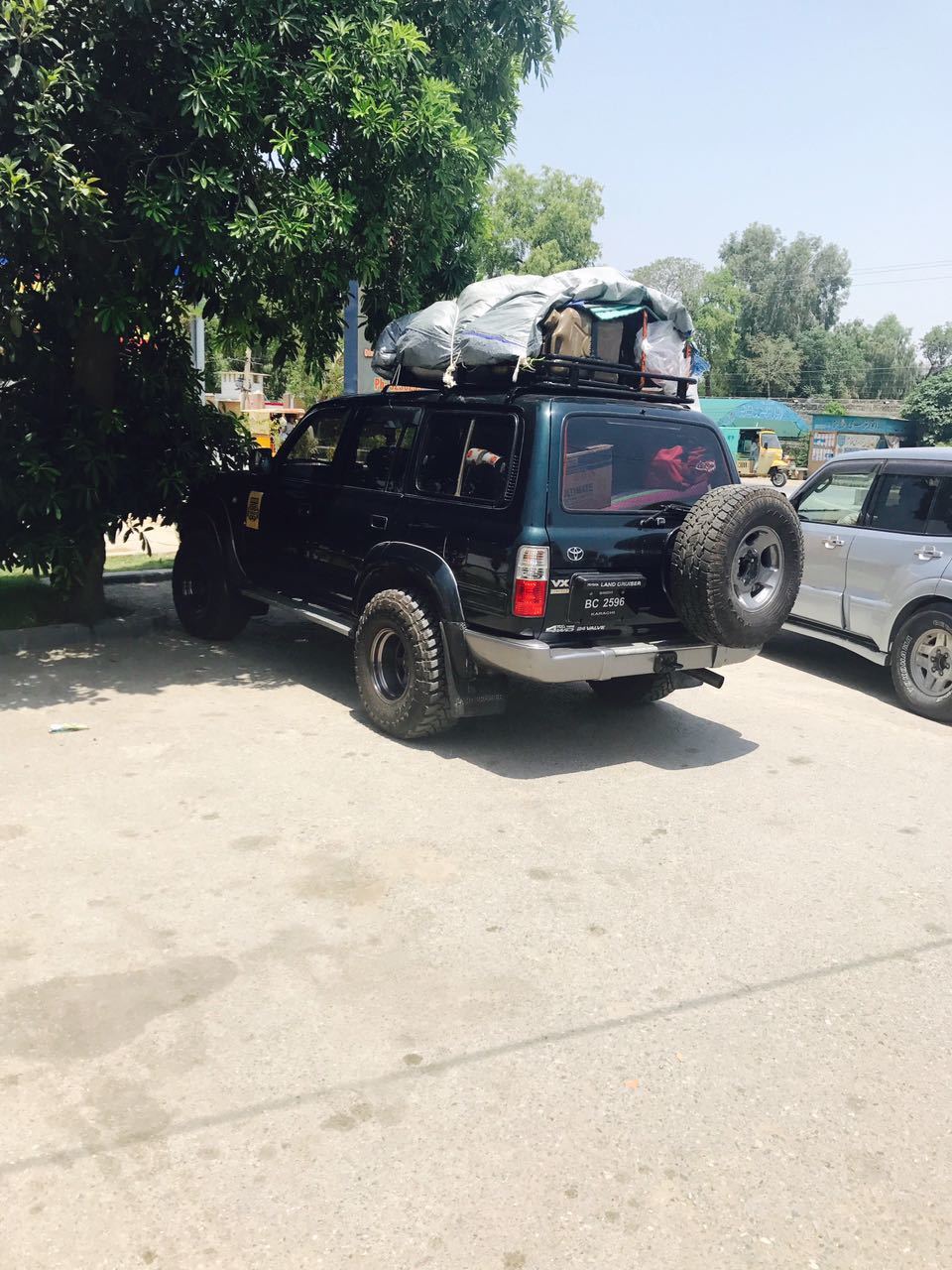

Ok so the swap needed to be tested out.went to kumrat than badgoi pass than kalam via utror stopover at miandam and back to peshawar.few pics for proof lol.
