Xulfiqar (Xulfiqar) 2020-08-18 04:14:34 +0500 #10604

Cant help you with that exact part, find it on aliexpress

Old charade g11 jdm had it too but was shaped different and had slightly different working principle but turned on an eco light

tariqazama (Tahir) 2020-08-18 18:24:04 +0500 #10605

Means i should go for kaabli one from used spare market. As new one will cost around 250000

Xulfiqar (Xulfiqar) 2020-08-18 23:46:09 +0500 #10606

yes and before installing, check the preload etc.

tintin1 (tintin1) 2020-08-24 22:42:33 +0500 #10609

This post was flagged by the community and is temporarily hidden.

pwuser152048211750 (I am speeeeeeeeeed) 2020-08-25 07:28:26 +0500 #10610

Good day Xulfiqar Bhai.
So I have a leaking brake line in my 05 civic. It's easier to find a replacement braided steel line abroad but I am unable to locate one here. People do make straight pipes here in Karachi which you conform using a bending tool but I am not so confident in its quality. Just to make sure, I have asked honda sugoi and Nasir autos for an oem replacement part but apparently they don't import them here. Can you suggest what can be best solution for this.
Thank you for all your support.

anon36782927 2020-08-25 09:44:57 +0500 #10611

a shop in karachi plaza market in chaat wali gali 4th lane on right they are the tubing experts. the shop also deal in sports & heavy construction machinery class tube linings. i could not find the name card of the shop but they are quiet known for their trade craft. in 2018 they provided us with caterpillar shovel hydraulic & pneumatic hard tubing for under Rs, 25000 which were quoted for Euro 1500 for a single set without duty & taxes. we gave them samples / length and it was 5 days job for them. The shovel is running perfect

vcdwonderful (vcdwonderful) 2020-08-26 16:40:26 +0500 #10612

Dear xulfiqar can you plz share your experience about kixx and aisin oil product which is good

Xulfiqar (Xulfiqar) 2020-08-27 00:35:17 +0500 #10613

I regularly make brake lines by hand - even did that back in Pakistan too. I just used some proper extruded brake line tubing which I bought from a shop in chaat wali gali in plaza market (about 100 ft spool of 3/16 line). Lalukhet daak-khana market and lawrence road market is also great for such items.

I already owned a bunch of flaring tools and buying flare coupler and end nuts is easy (same shop) - maybe its the same shop uzeemmujeeb is mentioning.

Honda also used sell the lines but they are sold as straight pipes with ends - which was a giant pain and expensive too. my own hand bent lines were perfectly formed and worked sweet. I even added strain reliefs too to prevent cracking.

Nowadays here in USA I use cunifer lines which are fantastic - they are rust proof and bend like bubble gum compared to steel.

hasankhurshid29 (Hasan Khurshid) 2020-08-31 01:05:07 +0500 #10615

Assalam o Alaikum

My civic 2000 vti oriel manual was driven in recent rain in moderate waters not too much. But now steering is pretty hard in lower rpm range. Previously also my rpm goes low on ac like 400-500 but the steering was easy to move but now it is getting pretty hard on low rpms and normal on high rpm. What could be the cause? Also fluid level is ok

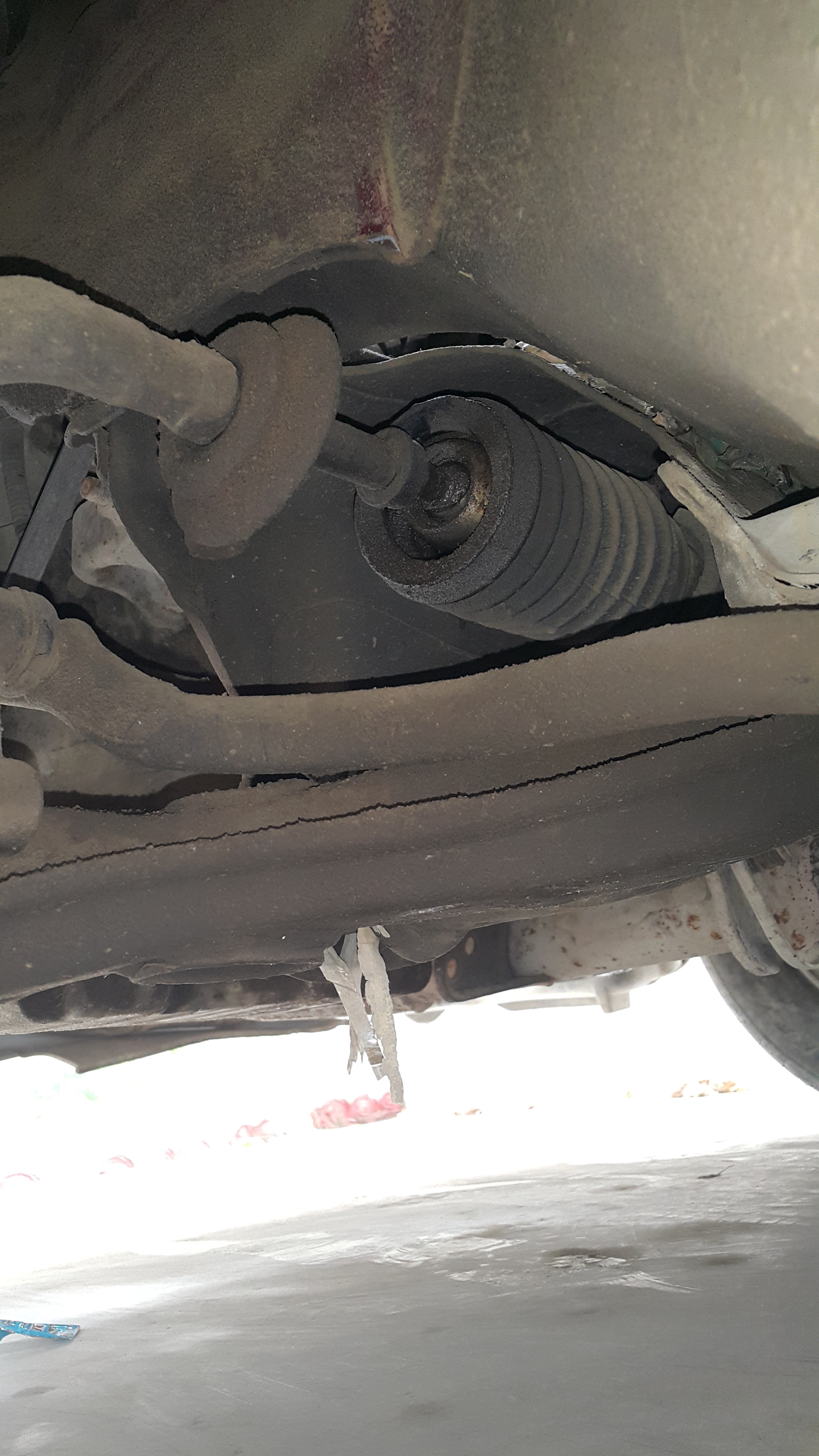

These pictures are 2 months old. You can see the condition of Transaxeles and Tie End Rod.

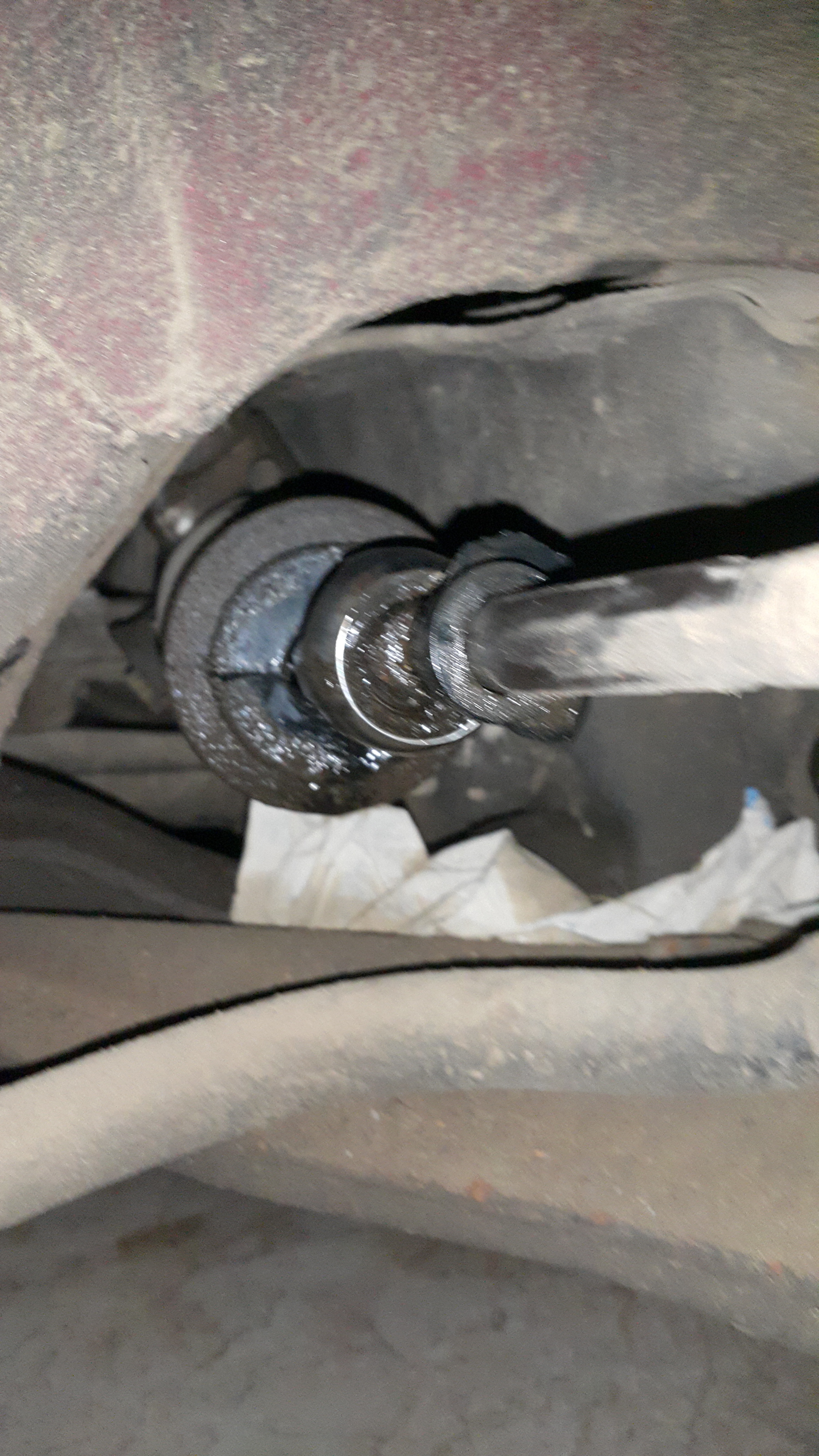

Driver side Outer Axle

Passenger Side Outer Axle

Tie End Rods Inner:

aziz.rehan (Rehan Aziz) 2020-08-31 01:08:32 +0500 #10616

Aapke axle or tie rod kharab hocheke hai.repair karle warna nuqsan hoga.Ye 2000 model civic hai?

hasankhurshid29 (Hasan Khurshid) 2020-08-31 01:09:59 +0500 #10617

Axle tu kayi saal sy kharab hai balkay jab naye lagy thy jab sy awaz ati hai dono taraf turn kertay hoi accelerate kernay per kat kat kat kat. Likn taqreeban 8 10 saal sy chal rahy hai

hasankhurshid29 (Hasan Khurshid) 2020-08-31 01:10:52 +0500 #10618

Yes

aziz.rehan (Rehan Aziz) 2020-08-31 01:11:28 +0500 #10619

Acha jee

aj.aquiline (ahmed) 2020-08-31 16:25:55 +0500 #10620

What's the diff between these engines?
I cant seem to find anything concrete as to why the red top makes more power than the greytop.

The specs are the exact same.

Is it just the ECU used that makes the difference?

The greytop I'm referring to is the one found in the Rav4 and Caldina...not the Altezza (BlackTop rwd)

saadeez101 (saadeez101) 2020-08-31 22:06:59 +0500 #10621

@Xulfiqar Sir,

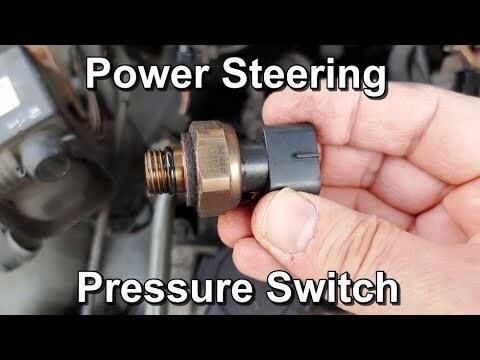

I have a similar power steering switch with 1nzfe, with 3 pins but I am unable to find its wiring diagram:

Can you please help?

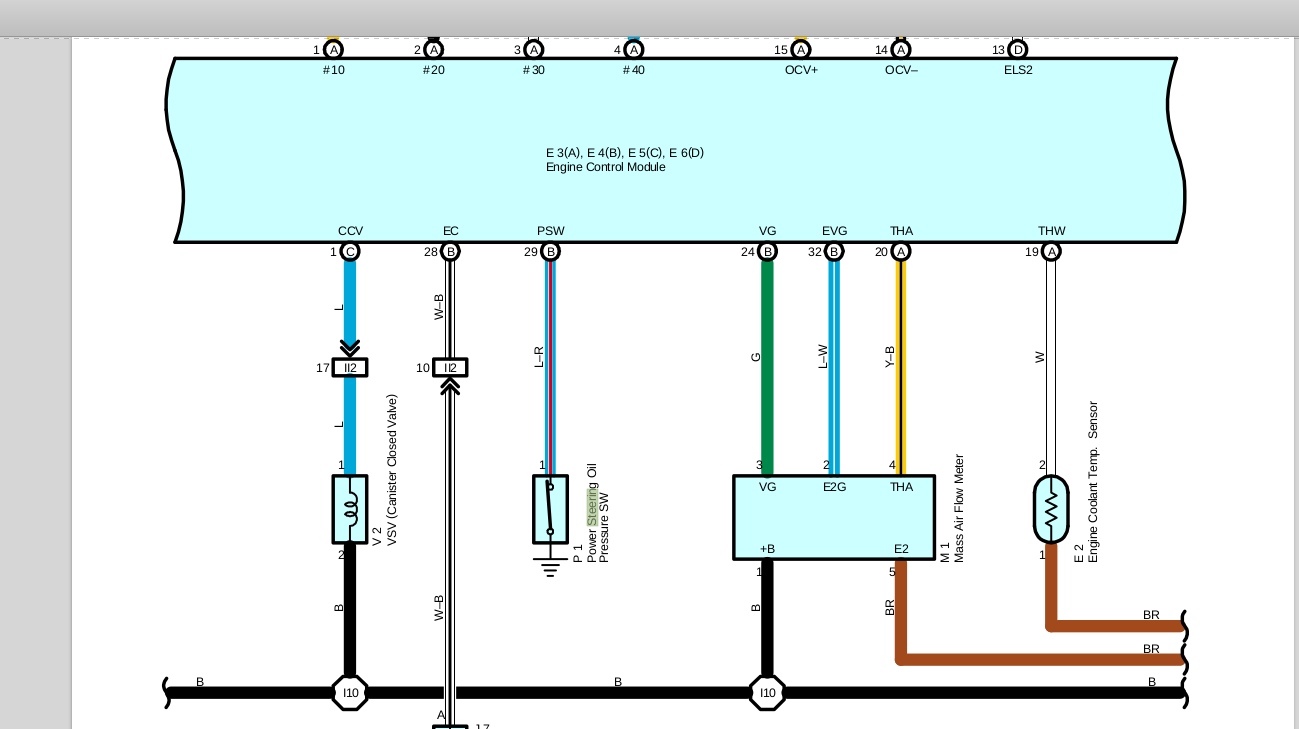

I have found this in many manuals:

Xulfiqar (Xulfiqar) 2020-09-01 00:01:16 +0500 #10622

its not a switch but rather a sensor when its the 3 pin one. One wire is 5V reference, one is ground and one is signal to the ecu.

you can google tundra power steering pressure sensor and you will probably find a ton of videos too as there was a service bulletin for them regarding this same sensor. Its quite simple to be honest.

hasankhurshid29 (Hasan Khurshid) 2020-09-01 06:25:40 +0500 #10623

@Xulfiqar please reply. I have also attached pictures in the above quoted post

Xulfiqar (Xulfiqar) 2020-09-01 19:04:05 +0500 #10624

Check the belt for damage

rehman.bugti (rehman bugti) 2020-09-02 00:35:57 +0500 #10625

I have a land cruiser 80 series with the 1fz fe.
on the highway i get 6.5 kmpl (with ac) but in city I’m not getting anything better then 2.5 kmpl (with ac) that too with a very light foot what could it be??
And the vehicle lacks power downshifts to early doesn’t want to upshift all that much i need pedal to metal it in order for it to upshift
The idle is slightly rough

contact11 (Muhammad Umair) 2020-09-02 04:20:49 +0500 #10626

Assalamu Alaikum Everyone

I need help regarding a TLC. I don't have any experience at all so will be thankful to get assistance.

Recently got an auctioned TLC LJ72. Its engine was dead so replaced its engine with 'kabli" upon the suggestion of few mechanics. The issue I am facing is High RPM / engine rattling on 90-10 KMPH. Cannot tell exxact RPMs as RPM meter is not working at the moment. Is there any way to reduce RPMs on highway.

Toyota LJ72 1991
Engine: 3L (2800cc diesel)
Gearbox: G40 (5th gear was added already, As per mechanic)
4x4: Not Working (No shaft in place)
Rear Diff Ratio: 4.88 (39/8)
Tyres : 205/80 R16
Engine Oil: Using Delo Gold Ultra 15w-40

Its genuine engine was 3L and the replaced one is also 3L but noticed that replaced engine is from Hiace. Concluded this because its engine oil filter is on driver side and installed filter is 90915-TD004 which is usually known as Hiace filter. Need advice to lower its RPMs on higway. 95% on road use in middle Punjab. If it will allow, a trip to North once in a year.

Best Regards,
