Audio Guide For Dummies

malikatif42 (Malik Atif Waheed) 2012-08-29 16:11:21 +0500 #261

thank u so much bro for ur help..

this means that its better to run my sub on 4ohms instead of 2?

civic7 (civic7) 2012-08-29 16:16:25 +0500 #262

Bro plz suggest me speakers for my new city with navigation. I don't want to install Amplifier So plz suggest speakers for front door and rear doors which sounds fine with stock navigation.

Sent from my GT-I9100 using Tapatalk 2

Bad_Cheetah (Bad_Cheetah) 2012-08-29 16:18:04 +0500 #263

No problem,

That depends on the sub-woofer actually, whether it is Single 4 ohm voice coil, Dual 4 ohm voice coil which could be power at 2 or 8 ohm or Dual 2 ohm voice coils which are to be powered at 4 or 1 ohm

If you have a D4, which is to be powered at 2 or 8 ohm then i would advise you get a mono amplifier, or get a sub which is S4 or D4.

Correction Edited about Specs.

Bad_Cheetah (Bad_Cheetah) 2012-08-29 16:20:37 +0500 #264

Depends on budget, Get a good pair of Components for the front and coaxials for the rear, Sony are the cheapest, would cost around 8k for both front and rear set.

civic7 (civic7) 2012-08-29 16:47:06 +0500 #265

@Bad_Cheetah
Bro I have no knowledge of Components and coaxial. Please guide me. A shopkeeper ask me for Pioneer TS1674S. How they are.

Sent from my GT-I9100 using Tapatalk 2

malikatif42 (Malik Atif Waheed) 2012-08-29 17:15:16 +0500 #266

bro i have a pioneer sub TS-W307D4 with 2 voice coils of 4ohms each. following is the product details page
TS-W307D2|D4 - 12" Champion Series Subwoofers with 1200 Watts Max. Power | Pioneer Electronics USA

i have a pre of pioneer 6800MP. product details as follows
DEH-P6800MP - Using our 7-Way Rotary Commander makes controlling a CD Receiver easier | Pioneer Electronics USA

and i have two kenwood 718 speakers as well. and my amp is solid audio 500 watts 4ch

my car is nissan cedric, pictures of similar car is attached. mine is without CNG

now i have connected my 718 speakers to my amp's rear channels on LPF crossovers, bass from amp is off only volume is opened so speakers only gives sound without bass

i connected my sub in parallel wiring for 2ohms load. it is connected to amp's front channel on HPS crossover . with bass settings normal. MY AMP WAS HEATING VERY MUCH but it dosent go to protection mode. can my amp takes up 2ohms load?

since my car is very big so i want sound with good loudness and bass. can u guide me what should i do. i dnt want to spent more . may be there is sum problem with settings

Bad_Cheetah (Bad_Cheetah) 2012-08-29 23:24:01 +0500 #267

malikatif42;3510364:

bro i have a pioneer sub TS-W307D4 with 2 voice coils of 4ohms each. following is the product details page
TS-W307D2|D4 - 12" Champion Series Subwoofers with 1200 Watts Max. Power | Pioneer Electronics USA

i have a pre of pioneer 6800MP. product details as follows
DEH-P6800MP - Using our 7-Way Rotary Commander makes controlling a CD Receiver easier | Pioneer Electronics USA

and i have two kenwood 718 speakers as well. and my amp is solid audio 500 watts 4ch

my car is nissan cedric, pictures of similar car is attached. mine is without CNG

now i have connected my 718 speakers to my amp's rear channels on LPF crossovers, bass from amp is off only volume is opened so speakers only gives sound without bass

i connected my sub in parallel wiring for 2ohms load. it is connected to amp's front channel on HPS crossover . with bass settings normal. MY AMP WAS HEATING VERY MUCH but it dosent go to protection mode. can my amp takes up 2ohms load?

since my car is very big so i want sound with good loudness and bass. can u guide me what should i do. i dnt want to spent more . may be there is sum problem with settings

Bro you D4 could be wired at 2 and 8 ohm, but Sub-woofers are meant to run on LPF and speakers are meant to run on HPF, a generic value is 80hz filters for both, try changing the settings, it might help.

Put you speakers on HPF and sub-woofer on LPF, get rid of any artificial effects from the amplifier, instead use your HU to set any filters(HPF, LPF)

But since its meant to run at 2 or 8 ohms load, i doubt your amplifier is capable f running at 2 ohm load in bridged more, and single channel's rms value wont be enough to power the sub good.

Get a mono block i would advise or get a S4 or D2 subwoofer.

civic7 (civic7) 2012-08-30 05:13:41 +0500 #268

OKKK. google help me....thanx

malikatif42 (Malik Atif Waheed) 2012-08-30 09:15:16 +0500 #269

sory it was my mistake . speakers on hpf and woofer on lps

my 4 channel amp has two sides rear and front. both sides has two two channels. if i connect my subs voice coils separately (without parallel or series wiring) to my amps one side (front two channels) it will make a 4ohm load and since it is connected on channels of one side so the bass , gain etc wil be same for both voice coils of sub. is it posiible?

roms (roms) 2012-08-31 05:12:26 +0500 #270

Yes it is possible to blow your voice coils. Never ever attempt to do that. Some high end amps gives the flexibility of this only

xzanx (xzanx) 2012-09-12 15:18:07 +0500 #271

suggest me rear speakers for xli 2012 without using amplifier

taz_rulez (taz_rulez) 2012-09-12 20:10:46 +0500 #272

Need advice .. i need a complete sound system for my car.. i tend more towards JVC.. can you please guide me in getting the best combination of Speakers and Pre (Amp & woofer later but you can suggest now) in minimum budget .. may be around 10k ... !!! i need quality sound with quality bass...!! (not loud sound.. i need quality!)

madhouse12 (madhouse12) 2012-09-13 02:50:56 +0500 #273

increase ur budget a little more if you want quality. add around 5-6k to it and get jvc 6957 speakers with a good player with atleast 2 rca out. ur current budget is not enough to buy u speakers and player

yawar538 (yawar538) 2012-09-13 06:14:07 +0500 #274

the swift OEM unit has 1 rca that would be for the comps. so if i want to add a sub should i go for these? (to increase the rca)
Phonocar 4/136 High Level Adaptor

taz_rulez (taz_rulez) 2012-09-14 18:21:52 +0500 #275

can you tell me the price of the speakers and what player will you suggest with it... price of that too..!

yawar538 (yawar538) 2012-09-20 05:40:21 +0500 #277

Comp: Pioneer with D1720c 9k
Amp: Pioneer GM 3500T 5-6k or any other amp in the same budget (2ch)
Wiring: Suggest please 2k

jiney (jiney) 2012-09-26 03:58:03 +0500 #278

Discount Sexy Babydolls on sexy-lingerie-supplier.com for sale, wholesale Sexy Babydolls, Cheap Sexy Babydolls, plus size Sexy Babydolls, Any thing won't make you sexy if you don't feel sexy by yourselves.

Package Included: sexy babydolls and G-string

Intro:sexy babydolls, Flirty dress set,new style sexy sexy babydolls, comfortable to wear, sexy costume, sexy lingerie fashion style,high quality。 you will like! come on!

Fiber splitter,pigtail,Inline polarizer- advanced fiber resources

yawar538 (yawar538) 2012-09-27 13:36:57 +0500 #279

Found a better combo and finally got it installed. Special thanks to Ali @smartboy_am

Components: Infinity Reference 6030cs

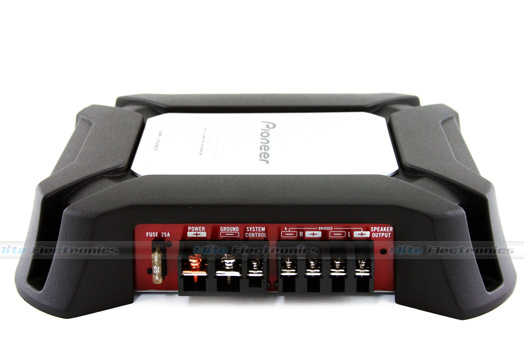

Amplifier: Pioneer GM-3500T

Wiring: Zamix 8g

Car in consideration was Suzuki Swift DLX with built-in Alpine head-unit in dash. Loving the details out of the comps.

DrShaggy (DrShaggy) 2012-09-27 14:38:31 +0500 #280

Congrats

taz_rulez (taz_rulez) 2012-09-27 14:48:23 +0500 #281

the amp looks so cool <3 . Congratss
