Best ecu for jdm d15b single vtec

[pwuser162720099997]

Aoa, recently I swapped a jdm d15b single vtec (7th gen) in EG95. The engine was taken from an automatic transmission and attached with a manual gearbox. What's the best ecu for performace+economy? Currently, using the automatic ecu but it somehow doesn't feel right in terms of pick and it's throwing out some codes as well. Thanks! (anyother helpful advice will be appreciated too)

[Hassan1991]

Wailaikum Assalam
P08 ecu.

[pwuser162720099997]

bhai do auto Japanese ecu pre ve, wo de k ye kitne tk aa jaega (coils wala engine hai, edited the post as well? Thans )

[Hassan1991]

p08 is for distributor based d15b
Just get the same code ecu but manual. Would be expensive as p08 is.

[pwuser162720099997]

same code? should I find p08 manual one or the manual version of the one I'm currently using 37820-PLE-J81? (sorry as I'm new to this)

[Hassan1991]

You have to find PLE ecu but manual.
Manual ecu got less connectors it can be easily differentiate.

[pwuser162720099997]

[pwuser162720099997]

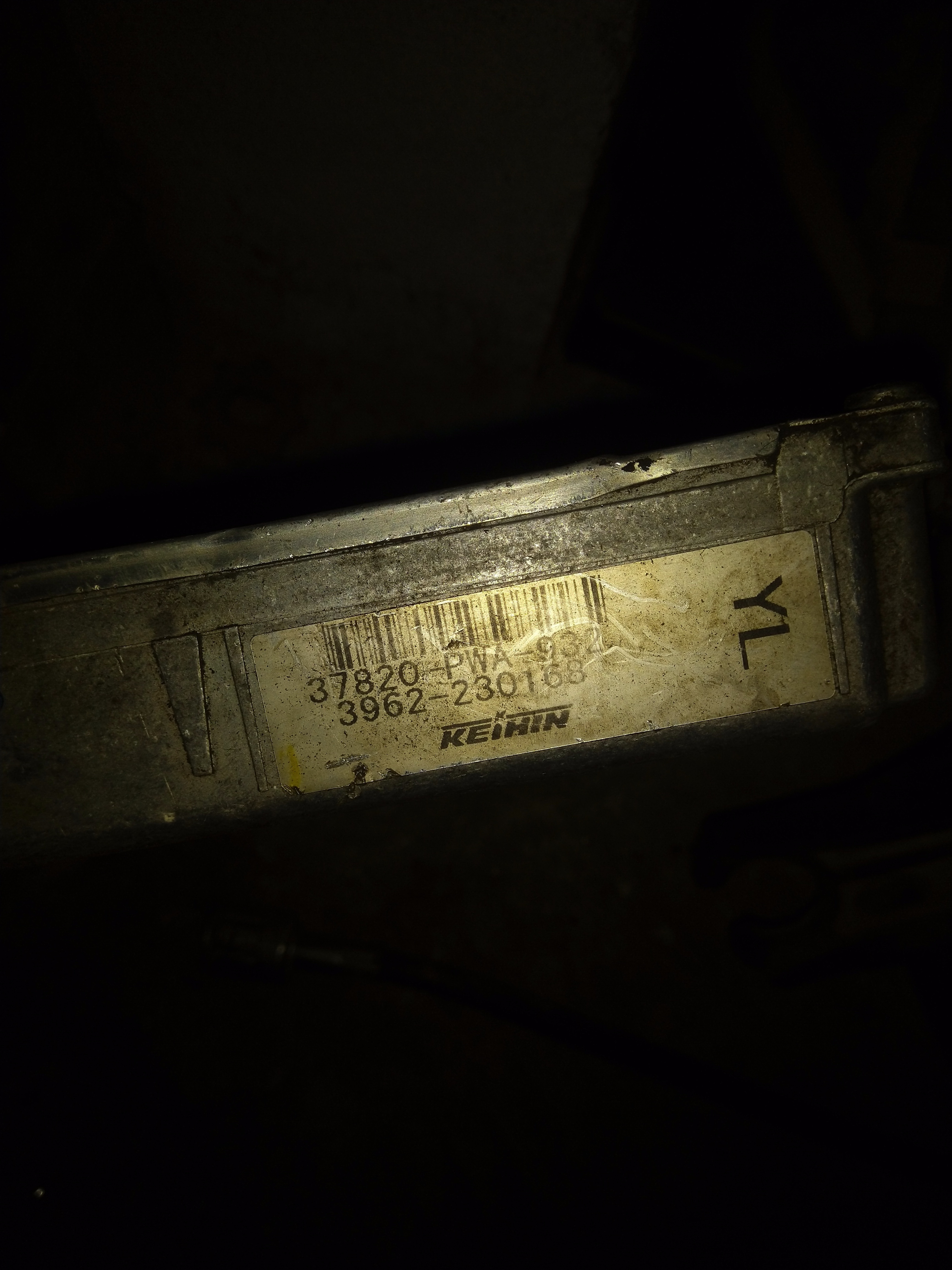

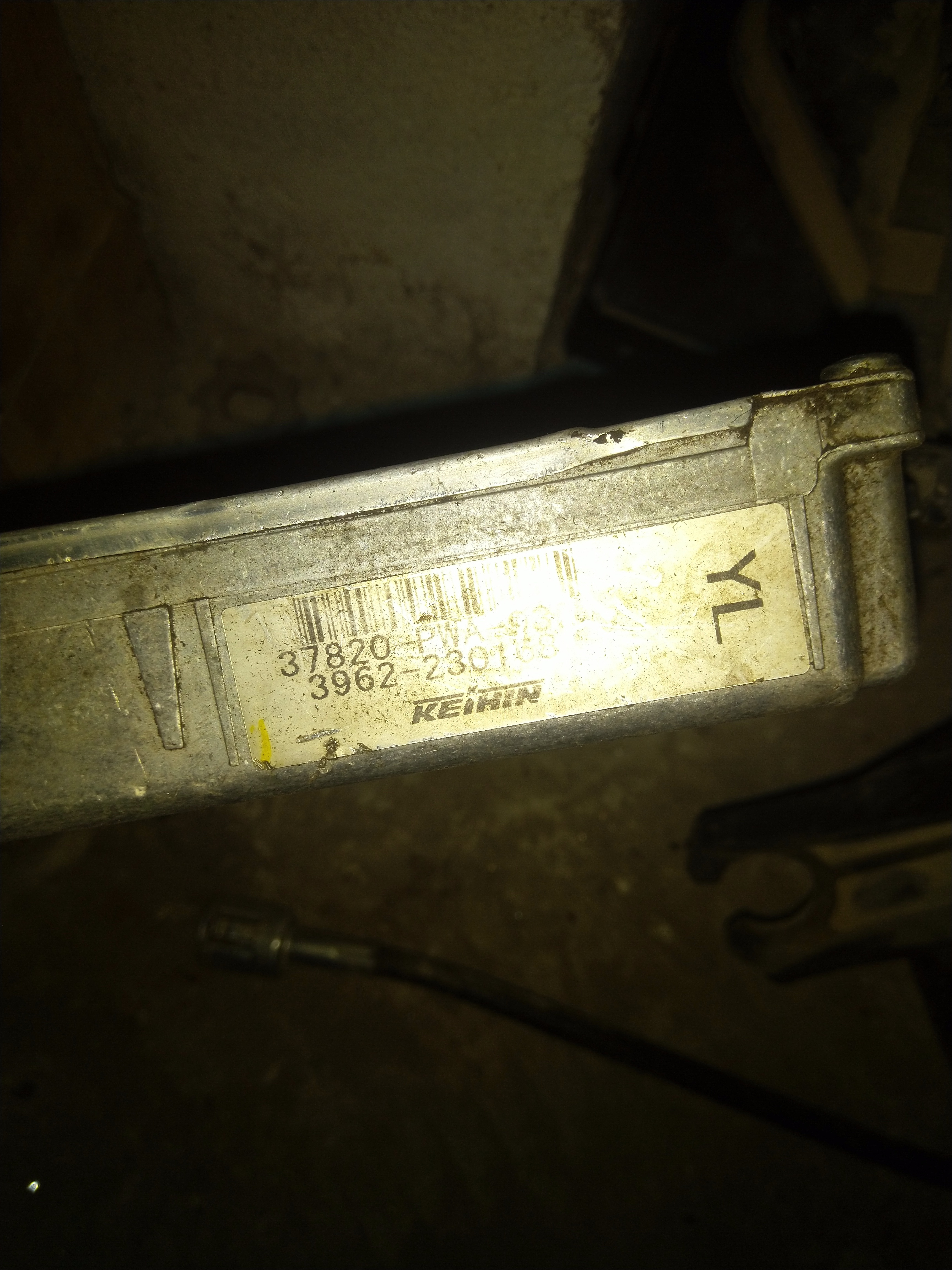

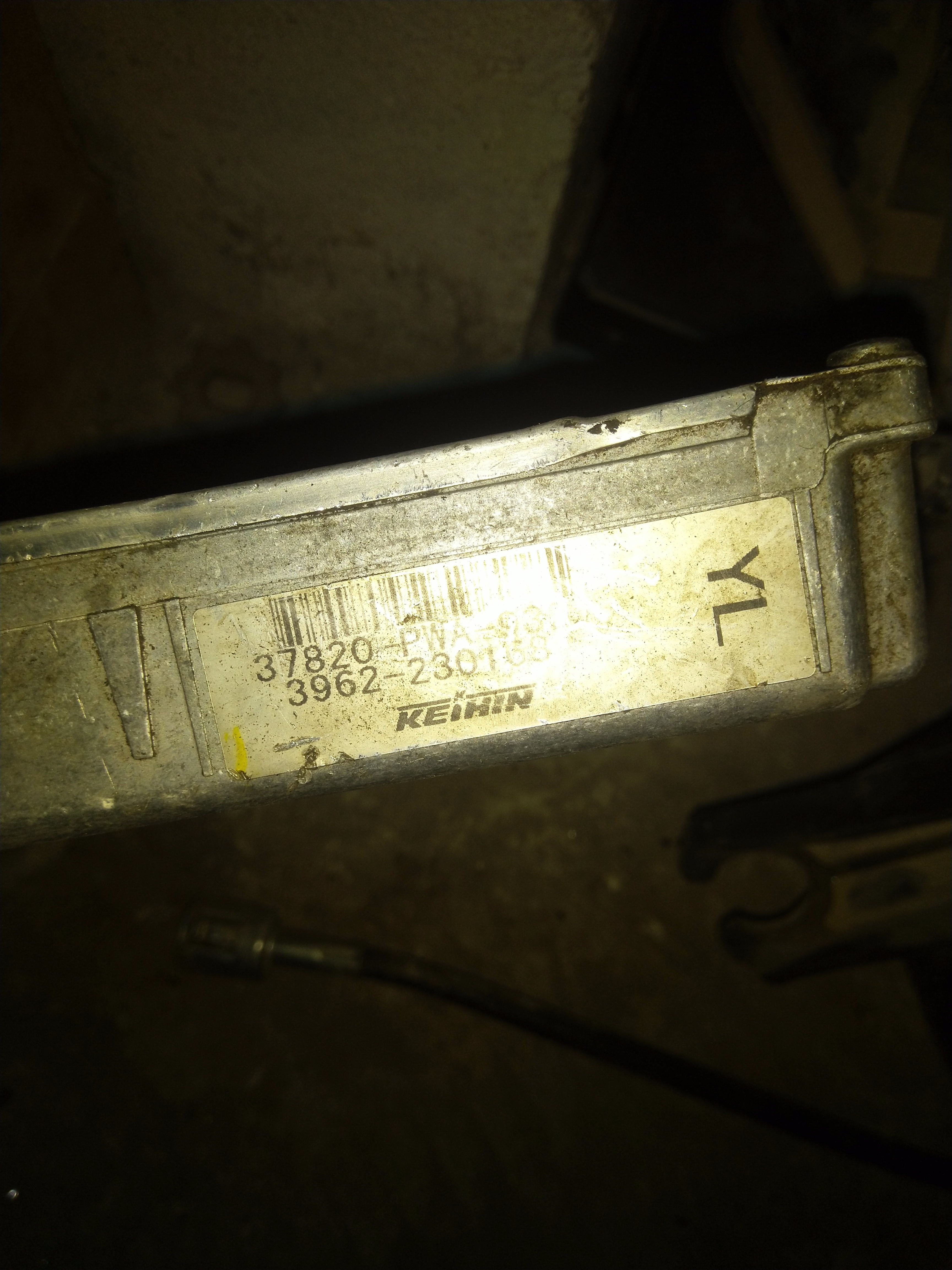

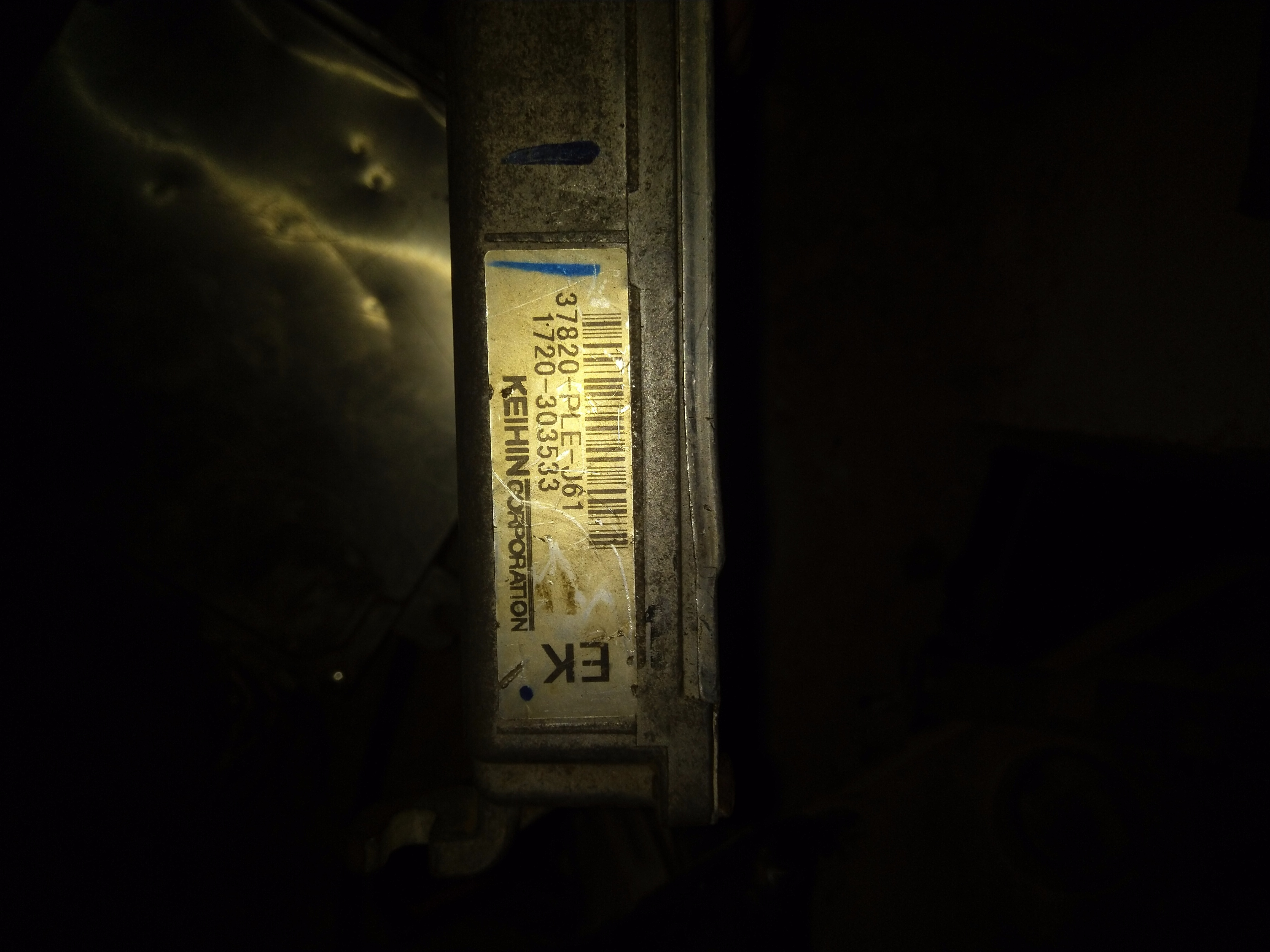

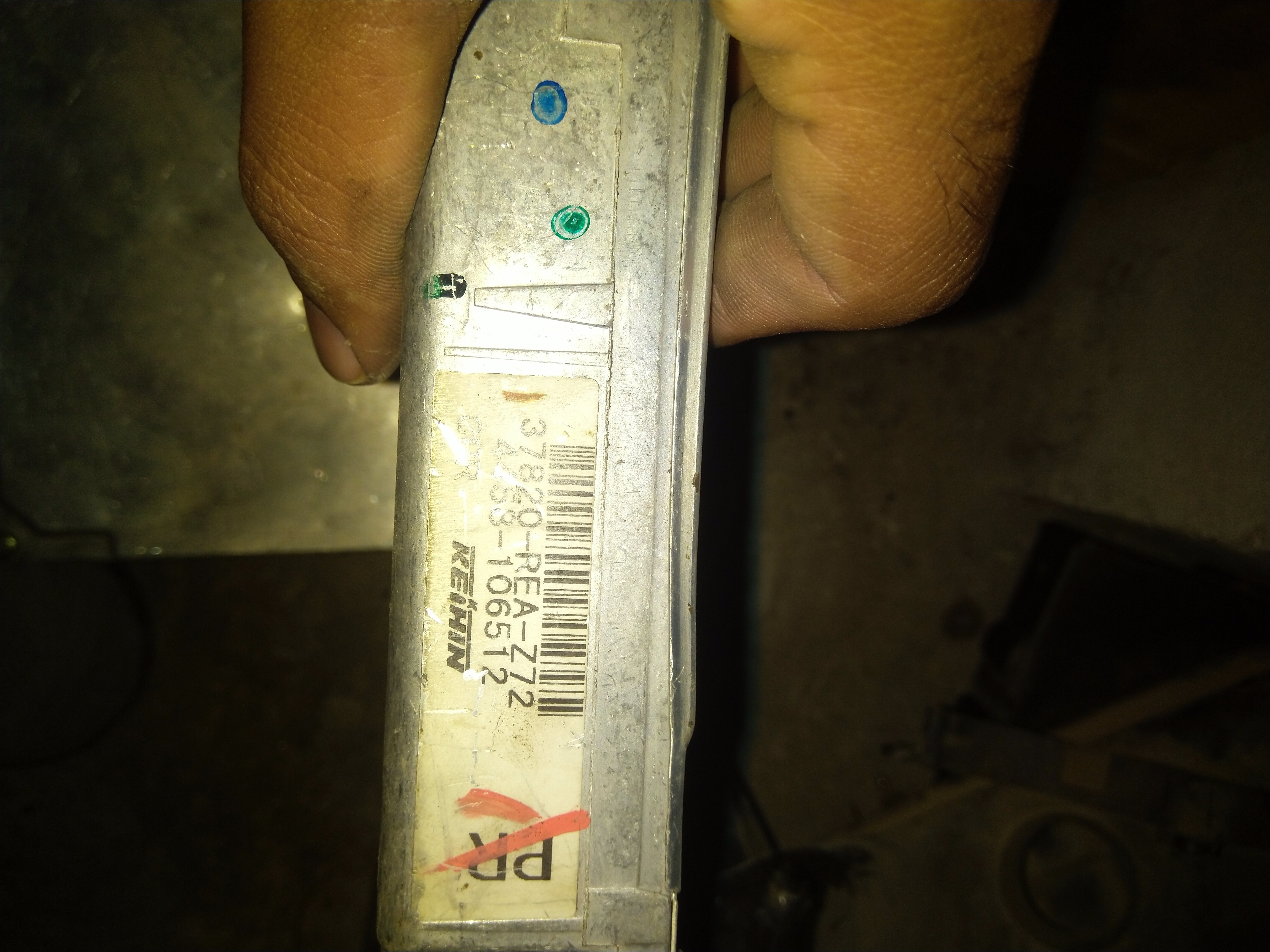

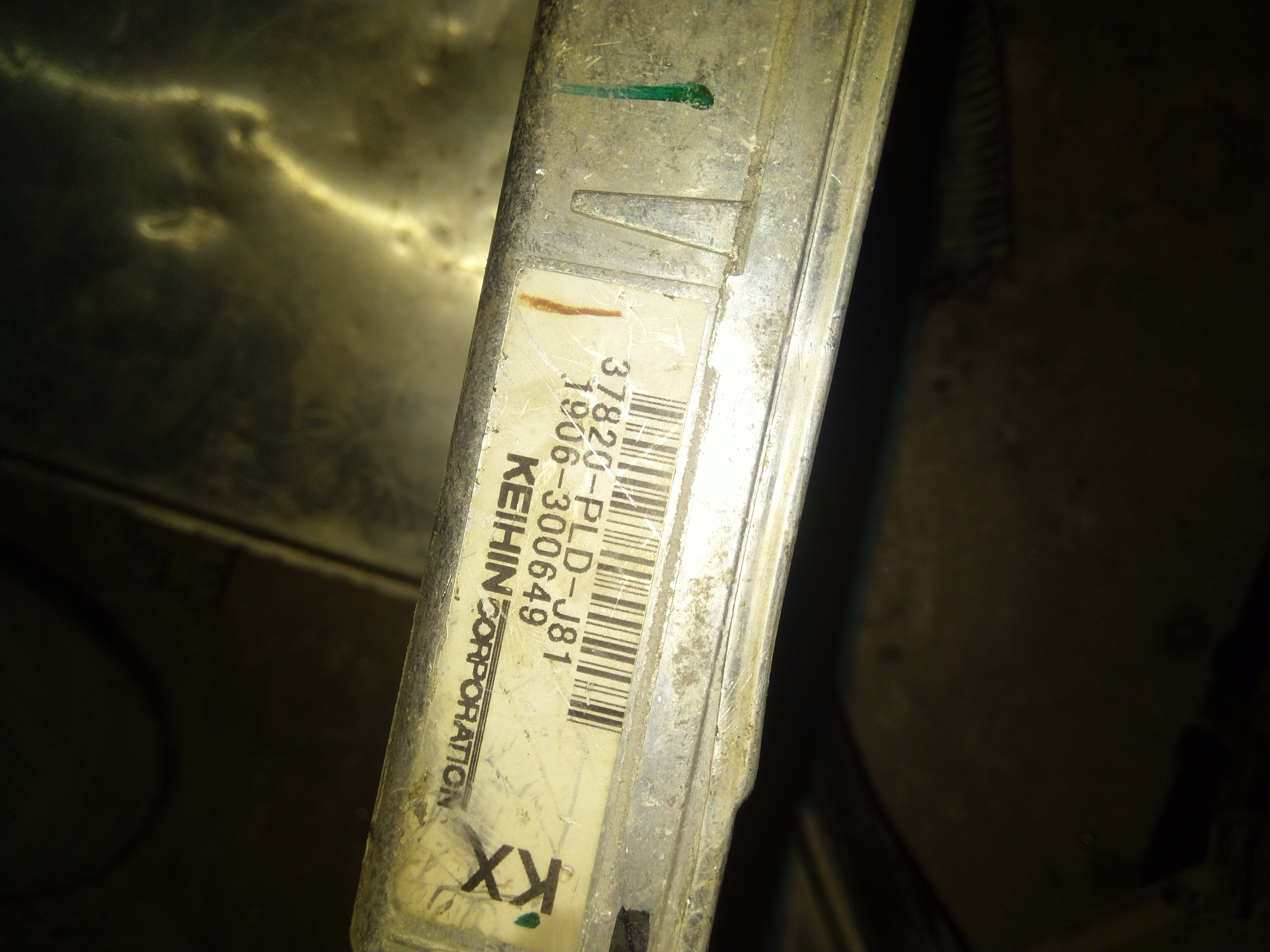

So I went somewhere and found these... any one of them which worth trying ???

[Hassan1991]

You can differentiate manual ecu from part number as well.
for example
37820-PLE-J61
Here J61 represents auto ecu
Manual would have the middle character 0 or not higher then 4 for example J01 would be manual ecu.
From the pictures you shared ( which are visible) neither of them is manual.

[pwuser162720099997]

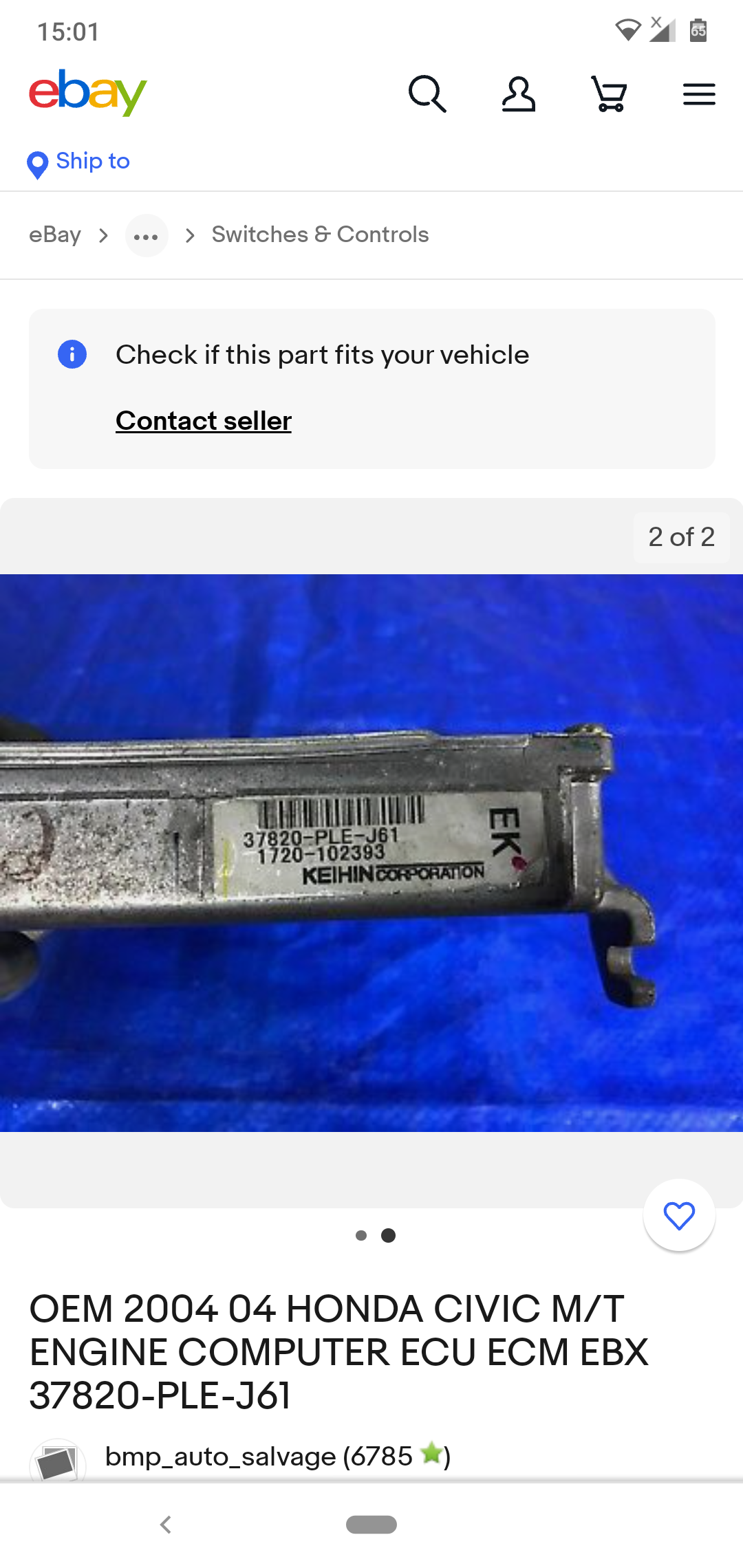

Thanks. But there is a confusion (atleast I have it). The same code ecu (37820-PLE-J61) is listed as a "manual transmission" at ebay...

[Hassan1991]

Don't believe everything on ebay.
You can hook up an obd2 scanner for transmission error codes. If it's from auto transmission it will be throwing some codes.

[pwuser162720099997]

Ok, so there may be a slight chance that it's (ple j61) from manual transmission. I should attach that ple j61 and run a scan for codes for proper diagnosis...?

[Hassan1991]

J61 represent it to be auto but yes scan it.

[pwuser162720099997]

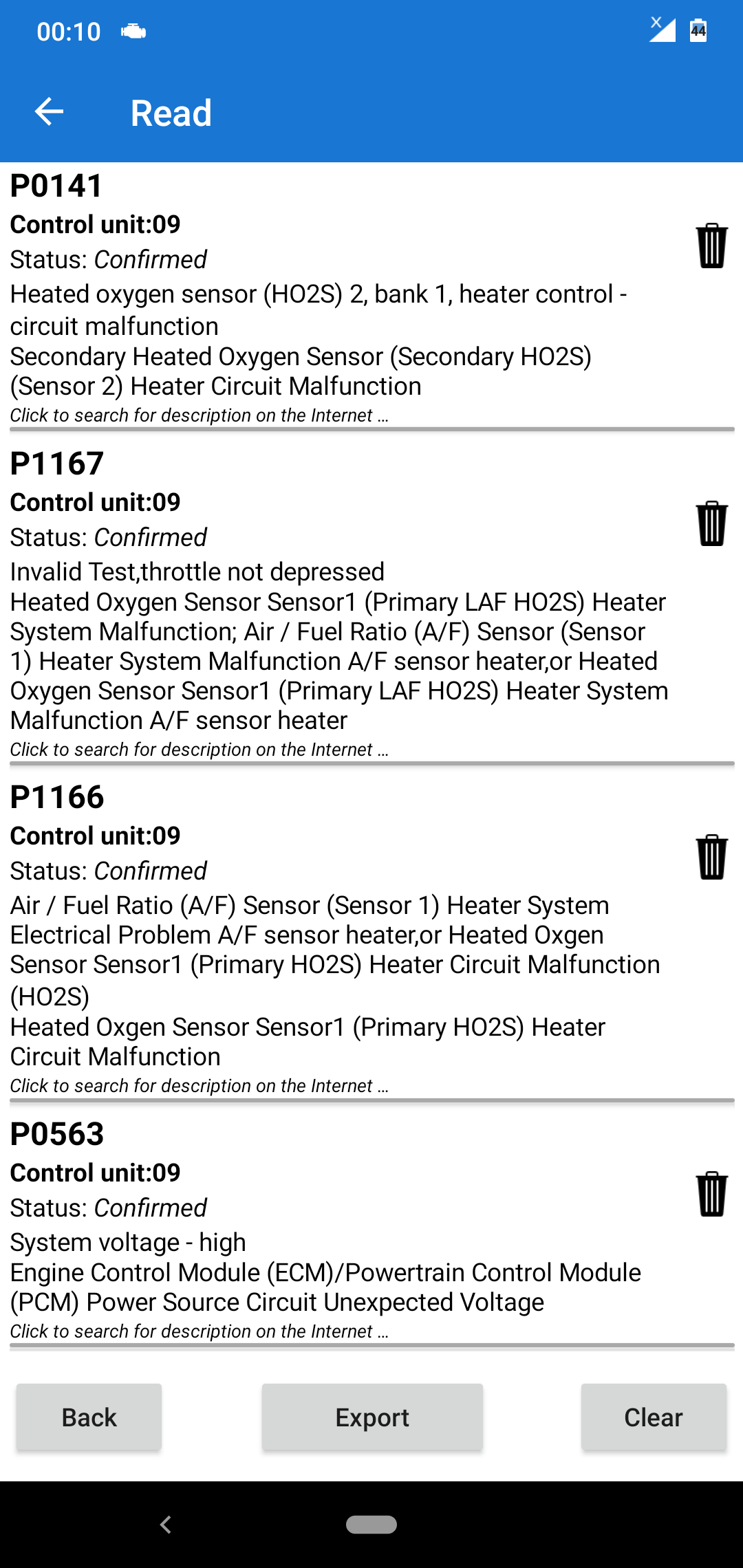

I scanned it (37820-ple-j61), luckily
1. no code is related to transmission (but there r plenty of others though)
2. while driving, it gets locked to about 4200 rpm

What may be the issue(s) ?

[pwuser162720099997]

[Hassan1991]

What were the codes?
Car is in limp mode.

[pwuser162720099997]

Hassan bhai, kya solution hai phr in sb laanjhon ka ?

[Hassan1991]

Does it has o2 or fuel trim pot?

[pwuser162720099997]

o2 i guess but im not sure, attaching engine pic if helpful

[Hassan1991]

Can't see an o2.
Whereas ecu is looking for an o2.
