Cam setting through distributor positioning

[abid110]

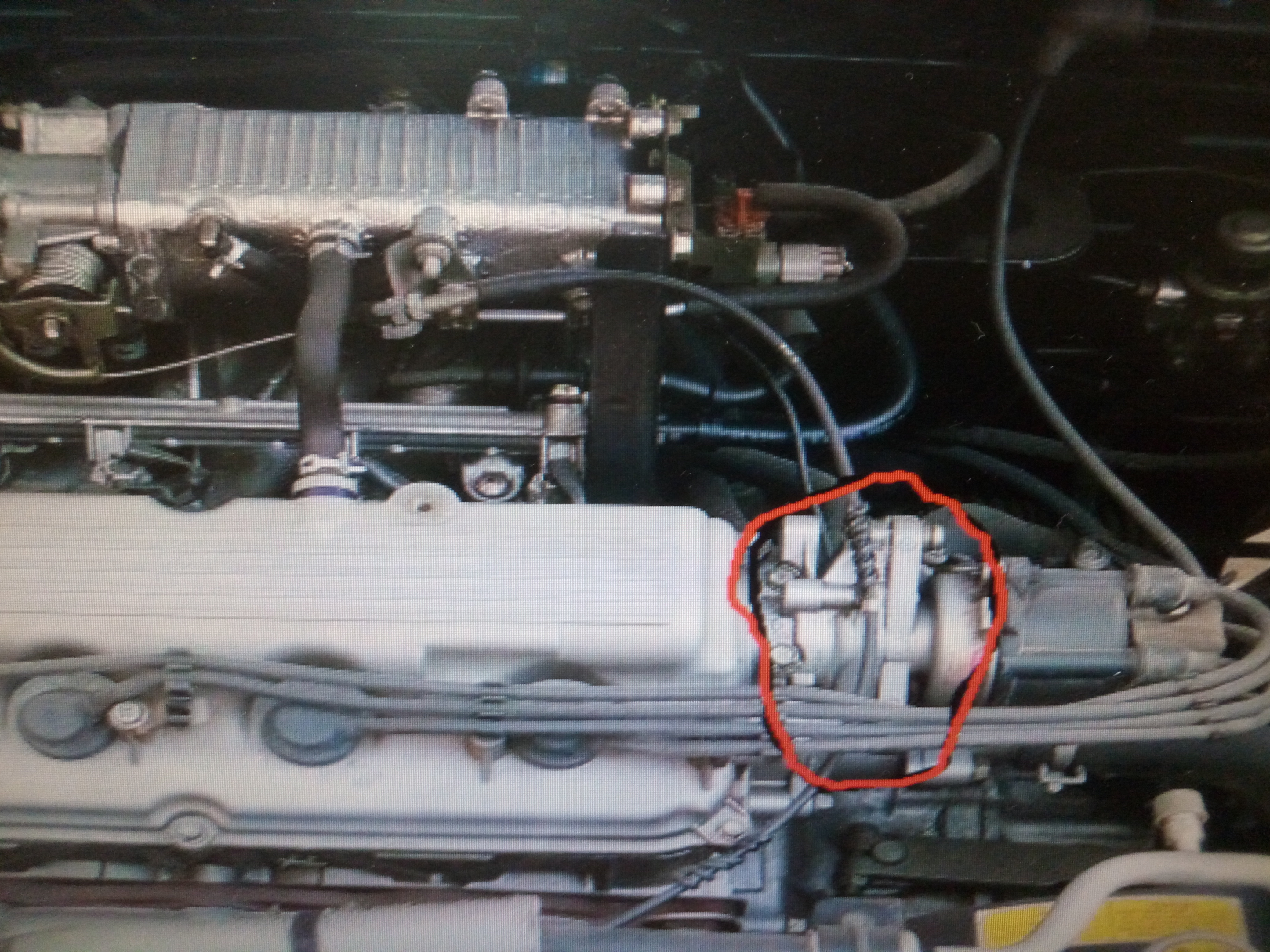

Dear all, please tell me what happens when the distributer position is rotated from this point? There are two screw types which are undone, and the distributor is rotated clockwise/anti and cam is set...what does this thing mean? What should be position for petrol and cng? Plz elaborate

Uploading...

[abid110]

Talking about this

[hassantahir2]

Ignition Timing is adjusted by moving distributor clockwise / anti-clockwise..
I think by moving it anti-clockwise the timing is retarded and by moving it clockwise it's advanced.

[abid110]

So what does it mean w.r.t mileage on cng and petrol? Also, what effect on pick of car?

[atif.riaz.585]

anyone?

[akram801]

[aminjafer5441]

This is for 3 cylinder engine, the EFI cultus in Pakistan has four cylinders plus it does not have vacuum advancer.

[aminjafer5441]

For CNG timing is kept a bit advance. Advance timing usually increases the pick of a car to a certain point and also might increase the idle rpm, you will have to allow the ECU to relearn the idle. But this will also cause knocking on petrol when engine is under load. For increased mileage maybe a little advance would help.

[akram801]

I am looking for g10b repair manual myself but couldn't find anywhere.
Have you ignition timing details for g10b?

[RehanBhatti]

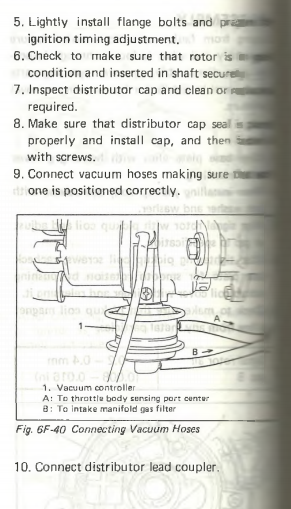

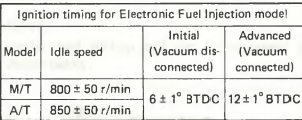

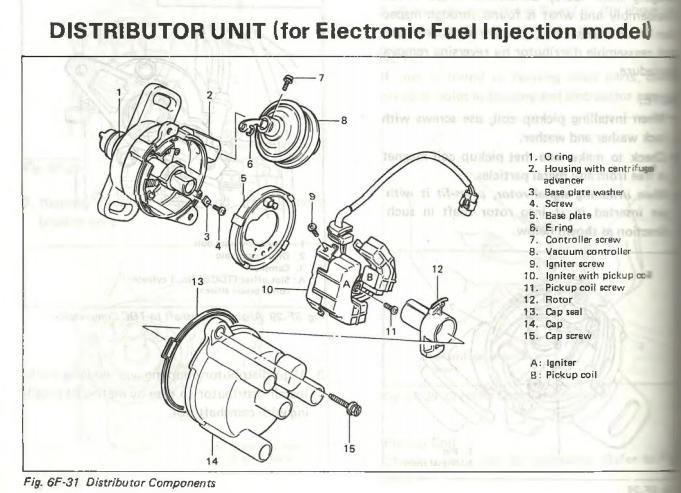

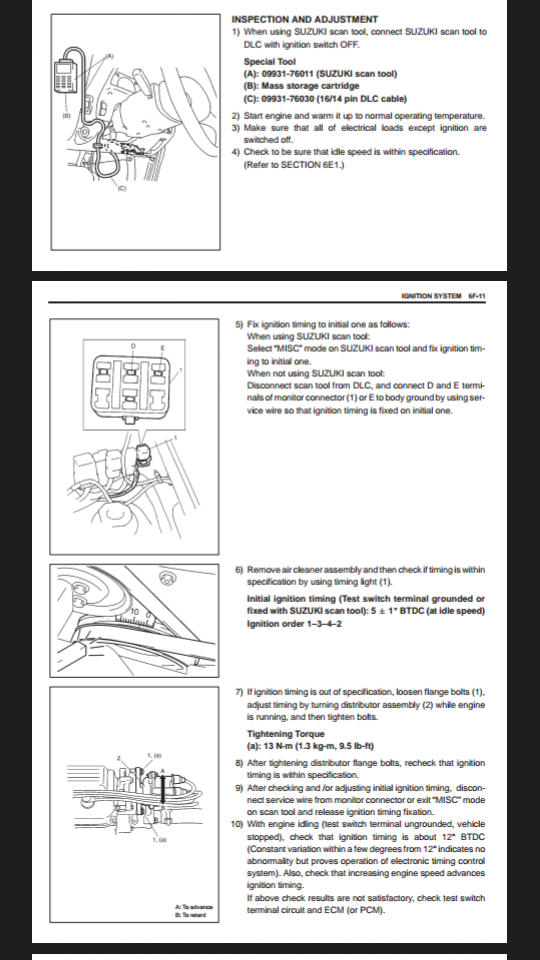

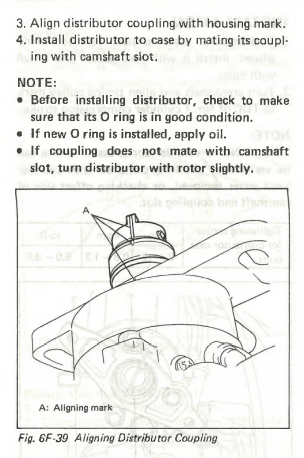

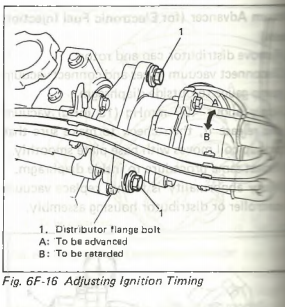

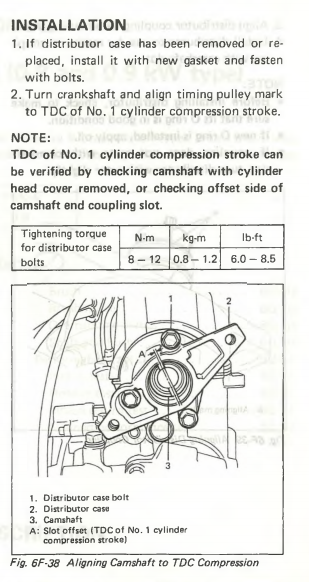

Here it is, sorry for bad pic.I hope you can read it.

[aminjafer5441]

I think you'll need a timing gun for this. Do note that it's an expensive tool

[RehanBhatti]

Yes. And it can be done with the help of an ECU scanner too.

[engnr.mubashir]

If I would you, would definitely go with Suzuki dealership for timing because no one can adjust it better.

[uxmanxafar]

What tool is used to loosen the screwws of that ??
Can you plz name that so I may bought it from shop ..
Thanks
