Corolla 1.6 Gli AC Compressor dual sensor

[pwuser15975092989]

Deal all fellows,
Assalamolikum,
I have a 2013 Toyota Corolla 1.6 Gli Auto having dual sensor compressor which is not working. I have tried lots of different shops and all of them give different and unique options. Any help as it’s not available anywhere. Anyone had a similar problem

[behram.ali]

Wa alaikum salam
Hope you are well
You must contact toyota dealership for a genuine part replacement
Please do not go for aftermarket solutions as it wont work properly

[xenerking]

after this dual sensor comp failing, literally everyone will recommend u for replacing it with a clutch type compressor.

toyota people will ask u to change complete AC including comp, conden,evap, tx valve etc

let us know about the solution u chose and results.

[pwuser15975092989]

Bro ... you are right
I can’t choose among the options plz suggest
Company is making 150,000 solution and after market is cheeper and unreliable... plz suggest

[xenerking]

Bro wat r the options available with u?

Personally, im inclined towards getting the genuine comp. but even experienced ac guys are not in its favor.
I think after alteration, fuel consumption engine smoothness and vibration etc shall be effected because ecu wont be getting correct signal from sensors...

[pwuser15975092989]

The genuine part isn’t available with dealerships. The options are to either place an alternative compressor or to get the complete ac structure changed

[pwuser15975092989]

Dealership said it’s a rare compressor and due to pandemic the availability is not available.

[xenerking]

a guy recommended to use comp from duet which will also accommodate the sensors installed near pulley, in this way original sensor circuit will remain intact n ac wud work okay, didnt try myself

[pwuser152534163546]

I got compressor changed two year ago in altis 2012 they guy on tariq road put honda insight 2007 compressor kehein hsk 70 which fits bolt to bolt just need to change ac belt from 6 Grove to 4 grove and performance was more than original nee corolla and costed 18k including in evaporator change
Orignol will cost at least 65k compressor only you can't use orignol kabli of same type due to mismatch with ecu

[humayun.chughtai.7]

Honda insight compressor is also sensor type or its clutch based.

[pwuser152534163546]

Its clutch type but load is negligible no effect on fuel economy in my experience this compressor is scroll type so load is less second optiom is 2003 corolla compressor that will be a bit expensive soln will cost bit more
Original is simply very expensive but yea do if you spend

[pwuser152534163546]

Best is find good technician who knows what he is doing if you are in Karachi tariq road people are expert i got it done by ice cool mr.maqsood but there are others too just try to find the guy who is famous there is i think sanden ac official guy also bashir is famous

[xenerking]

[xenerking]

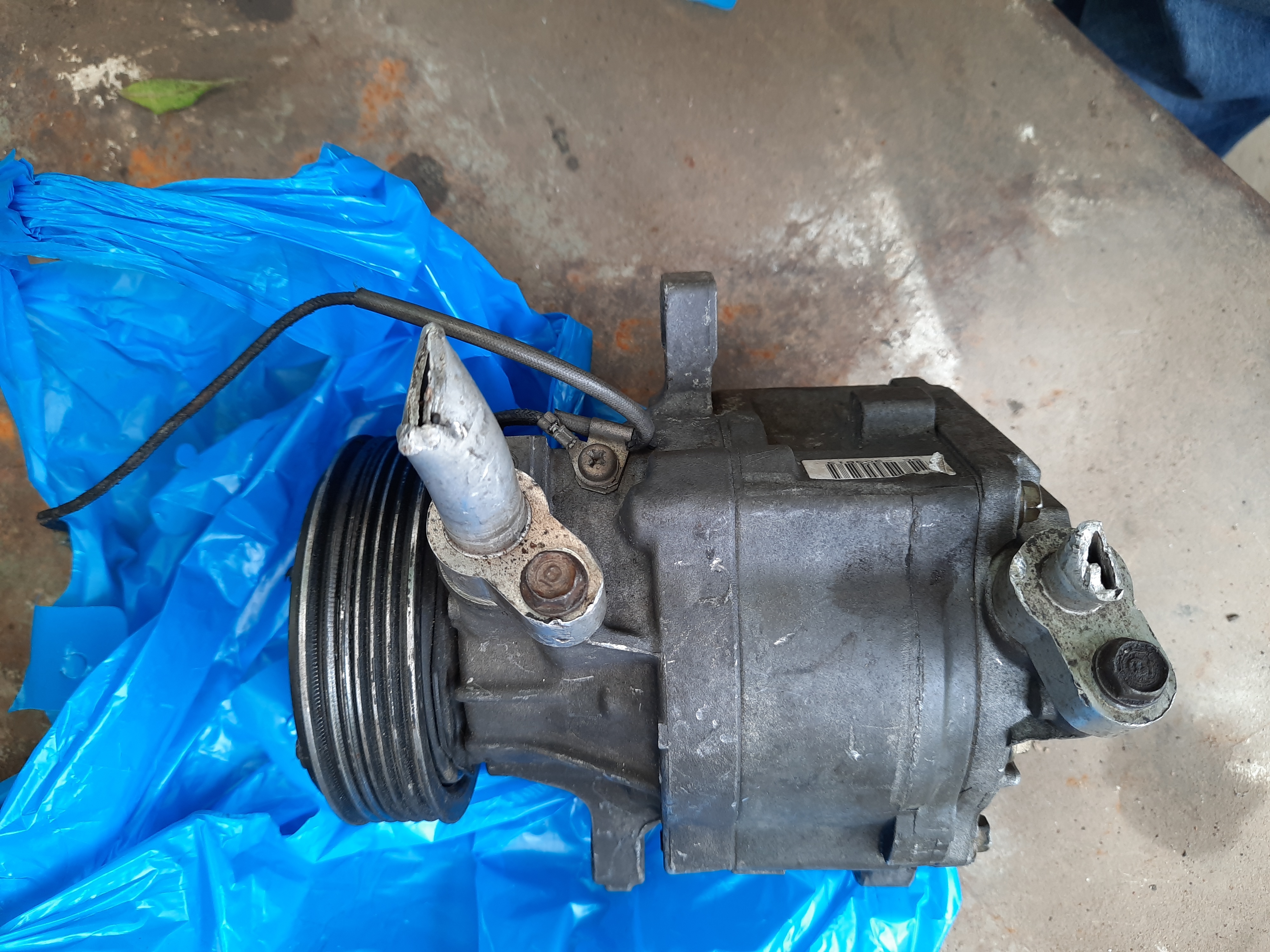

duet compressor, having same spec as original compressor so nobquestion abt ac performance its fitted with a ready madr bracket and same belt is used same ac piping is used after some bend adjustment

[xenerking]

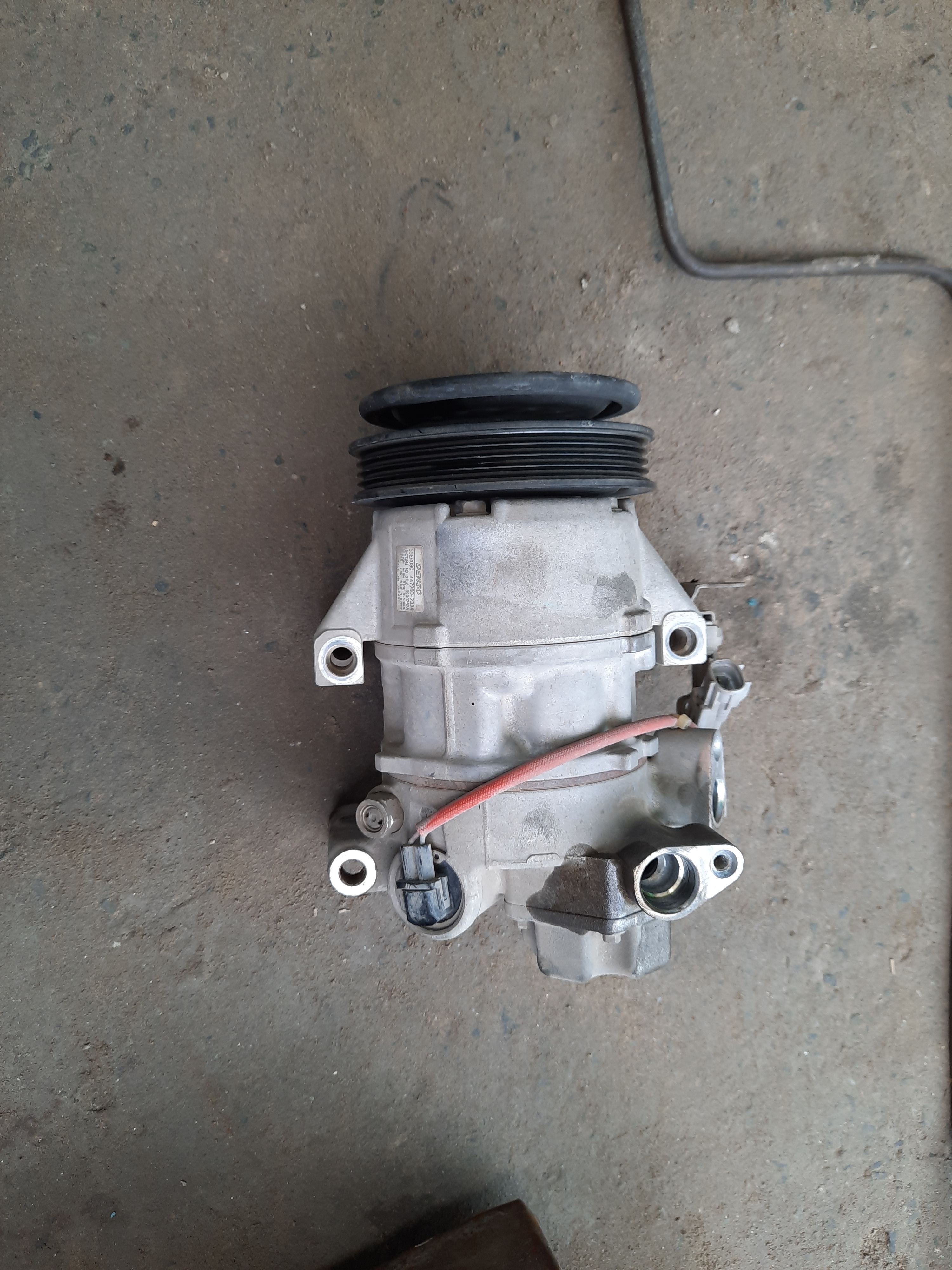

Original comp, cooling was okay but tripping issue

[xenerking]

pulse sensor was taken of from original compressor n installed with new one to make sure no alteration in wiring is done n no check engine warning
