Cultus 2006 ignition fuse problem

ahsan.pmd (Syed Ahsan Ali Bokhari) 2023-06-09 09:47:05 +0500 #1

The main fuse, which is for Ignition system and gauges, warning lights etc. melts again and again due to heating. The point where fuse is installed has also melted. I got it checked by electrician, but he was not able to identify any issue.
Can someone please guide how to diagnose the problem?

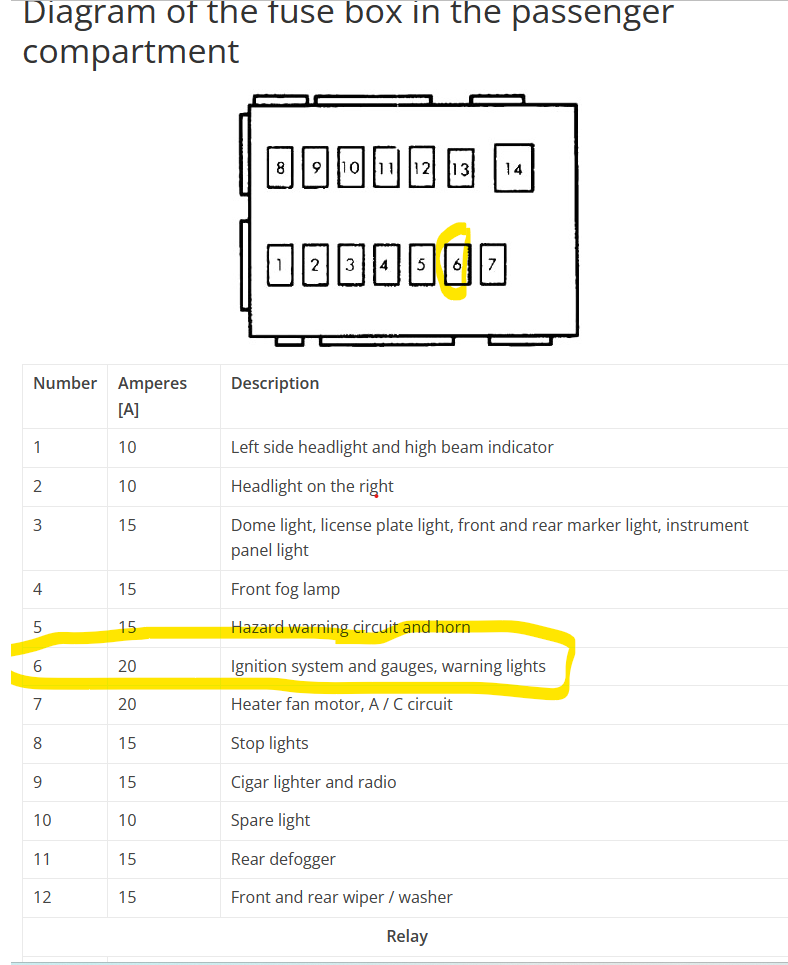

Attached picture should the position of fuse I am referring to.

Hassan1991 (Electrical Engineer ) 2023-06-09 14:24:42 +0500 #2

Any aftermarket accessory installed?

ahsan.pmd (Syed Ahsan Ali Bokhari) 2023-06-12 07:47:13 +0500 #3

Its an old car with lot of alternations over the course of its life. But mainly parking/fog lights are installed only. The fuse melts despite the parking or fog lights are running or not.

helper_learner (helper_learner) 2023-06-12 16:07:15 +0500 #4

Some sort of Grounding of Ignition wire, Check for any tape wiring.
