Cultus 2008 tp sensor

[taimoor.ahmed810]

Hi every one , I want to buy genion tp sensor , currently I my car has Kabali tp sensor which set at 0.51 and max volt is 0.60 , I want to buy origal one from chah sultan , so question is , does any one have image of cultus original tp sensor or it number , and some one says that cultus tp genion set at .82 volt, I is true,?
And do I check it's multi meter the tp sensor because or market I need to check many sensors so it's easy to use volt meter, currently tp sensor give just 8km per liter and if I reduce the volt its peak up gone.

[taimoor.ahmed810]

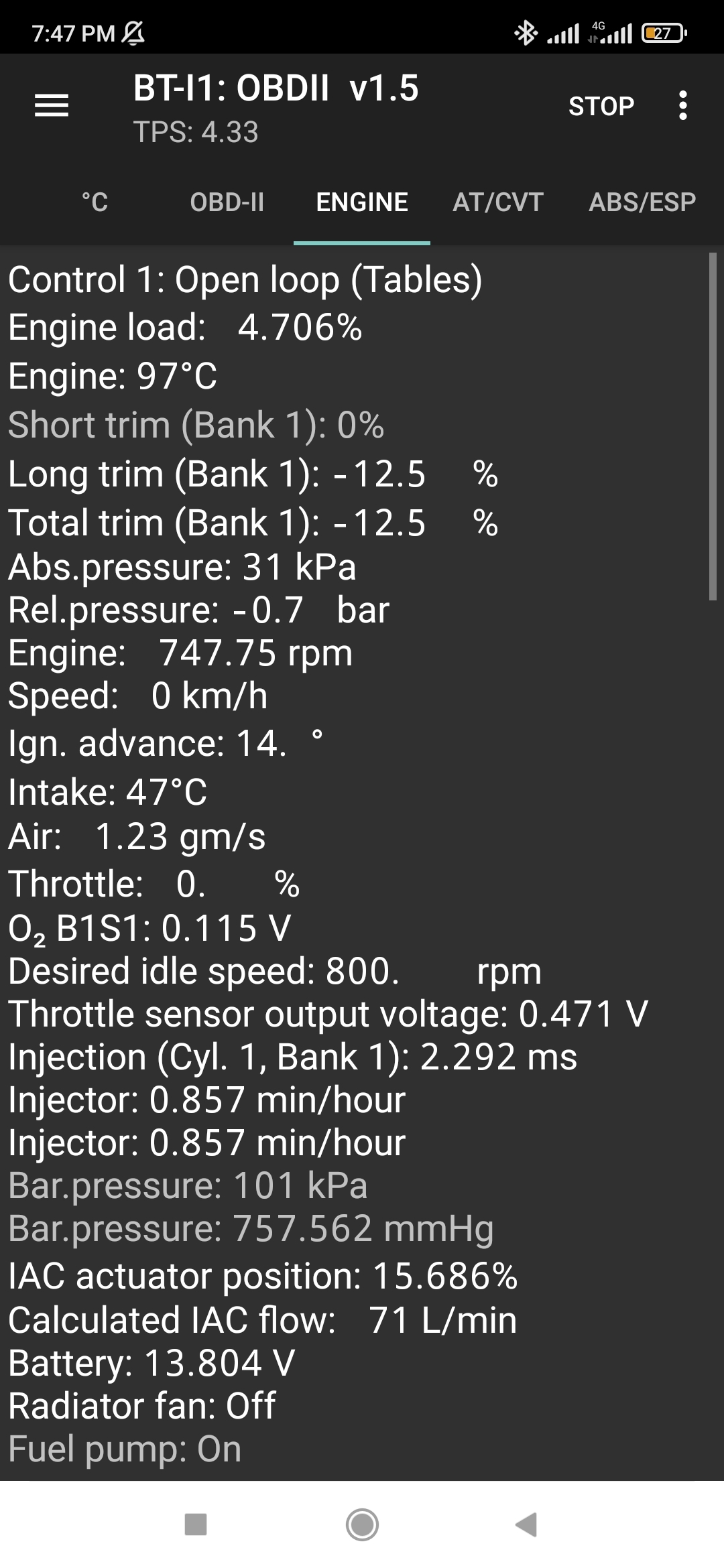

Without AC

[taimoor.ahmed810]

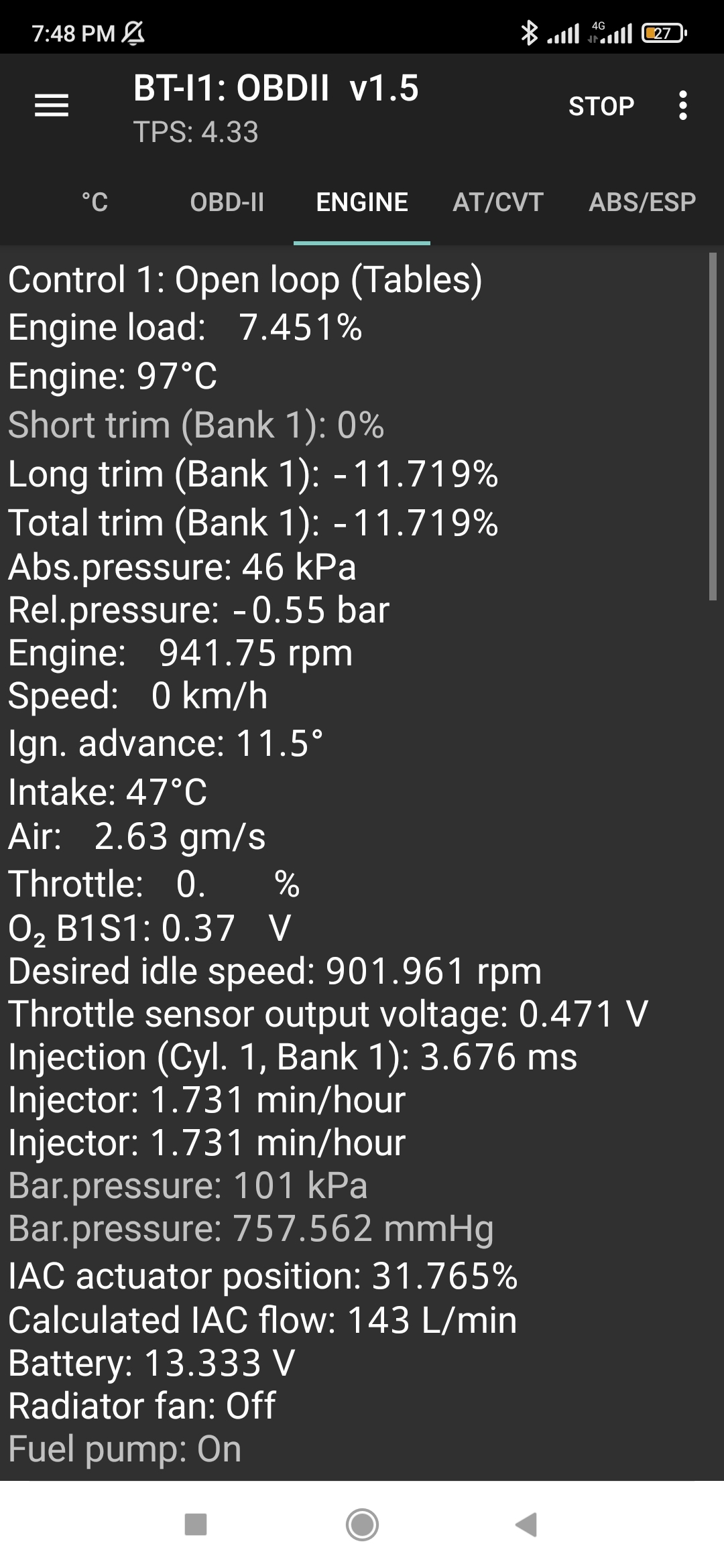

With ac on idle

[helper_learner]

@hassan1991

[taimoor.ahmed810]

Sir please me know the best setting for iAc value

[taimoor.ahmed810]

@hassan1991 sir you help is need thanks

[Hassan1991]

Set the tps between 0.82-0.87 volts.
Go to the scrap yard in your area; you can find the original tps or you can buy a new one. It has 4 wire tps, as I remember.

[taimoor.ahmed810]

Sir thank you so much for your help, sir cultus have 3 wires sensors, sir what is best IAC position percentage, currently it's set to 17% or 98 temp

[Hassan1991]

Ecu decides it according to engine load. Ecu chases the target rpm using iacv. Range is given in service manual If it goes out of range, then it's concerning otherwise, you're good.

[taimoor.ahmed810]

Sir problem I face is when AC trip, yesterday I set it 10% and when AC trip the rpm go high than comes to normal, but it's in this setting is when I accelerate the rpm go up and I remove foot from pedal and rpm down very slowly and few seconds stuck at 2000 rpm. Than I set it at 17% now the issue is opposite, when AC trip the rpm go down to 200 to 300 and than to normal take just a second but when I accelerate the pedal the rpm go up and back normal but wait few seconds at 2000 rpm than ,go normal,and few days ago the position is at 24% rpm working fine but when AC trip the car fluctuate, some time off the engine.,
So I want the best company setting on which car rpm behave normal and also no effect or little affect on ac trip, thanks @Hassan1991

[Hassan1991]

You advanced the IACV too much. Just bring it back to normal (in the center).

[taimoor.ahmed810]

Sir what is normal center percentage, that what I wants to know, thank you

[Hassan1991]

As I said, there's no constant value; it will be a range.
Set the iacv in the middle and let ECU deal with it.

[taimoor.ahmed810]

Thank you so much sir ️

[taimoor.ahmed810]

Sir last question, is Kabali tp sensor which set at 49 volt max in throttle and iAc value effect fuel mileage, and if I find the tp with 82 volt is this help in fuel mileage

[Hassan1991]

No, not that much.

[taimoor.ahmed810]

Thank you so much sir
