Cultus efi 08 model TPS/ Chock sensor issue

[user1122]

Asalamualaekum, meri gari ka aksar issue rhta hai jb sy li hai abnormal race rhti hai still nahi rhti.. or jb garam ho jaye 10 15 min bad to rpm 1 sey neechy jata aksar bnd bhi ho jati, or quick response nae dyti accelerate krtay huay, kafi mechanic ko dikhaya hai wo chup kr k sensor changekr dyty na kuch or dkhtay koe error nae ata, khyr mein last time ja k check krwaya same yhi kaha TPS sensor change ho ga etc etc, mein ghr aya throtle body utari sensor ko TPS sensor ko or throttle body ko petrol sey achi trf saaf kiya, usky bad jb wapis as it is lagai to gari start krtay hi rpm janab 5 6 py pncha hua, ab sensor utar k dekha chock ko bhi tps ko bhi lakin race full pnchi hoti hai k acceletar dyny ki zaroort nae prti,

Btayn ab kya kru

[Xulfiqar]

Apne mechanic tabdeel karein

[user1122]

2 3 bar kr chuka hu sir, rwp mein kisi mechanic ki smjh ni ati hr mechanic apni nae kahani sunata hai,

[Hassan1991]

let @dani_kk have a look.

[Xulfiqar]

Kahani sirf suzuki ki honi chahiye

Cultus suzuki ki kitaab se aik iqtebaas hai, agar aap ka karigar apni koi kahani sunae to unn se doori ikhtyaar karein.

[Xulfiqar]

Btw

Its a very simple diagnosis.

Is your car running cold all the time? And how many times has throttle body been cleaned yet?

[user1122]

hahaa rigght lakin masla yh hai k koe mechanic aik bat py to mutahiq hon aik kahta throttle body change krein aik kahta sensor kharab hai aik kahta saaray sensor aik jysy hi atay new lagwany ka faida nae hai, is scenario mein banda kya krey kis py yakeen kry, mny tung aa k forums py ja k youtube py khud cheezein dekhi aj service ki throtle bdy ki TPS sensor utara to beech mein usi seal hoti wo thee hi nae mein gya bazar seal ly k aa k fit ki petrol sey achy sy saaf kiya as it is wapis lga di, but jb start ki to rpm seedha 5 6 py, asoolan to normal 2 py hota hai or jb gari garam hoti to wapis 1.5 ya 1 py aa jata but yh ulta ho gya, nae smjh ari baqi app log btayn

[user1122]

2 dfa krwai thee, aj 3sri dfa khud kibut 3 dfa jo krwai inmein kafi months ka gapp tha

[user1122]

plz

[user1122]

mjhy yh bhi smjh ni ati, itni cultus phirti hain sb sy zada nazar ati aik chota sa masla kisi mechanic sey hal ni hora.....#RPM issue

[Xulfiqar]

efi cultus doesnt have "choke" - its an idle speed control motor. The engine rpm is managed by the ECU which controls cold start rpm via this motor, its base for knowing engine temperature is from the coolant temperature sensor. This is why I asked if the engine is running cold.

change your mechanic and head to someone who knows how to diagnose these.

Throwing parts and "petrol se safai" is a very quick way to empty pockets, a throttle position sensor should never ever be cleaned with petrol as it has carbon contacts inside which get dissolved by petrol. The idle motor spindle is lubricated, If washed with petrol it will remove this lube and wear down badly.

[user1122]

Mny youtube py hi dekha tha bahir ki videos thee mostly, they used to spray WD-40, so mny petrol use kiya, ptani iska kya solution hai..

[Xulfiqar]

sirf video dekhne se kaam nahi chalta,

aap ko iss ki thori internal workings ka bhi idea hona zaroori hai, wese to tiktok aur fb pe bhi aik se aik video hain car repair ke.

car phir chalay ya na chalay - wo aap ka tohfa hai.

[user1122]

Bilkul theek, once ill resolve the issue I will post it here

[RehanBhatti]

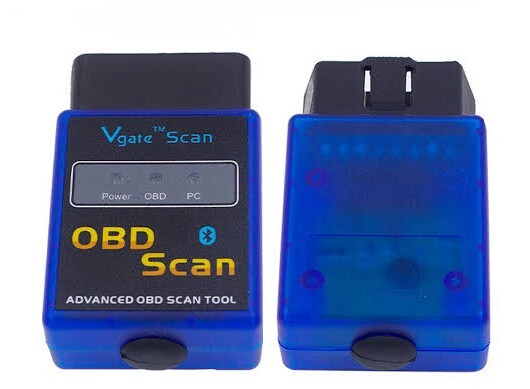

First of all buy a bluetooth scanner like Vgate Elm 327 version 1.5. It will cost you hardly Rs 1500. Down load an app SZVIEWER into your smart phone. Plug in the scanner in an obd port under your steering, close to the steering column. Just turn on your ignition switch and connect that scanner with your smart phone and when its connected and you see ecu perameters on your mobile screen then double tap your mobile screen. You will see some perameters like throttle position sensor voltage at idle. It should be around 0.80 volts. If not then loose TPS screws and rotate it left or right to adjust at required voltage. After that find IAC valve duty cycle % on same screen. That duty cycle should be 5-35% at idle on warmed up engine. If it not then loose IAC sensor screw and rotate it same as TPS to get required duty cycle %. Even you will find your engine's desired rpm before starting it.
But first of all check that is your engine has thermostat valve installed and fan is on auto mode.

[user1122]

thanks, this is something to be consider.
yes... fan is on auto and also have thermostat valve

[user1122]

SZVIEWER

@RehanBhatti
yeh karay ga kam????

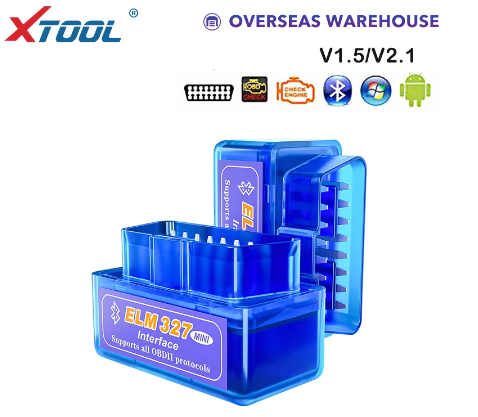

"XTOOL 2019 Bluetooth V1.5/V2.1 Mini Elm327 327 obd2 scanner OBD car diagnostic tool code reader For Android Windows Symbian:"

[dani_kk]

Yeah bring the car will look in to the issue and it will be inshallah resolved. There might be some minute detail that is being ignored by the mechanics you've visited uptill now.

[RehanBhatti]

Buy that exact model otherwise it might not work.

Its Vgate elm327 V1.5
It is very useful tool. It will tell you any error codes stored in ecu memory and you can erase them.

[usamajaved0343]

Sir where is IAC sensor screw on cultus efi?
