Dashboard lights - Toyota Belta

tyrone_40 (tyrone_40) 2017-12-15 22:22:38 +0500 #1

Hi,

The dashboard lights which show the km/h and the lights on the AC / Fan / Thermostate including the lights buttons on the build-in lcd are not working.

Is it a fuse problem? Please guide me about how to fix it.

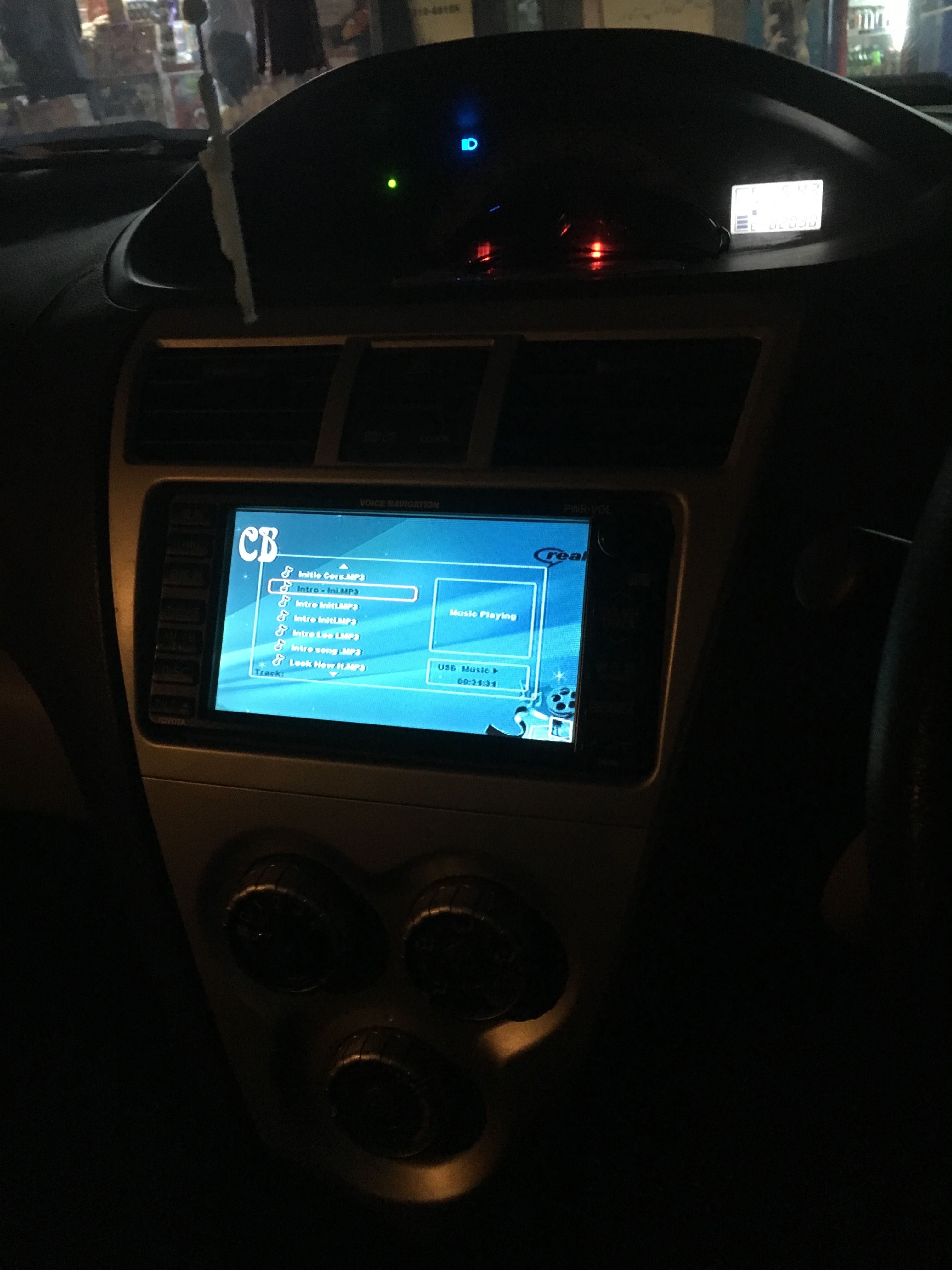

I have attached a pic below
Thanks.

TYRONE

capsat (ومن شر حاسد إذا حسد) 2017-12-15 22:47:15 +0500 #2

check the fuse box drive side wall under dash locate 2 fuses marked ROOM - RADIO & ACC either both are gone or 1 is gone replace with same value fuse if it blow away again you need to visit workshop and get the vehicle scanned.

danijadoon (danijadoon) 2017-12-16 00:02:13 +0500 #3

Agreed with capsat reply, and if you cant find the fuse, grab a test light and check all the fuses and one which is blown that will be for dash and panel light, Look in owner manual for location of fuse and fuse box

capsat (ومن شر حاسد إذا حسد) 2017-12-16 11:56:15 +0500 #4

or the fuse box is at knee panel on passenger side. READ THIS

tyrone_40 (tyrone_40) 2017-12-16 13:39:21 +0500 #5

Thank you capsat and all you guys for your helpful replies. I will check it out and change the fuse and update.

Also I forgot to mention that the Reverse beep has also stopped when I put in reverse and also the reminder beep when the headlight is on.

Do they also have fuses for the beep?

Thanks

Tyrone

tyrone_40 (tyrone_40) 2017-12-17 12:58:05 +0500 #6

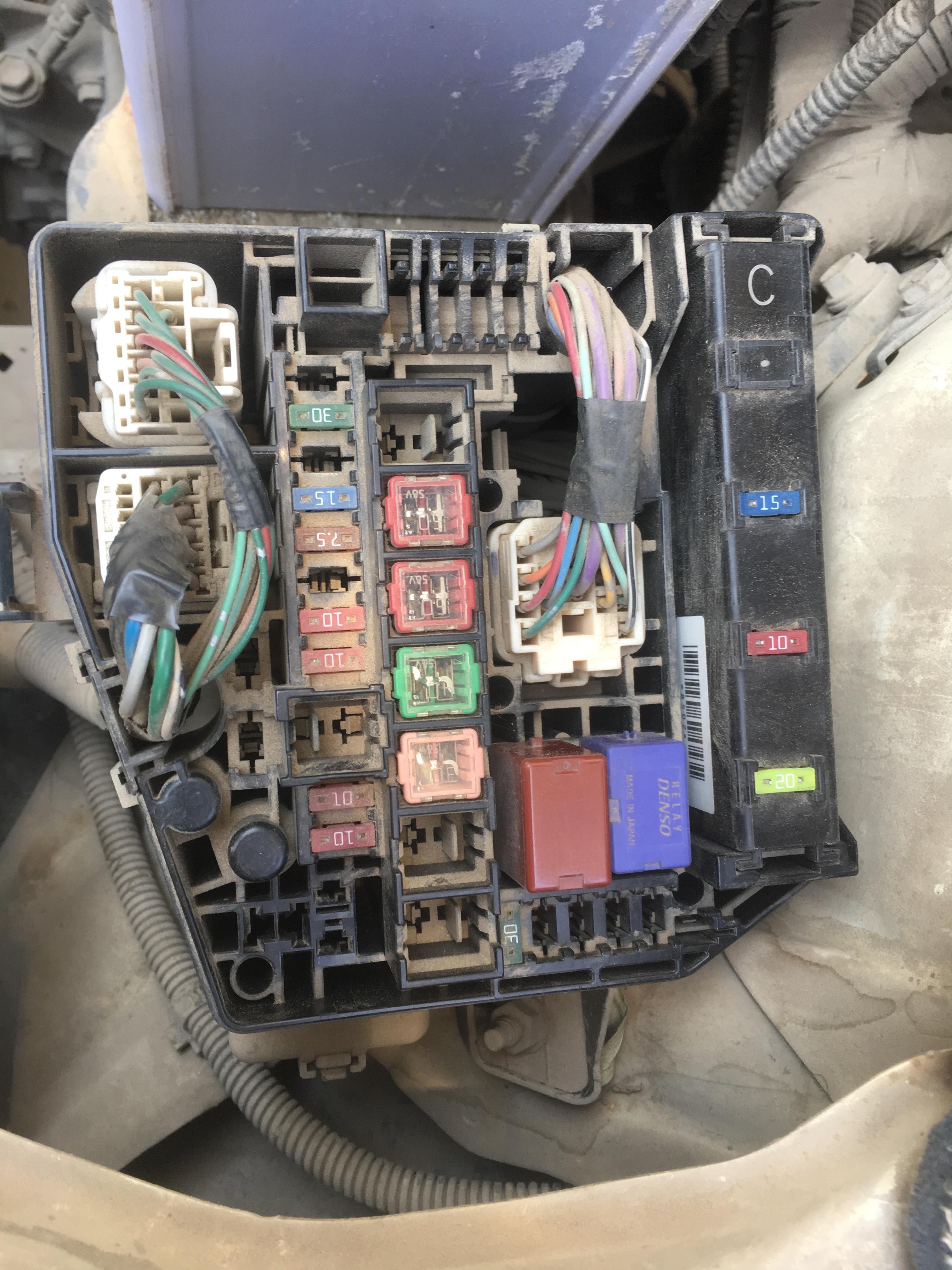

There is only 1 fuse box under the bonnet. I can’t find any under the dash.

strong text

tyrone_40 (tyrone_40) 2017-12-17 13:04:43 +0500 #7

And this under the glove compartment

capsat (ومن شر حاسد إذا حسد) 2017-12-17 22:13:53 +0500 #8

do you see any mark for DOME / HAZ in fuse box check both fuses. Please

capsat (ومن شر حاسد إذا حسد) 2017-12-17 22:51:11 +0500 #9

Most likely please check 30A Fuse marked ST

tyrone_40 (tyrone_40) 2017-12-18 09:45:40 +0500 #10

There is one for HAZ

tyrone_40 (tyrone_40) 2017-12-18 09:46:08 +0500 #11

Okay will check later today and update. Am at work now.
