"Your Eclipse Power Amplifier was Designed and Engineered in the USA for the best in
performance with the best components possible." (Owner's manual)
Power Supply: All Eclipse Amplifiers incorporate Powerful MOSFET Switching Power Supplies for
added reliability and powerful Music Reproduction.
Audio Amplifiers: The Eclipse Integrated Series use Symmetrical Analog Preamplifiers with Linear Bi
Polar Power Stages for Musically Accurate Audio Reproduction.

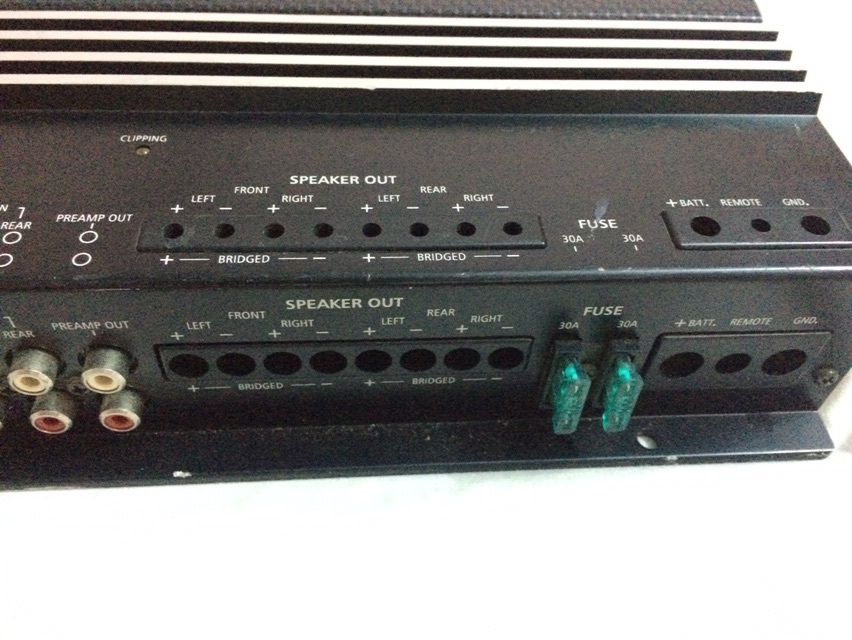

Speaker Connectors: Flush Mounted Speaker Connectors allow Clean Installation with less risk of
shorted wires. The speaker connectors will allow up to 10 Gauge wire interface.
Power Connectors: Eclipse Flush Mounted Power Connectors will accommodate up to 4 Gauge wire
for optimum power with very little Voltage Drop. As with the speaker connectors they provide less
opportunity for shorted conditions.
Fuse: Eclipse Power Amplifiers use ATC fuses. Do not replace blown fuses with fuses of a higher current rating. This Amplifier requires maximum two 30 Amp fuses.
Eclipse Power On Indicator: When the Power Amplifier is powered on the Eclipse Brand Logo will
be Lighted.

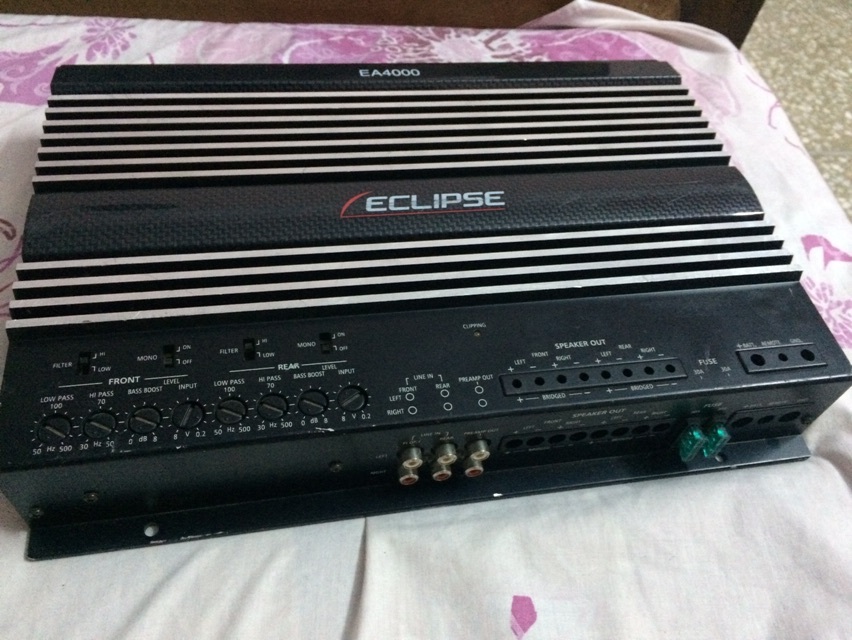

Clipping Indicators: Each Amplifier has a clipping indicator LED located near the input gain control.
When the amplifier is clipping this indicator will light. This indicator will help you to adjust the input gain for
optimum performance.
Specifications:
Power Output: RMS Power at 14.4 Volt Power Supplv@ < .1% THO
4 ohm @ 20 Hz to 20 KHz Stereo 75 x4
4 ohm @ 20 Hz to 20 KHz Bridged 150x2
Max Power Output: Peak Music Power at 14.4 Volt Power Supplv (clipping)
4 ohm Stereo @ 1 KHz 100x4
4 ohm Bridged @ 1 KHz 175x2
Input Sensitivity 200mV ... 8V
High Pass Frequency Selection Variable 30 Hz ... 500 Hz
Low Pass Frequency Selection Variable 50 Hz ... 500 Hz
Bass Boost 0- 8dB @45 Hz
Subsonic Filter 18dB / octave @20 Hz
Signal to Noise ( CEA 2006 ) > 100 dB
Frequency Response 20Hz - 20KHz +0, -.5 dB
Channel Separation < 70 dB
Damping Factor > 50 dB
Quiescent Current ( Idle Current) 1 Amp
Maximum Current 60 Amps
Amp Protect Temperature (Heat Sink) 90C
Contact /PM: 0344-425550
Shipping on Buyer's expense/risk
Location: Peshawar
