EG hatch restoration and rescue

Honda

Civic

mzeeshan (mzeeshan) 2021-03-17 13:09:31 +0500 #102

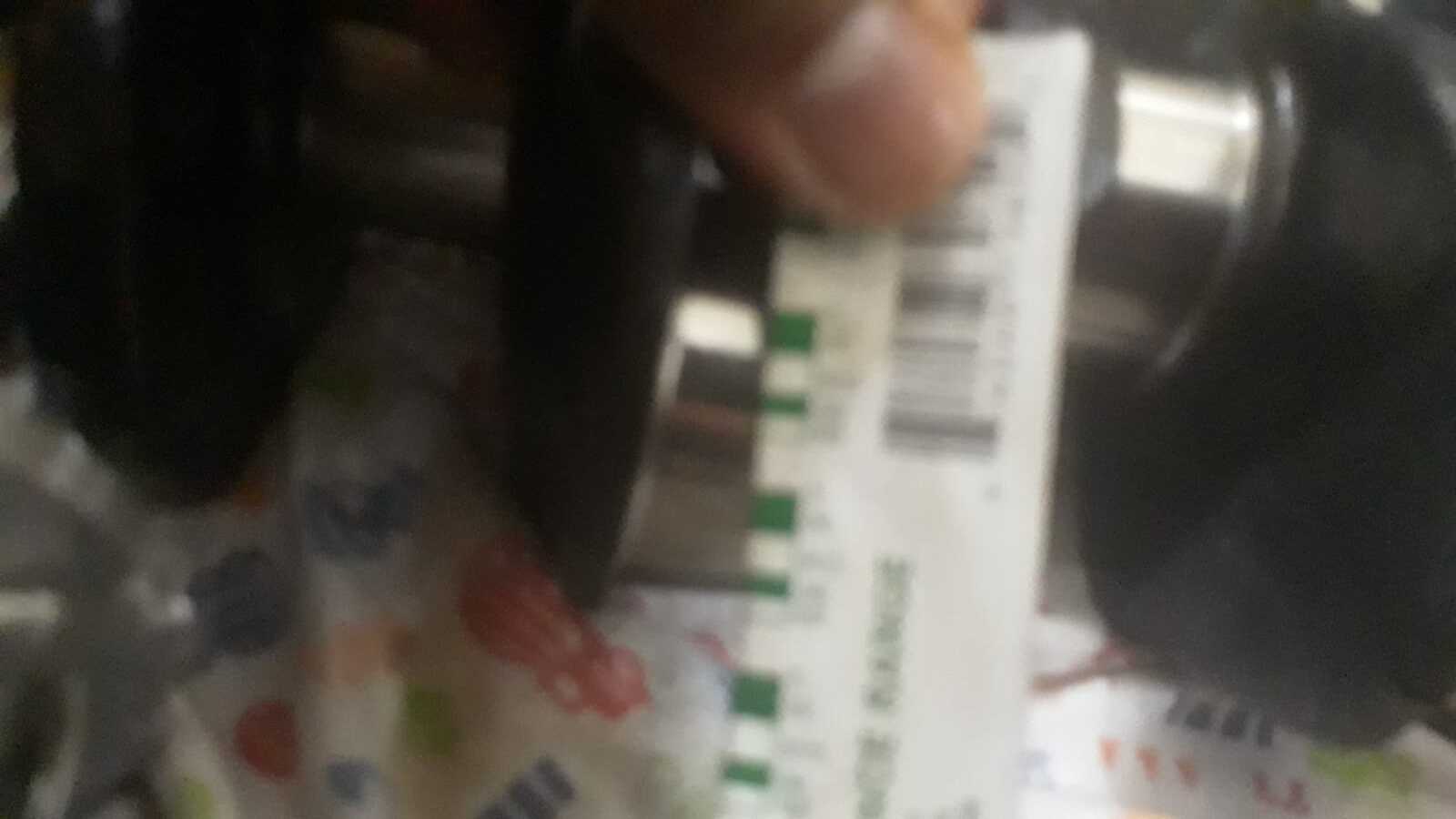

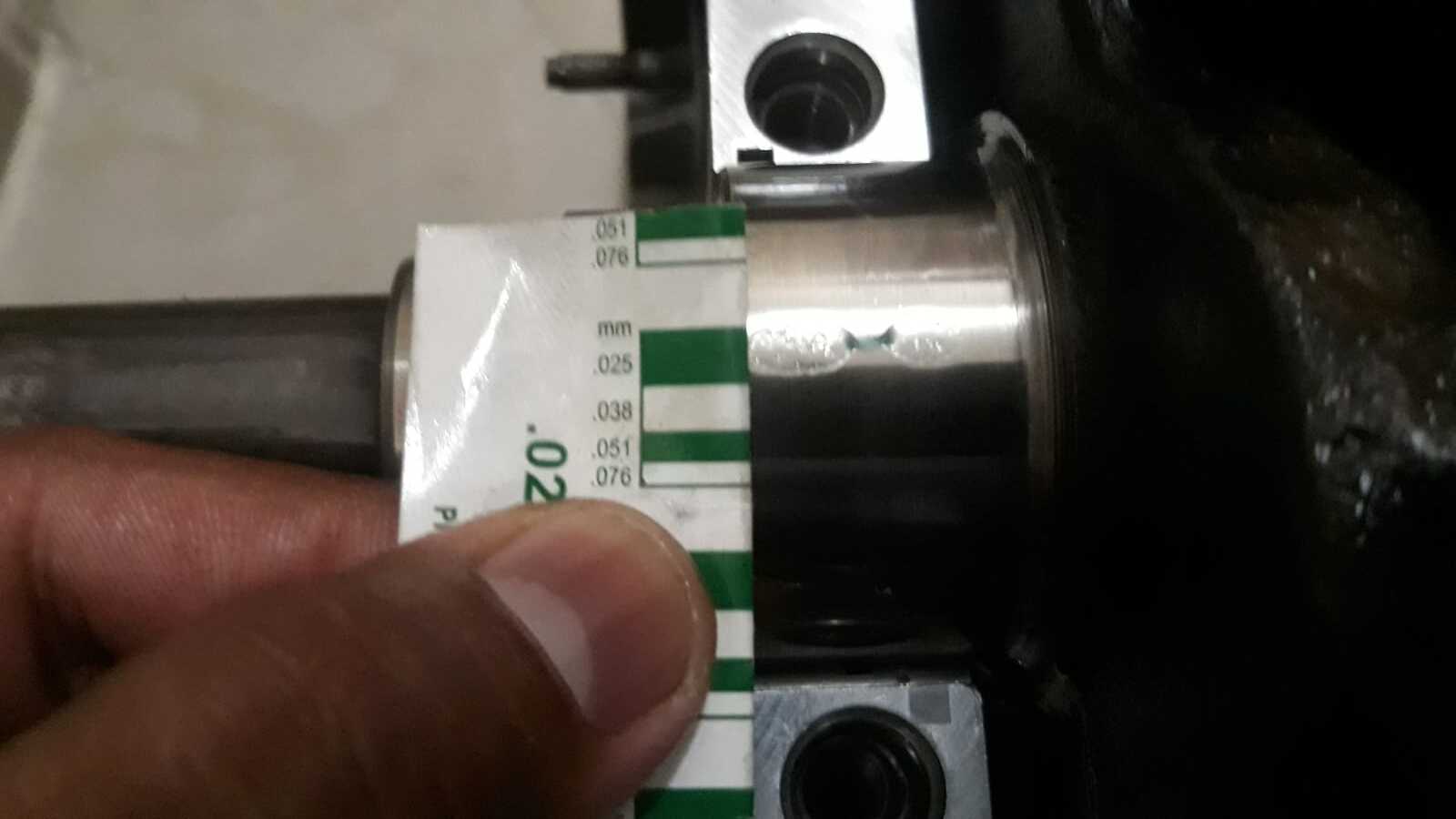

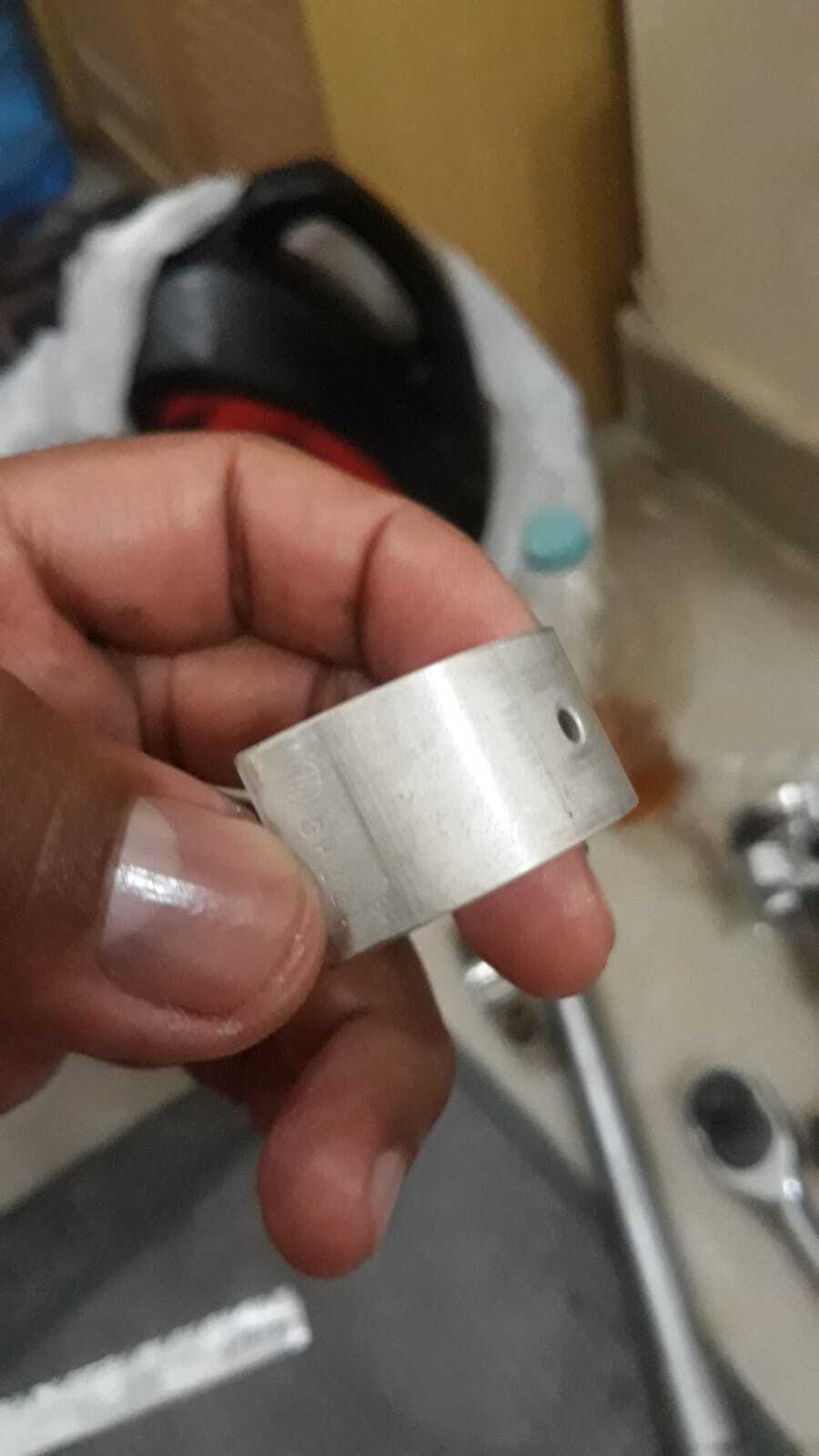

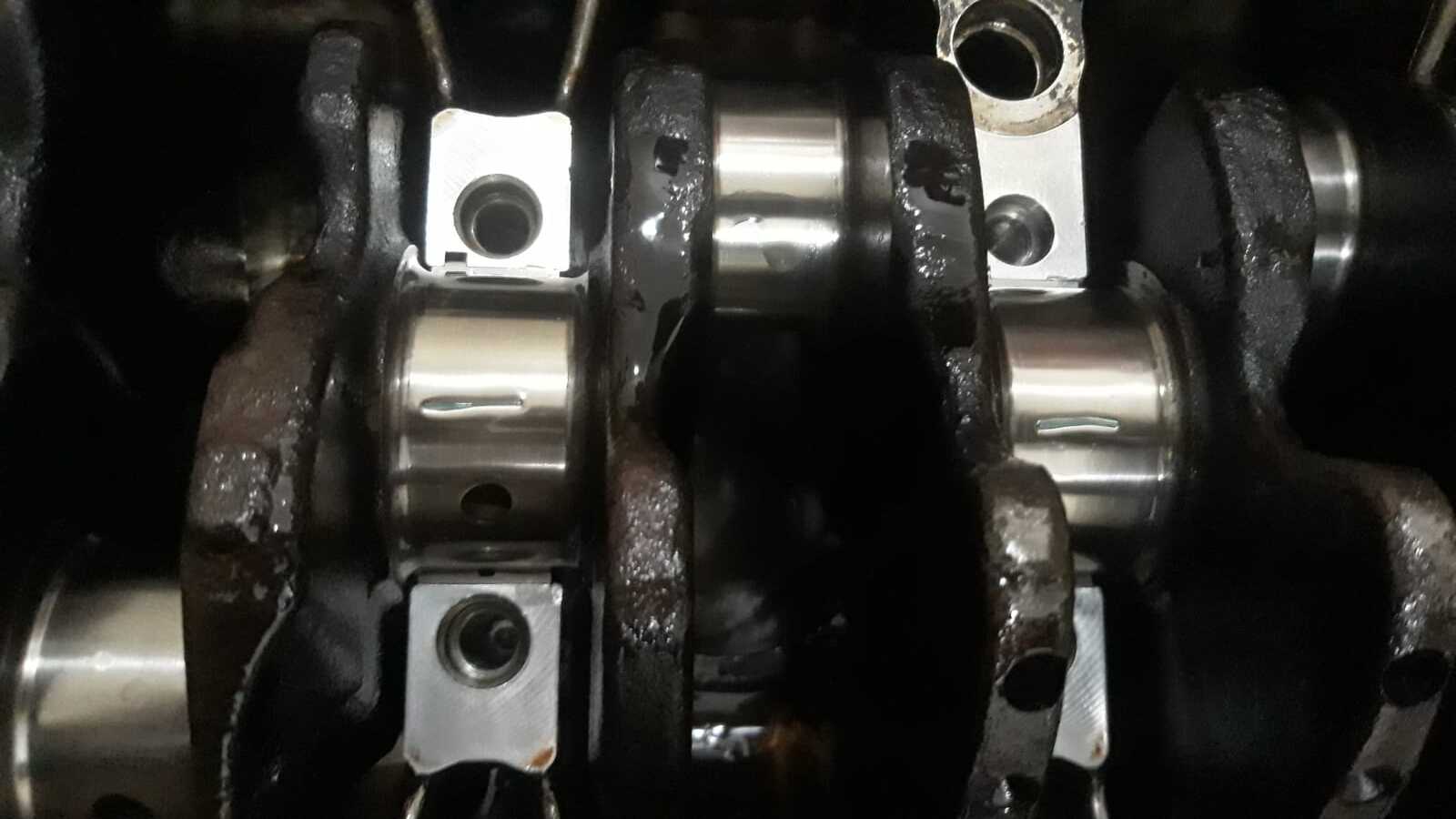

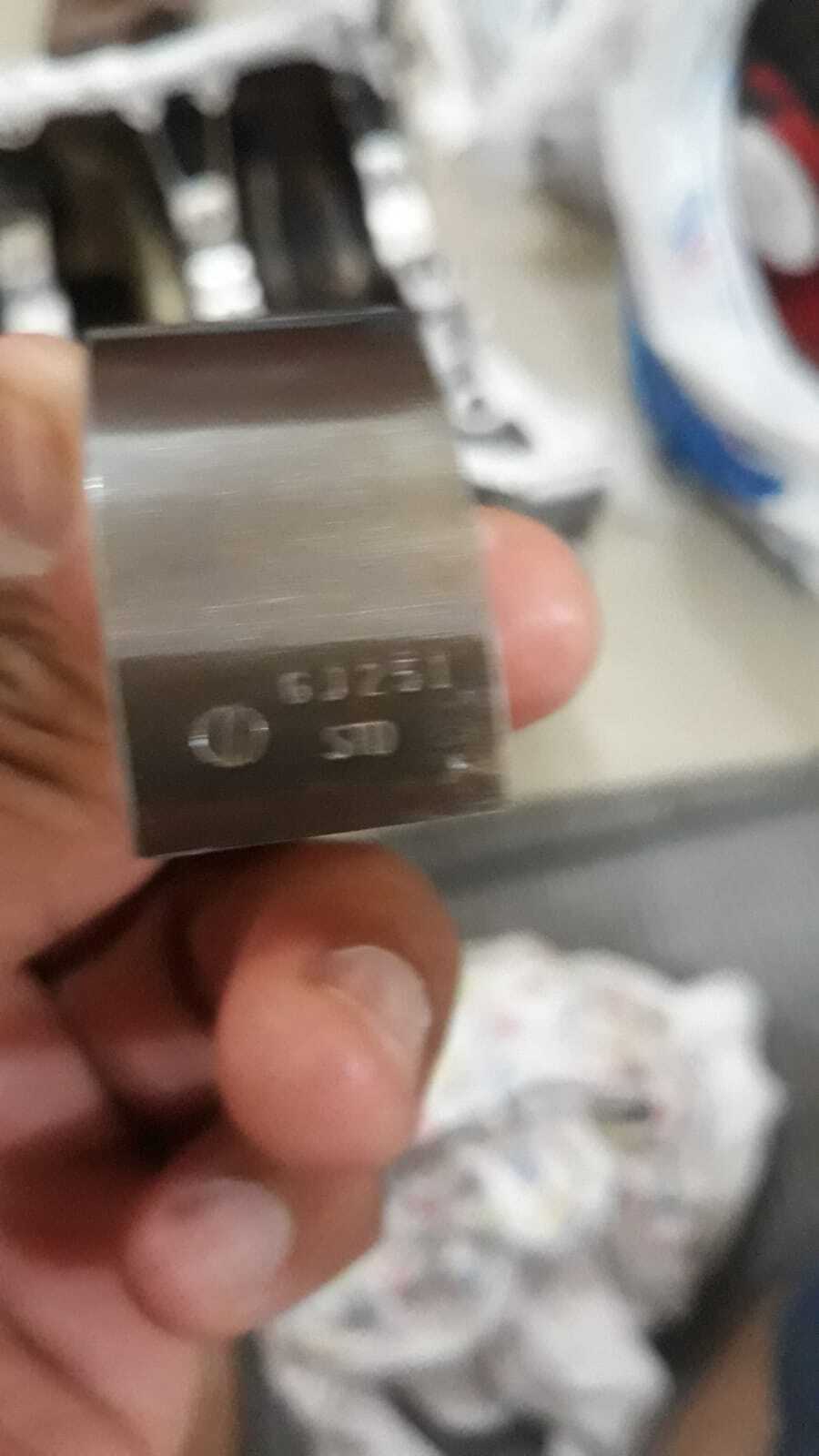

I used plasti gauge in order to confirm main and rod bearing clearance and all came spot on

0.001 and 0.025

mzeeshan (mzeeshan) 2021-03-17 13:11:46 +0500 #103

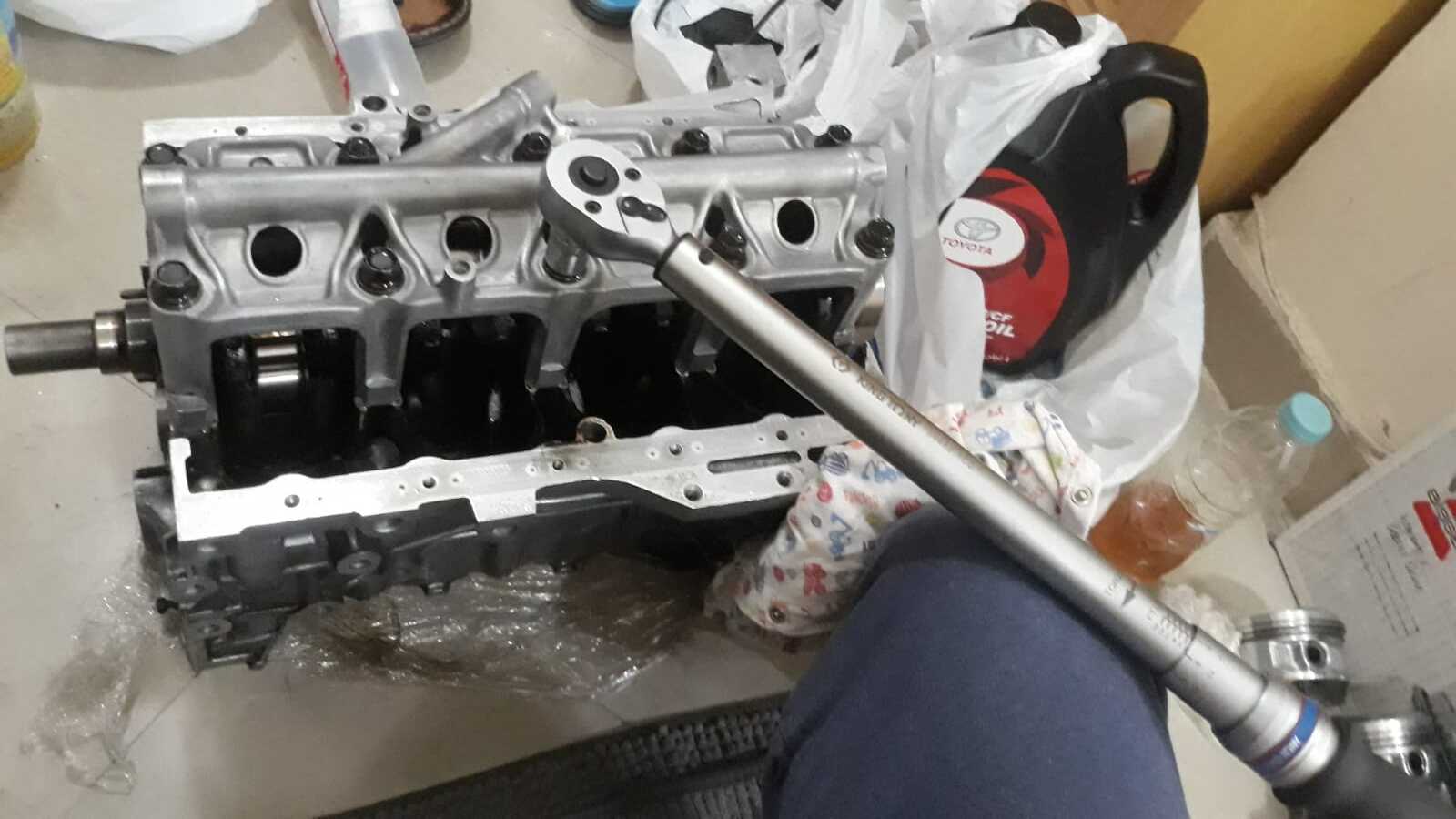

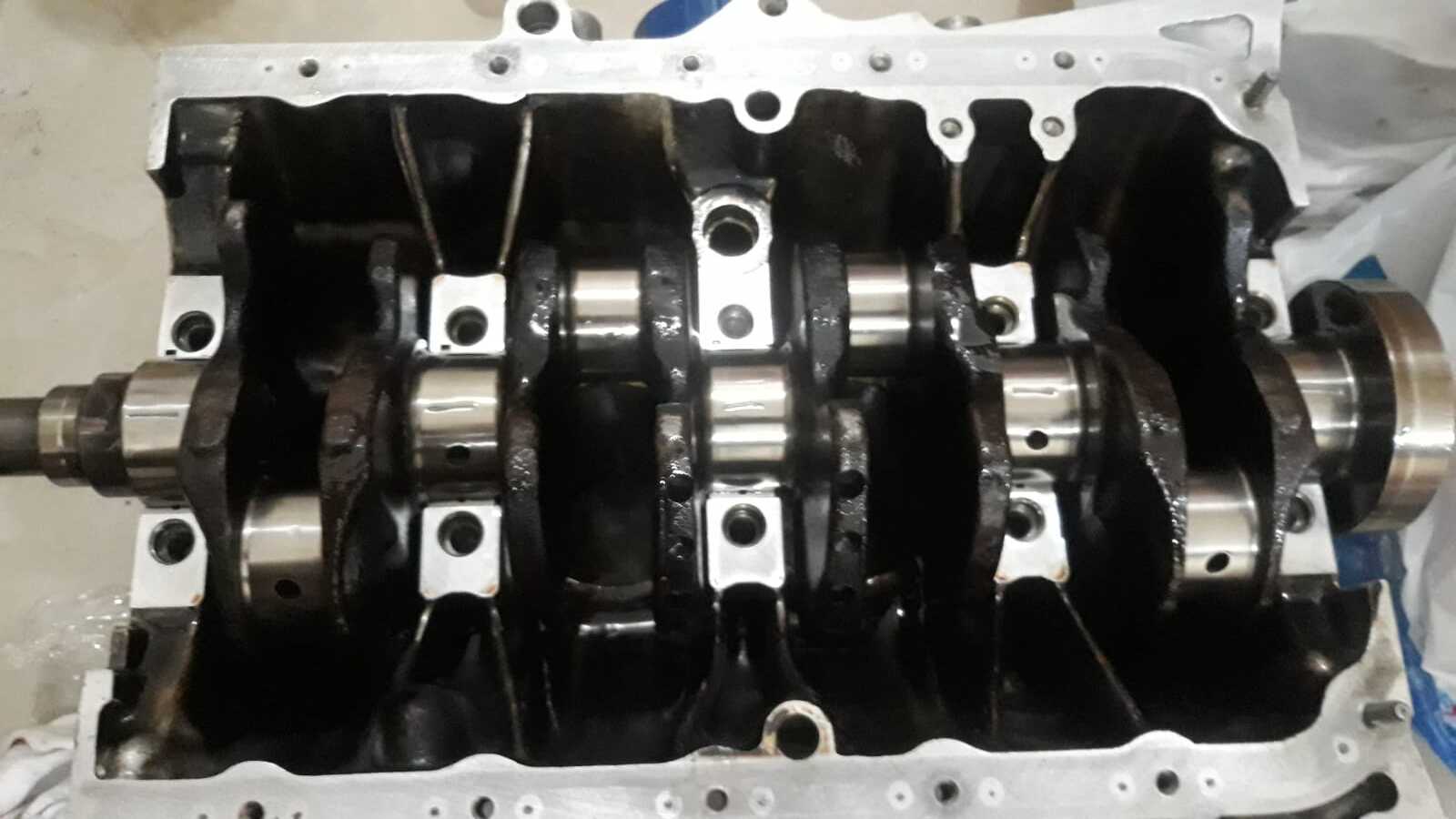

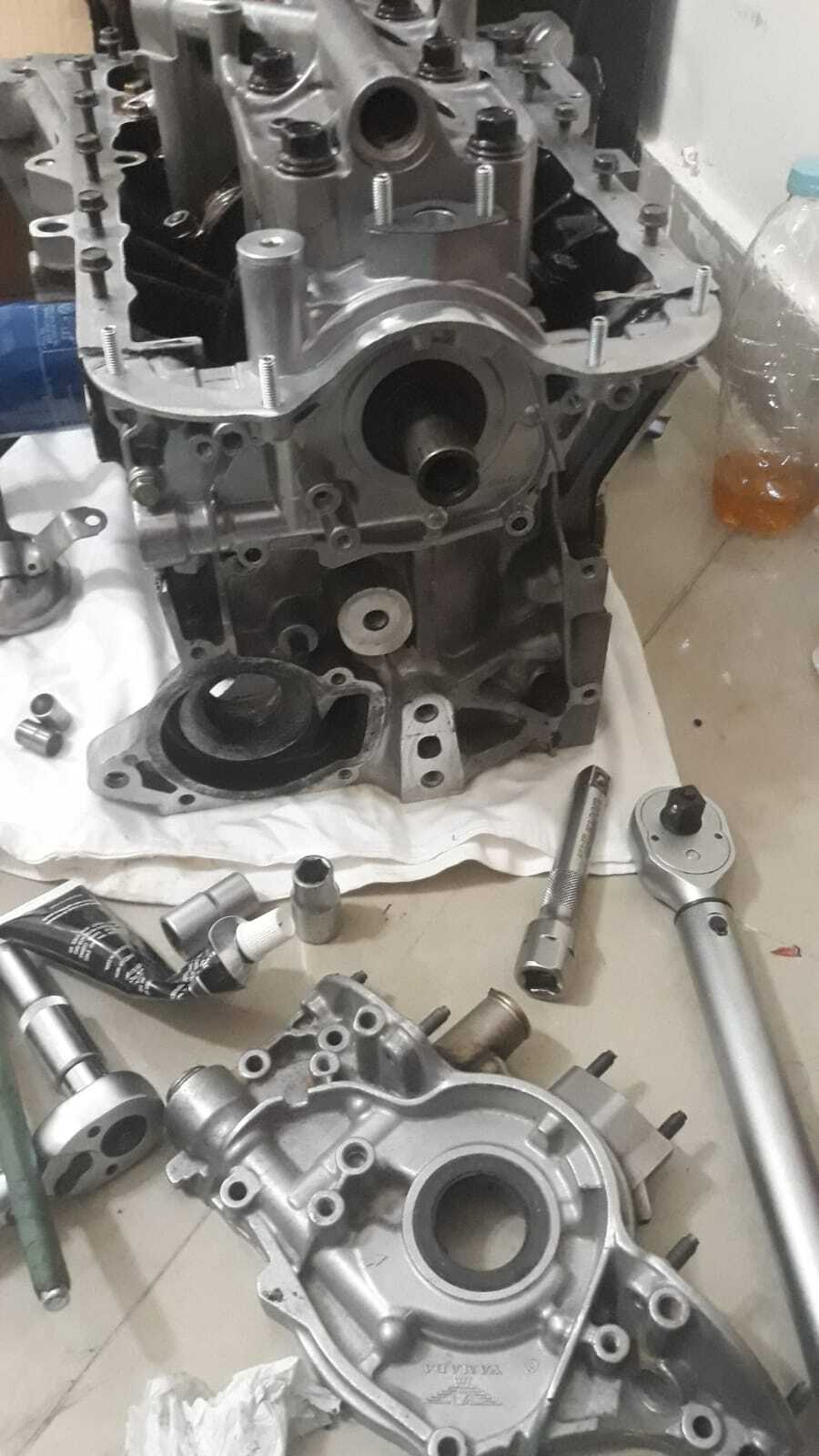

Torque out rod bolts to 23 ftlbs and mains caps 32 and 50 ftlbs, rotating nicely without any
issues

highroller (highroller) 2021-03-17 13:55:06 +0500 #104

You got service manual stating all the torque specs?

mzeeshan (mzeeshan) 2021-05-01 13:26:26 +0500 #106

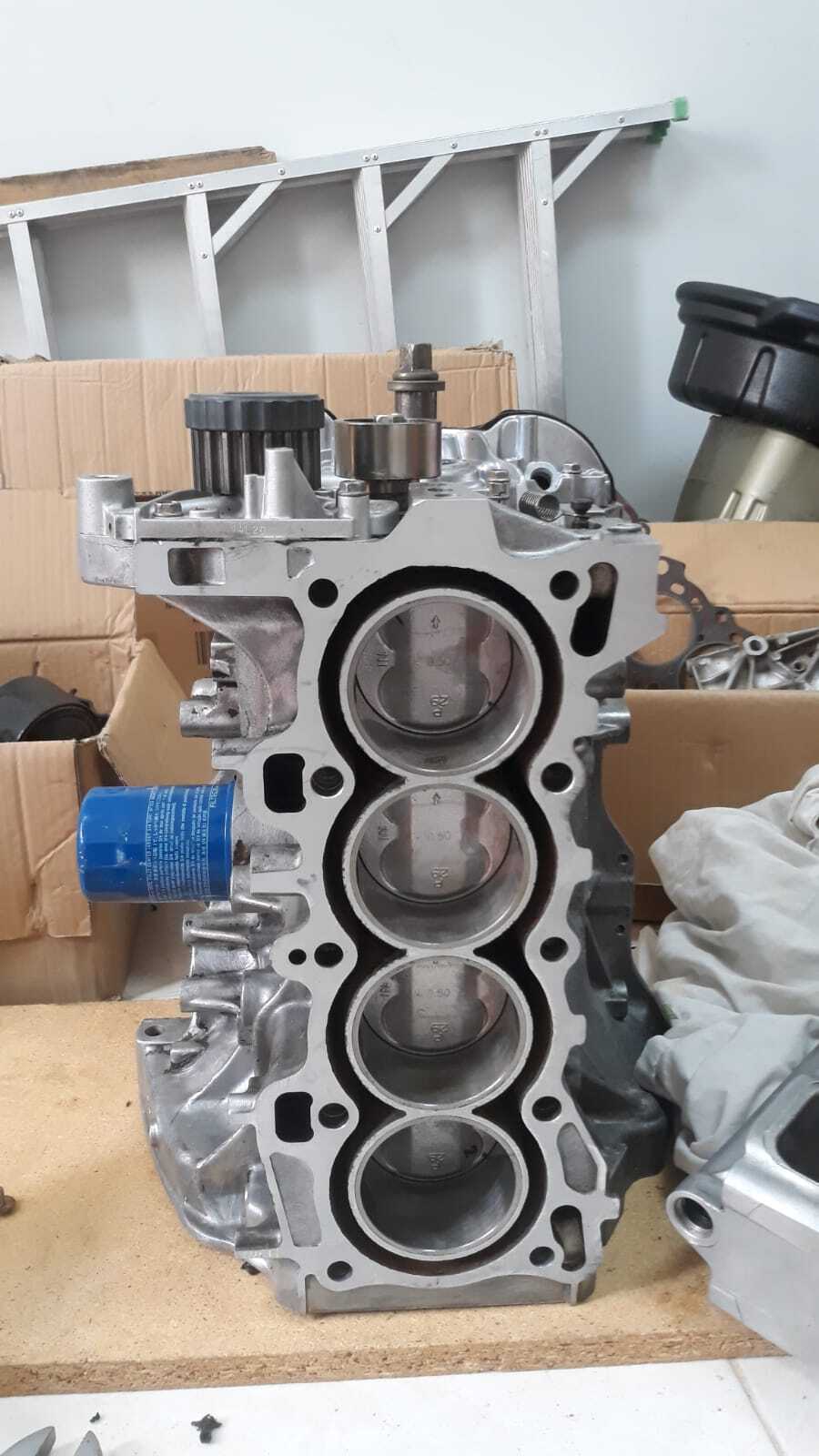

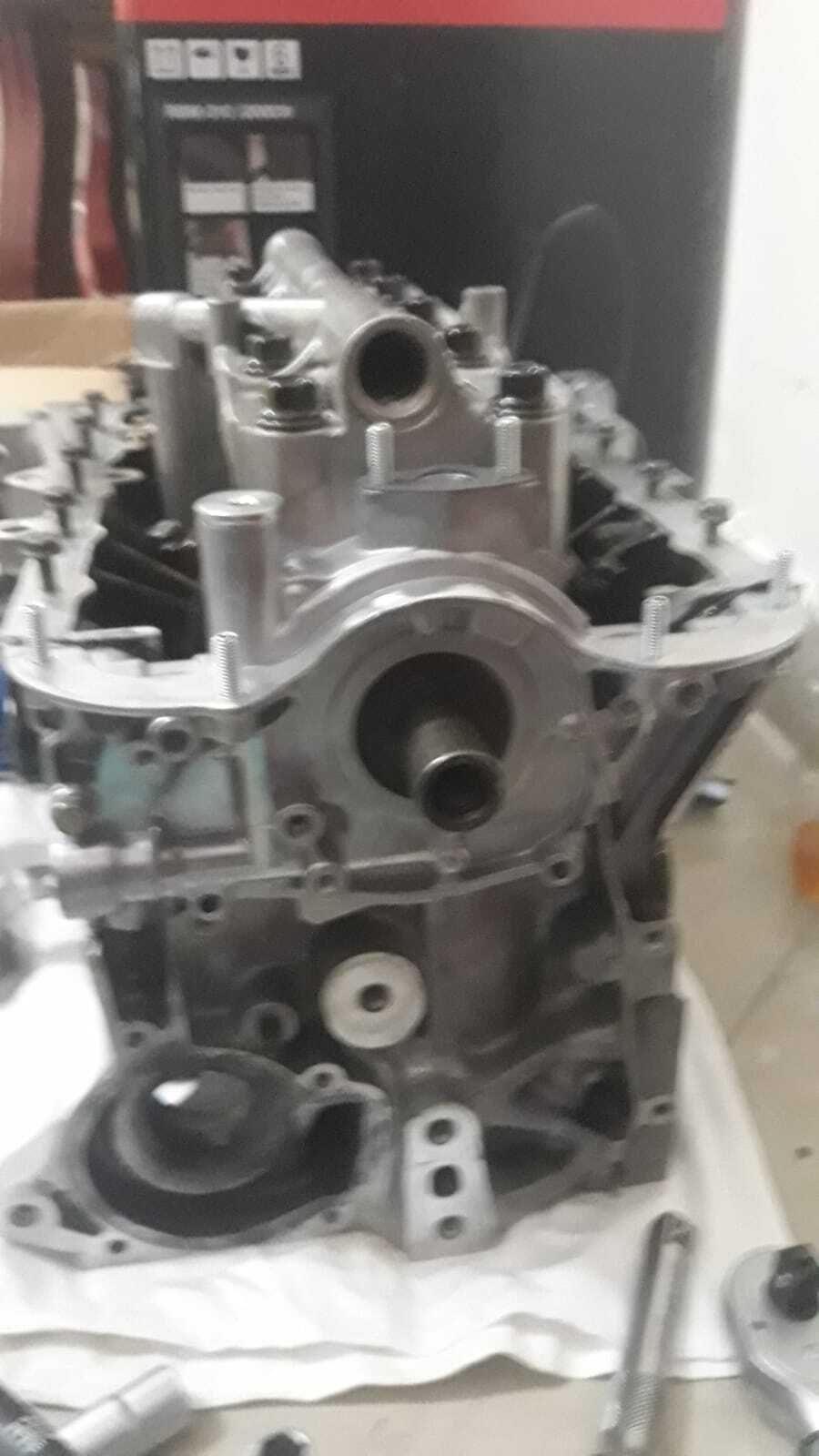

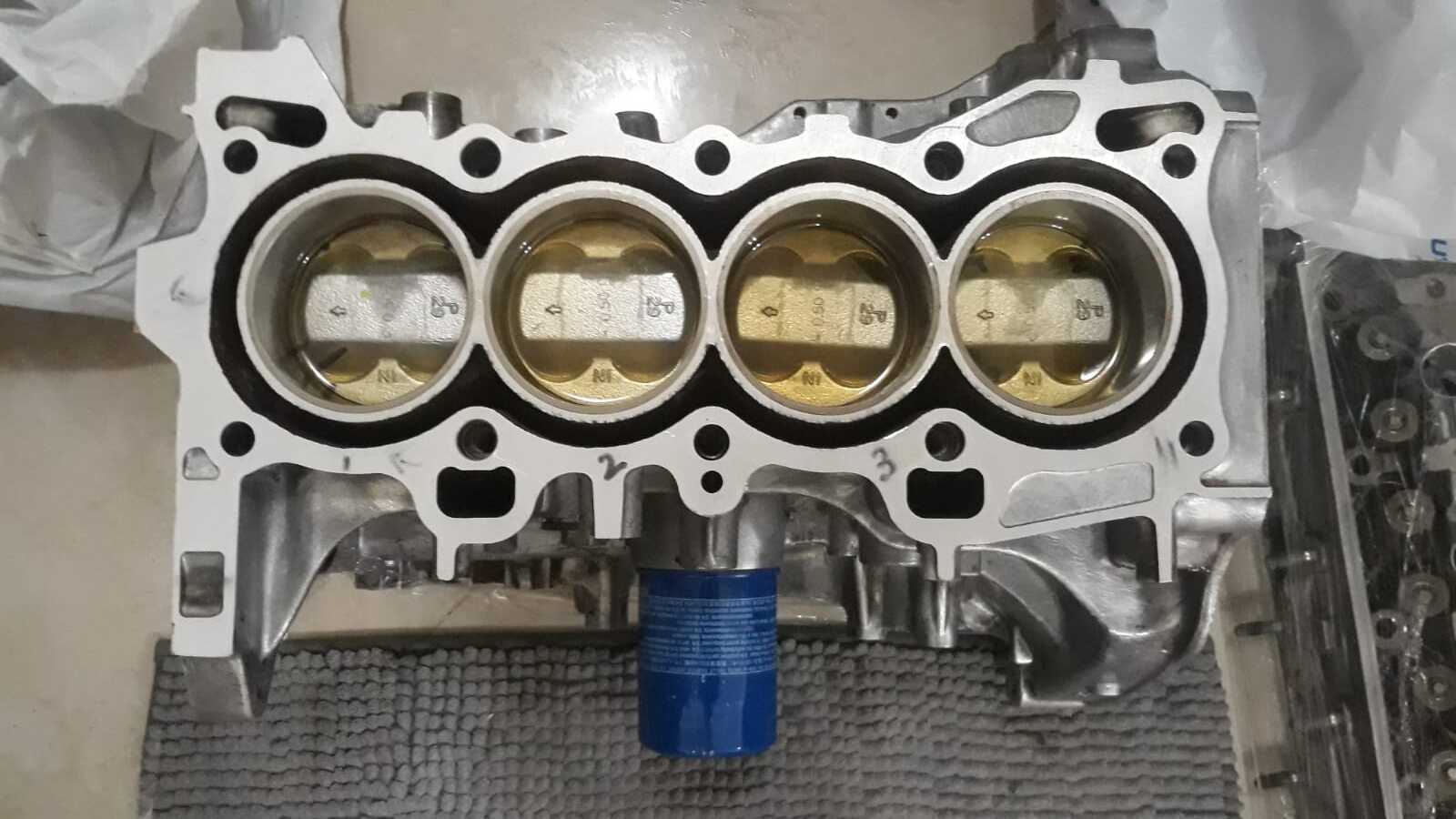

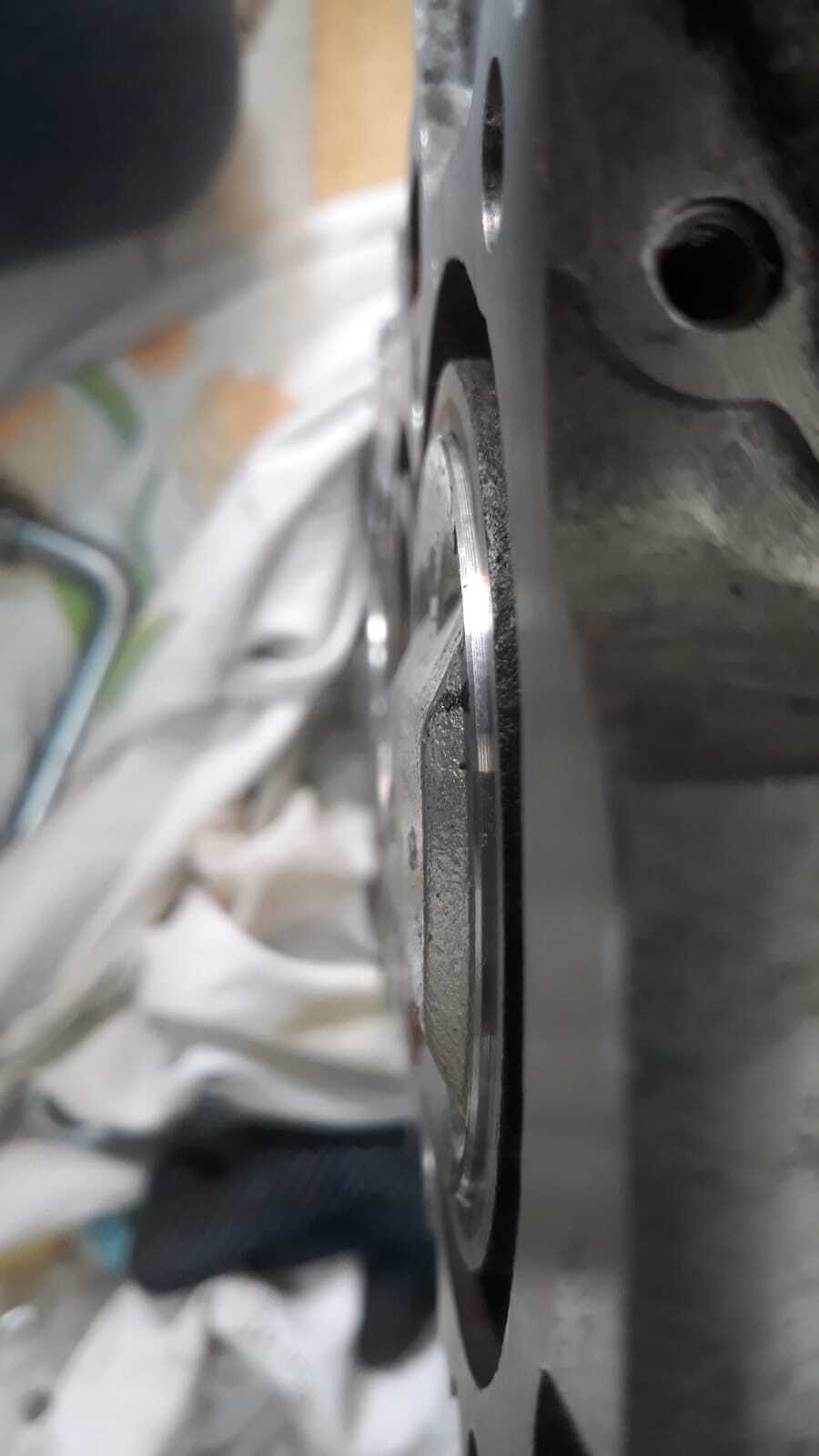

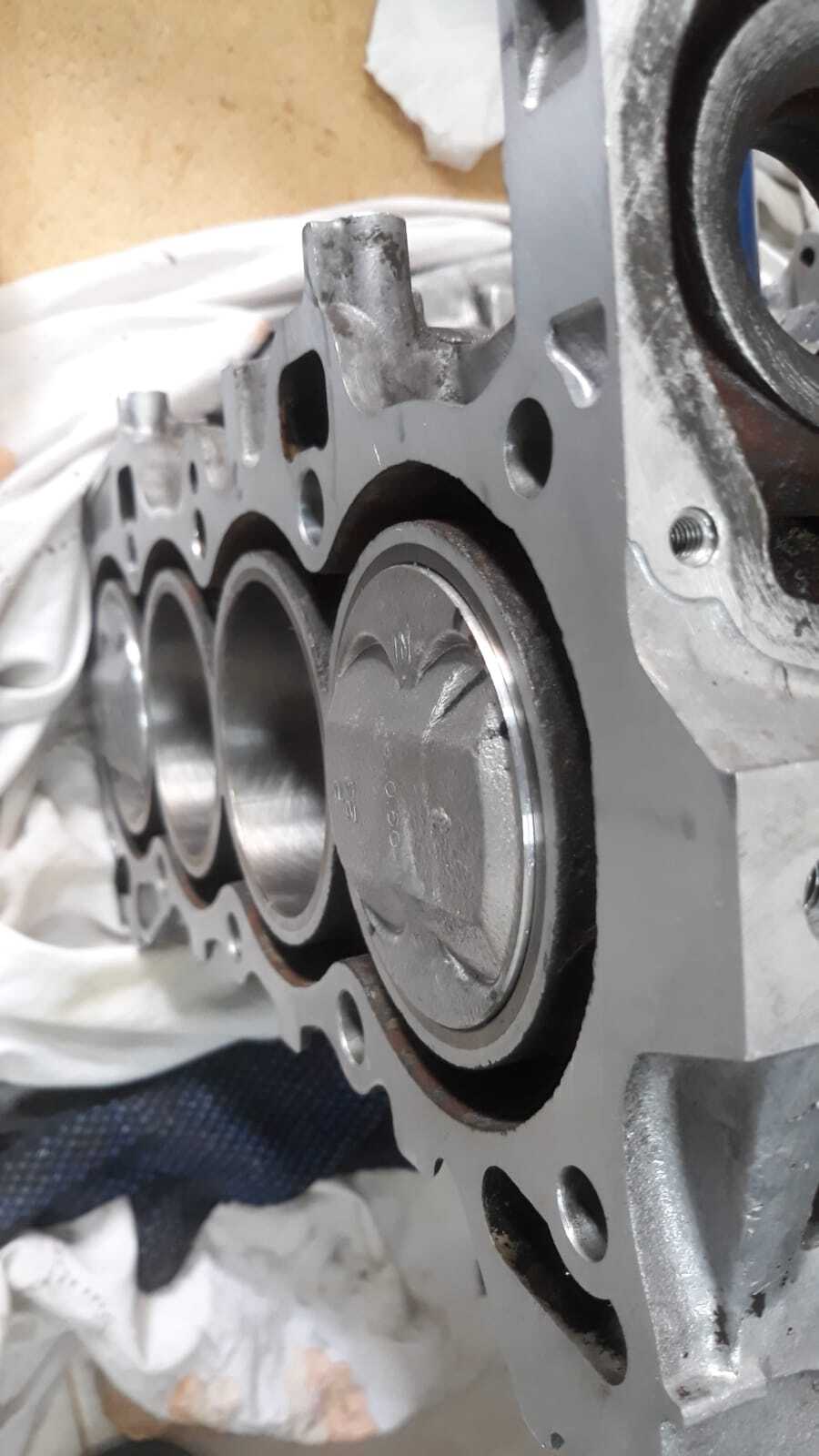

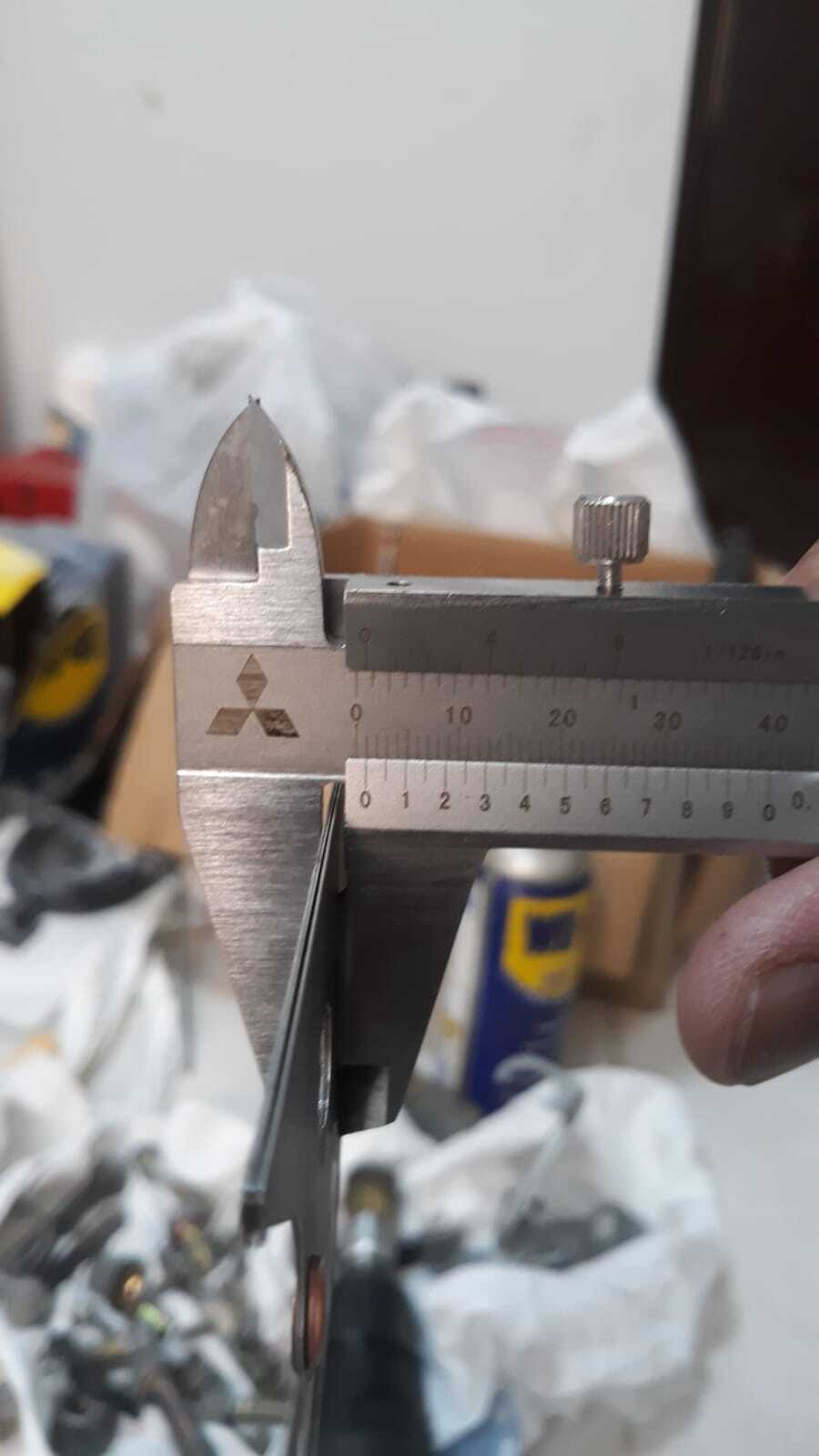

Engine block assembly ready ...... but the pistons came a bit out from block surface while the doom is a bit higher.... seems like after facing the head 1mm and block surface 0.5mm it will create issues with compression and hitting the deck surface of the head.

kunrian (Asif Fiaz) 2021-05-03 23:39:36 +0500 #107

I think it's not 1mm, its more than described...may be you need a thick gasket or double the gasket(Pakistani jugar)

mzeeshan (mzeeshan) 2021-05-04 01:29:58 +0500 #108

I don't think it would be able to sustain such compression .... thicker gasket might work ... today i tried to put the head only without torqueing out and rotate the crank .... the head was a bit moving up ... .as soon as i inserted the gasket it stopped doing that (without torqueing out)...

Let see what goes on dry compression test will justify its way forward..

mzeeshan (mzeeshan) 2021-05-04 01:31:45 +0500 #109

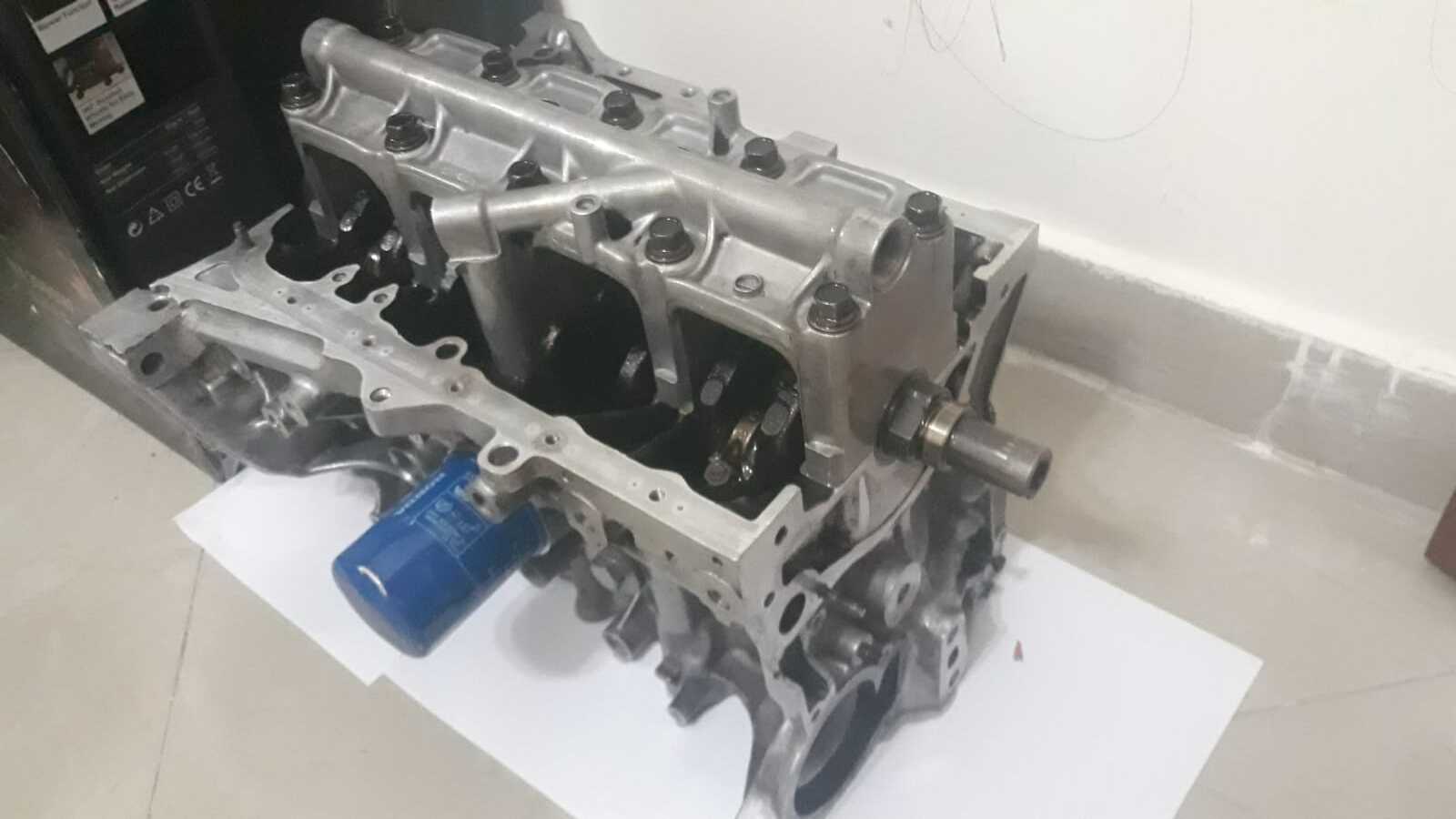

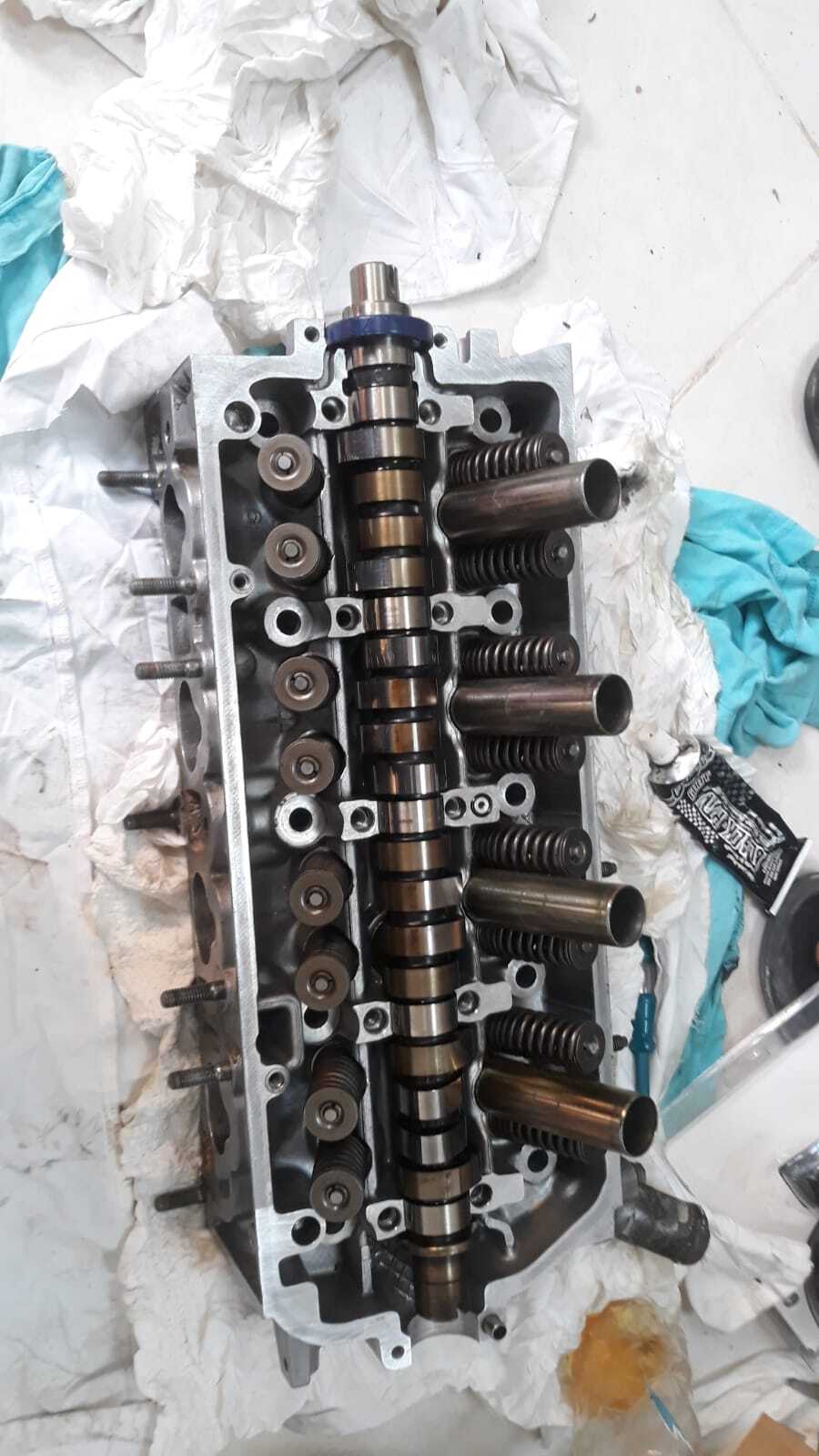

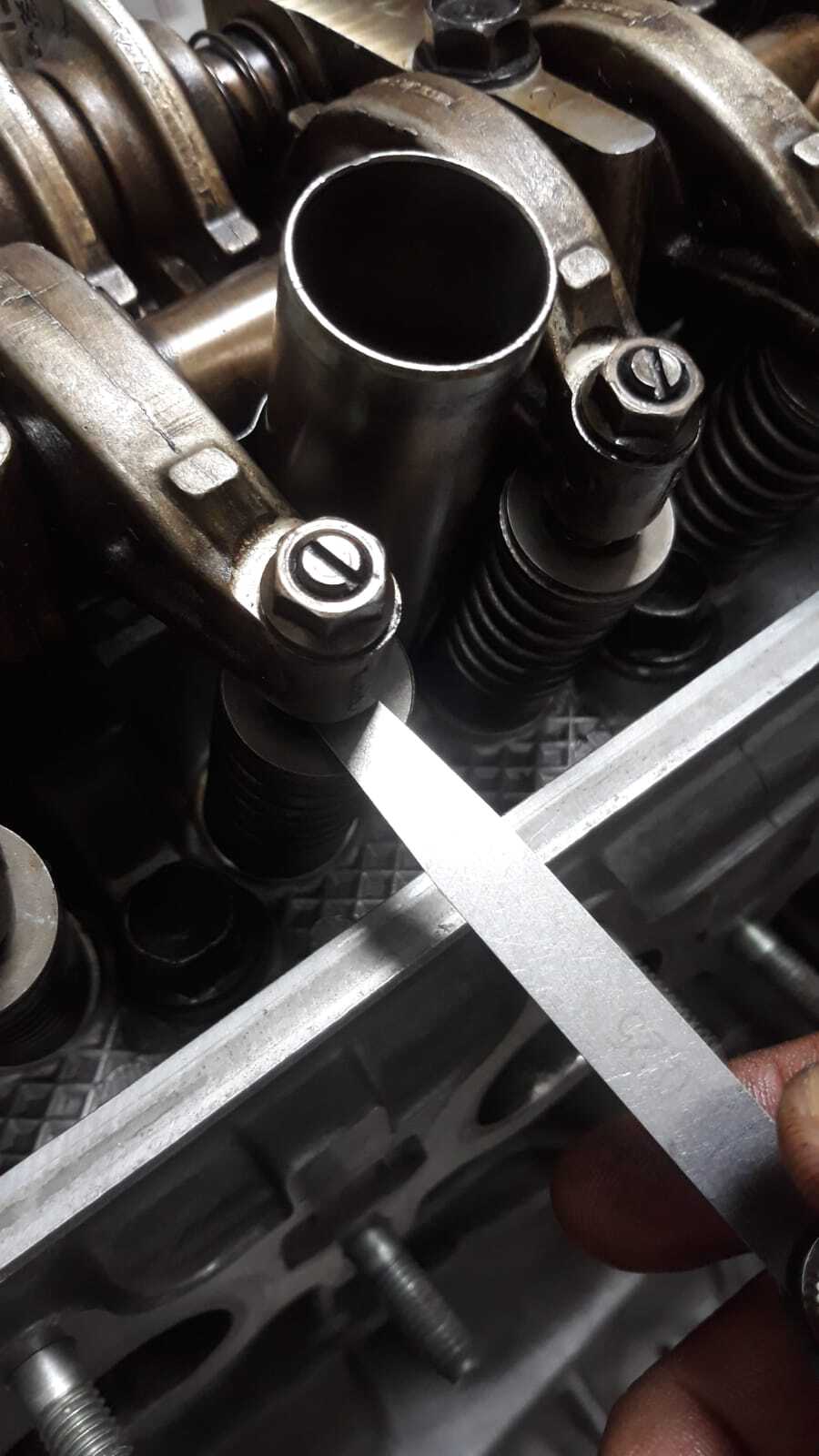

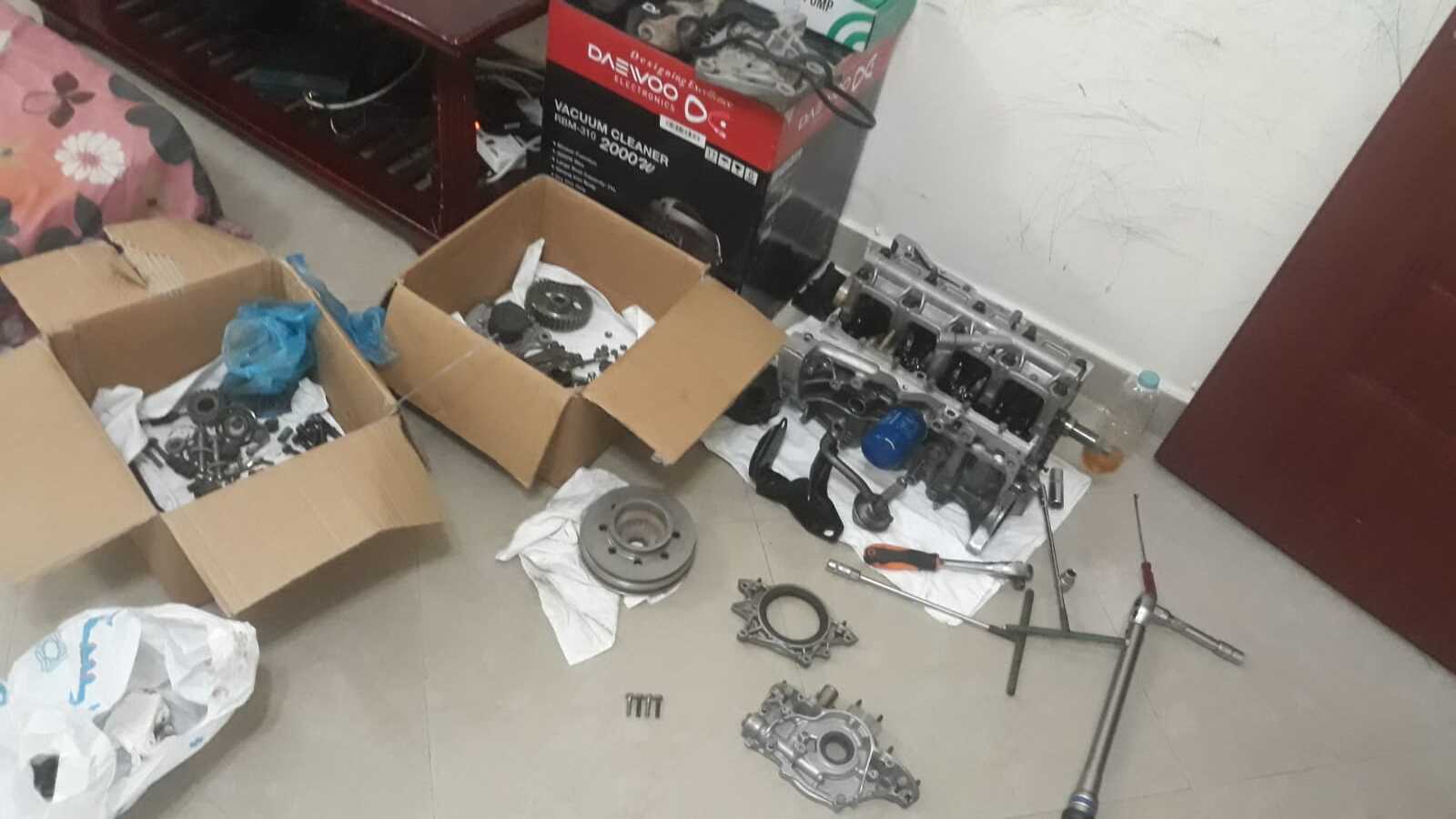

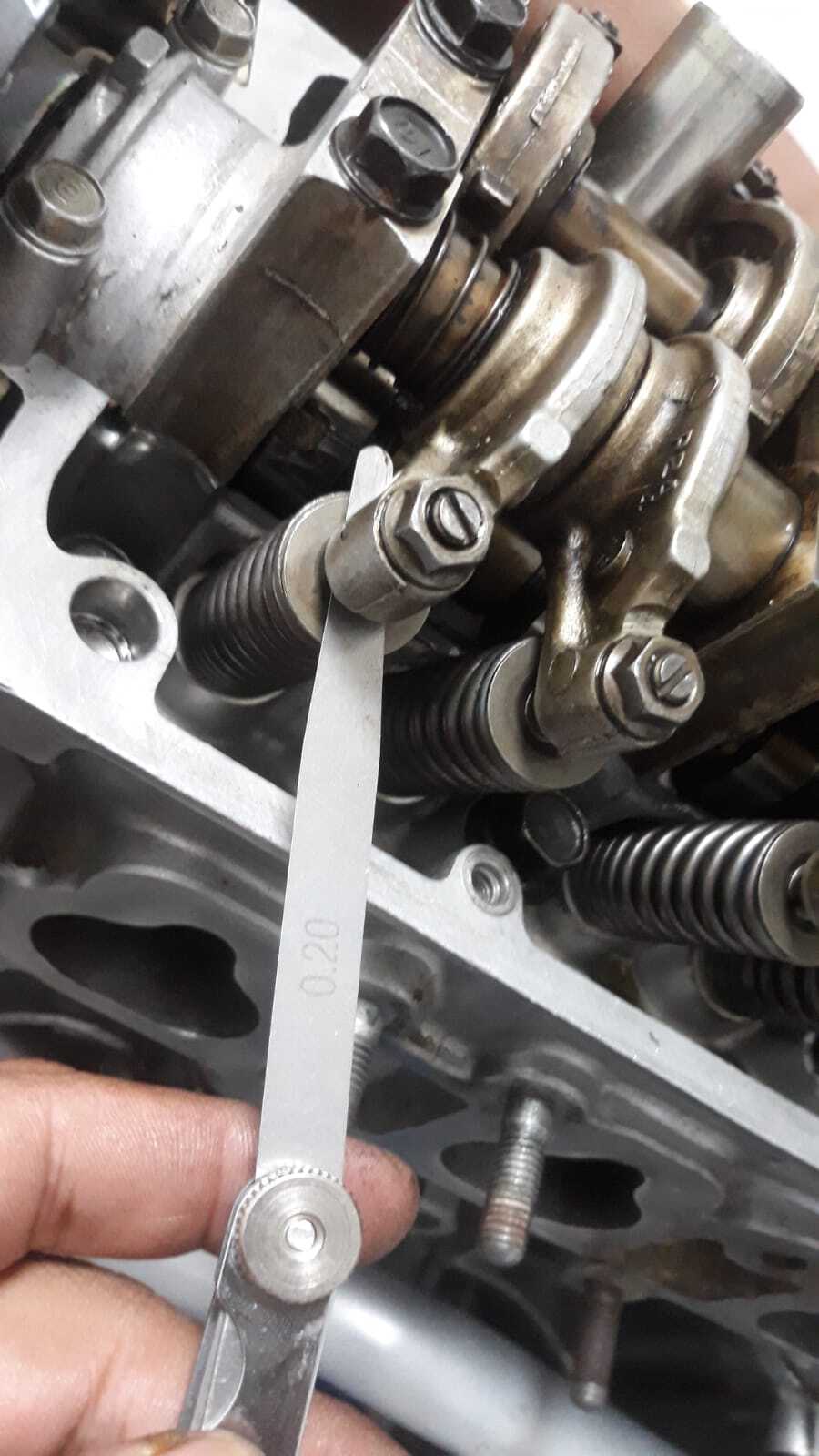

few glimpse of head assembly before putting it together

mzeeshan (mzeeshan) 2021-05-04 21:18:51 +0500 #110

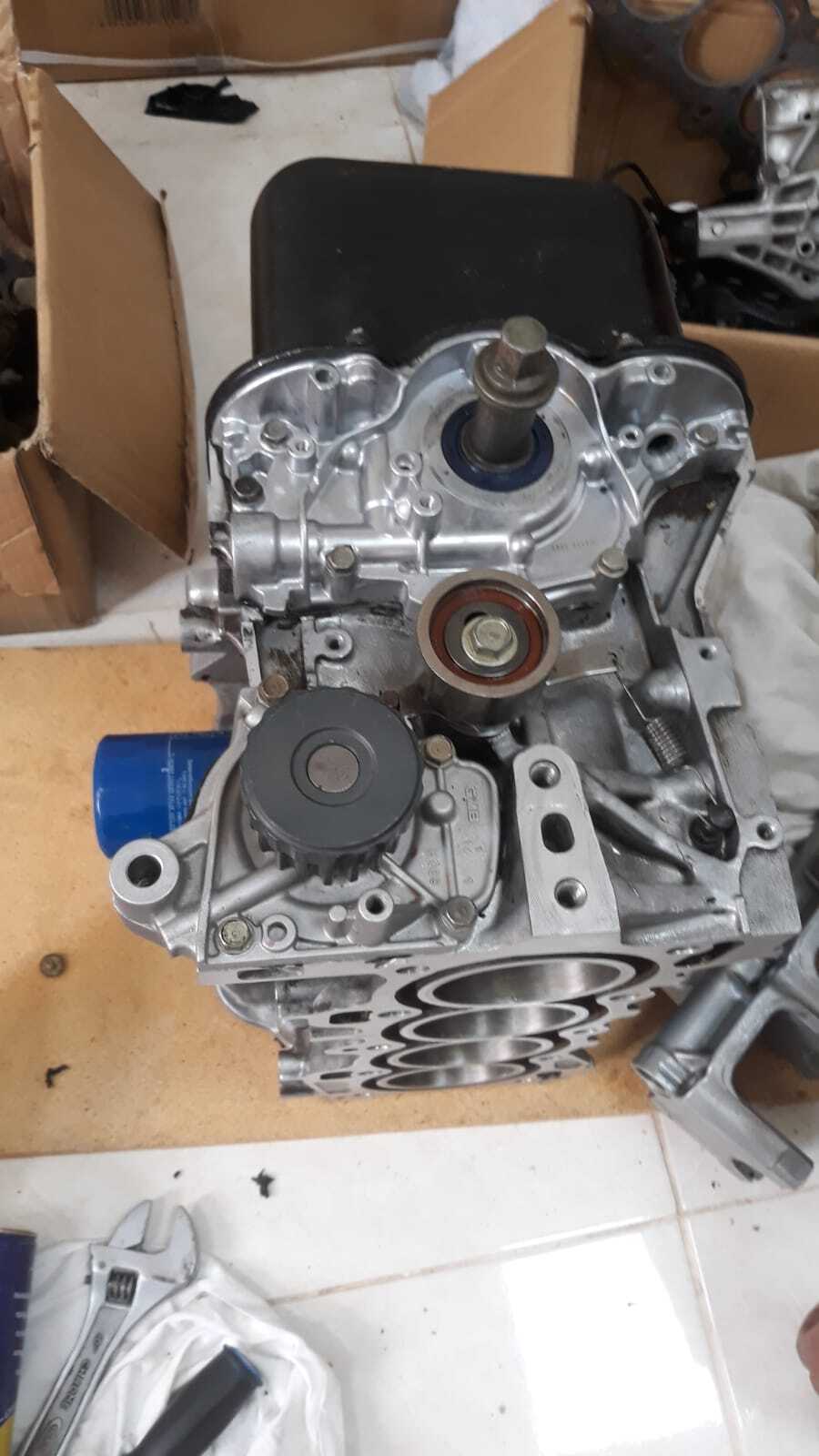

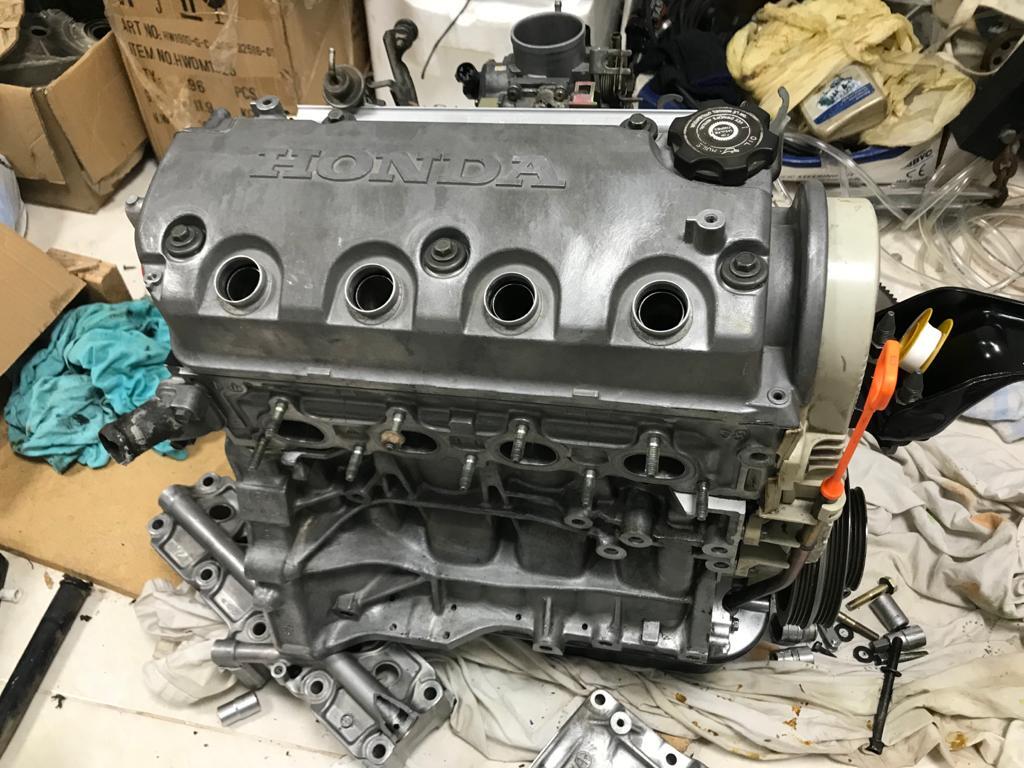

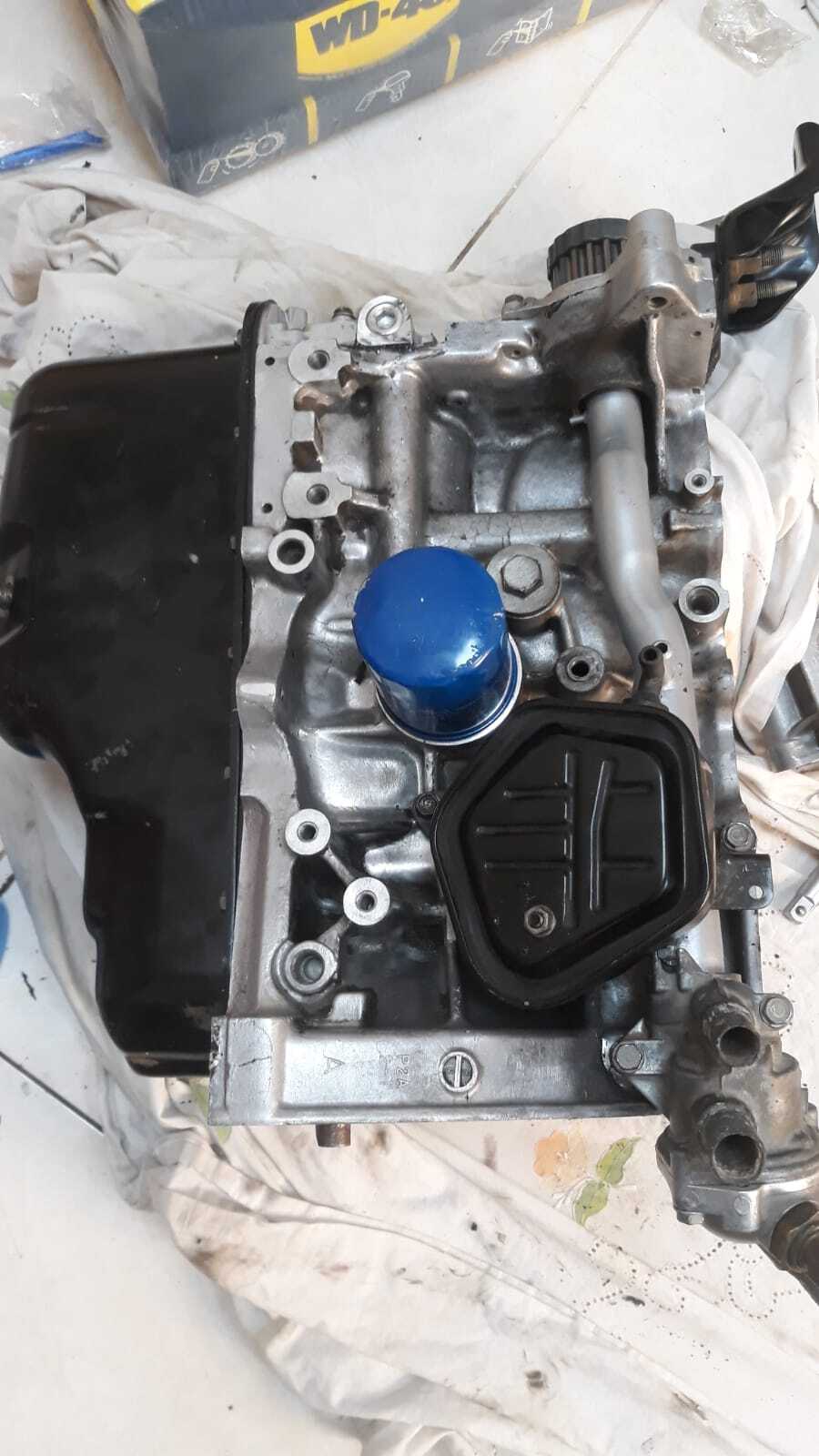

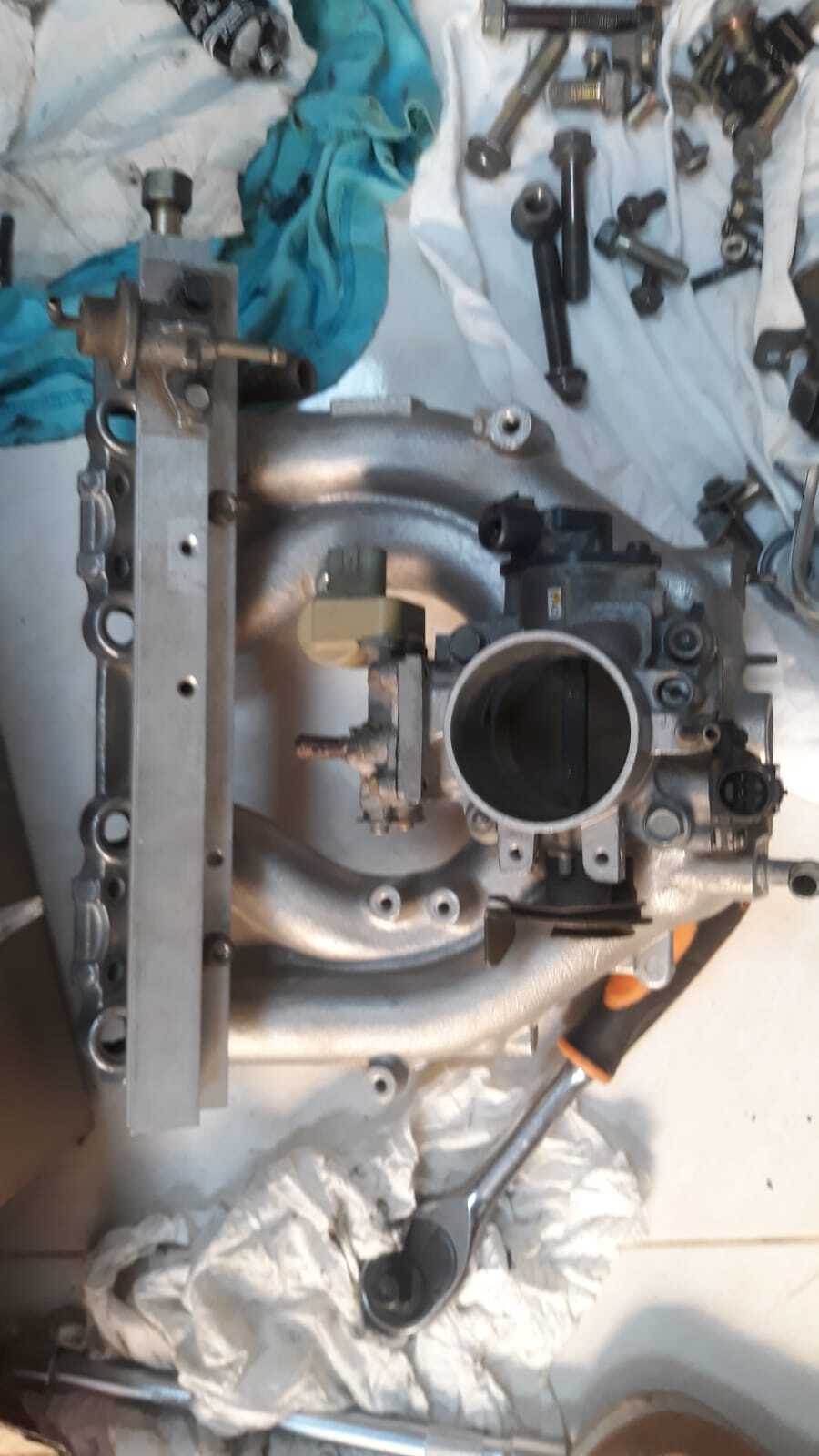

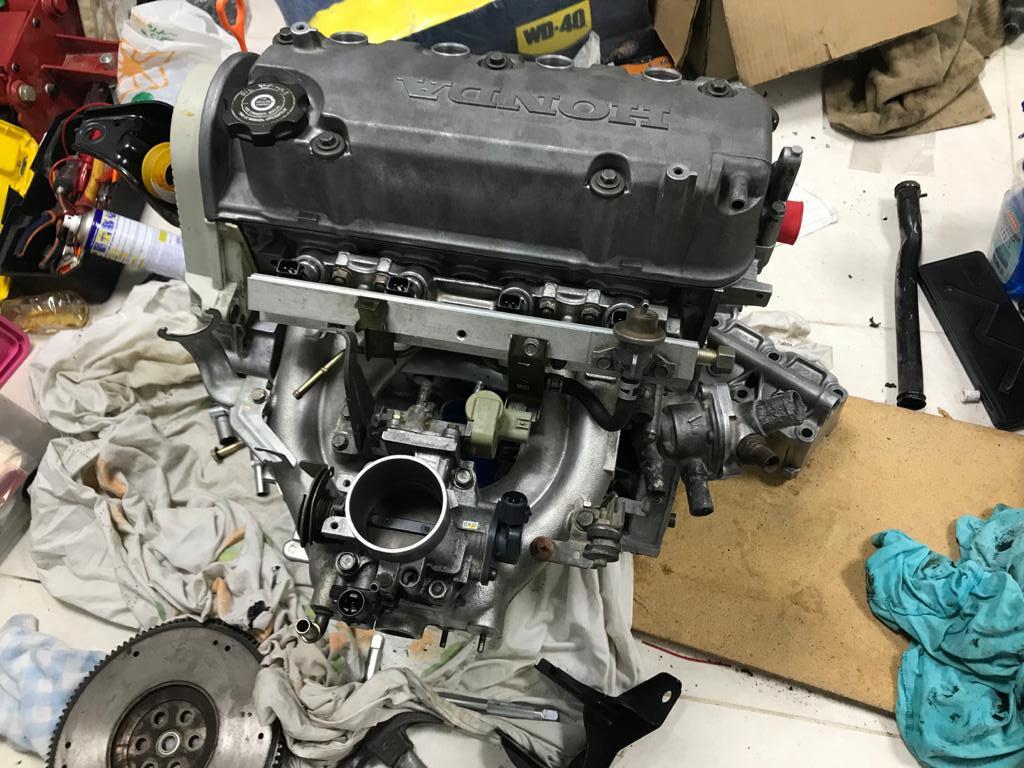

Thermostat and breather installed Intake manifold needs injector bush which are missing

mzeeshan (mzeeshan) 2021-05-13 19:52:00 +0500 #111

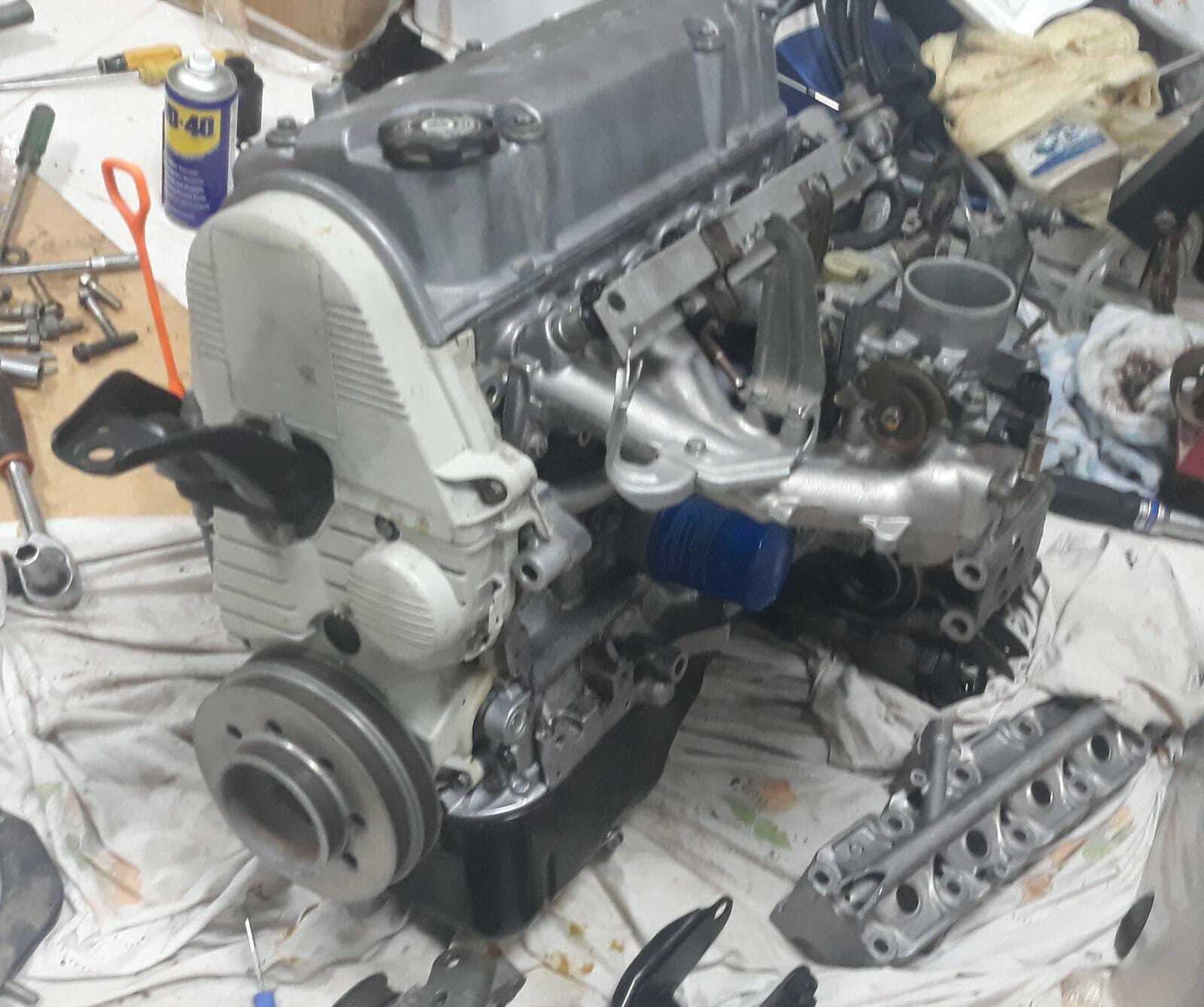

So just before eid i managed to putup the assembly together, and so far it worked.

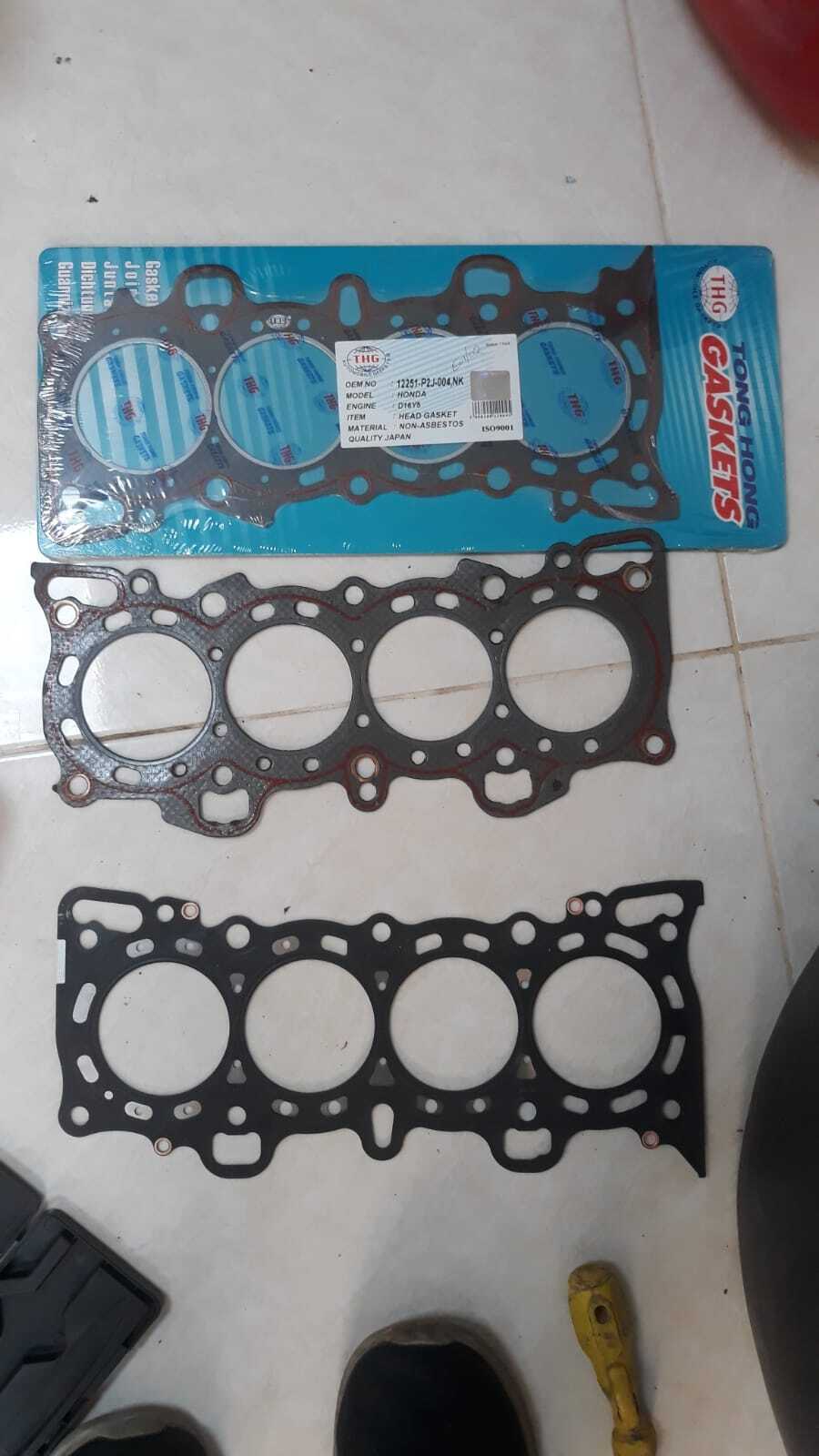

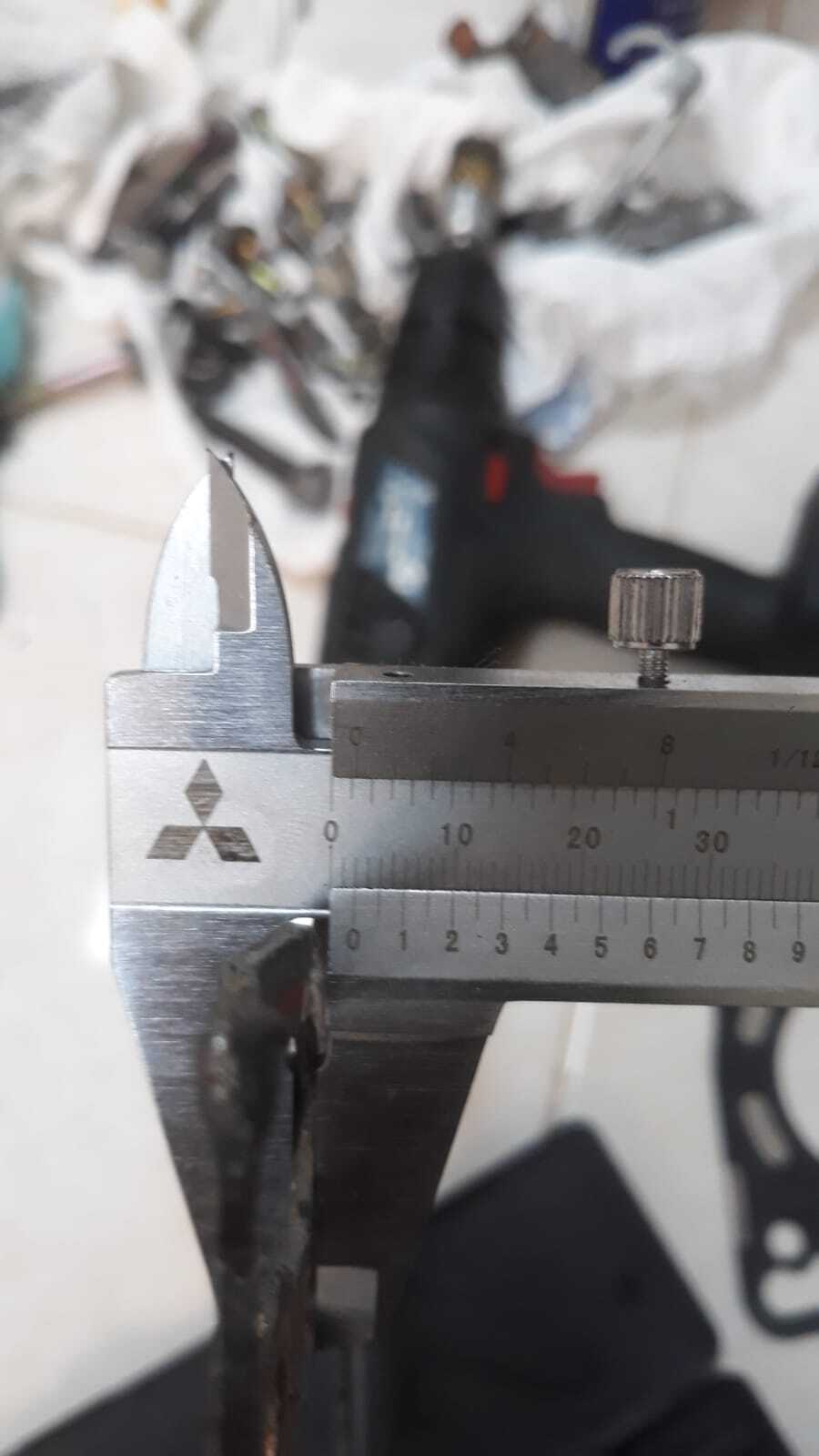

Used brand new 3mm gasket graphite, instead of original MLS 1mm and graphite 2mm.

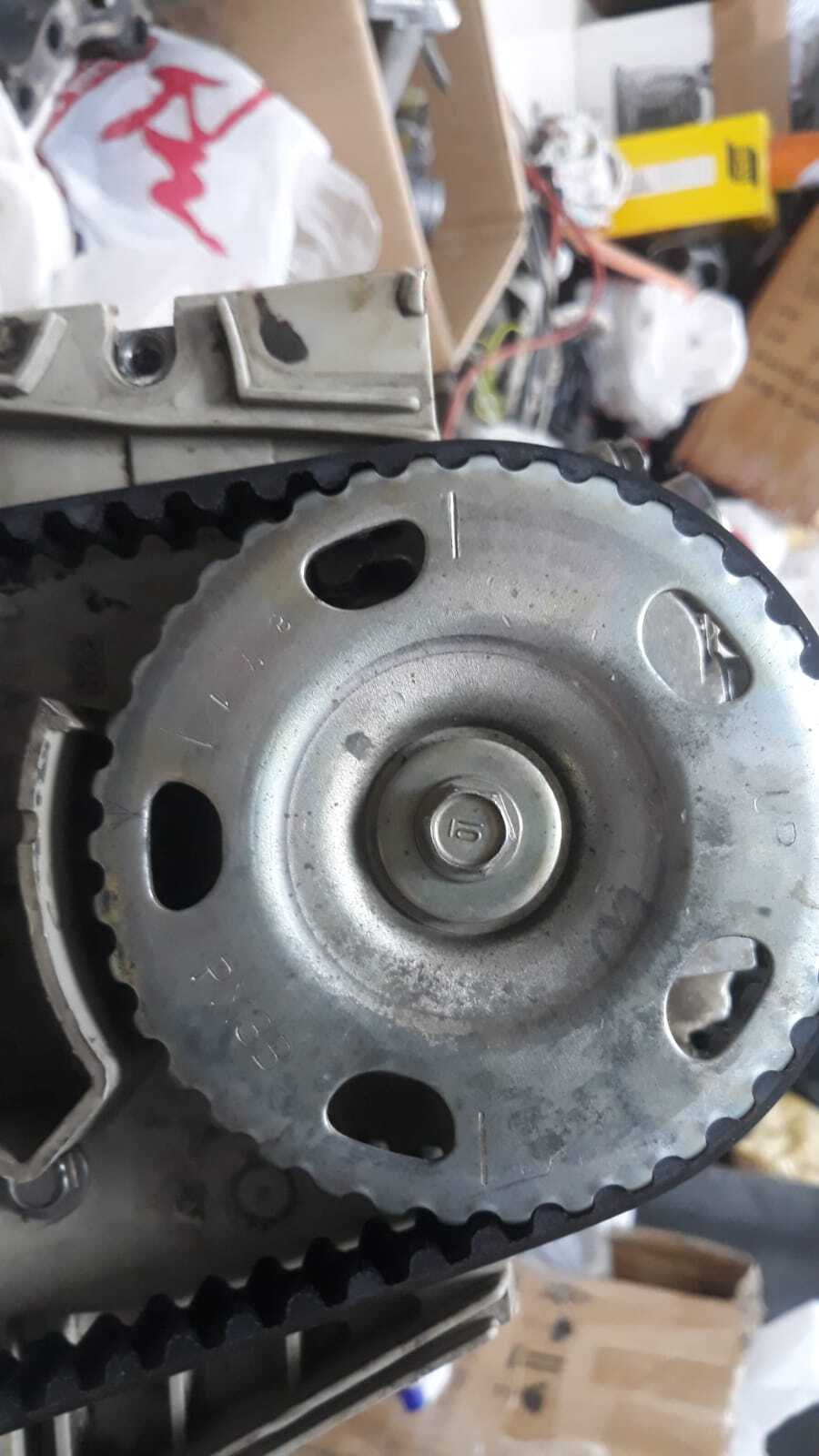

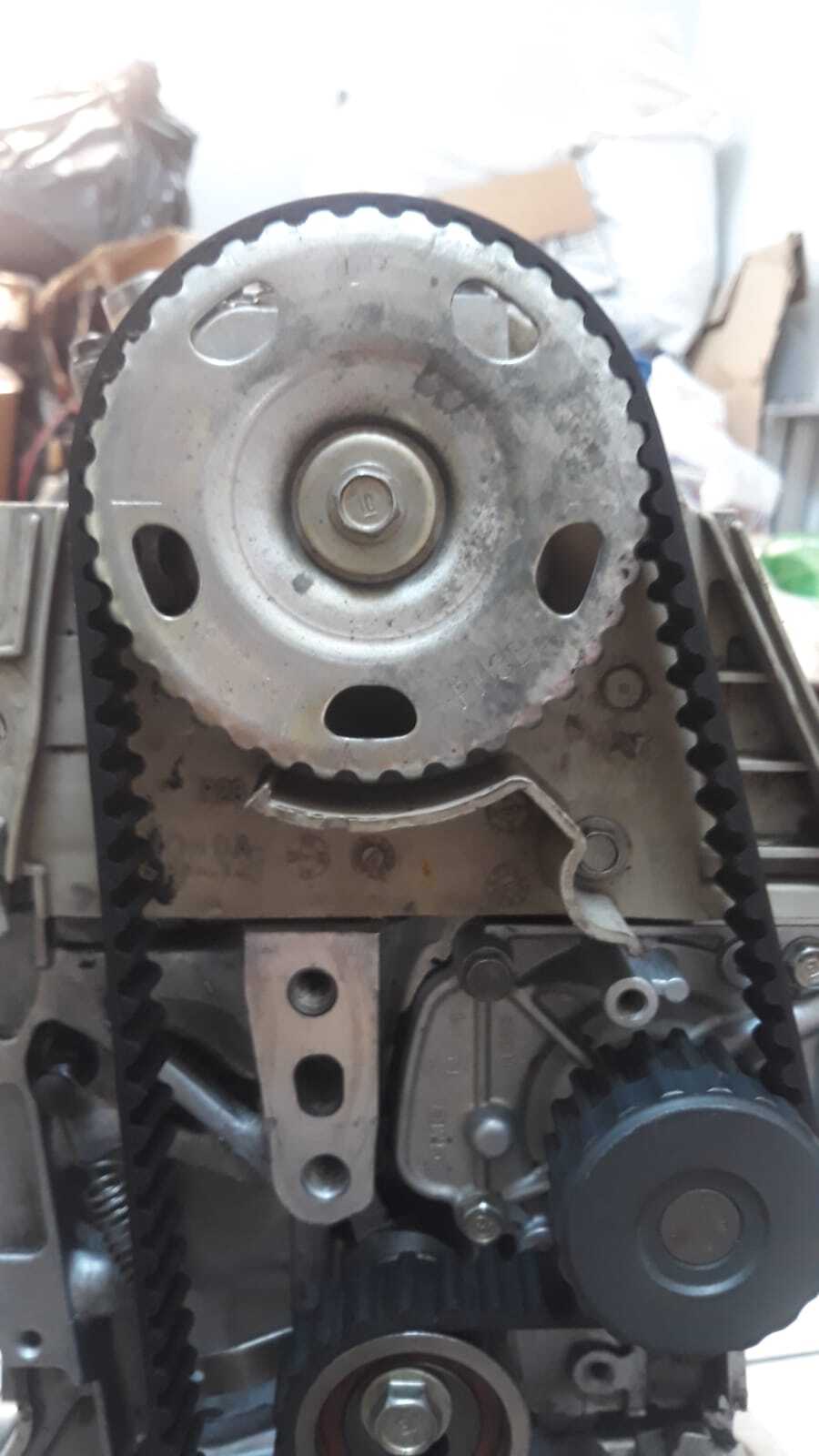

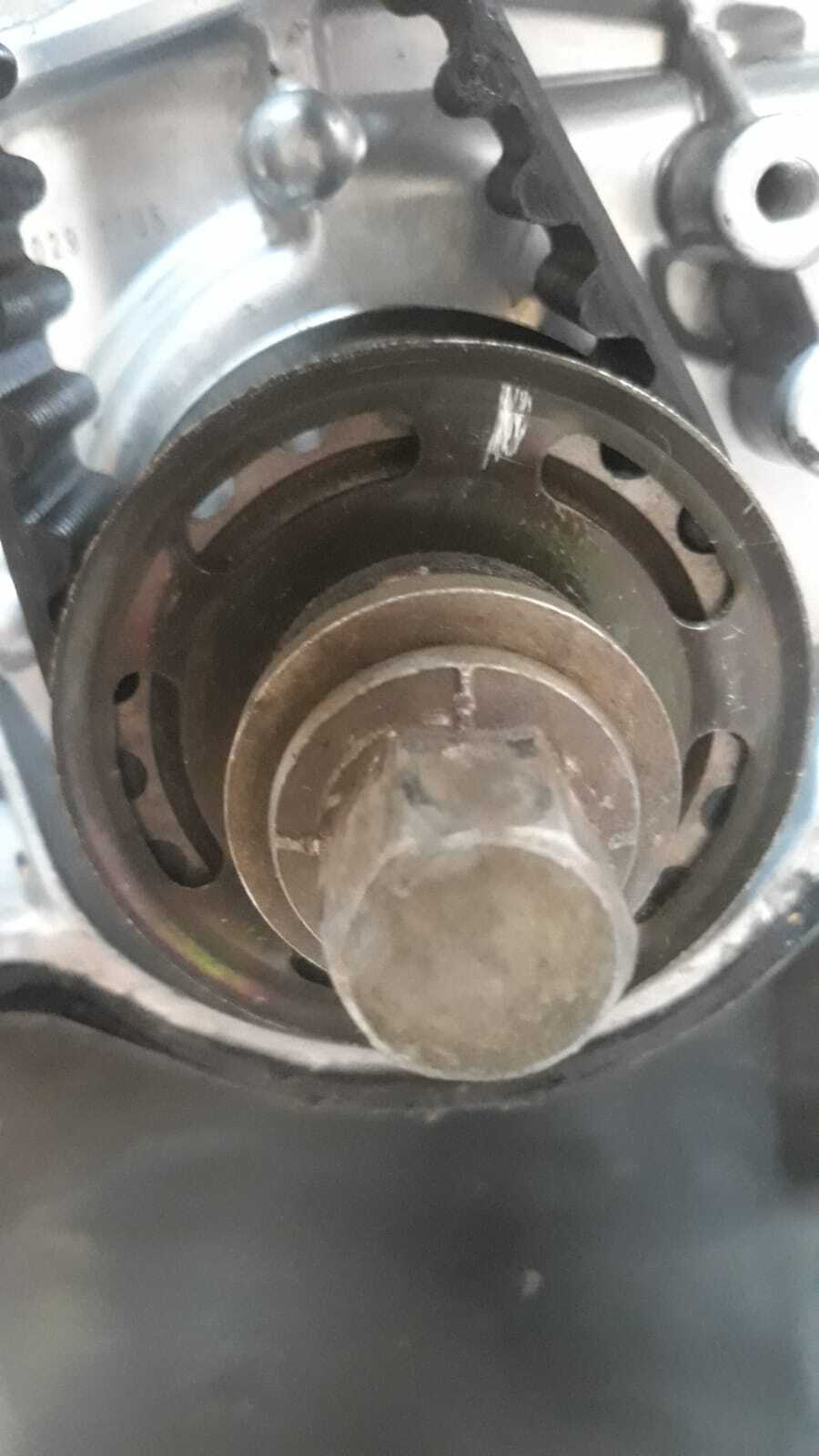

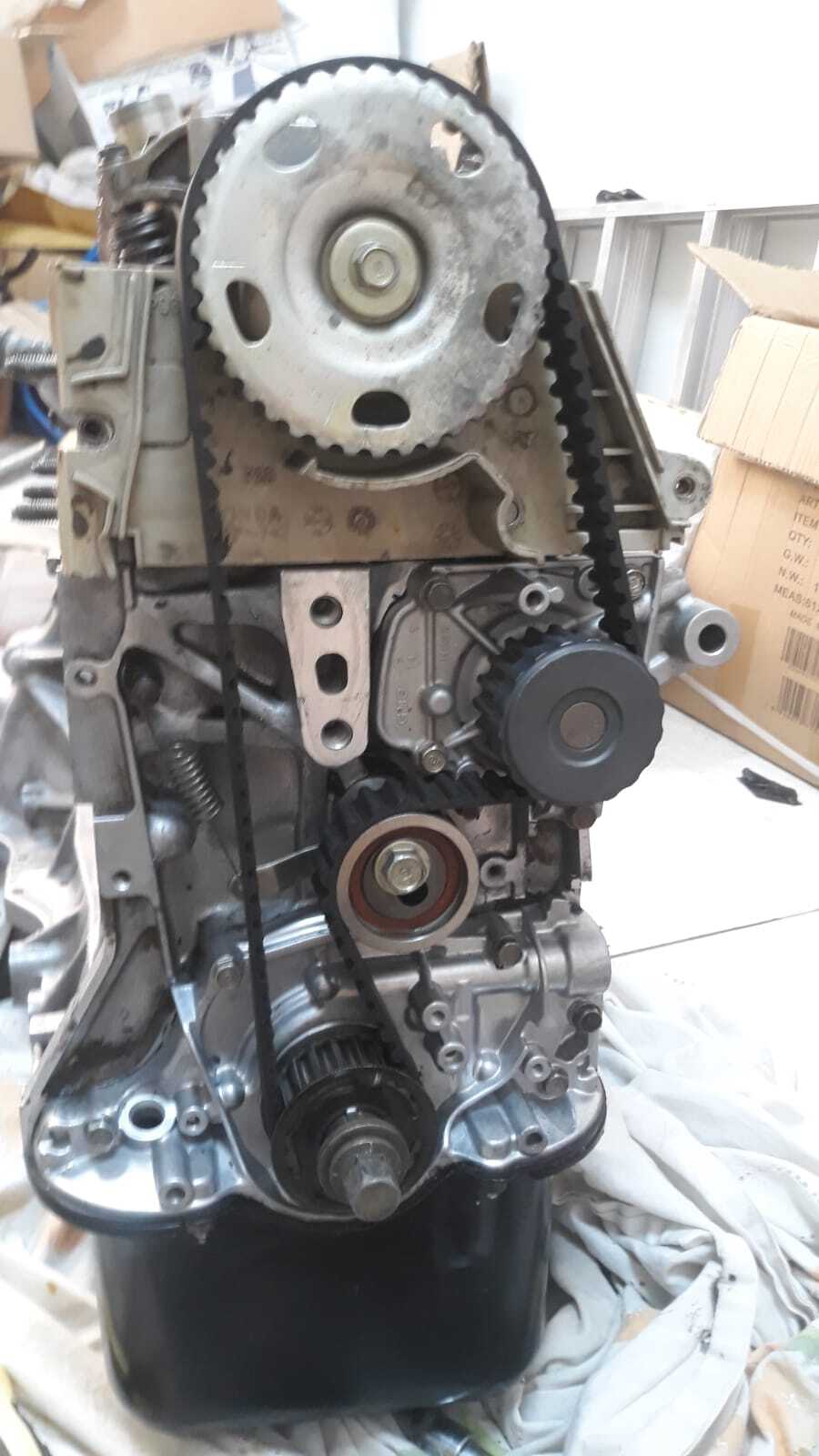

Marked the TDC while checking the actual location of the piston and rotating the crank while timing belt is on .... it was rotating smoothly

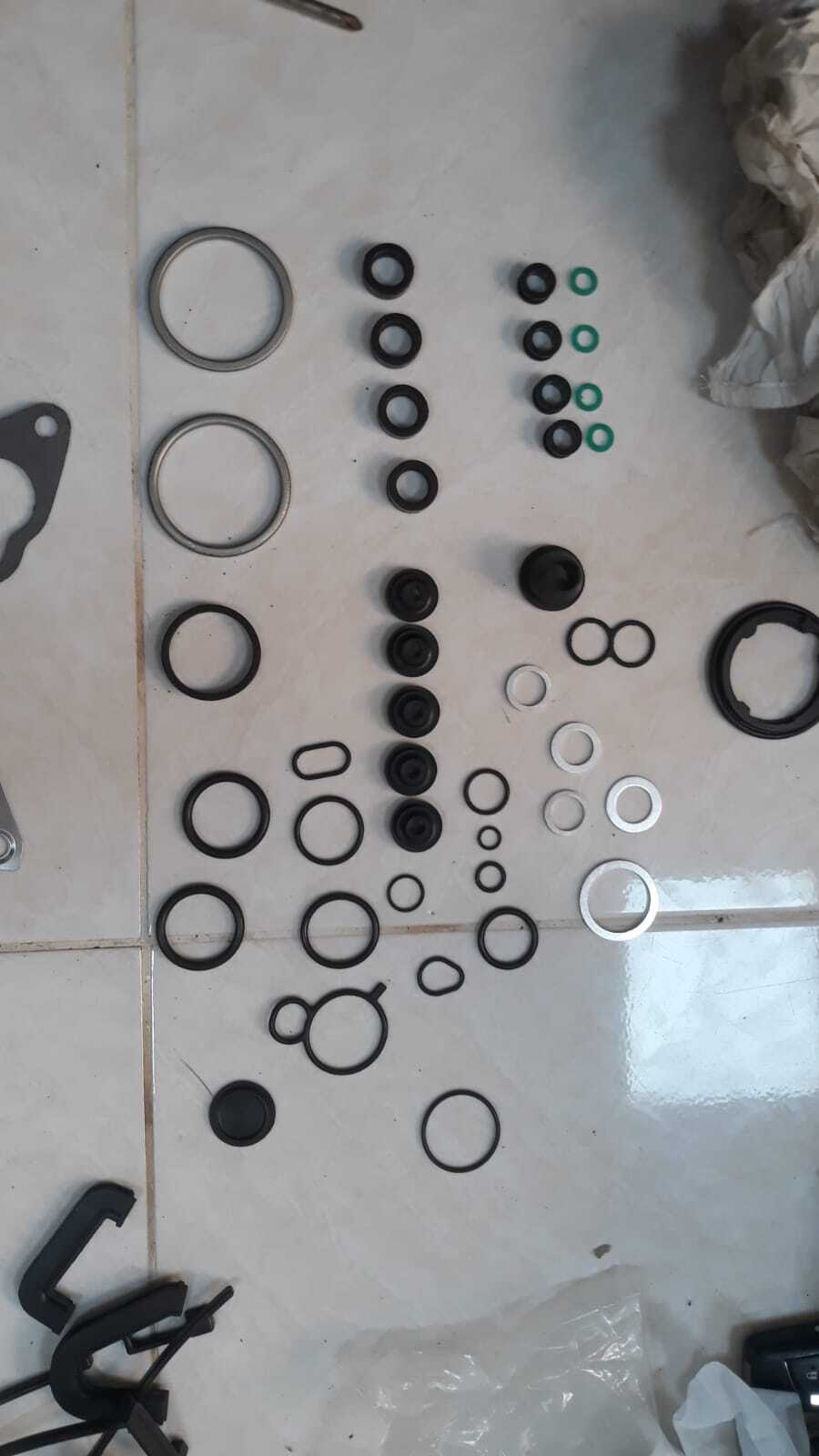

in the end too many seals in a pack got me confused ... some of the seals to the top left were for injectors and center top is for thermostat housing the center 5 rubber washer is for valve cover which can't be fit in rest i am clueless.....

mzeeshan (mzeeshan) 2021-05-16 23:55:54 +0500 #112

Coming into shape slowly .... dirty but still looks good

mzeeshan (mzeeshan) 2021-06-22 10:59:07 +0500 #113

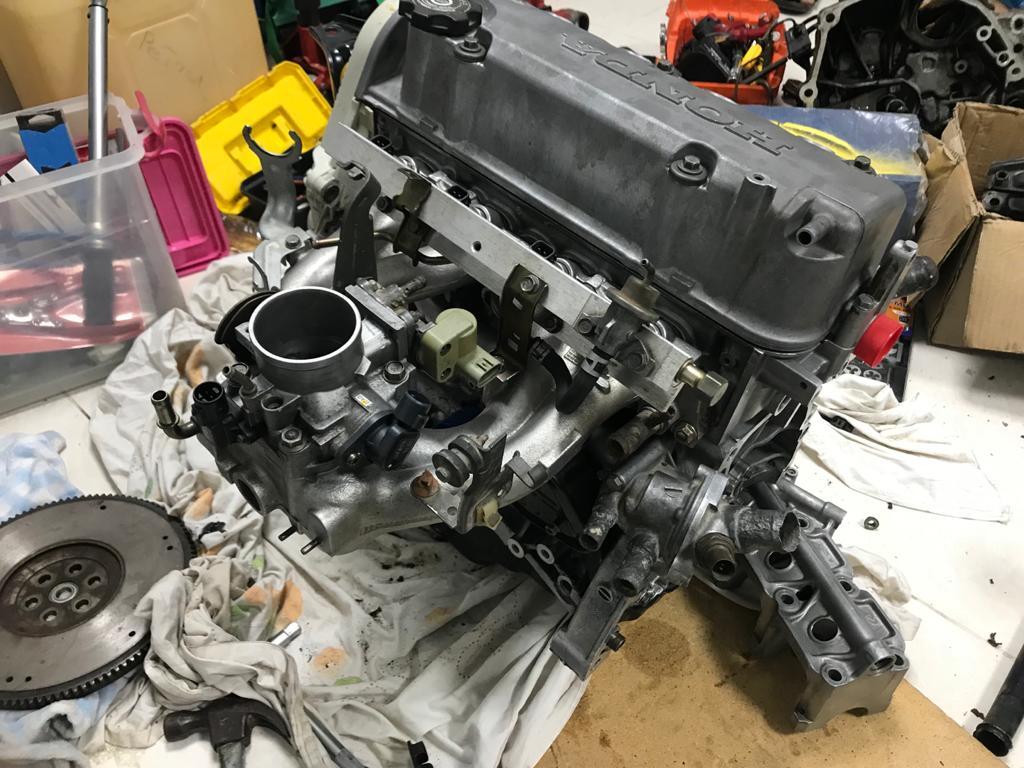

After a while completed the timing cover installation intake manifold assembly some bits and pieces are left but it getting back in shape.

shabbir.1 (Shabbir Ahmad) 2021-06-22 19:21:40 +0500 #114

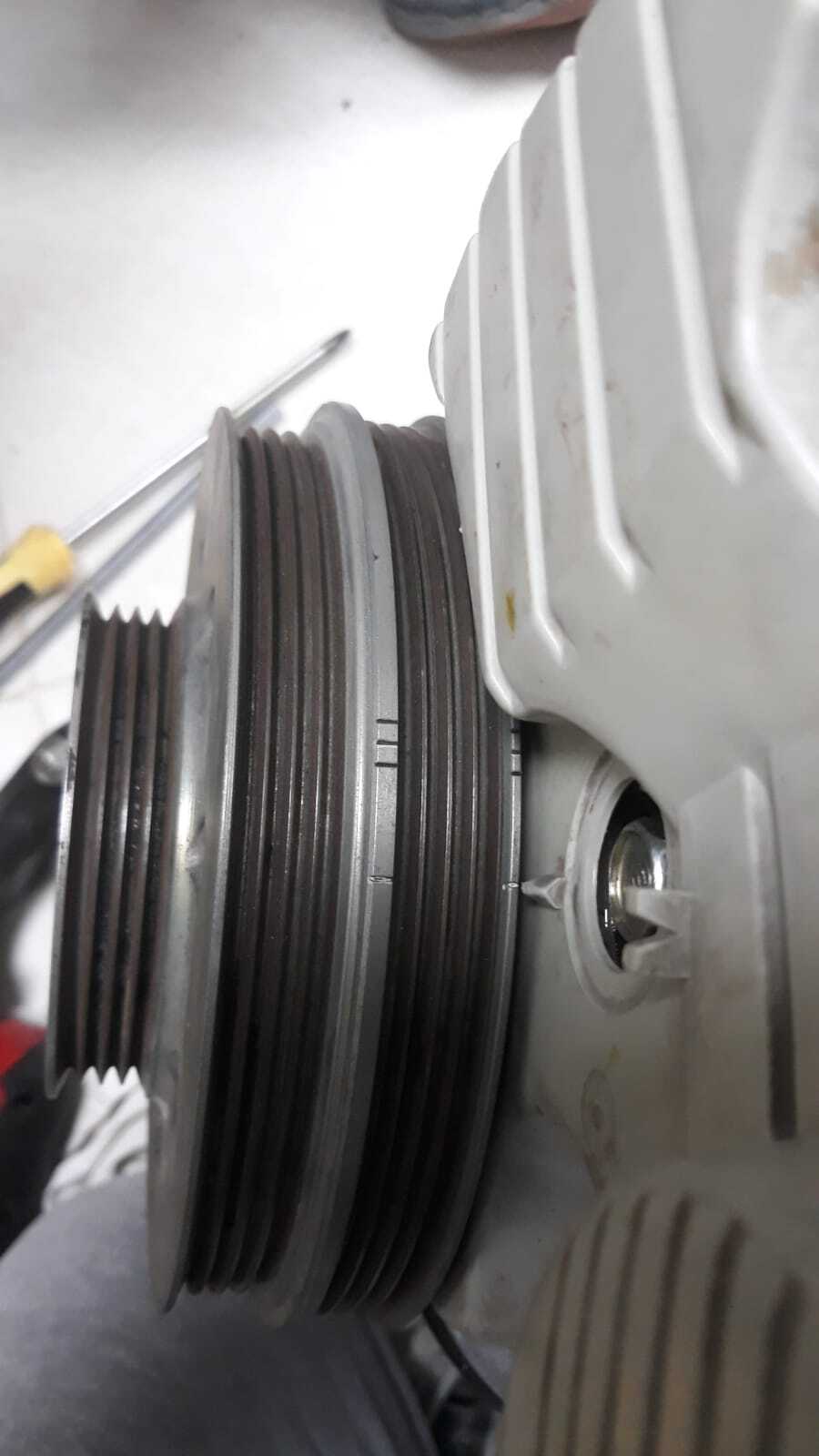

It's good time now, paint the timing marks on the harmonic balancer in white and red color paint.

mzeeshan (mzeeshan) 2021-06-23 10:37:44 +0500 #115

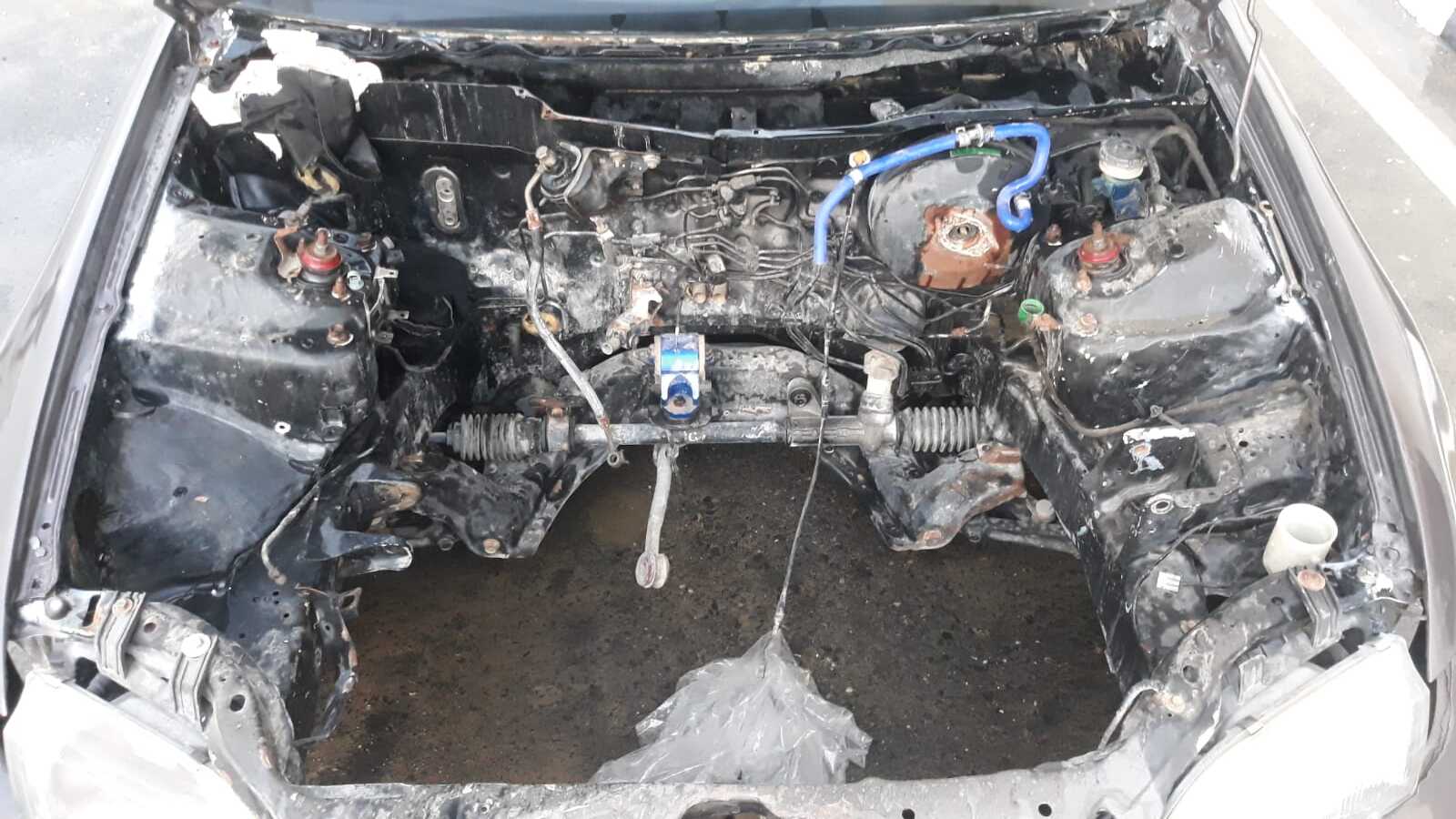

After some struggle able to install AC components including blower, evaporator and heater coil unit solo.

Some glimpse of engine assembly almost ready just going through step by step..

mzeeshan (mzeeshan) 2021-07-03 13:38:09 +0500 #117

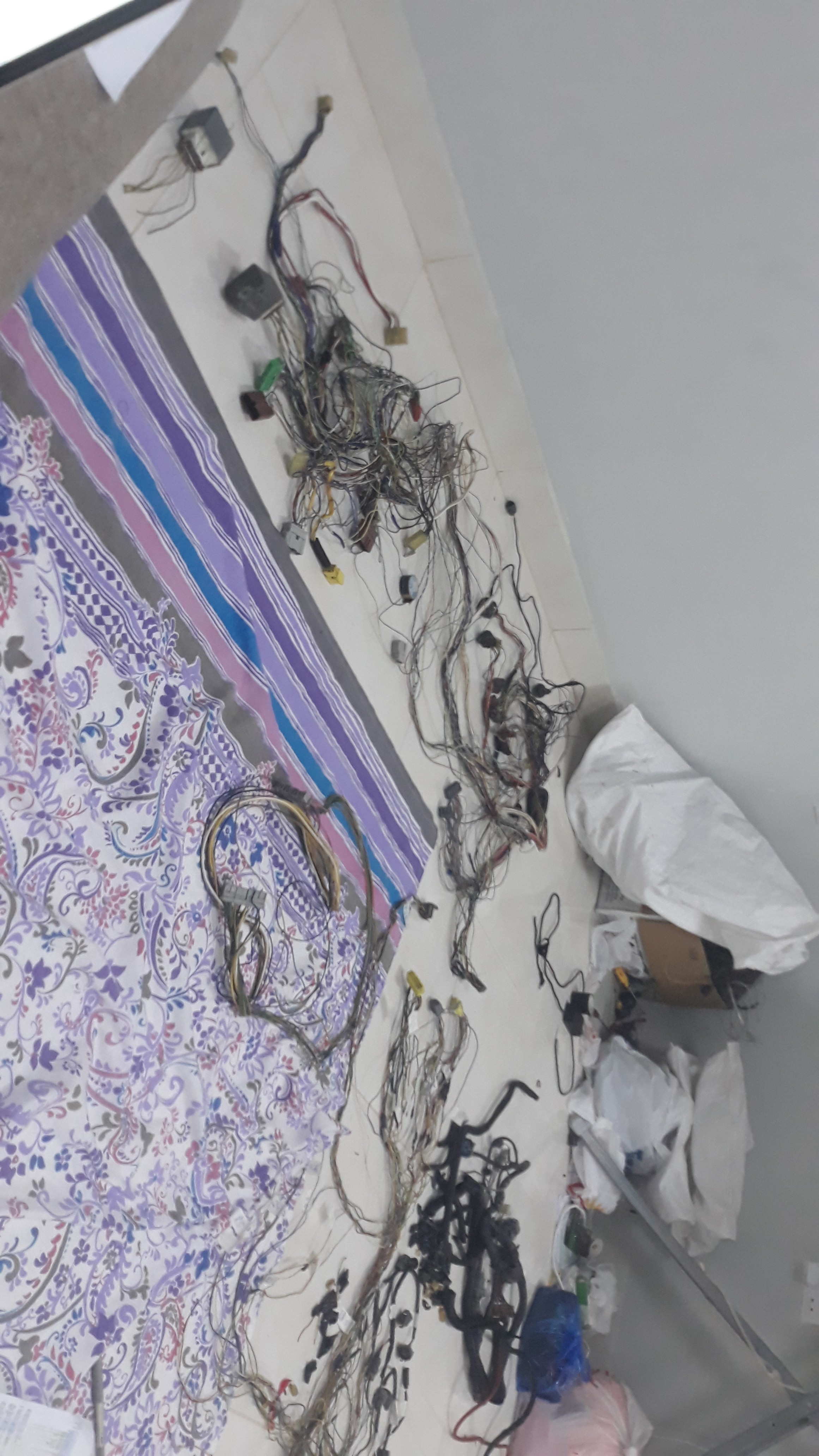

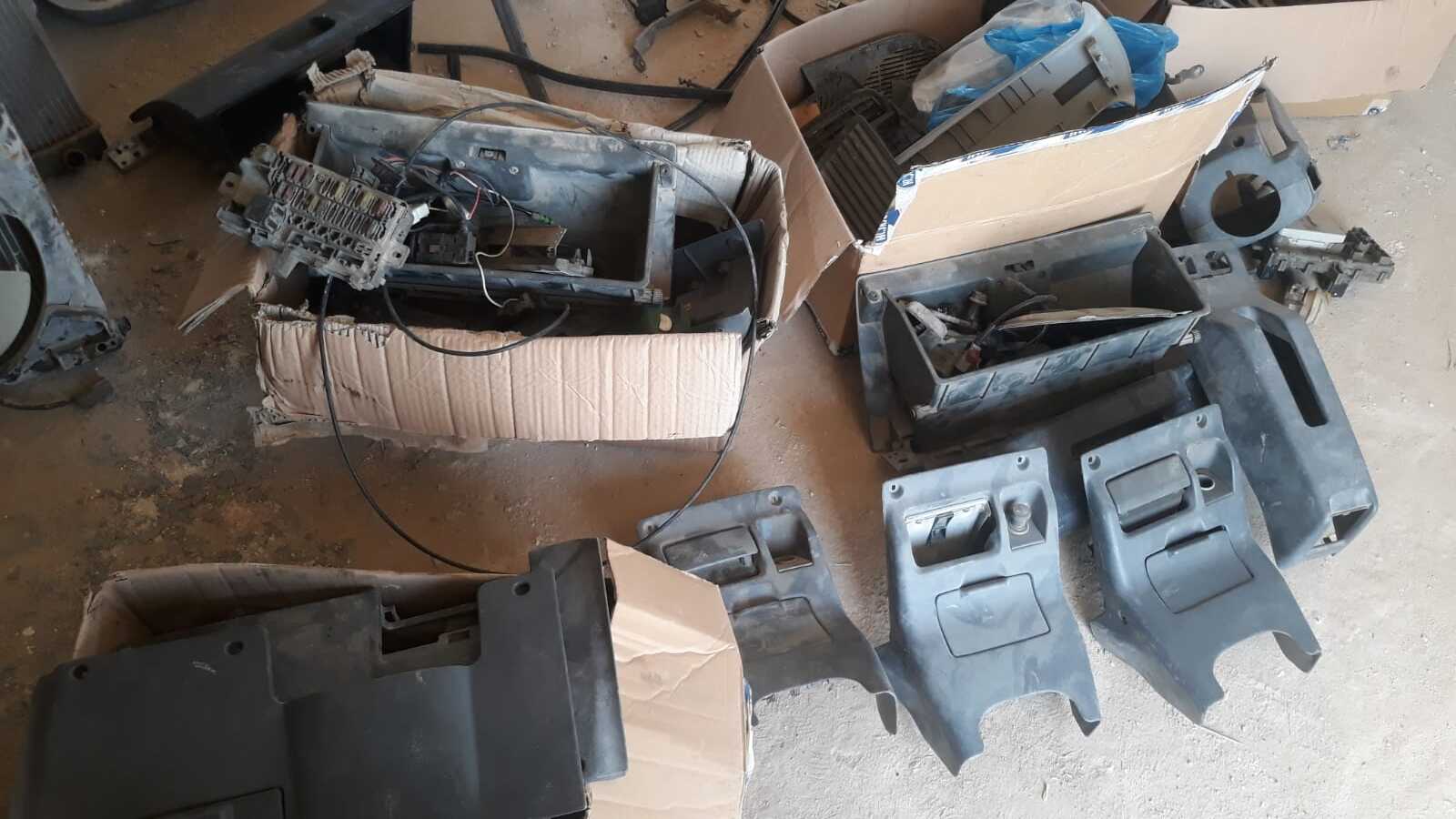

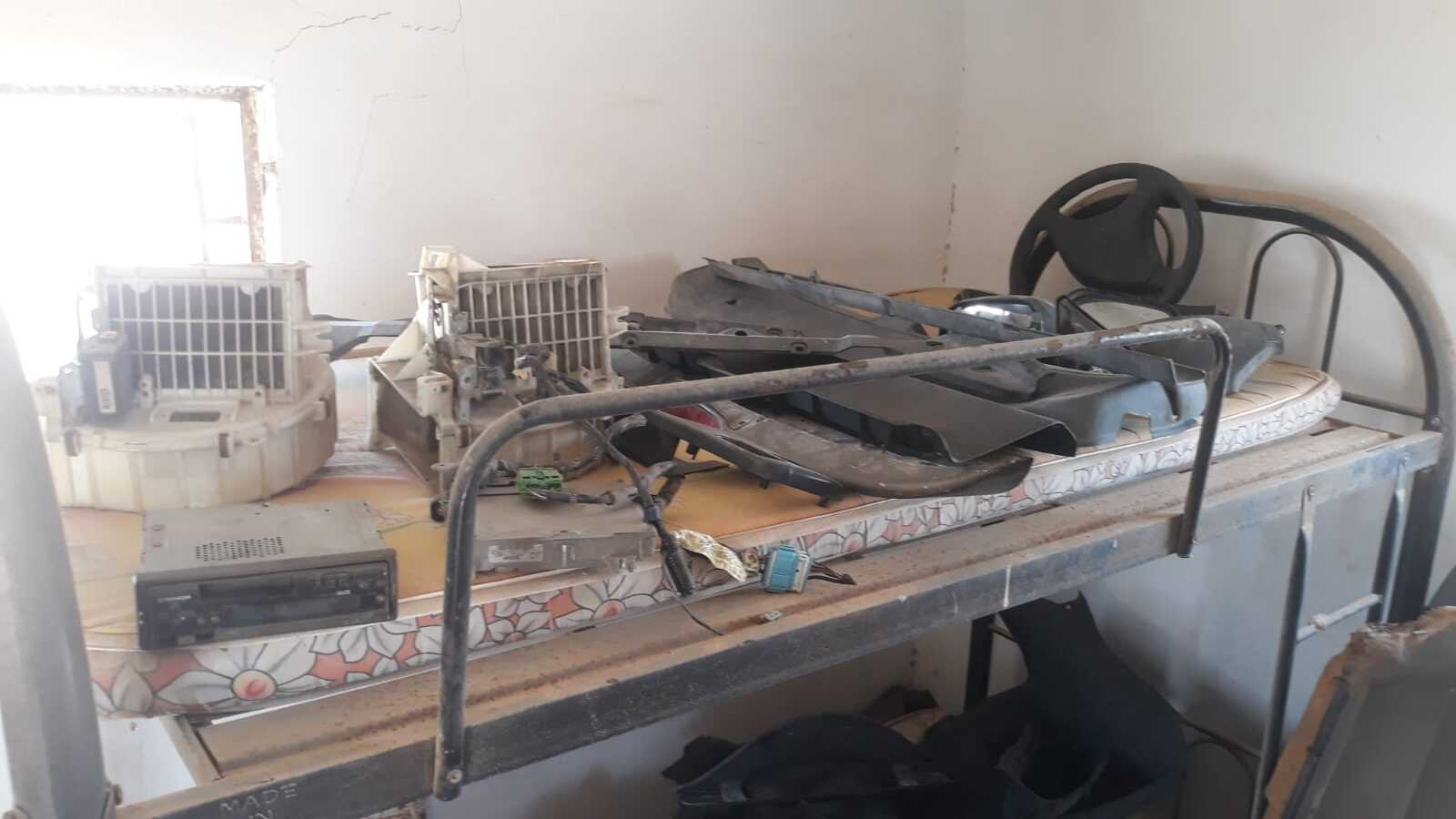

Preparig dashboard and dash witing harness

mzeeshan (mzeeshan) 2021-08-09 22:15:27 +0500 #118

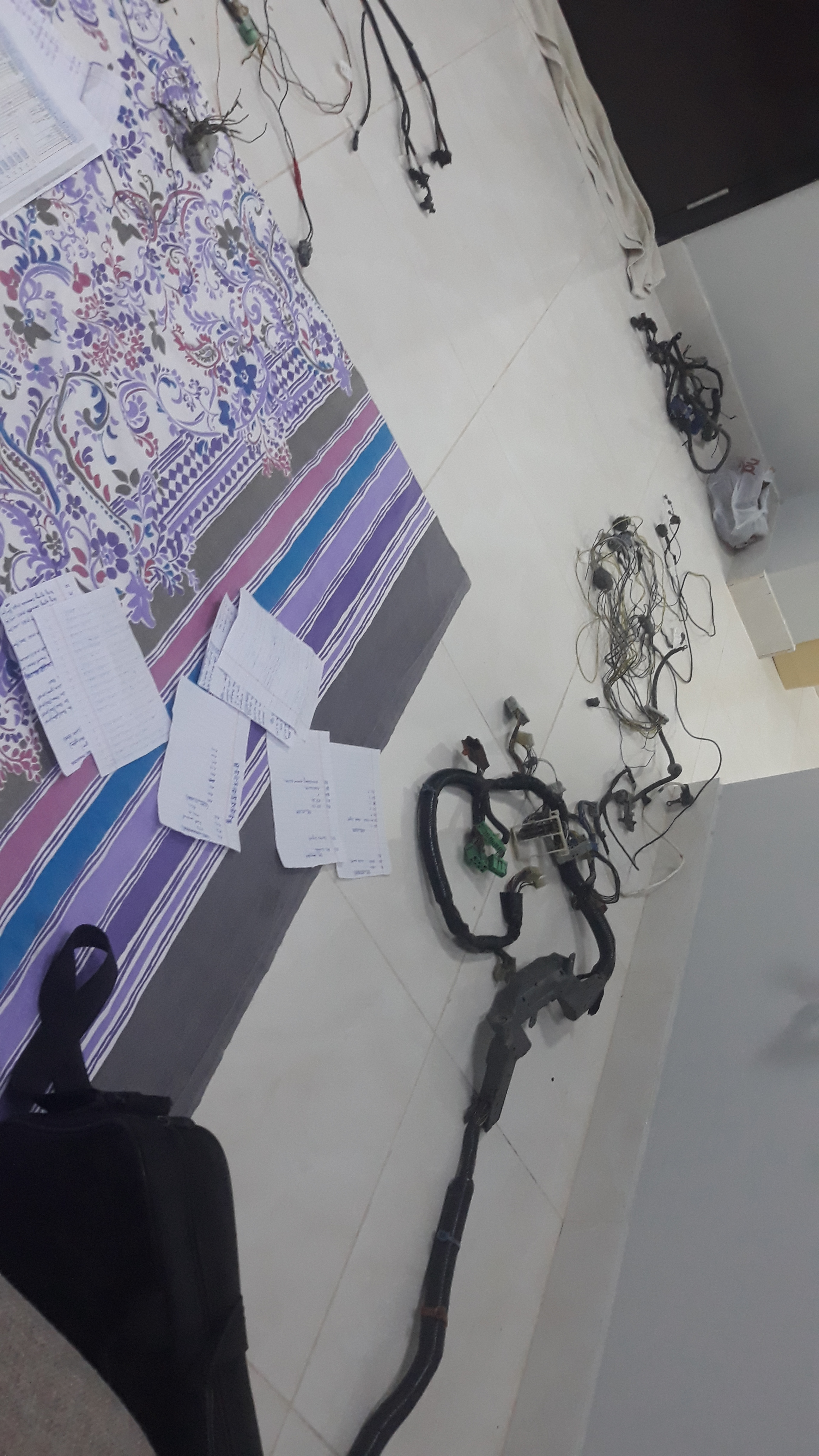

Workimg through main wiring harness and engine wiring section

mzeeshan (mzeeshan) 2021-08-11 20:38:09 +0500 #119

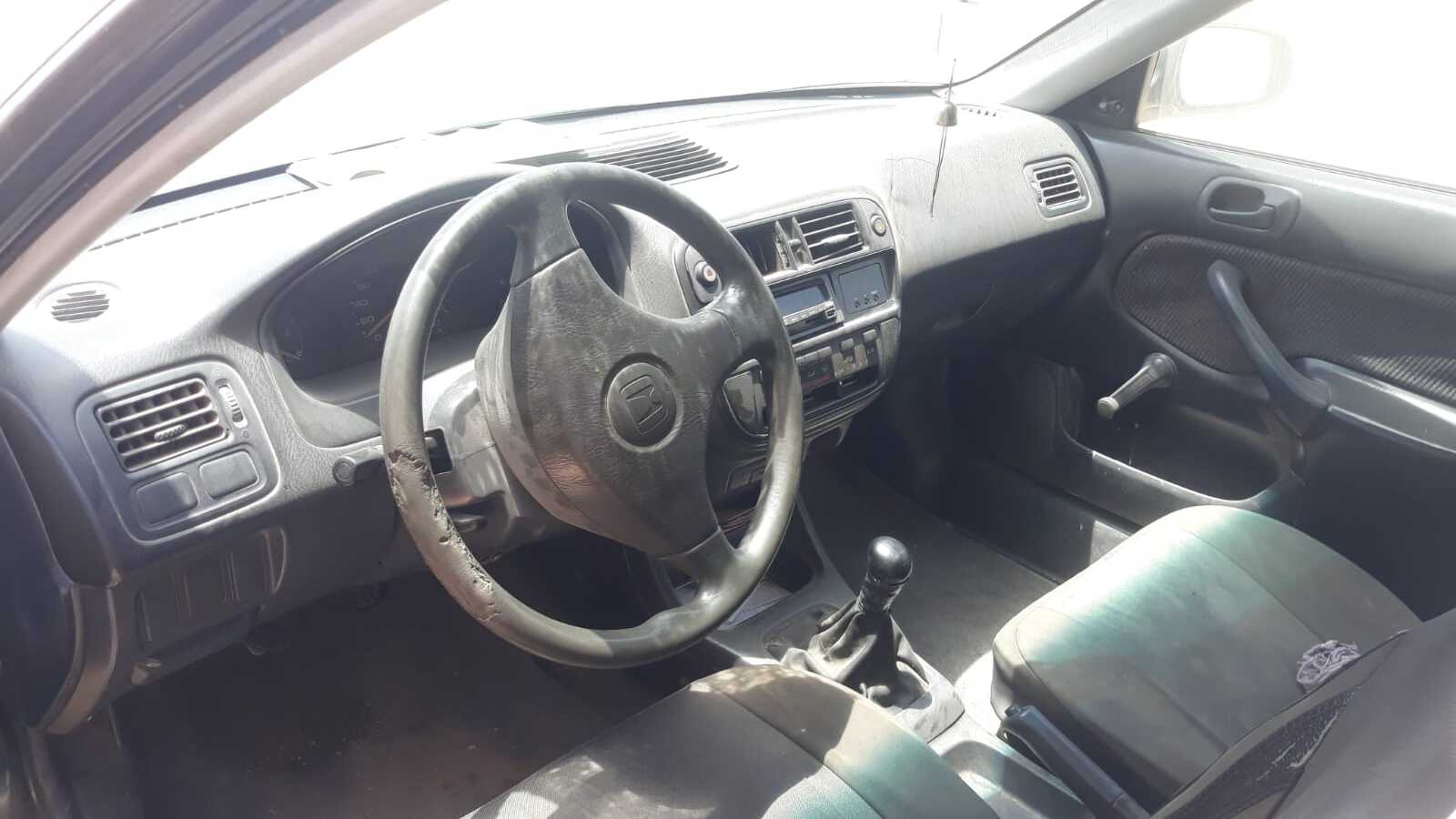

Dash back in place finally good to see the interior getting back in shape .... stil lots of work to be done .... but slow and steady .... cleaning the exterior with water as of now .... engine room needs washing and some touchups......

mzeeshan (mzeeshan) 2021-08-11 20:39:00 +0500 #120

Pikachooo

mzeeshan (mzeeshan) 2021-08-11 20:47:51 +0500 #121

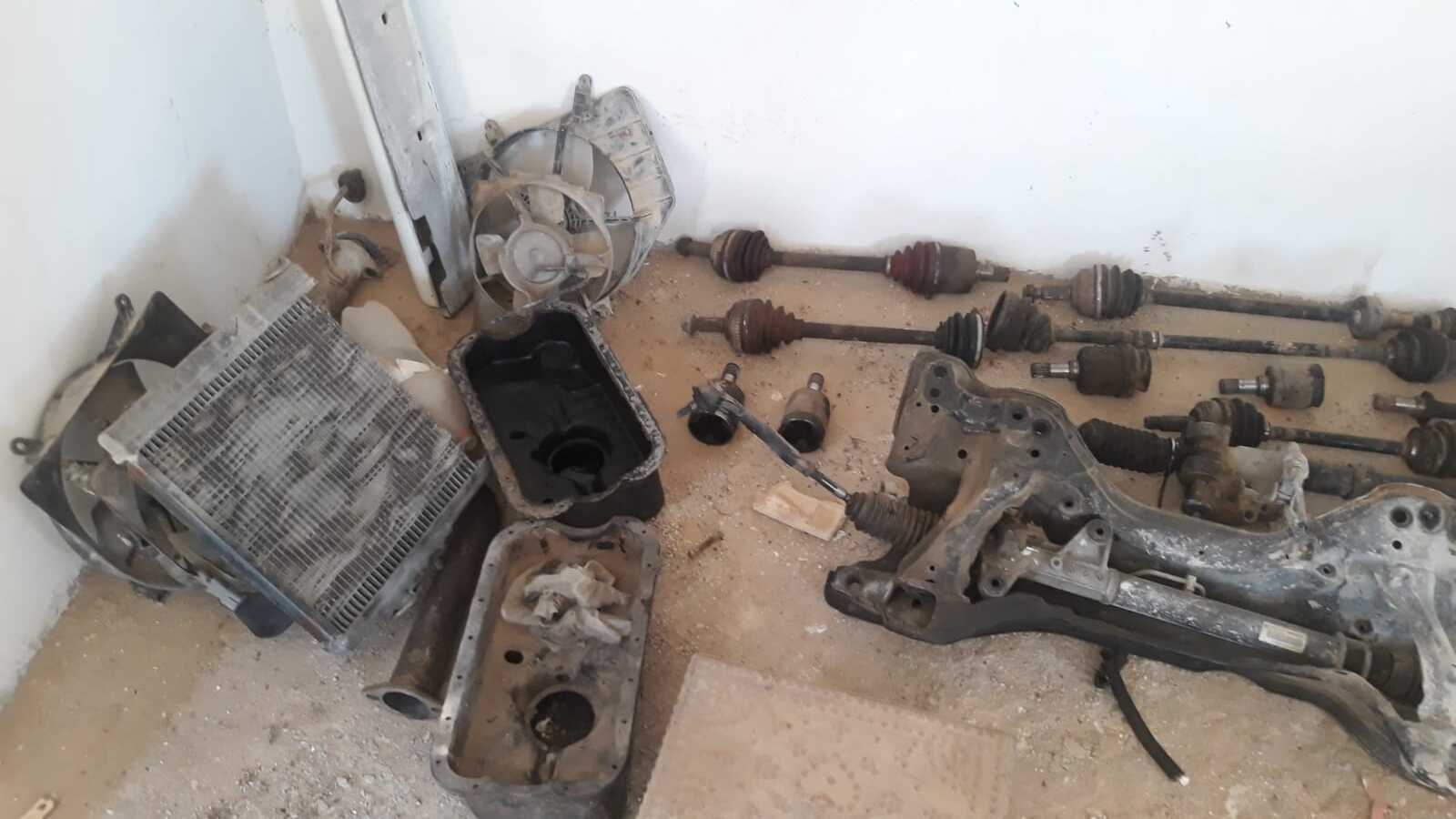

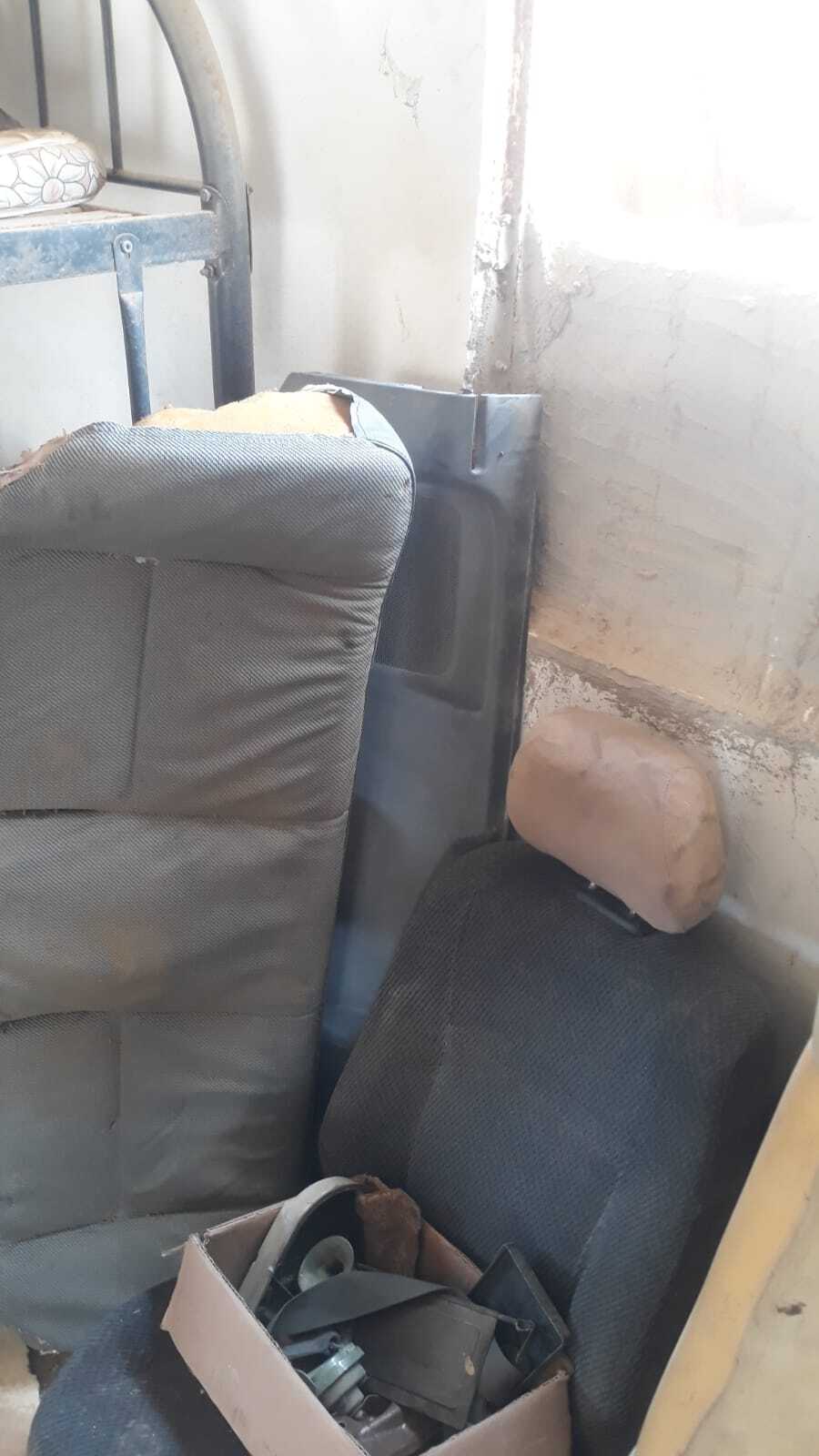

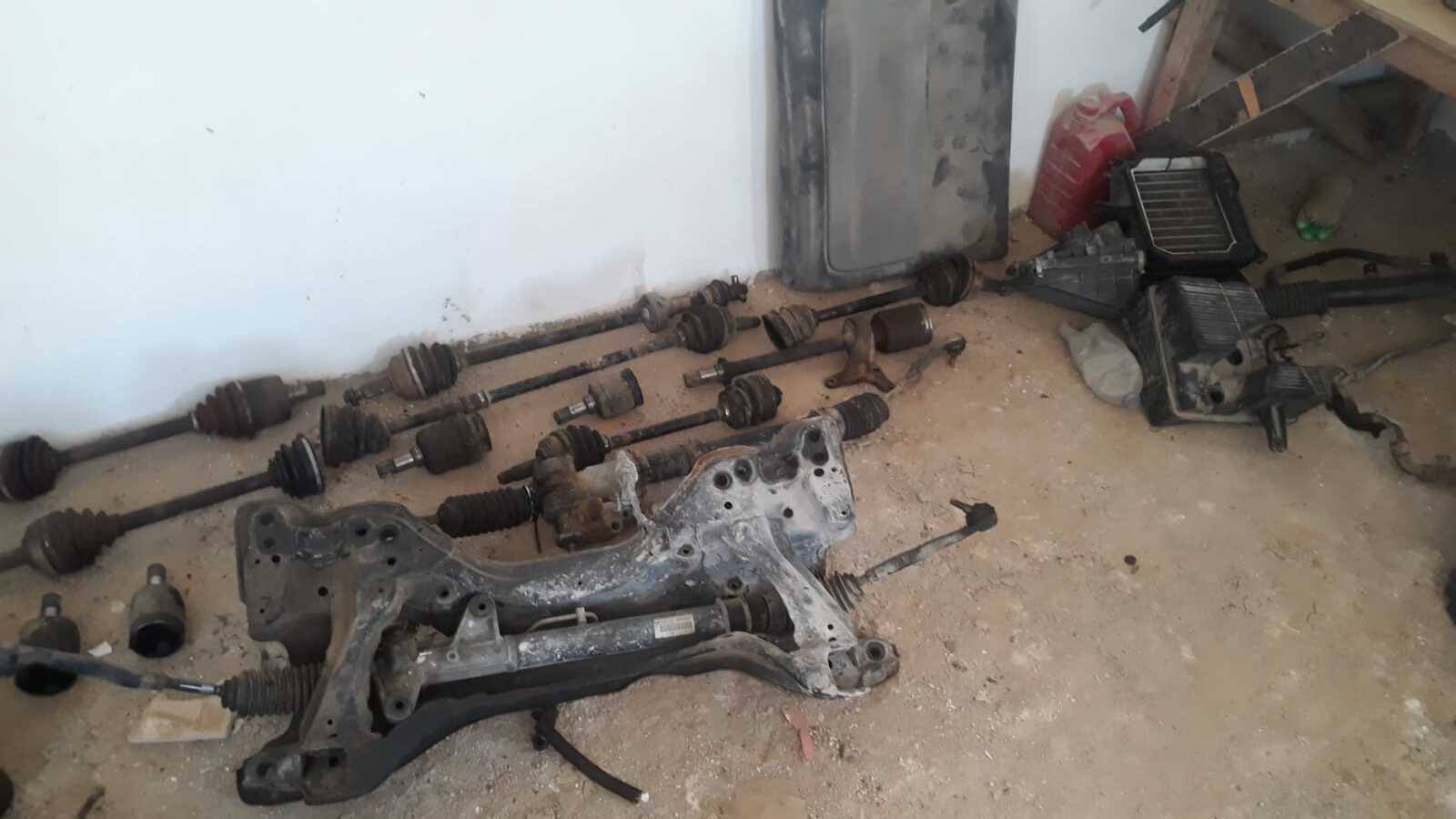

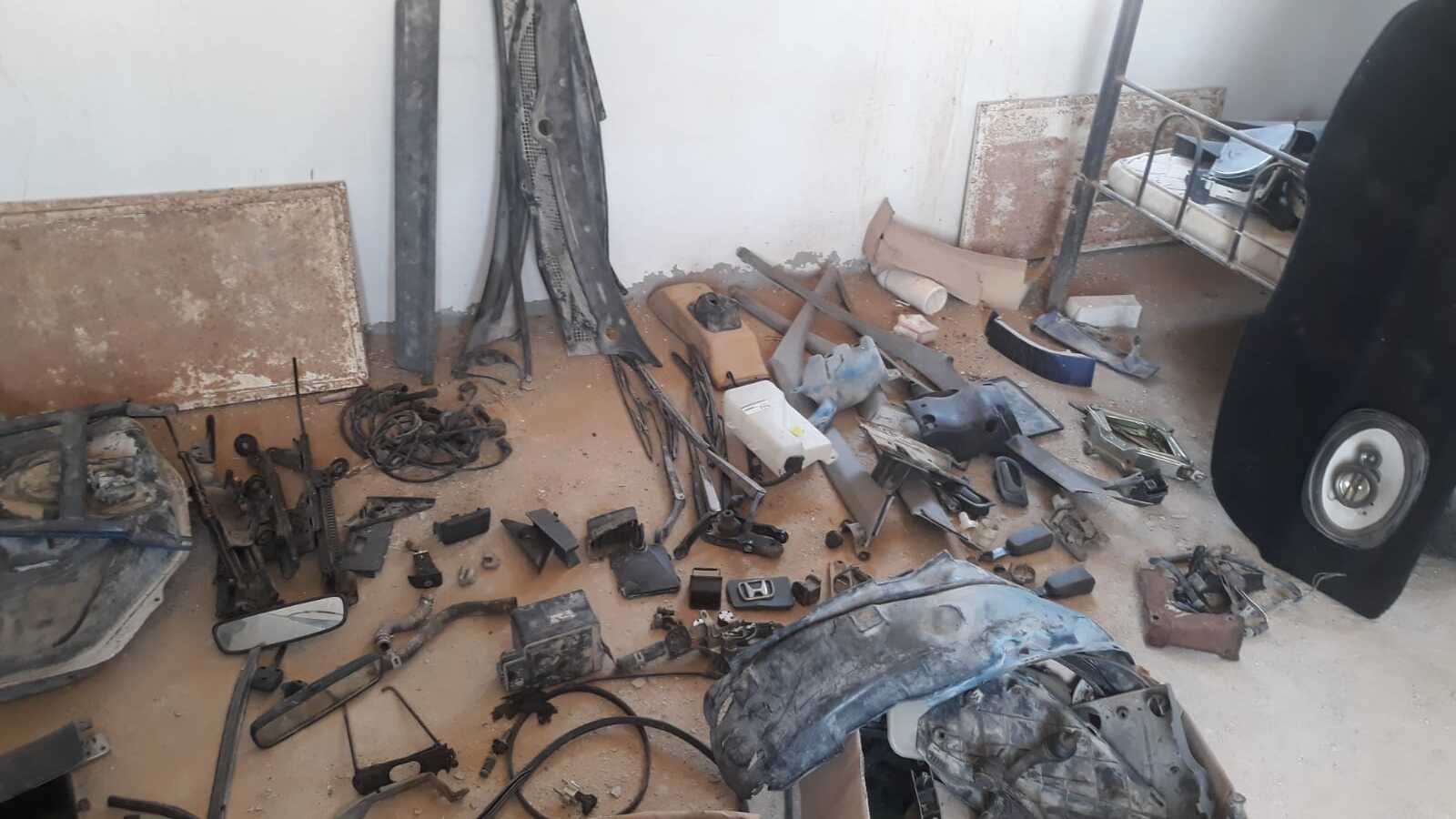

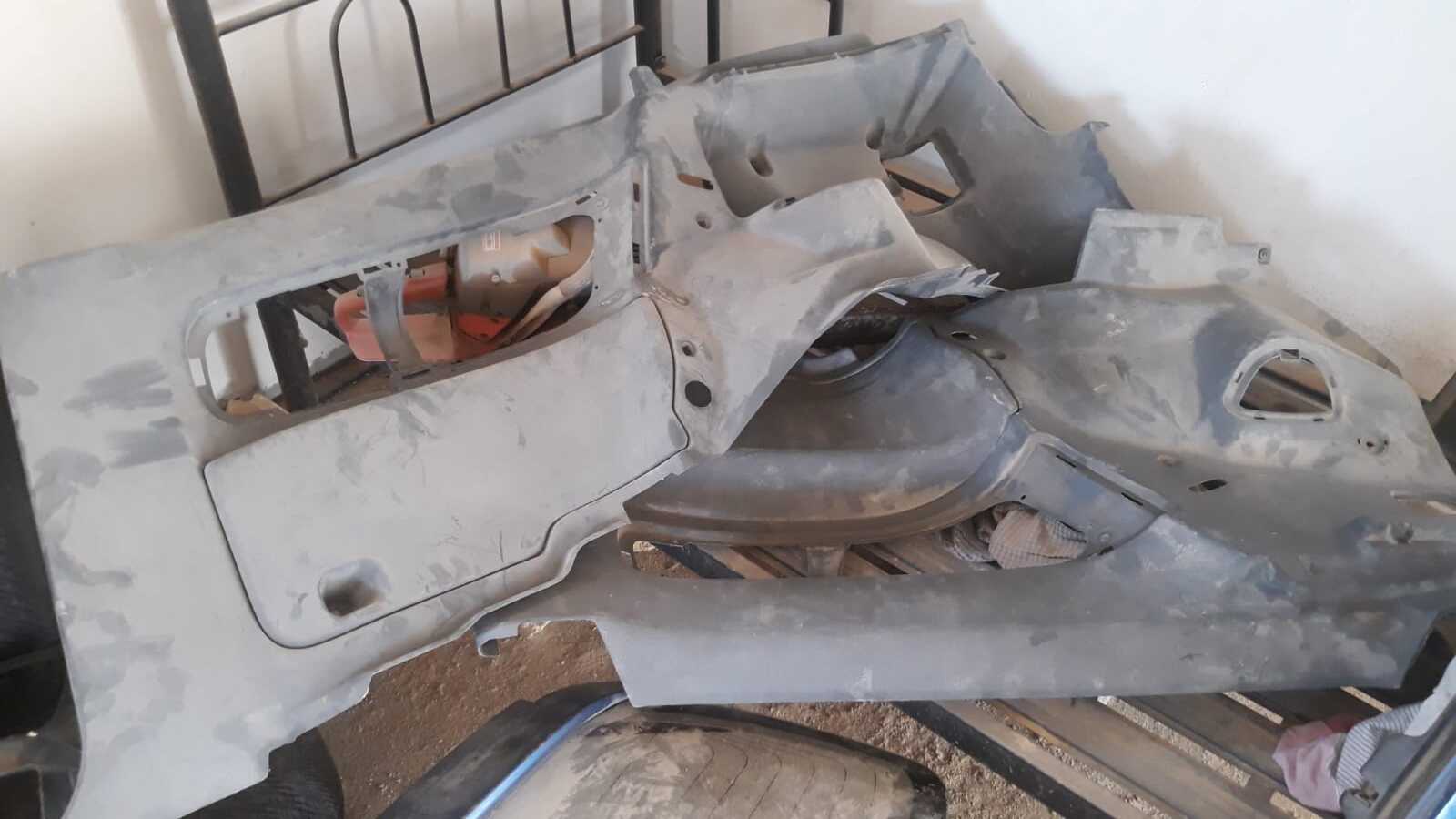

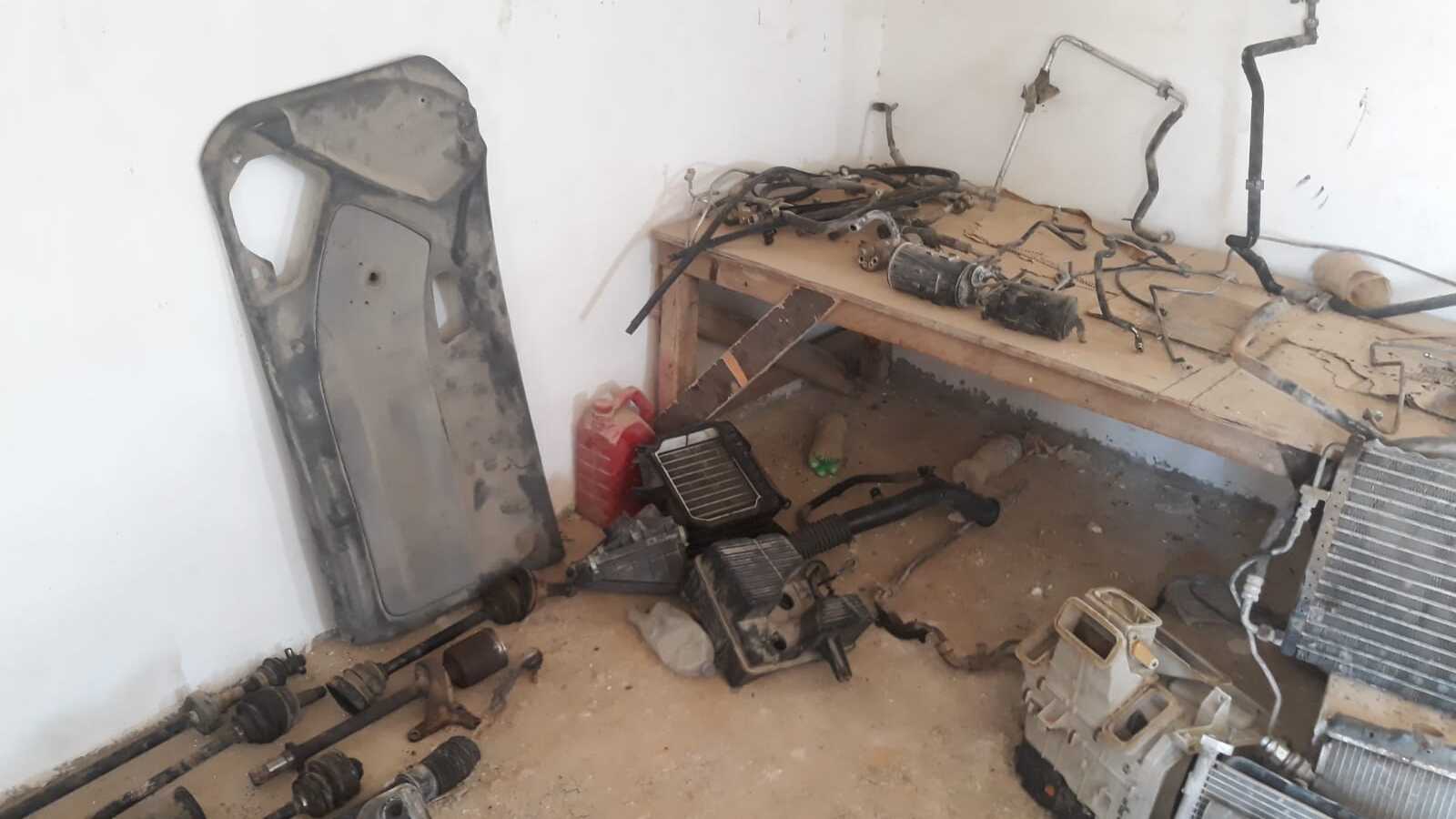

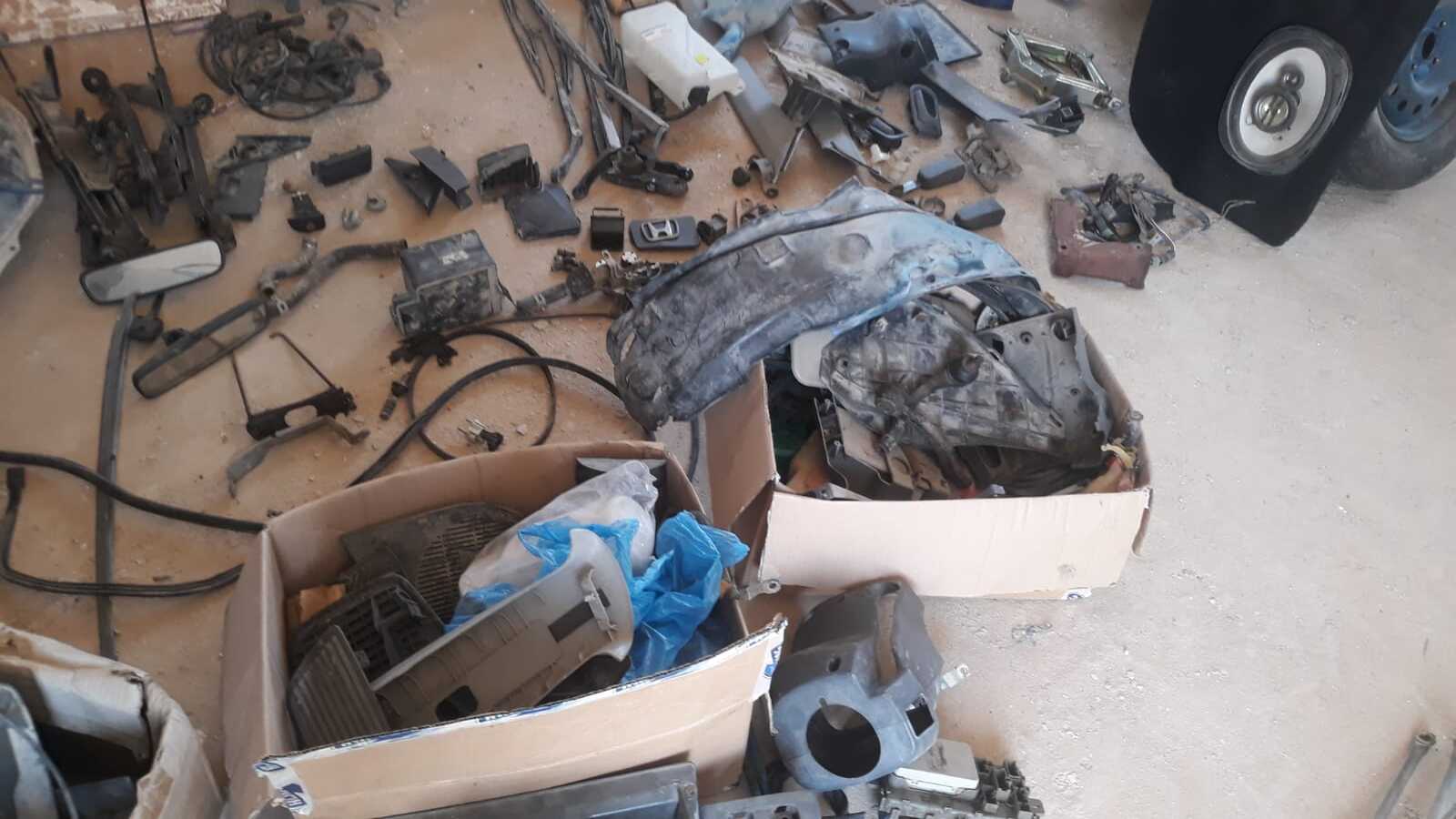

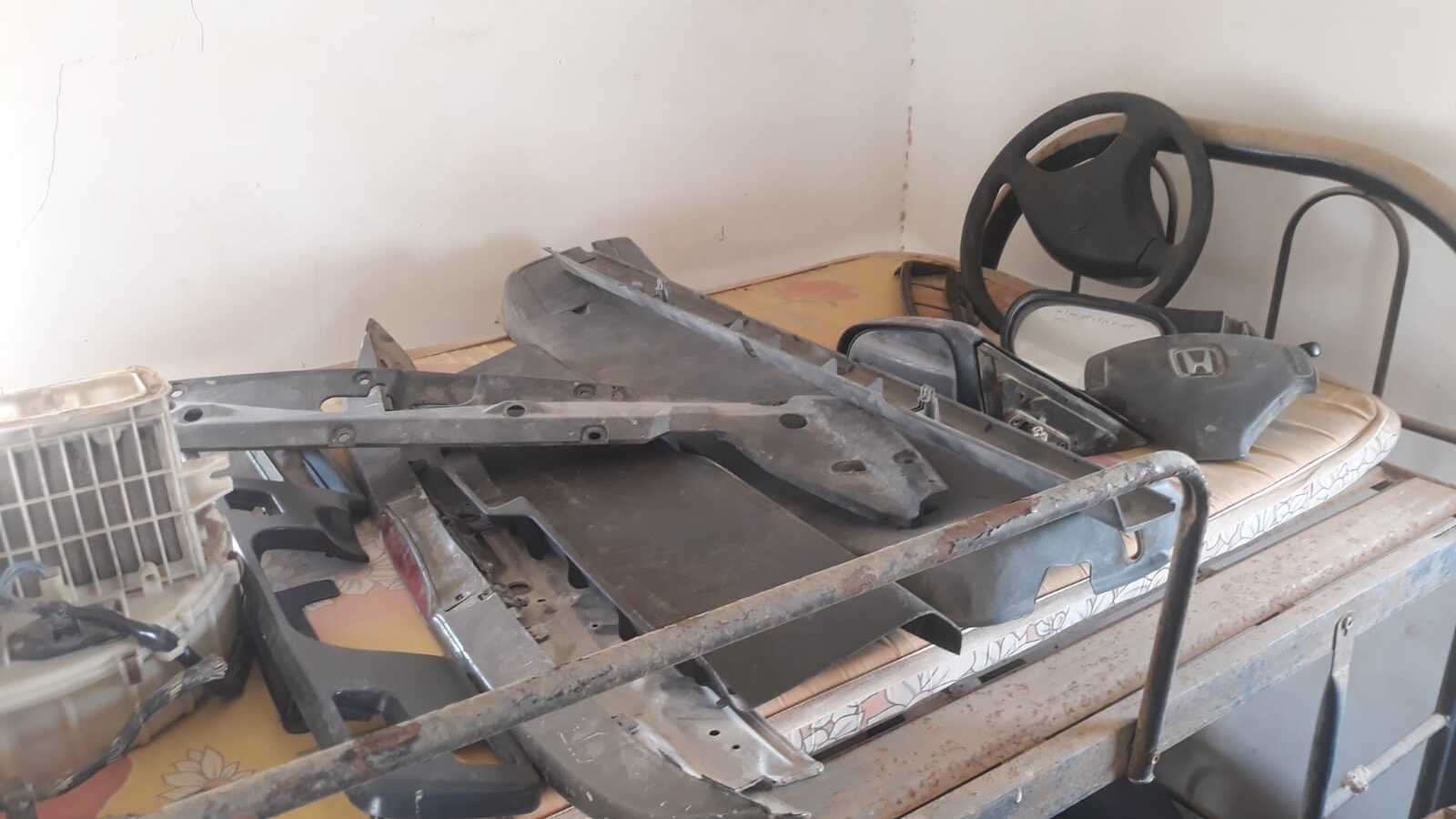

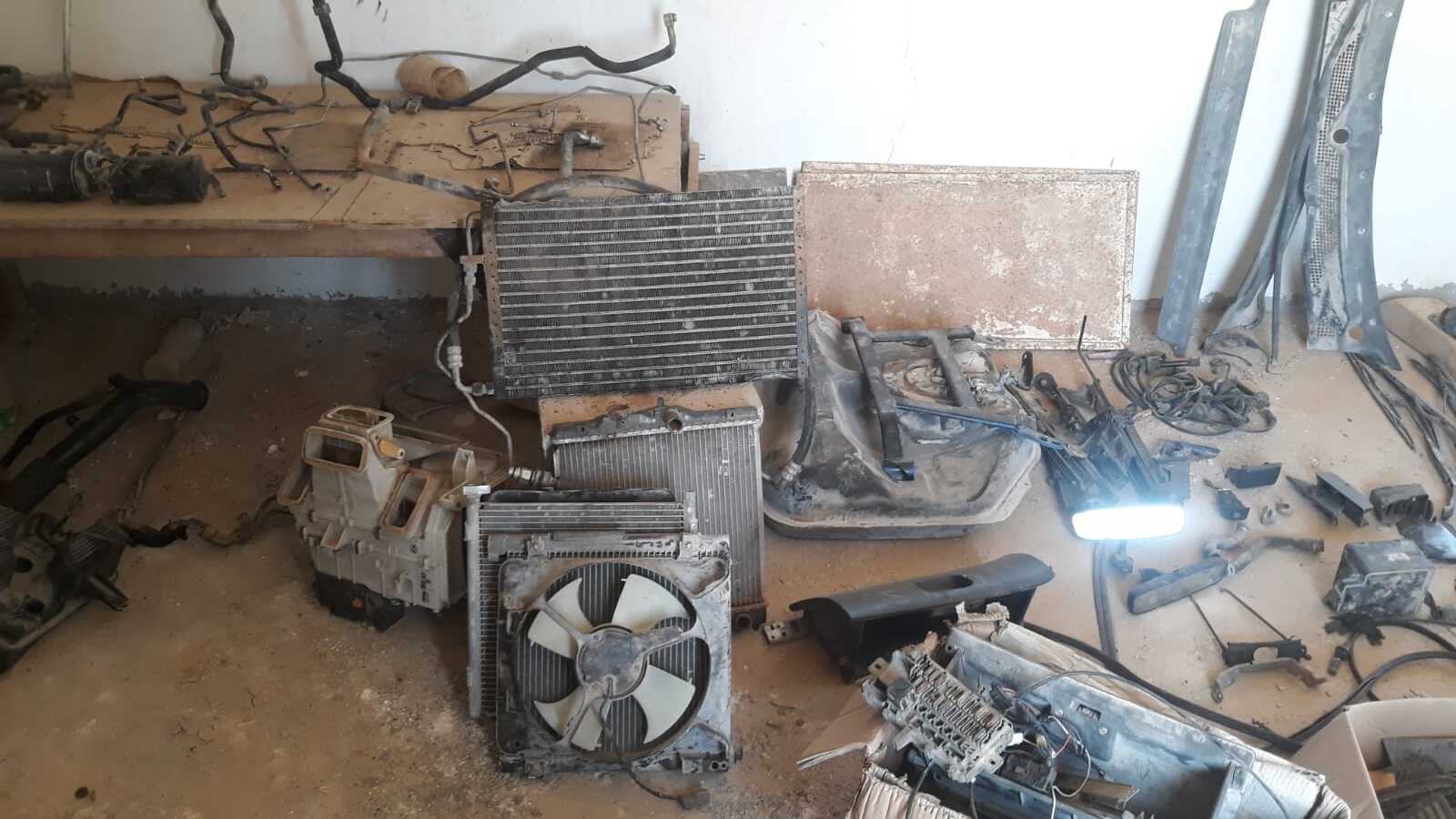

Just to share with you the limited spares i have got

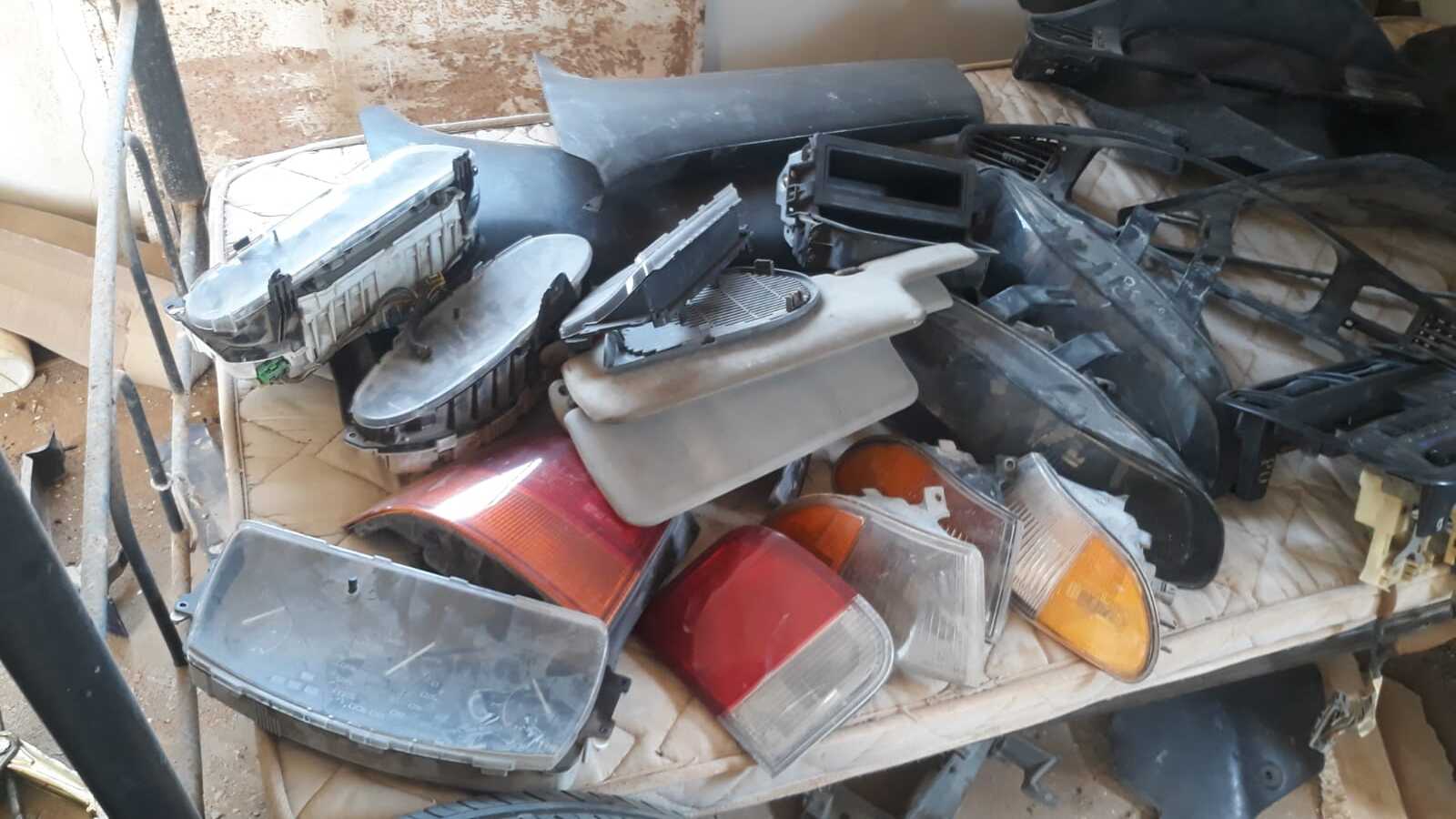

mzeeshan (mzeeshan) 2021-08-11 20:51:49 +0500 #122

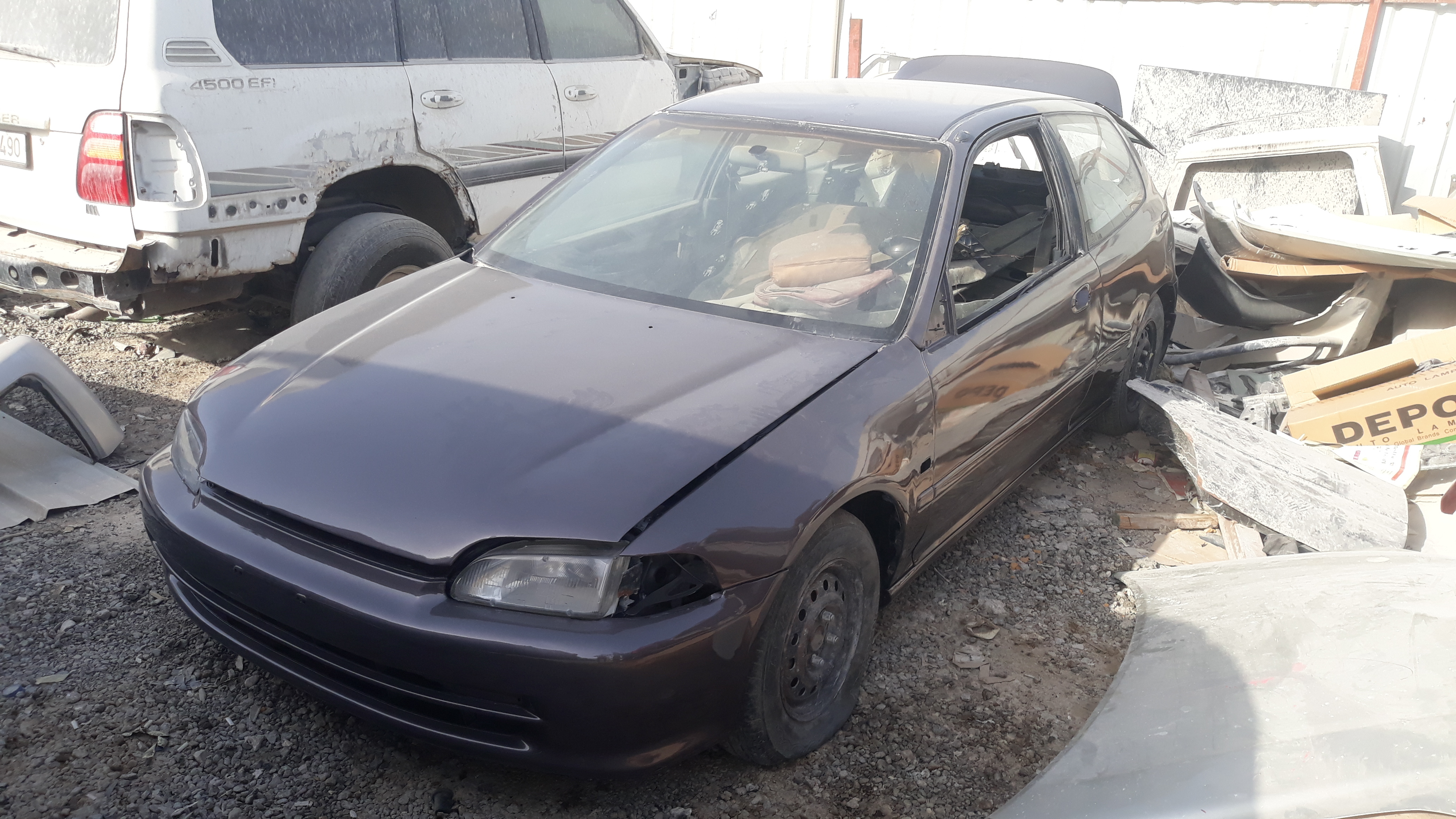

Received a car from my friend and its in running condition

mzeeshan (mzeeshan) 2021-09-03 23:50:22 +0500 #123

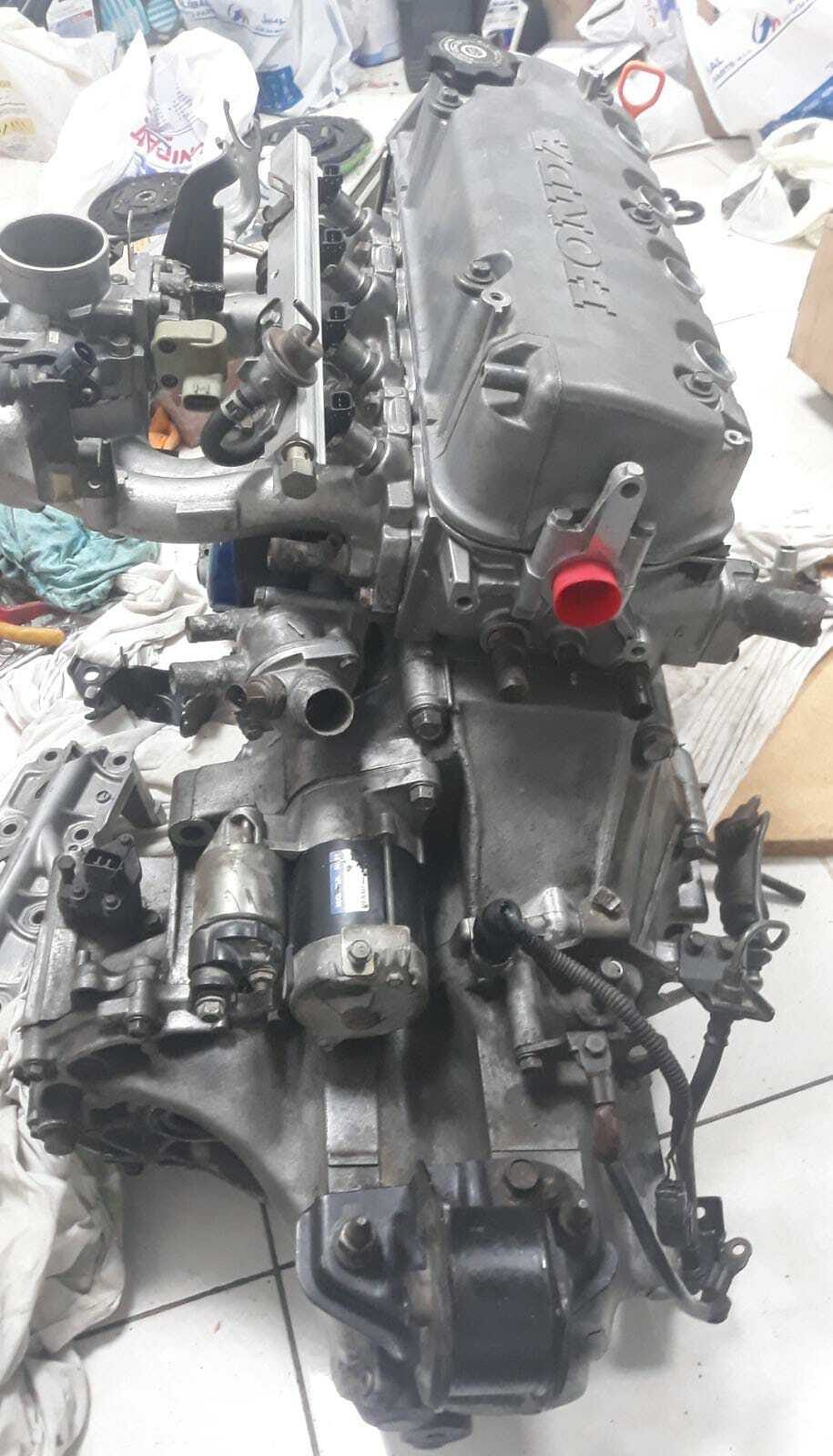

Engine and transmission assembly complete .... alternator belts, and some like stuff left rest is all good to go Alhamduilillah
