Head gasket selection for passo 2016

[pwuser156957250375]

Hi I got issue of heat light my toyota passo 2016 model I stop and wait to cool and than put water in side Reservoir and than to radiator start car drive it but next day morning I notice half bottle of water consumed by the car, 2 days same issue, chked by 3 mechanics they can't get any clue of leak in any part than I observed bubbles cming out of radiator when i removed its cap and water / steam out of slincer
Mechanics say its the gasket leak indication they opened engine head I buy a new genuine gasket from Toyota, checked both head and bolock no sign of fault no sign of gaskit demage put that steel one gasket in and all done well one day was fine next day again same water low and it continue
Now the mechanic say use card one gasket that will work its to much pain full to stay with mechanic and serch card one gasket of pasoo 2016 friends need help what u suggest to do as card gasket may blow after a month or 3 in hot season kindly guide with ur expert advice for gasket selection can use card one some China make or Taiwan make 1000Rs or Toyota genuine one 3500Rs that used now

Or kindly suggest
Or I got an vedio of Steel seal is it avaliable in Pakistan or its work or just waste of time...

Regards

[8502]

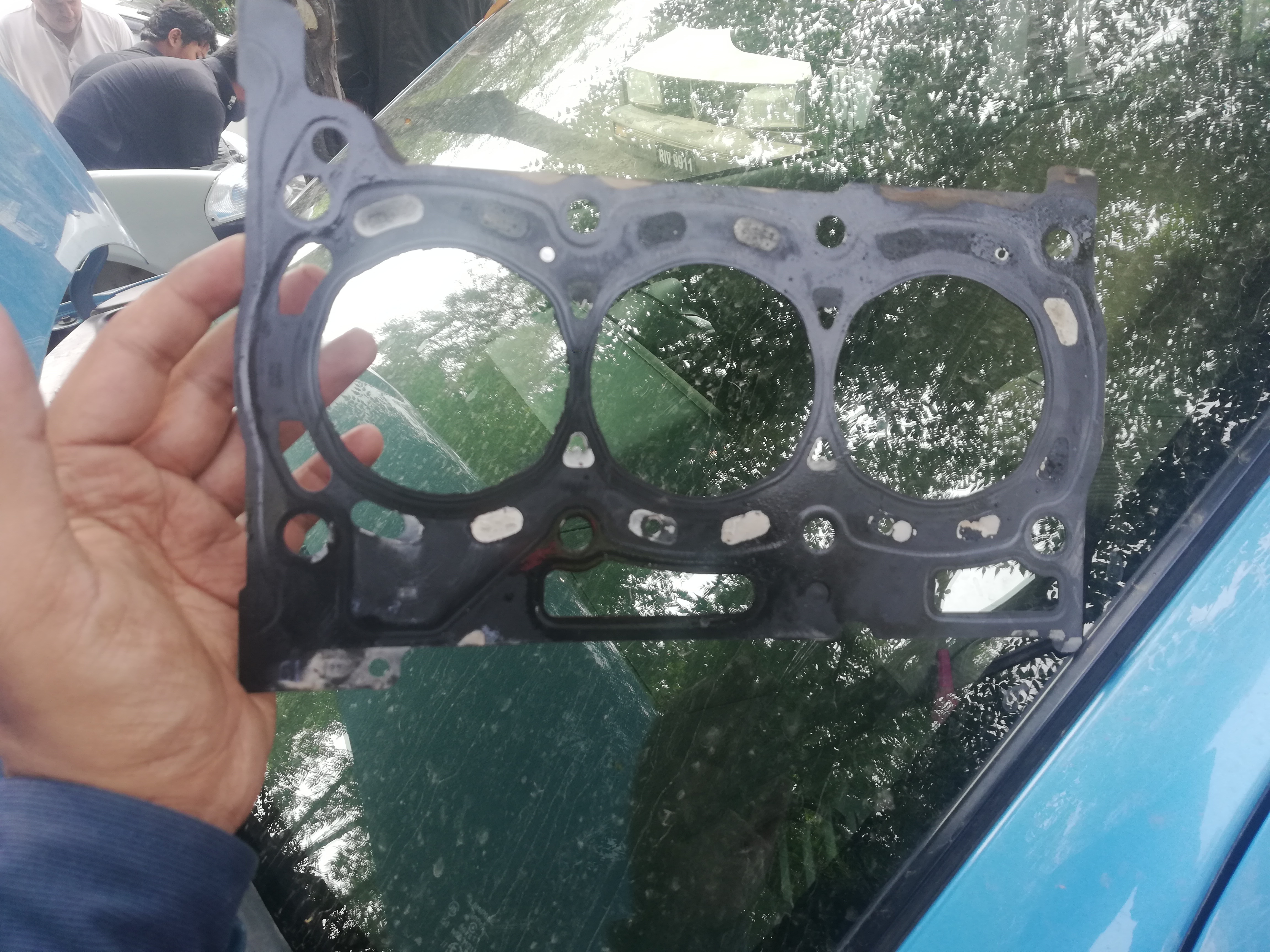

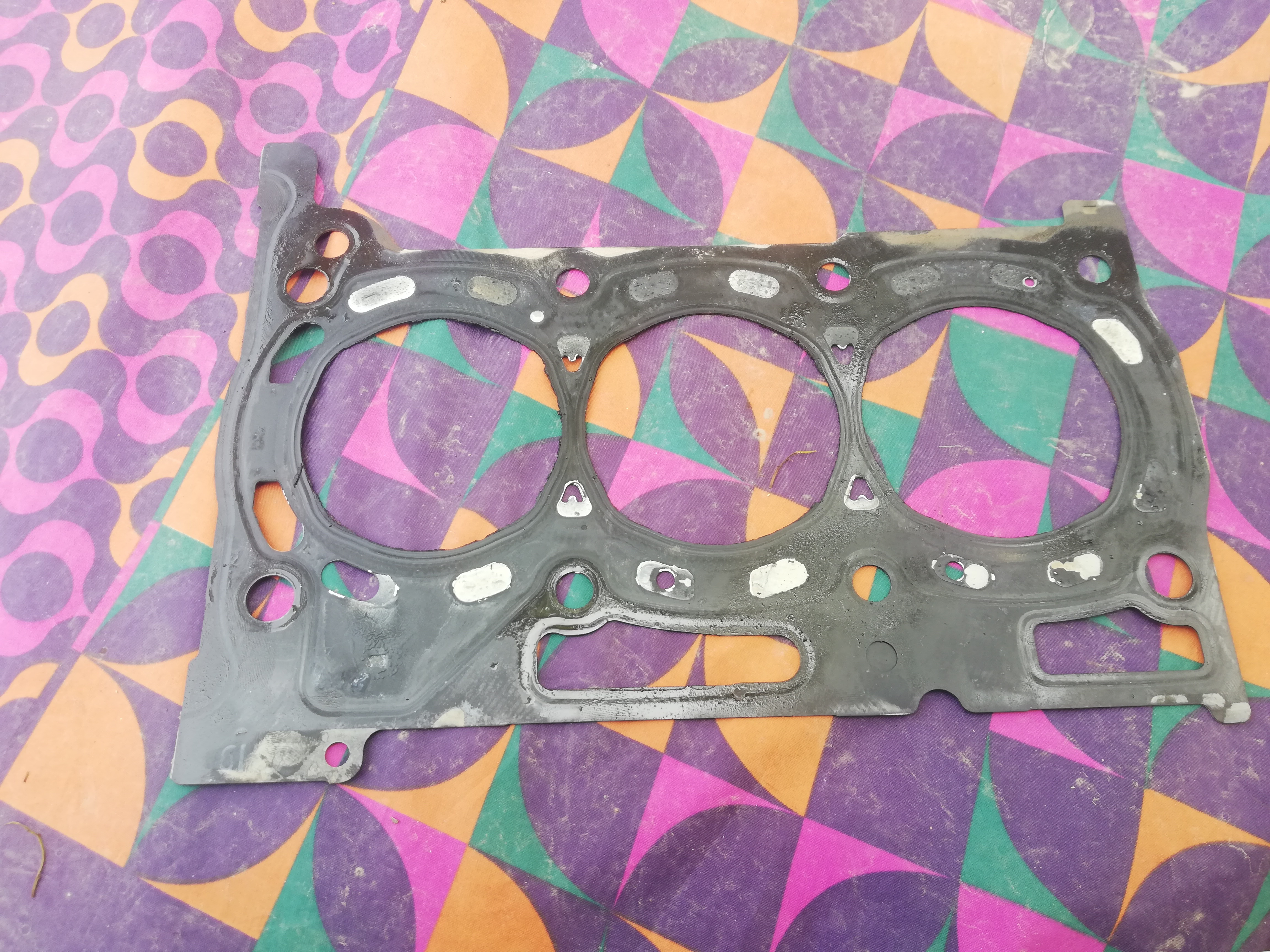

Your headgasket looks fine. Maybe it's something else. Mechanics in Pakistan get to headgasket straight away because they study on mehren before there diploma.

[pwuser156957250375]

Yes all wa fine but brown color on piston show water is entering in or water cming out of slincer is in high quantity and bubbles on radiator push towards the gasket but no evidence of leak or head or block....
Now he is saying that steel gasket not ok that's y leaked again now card wali gasket he will uses...it's really painful or loss of money

[8502]

Installing the headgasket in proper way with torque wrench is also essential. Otherwise steel or card it won't seal properly. In my experience steel one or mls is always batter then card. The gasket you took of doesn't show any sign of leakeage. The rust on valves and piston don't know why.

[pwuser156957250375]

Yes same issue here no sign and faces of head and block were ok chked by machineist
Card matalic and third one..??
Should I allow him him to reopen again...??

[hash4u]

sad to see such a up model passo being destroyed by our local mechanics
if the head was faced properly genuine gasket should work like a gem

[pwuser156957250375]

Bus asaha hi ha hamaray mulk ma Allah hum sub pa raham karay ameen
Should i change the bults of head
No sing of water passage and head chked that was ok buy machinest
Card wali gasket kitana arsa chali ha

[8502]

Where are you located?

[rajaahmed96]

Use Toyota Genuine Gasket. Also check head face it should be mirror shiney.

[omersiddiqui5482]

the head and the block were not faced properly before installing the new gasket. Idiot Mechanics say ke ji part ka fault hai. it is his fault. and he is experimenting on your expense. Also partly it is your fault to because these cars are not like the 74 Corolla which can run on water for all eternity. these need proper coolants!

Buy a genuine toyota part bhai. toyota is selling that for a reason! which city are you from?

[pwuser156957250375]

Yes I use all genuine thing coolent was Toyotaz
I am in Islamabad

[omersiddiqui5482]

@dani_kk bhai, another ISB fellow plz guide!

[capsat]

@rajaatta - rehman autos glass factory road Rawalpindi correction IJP road rawalpindi
@dani_kk - in islamabad

please suggest course of action

[rajaahmed96]

Rehman autos is at IJP Road Rawalpindi.

[capsat]

Rehman autos is at IJP Road Rawalpindi.

Thank you for correction !

[dani_kk]

Bro you can visit us at Dmotorsports Islamabad G12. & we can assure you high quality results.
We use tstat and Autofan in all brands.
Hence we will solve your problem too. But we can't tell you magics that can fix your problem.
We will have to work on it to make it better since desi ustaad have ruined it.

[pwuser156957250375]

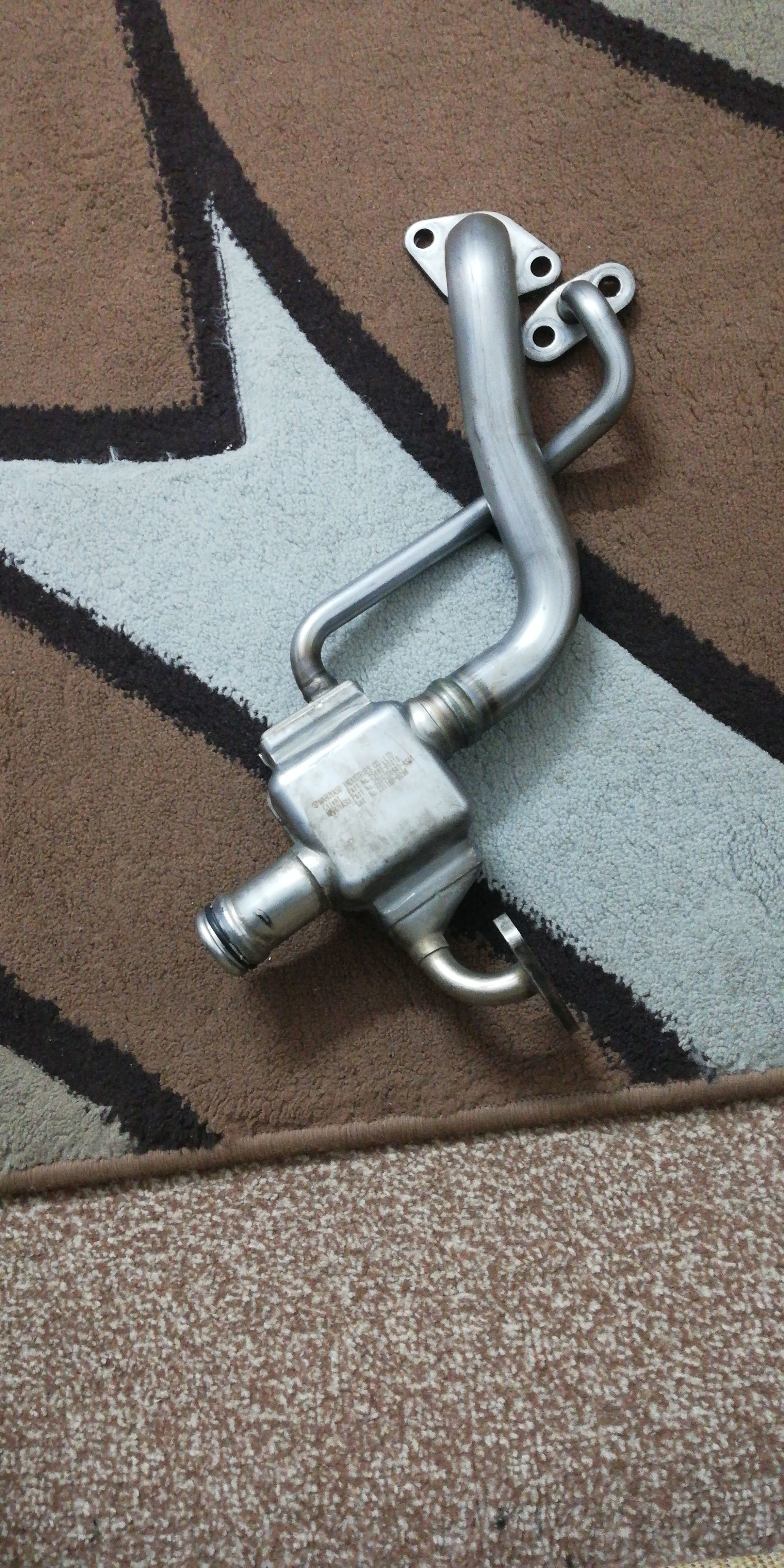

Hi salam all with the Grace of Allah I got my car ok I got the fault that is leak in air cooler system now all is ok and perfect hope from my bad experience and machanice experiments .... may help some one using this passo model now can one can contact and ask all about passo 2016 model from me kind regards

[omersiddiqui5482]

Air cooler system leak?

[alluvium10]

Yes leak in this and I buy a new one from Sultan Khu...

[alirazamughalkpr]

Aslam-O-Alaikum
Bro mene ye pochna tha k ye headgasket japan2016 or Pakistan 2018 model ka hai???????
