Help ! Engine Swap in Platz

Tags: #<Tag:0x007f7e00953aa0> #<Tag:0x007f7e00953960> #<Tag:0x007f7e00953820> #<Tag:0x007f7e009536e0> #<Tag:0x007f7e009535a0>

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-15 23:18:56 +0500 #22

Change the plugs first. And is your check light working ?

abdkhan2 (abdkhan2) 2017-06-15 23:55:27 +0500 #23

Switch time on hoti ha phr bnda jb strt ho..

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-15 23:56:41 +0500 #24

It means its ok. Just get your plugs replaced first.

abdkhan2 (abdkhan2) 2017-06-15 23:59:13 +0500 #25

Mechanic na blow kr ky maf clean kia tha ausky bd say msla ha?

abdkhan2 (abdkhan2) 2017-06-16 00:09:24 +0500 #26

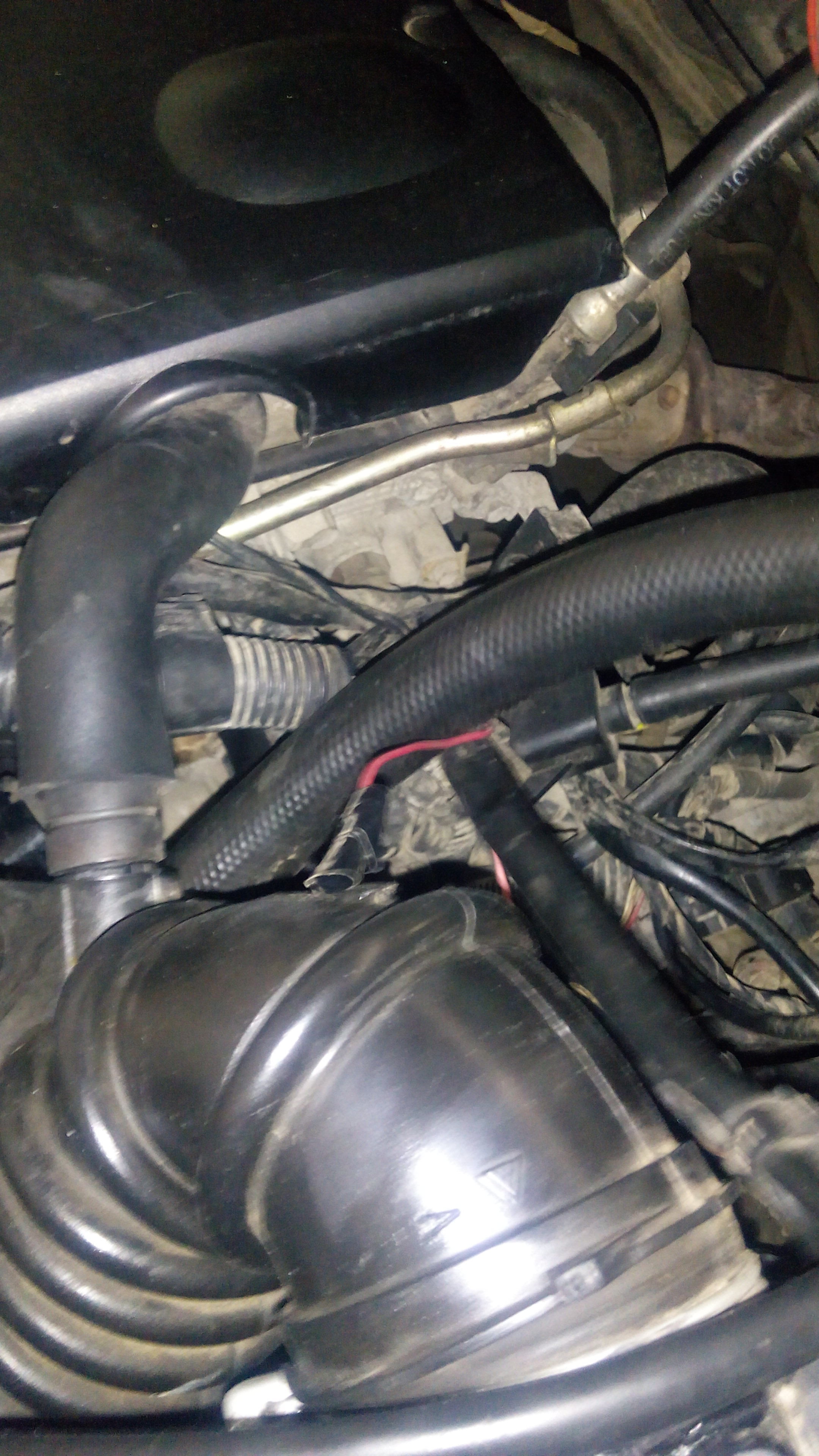

There is a red wire near cam shaft sencer which cut dont know where to connect.. Thats why asking for diagram?

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-16 00:41:44 +0500 #27

Dear post pic of that wire here,we may help you.

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-16 00:42:09 +0500 #28

change MAF then ...

abdkhan2 (abdkhan2) 2017-06-16 00:53:56 +0500 #29

I will send u the pic tomorrow.. .

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-16 00:59:05 +0500 #30

Ok. Actually I have just ECU pinouts diagram and it is of no use for wiring in engine bay, thats why asked u for a pic, it will help us understanding in a better way.

abdkhan2 (abdkhan2) 2017-06-16 19:00:49 +0500 #32

abdkhan2 (abdkhan2) 2017-06-16 19:03:09 +0500 #33

hasan627486 (hasan627486) 2017-06-16 23:23:40 +0500 #34

Yes Humayun Bhai, its platz we are talking about in the Thread. Thanks for your guidance.

Currently the heatup issue has been resolved as one of the many mechanics changed the Radiator Cap which has resolve the matter. But still i have to take it to a long drive, this time if its gets heatup im going to change the engine anyhow.

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-16 23:34:02 +0500 #35

Just get your hands on an ELM scanner and connect it with your cell while driving on long or within city, and take a close look on temperature readings.

humayun.chughtai.7 (Humayun Azhar Chughtai) 2017-06-16 23:37:45 +0500 #36

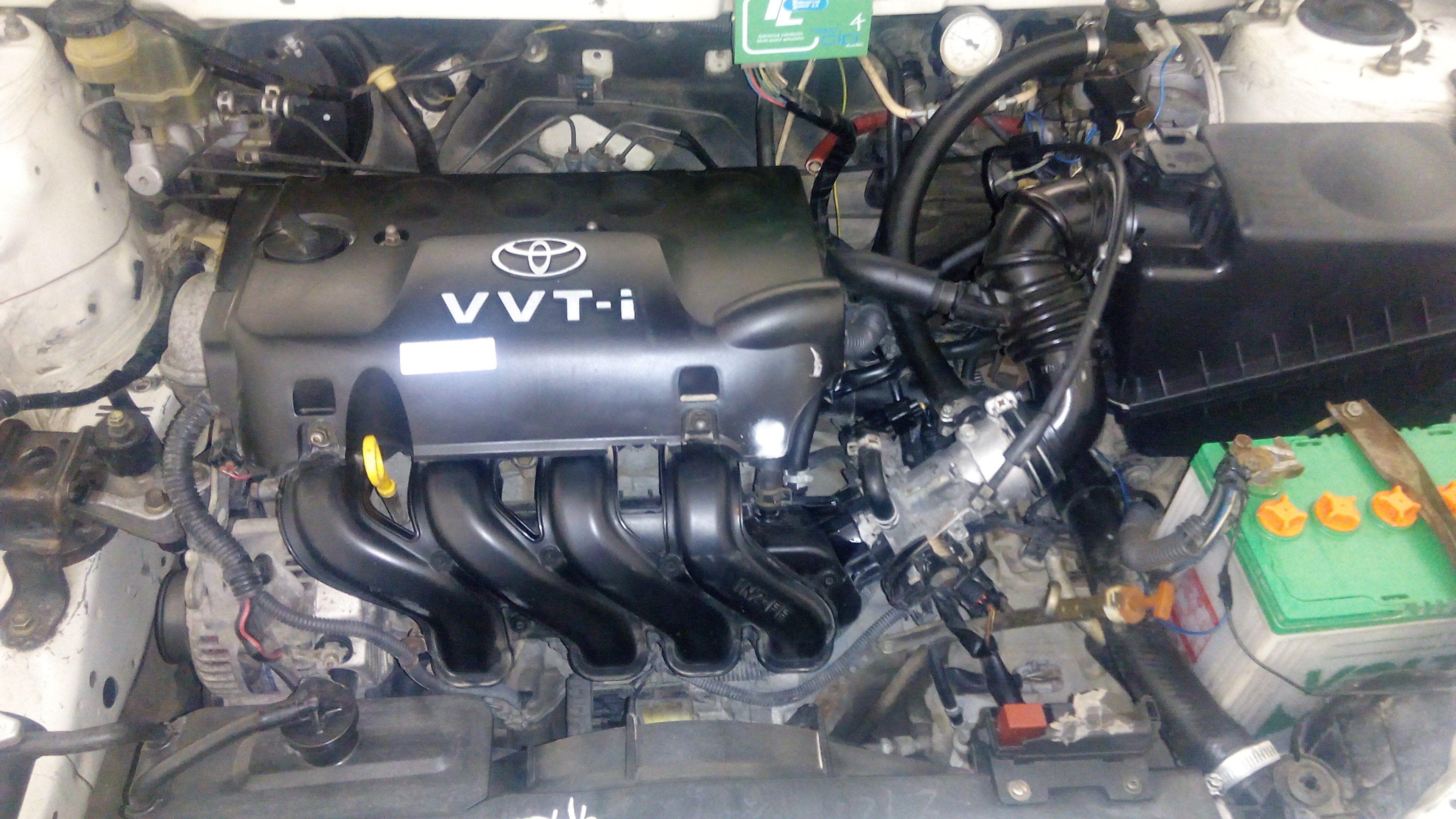

Masha Allah, clean engine + engine bay. To me, it looks like wire from CNG kit, bcz if it will be a wire from any sensor then you will definitely get a check light on your odo.
Is it creating problem on CNG only ?

abdkhan2 (abdkhan2) 2017-06-16 23:41:10 +0500 #37

Thanks, no fine on cng...

abdulbasitmtariq3 (Basit Tariq) 2020-06-07 20:23:47 +0500 #38

1NZ-FE is the best option for toyota platz as i also own a platz and i think that a 1500cc engine is very nice for it as it will be heavier engine than 1sz-fe and it will make your car faster too.

saadhaq (saadhaq) 2020-10-05 21:57:42 +0500 #39

How much does this cost? i also have platz.
what fuel average you are getting? and did you had it done from karachi?

pwuser161275735192 (Mwiya Likukela) 2021-02-08 09:15:21 +0500 #40

Good morning... i have found a lot of help from the chats up there. When replacing 1sz with 1nz apart from the engine do you have to replace anything else? Is the gearbox compatible? Please help i have a pltz with 1sz but its giving me problems so am thinking of replacing it with 1nz

saadhaq (saadhaq) 2021-02-08 12:52:20 +0500 #41

i think suspension etc would be changed too

sardarg (Singh is King) 2021-02-08 15:08:54 +0500 #42

yes please the transmission can be coupled to 1NZ-FE which is a 1500 cc, engine without any issues. I believe change of the pump / pulley side mount & transmission front mount may be required. rest is all bolt-on. You may need to reinforce front struts if ground clearance is compromised.

You will also need complete electrical harness & computer for the 1NZ engine
