Help me read Transmission dip stick

[engnr.mubashir]

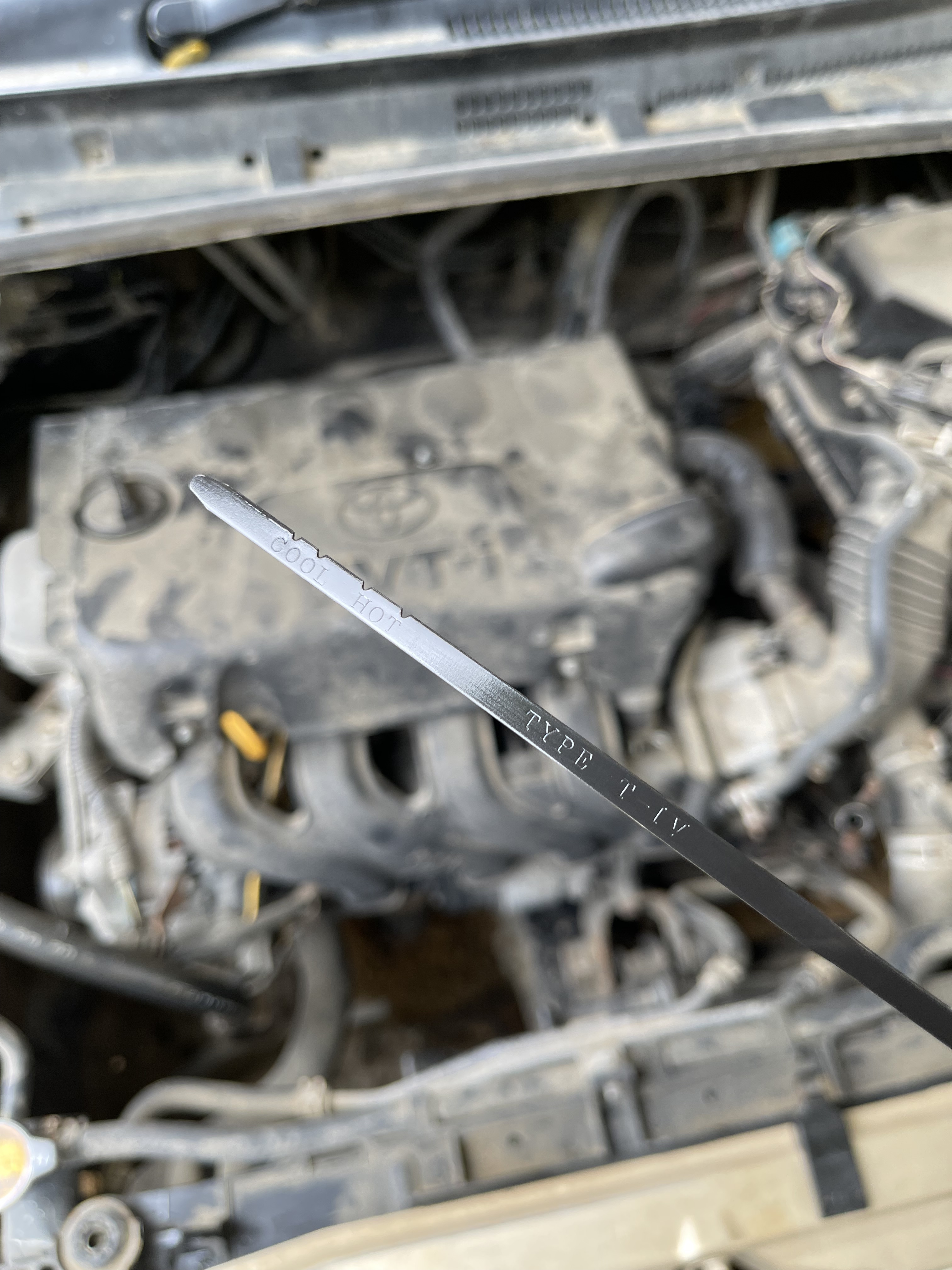

Toyota corolla 2015 automatic when I pulled out this dip stick I see those cuts I assume these are cold and hot marks are level for Transmission fluid. Is this correct or not kindly educate internet is not helping much.

[affanhaq94]

Yes, check fluid according to how specified in the owners manual.

If you are, on a cold vehicle, the level should be between the two marks that say cool. On a warmed up drivetrain, it should be between the two marks/cuts where it says hot

[engnr.mubashir]

Brother I would have never asked if there was any owner manual of this car.

[asgharpwr]

Recommend way is to check ATF level after drive of 20KM, gear n position D and on flat surface.

[affanhaq94]

Start the engine. Drive it around for 10-15 minutes or until temp gauge is at operating temp. With it idling, pull the dipstick and check the level. If it's between the hot marks, you are fine. If it's low, fill as needed.

If it's overfilled, you will have to suck some out or drain some out.

[Xulfiqar]

Please remember the fact that you are supposed to check the fluid level with engine running.

Dead cold start in summer. Lower mark
After 20kms (trans oil quite hot to touch) higher markZ

[engnr.mubashir]

Thanks will check accordingly.
