Honda Ek k24 swap

[dani_kk]

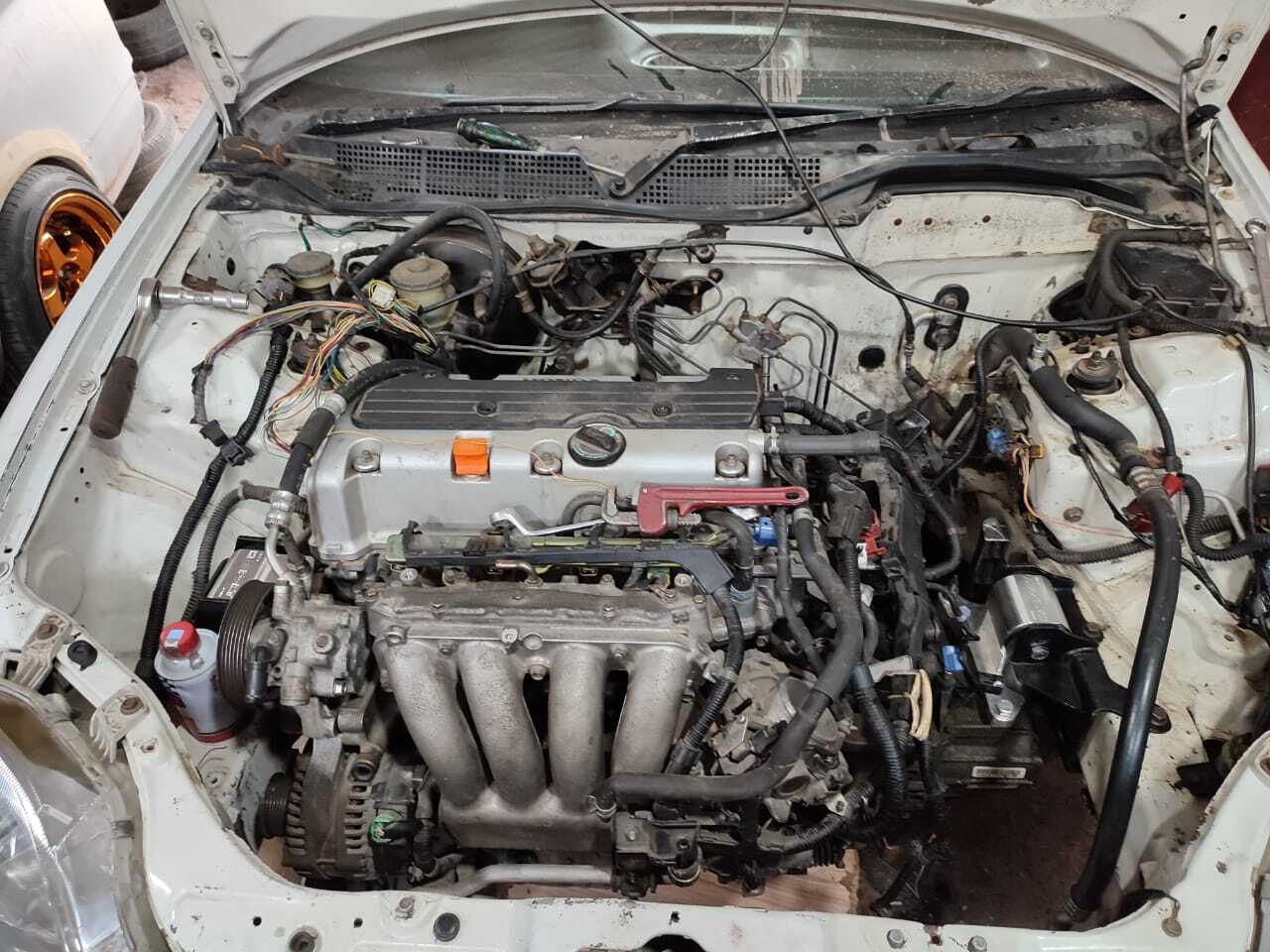

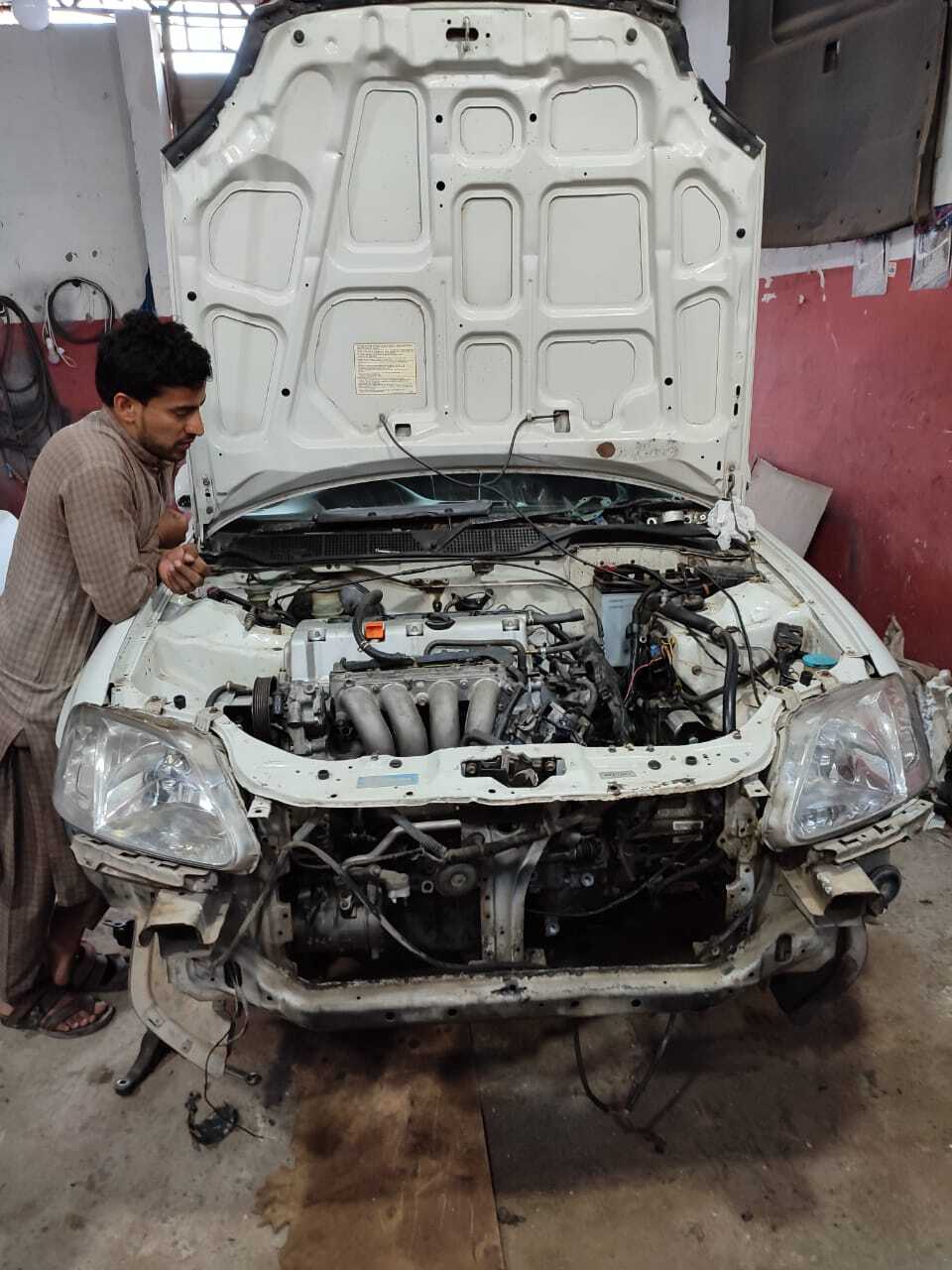

Hi folks, we swapped a k24 type s engine in a honda civic ek 2000.. Older engine was d15b Vtec.

We used hasport mounts and used accord euro r Axles and shaft.. After market fpr was installed of tomei brand as car was blowing fuel pumps due to no return line system..

We made custom 4-2-1 headers, simota cold air intake, 2.5inch downpipe, did the ac system aswell along with tiens coil over upgrade and complete suspension work.

Fuel pump used was out from a 2jz crown pulling 160-175lph.

Gear lever shifter was of honda civic 2005 es and custom tray was made for the shifter so genuine console could sit genuinely allowing us to keep the car as clean as possible.. Meter kit was upgraded to support speedo input & rpm..

Custom temperature gauge was placed im water jacket area.. Kakimoto exhaust was used.

[Hassan1991]

k24 demands 3 inch downpipe. i know it sounds big but k24 needs 3 inch to breath.
which ecu?
is it 5 speed?
2005 civic is ES, Cf is accord chassis code.

[omaruser156370259465]

Please do share the pictures if you can

[dani_kk]

No it doesn't with stock it only needs 2.5inch dia... And we are very old in these games hasan, you know this very well... And I'm always against overkill... Introduction of unnecessary overkill... If it is atleast pulling 300's or plus then comes the discussion of 3inch... And I've dealt many k24's but not seen any 3inch exhaust in any k24 equipped car. So i have a strong disagreement to your idea.

[Hassan1991]

That's why no one is putting 300 horses n/a.
Anyway transmission ka nae btaya konsa hai?
Ecu?

[dani_kk]

5spd manual.
Ecu manual ka hai. It had the code erased on it. So no identification code.

[dani_kk]

[dani_kk]

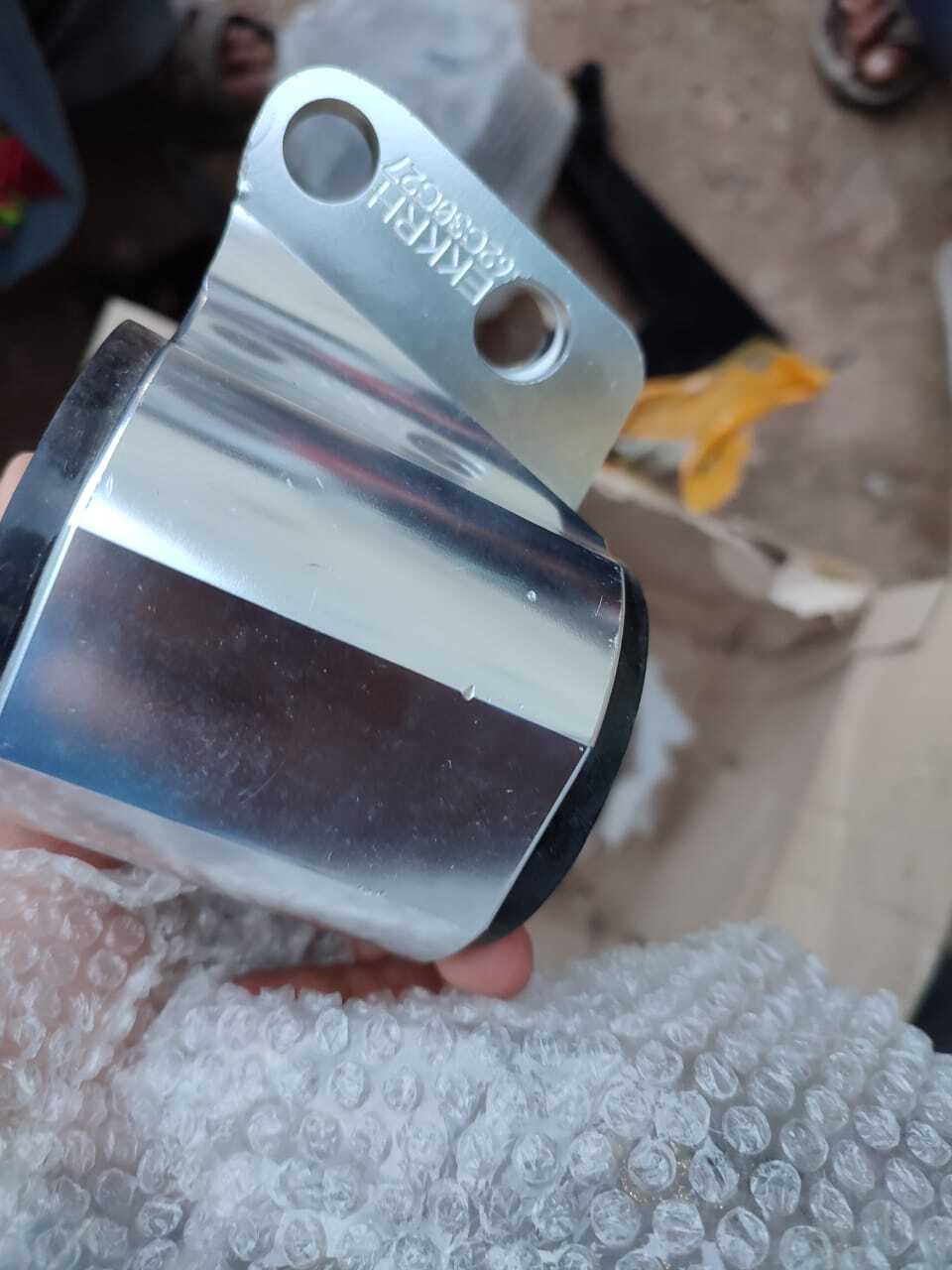

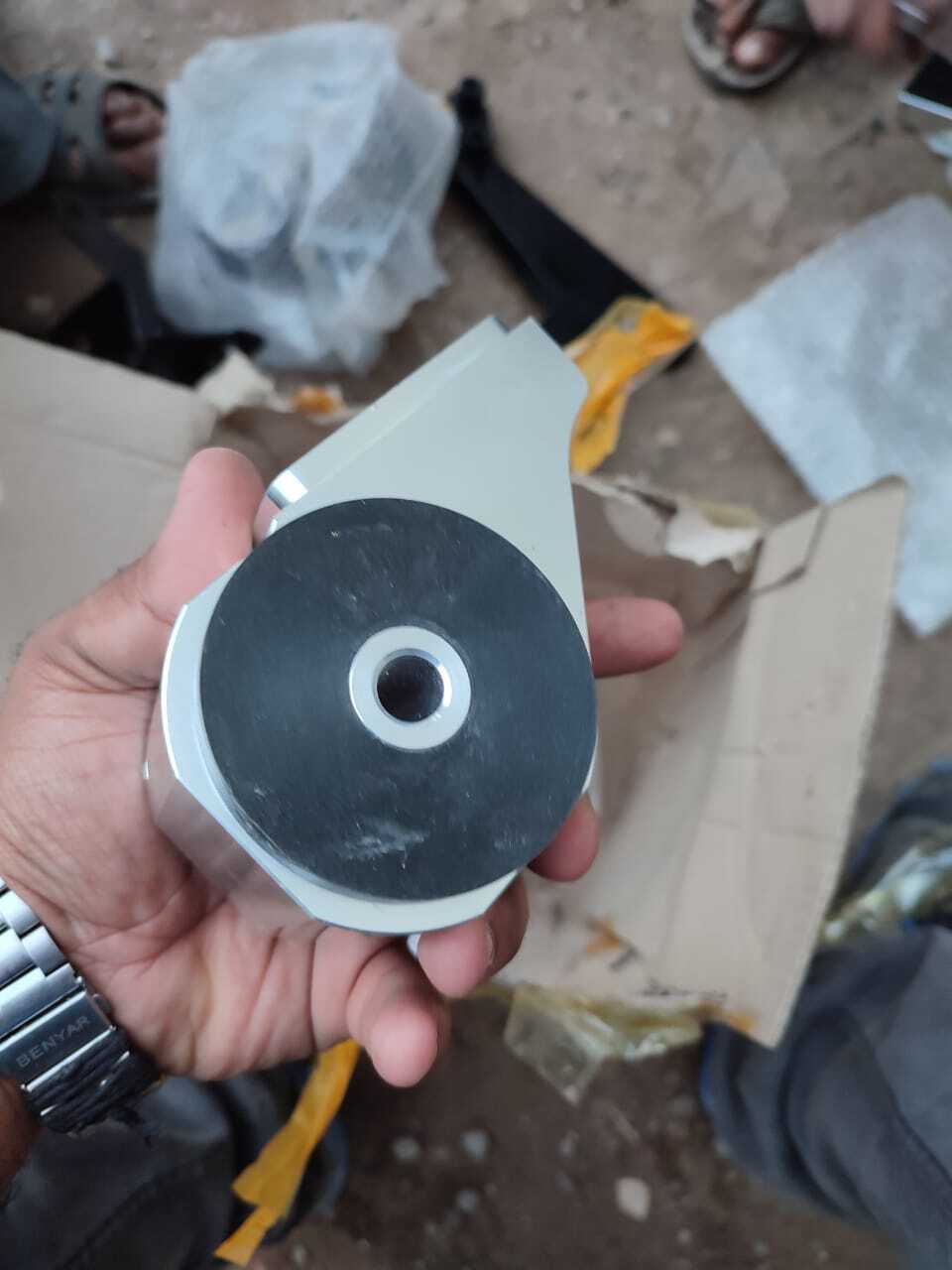

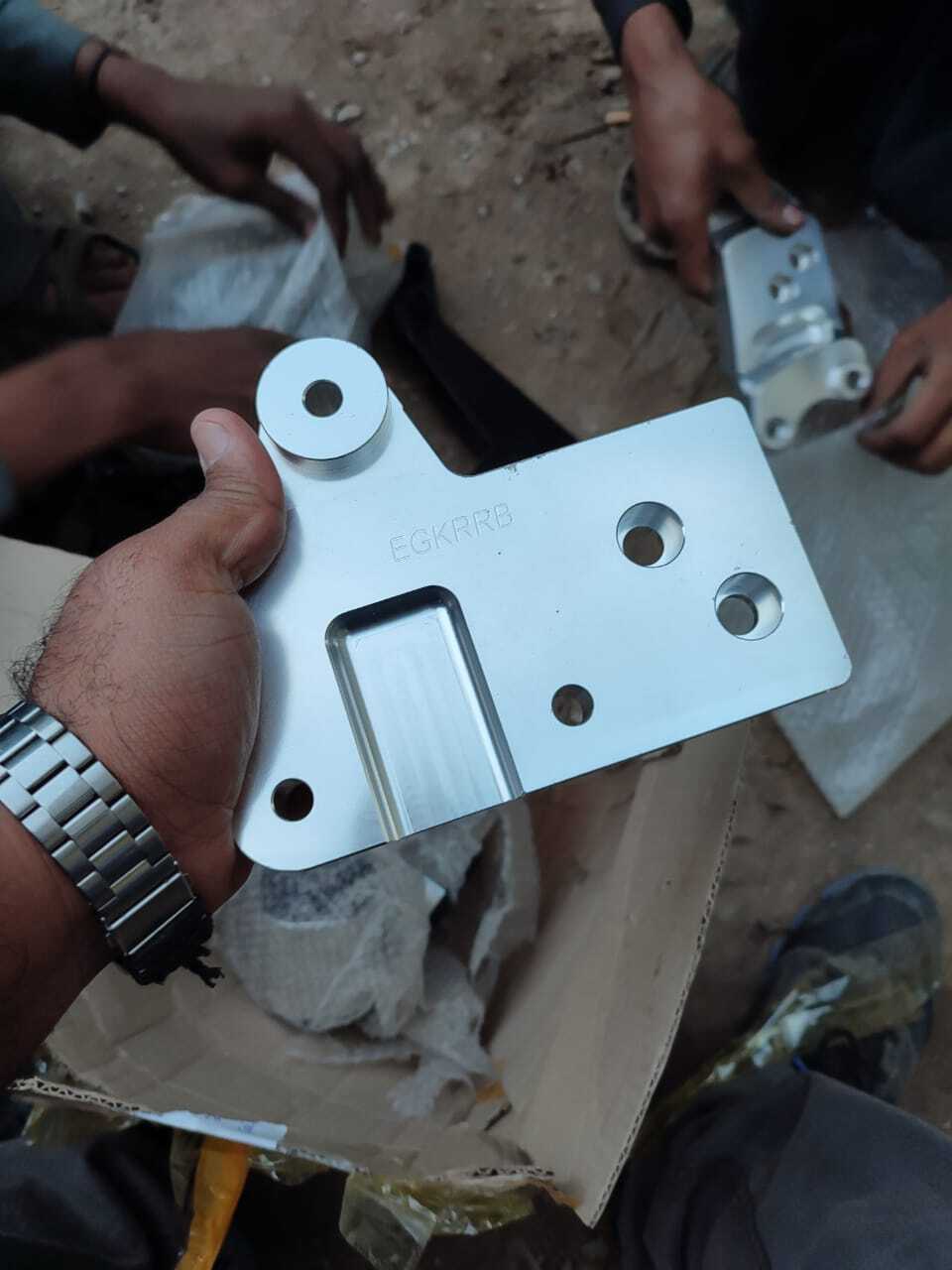

Hasport mounts

mounts were purchased from
@rozzzzz mehroz bhai.. he's importing this stuff and he's a huge variety of such parts..

[dani_kk]

[dani_kk]

[dani_kk]

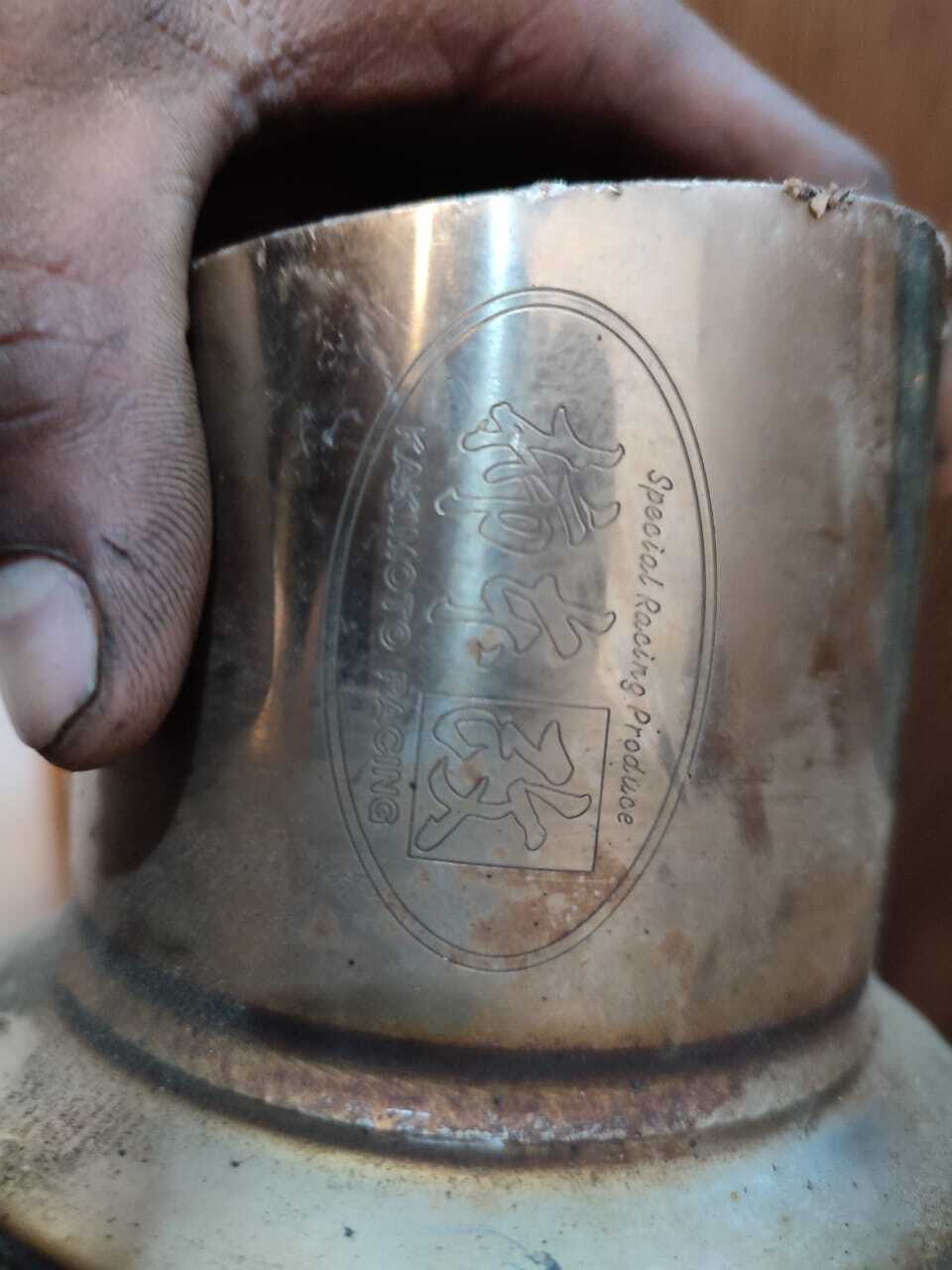

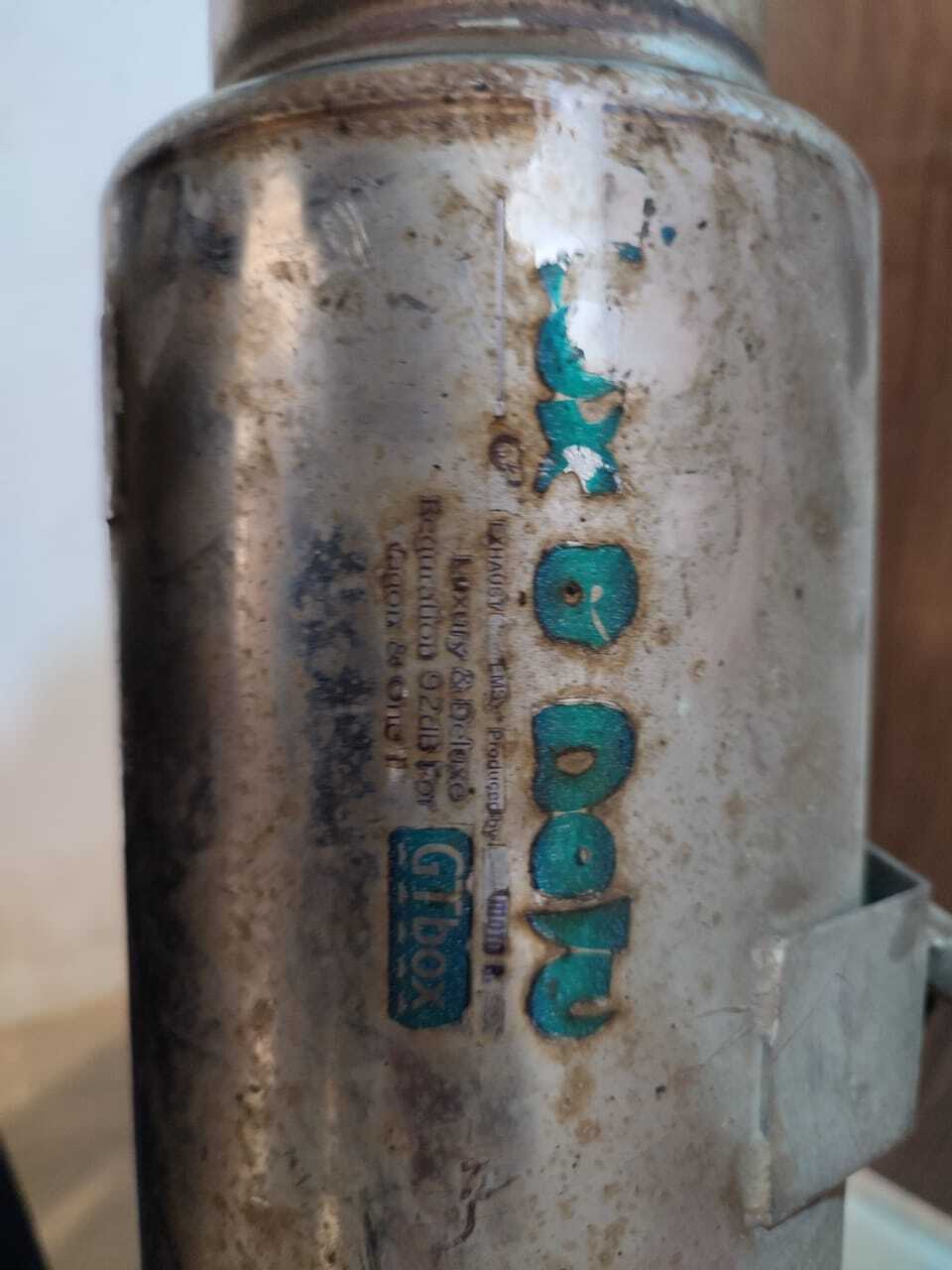

kakimoto oem exhaust

[dani_kk]

[dani_kk]

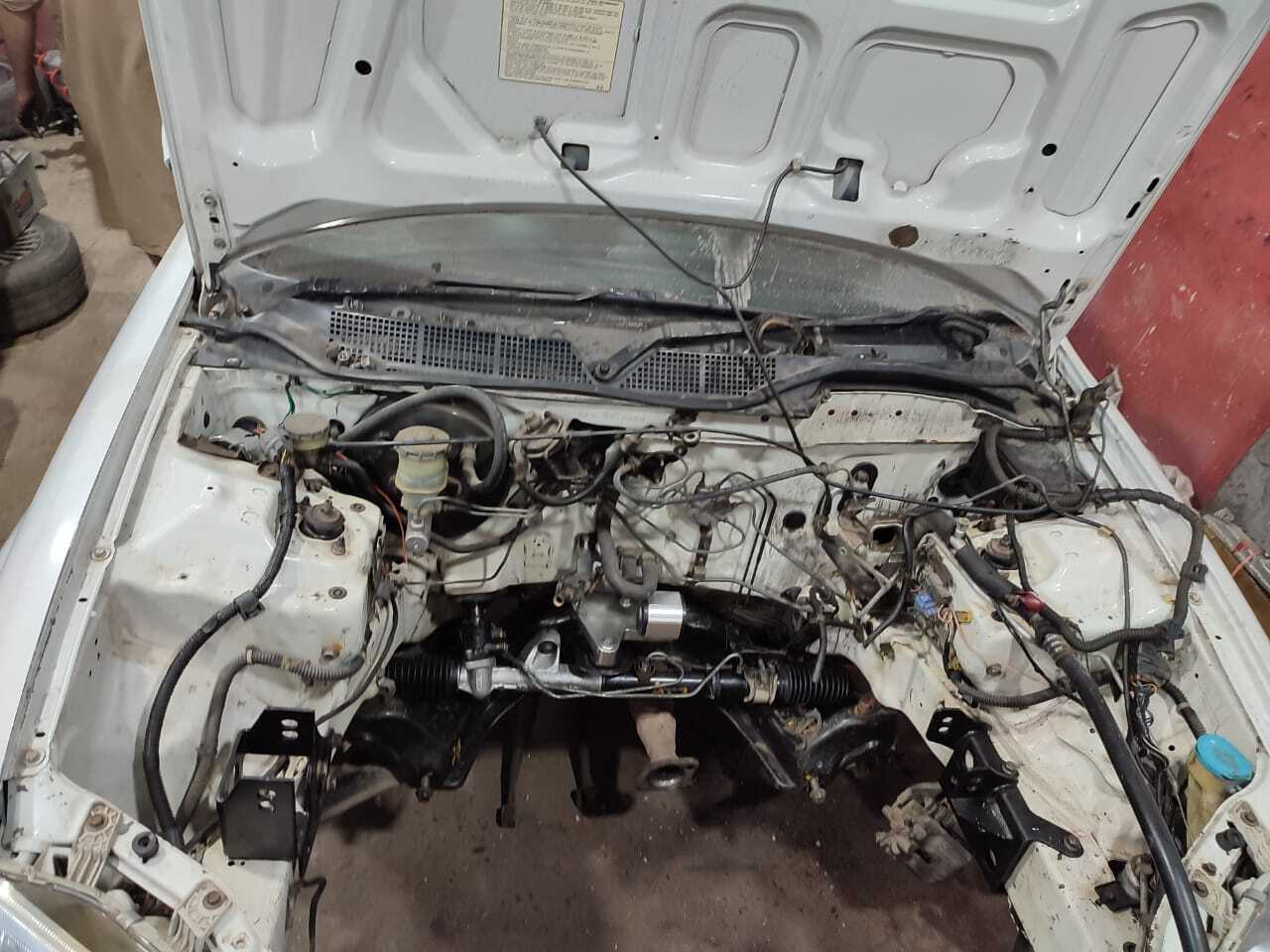

Eg subframe was used for no cutting n welding and bolt on fit hasport mounts...
Eg subframe, control arms, steering were used.

[dani_kk]

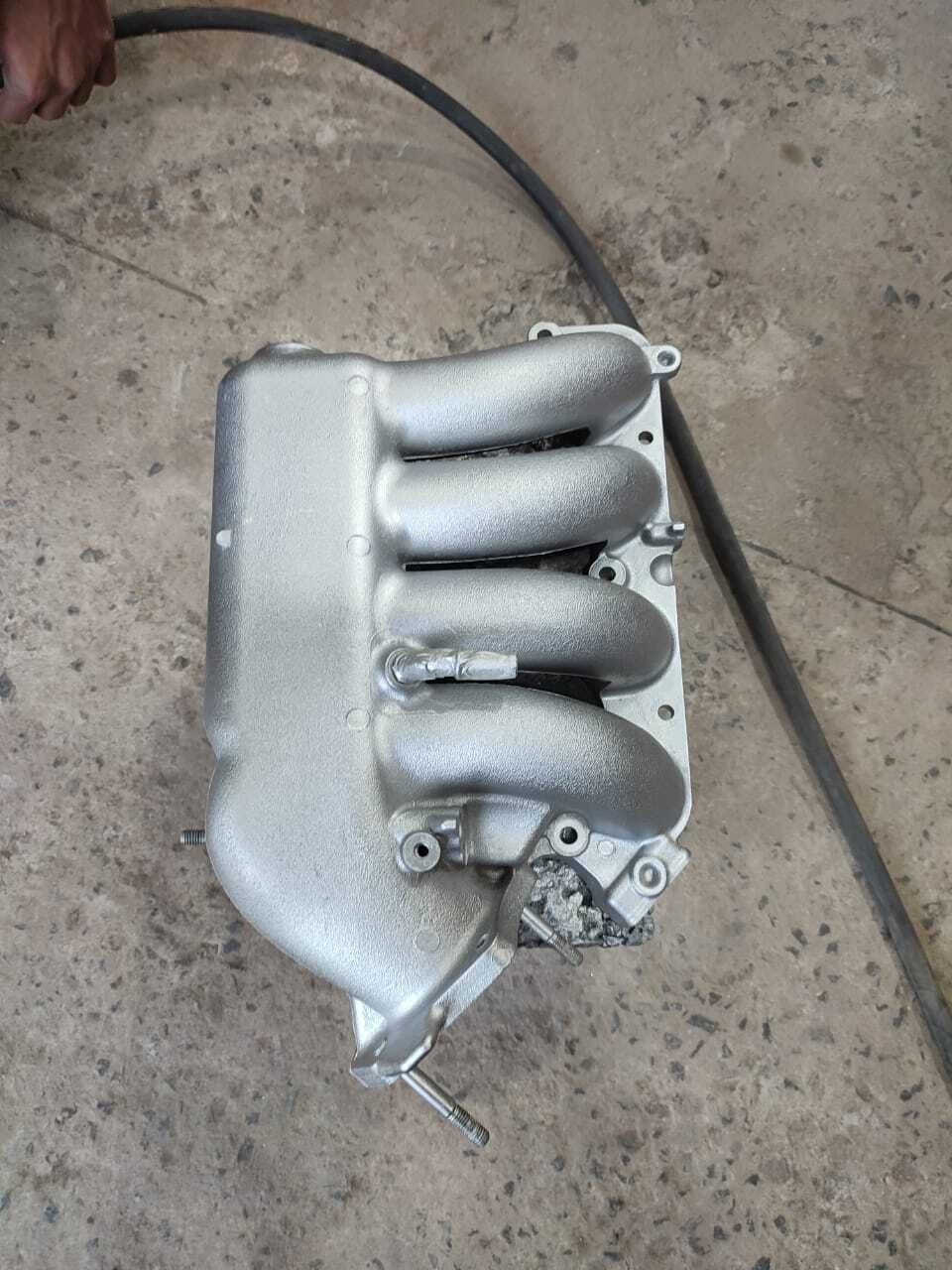

intake manifold was painted silver matt as usually the kabli parts are not that clean

[dani_kk]

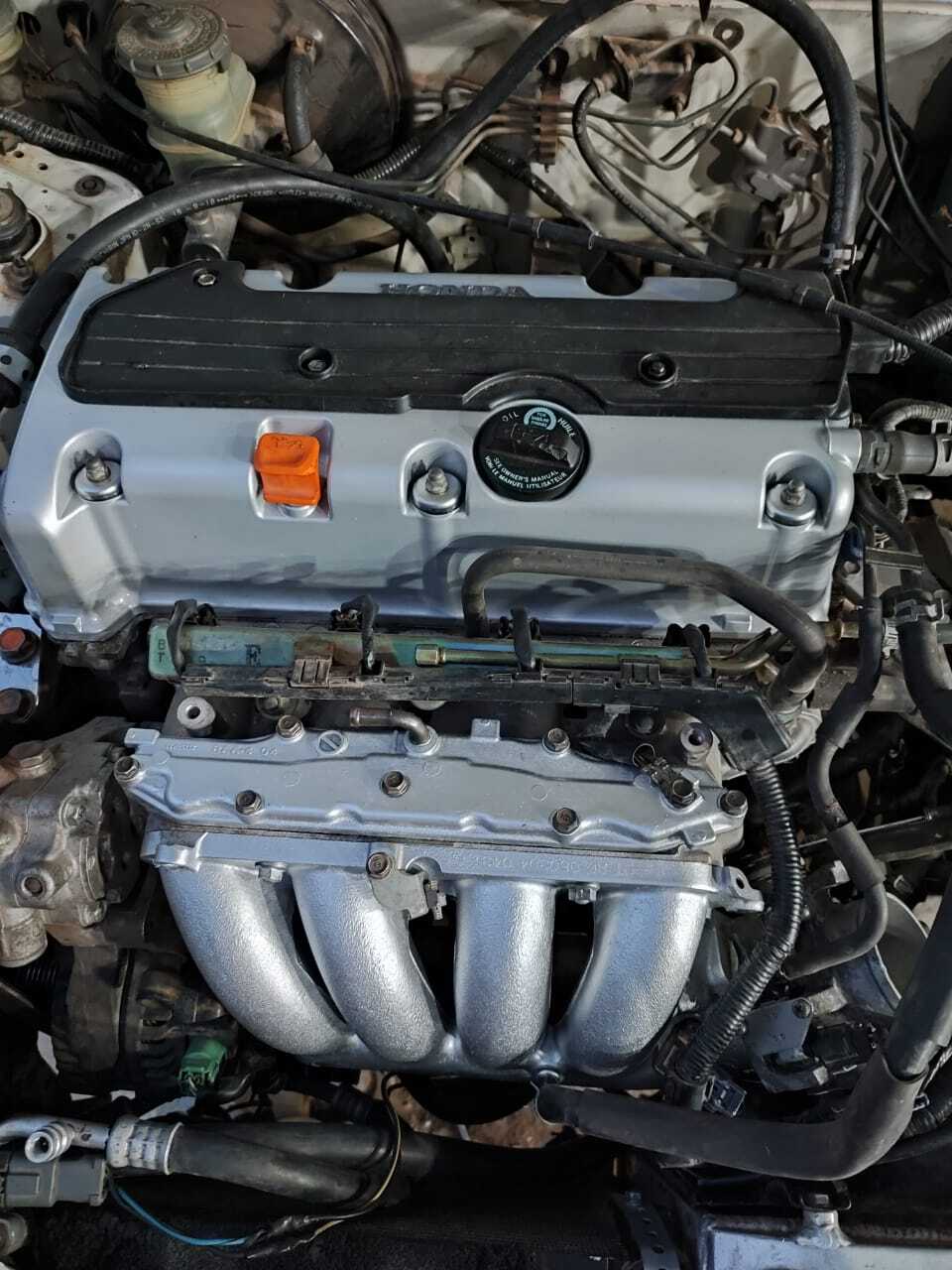

Also the Tapet cover was painted in the matching paint.

[Hassan1991]

That's why es civic shifter.
Means Immobilizer disabled?
Electronic pedal?
Which 5 speed to be exact? want to know the code.
Fun fact is EG subframe fits right on with control arms. One of the few things which are actually bolt on

[dani_kk]

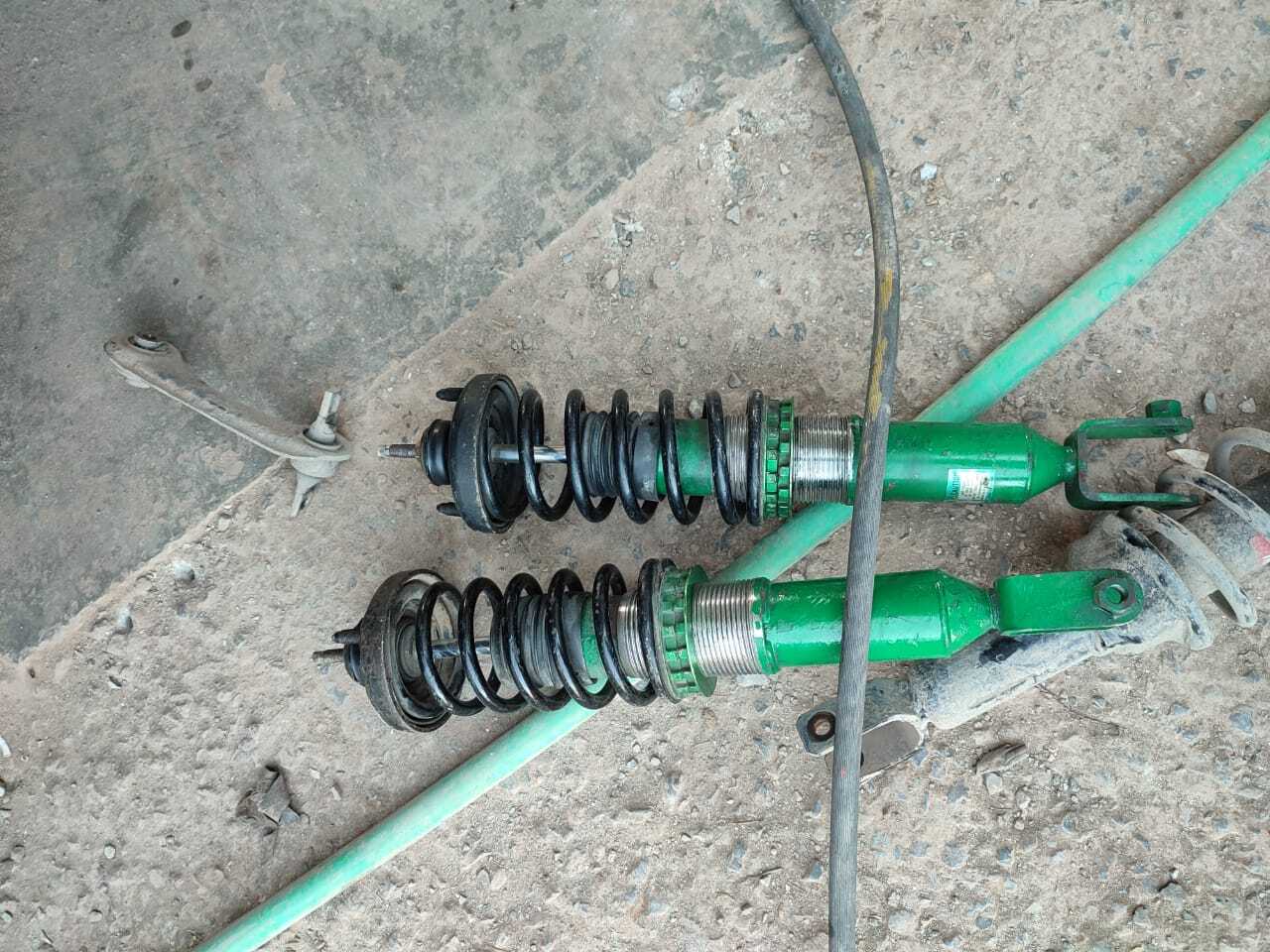

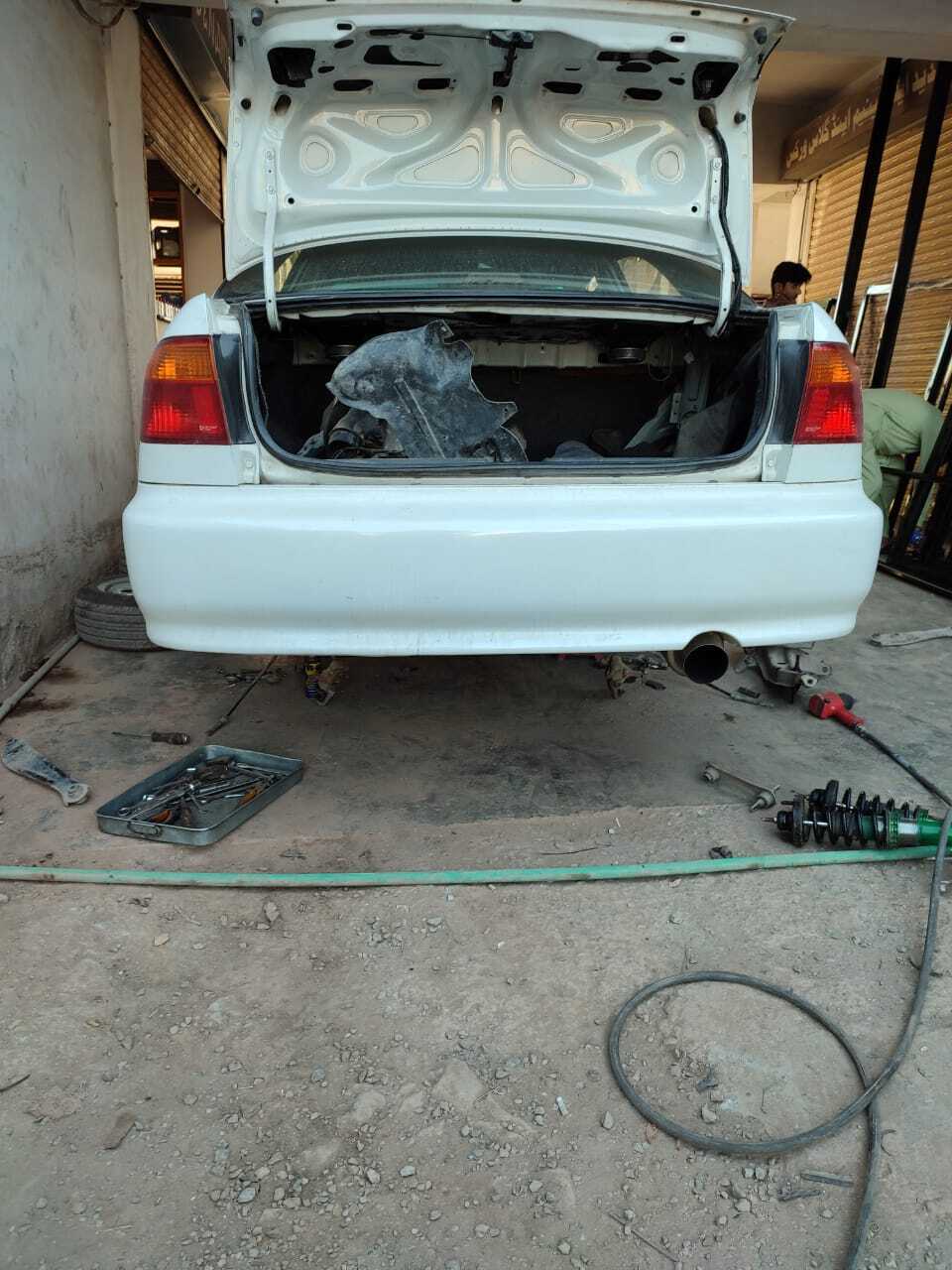

Tiens coil overs were used and all the bushes in suspension were replaced with new ones including disc pads for front and rear wheel.

[dani_kk]

[dani_kk]

[dani_kk]
