A lot people have been asking about wiring pinbouts and diagrams. Although i have shared these on many forums but after some time the image hosting sites delete. So i made a detailed video and shared what ever material and knowledge i had. I don't know what section to post these. So mods if you feel like it you can shift this to appropritae place.
Includes K-Series wiring diagrams & ECU pinouts, especailly modern Hondas
like CRZ Zf1,Zf2, Fit GD, GE, GK,GP4 hybrid,, Insight, City, Civic Si
07-11, Si 13+ models, Civic EX, Cvic 8th gen aswell as 9th gen,FD1,FD2,FN2 aswell as older ones like
EG, EG, Integra base. Also include C101, C124 plugs and their Main wiring harness diagrams compiled in video below
Also at time of making this video i did't had Gk5 ( 2013+ Fit,Jazz) C124 / C101 (both are same) pinouts . Also added some more Gk Fit pinouts.

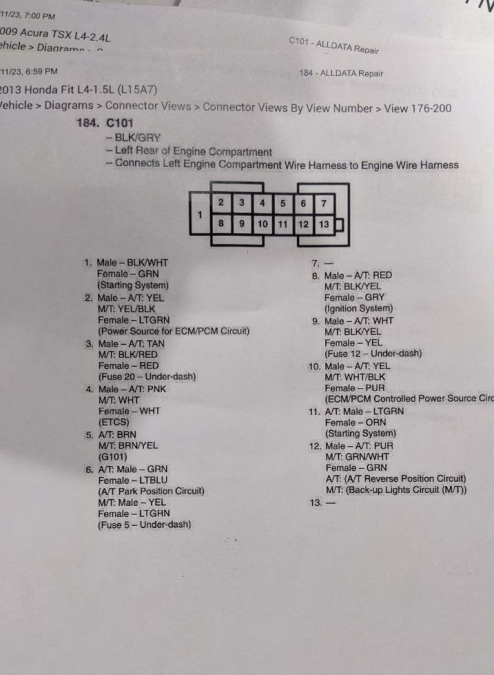

C124/C101 Fiit GK

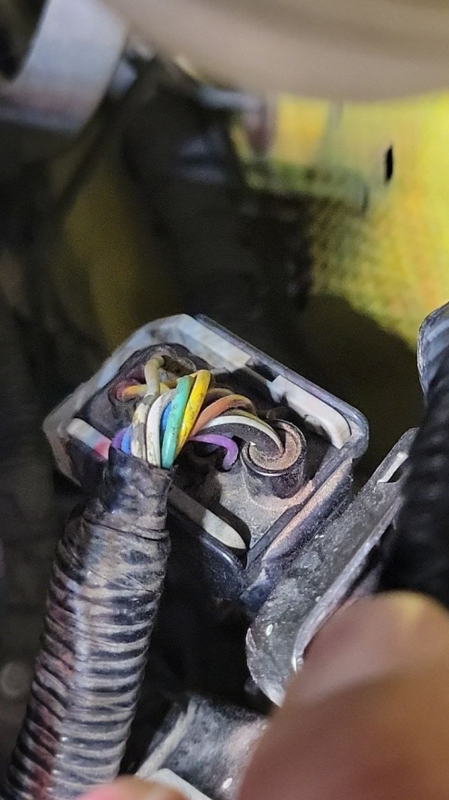

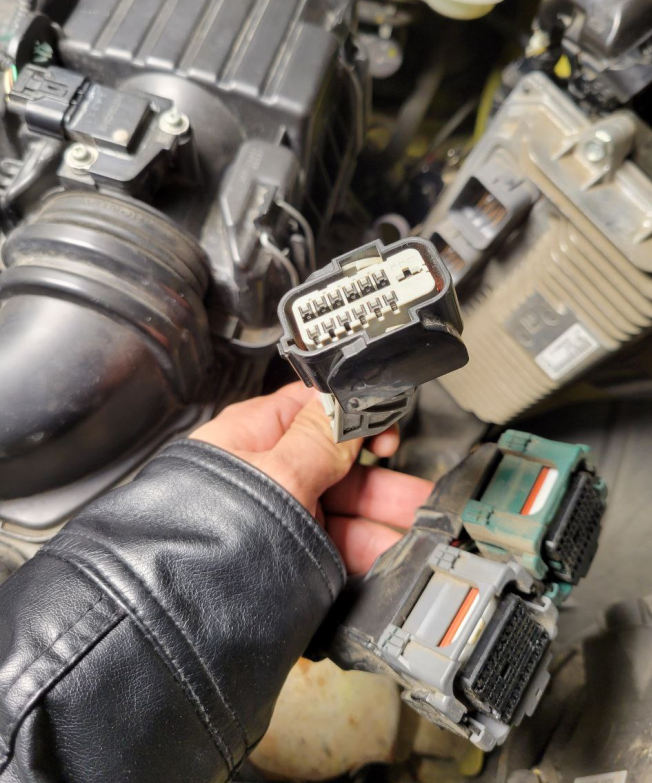

How C101/c124 actually looks

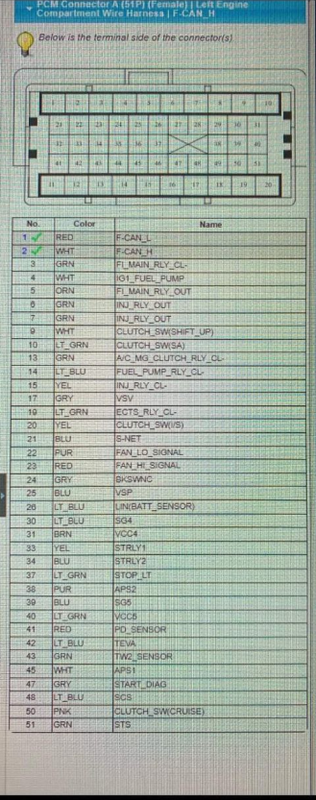

ECU Grip-A Fit GK (51 pin ecu)
Please do note that GP5 Fit in Pakistan is hybrid and its pinouts will differ from these but 90% will be same. These pinouts are for international Fit GK version.
