i-DSI swap with VTEC, City '08 Vario - Fit/Aria - Steermatic

[syedfaizan1]

guys Thanks for replies.

there is a guy. he does tuning and other cat services. he said its fine car need proper tuning. its rich in mixture

he suggested below works
Engine Tuning
Throttle Body Service
cat cleaning
Feuel Injectors Service
Feuel Filter Service
manifold cleaning

and he is asking 4k for these things.

[syedfaizan1]

its showing tps position 10.2% not in volts in my obd. now i don't know how much% is equals to volt in meter. lol i think i need to bring this thorarel at home and my father csn check the volts as he is good in all these meters and other things.

[syedfaizan1]

please see iqbal Shahid bhai suggestion on the readings

Wese to rpm waghera sab set araha hai, agar tps me adjustment hai thori si degree minus par ho sakti hai to kar Len warna ye chale gi

[Hassan1991]

Yes you have to use multimeter to check feedback voltages of TPS.
He's saying the same thing.

[syedfaizan1]

@Hamza_iqbal kindly check the attachments

[syedfaizan1]

@Xulfiqar,

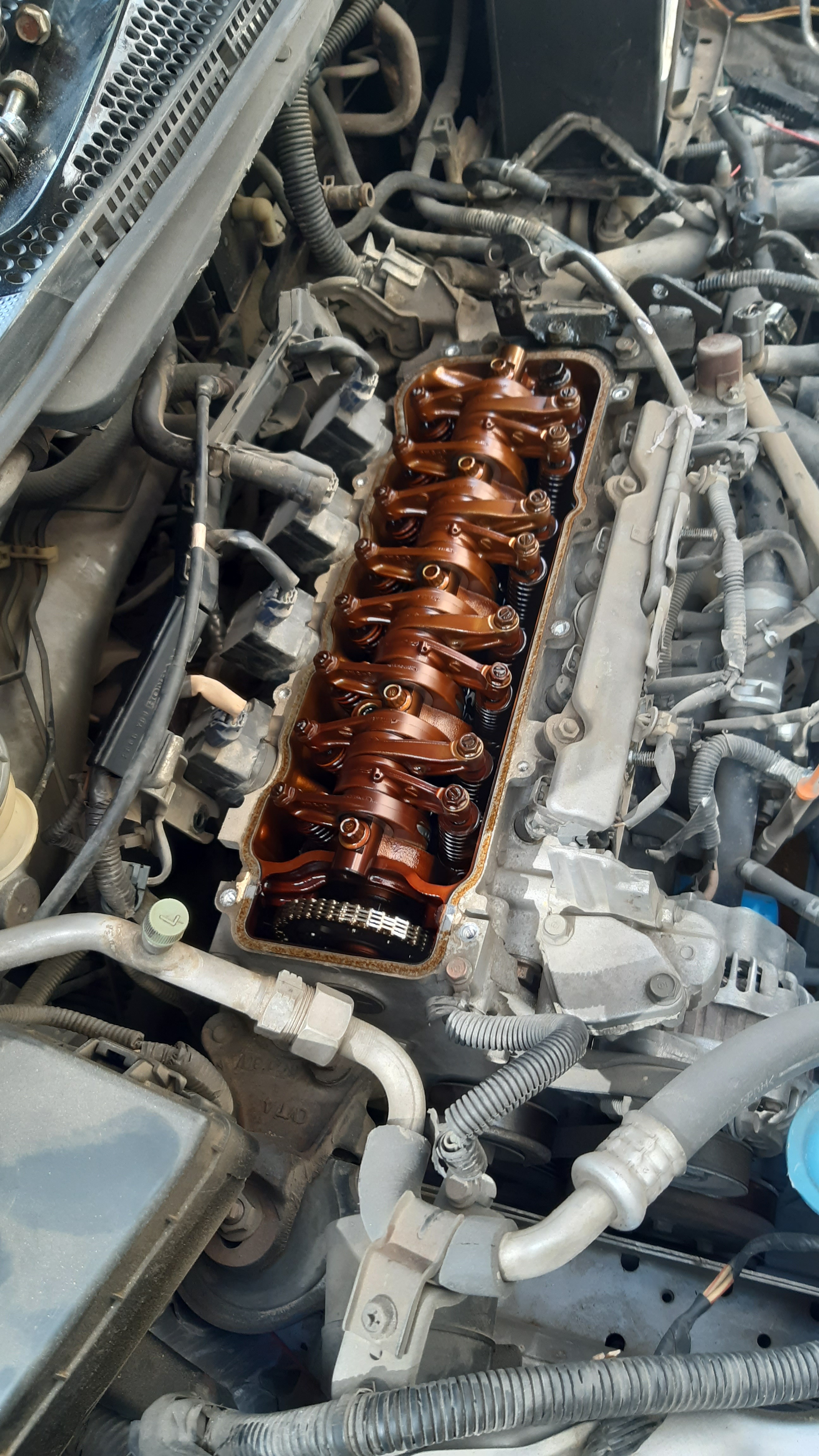

I showed to one guy , he Cleaned the manifold and adjusted the Tappets Valves, he kept the Setting to 0.08 MM to All Intake and Exahust for it.

Can you Suggest is it good for 1.5 CC L15 Engine ?

I have seen online it says 0.06 to 0.07 Front and .10 to .11 on Exhaust.

Please suggest.

[syedfaizan1]

there was nosie also coming by removing the manifold pipe and putting the local one. it didn't have the valve inside the pipe. so i bought another pipe from shafiq more Which also didnt had valve in it so installed the genuine one. car was making whistle noise by putting the another pipe. mechanic said is pipe k andar ek wall hota hai jo awaz khatam krta hai. manifold c pipe ja rha tha neechay rubber ka.

[syedfaizan1]

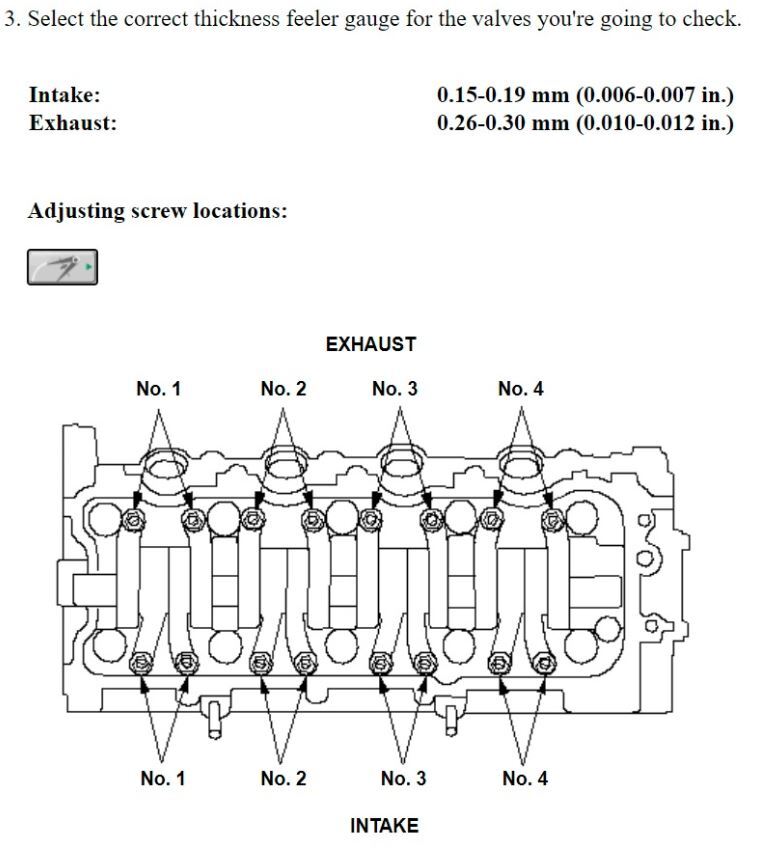

Found this Setting online, @Xulfiqar, please suggest

[Xulfiqar]

the exhaust valves must be kept looser, at the 0.27mm setting otherwise they will burn. And most importantly dont let him eyeball the camshaft to "see" the lobe.

use the crank pulley to see the timing marks

[syedfaizan1]

Okay. i will ask him to Readjust again tomorrow at 0.27 MM by using Crank pulley.

[syedfaizan1]

I remember he was moving crank from below and was setting the marks. he told me he set it up on 8 number from Front back !

[Xulfiqar]

the engine is only moved from the crank bolt.

but its critical to ensure the engine is stopped at the correct timing to check and adjust valve lash - if its stopped at the wrong timing because mechanic was looking at the cam lobe from a skewed angle - the clearances wont be correct.

the calculation is very simple. - its a 4 stroke engine meaning 720 degrees of crank is one complete power cycle of engine. Its a 4 cyl so divide 720/4 and you get 180 degrees.

your firing order is 1342

meaning TDC mark on crank is used to set cyl1 - (verify engine is at compression stroke and not exhaust).

now rotate crank exactly 180 degrees forwards and set cyl 3

then another 180 degrees (again TDC mark) and set cyl4

rotate another 180 degrees and set cyl 2

job done!

p.s. if you are going to use the camshaft pulley to see the timing then split it into 90 degree intervals as the cam spins at half rpm of engine crankshaft (180/2 = 90)

[syedfaizan1]

Wish you Could be here xulfiqar so we can easily get it sacnned and fix from you

[talal.hussain.39]

asalam ulikum hamza bhai aik baat batein kay jab ap nay idsi wala engine liya tha to ap ko kesay pta chala kay wo steeramatic wala transmission hai.gear box pay kiya likh wa hota hai.? sir aik aur baat batein kay jab ka immobilizer wala masla aya tha to ap nay kisi electrician say ap nay ecu aur imobilizer match kerwaya tha ya phir khud match ho gaya tha?thanks

[hamza_iqbal]

WS. Transmission looks same, but Steermatic has an additional controller type thing (don’t remember it’s been 2+ years now) attached to it. Was a small black black plastic box.

For the immobilizer I had to get the ECU and Keys matched. Can be done with a Scanner that supports this feature.

[talal.hussain.39]

Thanks hamza bhai

[syedfaizan1]

BRo can you DM me your whatsapp number. I need ! to ask some Queries in future if needed

[hamza_iqbal]

Done

[pwuser162426423534]

Can you please share the contact no of that electrian.....

[car_bus2008]

which app is used to get these readings.
