IESCO Net Meter Pinout

abuzaidpk (abuzaidpk) 2021-11-09 21:51:31 +0500 #1

I have a general question. Does the IESCO or LESCO Net Meter has L1, L2 and L3 identified on the Meter?

uzeemujeeb (MUZ) 2021-11-10 11:43:22 +0500 #2

L1 L2 L3 are number of phase connected (live 1 live 2 live 3). with a COMMON ( Neutral) from pole to meter . Extension from meter for load DB are for consumer to distribute at domestic DB as per requirement.

abuzaidpk (abuzaidpk) 2021-12-02 22:06:26 +0500 #3

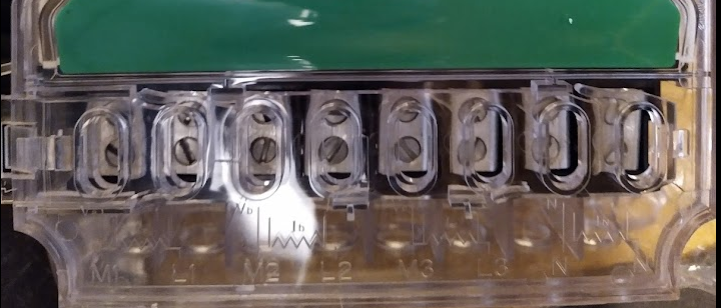

They are labelled as M1/L1, M2/L2 and M3/L3, one from Mains and Other to the Load. On Grid Tie Inverter, depending on make and model, need to match each Phase.

uzeemujeeb (MUZ) 2021-12-03 10:59:41 +0500 #4

it is same as i stated

main 1 is load 1
main 2 is load 2
main 3 is load 3
N is common Neutral for all 3 phases.

L1 L2 L3 goes to your DB ask your solar integrator to tie up the inverter phases accordingly. FYI the Net Metering - METER is different then regular meter you please make sure for that with your service provider.
