K24 swap Corolla - Running an open source Standalone

[Hassan1991]

Okay so as expected. Toe change doubled.
Now i have to deal with the Bump steer.
But before that need to put this car on road.

[Hassan1991]

Quick update.
The EG i was talking about started last week.
Spend like 4 days in pindi to sort it out and we both did all the unfinished work and messed up things left by his mechanic using bare minimum tools, as i made him to tow the car to his house before my arrival. Don't wanna deal with mechanic.
ALHAMDULILLAH it starts and run. Although tune is messed up and all of things still need to done.
But at least it rolls on road.
Anyways that's up with the EG.
Tomorrow will be visiting market to get custom rubber brakes lines made for corolla.

[abdul_basit007]

@Hassan1991 - Thumbs Up Bro with the Project. Already subscribed to your thread.
I'm happy to hear that you love working on these types of projects here in Pakistan when others, like me, are looking into or planning to leave the country in order to find employment in the Middle East or elsewhere.

[Hassan1991]

Thanks sir.
I have to complete what i started.

[Hassan1991]

Got the new brake lines punched. Used flexible high pressure pipes.

[dani_kk]

One word is enough for this *khoobsurat tareen *

[Hassan1991]

Thanks janab.

[abdul_basit007]

@Hassan1991 Bhai Jaan updates?

[Hassan1991]

Brake lines back on.
Rebuild the Brake master cylinder.
Installed new clutch master cylinder.
Interior been organised, now it's clean.
Pedals will be installed in a day or 2. Then valve seals.
Got the cl9 shifter as well. My friend got the billet one so i bought from him.

[Moderator]

[Hassan1991]

Valve seals replaced.
Pedals installed.
This is a basic tool that I made to replace seals.
The shopkeeper gave me all the seals of the intake side without realizing the difference between exhaust and intake seals, which required me to make another trip to the market.
Intake seals have white-colored springs, while exhaust seals have black-colored springs. Both of them are unique and cannot be substituted. The same seals came in various engines from 1992–2020.
Next, I will put the engine back, modify the shifting cables, and make a new transmission shifting cables bracket.

Part no. of intake valve seal.
12210-PZ1-003 (ARAI)
12210-PZ1-004 (NOK)

Part no. of exhaust valve seal.
12211-PZ1-003 (ARAI)
12211-PZ1-004 (NOK)

[Hassan1991]

The EG Civic that I have mentioned several times before is in Lahore with me. My friend got it transported to me last week.
It had a bunch of issues that needed to be sorted out before tuning and wot pulls.
Between thanks @dani_kk for providing the link.

[Hassan1991]

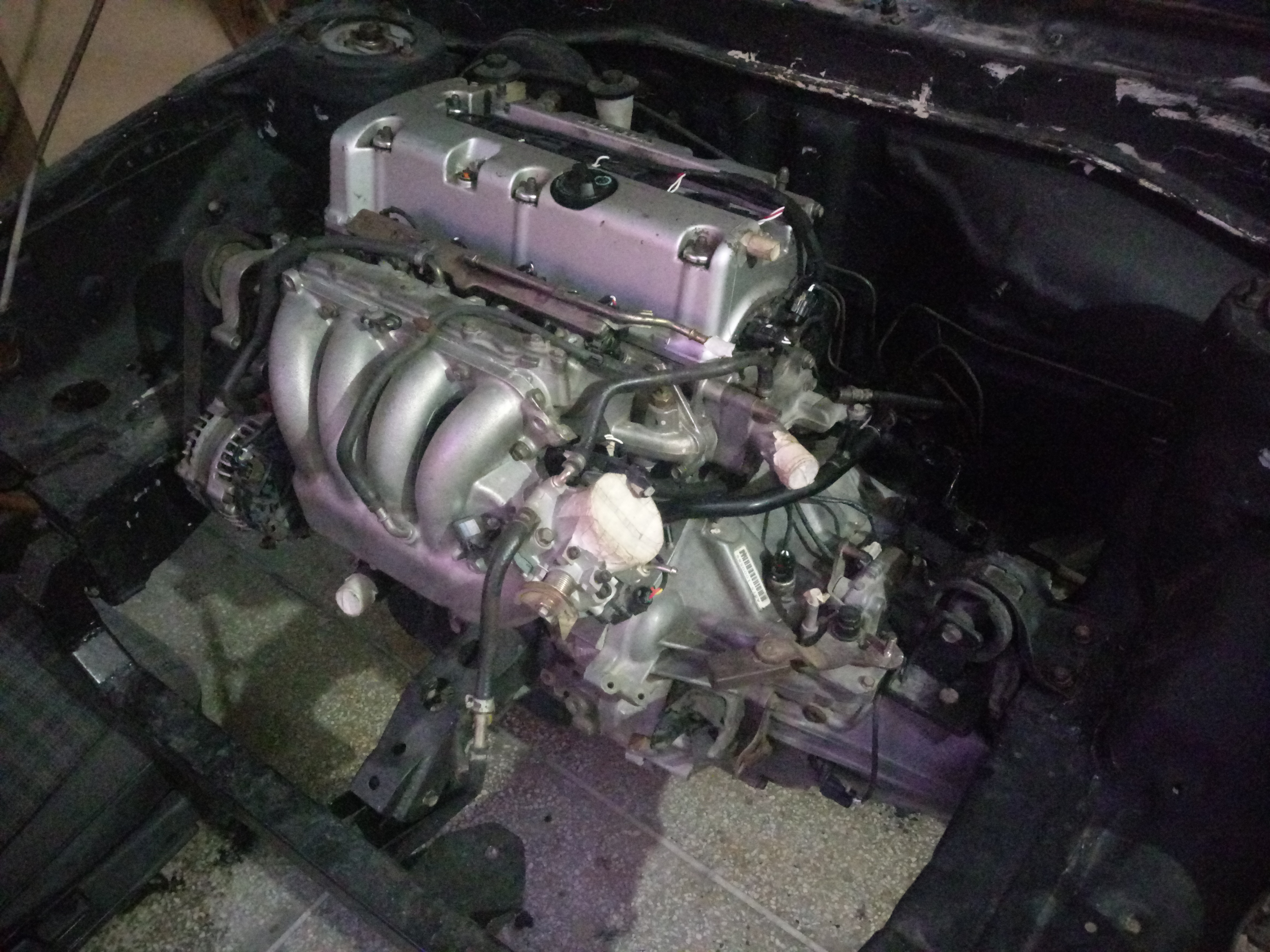

Engine back in.

[Hassan1991]

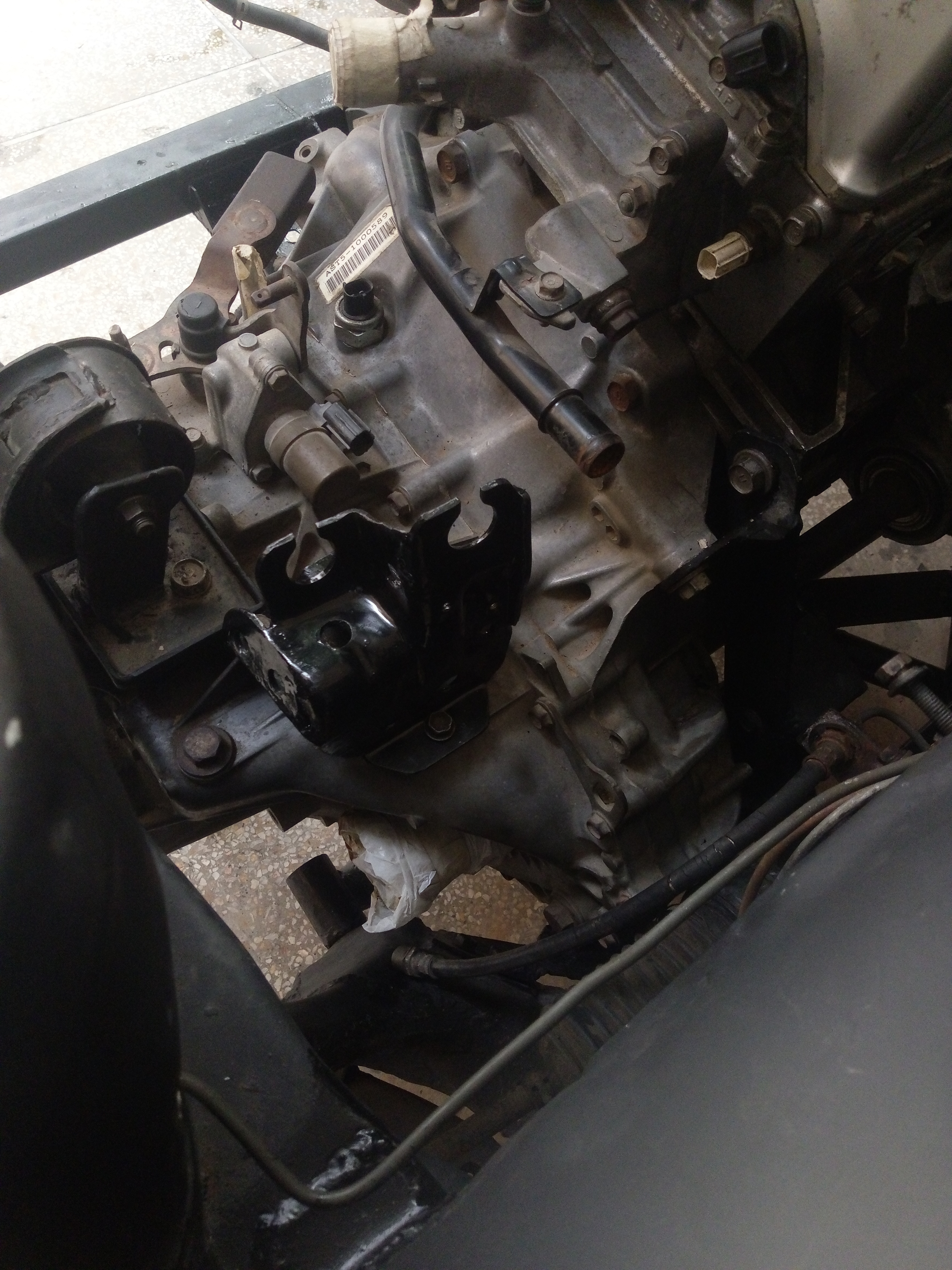

I'm using OEM Toyota Ae101 shifting cables with a CL9 shifter. Cables are already mounted on the shifter.
I also made this bracket using a C150N bracket piece. Selling the AST5 bracket that came with it. This one just makes cable mounting simple.
If you are wondering how this "kichri" is going to work, a hint is shifting cables.

[Hassan1991]

Engine harness installed.

[Hassan1991]

So the e100 shifting cables I got, which were supposed to be installed, went Shorter. Now I'm confused....how to sort it out. Either get accord cables or newer model corolla cables, which will be greater in length.

[sardarg]

sir there is a way to measure, you may run a thread or length of old cable string over the shifter cable route. tie one end to transmission stick and route it via channels outward to transmission knuckles or vice versa. tie few knots at each end to identify engine side & cabin side. take a ride to your area scrap yard and see which type of toyota or honda cable serves you best.

[Hassan1991]

Already measured, sir.
I will share the lengths.

[saad0irfan]

And you forgot to share the lengths

[Hassan1991]

I want to put both cables side to side and then share a picture.
And sorry other projects are also going along so don't have much update for Krolla.
