K24 swap Corolla - Running an open source Standalone

[PKTUN]

hope all is progressing well, and vehicle will be roaring on-road by Feb 08 2024

[Hassan1991]

Insha ALLAH.
Between what's on 8 Feb?

[saad0irfan]

Between what's on 8 Feb

Elections I think.

[sardarg]

for sure a holiday janab for you to roar over empty road somewhere near lahore
sir perhaps your interest in project is diverted elsewhere more challenging may be thats why progress is real slow !

[Hassan1991]

I do these things early morning.
Actually it's almost at the end. I just need clutch slave, shifting cables, fuel pump and fpr to bring it back on road.
Reason for me being slow is because i'm finishing the wiring of EG and enabling Close Loops which requires test and trials even after tuned open loop.
The more time I spend on it the more I learn.

[Hassan1991]

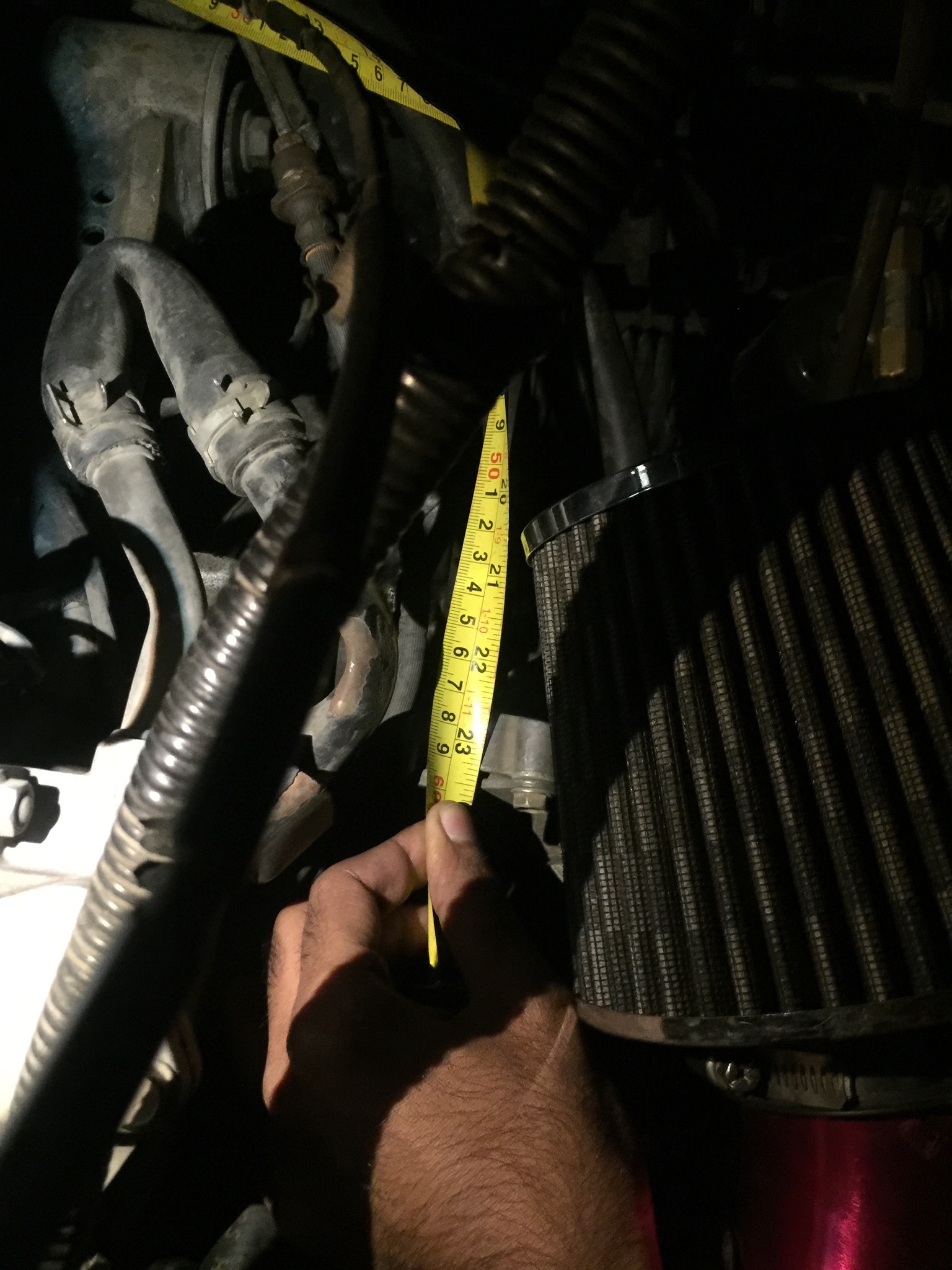

So i got my own cables extended. Which were from ae101 corolla.

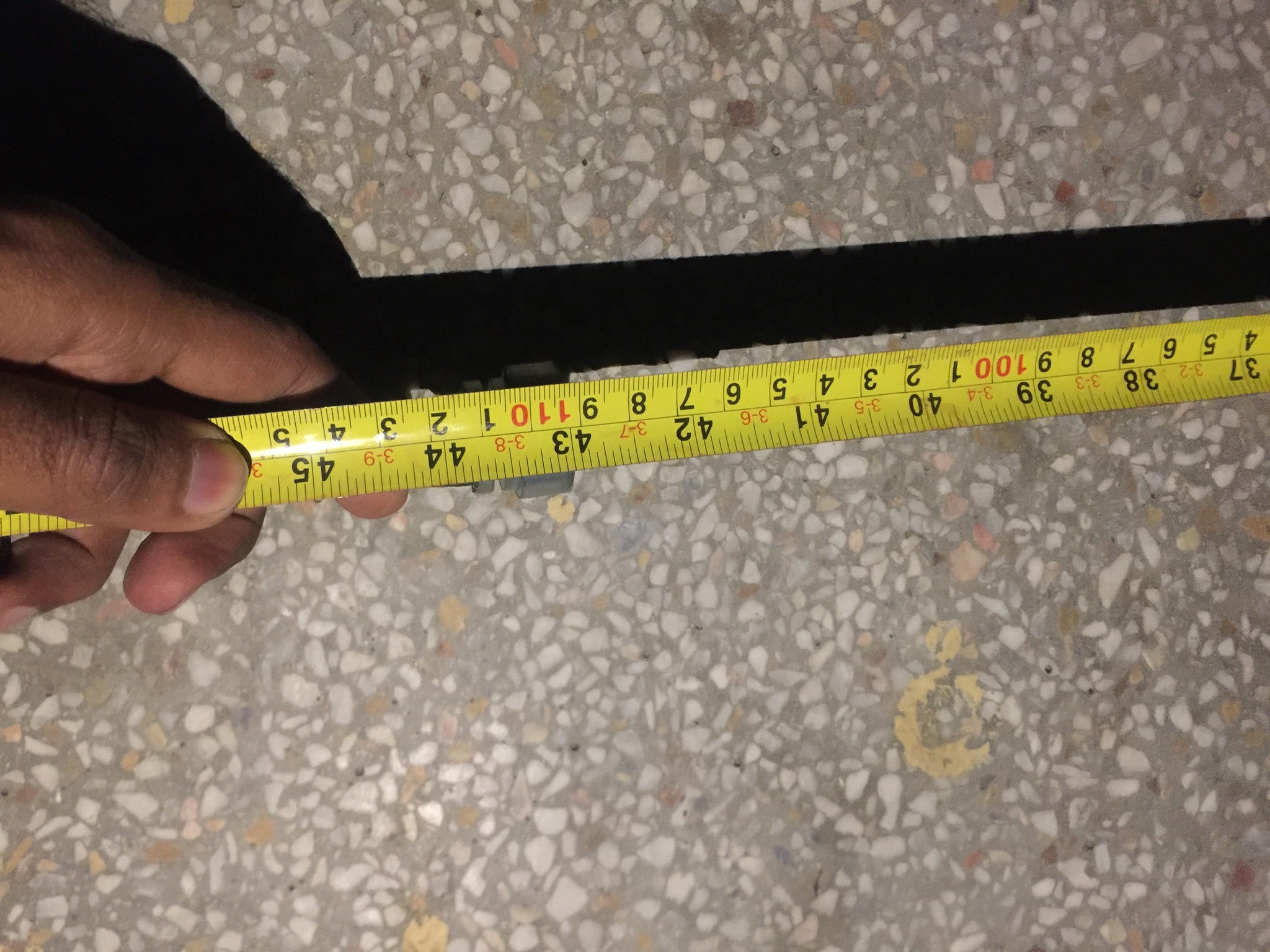

This is size of CL9 shifting cables.
43 inches

[Hassan1991]

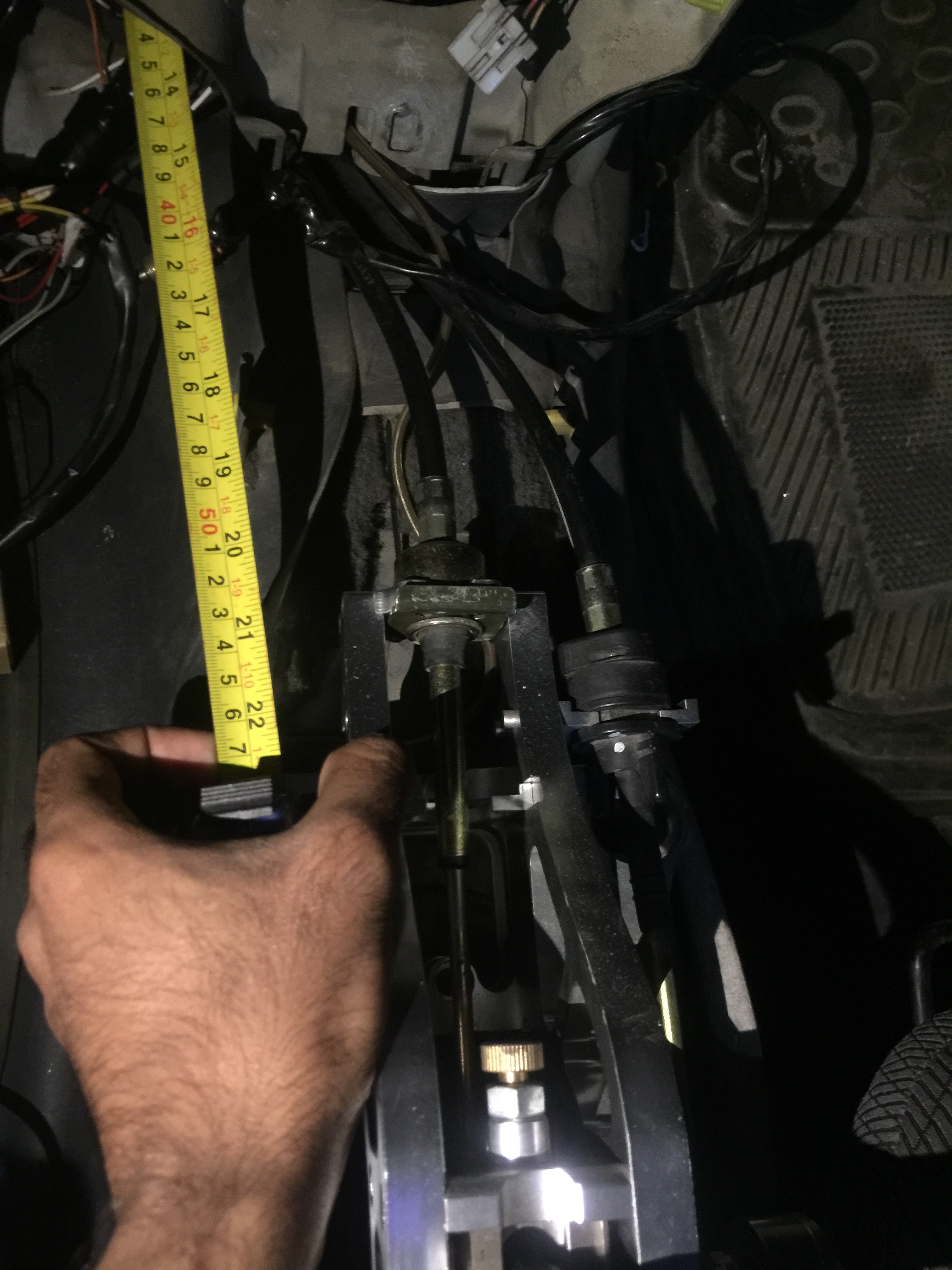

Size of the cables i got after modification.
43 inches
To get the size of ae101 cables you can remove 1 feet from the current cables.
So ae80 to ae101 cables are 30-31 inches in length.

[Hassan1991]

Bought e100-e110 Brake proportional valve.
As my car got e100 front brakes.
E80-100-110 got same rear drums specs.

[Hassan1991]

Updates.
Brakes done ( complete ae101 stuff ).

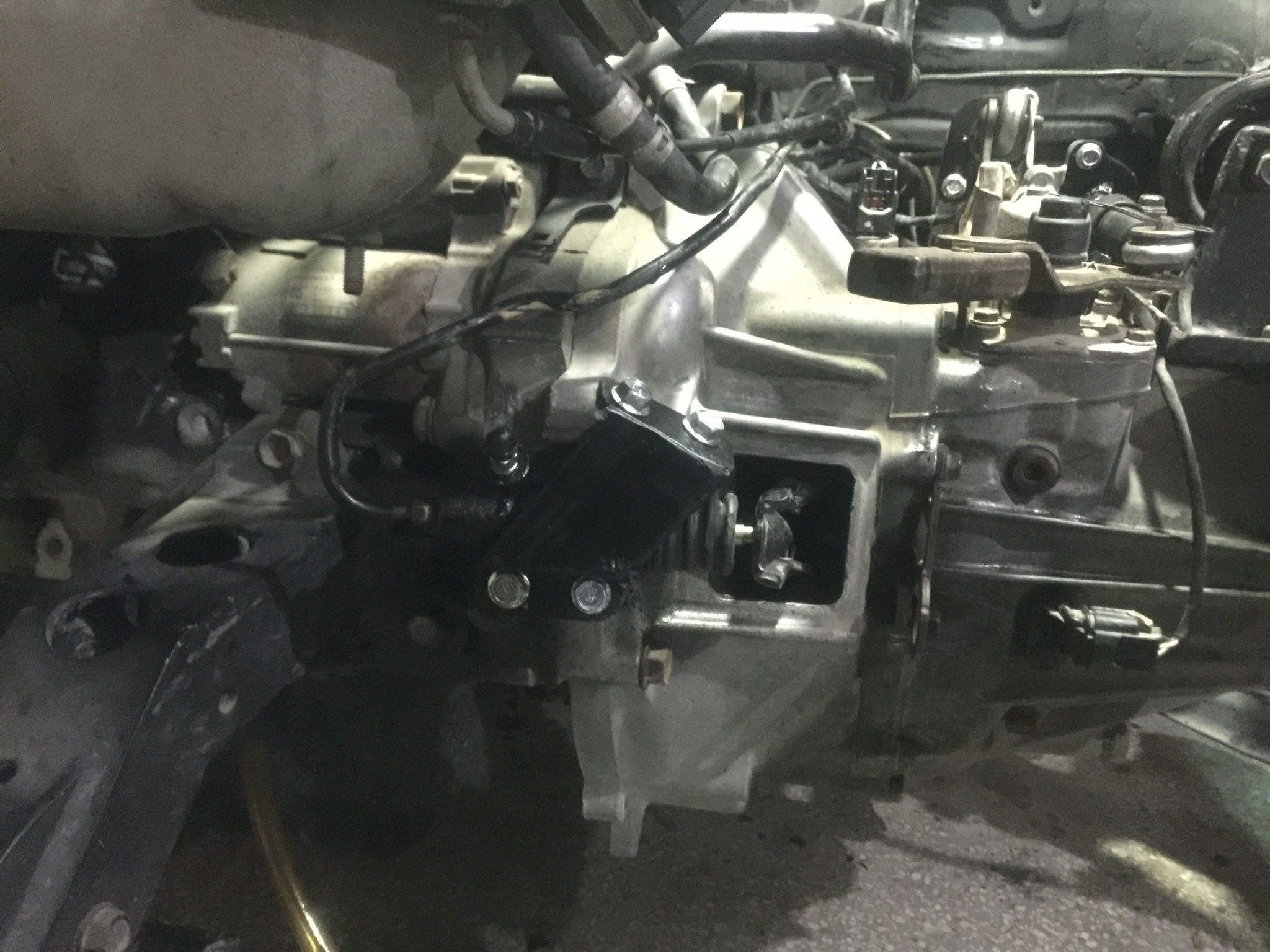

Installed toyota 13/16 slave.
All 3 pedals installed and aligned.
Almost ready for the test drive.
Just need to make bracket to mount the cl9 shifter to chassis. And a new flange for headers.

[Hassan1991]

While the civic is gone. And driven Back to Pindi.
ALHAMDULILLAH.

[Hassan1991]

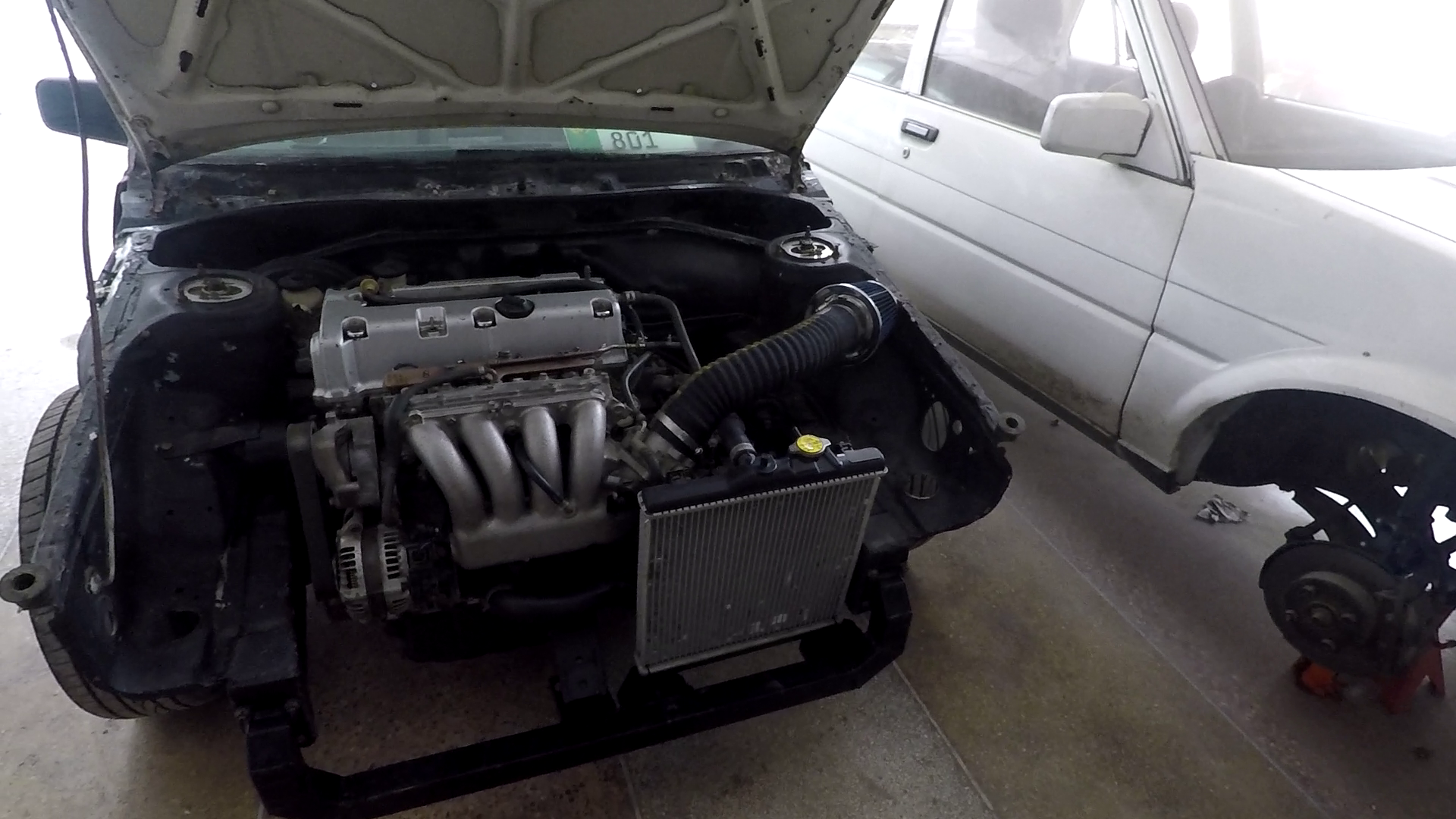

And She's Out. Feels planted on the road and very aggressive to pedal, even with no tune.

[Hassan1991]

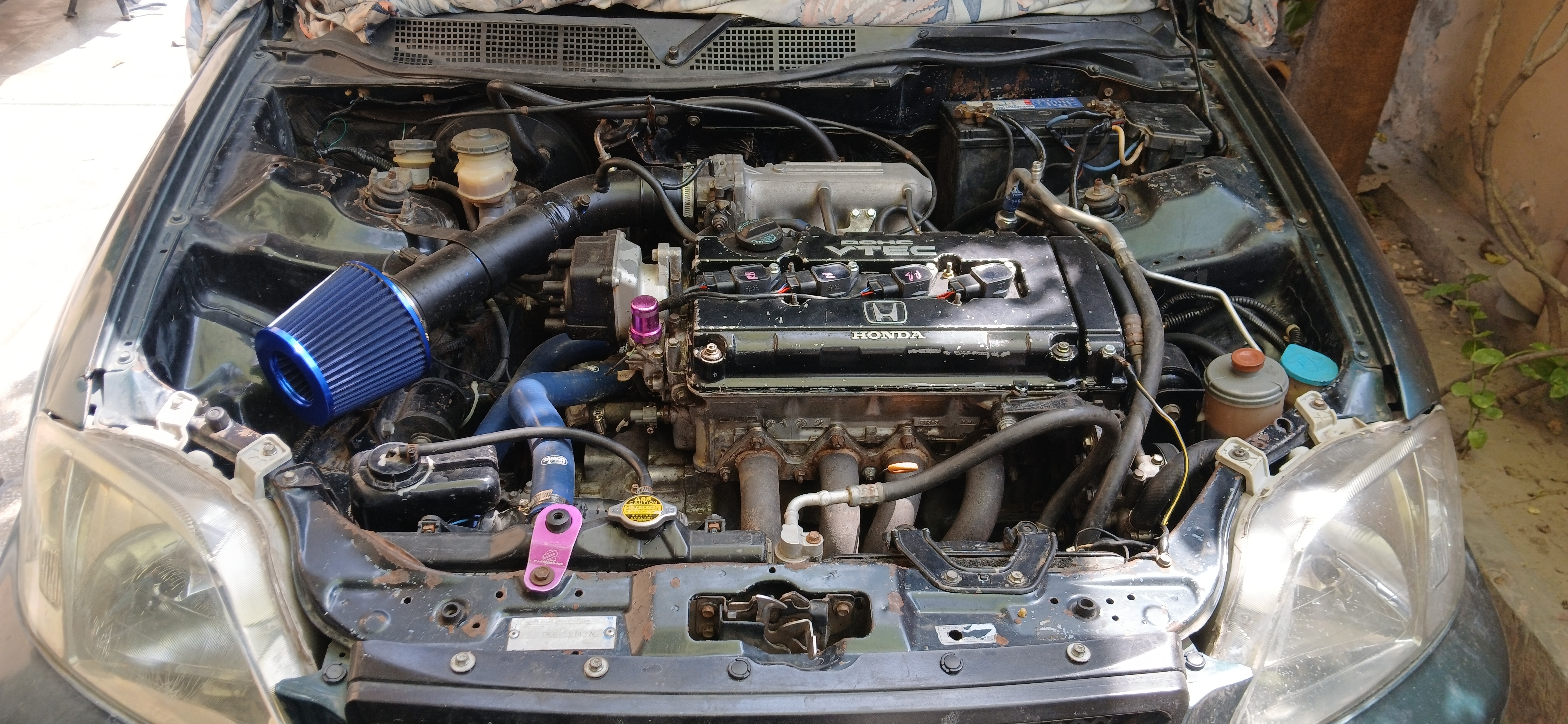

Let me revive the thread. Front is done, but I haven't taken any pictures. Being busy with one more project. EG is also back with us. So this car basically gets parked every time a new project starts. I'm thinking to switch to 4.7 final drive transmission, so I might do that before WOT tuning. EG does goes 0-100 in 6 seconds with 4.3 final drive transmission ( I have uploaded a video on insta if anyone is interested to see), so I'm expecting this light chassis to be in 5's after the transmission swap.

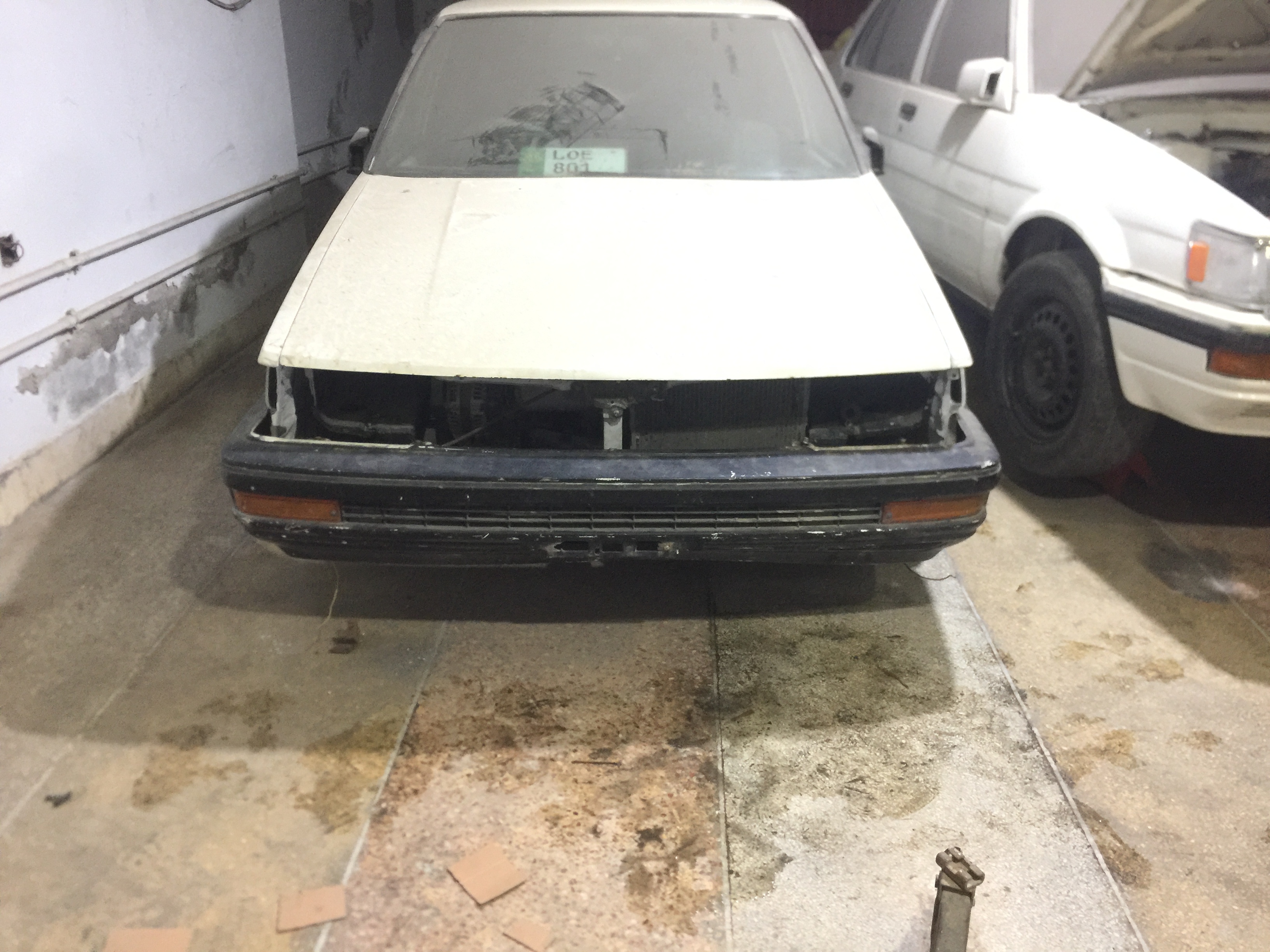

This is an old picture.

[Hassan1991]

[sardarg]

sir @Hassan1991 please post link of instagram post please

[Hassan1991]

Here the last run of EG. and the first road test of Krolla.
