bilalawan774 (bilalawan774) 2022-02-22 19:58:10 +0500 #16676

yes thats true, TCU/TCM is separate from ECU, i have done the converstion some 4 years back and travelled 3 to 4 time khi isb non stop, all good if kept with care

Zubair530 (Zubair530) 2022-02-22 20:56:49 +0500 #16677

Thank you very much @bilalawan774, did you convert a liana from manual to auto?

bilalawan774 (bilalawan774) 2022-02-22 21:05:05 +0500 #16678

yes, 1.3 auto engine was swapped earlier then after 2 years converted auto, gear is bolt on, you need to prepare excels as per the length, wiring is typical ,if you are karachi based i can guide you to workshop

Zubair530 (Zubair530) 2022-02-22 21:07:37 +0500 #16679

The problem is, I am in KPK... and can go to either ISB/RWP or Peshawar for the swap, karachi is very much far away... Which gearbox did you install? 1600cc one?

bilalawan774 (bilalawan774) 2022-02-22 22:02:03 +0500 #16680

its same for 1.3 and 1.6 , 1.8 has bigger torque converter

ahmed12355 (ahmed12355) 2022-02-22 22:10:32 +0500 #16681

Han abid bhai cam shaft ki waja se wase chal jate 2 saal b phr b last hal yahe hota assembly
2019 m rate tha assembly k
1.3 30k
1.5 35k
Or ab rate
1.3 40k
1.5 55k
Agr m 2 saal bad assembly change krta to rate shyed 80/90 hota islye bus mane socha change e krdo Abe rate high tha but budget tha islye
Change e krdia.
Ek mechanic ne to kaha awaz khatam krde ga 15k to20k risk le but y risky tha kafi..

welcome786 (Mian Zahid) 2022-02-23 11:58:23 +0500 #16682

thanks dear

Zubair530 (Zubair530) 2022-02-23 12:13:53 +0500 #16683

Thank you very much, that's nice info...

What about the gearbox of the Swift, I think, Swift and Liana have same m13 engines... will it's gearbox work in Liana?

bilalawan774 (bilalawan774) 2022-02-23 17:45:18 +0500 #16684

gearbox is different on both cars, liana sx4 areio shares same gearbox.

Noor85 (Noor85) 2022-02-26 11:15:24 +0500 #16685

Where exactly in Hyderabad? Share his location and number?

ahmed12355 (ahmed12355) 2022-02-28 13:33:36 +0500 #16686

0313 331 9090
Contact on this bhoora mechanic
Qadam gha road
He will guide you properly address

Noor85 (Noor85) 2022-03-07 23:18:29 +0500 #16687

Thanks dear. My Alto mechanic is there too.

pwuser163924000083 (PWUser163924000023) 2022-03-08 20:38:34 +0500 #16688

Please Suggest a reliable and reasonable mechanic for Liana in Karachi, near DHA Phase 1 area

abid110 2022-03-08 20:42:02 +0500 #16689

discuss your issues here. waise i can guide you if you can come to fb area

pwuser16074435879 (Zarnain) 2022-03-09 23:00:46 +0500 #16690

Milage kia aa rahi hai ab?

ahmed12355 (ahmed12355) 2022-03-10 15:02:26 +0500 #16691

Local 9/10/ max
But long pe best h 16/17 max
Laser irdm plugs

bilalawan774 (bilalawan774) 2022-03-11 22:31:02 +0500 #16692

Salam to all Fans and experts

Bhai need your expert opinion since i am stuck
i did conversion with my 07 Liana, swapped complete M1.6 with Auto tranny imported from japan, did wiring used 1.5 TCM and ECU , computer scan is clear no code shifting and all is good

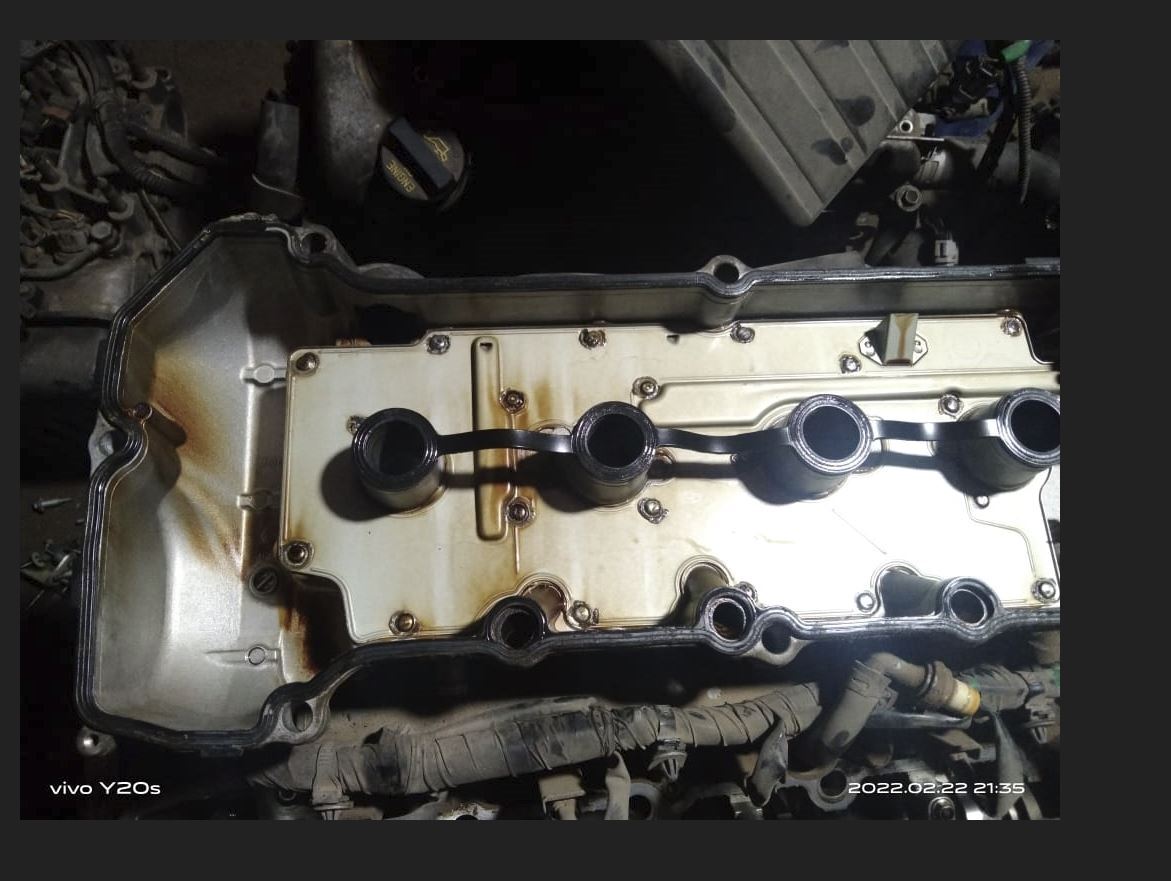

only issue is detonation/knocking at idle vibrate and make sounds, for sure no cam or barring sound, looks like pre ignition or timing issue, using G Power plugs with original coils, 5W 30 Kixx oil engine was clean on pistons and head cover
please guide what should i do to make it smooth

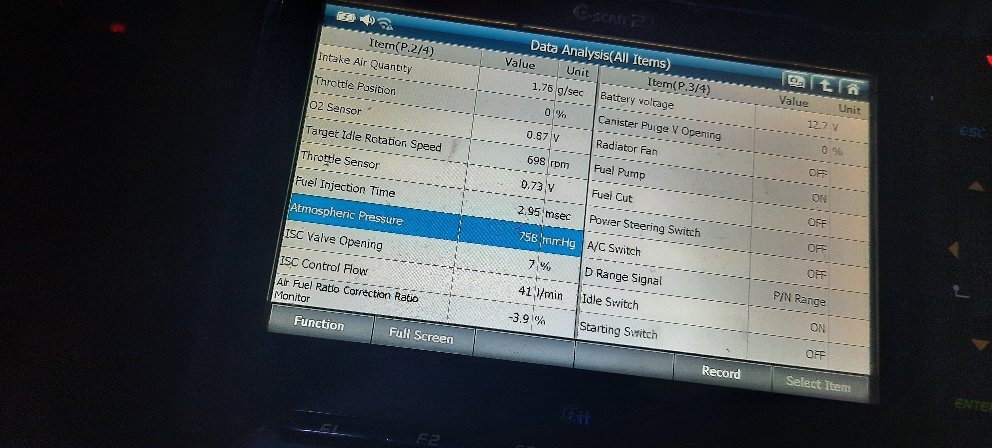

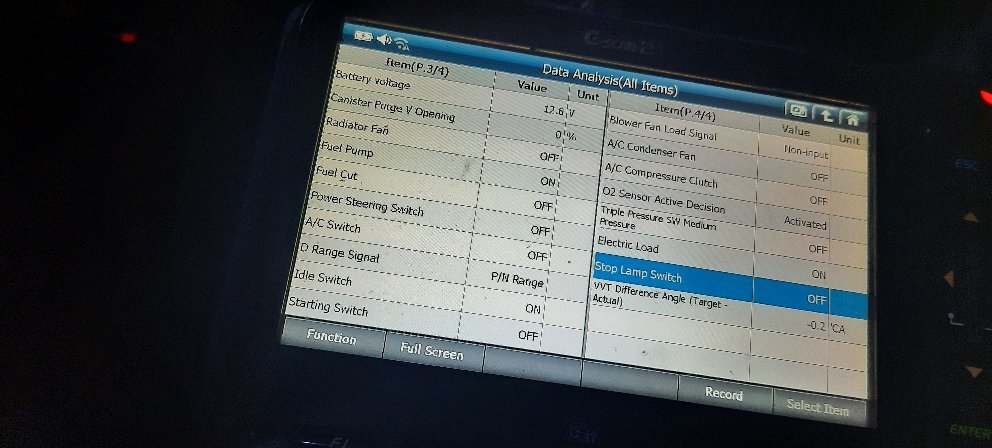

please see these scanner pictures and guide
thanks in advance

bilalawan774 (bilalawan774) 2022-03-11 22:31:49 +0500 #16693

Hassan1991 (Electrical Engineer ) 2022-03-12 02:02:09 +0500 #16694

Wailaikum Assalam
Use an oscilloscope to check the pulses of crank sensor.
Check the valve lashes as well.

dani_kk (Dmotorsports) 2022-03-12 03:06:14 +0500 #16695

I already told you about it. M16vvt does that. Its a cold compression engine. I've faced this issue when I swapped it In my liana. I swapped it with m18a later on and then the problem disappeared. M16vvt doesn't works with this ecu wiring and air intake system...
