LJ78 - 1991 Land Cruiser

[imranmaskeen]

Bought 5 Door (1991) LJ78 (boley tu, PRADO). I am planning to keep it as per factory specifications. However, building it to meet all challenges of recent times.

Original parts replaces
1.All 4 springs
2. All four shocks (Toyota)
3. All 12 bushes (Toyota)
4. Lubricants i.e Transmission, Front Diff, Rear Diff, Power steering, Break Oil
5. Manual Hub Lock
6 Rear Springs with addition 100kg (approximately) lift capabiltities
7 Under body treatment with Rust-oleum (Rust reforcement and Truck Bed paint)
8 exhaust painted with Rust-oleum High heat primer and paint
9 Radiator cleaned
10 Inlet checked and found clean as well
11 Outlet OK

[imranmaskeen]

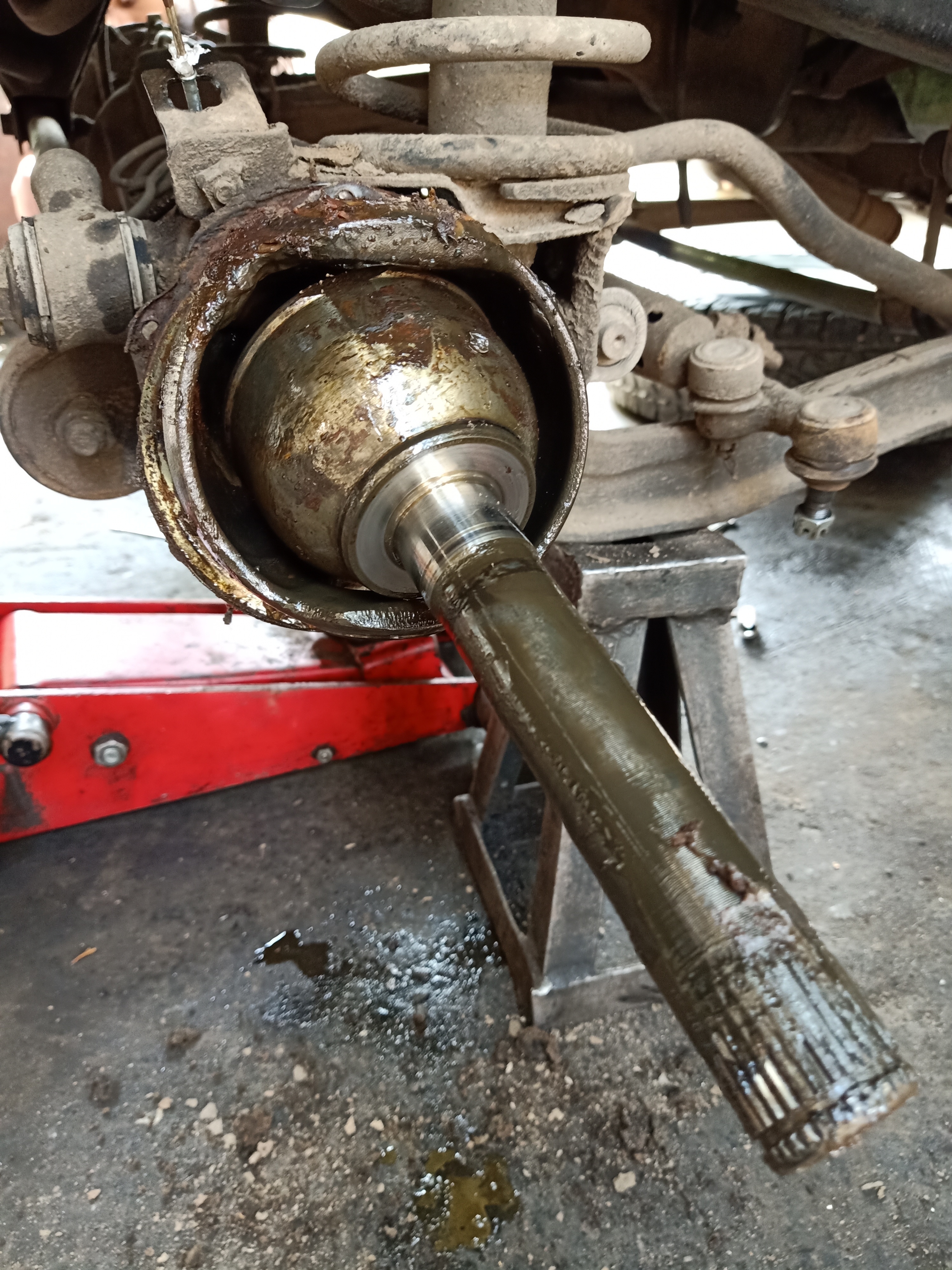

Front was all messed up. Greese was like MUD.

[imranmaskeen]

[imranmaskeen]

[imranmaskeen]

Repair starts with original parts. However I opted to go with Manual front lock.

[imranmaskeen]

Stay tuned for more updates.

[anon36782927]

This post was flagged by the community and is temporarily hidden.

[omersiddiqui5482]

interesting! sir do mention the City and cost and the source of parts!

[homeboy]

Keep the lockers manual. The OEM are crap they fail all the time.
Also when buying the shocks please check for Japanese gas shocks i used them they were great. KYB gas shocks are nice too but I would really recommend bielstine

[imranmaskeen]

Thanks friends

Manual lockers costed me 6k (used).
Bearing, grease, labour and locker costed me 20k.

@Homeboy; dear only Toyota original parts will be used. In sha Allah.

[homeboy]

Please see a lift of 2 inches is great for better clearance during off road adventures. Best of luck

[Xulfiqar]

you put the wrong grease in the birfs - this grease causes super rapid wear in them.

[mshoaib432722]

exactly. 180 rs wala dabba hai grease ka yeh

[Xulfiqar]

very soon this grease will become a shade of bronze or silver metallic paint as the birfield joint wears out rapidly. I have seen this thousands of times.

The correct grease is critical in this.

Last I checked toyota birfield joints were very very expensive.

[omersiddiqui5482]

@Xulfiqar sir what grease should be used. Particular grade, additive etc. ?

[Xulfiqar]

For this one nlgi0 or 1, lithium ep moly grease (cv axle wali kaali grease), nlg12 also can work but it gets flung out to ball.

Nlgi3 is garbage, might as well put a bar of soap inside.

Toyota originally filled it with nlgi0 stuff (same as land rover oneshot grease). Its a semi fluid slumping grease.

But in service manual specify lithium with moly nlgi2, I have found that it can work as long as the 4wd is used often and the right quantity is used. I still prefer the semi fluid type or atleast cv joint one.

[anon36782927]

This post was flagged by the community and is temporarily hidden.

[capsat]

another LC under wrench .. @imranmaskeen keep updating please ( subscribed )

[Xulfiqar]

Neither, find an EP moly one.

[imranmaskeen]

Thanks friends.
I did ask my mechanic and even Khalid Auto (Parts guy). They said its best. BUNDA HUN KITHEY JAWEY

Anyways. Done is done now. Will change it again, very soon.
