Need Help

[shaamael]

I need expert opinion to know how many catalytic converters are installed to exhaust system of Toyota Vitz 2009 1.3 2sz fe ? If there was any version of vitz to have more than one CAT?

@Xulfiqar @rajaatta

[Xulfiqar]

Hi

There used to be a lev model with 2 cats, the secondary cat wasnt monitored though.

[shaamael]

Thanks brother.. one more what is bank1 and bank2 ? Bank means catalytic converter?

@Xulfiqar

[Xulfiqar]

Bank means bank of cylinders

E.g. in a v6 engine you have 2 banks of 3 cylinders

In your case you only have one bank which is called bank1

[shaamael]

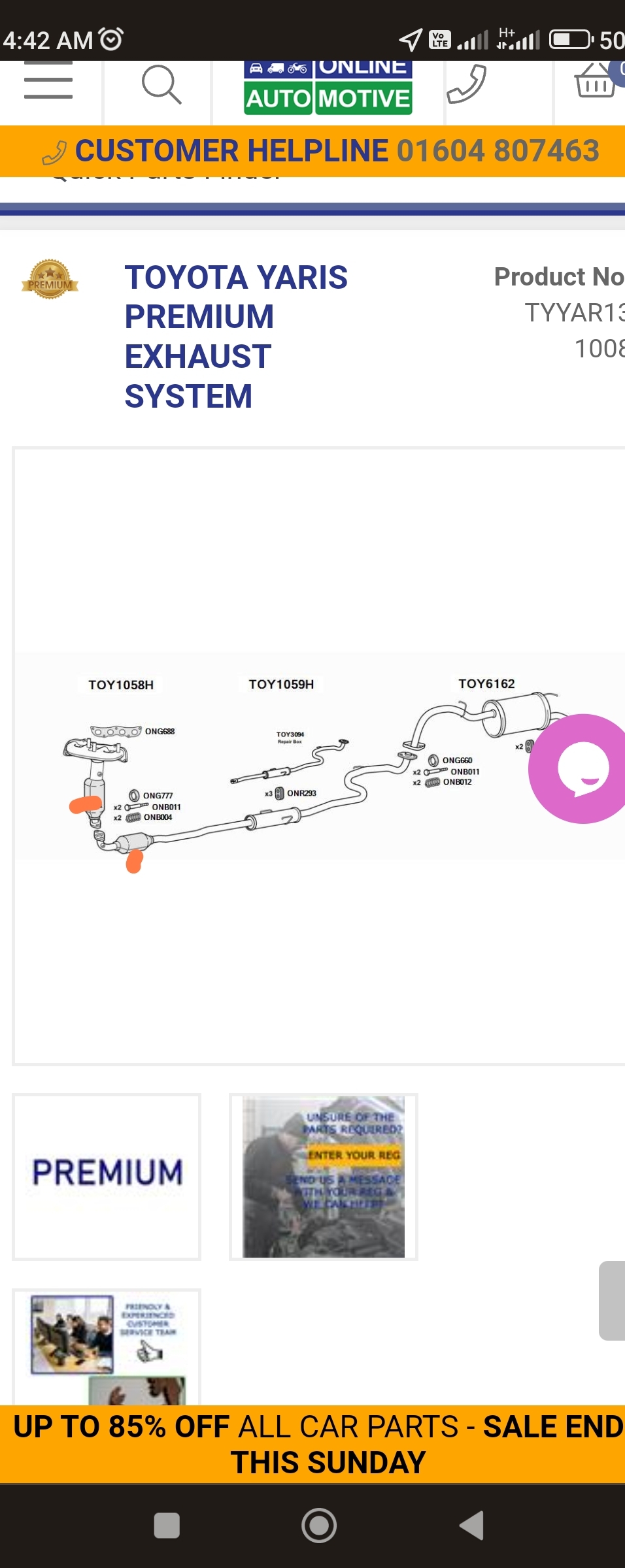

Thanks brother.. I am sharing image of Toyota Yaris 2010 1.3 2sz fe complete exhaust system, I highlighted two parts of it with orange colour , first one is catalytic converter and what is this second ? Which resembles in shape with CAT ?

@Xulfiqar

[rajaatta]

It's also a cat converter have you swapped your 1 kr with 2 sz if yes then no need to add 2 ND cat in the system if the primary cat is already installed

[shaamael]

@rajaatta

Thanks brother .. what is best method to clean CAT , I already have this washed with water and detergent which was not effective. Used protec Oxicat additives with better results . What's your take on this ? Some mechanics on YouTube suggest lacquer thinner adding into fuel tank and many are against it and prefer to soak CAT in lacquer thinner solution?

[Xulfiqar]

Once the cat is poisoned and damaged, there is only a slight chance of revival,

E.g. if the engine was burning oil and you put cheap api-sg 20w50 oil, or the engine was driven with severe level misfire or a bad working maf sensor, it will destroy the cat converter beyond revival.

Toyota installs the best cat converter in the world, and their ecu monitor it 90% efficiency, under normal run circumstances they will run forever, but if poisoned and killed to make them below 90% efficient, the ecu will never clear the p0420 code.

[crema]

If it is a JDM then fuel type mismatch also causes the Cat Cons to fail.

[shaamael]

Thanks brother.. should I remove second catalytic converter installed to exhaust system of vitz 2008 ? I guess dual CATs are leaving car response sluggish?

[Xulfiqar]

Cat converters dont cause sluggish performance unless they are blocked,

You assume that these brand new cars were sluggish?

[shaamael]

No not at all .. my point was as vitz 2nd generation 1.3 support or function well with one CAT so might be second CAT of my car causing performance issues , that my hunch . As said by Raja Atta vitz second generation 1.3 exhaust was equipped with one CAT also dual one as well depending upon model and markets . MK2 variant exhausts mostly dual .

Before installing this exhaust my car used to reach 175 km ,now it barely reach 160 !
