shafiaamer (shafiaamer) 2021-09-12 20:44:07 +0500 #141

Needed this one

ryanali1991 (ryanali1991) 2021-09-14 10:28:40 +0500 #142

unfortunately both grills are different the one that comes with fog lamps has space around the back to accommodate the fog lamps but this one you have is a simple one , and yes rings can be made painted and fittied using acrylic sheet of around 8mm thats what i did .

ryanali1991 (ryanali1991) 2021-09-14 10:30:34 +0500 #143

sorry for the late reply was busy , for the puddle lamps you will be needing some diodes 1n4007 or anything 1n400* will do , if you are comfortable with cutting your oem wire for the door switch then you can do it otherwise you will have to install a seperate switch and that is another hassle i would not reccomend that

ryanali1991 (ryanali1991) 2021-09-14 10:34:29 +0500 #144

i will share the diagram with you so you can connect the puddle lamps yourself , but you should have some tools to do it yourself . and only do it if you are comfortable with doing this else get a guy to do it for you and guide him what needs to be done .

ryanali1991 (ryanali1991) 2021-09-14 10:46:37 +0500 #145

is it clear or should i show you the real example of my own setup , and once you are done with the wiring , only the light will light up which door is open .

hammad_hey (Hammad Ghaffar) 2021-09-14 23:22:08 +0500 #146

Yes bro I understand the wiring. you have connected the dome light and door switch with an and ic type thing. If both door switch and dome lamp works then the puddle lamp should light up. The lights would work on the front doors only right? and what do you suggest should i connect with parking direct or with door switches
The bumper has fitting for fog lamps only hole needed to be made in the grill which i got done. I was thinking of a type of ring which just covers the hole of fog lamps and does not protude out towards the grill

hammad_hey (Hammad Ghaffar) 2021-09-14 23:32:06 +0500 #147

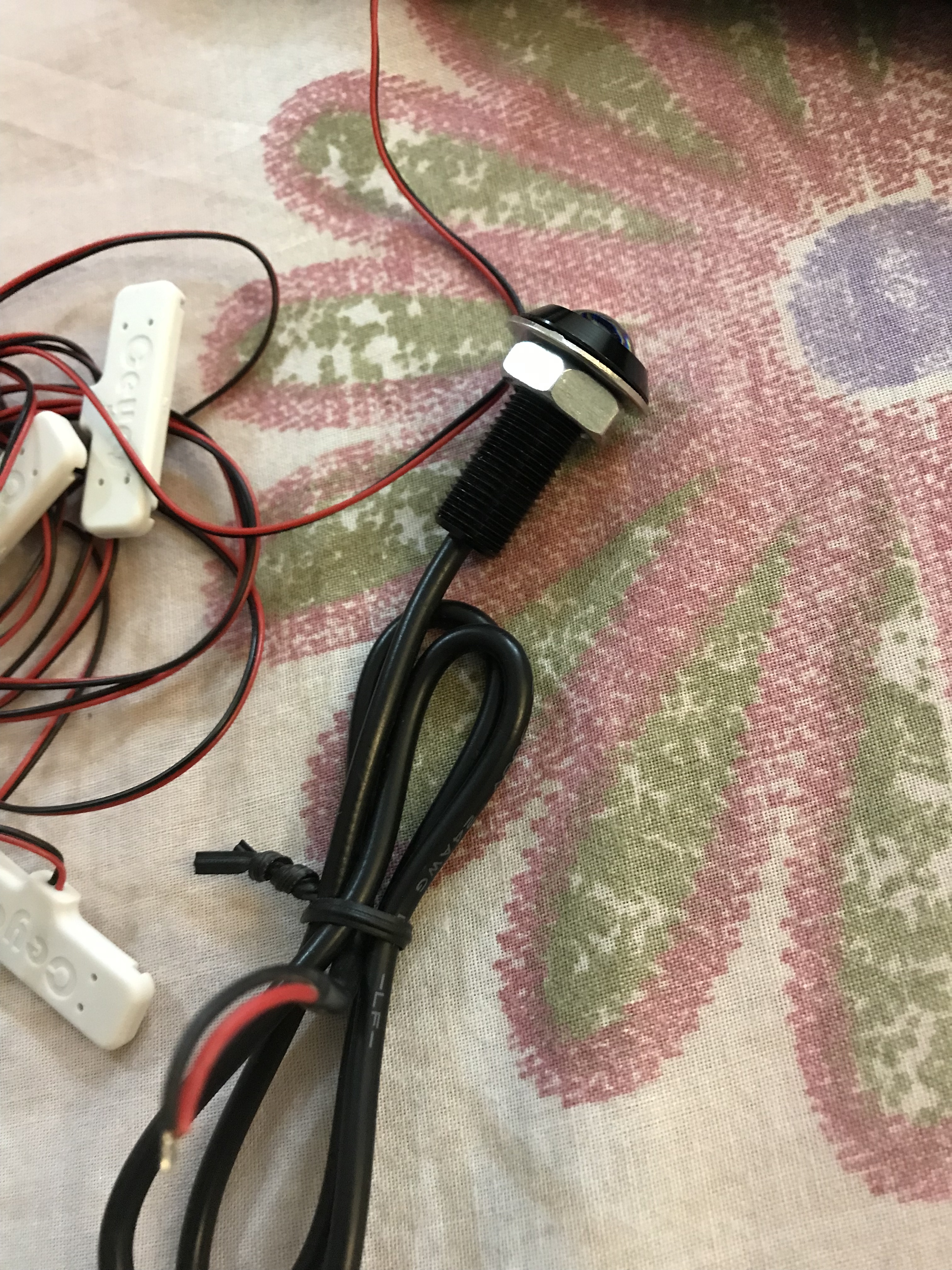

These are the puddle lamps. Need a hole to be made in the side mirror

ryanali1991 (ryanali1991) 2021-09-27 22:08:17 +0500 #148

sorry was bit busy , yes you need a step drill to drill a hole and make sure you wont run into clearance issues as there is very less space for the mirror adjustment

pwuser162781423066 (Malik Abdullah Awan) 2021-09-28 09:50:06 +0500 #149

Bro can you tell me where you bought those 0805 meter leds from??

asadjaved63 (Asad Javed) 2021-09-28 19:50:13 +0500 #150

how to made this or where you found this? i need it , please suggest me

nnabeel (nnabeel) 2021-09-29 09:24:08 +0500 #151

Which brand you got and how much?
is it direct fit or u needed any cutting ?

ryanali1991 (ryanali1991) 2021-09-29 12:43:49 +0500 #152

form ali express as i couldnt find it here on college road and other markets , search online i think there is a store it is eve electro located in bahria town phase 6 they have it in stock . cost abour 3 or 5 rs per led . i have orderd from ali express and have around 100 of them lying around

ryanali1991 (ryanali1991) 2021-09-29 12:44:31 +0500 #153

bhai kis cheez ka puch rahay hain ??

ryanali1991 (ryanali1991) 2021-09-29 12:45:43 +0500 #154

well this is eclipse late 2018 model , and no its a direct fit no cutting involved its plug and play . for the head unit alone he was asking 13k

ryanali1991 (ryanali1991) 2021-09-29 12:49:33 +0500 #155

https://www.evselectro.com/0805-smd-led-white-7369

here is the link order from here .

nnabeel (nnabeel) 2021-09-30 09:15:10 +0500 #156

thnx. what android version does it have?

pwuser162781423066 (Malik Abdullah Awan) 2021-10-07 11:49:38 +0500 #157

Hey can you help me a little i opened the meter and soldered the white leds to the meter but they did not glow and also other orange leds of the meter also stopped working

ryanali1991 (ryanali1991) 2021-10-07 20:13:32 +0500 #158

yes sure , did you check the polarity ??

ryanali1991 (ryanali1991) 2021-10-07 21:54:04 +0500 #159

and send me the pics of what you did .

pwuser162781423066 (Malik Abdullah Awan) 2021-10-08 12:59:17 +0500 #160

Sorry didn't take any pictures of it, i soldered them the same way the original ones were placed, but still did not glow. Infact one original led also stopped working dont know why. Then i just assembled it all back. Thinking of getting it done from market.
