Nissan Sunny 2006 1.3 to 1.8 bolt on conversion

[dani_kk]

Dear folks,
Another amazing project has been completed, which was upgrading a Nissan 2006 from 1.3 to 1.8 with a bolt on swap. We installed retractable side mirrors of Nissan almera N16 in it and bought new headlights since the old headlights were effed up by some hid installers in chaa sultan, so then we installed Japanese 4 Hid's blasters with 3000k Yellow hid bulbs so that we can get excellent visibility without disturbing others with perfect low beam and high beam angle..

The car had bad shock absorbers so all 4 shock absorbers were replaced with Japanese absorbers.
Steering seals were leaking too so it was replaced too.

The car usually travels alot, sometimes in North, sometimes in South so basically they came to me for the clutch diagnosis and i told them about the slipping clutch. I proposed them about QG18de after listening to their routine, which was full of babusar top climbs, skardu, hunza and motorways traveling so i gave them idea for this one stop solution, which they liked.

So i am going to post the pictures now.

[dani_kk]

[dani_kk]

Old engine coming out.

[dani_kk]

Finally the wait is over.

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

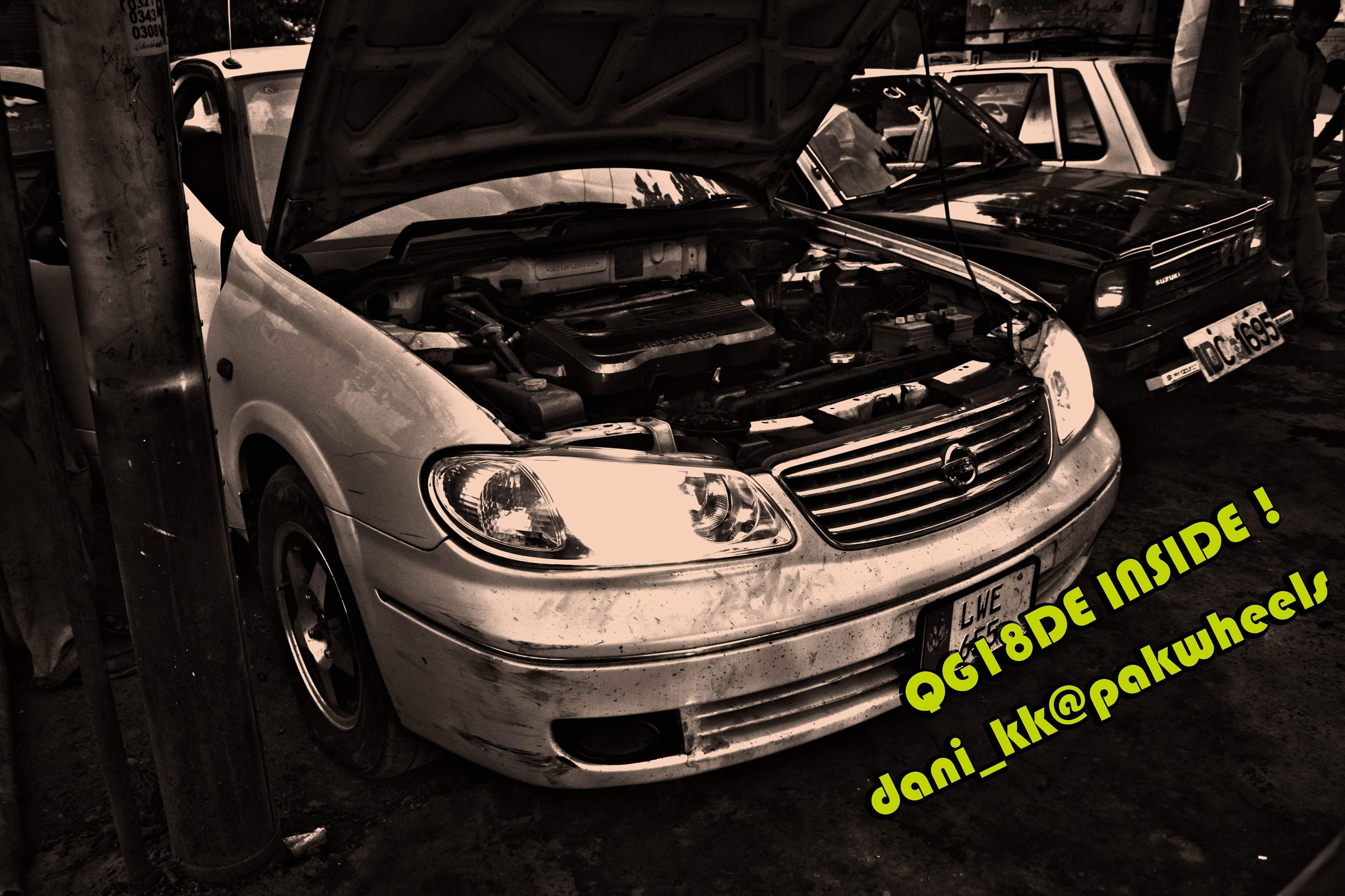

Monochromatic view

[dani_kk]

[dani_kk]

[dani_kk]

[dani_kk]

New. CV. JOINT filled up with liquimoly multi purpose grease

[dani_kk]

New radiator with thicker core with one year warranty.

[dani_kk]

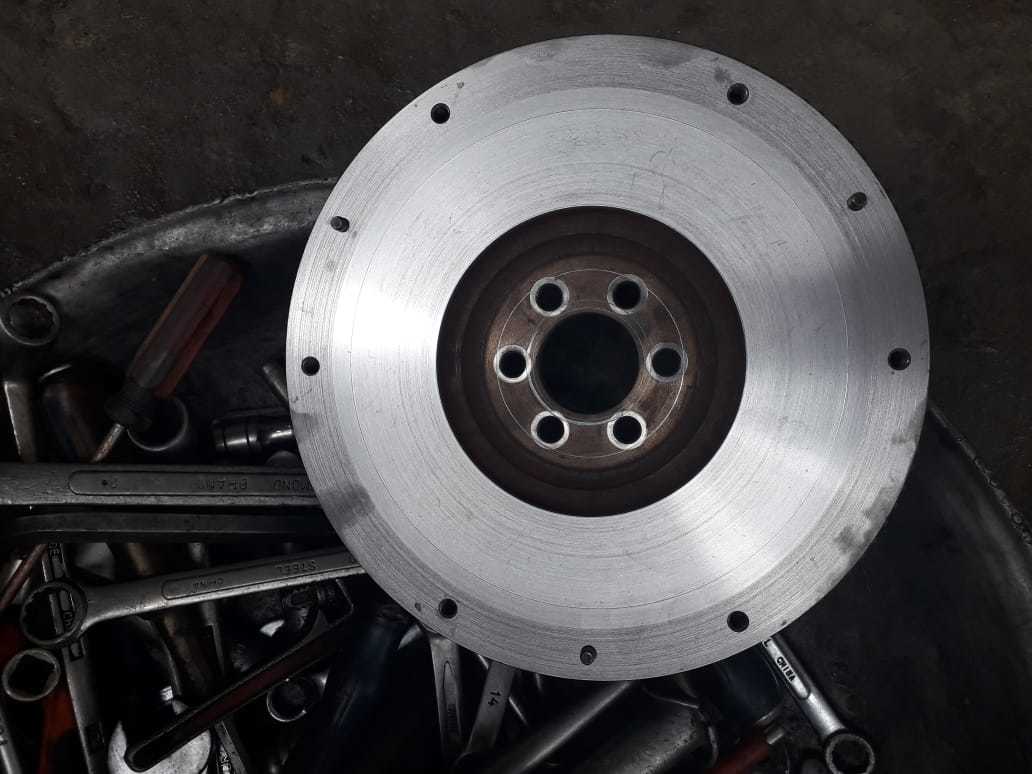

Polished flywheel and new cp along with Nsk Japanese clutch release bearing.

[dani_kk]

So guys, another successful project comes to an end. Will keep you people updated.
Most of the friends and brothers complain about sluggish performance of 1.3 nissan so i have posted this for those who love their nissan 2006 and are unhappy with being underpowered can do this.. And as far as. Economy is concerned you'll get
10-11kmpl on local just like 1.3L and on long 12-14kmpl on Same wiring ecu.

If you choose to replace the wiring and exhaust header and o2 sensor along with nissan variable cam timing technology activation, same engine will give you 11-12kmpl local and 15-16kmpl on long means motorway..

[dani_kk]

And neo di QG18de cover is normally unavailable. This time it was available so bought it for 3.5k from the engine guy.

[Hassan1991]

Great work.
but bhai always suggest them to change the ecu and engine wiring with the engine otherwise they can't get the real advantage of swapping a bigger displacement.

[dani_kk]

Yeah i always do, but they already feel alot of difference and in future they'll come up for ecu replacement and ill install vvt and o2 wires in the same old loom. I drove the car till monal and literally it was roaring uphill.
