pwuser150894663541 (Noman Hadi) 2020-05-07 21:53:22 +0500 #101

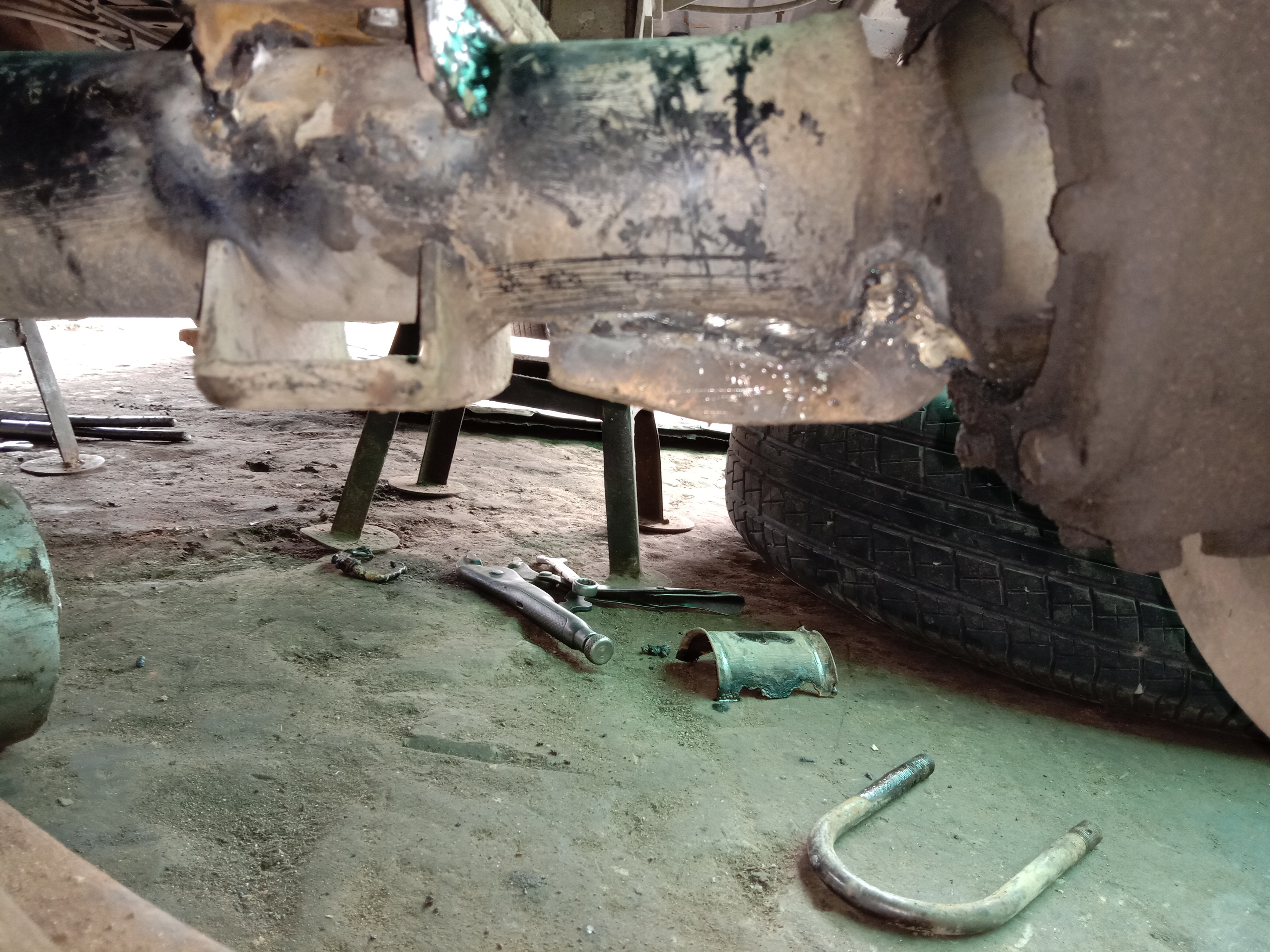

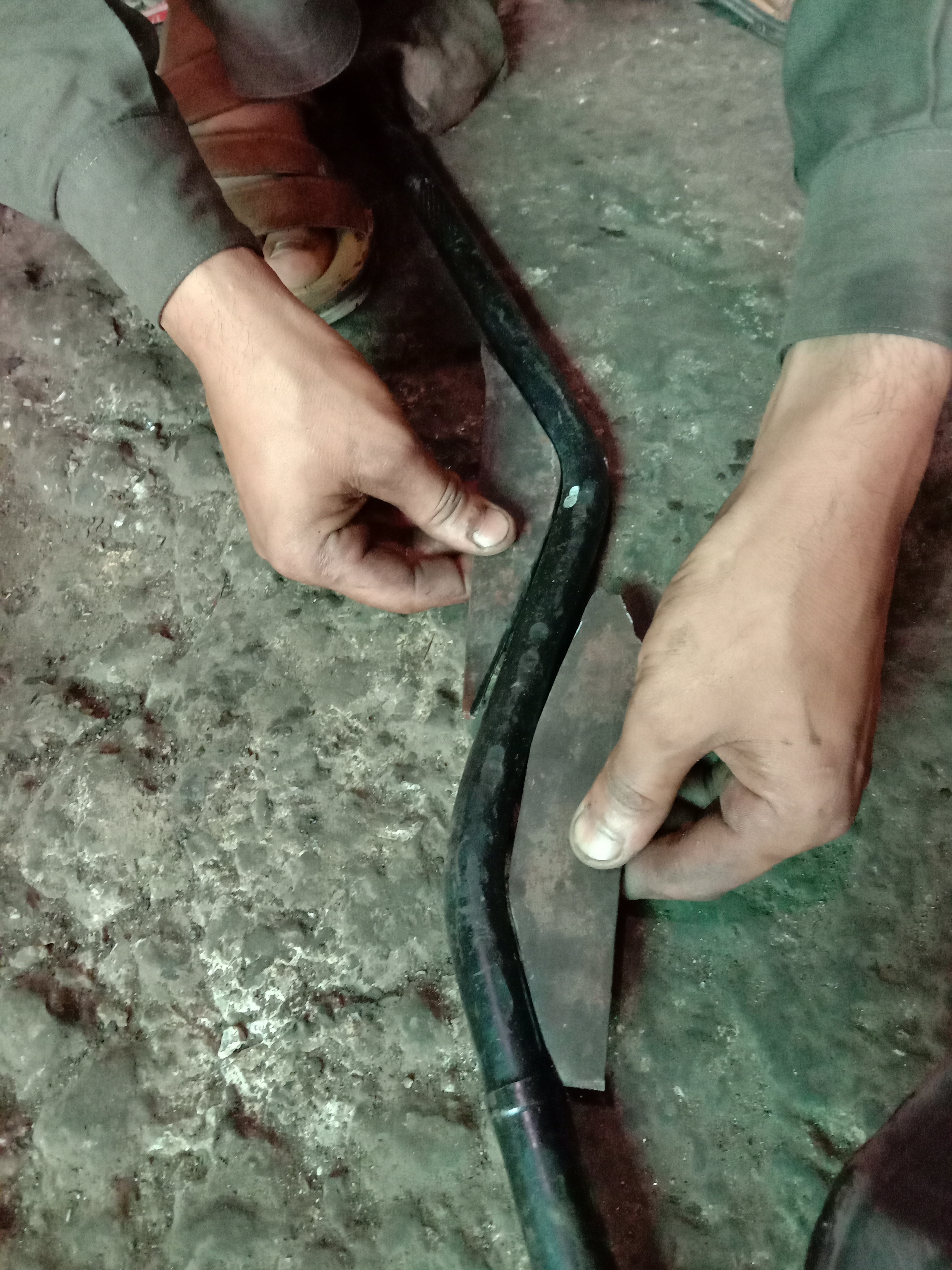

These r the supports which i will be giving to the front u joints. This is to cater for the big tyres and their weight.

pwuser150894663541 (Noman Hadi) 2020-05-07 21:55:36 +0500 #102

pwuser150894663541 (Noman Hadi) 2020-05-09 14:18:19 +0500 #104

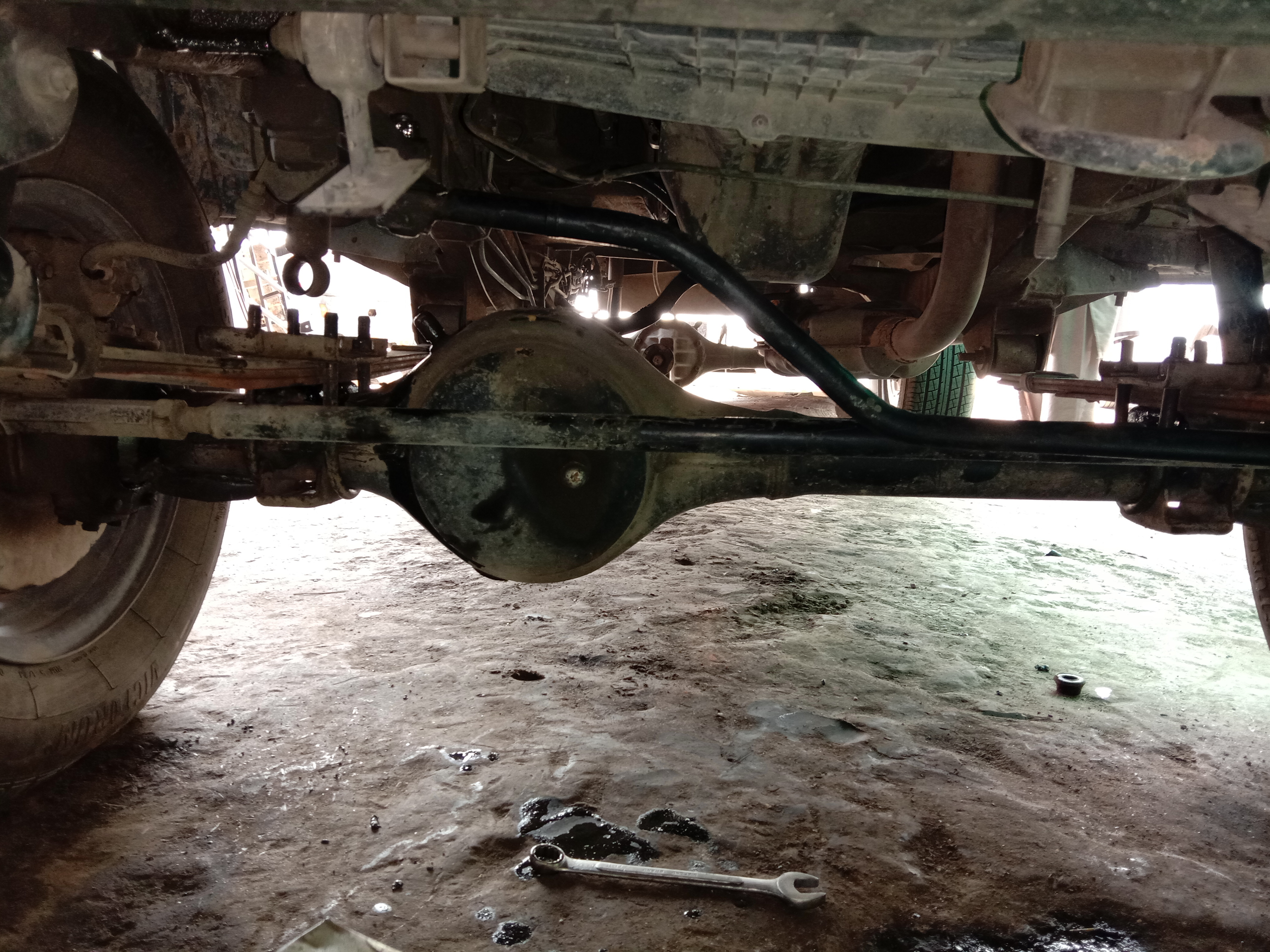

U joints strengthened. Steering rod modified without alteration. Front SOA done.

pwuser150894663541 (Noman Hadi) 2020-05-09 15:00:21 +0500 #105

pwuser150894663541 (Noman Hadi) 2020-05-10 18:48:30 +0500 #106

pwuser150894663541 (Noman Hadi) 2020-05-10 18:50:56 +0500 #107

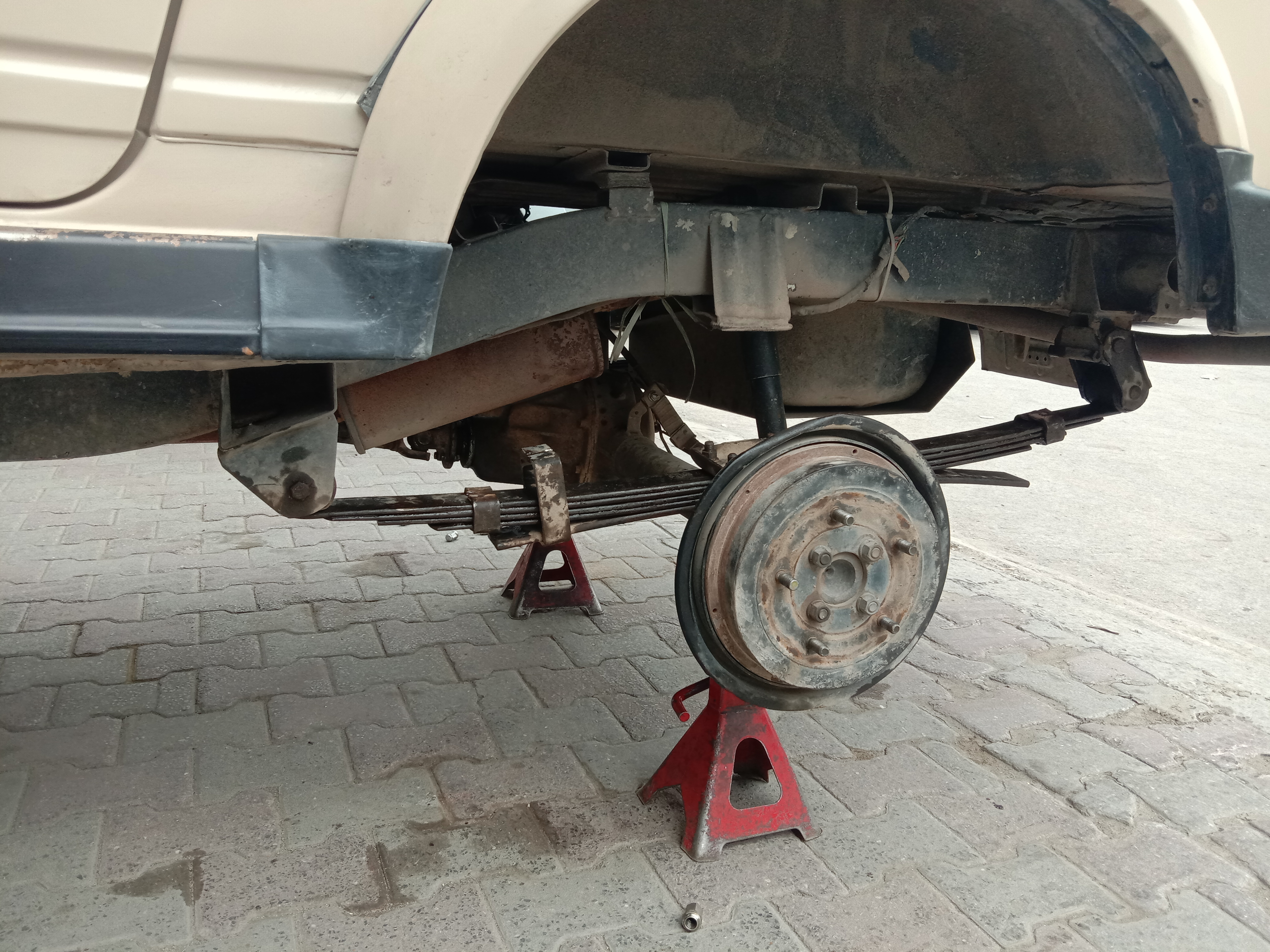

will be fixing new bigger tyres tomorrow inshallah. Bigger shocks placed for more travel and leafs straightened to make it more comfortable

pwuser150894663541 (Noman Hadi) 2020-05-11 18:24:21 +0500 #108

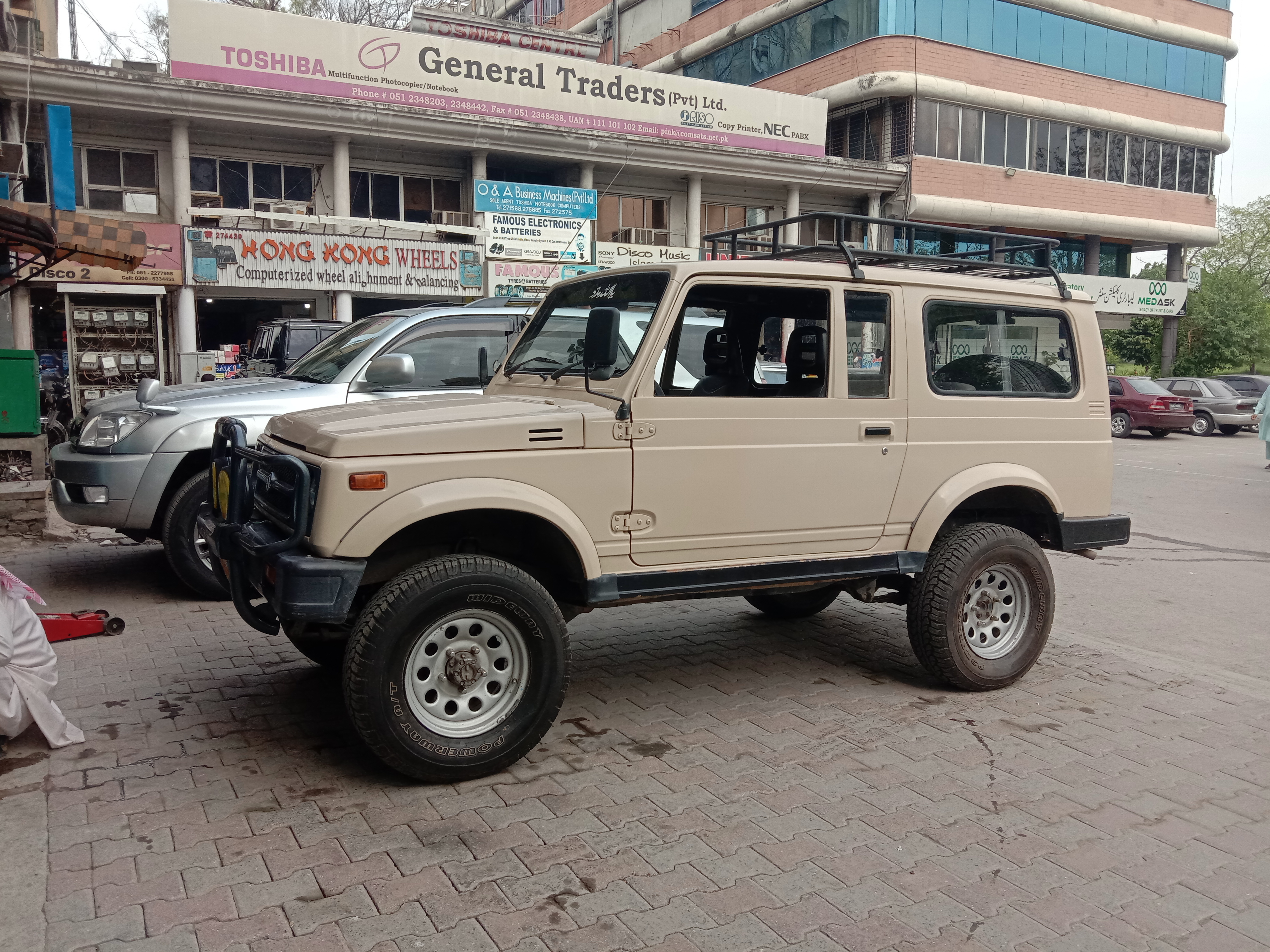

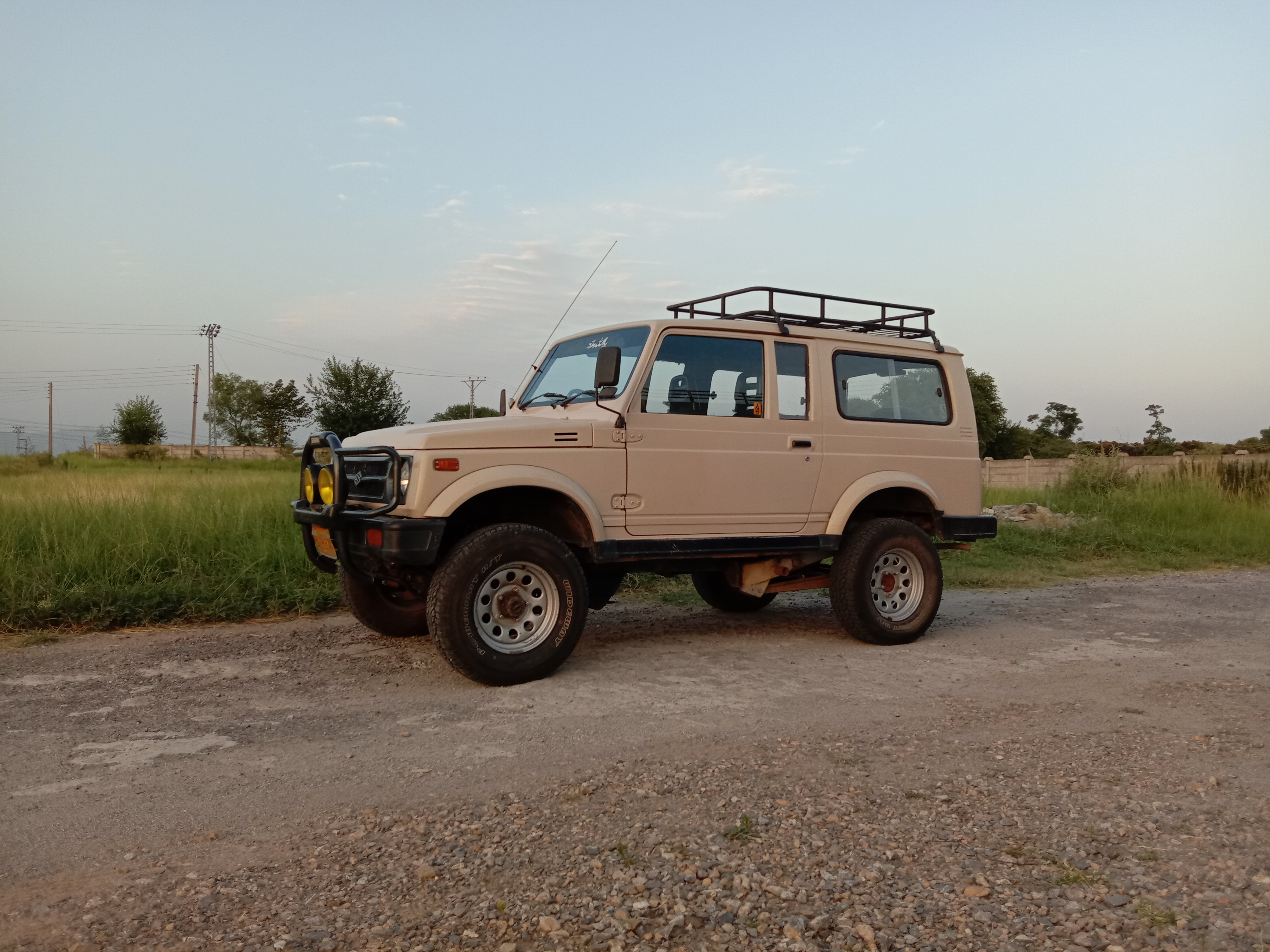

7" height gained. SOA done. Longer shocks fixed on new mounts for more flex. Leafs straightened for better softer ride.

behram.ali (Behram Ali) 2020-05-13 12:28:00 +0500 #109

Very interesting read and comprehensively explained.
The final product looks good Ma shaa Allah.

pwuser150894663541 (Noman Hadi) 2020-05-14 04:07:39 +0500 #110

Grateful for liking it brother

pwuser150894663541 (Noman Hadi) 2020-05-17 04:18:24 +0500 #111

Some flex testing

pwuser150894663541 (Noman Hadi) 2020-05-18 01:37:11 +0500 #112

pwuser150894663541 (Noman Hadi) 2020-06-15 20:53:43 +0500 #113

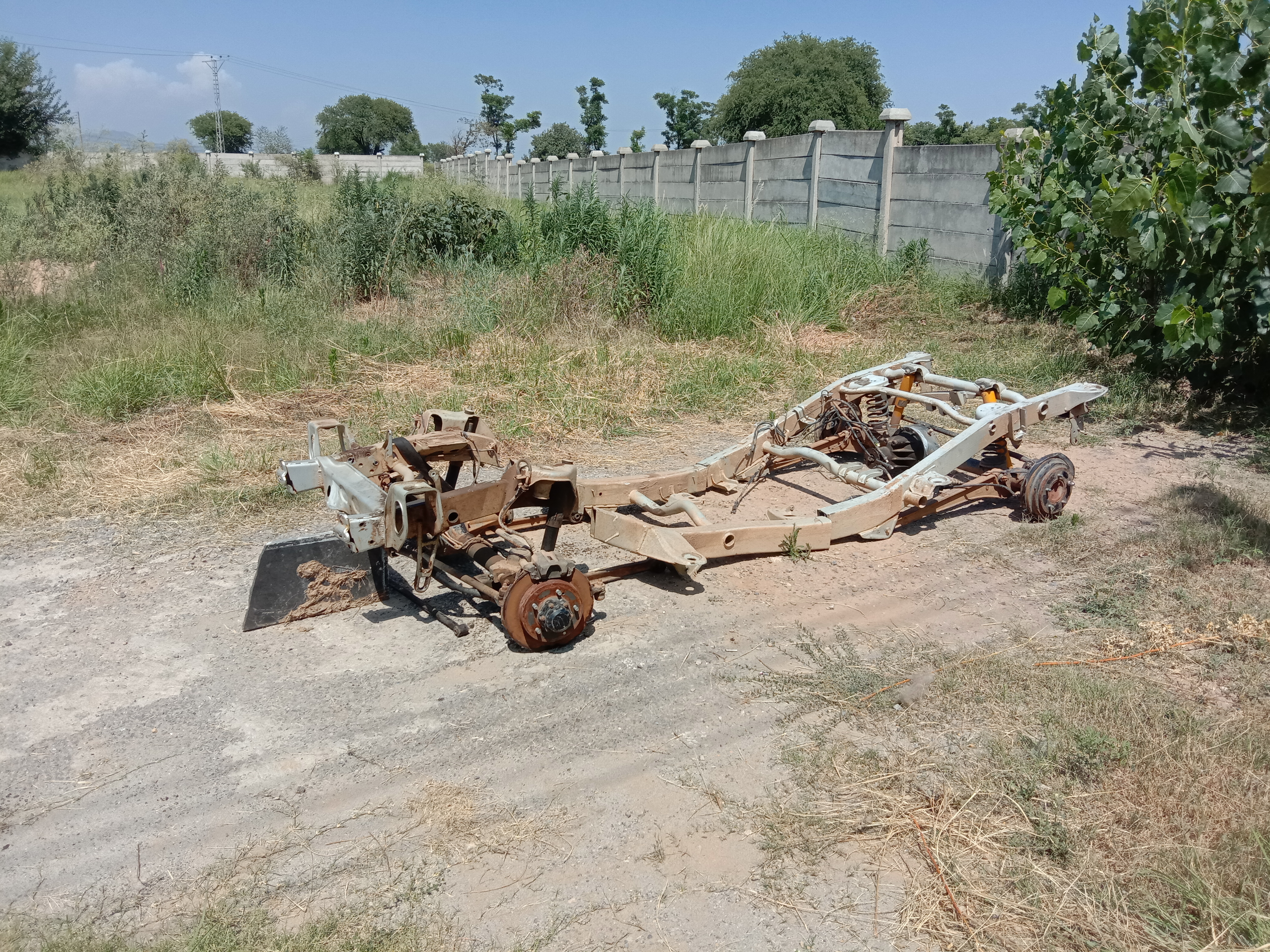

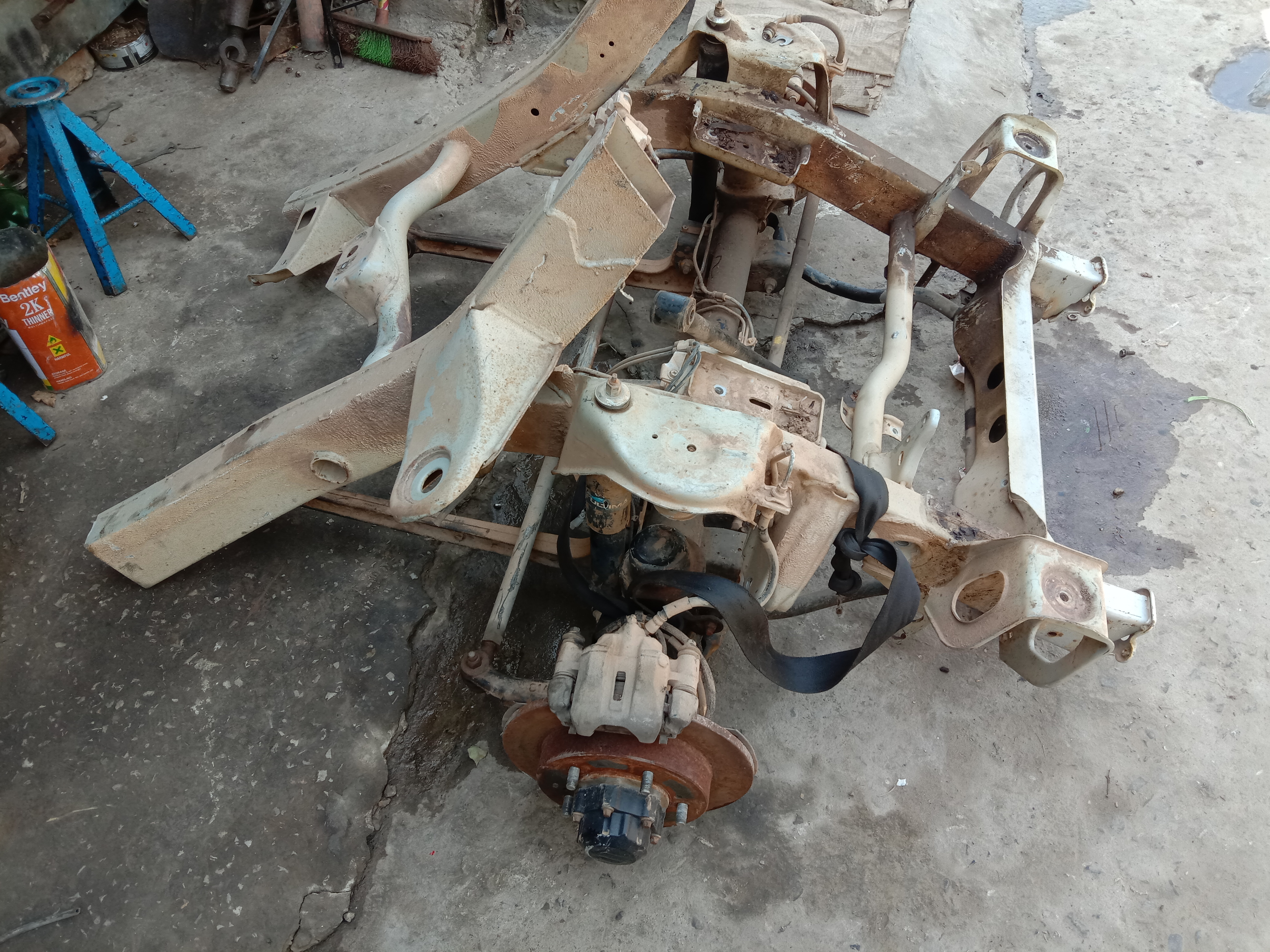

So now is the time for another upgrade. Last month, i did the SOA and always had plans to go for coil springs. So the available time because of the "no work time" i am going for it now. Its to upgrade the suspension to a 2008 model jimny. The tubes are 3 to 4" wide, stronger low ratio diffs, both coil springs, better flex and wheel travel, comfortable drive. Now to modify, i had a desire to get the required stuff alongwith the kabli half cut frame so that i fix things "sooter by sooter". Lets see how it goes now.

pwuser150894663541 (Noman Hadi) 2020-06-15 20:58:19 +0500 #114

Just to add, the fittings will be done in a way to keep the existing lift of 5/6" for better clearance. Remain in touch to see updates.

pwuser150894663541 (Noman Hadi) 2020-06-15 21:06:46 +0500 #115

pwuser150894663541 (Noman Hadi) 2020-06-15 21:07:29 +0500 #116

umarxe (umarxe) 2020-07-09 19:54:06 +0500 #117

Noman bhai any further update about converting to coil spring?

pwuser150894663541 (Noman Hadi) 2020-07-20 18:20:06 +0500 #118

umarxe (umarxe) 2020-07-28 20:36:04 +0500 #119

Noman bhai what about this vehicle? You never introduced this one, even not in this https://www.pakwheels.com/forums/t/my-ex-4x4s/227138/65 thread.
Can you please post some pictures and details at your convenience.

Proverbial_Slang (Proverbial_Slang) 2020-08-04 12:02:56 +0500 #120

I think this one is for sale already after completion.
