Restoration of Corolla 1994 & 7afe Swap

[399.ak]

I have to ask, you changed your car rear springs with jdm soft springs. How much did they cost?
I am thinking of checking mine bcz they are somewhat a little bit high although very soft. Maybe I can get a drop of 1-2" by using some other springs.

[taim00r]

Most of the aftermarket springs have lbs/inch mentioned on them, you can check your vehicle's weight and this shall help you get the actual drop in the height.

[mohsinmahar]

Highly appreciated

[humayun.chughtai.7]

Brother your case was different. You got complete denting job done, whereas my car is fine otherwise, just this specific area was damaged so I thought why not to replace it.

[humayun.chughtai.7]

Bro no idea regarding the price of springs as I bought complete kabuli shocks including springs n shock mounts.

Later those kabuli shocks got leaked, so I only got replaced the struts with new KYB ones & using same springs

But I also faced alot of rear tire rubbing problem with these springs bcz of their extra softness, causing increased suspension travel, ended up with spacers/packing in the rear shocks bcz I wasn't willing to compromise on the comfort, by getting desi hard springs.

[humayun.chughtai.7]

Lau g ...
Finally she is back home, from denters place.

[humayun.chughtai.7]

[humayun.chughtai.7]

[humayun.chughtai.7]

[humayun.chughtai.7]

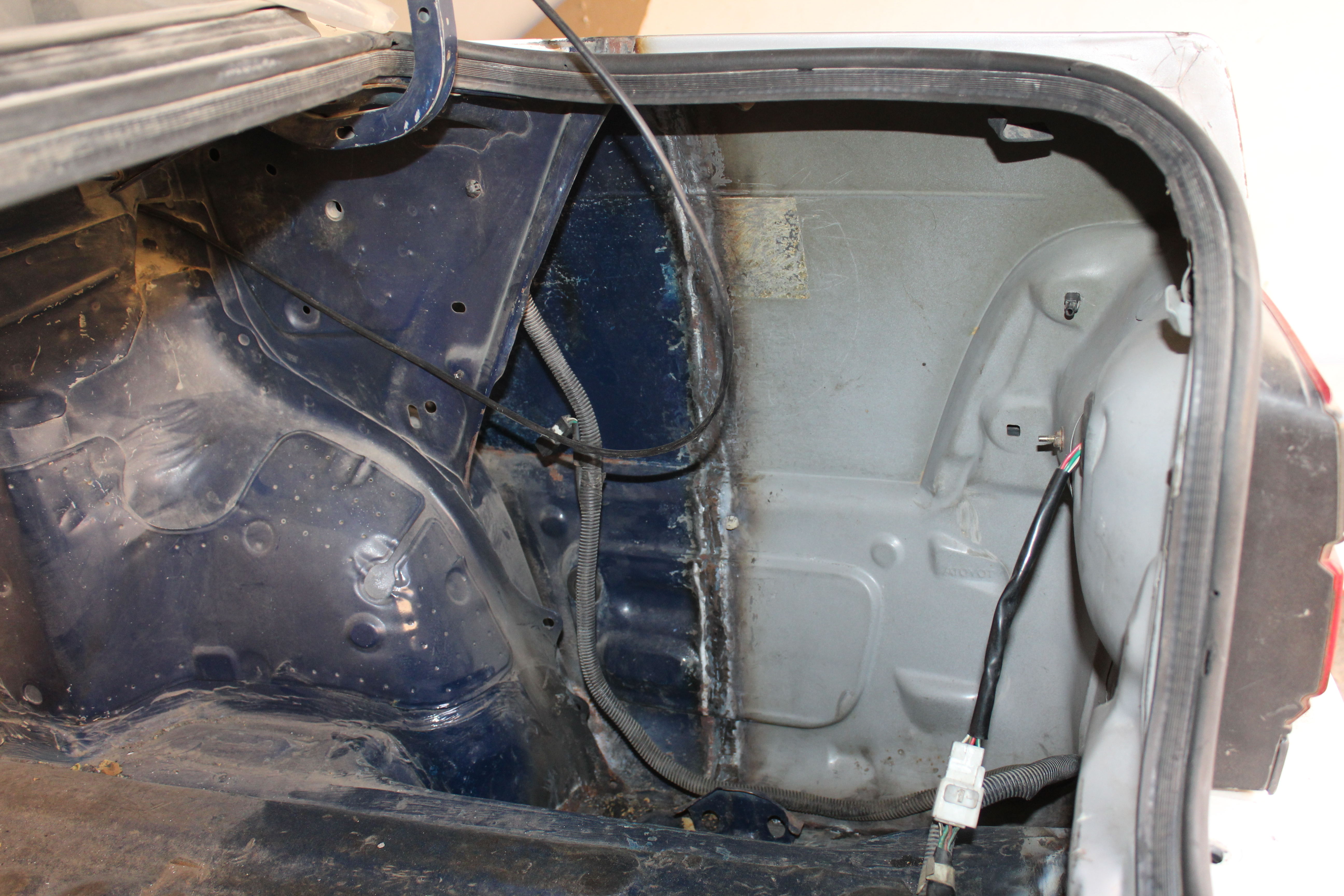

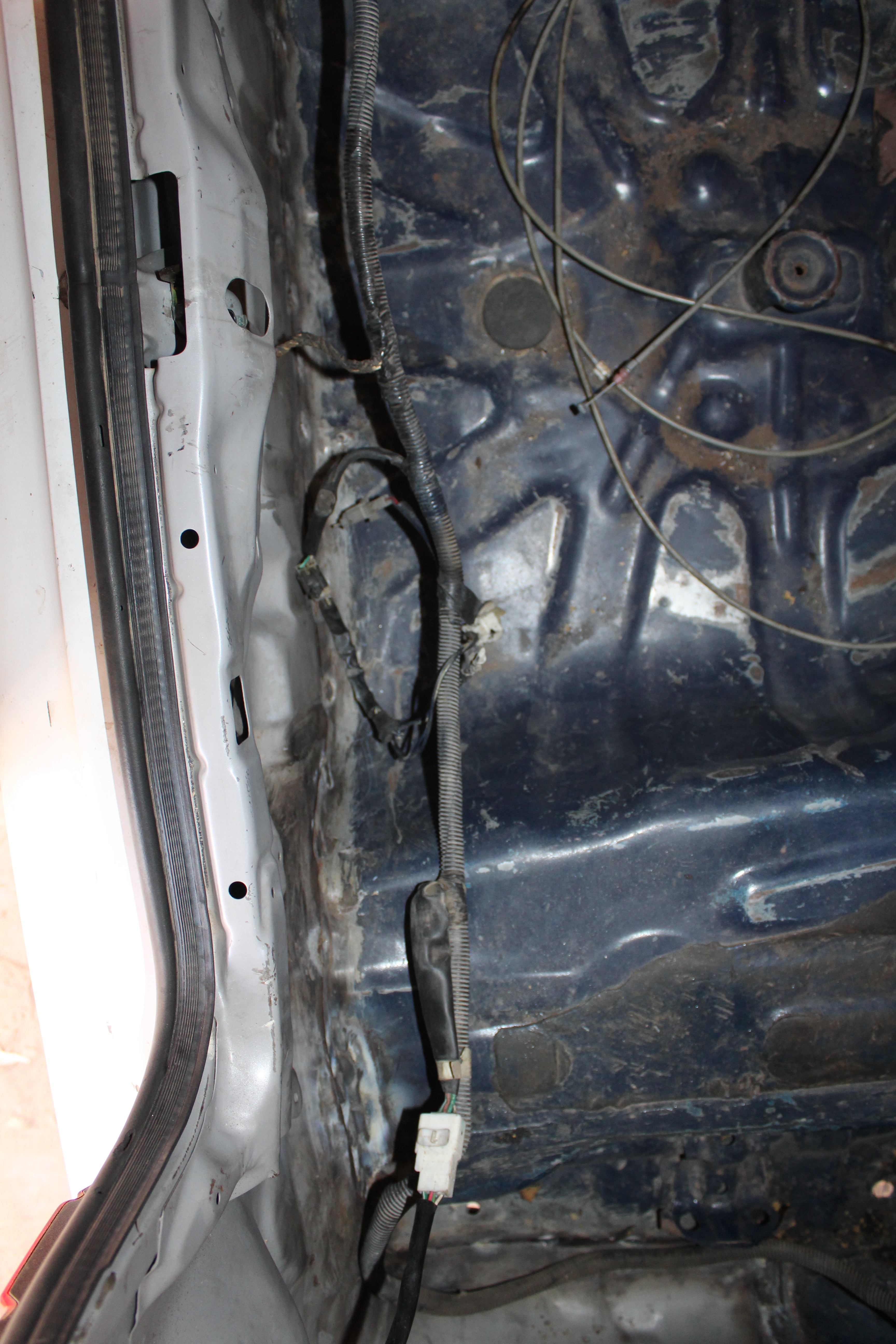

As we decided not to cut the main frame of the vehicle, so denter ustaad opened the spot weld joints connecting the trunk floor & rear panel holding taillights.

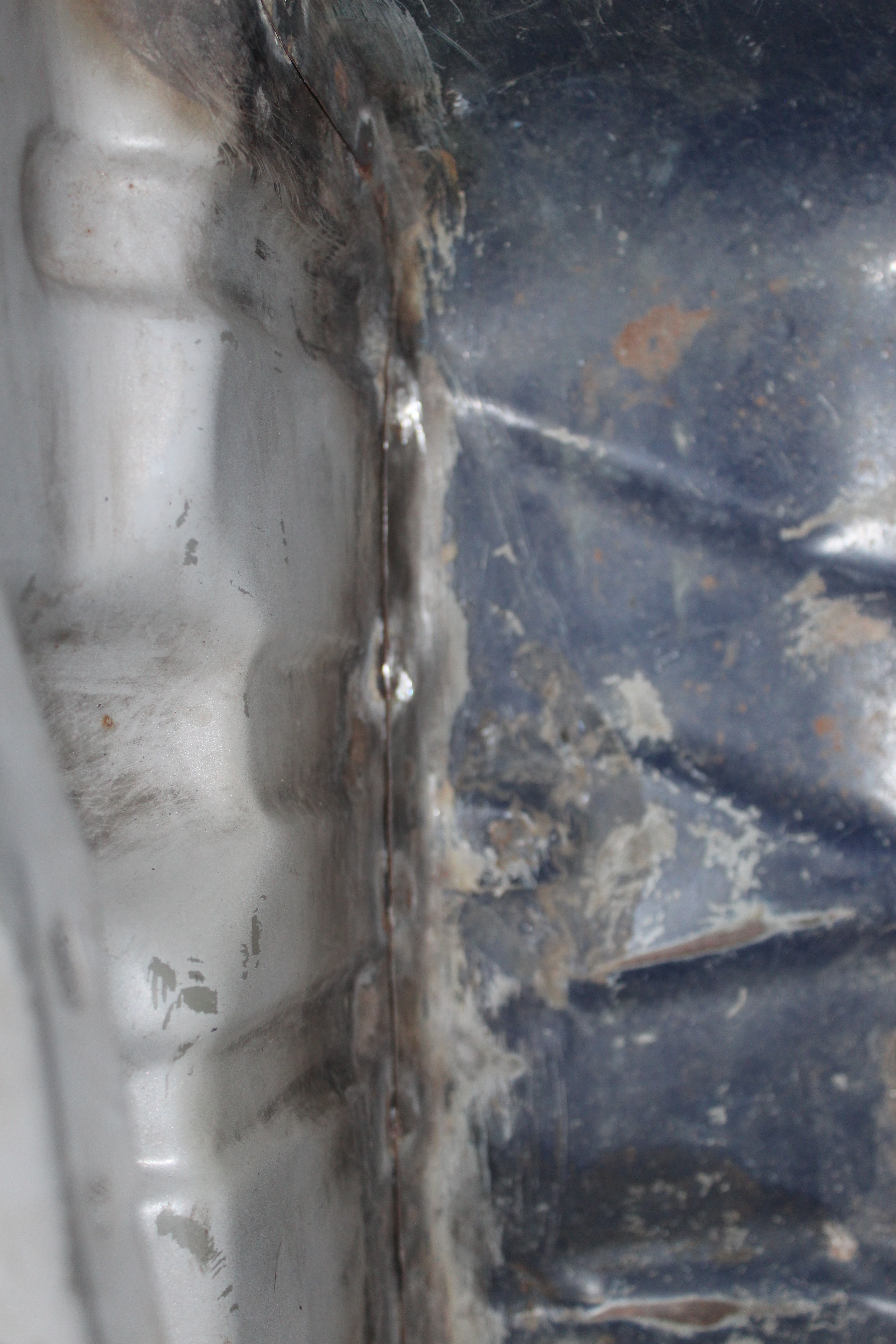

After the installation of new panel, again re-welded the spot welds.

[humayun.chughtai.7]

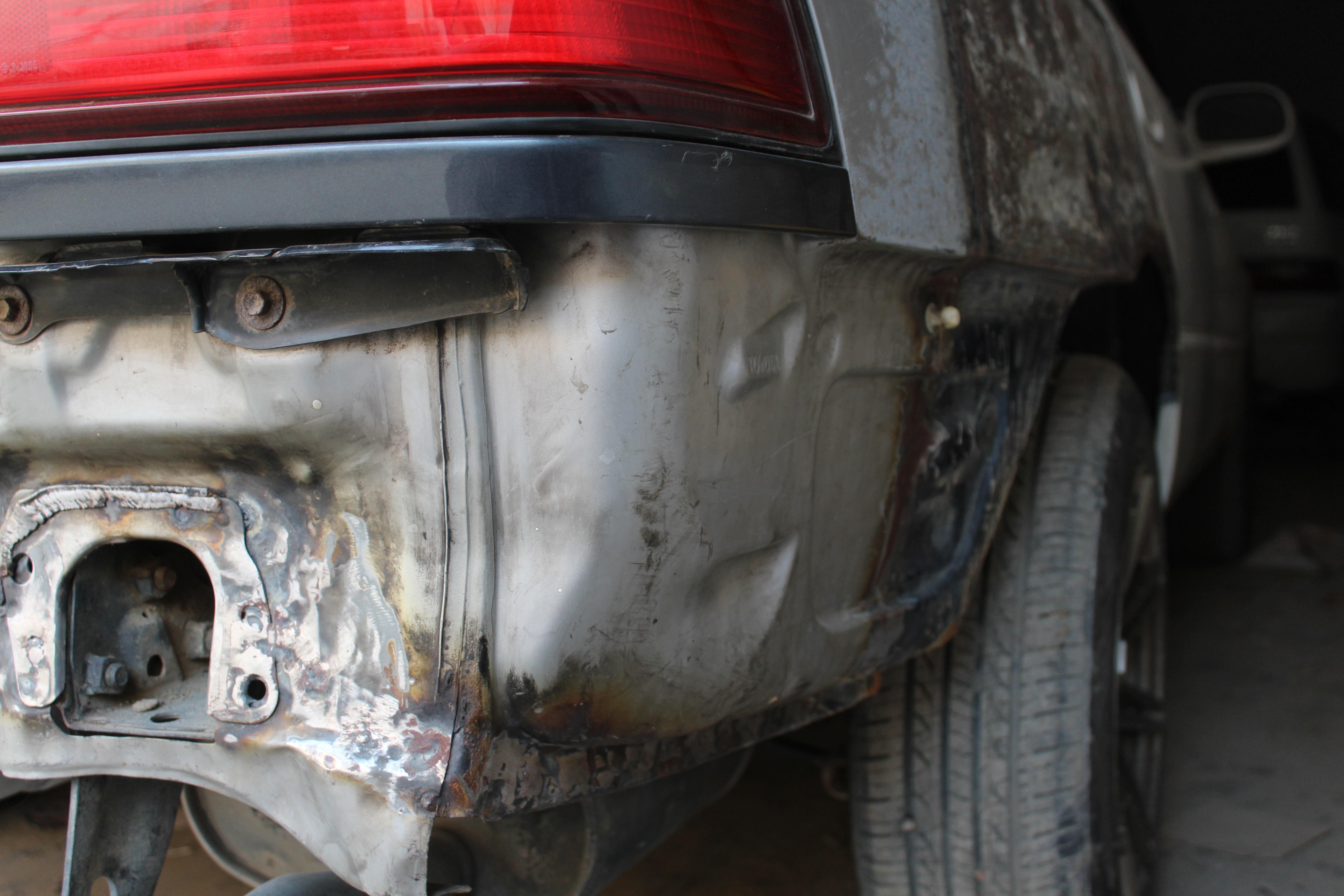

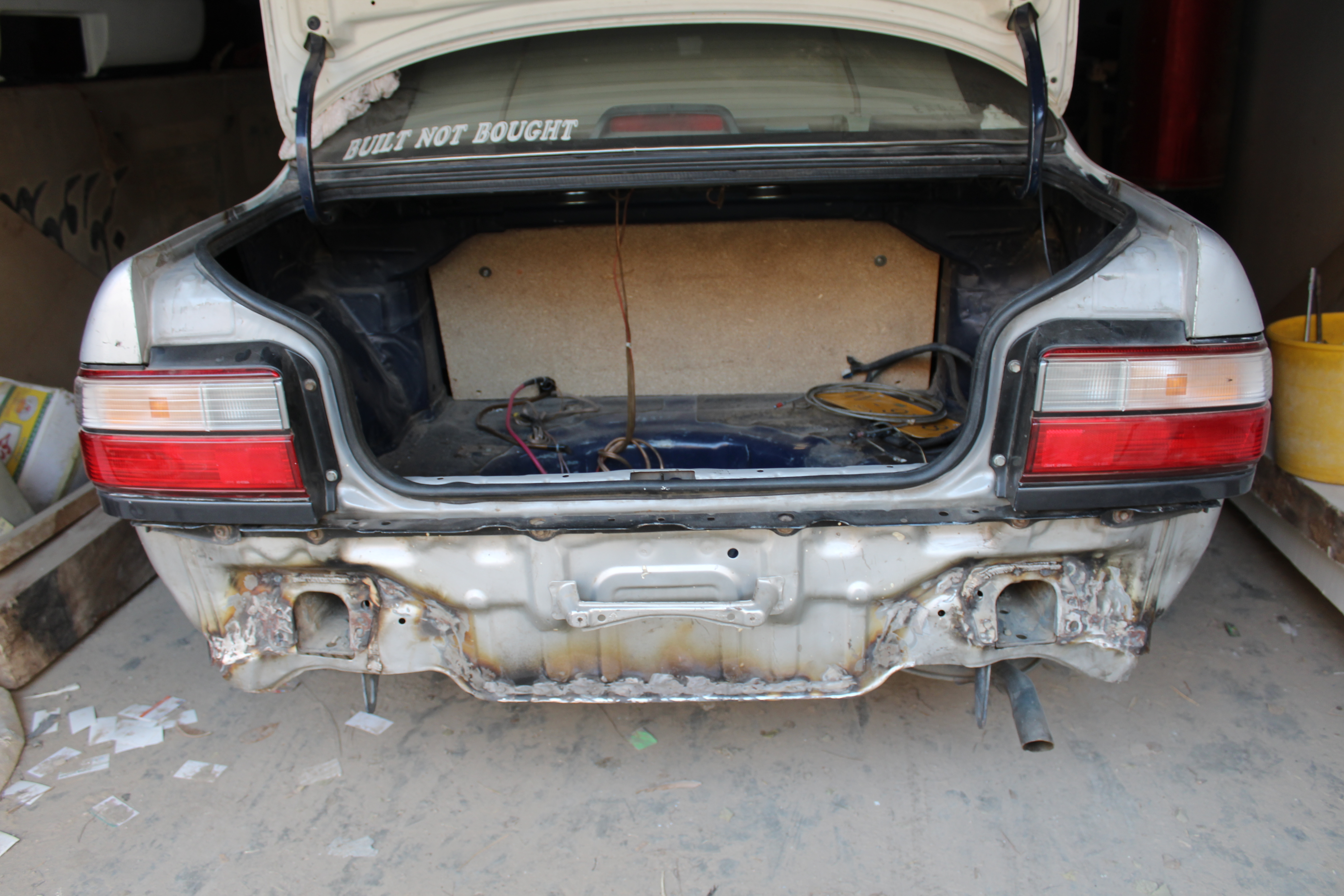

Here is the view, after taking off the bumper.

[humayun.chughtai.7]

Today's Update
Car is at painter's place

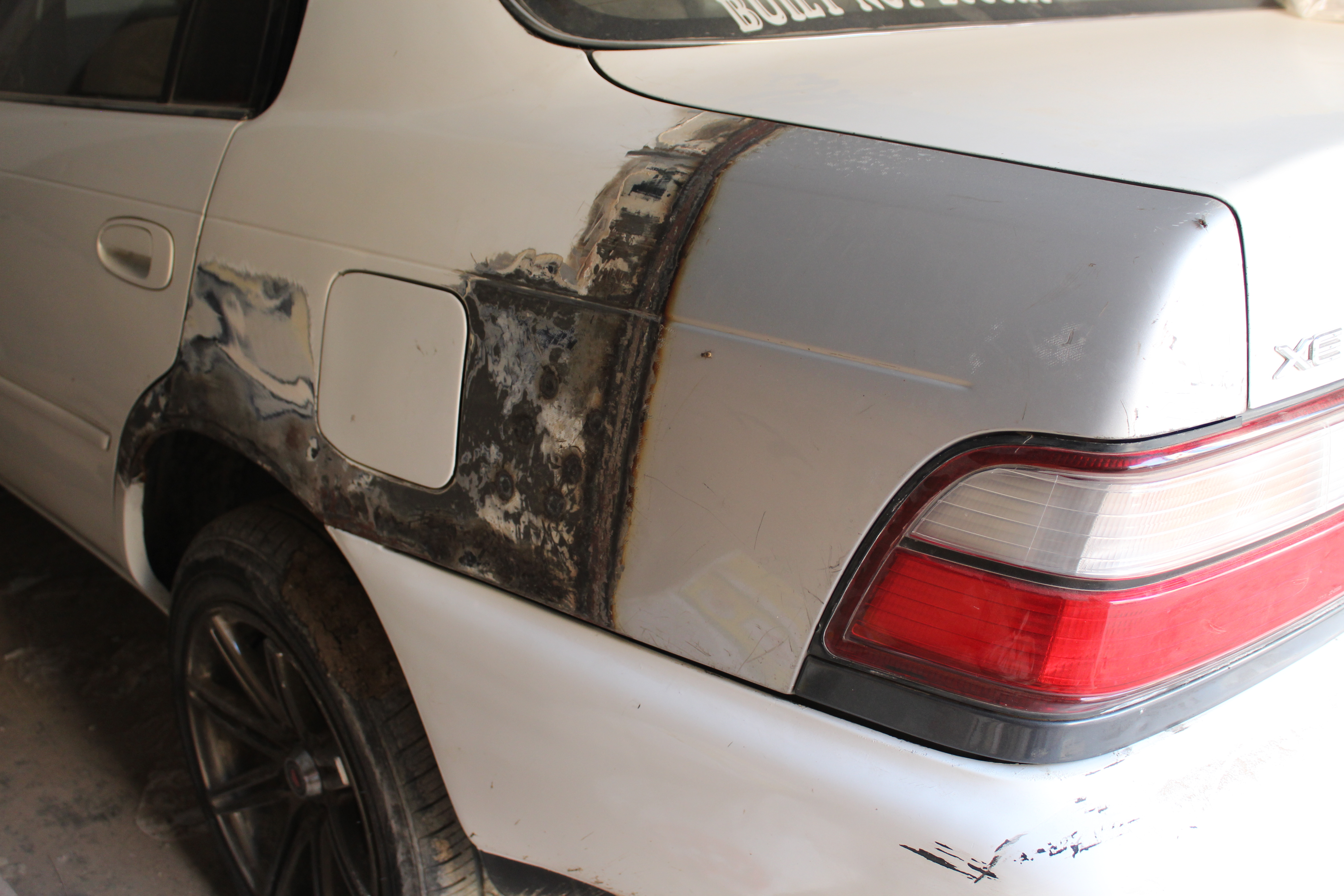

Fender sanded

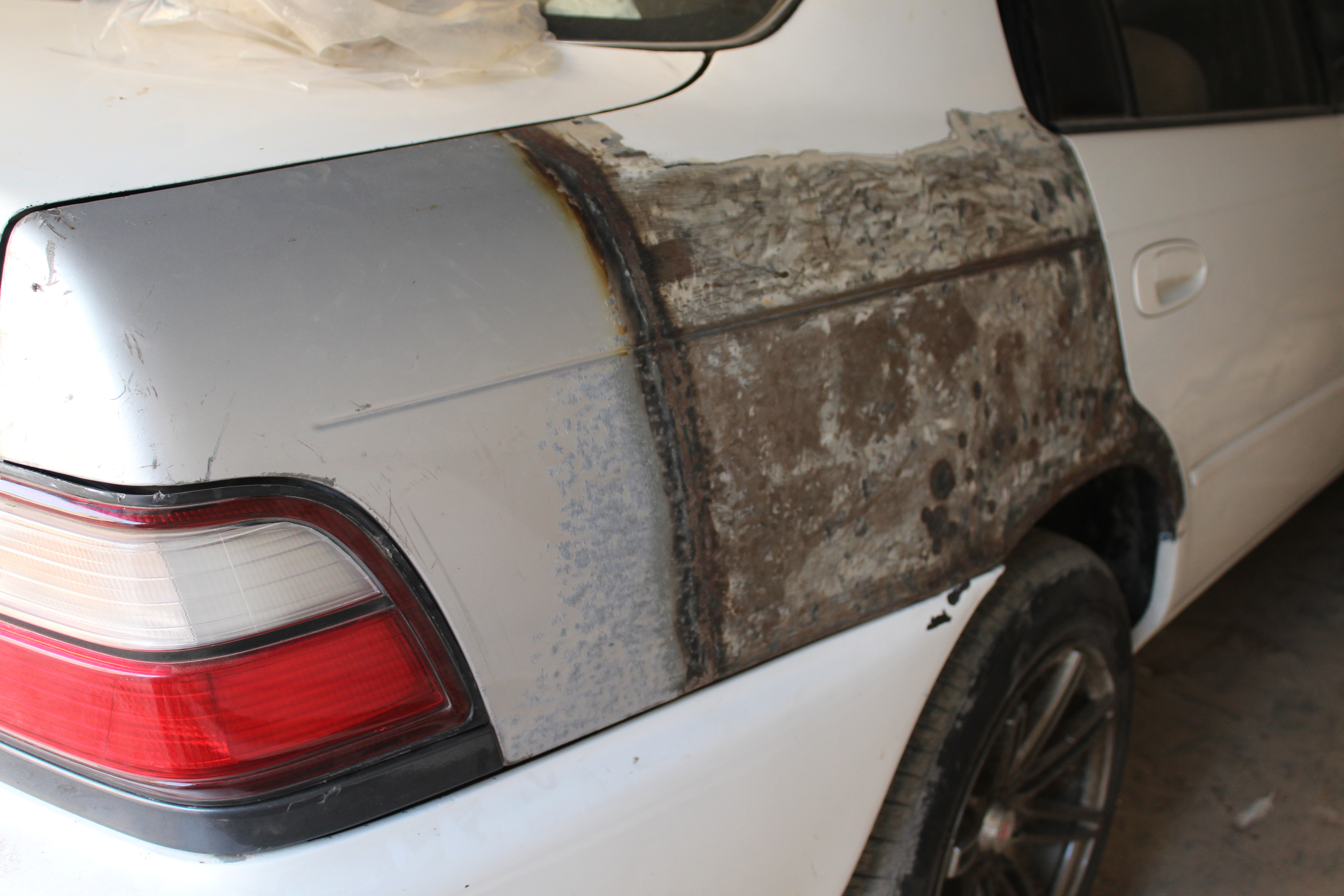

Base preparation

[rajaahmed96]

Ask him to further sand down this putine, it should be minimal else paint will burst out in areas with heavy application of putty. Are you painting whole car?

[humayun.chughtai.7]

I took this pic when he was applying the putty, later he sanded it but I didn't took any AFTER shot.

[humayun.chughtai.7]

Are you painting whole car?

Nopes ... Only rear fenders, with in the trunk & area behind the bumper.

[rajaahmed96]

Btw why did you feel like changing rear cut? Its own was rusted or what?

[humayun.chughtai.7]

nopes ... there was no rust etc.
Actually the car got rear hit from the previous owner & he got it repaired but the repair job was extremely poor. I tried my best to get things aligned without the need of replacing the rear cut. Consulted about this issue with many reputable denters, but all of them said, if u want perfection, u have to replace the rear cut. so that's the main reason.

[humayun.chughtai.7]

Here is a little DIY I did overnight ...
Installation of moisture barrier in all doors. Basically it's a plastic sheet behind the door cards pasted with the help of Butyl adhesive tape. It also comes pre-installed by the company but in my case, being old car, they were damaged, so I replaced them.

But as Butyl adhesive tape is not available locally, so a friend told me about everseal cork tape locally known as "Kachi dori/tape". You can get one from automotive AC parts dealer.

And this plastic cover I bought from Bedsheet/carpet/curtain shop locally known as "sheesha plastic". Quality and thickness wise, its good.

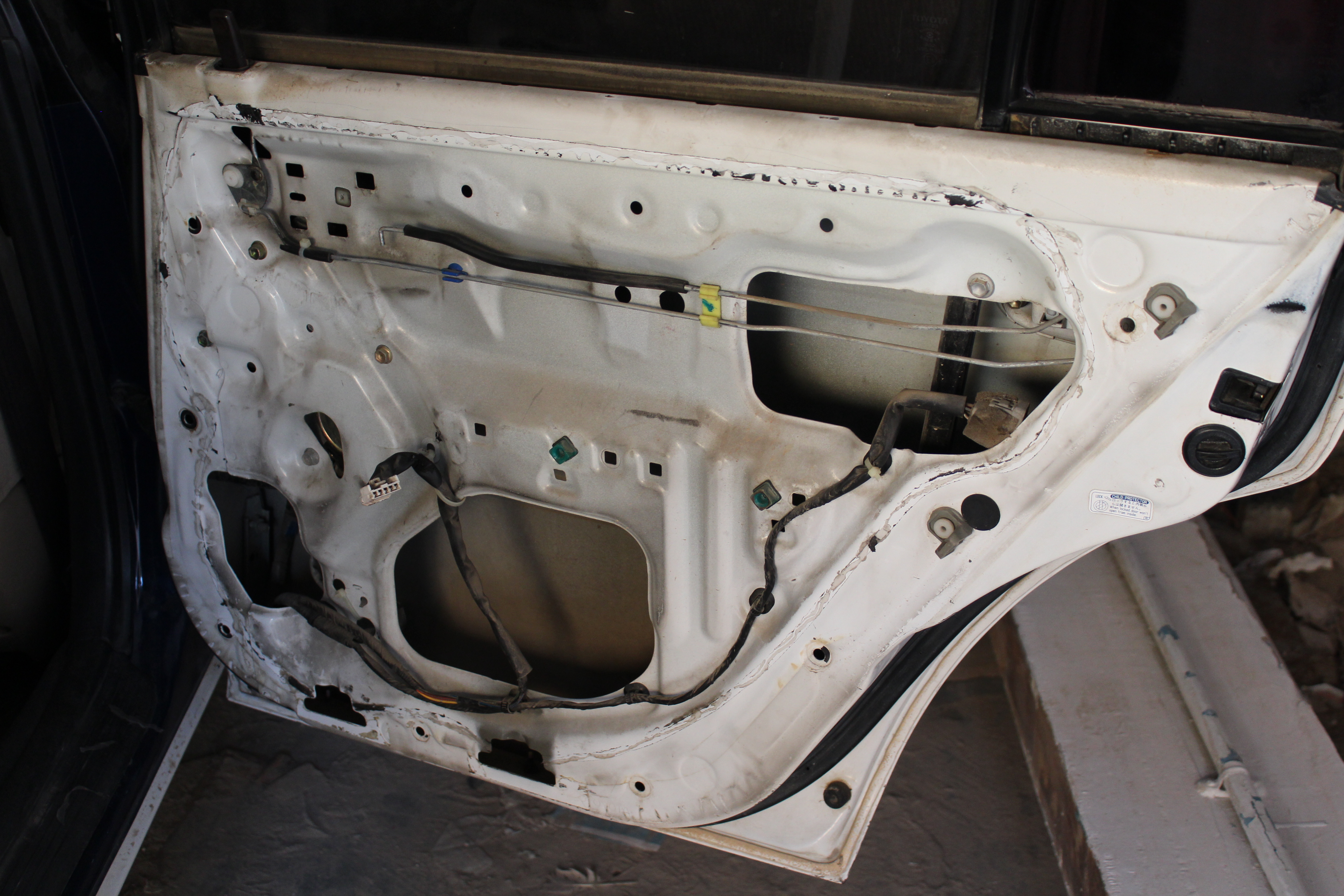

Before

After

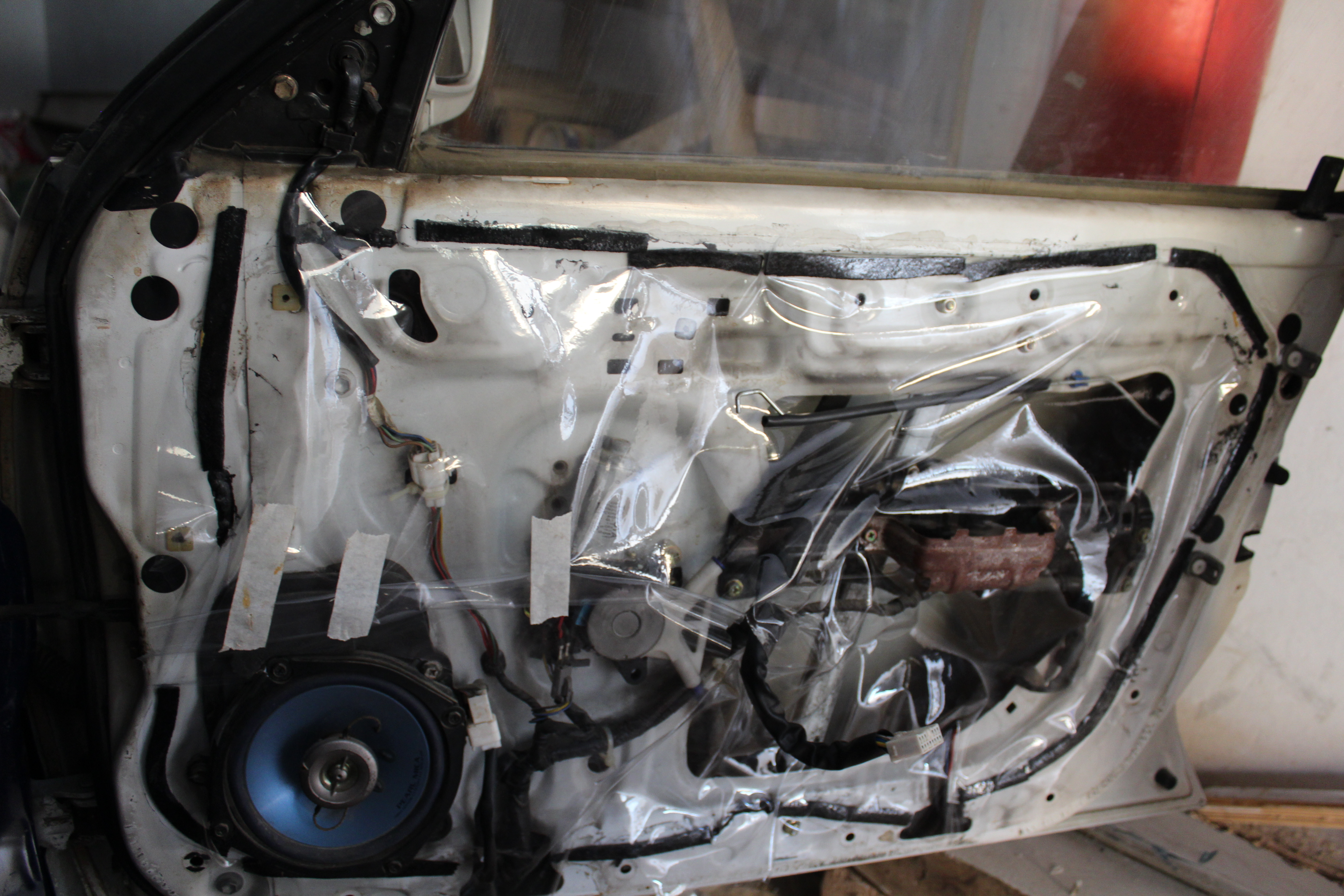

Front door

[pwuser155882496015]

Very well done.... mashallah

[399.ak]

Nice
Any noticable difference in sound insulation or ac performance or anything?
