Restoration of Corolla 1994 & 7afe Swap

[humayun.chughtai.7]

Assalaam o Alaikum pakwheelers !
It is my 1st restoration project here on the PakWheels forum. Note that this is my first-time experience with engine swap & body-wise restoration. My motivation to start this project is the PakWheels forum & its members, who are helpful.

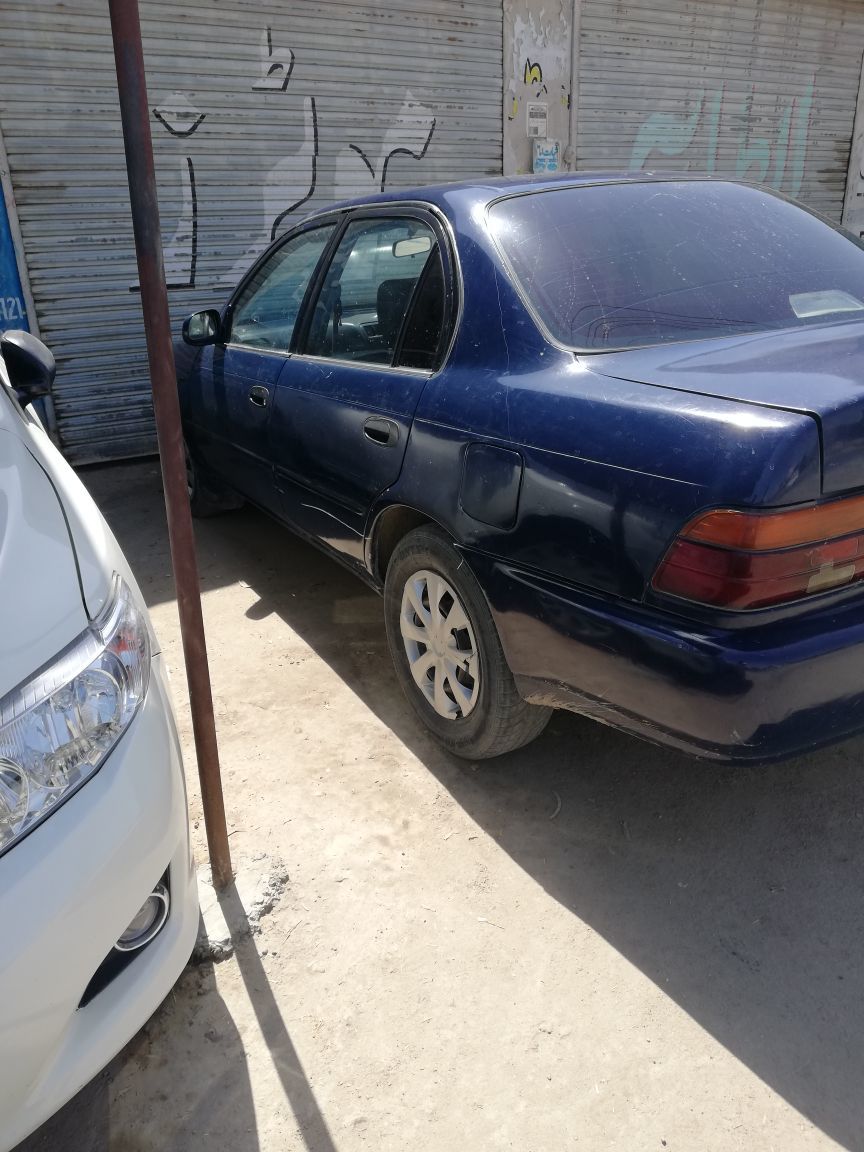

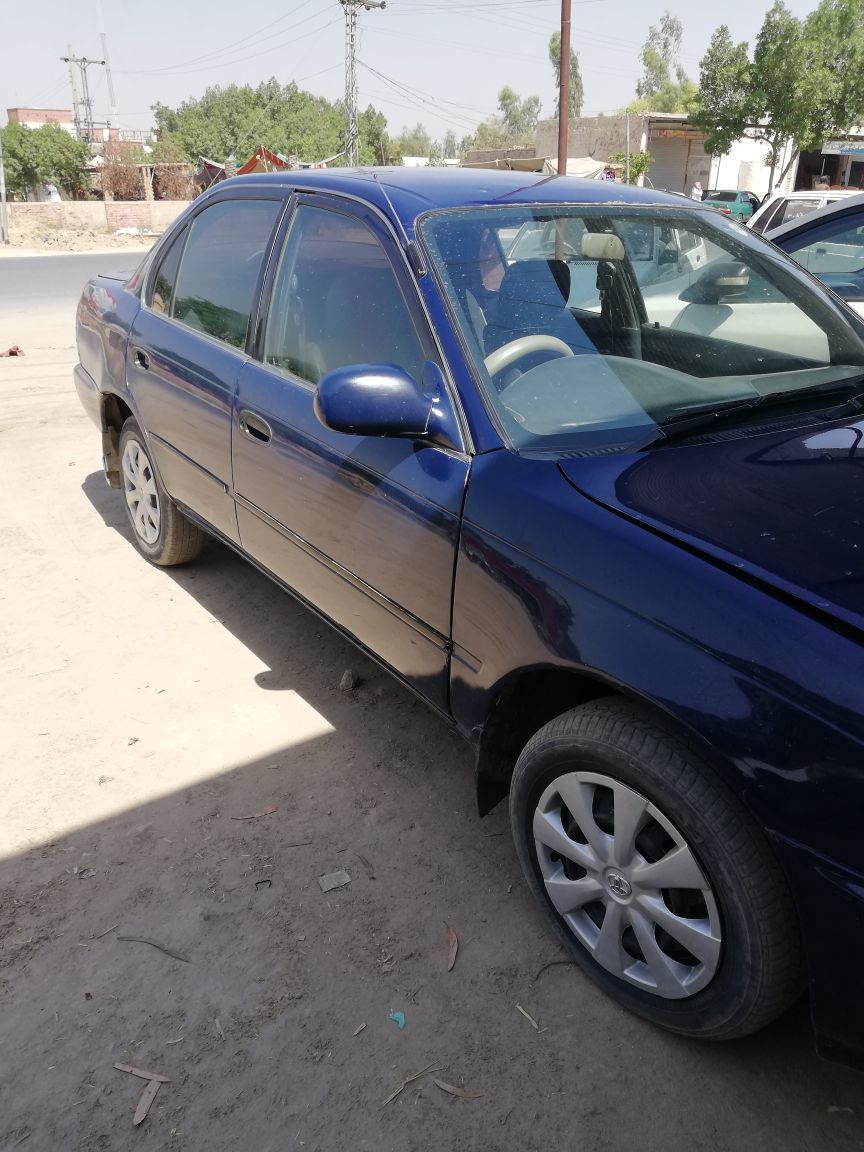

I was looking for a car with a reasonable price & finally got this Toyota Corolla GL 1994 with its original 2E 12 valve engine running on petrol. Its appearance is not that good, the colour is fading & it feels hammering all around the doors. The roof & pillars are in original paint, but there is slight rust on the roof edge where it meets the windscreen.
Drive-wise it feels better & AC is also working. Other than this, all the electronics are in working condition like power windows & central locking etc.

Sorry for the dusty car
Stay tuned for updates ...
UPDATE ...
The project is almost done. The car is transformed to this look now

You can go through the whole thread to get detailed & step by step info.
Cheers

[humayun.chughtai.7]

I planned to restore it completely, so I made a to-do list
1- Engine swap with proper uncut wiring
2- Dashboard (maroon) replacement with uncut JDM wiring.
3- All four doors, trunk, Bonnet & both fenders replacement with Kabuli ones.
4- Complete suspension replacement that includes shock absorbers, control arms, steering assembly & rear suspension.
5- Denting & painting.
6- New Alloy wheels & tires.

[humayun.chughtai.7]

As an Engine swap is the first thing to do
So I planned to visit Shoba Bazar, Peshawar, for engine swap & body parts replacement. After a market hunt for three days, I came across this clean piece 7afe with original M/T & uncut wiring + ECU. Here are some pics of the engine from inside

[humayun.chughtai.7]

It took three days for the complete swap with proper wiring & zero error codes, Alhamdolillah!

[humayun.chughtai.7]

Old carby 2e leaving the car.

[humayun.chughtai.7]

Engine bay needs cleaning.

[humayun.chughtai.7]

Here you go

[humayun.chughtai.7]

7afe beast sitting in the bay now.

Here I would also like to add that we replaced all the 4 engine mounts, one axle-cross was bad so replaced it as well. Plus kabli power steering oil pipes.

[humayun.chughtai.7]

Next day I bought all the required fluids from Chaudary auto, saddar.

After pouring all the fluids.

The mechanic cranked the engine & it started like a charm. The engine came to life with normal three revs of starter & I was surprised at that moment as I thought it would take long & long revs to start.

ALHAMDULILLAH! this was a happy moment for me because I was sceptical about the wiring & fuel pump placement. But the mechanic & electrician was good enough to handle these things.

[humayun.chughtai.7]

My electrician is a good guy. He understands all the basics & technical things. I asked him that each & every sensor should work & there should be zero error codes.
He removed complete wiring from the engine as well as interior & prepared the whole wiring loom on the table.

[Hassan1991]

Great work going on.
Car looks in a pretty clean condition.

[humayun.chughtai.7]

Wiring is nicely done within the engine bay.

[humayun.chughtai.7]

Thanks for the compliments, Sir. Yes, it is clean but only for someone who knows what and where to look i.e. "daikhnay wali nigaah".

[abdkhan2]

Its all due to ur hard work.

[humayun.chughtai.7]

After starting the engine, I took the car to the silencer shop for a 2" downpipe & bigger resonator, suitable for 7afe & new flex joint to avoid vibrations in the exhaust.
The car was silent & smooth after the exhaust work & down piping ️
Sorry, I was unable to take any pics during this job.

[399.ak]

Nice project going on.
Keep us updated.
🏼🏼🏼🏼

[humayun.chughtai.7]

It's all possible because of the help & guidance of you guys

[abdkhan2]

Any thing for u bro.

[humayun.chughtai.7]

Thanx for the appreciating replies. It's inspiring me to carry on such projects.

[abdkhan2]

Whats ur final aim? Sporty or simple
