Self Tunning - Khyber G-10 (Plugs, valve clearance, spark gap etc)

Tags: #<Tag:0x0000000a9cef78>

brownrose78 (brownrose78) 2022-01-23 07:08:14 +0500 #5098

Breakup price:
Axle inner star: 900
Rubber axle boot with clips: 300
Ball joint repairing with new bush in assembly: 600
Denter cost for welding crack: 300

@Hassan1991
Yes Thanks for close look. You are right, that marked area was treated by denter at that time otherwise it was not easy to close axle back.
300 charges mentioned above are of that work by Denter.

omersiddiqui5482 (omersiddiqui5482) 2022-01-24 08:36:11 +0500 #5099

The area marked should have been MiG welded! but something is better than nothing! Always have the car washed after rains.. The mud basically easts the car.

What is the situation of the Engine Crossmember now! How was that issue resolved?

I know SK engineering! Have had some work done by them some 10 years ago probably more. Rates were reasonable then too.

brownrose78 (brownrose78) 2022-01-24 11:50:46 +0500 #5100

@omersiddiqui5482
Yes, thanks for the suggestion. You are right; It seems necessary to get service/thorough wash after rain.

Car is now in moving position and thus i have brought to office too.

I will again give car today or tomorrow for the remaining works like changing Gadri and floor and repairing with patches in other rusty areas.

For the time being, Arif Uncle at S.K Engineering has put some extra customized metal washer which he will remove when i will complete denter's work otherwise that axle inner star will break again as per his experience.

munawar147 (BeStock) 2022-02-09 13:57:58 +0500 #5101

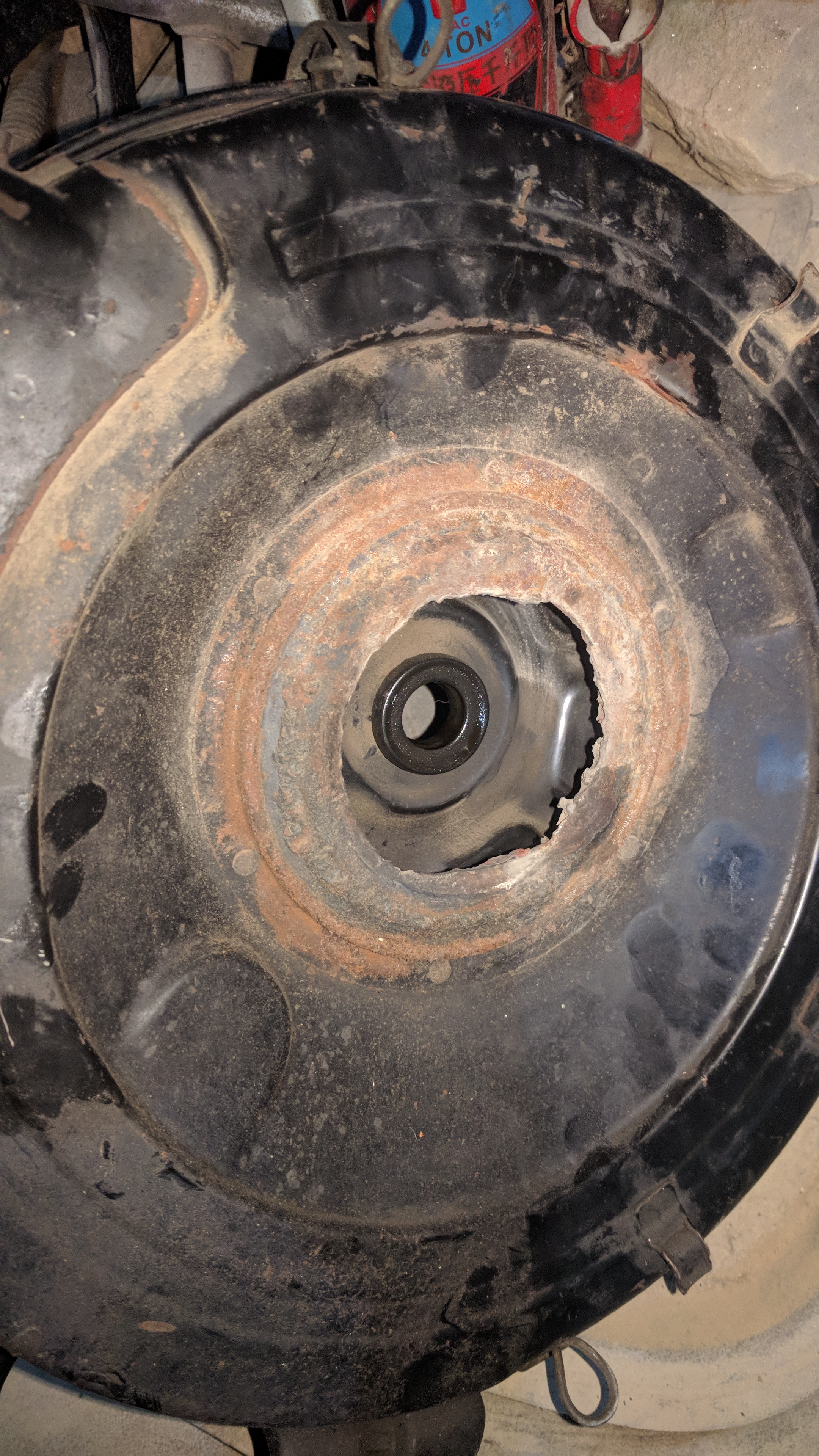

This air cleaner assembly need to be fixed, any suggestions?

It was taking air direclty from this broken hole.

helper_learner (helper_learner) 2022-02-09 18:58:38 +0500 #5102

This is the service manual for Suzuki Khyber I was looking for sooo long and finally I found the complete file

Attaching the link here so if others want to download it, they can…

https://data2.manualslib.com/pdf4/81/8049/804802-suzuki/swift.pdf?a1109ac3470557716eefec335e25a81c

If this link stop working tell me then I will upload on drive and share the link…

salman.r107 2022-02-09 19:14:41 +0500 #5103

Do you have the piece that was cut out of it? If so you can try having it welded. Btw, complete air filter housing assemblies are available in the market. You can opt to change it with a brand new one too.

salman.r107 2022-02-09 19:17:56 +0500 #5104

Nice! That's definitely a useful find thanks for sharing it. But i must add, this is actually for cultus (SF310/SF413), Khyber is (SA310/SA413). Nevertheless it does have overlapping useful information in it!

helper_learner (helper_learner) 2022-02-09 22:05:12 +0500 #5105

I didn't noticed that..
But they have same engine...

brownrose78 (brownrose78) 2022-02-10 01:03:56 +0500 #5106

@munawar147
Better to change it new instead of repairing this old one.

munawar147 (BeStock) 2022-02-12 14:27:51 +0500 #5107

I am trying to find this but till now, no luck. The only place is plaza for new one as suggested by auto parts dealers nearby.

But its condition is not bad and the original rubber seal on the upper lid also there which is rearly present. I am trying to fix it today.

helper_learner (helper_learner) 2022-02-12 14:35:44 +0500 #5108

https://www.daraz.pk/products/suzuki-khyber-air-cleaner-box-i107728166-s1256412564.html?dsource=share&laz_share_info=23586577_100_100_600033825076_22542384_null&laz_token=31ccc8e2949ea2ee9c98bd6fee2a42f2

helper_learner (helper_learner) 2022-02-12 14:46:55 +0500 #5109

You can order it from here and till it will be delivered you can temporally set and seal it using rtv silicon...

munawar147 (BeStock) 2022-02-13 22:52:36 +0500 #5110

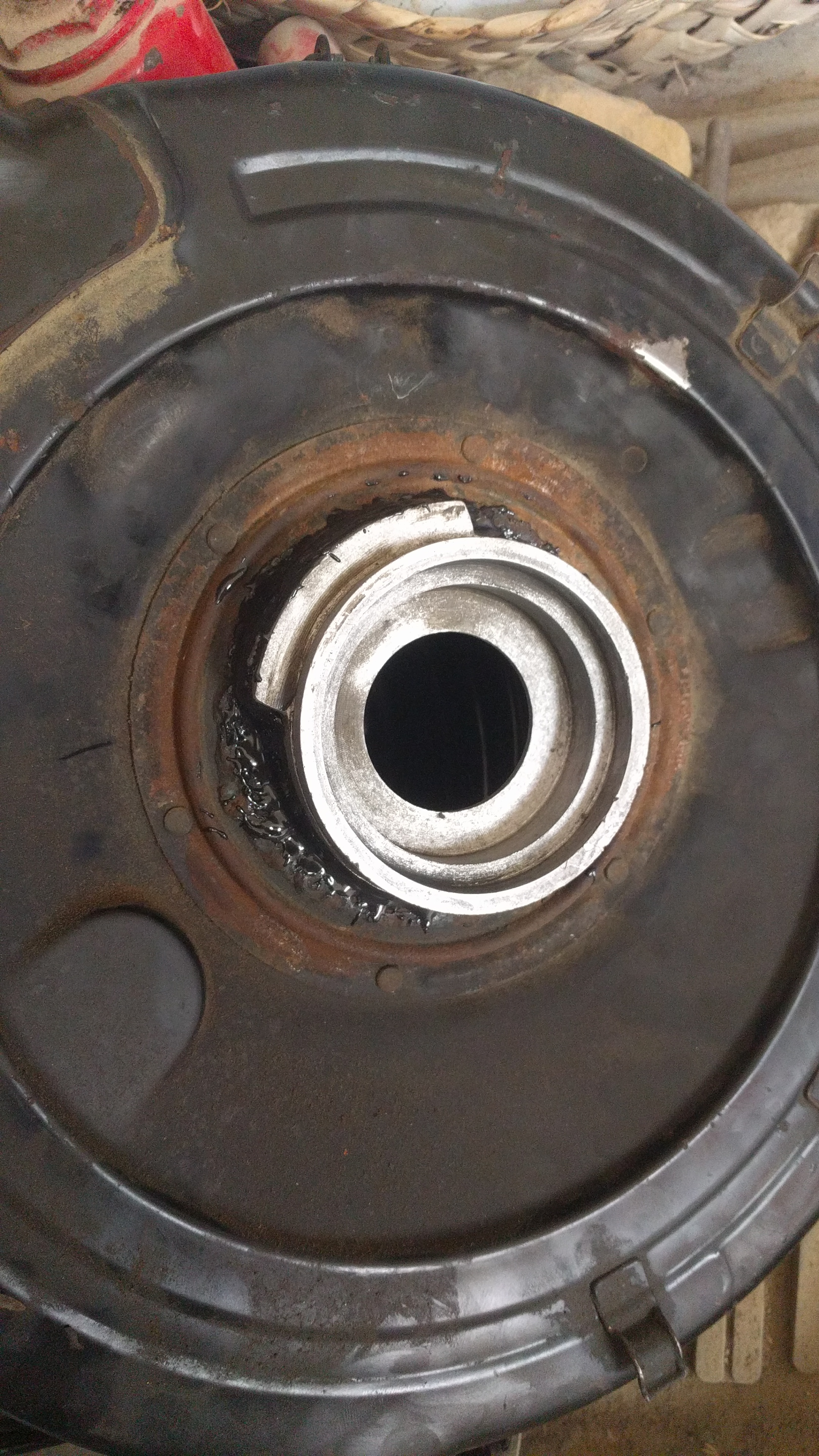

Thanks, but no need of it here is the fix, and its working awsome. Fit as stock.

helper_learner (helper_learner) 2022-02-14 12:25:00 +0500 #5111

just place a seal in between else it will make noice and might leak air...

munawar147 (BeStock) 2022-02-14 13:48:07 +0500 #5112

Ofcourse O ring type rubber seal is there. I don't want any air leaks thats why I fix it.

helper_learner (helper_learner) 2022-02-14 13:53:15 +0500 #5113

uppalslink ( uppal) 2022-02-14 21:24:29 +0500 #5114

bro wt is the name of guy of CNG technician near khana pul ? shop name ? contact num of him if u hv ? pl

munawar147 (BeStock) 2022-02-25 13:09:52 +0500 #5115

My cars driving side wheel got stuck after driving 2 to 3 kms, so I opened it and lubricate calliper pins with some oil. On that occation it works but after 3 or 4 days its happens again. What can be the issue? Is the calliper piston is a real culprit, Can I serviced that too?

Another issue is with the carburetor. Few days ago I gave it to carburetor guy, he serviced it and install new plunger piston. Now when I start my car after 6 or 12 hours it requires choke. Carburetor guy said due to long use on CNG the metal ball inside somewhere in accelerator pump is stuck and you need to replace the whole carburetor

He also told me to put some oil with petrol, according to him the metal ball maybe free after some running, and there is no other option.

Is there any way to repair it?

brownrose78 (brownrose78) 2022-02-26 01:00:39 +0500 #5116

Have you checked wheel bearing?
Change your Carburetor guy and find some sensible one

Btw in which city are you located?

munawar147 (BeStock) 2022-02-26 01:47:53 +0500 #5117

I am from Karachi, Do you have suggestions for carburetor mechanic?

And yes i checked wheel bearing and its perfect, last night I was not far away from my home when it happened, some how I return to my home and parked the car. I touched the rim and its hot I tried to push my car but driving side wheel is stuck. I left as it is for 40-45 min, and It free again like nothing happened.
